The Cooper MG…

This amazing ‘giant killer’ of a little car started out life as an example of that most mundane genre of racing vehicle, a factory production car!!


Arthur Wylie, Cooper Mk4 Jap, Bathurst, Easter 1950 (Blanden)

It was delivered as a JAP 8/80 engined long wheel base Mark IV Cooper and was a very early example, maintaining the forged Fiat Topolino 500 lower wishbones. It was the factory demonstrator for Cooper Car Distributors in Melbourne, Australia and had some early success when lent to noted driver, Arthur Wylie. In 1952 it was sold to George Pearse of Sydney who ran it consistently for two years in its original form.

So far nothing ‘Special’ about it. George, a renowned tinkerer and engineer, had other ideas though.

The Cooper, although a light and sure footed mount, lacked the punch, power and acceleration of George’s previous car, a supercharged MG-TC square rigger which George retained.

Why not an amalgamate the cars and get the best of both worlds, he thought?

George un-bolted the J.A.Prestwich  power unit from the rear of the chassis, shoehorned his blown MG-TC motor and gearbox into the front of it and moved himself rearwards!! A Ford V8 diff with a pre-war American style Casales three pinion drop box on the front allowed the driver to sit low and took the power out to the original Cooper  drive and suspension.


Diff as per text (Smith)

Brakes and wheels remained the same at 8” diameter and 15” diameter X 2 ½” wide respectively, the whole was clothed in a light weight alloy body of agricultural, but pleasing proportions.


Great shot of the red Pearse Cooper at Mount Druitt, Sydney, 4 September 1955 (TR0003)


Bathurst October 1955; The Cooper MG was a potent piece of work, like Dorcas full of good works, concealed by a bonnet bulge. It’s Cooper basis is evident. It lapped in 3:04.5, outed in the 50 miler when the carbon brush in the distributor disintegrated (Medley)


Bathurst October 1955; The Bryden TA/TC Spl had blitzed its MG competitors at Easter only to be out-engineered by Pearse’s all independently sprung Cooper MG (Bernard Coward/Medley)

George debuted his new creation at Bathurst in October 1955 and lapped in 3:04.5, slower than the Cooper Bristols and the V12 OSCA, but still a contender on this oh-so-fast road circuit!

A ‘smack’ at the AGP circuit at Southport led to the sale of the car, in damaged form, to Sydney speedway exponent and Offenhauser guru Ray Revell. Ray set to and replaced the Cooper box chassis with a spaceframe of his own design whilst using all the remaining serviceable components and upgrading to a stronger Peugeot 203 alloy rack and pinion.

He had it back on song and entered for Bathurst in October 1956.


Bathurst October 1956; Ex-Pearse Cooper MG rebuilt after it’s Southport accident now owned by speedway driver Ray Revell (Medley)


October 1956 Bathurst; Under 1500cc scratch race; Col James #7 Barclay MG from #18 Revell Cooper MG, #15 John Ralston MG TC Spl, #88 Doug Chivas Lotus and Harvey Clift MG TC Spl into Hell Corner (Medley)

Now looking like a true ‘Special’ it was within seconds of the big ex-Bira OSCA  and the D type Jaguar.

Ray eventually moved on to an Offenhauser powered Fiat and sold the car to up and coming Queenslander Lionel Ayers who lengthened the nose and added a more Vanwall type screen. He also fitted a 1500cc XPEG engine with a steel crank, Italian Nardi conrods and a Laystall-Lucas alloy head. This was all fed by a new Marshall J100 blower set up to deliver 22lb boost.

Ayers had great success with the car and raced it on equal terms with Jaguar D Type, Lotus 12, Repco-Holden and Ferrari cars.


Lionel Ayers, beautiful colour shot of the Cooper, note the longer nose, at Lowood, Queensland in 1959 (Davies)


Lionel Ayers in the Cooper MG ahead of Curley Bryden’s Ferrari 125, Bathurst, 30 March 1959 (Ayers)

The car was fitted with the larger Cooper Bristol brakes and wheels when the donor car (the WM Cooper) got its disc brakes and wobbly wheels, and prior to its sale to Hugh Gilroy about 1962.

Don Webster was the next owner and he did a prosaic re-commissioning of the car, running it in an emasculated form with twin 1 ¼’’ SU’s. It was in this form I first saw the car at the inaugural ‘All Historic’ Lakeside meeting in 1978.

During after race festivities I asked if I could try it on for size and once I was in, I wasn’t getting out until a purchase was completed!!

Imagine my delight when it was delivered to my home 1200 miles away in Melbourne when it was discovered that the garbage bag in the driver’s seat contained all the original supercharger, manifolds and drive which had not even been mentioned during our negotiations! A complete restoration commenced immediately and the car took me, and subsequent owners, Ross Hodgson and Brian Gerrard to many victories in the ensuing days of historic racing in this country.

The car is still extant in slightly modified form but new owner, Graeme Louk, is enthusiastically returning it to its correct historic specification and recently had his first outing with it to great acclaim by all as it was 22 years since its last appearance.


(Smith)

Driving Impressions…

From a handling perspective the car had early ‘Cooper flop’ side to side with negative/positive camber change but if you divorced that seeming death wish from your left brain and just drove the car, it handled very predictably. The 10″ brakes were superb and initial understeer could easily be overcome by power application.

The supercharged engines torque was adequate and with only 3 1/2″ rims running Dunlop 4.50-L- 15 tyres, wheelspin and grip had to be closely managed, not the least reason being the cost of tyres!

The best, and most memorable feature of the car was being able to go one gear deeper into a corner, and brake one marker later than cars it competed against. This delivered rewards time after time.


(Smith)

Technical Appraisal/Specifications…

Chassis; a lightweight centrally disposed monoposto spaceframe front engine racing car.

Suspension; All independently sprung using transverse leaf springs centrally located on bolted towers of the early type but not modulated in roll by the later roller support system.

Front lower wishbones are Fiat Topolino. The top shocker points were relocated by me from under the spring in 1978, the original front sway bar is still fitted.

The rear lower wishbones are Fiat Topolino with the original light series 1100 Hardy Spicer shafts increased to 1300 series. The original style rear sway bar is fitted to the car.

Steering; 203 Peugeot rack and pinion


(Smith)

Engine;

During my ownership 1360cc (previously, in period and now again, 1500cc) it was fitted with an iron head (previously ,in period, and now again an alloy head is fitted)

My last dyno sheet from 1978 says we achieved 142 BHP at 12 lb boost and 9.3:1 static compression but I think camshaft technology will have eclipsed that figure, although it was sparkling in the day.

‘In period’ the car ran stub exhausts but an extractor system and muffler are now fitted for modern competition.


(Smith)



Transmission; The original Ford V8 diff and drop box were replaced by me with a Halibrand unit in 1978, the original is still in my possession

The original panels include the tail, sides, bonnet and the later model fibreglass nose. A driver roll over bar and seat belts have been fitted.

Checkout this wonderful YouTube footage of Gnoo Blas, Orange, NSW…

Look carefully in the first two minutes of the footage for Pearse’s elegant, red, Cooper MG #18 which appears quite a few times.

https://www.youtube.com/watch?v=dK7zXyWexr0

 Bibliography…

‘Bathurst: Cradle of Australian Motor Racing’, Turton & Armstrong , John Medley

‘Historic Racing Cars in Australia’ , Turton & Armstrong, John B.Blanden

Lionel Ayers, public domain article, TR0003, Stephen Dalton, Robert Davies

Authors archive-Greg Smith

Finito: Next article in this series soon features Wal Anderson’s 1957 Repco-Lotus-Holden sports-racer…


Colin Bond finessing the Holden Dealer Teams Holden Torana GTR XU1 Repco thru Murrays Corner, Bathurst, Easter 1973…

In fact ‘twas as much Brocky’s as Bondy’s as they tended to drive this Repco Holden F5000 V8 engined ‘Sports Sedan’ (Oz anything goes taxi category) in their home states. Peter Brock in Victoria and Bond in NSW, I suppose Holden Dealer Team chief Harry Firth worked out who drove the thing elsewhere.

By that stage Sports Sedans were starting to get a bit more scientific, check out my article on John McCormack’s Chrysler Valiant Charger Repco F5000 which provides both era context and some car specifics;

https://primotipo.com/2015/06/30/hey-charger-mccormacks-valiant-charger-repco/


This press shot a couple of days before the cars Sandown race debut in April 1973 shows the mid-mounted location of the cast iron Repco Holden F5000 V8, and change for the 4 speed Borg Warner ‘box, the engine cover provided some heat absorption, but not much! (M Bisset Collection/Melbourne Herald)

Harry decided to chase the ‘Toby Lee Sports Sedan Series’ $ at Oran Park and cobbled together this car which was the marriage of an LJ Torana chassis with a Repco Holden 500BHP injected F5000 V8 which was mounted right next to the driver to keep him warm.

Other specifications included a Borg Warner T10 four-speed tranny, Rose jointed, solidly mounted, coil-sprung Watts linkage rear end and wishbone and coil spring front end were the suspension modes. Brakes were F5000 issue calipers clamping HQ Holden rotors front and rear.

The car began life in ’71 as an HDT Bathurst 500 Series Production car and in ’72 was Frank Kilfoyle’s rally car before being gutted for its new role, Chris De Fraga reported in ‘The Age’ before the cars debut as a Sports Sedan at Sandown on 13-15 April 1973. It didn’t win too much in the way of major events but was a massive crowd pleaser and fast with two of the countries best steerers twiddling its MoMo.

Back to Bathurst Easter in 1973. Col Bond won all three of his races over the weekend in ‘The Beast’ with Peter Brock, in a good meeting for the Holden Dealer Team, sharing the Production Touring Car wins in an XU1 with John Goss’ Ford Falcon GT Coupe.

Credit…

Nigel Tait Collection/ Repco Ltd

Tailpiece: Brock at Calder, LC/LJ Toranas’ such a great looking car, the bellow of this injected V8 one not to be missed. Wheels are by Mawer Engineering in Sydney, very popular on Touring Cars and Clubmans of the day…


Finito…






Who is the Coolest Cat?!

Freddie Agabashian lookin’ a million bucks with his lean build,  fag, Ray Bans and ‘GI Joe’ haircut. He is aboard his Kurtis Offy Champcar at the San Jose Fairgrounds Speedway, meeting date uncertain but the photo post is dated 1 January 1950…

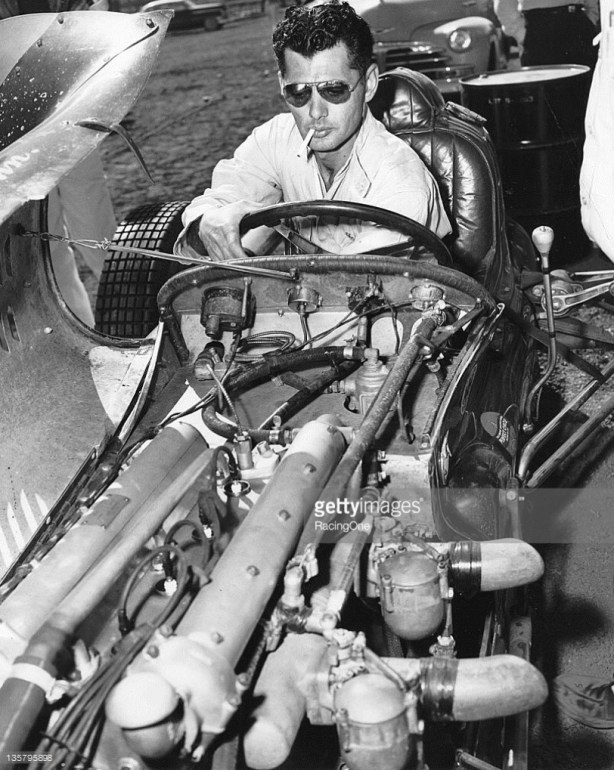

Of more technical note is the ‘Offy 255 or 270’ cid, 4 cylinder, DOHC, 2 valve twin side-draft Riley carbed 300-350 bhp engine, hand brake and rear suspension of his Kurtis Kraft chassis.

Northern California Racing Association Champion in 1937, against drivers such as Duane Carter, Lynn Desister and Paul Swedberg. Post war Freddie took 3 Bay City Racing Association Midget titles from 1946-48 driving for Jack London and George Bignotti from 1947. He then turned his attention to Indycars.


Troy Ruttman left and Freddie at the California State Fairgrounds, Sacramento,  in Kurtis Offy Champcars, October 30 1949. Aga won this AAA event with Troy 3rd (Racing One)



Born in Modesto, California, Frederik was the son of a genious Armenian mathematician who began racing in his teens. He won in Champ cars and Stock cars as well which earned him a ride at Indianapolis for the 1947 race.

He competed at Indy from 1947-57 and is best remembered for his pole winning effort in 1952 in the unique Kurtis Kraft Cummins Diesel. Frank Kurtis’ revolutionary first Roadster chassis carried the equally innovative 400cid, alloy headed, magnesium sumped but still very heavy cast iron blocked 360 bhp turbo-diesel engine. The oil burner was tipped onto its side 5 degrees from horizontal to lower the engine and as a consequence its bodywork and aerodynamic drag.


(Steve McKelvie)





Despite the cars bulk, it weighed over 3100 pounds Freddie and his team knew they had a fast car.

They ‘sandbagged’ in practice, never putting together a full quick lap in the month of May being fearful of the rulemakers changing the equivalence formula if the cars speed were clear. At the time the capacity limits were 6.6 litre diesels, 4.5 litre ‘petrol’ normally aspirated and 3 litre supercharged engines.

But come Pole Day at 5.45 with 15 minutes to go Agabashian gave the big heavy beast its head and popped it on pole! The race was not so happy, the turbo air intake became jammed with rubber and other track borne shite on lap 71 causing the interesting cars withdrawal but the promotional aims for Cummins were well and truly achieved.


Agabashian and team during Indy practice, Kurtis Cummins 1952 (unattributed)

Freddie’s best finish at Indianapolis was in 1953 when he placed 4th in another KK roadster, this time a more conventional Offy powered 500B chassis.

After he retired from racing Freddie was an Indy special comments broadcaster, he died in 1979.


Agabashian at Daytona in 1978 during his broadcasting days (Racing One)






I like this close up shot which shows the build, fabrication, panel fit and finish quality of these Kurtis cars, Agajanian again in ’52. Cripes it’s big! (Racing One)

Check out this YouTube footage about the unique, pole winning, the only time a diesel engine did it, Kurtis Cummins 1952 car;


1952 Indy start; Agajanian in red from #4 Jack McGrath Kurtis Kraft 3000 Offy (Racing One )


Credit…

Racing One, Historic Racing, Steve McKelvie

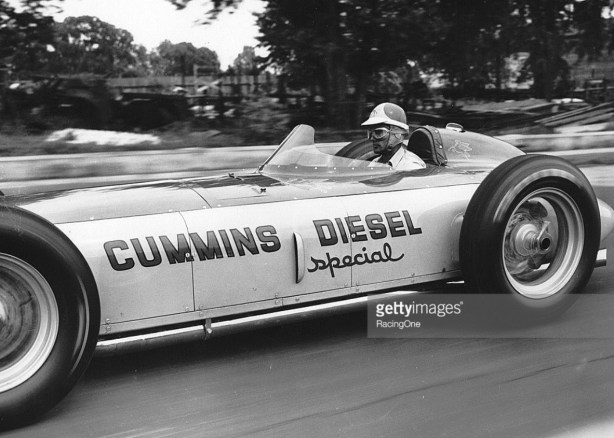

Tailpiece: Just watch me go fellas! Freddie, Kurtis Cummins, Indy ’52…
