Archive for January, 2024

(M Dupain/SLNSW)

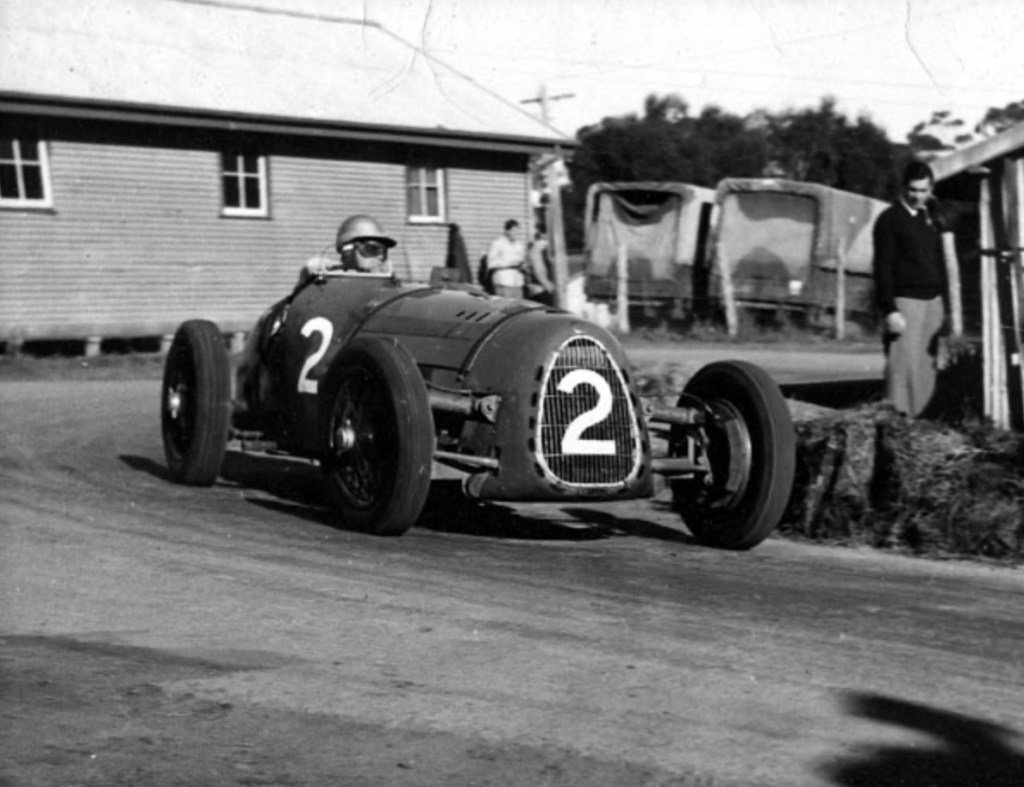

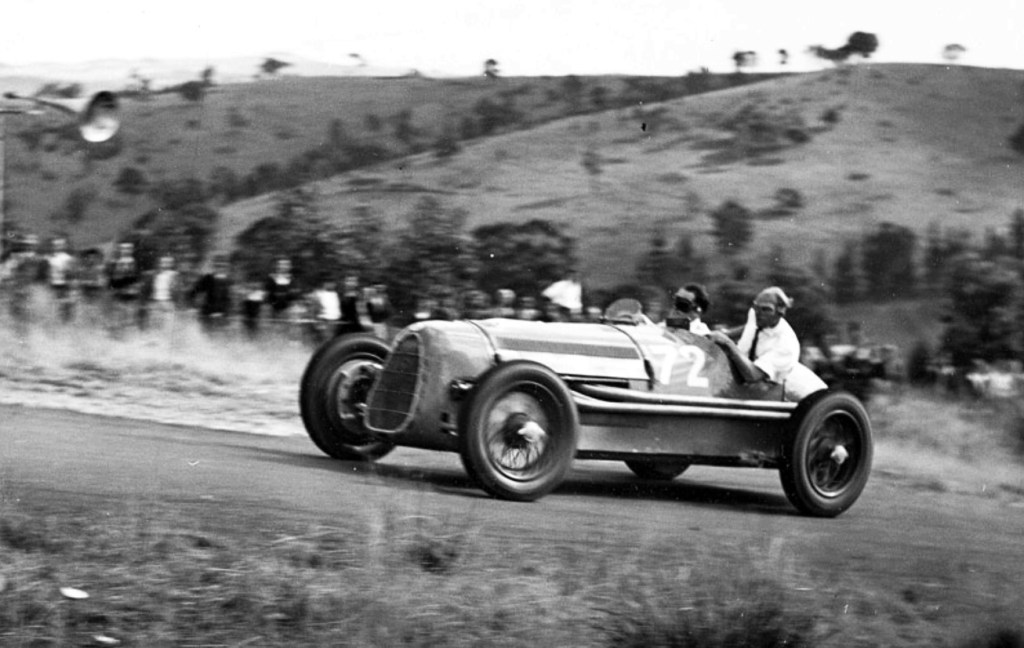

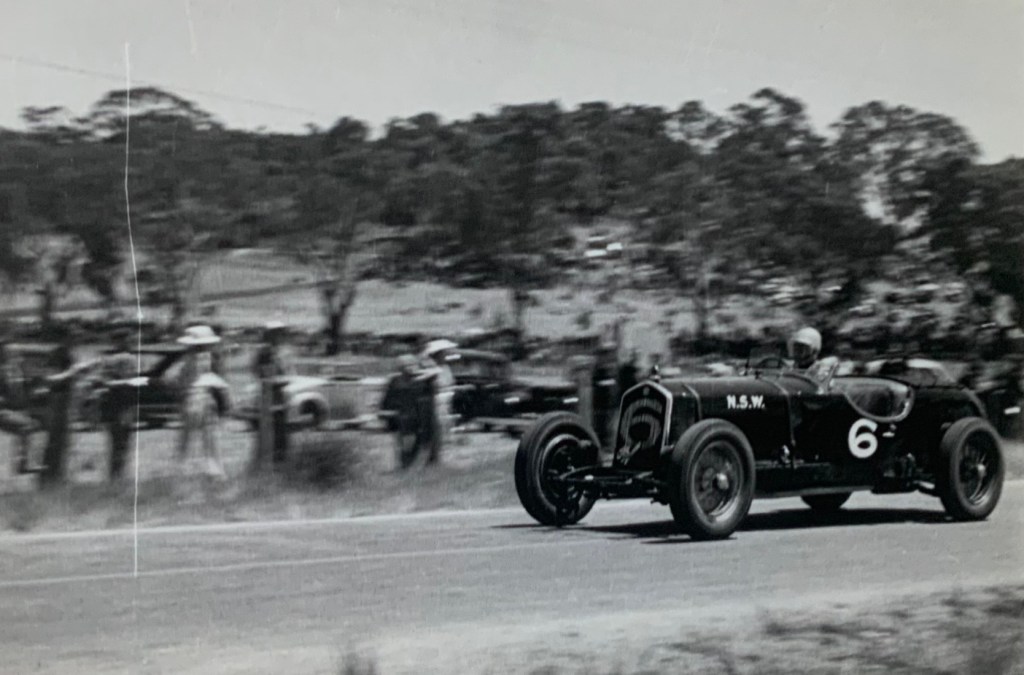

John Crouch plunges downhill on the Albury-Wirlinga road course – ‘on the border’ of Victoria and New South Wales – aboard his Alfa Romeo 8C 2300 Le Mans during the June 12/13, 1939 Albury and Interstate Gold Cup meeting.

The 76 mile race was won by Jack Phillips’ Ford V8 Special – the reigning champion – from the Hudson Specials of Bob Lea-Wright and Les Burrows. Crouch was fourth and proved his pace in this handicap race, handicaps prevailed in Australia at the time, with fastest race-time. See here for more information on the event and venue here: https://primotipo.com/2024/01/05/albury-and-interstate-gold-cup-1939/ and here: https://primotipo.com/2019/01/12/interstate-grand-prix-wirlinga-albury-1938/

Australian racer/entrepreneur John Snow imported this car to Australia in 1938, John Crouch acquired it shortly after it was offloaded in the Port of Sydney.

John Crouch aboard the booming 8C 2300 LM during the 1939 Australian Grand Prix at very fast, undulating Lobethal, South Australia (B King Collection)
#2311202 during scrutineering at Le Mans in 1933 (Alfa Romeo Archives via Simon Moore)

8C2300 Le Mans chassis #2311202 was one of nine cars built to this specification, five of these long-wheelbase machines with Touring bodies were built in 1933, ‘our car’ was the second of these and was registered by Alfa Romeo on June 6, 1933 MI43972.

Simon Moore wrote in ‘The Legendary 2.3’ that “We will never be 100% sure, but I think it is really almost certain that this (2311202) was the Chiron (1933) Le Mans car,” raced by Louis Chiron and Franco Cortese …” The car ran amongst the leaders until after dawn, leading on several occasions before Cortese lost control and crashed the car in the Esses after completing 177 laps/2388km; the winning Sommer/Nuvolari 8C 2300 MM covered 3144km.

These straight-eight, supercharged, 2336cc, circa 165bhp Alfas are Le Mans royalty, winning the 24-Hour classic four years on the trot: 1931 Lord Howe/Tim Birkin 8C 2300 LM, 1932 Raymond Sommer/ Luigi Chinetti 8C 2300 LM, 1933 Raymond Sommer/Tazio Nuvolari 8C 2300 MM and 1934 Luigi Chinetti/Philippe Etancelin 8C 2300.

2311202 was third in the 1933 Tourist Trophy at Ards in the hands of Tim Rose-Richards and was later owned by Peter Mitchell-Thompson – Lord Selsdon.

#2311202 at Le Mans in 1933 Louis Chiron/Franco Cortese DNF accident, also shot below (MotorSport)
(MotorSport)

John Medley wrote in his ‘John Snow: Classic Motor Racer’ that Aussie racer/entrepreneur Snow brought a large number of cars acquired in Europe to Australia in the immediate pre-war years, single-handedly improving the quality of our grids in the process. This Alfa Romeo was one of them, its shipmates were a Hudson convertible phaeton, 5-litre Bugatti Type 46 sedan and a Delahaye 135CS sports-racer (#47190) for Snow’s own use.

John Crouch became one of Australia’s most talented post-war drivers, winning the 1949 Australian Grand Prix aboard that very same Delahaye 135. Soon after the Alfa arrived in late 1938, Crouch entered chassis #2311202 in the ill-fated Parramatta Centenary Trophy Race on November 5, see here for that story: https://primotipo.com/2018/02/27/parramatta-park-circuit/ while Crouch’s AGP triumph is recorded here: https://primotipo.com/2022/10/05/1949-australian-grand-prix-leyburn/

He then shipped the car via coastal steamer to Port Adelaide and entered the 1939 Australian Grand Prix held at Lobethal in the Adelaide Hills on January 2. He was seventh in the race won in celebrated fashion by West Australian, Allan Tomlinson’s MG TA Spl s/c. Most of the big cars had tyre troubles in the extreme heat that day, Crouch had an off or two for this reason. He was a fast driver, but his pace with a still unfamiliar car wasn’t going to win him the race that weekend.

Other strong placings pre-war included fourth in the April 1939 New South Wales GP/150 Miles Road Race at Bathurst, and third fastest in a hillclimb and flying quarter-mile event at Mount Panorama in June. He was seventh in the NSW Road Race at Bathurst in October, a period in which he mixed his road racing with speedway events aboard a 4WD Skirrow.

Into 1940, with events getting a bit skinnier as the War impacted, he was fifth in the 150-miler at Easter Bathurst, and at Albury-Wirlinga in June he was second and again set the fastest time of the race.

While clearly a very potent racing car, John Crouch regularly used it around town (rego’ EO772), having the machine maintained by Jack Saywell and John Snow’s Monza Motors emporium-of-speed in East Sydney.

Tom Lancey checks his MG TA’s mirrors before being eaten by John Crouch and passenger and Alfa Romeo 8C 2300 during the 150 mile race at Bathurst during Easter 1939 (Terry McGrath via Simon Moore)
Crouch, again at Lobethal in 1939 (B King Collection)

Victorian Colin Scott bought it in 1944 and had it fettled by Alf Barrett’s mechanic, Alan Ashton and his team at AF Hollins & Co in High Street, Armadale. Barrett and his 8C 2300 Monza were the fastest combination in Australia in the immediate pre and post-war periods. Scott was a frequent class winner at Rob Roy hill climb and a regular Vintage Sports Car Club competitor.

In 1949 #2311202 was bought by racer/pilot/dealer John Barraclough who onsold it to Tom Luxton. He raced and hillclimbed it, sometimes using the pseudonym James McEwan; McEwans was the family company, a 140 year old, national, retail hardware-store chain that was ultimately swallowed by Bunnings in the 1990s.

Howard Kiel owned the car next. Simon Moore wrote that Kiel was introduced to Louis Chiron at London’s Swallow Club by Tony Gaze. Chiron confirmed the car was French blue at Le Mans and “remembered it well and exalted its performance.”

Owner impressions are gold, Simon published Kiel’s impressions of the 8C 2300 outlined in an exchange of letters between the pair. “I well remember 2311202 as one of the most beautiful cars to drive. In fact I often drove it to work on the outskirts of Melbourne and raced Tony Gaze back to town many times. Through the streets the car was had to beat and exhilarating to drive. I sold the car when it became apparent it needed a comprehensive restoration.”

The next owner, Tom Roberts took great care of the car between 1958 and 1963 after which it joined the mouth-watering Doug and John Jarvis collection of 8C Alfas in Adelaide.

Australian Alfa Romeo owner/historian David Wright wrote in the February 2023 issue of Alfa Occidentale that “Doug Jarvis was particularly enamoured with this car and drove it at Mallala on several occasions. Following the death of Doug Jarvis, the 8C 2300 Le Mans was used regularly by his son, John, until, in 1975, it was acquired from the Jarvis Estate by Lance Dixon.”

(Reid Family)

Dixon, a successful Melbourne motor dealer and enthusiast reintroduced the car to VSCC events. Here Jack Brabham is taking then Prime Minister of Australia, Malcolm Fraser – a very tall bloke for a polly – for some quick laps in the car at a Sandown meeting in September 1977.

In 1982 Lance’s restoration team, led by Ian Ruffley, were commissioned to comprehensively rebuild the car in Dixon’s Eltham workshop. The colour reverted to its original French blue, having been red for its entire life in Australia. #2311202 was sold via auction in 1986 to a Dutch enthusiast who continues to actively campaign it.

Nice close up profile shot of John Crouch in the 8C 2300 during the Easter 1939 Bathurst 150 meeting. The car lost its best years of racing in Australia thanks to the war, not that #2311202 was alone in that respect, far from it…(F Pearse)

A Driven Man and Driving Force Behind Motor Sports…

Is the title of the late Barry Lake’s obituary of John Crouch – 15/8/1918-30/5/2004 – published in the Sydney Morning Herald on June 17, 2004. Lake was a talented racer, journalist, historian and publisher; his beautifully written tribute is reproduced in full.

In the 1930s John Crouch was widely known as Australia’s youngest racing driver. In 1949 he won the Australian Grand Prix driving a French Delahaye. Even before his retirement from active racing in the mid-1950s, Crouch was heavily involved in the administration of motor sport in this country. By the time he died, at 85, he was recognised by many as the elder statesman of Australian motor sport.

Throughout all of these achievements, Crouch was the consummate gentleman, always immaculately dressed, always driving a late-model performance car (usually Mercedes-Benz in his later years) and always he was polite and softly spoken.

His father, Cecil, had his own new car sales company for 10 years before John was born in 1918, and the elder Crouch dabbled in motor sport when he raced a Metz car at Victoria Park racecourse in Sydney.

After leaving Sydney Church of England Grammar School (Shore), to which he walked every day from the family home in Wollstonecraft, Crouch went to work for his father. So it was hardly surprising he developed a keen interest in cars and motor racing – although his father strongly opposed the latter, having realised it consumed vast amounts of money.

Crouch began racing an MG TA sports car when barely 18. Two years later, he finished fifth in the 1938 Australian Grand Prix at Bathurst. In the late 1930s he drove a wide variety of cars including a supercharged Alvis, a Fronty-Ford, a Skirrow four-wheel drive speedway car, and an ex-Louis Chiron Le Mans Alfa Romeo 8C 2300.

With the Alfa, Crouch set fastest time in the Albury and Interstate Gold Cup races on the Wirlinga road circuit in 1939 and 1940, along with a third place and two fifth places on corrected times in the last three major events held at Bathurst before World War II.

After the war, Crouch left his father to start his own business. “I wanted to buy and sell performance cars but my father was never interested in them,” he once said.

He imported cars from England, including the high-class Bristol and the inexpensive but loads-of-fun Dellow sports car, as well as many new and used examples of exciting sports cars. In 1953 he gained the Australian distributorship for Austin-Healey sports cars, when the local Austin distributors rejected it as a folly. Crouch described it as a bonanza that sold beyond anyone’s wildest expectations.

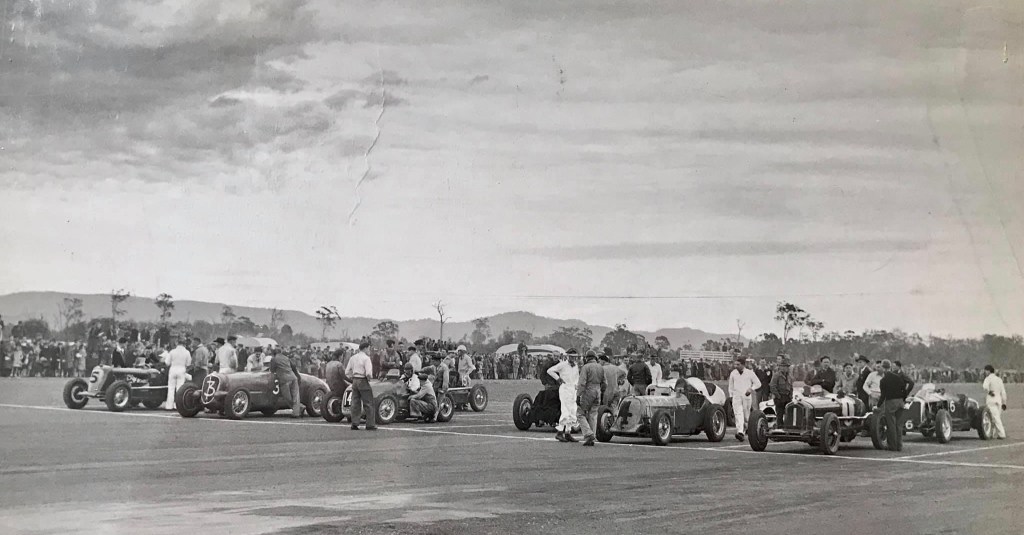

The grid of the 1947 NSW Championship, Nowra airfield, June 16. #5 Jack Murray Mackellar-Bugatti Ford s/c, then #3 John Crouch Delahaye 135CS, #14 Alec Mildren Ford V8 Spl, #4 Frank Kleinig, Kleinig Hudson Spl and Alf Barrett, Alfa 8C2300 Monza. The handicap race was won by Tom Lancey’s MG TC, Crouch was eighth (J Hunter)

Immediately after World War II Crouch had bought a fast and reliable French Delahaye sports-racing car. It had a fastest race time at Bathurst to its credit, and Crouch scored second-fastest there with it in 1946.

But the one race to win then, as the Bathurst 1000 is today, for Australian drivers was the Australian Grand Prix. In 1948 the event was held at Point Cook in Victoria in blazing heat. The Delahaye scored third-fastest time but the handicap start resulted in his finishing only eighth.

The following year the race went to Queensland, on a wartime airstrip at Leyburn. Also for the first time, it was run from a scratch start, as is the case for today’s major events. Crouch was ready to pounce when the early pacesetter faltered. The blue Delahaye crossed the line a clear winner and John Crouch had achieved his life’s ambition.

In the early 1950s Crouch began to import and sell small, lightweight rear-engine Cooper racing cars. He sold the Delahaye and raced Coopers to promote them. He was ahead of his time. By the end of the decade Coopers were dominating Australian racing as they were the world championship. In Crouch’s time, however, they were fast but unreliable. In 1951, for example, Crouch’s Cooper set fastest race lap in the Australian GP, but retired with mechanical problems. In retrospect, he sold the Delahaye, had he kept it, would have been capable of winning the GP again in 1950 and 1951.

In 1953 Crouch sold a more modern, faster and more reliable Cooper-Bristol to Tom Brabham, for his son, Jack. The latter made his name in that car and went on to win world championships in 1959, 1960 and 1966.

Crouch’s final outings as a driver were in the Redex Round Australia Trials in 1953 and 1954, and the 24-Hour Race at Mount Druitt in 1954. He had planned to race in Europe before quitting the sport, but ran into financial difficulties when he expanded into importing tyres and tractors.

He retired from racing, closed his business and used his remaining resources to buy land and build apartment blocks in suburbs such as Dee Why. “Real estate was going so well at that time,” he said, many years later, “Any idiot could make money out of it.” He was comfortably well-off by the time the bust came in the 1970s – unlike many of his friends, who, he said, “had borrowed to the hilt and lost everything”.

Crouch had been the NSW state councillor for the then newly formed Confederation of Australian Motor Sports in 1953 and continued in various capacities with this organisation for many years, receiving awards for his contributions to motor sport. He also acted as clerk of course at a number of major events.

Crouch had two sons, John and David, with his first wife, Vivian. They eventually divorced, but remained good friends. Crouch’s second wife, Valerie, died in 1995. They had two daughters, Caressa and Penelope.

Crouch was reluctant to marry again, fearing a third would brand him a “womaniser”, but eventually he met June, whose lust for living a full life matched his own. They married and spent much of Crouch’s final few years travelling in South-East Asia and Europe, as well as attending various motor sport functions in Australia as honoured guests. That came to an end when Crouch suffered circulation problems that led to a series of strokes and heart attacks. He died in a hospital in Gosford.

Etcetera…

Sydney Morning Herald June 13, 1939
(Motorsport)

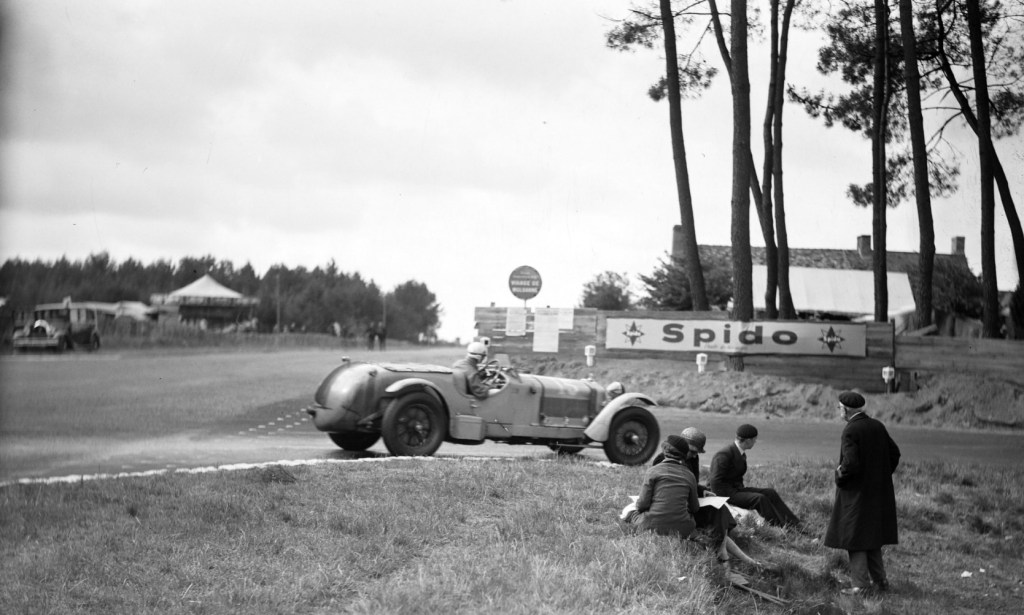

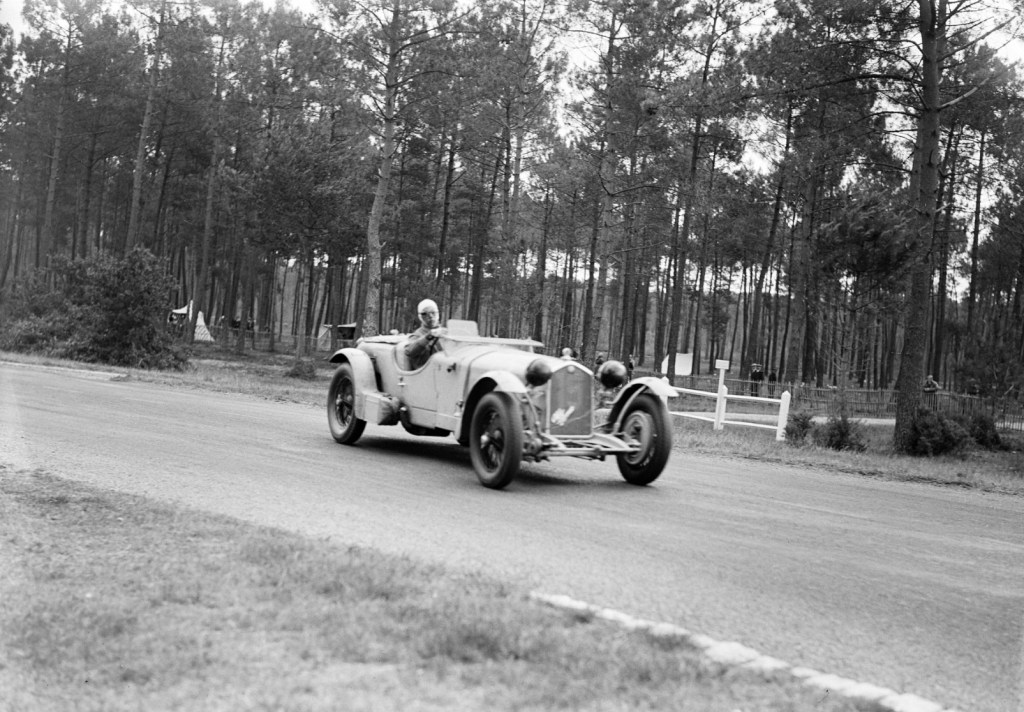

Another shot of Louis Chiron or Franco Cortese at Le Mans in 1933 aboard #2311202. And pits hots as below.

(S Dalton Collection)

The above issue of Restored Cars had a 50th anniversary of The Australian Grand Prix feature, and articles on some of Lance Dixon’s cars of the time including the 8C, as above.

Credits…

Max Dupain-SLNSW, ‘John Snow: Classic Motor Racer’ and Bathurst: Cradle of Australian Motor Racing’ by John Medley, ‘The Legendary 2.3’ Simon Moore via the Bob king Collection, MotorSport Images, Reid Family Collection, John Hunter Collection, Fred Pearse, Sydney Morning Herald – Barry Lake, Stephen Dalton Collection

Tailpiece…

Finito…

Arnold Glass and Clive Adams involved in a real estate dispute at Mount Druitt in August 1956. Maserati 4CL, ex-Sommer/Vennermark/Warren #1555/1579 and HRG Holden, ex-Ravdell now Shane Bowden.

Australian Motor Sports wrote about the change in ownership of the Maserati to Glass as follows, “The Late Cec Warren’s 1 1/2-litre Maserati has at last found a new home in Sydney. New owner Arnold Glass is perhaps better known as the only person in Australia possessing a Mustang fighter for his own private flying. This is a very potent piece of equipment as its performance is far superior to its wartime counterparts now that all the armament has been removed. If my memory serves me right, Arnold and the Mustang hold the Australia-New Zealand record even in this age of jets.”

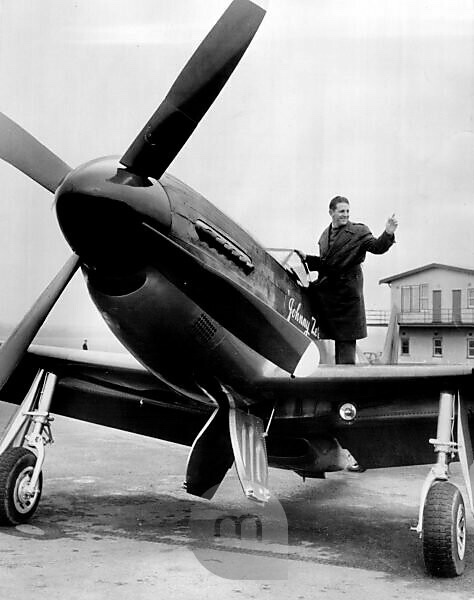

Arnold and Johnny Zero, Bankstown perhaps, August 9, 1954 (SMH-Mauritius Images)
Bright-red VH-BVM Mustang Mk20 at Bankstown in 1954, complete with 1954 REDeX Air Trial (DNF) and Capitol Motors branding (H Morris Collection)

Glass’ Commonwealth Aircraft Corporation built Mustang – CAC CA-17 Mustang Mk20 c/n 1330 / A68-5 VH-BVM G-ARKD – was one of the first 80 CAC Mustangs (A68-1 – A68-80) assembled at Fishermans Bend, in Melbourne’s inner-west, from 100 sets of semi-completed P-51D components supplied by North American Aviation – powered by pre-loved Packard Merlins – shipped from the US.

Brought on by the RAAF as A68-5 at Laverton on July 6, 1945, after a sedentary life of storage at Point Cook, Benalla and Tocumwal, the plane was sold to Sydney’s Flt Lt James LD Whiteman for £100 pounds in January 1953, he planned a spot of record breaking. Those with an interest in the life of this aircraft should click here: https://www.goodall.com.au/australian-aviation/mustangs-civil/austcivilmustangs.html

Among his many accomplishments, Arnold Glass was an aircraft engineer, doing some of his time (mechanic and fitter and turner) at Butler Air Transport. During his motorcycle trading years, in 1947, he bought a Tiger Moth and learned to fly.

Enroute to building his Capitol Motors business into an automotive importing, wholesaling and retailing colossus, Arnold had plenty of cash to splash on cars, boats, babes…and aircraft. His Australian Aviation Investments Pty Ltd company bought the Mustang on May 31, 1954.

AAI’s base was at Bankstown Airport, Sydney. Amongst his early aircraft deals, he imported three Perceval Proctors from the UK for re-sale in 1951. Glass never lost his interest in aircraft, among his purchases down-the decades were Lear jets, two ex-RAAF Vampire jets in 1971, and in the days he was domiciled in Monaco, RAF Lightnings and other jet fighters…as one does.

Ron Edgerton’s caption: “Arnold (Trinkets) Glass, Ferrari, Mt Druitt” 3.4-litre Ferrari 555 Super Squalo #FL9002, November 1957
Stan Jones and Arnold during the 1959 Bathurst 100 weekend, Easter. Motor traders and Maserati 250F exponents both; another 250F won that weekend, driven by Kiwi, Ross Jensen (R Donaldson)

‘Trinkets’ Glass didn’t use the Mustang much. He named it Johnny Zero in recognition of the racehorse which won him over £30,000 in partnership with Bill Duffy. During this 1955-early 1960s period his businesses grew dramatically – Capitol Motors was selling over 1000 cars a year by the mid-1950s – so too his racing, so spare time for flying would have been at a premium.

Glass got to know works-BRM racer Ron Flockhart on his trips to Australasia and was happy to sell A68-5 to him for Ron’s planned international record breaking attempts; the deal was done on August 25, 1960. This plane is the first of Flockhart’s two Mustangs, not the one in which he died when he crashed into Melbourne’s Dandenong Ranges shortly after takeoff on April 12, 1962. That story is told here: https://primotipo.com/2018/05/31/flockharts-flights/

Arnold Glass raced plenty of interesting racing cars: among them a Ferrari 555 Super Squalo, BRM P48 and BRM P48 Buick V8 and a couple of Coopers but he was perhaps most at home in Maserati 250F chassis #2616, a low mileage machine raced initially in Australia by Reg Hunt in 1956, then Bib Stillwell before Arnold bought it.

Despite being a bit dated amongst the new-fangled Coopers in 1959, he and his forgiving Maserati finished fifth in the Gold Star with a pair of second placings in the South Pacific Championship at Gnoo Blas and the Bathurst 100 that Easter, both standout performances.

Still in the Maser, he was equal fourth in the Gold Star in 1960 with Lex Davison and his Aston Martin DBR4/300, the front-engined pair were behind four Cooper T51s driven by Alec Mildren, Bib Stillwell, Bill Patterson and Jack Brabham.

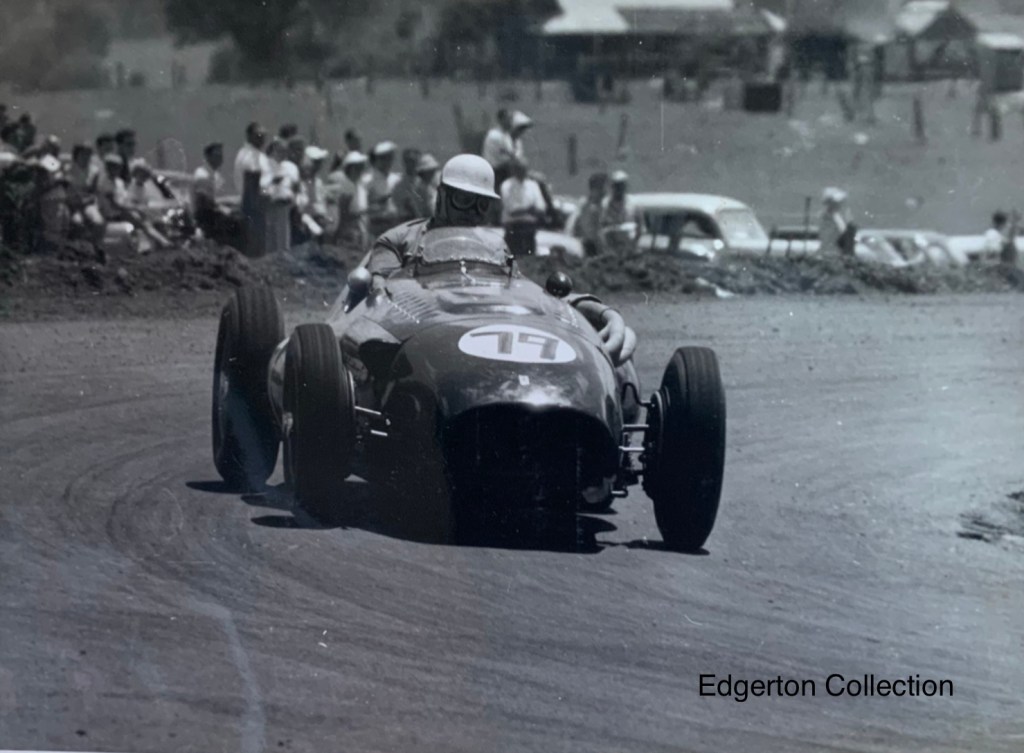

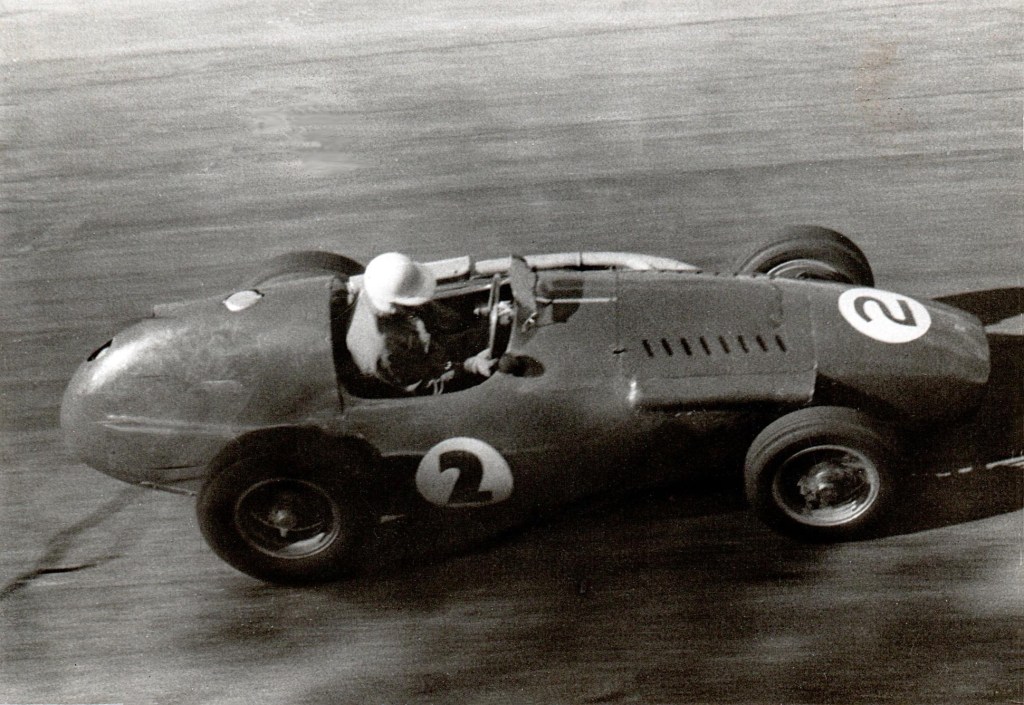

Arnold aboard the Maserati 250F during the Queensland Road Race Championship, Gold Star round at Lowood in September 1960. Sixth in the race won by Alec Mildren’s Cooper T51 Maserati – Gold Star winner that year (B Thomas)
Glass and BRM P48 #482 Buick V8 during the November 1962 Australian Grand Prix at Caversham, WA. Q7 and fifth – and a zig when he zagged type collision with Brabham’s BT4 Climax on lap 50 destroying Jack’s dice with Bruce McLaren’s Cooper T62 for the lead (K Devine)

Glass’ last Gold Star points were won in a Lotus 27 Ford twin-cam 1.5 at Sandown and Lakeside in 1964. He was second in the one-race ANF 1 1/2-litre Championship at Warwick Farm on September 26 sandwiched behind the first and third placed Brabham BT6/BT2 Ford twin-cams of Greg Cusack and Roly Levis.

By 1976 Capital were selling over 23,000 Datsuns a year, primarily from a massive seven-hectare site on Parramatta Road, Auburn, Sydney. The scale of the operation attracted suitors, and in 1977 Australian National Industries Ltd bought the company for $A28.43 million. Arnold owned 49%, he walked away with $A13.47 million or $84.5 million in today’s dollars, big-biccies.

Reporting on the sale The Bulletin characterised “Capitol’s chairman, Arnold Glass as a gregarious , flamboyant former racing-car driver and divorcee, with a stable of girlfriends, a taste for high living and a fleet of powerboats moored in front of his harbourside pad at Cremorne.”

Glass joined the ANI board as deputy-Chairman, ‘retired’ to Monaco in 1984 but regularly visited Sydney, where he died aged 83 on January 16, 2009. A man who lived life to the full…and then some!

Glass getting ready for the off during the October 1960 Craven A International weekend at Bathurst. Jack Brabham won aboard a Cooper T51 Climax, with Arnold sixth in his Maserati 250F. It was his last race in a car which had been kind to him; a Cooper T51 Maserati was it’s replacement. David McKay is the easy pick, who are the others present? (R Donaldson)
Arnold Glass in 1977 (The Bulletin)

Credits…

Australian Motor Sports October 1956, Sydney Morning Herald-Mauritius Images, Geoff Goodall’s Aviation History Site, Howard Morris Collection, The Bulletin July 2, 1977, Brier Thomas, Ken Devine, Bob Donaldson, Obituaries Australia, Paul Cummins-Cummins Archive, Ron Edgerton Collection, oldracingcars.com

Tailpieces…

(Cummins Collection)

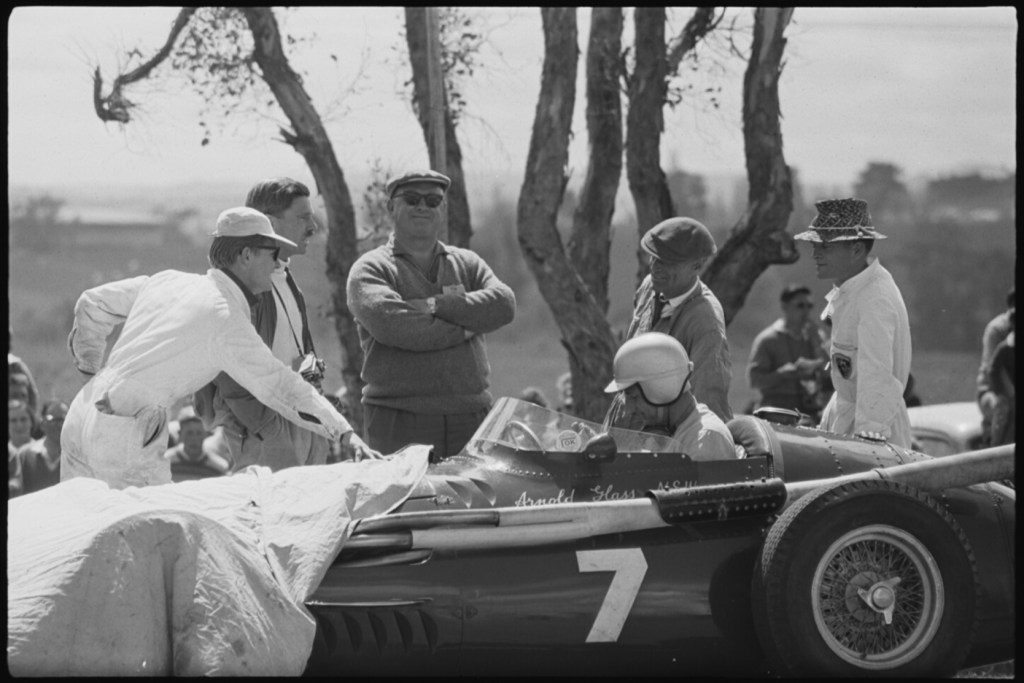

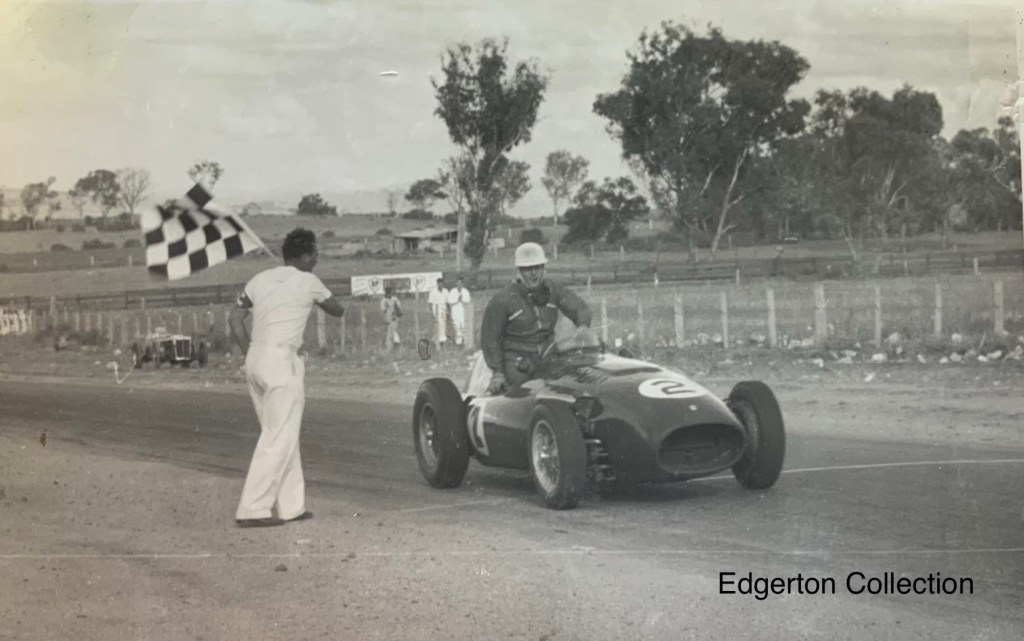

The Bathurst win that got away on the last lap, Ferrari 555 Super Squalo…

The Bathurst 100 was the feature race of the 1958 Easter weekend meeting. Arnold led a good field which included Ern Seeliger, Maybach 4 Chev V8, Alec Mildren’s Cooper T43 Climax, Bill Pitt’s Jaguar D-Type and Doug Whiteford’s Maserati 300S.

Looking good, the big Ferrari four-cylinder engine blew on the last lap, Arnold was able to roll up the rise and over the line (below) but not before Whiteford took the chequered flag, Glass was second.

Paul Cummins wrote, “The 3 1/2-litre 860 Monza engine was sent back to the factory, but it wasn’t until the end of the year that a replacement was sent back. It was a 2 1/2-litre GP engine and Arnold wasn’t happy with the performance and later sold the car.” The 250F was soon in his garage…

Finito…

(R Donaldson-SLNSW)

Frank Gardner’s Alec Mildren Racing Brabham BT23D Alfa Romeo 2.5 V8 passes the disinterested family of a flaggie – I’m thinking – during the February 1968 Warwick Farm 100 Tasman Cup round…

There is a lot to be said for being an all British Motor Corporation family, I learned to drive in Mumbo’s Morris 1100 and have always had a soft spot for the Land Crab! (Austin 1800). I’m sure the kids are busy with their Social Studies homework.

(R Donaldson-SLNSW)

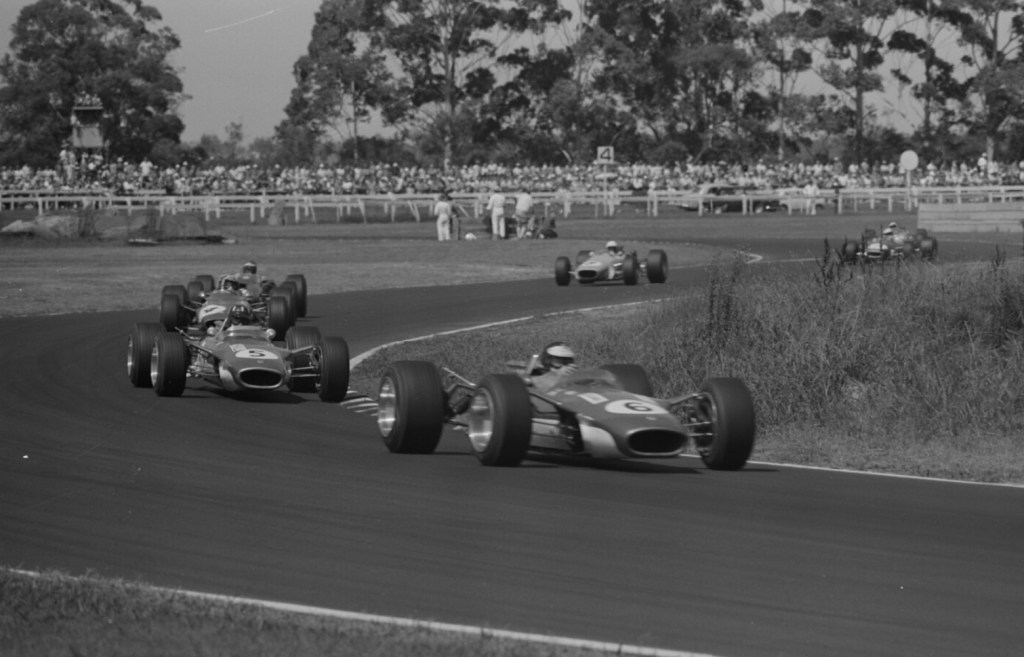

We’ve done this meeting to death before, the shot above shows Gardner in front of Jack Brabham’s BT23E Repco, Denny Hulme’s Brabham BT23A Ford FVA and AN Other.

(R Donaldson-SLNSW)

The race was won by Jim Clark from Graham Hill in the other works-Lotus 49 Ford DFW, then Piers Courage, McLaren M4A Ford FVA. The gaggle above, early in the race, shows Clark, Hill, Chris Amon, Ferrari 246T, Courage, largely obscured, then a gap to Gardner and Brabham.

See here for more on this race: https://primotipo.com/2015/04/14/warwick-farm-100-tasman-series-1968/

(D Simpson-oldracephotos.com)

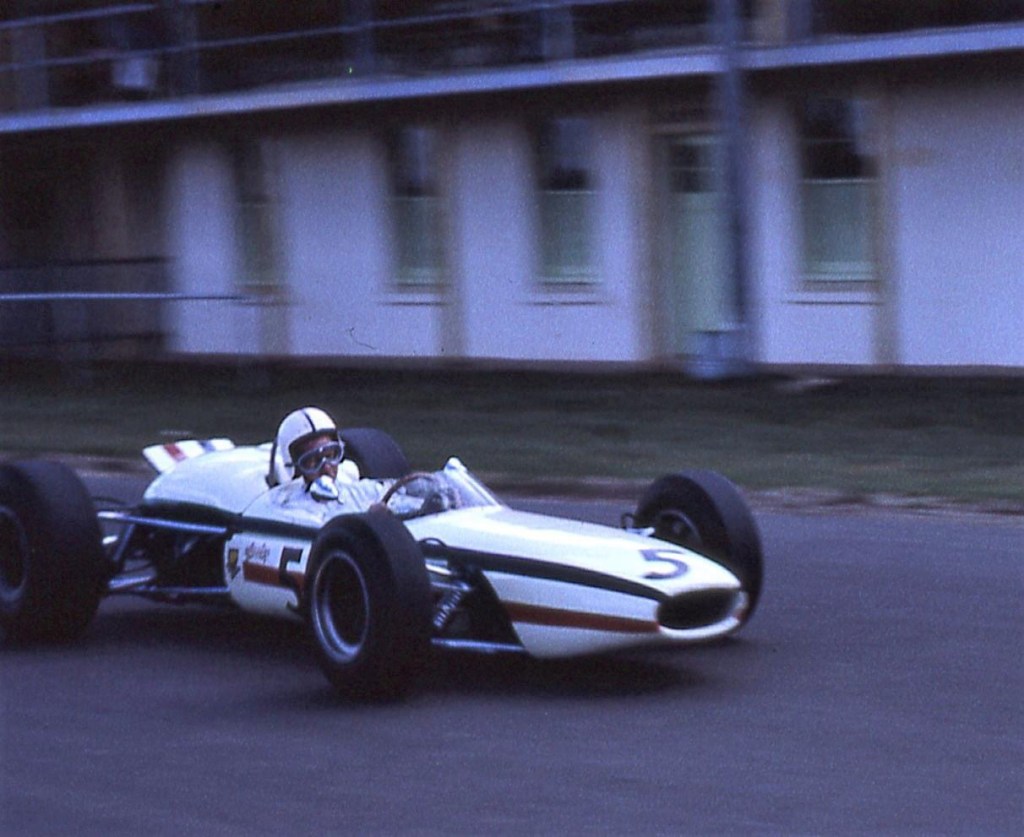

Here is a clearer shot of FG and the BT23D at Warwick Farm. It was a unique one-off BT23 variant ordered from Ron Tauranac by Sydney racer/Alfa dealer/team owner Alec Mildren to carry 2.5-litre variants of the engines fitted Alfa Romeo’s contemporary Tipo 33 V8 sports-racer.

I’m cheating though, this shot was taken on the car’s successful race debut in the Hordern Trophy, the final ’67 Gold Star round that December. See here for more on this car: https://primotipo.com/2021/07/06/mellow-yellow/

Credits…

Bob Donaldson-State Library of New South Wales, oldracephotos.com/Dick Simpson

Finito…

(A Boyle)

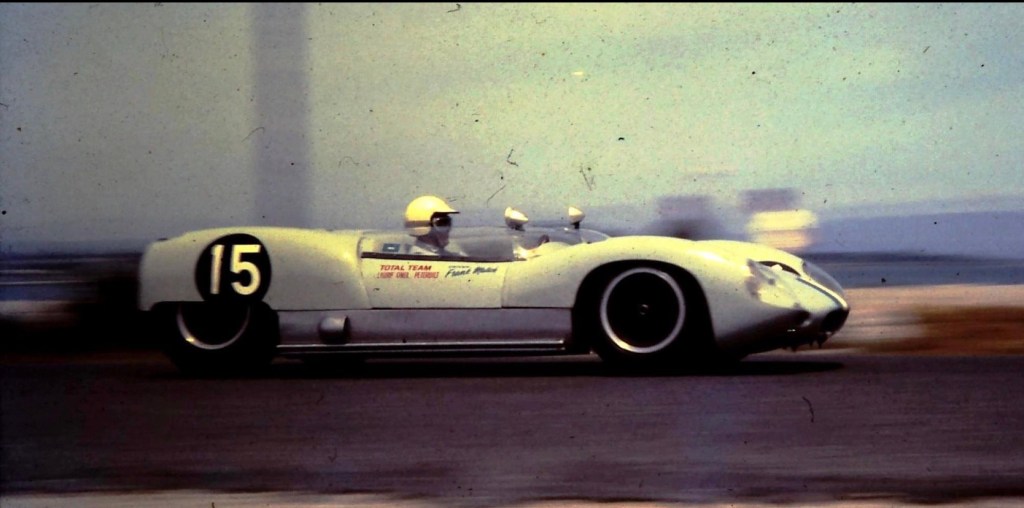

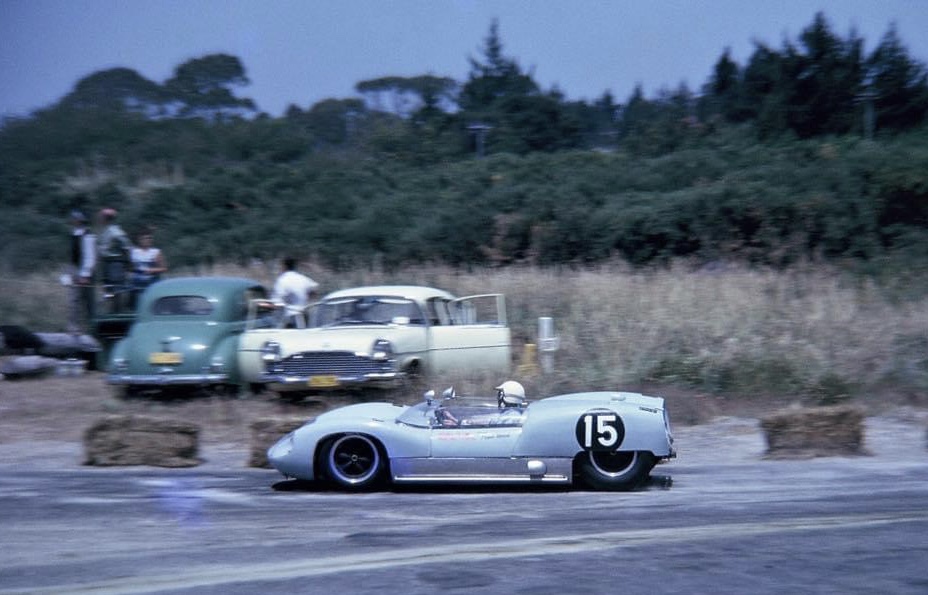

Frank Matich with a smidge of the opposites, guides his Lotus 19B Climax through Mount Maunganui, Tauranga in New Zealand’s North Island on December 28, 1963.

This short-lived 2.9km road circuit hosted two Bay of Plenty Premier Road Race meetings in 1962-63.

Matich led the ’63 feature in his new Brabham BT7A Climax (below) before throttle problems intervened, but he had more luck in the sportscar support, winning from Barry Porter’s Lotus 15 Climax.

(B Ferrabee)

FM’s Lotus 19 and 19B were important aspects of his rise and rise as a driver. Both cars were extensively developed by he and his small Sydney based team, so too the Brabham BT7A which still served it up to the visiting internationals in their latest cars 12 months later. The saga of the Matich Lotuses is here: https://primotipo.com/2017/09/08/bay-of-plenty-road-race-and-the-frank-matich-lotus-19s/

(B Ferrabee)

Who said Denny Hulme was the only Kiwi who lived in bare-feet!?

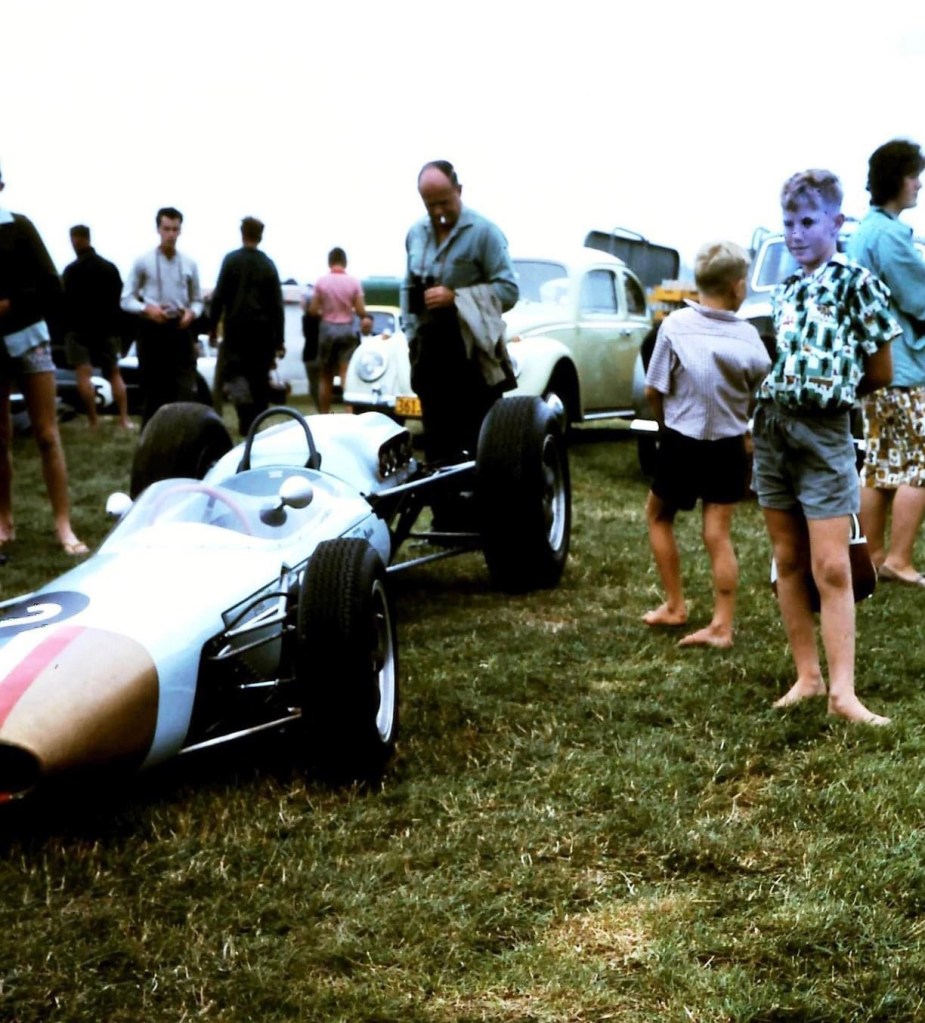

The Matich Brabham in its Total colours in the Pukekohe paddock during the 1964 New Zealand Grand Prix weekend, a fortnight after the Mount Maunganui meeting.

During 15 championship (Gold Star and Tasman) outings in BT7A IC-1-63 between December 1963 and July 1965 Matich was always a front runner but rarely a finisher. Frank’s best placings were second in the 1965 Sandown Gold Star round, and thirds in the 1964 South Pacific Trophy at Longford, and the 1965 Warwick Farm 100.

That latter race is indicative of Matich’s place in the order of things at the time. He started from pole in front of Graham Hill, Jim Clark, Bruce McLaren, Jack Brabham and Frank Gardner in the year old car.

(unattributed)

The all-Brabham front row before the South Pacific Trophy at Longford on March 2, 1964.

Jack Brabham on pole in BT7A with the similarly equipped Matich on the outside, sandwiching Graham Hill’s BT4. Hill won from Bruce McLaren’s Cooper T70 and Matich all Climax FPF powered. Jack suffered differential failure on lap 22, while McLaren won the first, 1964 Tasman Cup.

Red Dawson, Pukekohe November 1966 (M Fistonic)

Kiwi racer Red Dawson was the next owner of IC-1-63 and raced the BT7A from December 1965 to January 1969. His best with it was a win in the 1966 Waimate 50 and second placings in the Gold Star round that year at Renwick and at the ‘69 Pukekohe Gold Star round. The car was rebuilt as a sportscar in 1970, perhaps one of the Kiwis can tell us about that. See here for Allen Browns summary of the two BT7As: https://www.oldracingcars.com/brabham/bt7a/

Red Dawson and fellow racer John Riley and BT7A Climax (K Buckley)

Credits…

Alan Boyle, Brian Ferrabee, Milan Fistonic, Lionel Walker, Ken Buckley, oldracingcars.com

Tailpiece…

(L Walker)

The race debut of BT7A #IC-1-63. Frank Matich during practice for the Hordern Trophy Gold Star round at Warwick Farm in December 1963. Signalling his intent, he started from pole but retired after a collision with reigning Gold Star Champion, Bib Stillwell’s Brabham BT4.

It was well and truly game on between the relatively old bull (36) and relatively young thruster (27)…see here: https://primotipo.com/2018/07/20/matich-stillwell-brabhams-warwick-farm-sydney-december-1963/

Finito…

Charlie Dean’s Maybach 1 at Rob Roy in January 1949. The equipe behind is Micha Ravdell’s van and #38 Wyliecar Ford-A Special, still driven by its builder, Arthur Wylie. Number 9 on Maybach is a rego-disc (L Sims)

Even the contrarians amongst knowledgable Australian racing historians generally answer “the Maybach” when questioned about which racer was our greatest Australian Special.

It isn’t the Maybach though, but rather Maybachs – four of them – with no shortage of variants across the three chassis built. Whenever a photograph of a Maybach is uploaded onto social media there is always plenty of uninformed yibba-yabba about the specifications of the car in shot.

(Brian Caldersmith)
Charlie Dean and the brave Jack Joyce aboard Maybach 1 at Rob Roy in November 1947. The body is still to come. Wild road car! (L Sims)

One of our friends, John Ballantyne, prompted this article which I assembled to address the lack of accessible, accurate information about the specifications of Maybachs 1-4.

What follows is a copy of the technical specifications and evolution of the Charlie Dean and Repco Research built Maybach 1 published in an article of the Australian Motor Sports Annual 1958-59. The author’s name isn’t cited, but I’ve credited the editor of the book, Mr John Goode. The other two chassis – three cars – Maybachs 2, 3 and 4 will follow in my next post.

The article is focussed on technical information, not race results: this one that does that best, ponderous as it is: https://primotipo.com/2014/12/26/stan-jones-australian-and-new-zealand-grand-prix-and-gold-star-winner/ I hadn’t planned many photographs, but, as usual, my enthusiasm got the better of me…the period Repco ads are a visual device to assist in splitting one evolution of Maybach 1 from the next.

The photo choices are mine, so too are the ‘Notes’ sections, albeit almost all of that information is sourced from the same AMS article. I’m taking as-read a general knowledge of Maybach, if you need a refresher, click on the links at the end of this piece.

Six years later (from the 1947 shot) Stan Jones bolts away from the Europeans to win the October 1953 Victoria Trophy at Fishermans Bend in Maybach 1 S3. Behind is Doug Whiteford’s Lago Talbot T26C, George Pearse’s Cooper Vincent, and to the right, Ted Gray aboard Alta 21S Ford. Lex Davison’s Alfa Romeo P3 is partially obscured behind Maybach (L Sims)

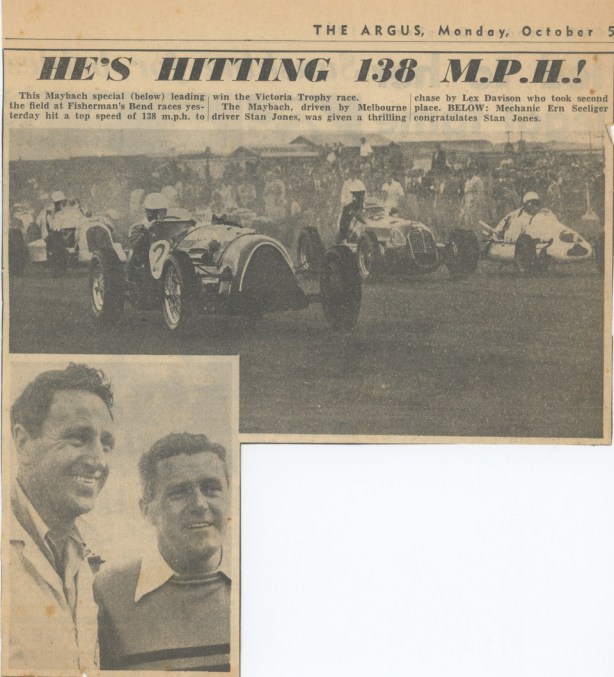

John Fleming’s copy of The Argus report of the 1953 Victoria Trophy – the preceding shot

One final contextual word from Australia’s greatest motor racing historian, John Medley, about the Maybachs and their place in the Australian pantheon before we set off, quoted from the ’50 Year History of The Australian Grand Prix’, specifically John’s 1948 AGP chapter.

“HC (Horace Charles) Dean’s car, powered by a captured German scout-car engine, was little more than a year old, and had only been given a proper body in 1947: even so, in its brief career of trials, hillclimbs and sprints it had already attracted a lot of attention for its very willing performance and for its relatively advanced specification. It was, for example, one of just four runners in the 1948 AGP with independent front suspension, and of those four the Maybach was the only Australian special – the other three were factory-built cars of pre-war design: John Crouch’s Delahaye, Frank Pratt’s BMW, and Cec Warren’s Morgan.”

“The Maybach and Delahaye (135CS) actually had a lot in common, not least that both had been laid down not as pure racers, but as big-engined road cars with competition potential although another point which should not be overlooked is that both were essentially very conservative designs.”

“The significance of the Maybach was that it was Australian built, by a man at the centre of a small but talented team, and that the car had development potential – just how much was not realised at the time. Between 1948 and 1960, Maybachs in various forms were to contest eight AGPs and to lead – if sometimes only briefly – five of those races.”

Maybach 1 during June 1949, Charlie Dean and Jack Joyce on the way to FTD (D Stubbs)
Maybach 1 during Rob Roy #16 in May 1948 (D Stubbs)

MAYBACH 1 (1946-1949)

ENGINE: 6 cyl. inline single oh. camshaft. Bore and stroke: 90 × 100 mm. Capacity: 3,800 c.c., Compression ratio: 6.43 to 1. Output (initially on pool petrol: 69 octane) 100 B.H.P. at 3,000 г.p.m.

Single casting cast iron cylinder block and crankcase, with sump joint well below the crankshaft centre line. Crankshaft machined all over and fully counter balanced, running in eight white metal lined bearings, one between each crank throw and an extra one behind the camshaft drive pinion situated at rear end of crankshaft. Wet liners fitted to cylinder bores with lightweight balanced connecting rods and other reciprocating parts.

Single camshaft running in seven white metal bearings, opening valves by means of rocker arms fitted with eccentric bushes which could be rotated and locked to adjust valve clearances. Rockers had roller cam followers. Valves inclined at 65 degrees in hemispherical head and located on opposite sides. Helical timing gears with idler (originally compounded fabric, but replaced by steel).

Wet sump lubrication through filter with pressure fed oil supplied to centre main bearings, then to other caps, and through the crankshaft to big end bearings. Also fed to valve rocker shafts and camshaft bearings. Carburettors: Two marine Amal.

Charlie Dean and Maybach 1 during the January 26, 1948 AGP weekend at Point Cook RAAF Base just west of Melbourne. It was the cars first appearance with a body fitted, and painted white. DNF magneto failure on lap 12, the passenger decamped before the off. Note the Studebaker steel wheels at the front (AMS Review 1958-59)
Maybach 1 at Rob Roy in May 1948. A swag of these sensational, uber-rare Dacre Stubbs’ shots appear to have been taken immediately after Maybach was repainted, in the front garden of Dean’s Kew, Melbourne, home. Six Amals at this point, in November 1947 there were two…(D Stubbs)
(D Stubbs)

TRANSMISSION: Clutch: Fichtel and Sachs. Gearbox: Four speed crash type from a Fiat Model 525. Rear Axle: Lancia Lambda Series VIl in standard form.

CHASSIS: Frame: Tubular steel consisting of two parallel 4″ dia. steel tubes with independent suspension at the front (Dean’s own design) and conventional twin half elliptic springs at rear.

Suspension: Front Independent with transverse semi-elliptic spring and wishbones. Mainly 1937 Studebaker Commander parts. Steering: Cam and roller box (Marles) with two piece track rod.

Wheels and Brakes: Front: Studebaker bolt on pressed steel wheels with standard Studebaker brakes. Rear: Lancia centre lock 19″ dia. wIre wheels and brakes.

(D Stubbs)
(D Stubbs)

BODY: Two seat from welded sections of aircraft belly tanks.

LATER MODIFICATIONS: Included 6 carburettors, reduction of weight achieved by new front end. Minerva brake drums fitted with specially fabricated shoes, and new cast steel liners, mounted on light steel backing plates. Centrelock wire wheels with adapted hubs to replace Studebaker wheels. Body frame lightened.

(D Stubbs)
While all the one-liners down the decades credit Frank Hallam with the body, there is no way that’s correct. FH was apprenticed as a mechanic. Who built the body, it was clearly executed by a talented specialist, surely? (D Stubbs)
(D Stubbs)

NOTES: The car’s engine came from a German half-track vehicle that had been captured during the Middle East campaign and shipped to Australia for technical study by the military. Dean acquired it from a wrecker. Built as a sportscar, Dean was cajoled into turning it into a racing car by George Wade, a Repco mechanic/engineer, after recording 100mph in a Vintage Sports Car Club trial. The body was constructed in time for the 1947 AGP at Point Cook using aircraft belly tanks cut and shut by Frank Hallam, another Repco employee – so the story goes.

Cockpit shot shows the car was a ‘reasonably generous’ biposto in early spec. Twin-tube frame chassis, note diagonal bracing of the forward driver bulkhead. Revs, oil pressure and water temperature at a guess. Attractive – ahem – steering wheel, what is it off? (D Stubbs)

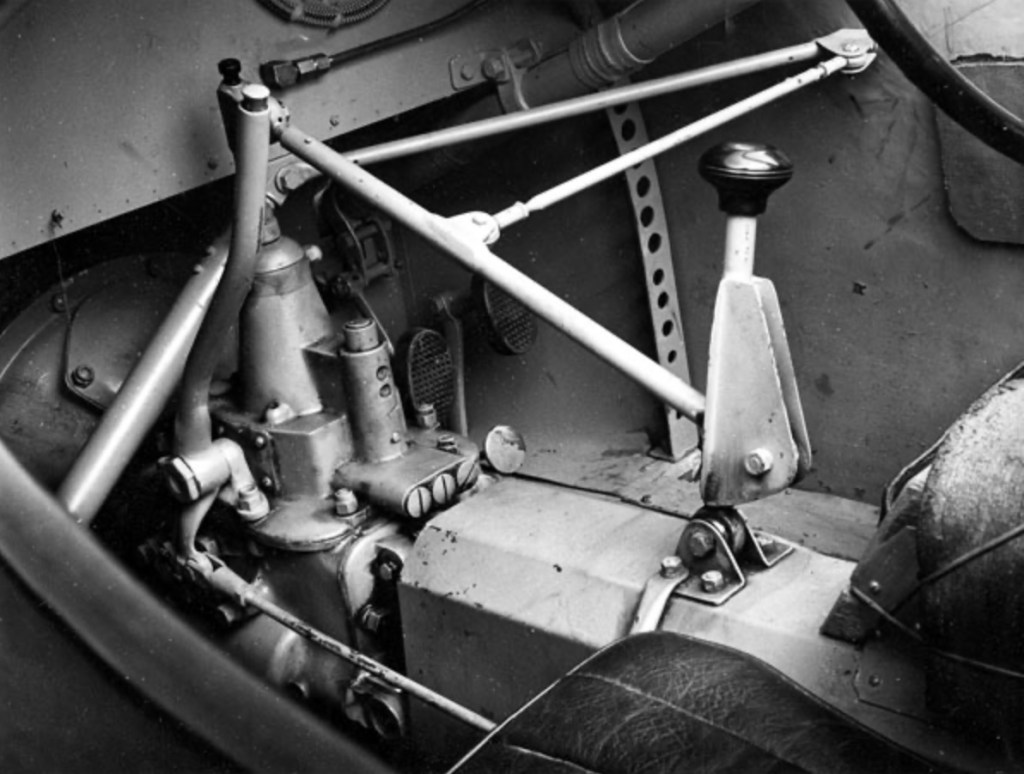

Neat remote shift – and locating stays to ensure easy accurate changes – to modified four speed Fiat 525 gearbox (D Stubbs)
(AMS Annual 1958-59)
Dean in Maybach 1 S2 competing in the Mornington Motor Races at the Balcombe army training base on Melbourne’s Mornington Peninsula in June 1950 (D Stubbs)

MAYBACH 1 Series 2 (1949 -1950/1)

Basically the same two seater sports/racing body and chassis with the following changes made from the original car.

ENGINE: 4.2-litre Maybach adapted to take developed parts from 3.8-litre original. Reground camshaft and special new main bearings. Original lead bronze bearings retained for big ends.

Supercharger: Ex G.M. diesel Roots type with three lobe rotors, mounted beside the motor driven by triple V-belts from the crankshaft nose; output 7 lb/sq. inch. Carburettor: Originally Claudel Hobson aircraft type replaced by Bendix-Stromberg aircraft type. Cooling System: Later sealed at blow off pressure of 4 p.s.i. Magneto: Adapted V-12 type but burnt out, subsequently Lucas.

TRANSMISSION: Differential: American Power Lock (1922 vintage truck) limited slip type fitted in modified Lancia housing.

CHASSIS: Rear Brakes: Special drums of original design using two leading shoes hydraulic system but replaced with leading trailing shoe hydraulics.

When Charlie Dean obliged Dacre Stubbs for the undated The Age (I think) article below he didn’t take Maybach 1 S2 too far, this shot is at the Willsmere Mental Institution in Kew. I grew up closeby, there were many occasions when Dad threatened to take us kids to The Nuthouse, as he sensitively referred to the place, when we misbehaved…(D Stubbs)
(J Fleming Collection)
Maybach 1 S2 at Rob Roy in June 1949 when Dean and Joyce bagged FTD. Wylie A-Ford Spl behind (L Sims)
(AMS Annual 1958-59)
Stan’s muscle-shirts were famous, here during the 1953 AGP at Albert Park. DNF with a variety of problems while leading in Maybach 1 S3 (S Griffiths)

MAYBACH I Series 3 (1951 – Early 1954)

Fundamentally similar in appearance to the two previous models, still a two seater but with suspension changes, three feet of rear chassis rails removed.

Modifications listed in order of introduction:

June 1950 – April 1951

Front suspension rebuilt: Studebaker parts replaced by Oldsmobile upper wishbones with integral shock absorbers. Transverse leaf spring redesigned to three leaf to reduce weight. Rear Suspension: Axle mounted on trailing quarter-elliptics with radius rods. It was this which necessitated cutting the rear end of the chassis.

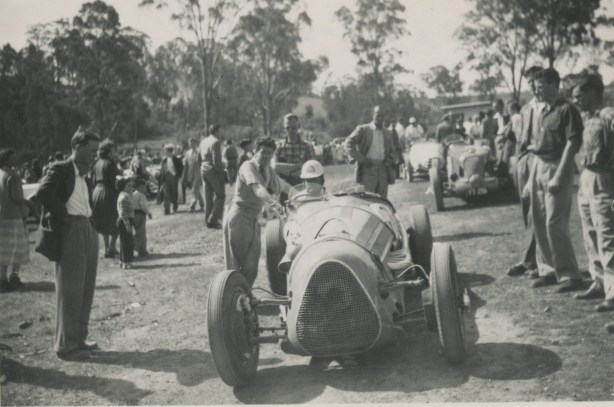

Stan Jones awaits the off at Templestowe in September 1952, Maybach 1 S3, see photographer/racer/engineer John Fleming’s comments about his shot below
(J Fleming)

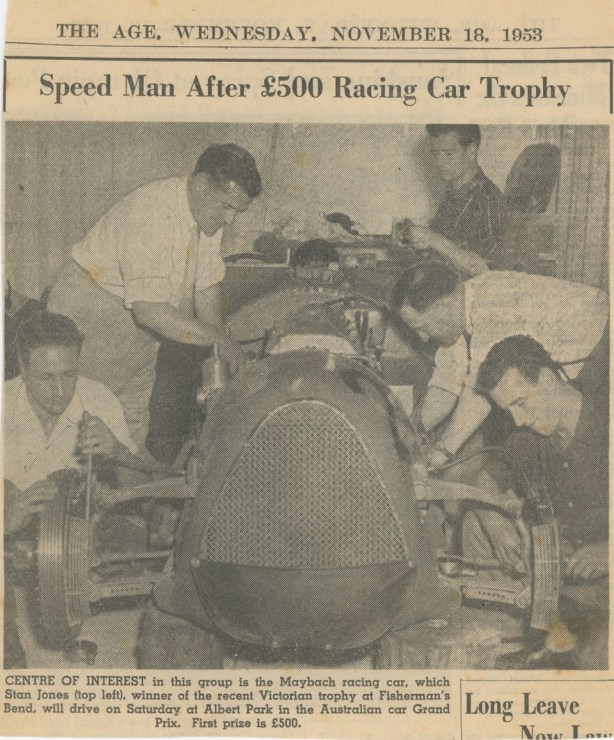

Posed The Age shot published on November 18, in the week before the ’53 AGP at Albert Park. Taken at Jones’ home garage in Yongala Road, Balwyn. From left, Ern Seeliger, Jones, Reg Robbins at the back, Charlie Dean and Lloyd Holyoak ‘working’ on Maybach 1 S3. Note the Oldsmobile top wishbones and (unsighted) lever arm shocks and transverse bottom leaf spring. One of the three big SUs is obscured by Stan’s arm
You can feel and smell Albert Park! Dacre Stubbs has tightly focussed his 1953 AGP start shot on Lex Davison, Jaguar powered ex-Moss HWM #3 and on Jones’ Maybach 1 S3; the ‘snappers framing of the shot heightens the drama. #7 is the legendary Frank Kleinig and Kleinig Hudson Spl with Cec Warren’s Maserati 4CLT alongside and #10, W Hayes’ Ford V8 Spl (D Stubbs)

Carburettors: Three marine Amals. Supercharger removed. Other Mods: Mild steel sheet head gasket fitted to engine raising compression ratio to 9 to 1.

Bodywork: Few obvious changes but considerable minor modifications. Framing modifled and lightened. Lighter radiator grille fitted, front cowl modified to give lower bonnet line.

June 1951 – September 1952

Carburettors: Three 1 3/4″ S.U. replacing Amals. Three special 2 3/16″ S.U. carburettors (originally designed for Lago Talbots) later fitted.

Tyres – Rear: 16 x 6.50 touring type (six ply). Subsequently four ply specially manufactured.

NOTES: Stan Jones bought the car off Charlie Dean in June 1951. Reports that the 1952 AGP would be held to F1 regs – 1.5-litres blown and 4.5 unblown, 1952-53 2-litre GP formula duly noted – meant the Maybach in 4.2-litre supercharged specs would have been ineligible so Repco Research developed a 3.8-litre unblown engine as noted above; three marine Amals fed the engine initially. Ultimately the ’52 AGP was held, as usual, to Formule Libre.

One of Jones’ pitstops at Albert Park in the 1953 AGP, Maybach 1 S3, Jag XK120 passes (D Stubbs)

The 1955 New Zealand Grand Prix programme recognised the achievements of Stan, the Repco Research team and Maybach 1 S3 in winning the 1954 event at Ardmore against international opposition the year before.

(AMS Annual 1959-60)

Etcetera…

(G McKaige)

Maybach 1 on Kew Boulevard at Studley Park, Melbourne before the start of the September 1947 VSCC One Day Trial. Alex Bryce’s Bentley 3-litre is behind. Note the twin-Amals, lump of wood to keep Charlie in-situ and slicks fitted up front!

(G McKaige)

By the time the VSCC Killara Park sprints were held at the Davison Lilydale farm in November 1947, Maybach 1 had grown four more Amals. The message to be taken is that Maybach(s), like all great racing cars, were in a perpetual state of development.

(J Montasell)

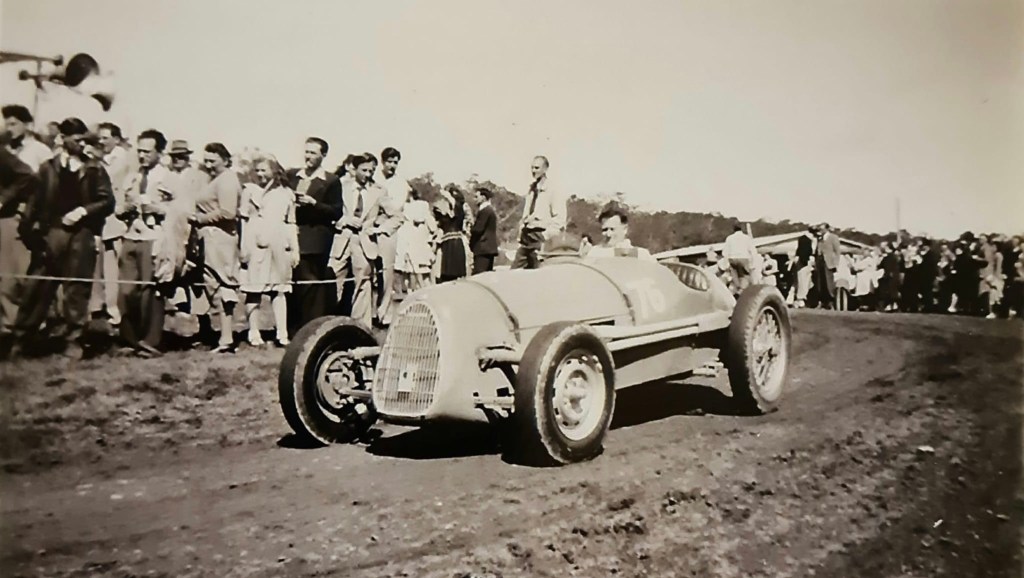

Charlie Dean at Rob Roy in January 1948, Maybach 1 obviously now bodied. Note the Studebaker pressed steel wheels and front drums compared with the shot of Maybach 1 in almost the same spot a year later below, with wire wheels and bespoke Minerva/PBR drums. Patons Brake Replacements – PBR – was another Repco Ltd subsidiary.

(J Montasell)
(G McKaige)

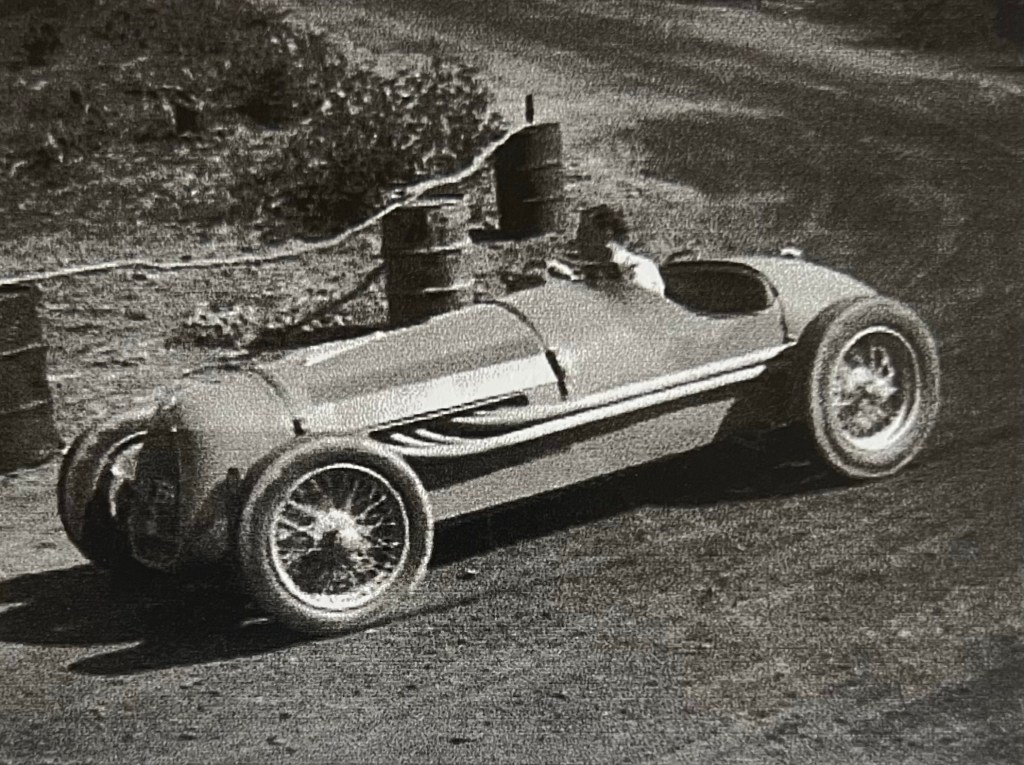

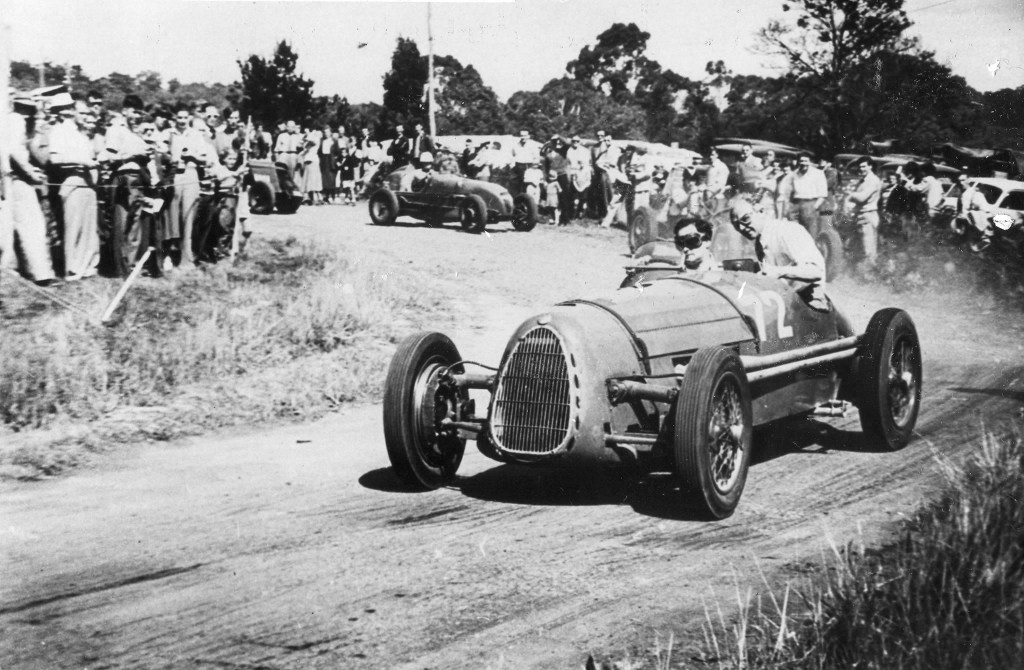

Charlie Dean cornering hard on Hurstbridge Hillclimb in April 1949, Maybach 1. He was second in the over 3-litre racing car class, Hurstbridge, to Melbourne’s east was used several times post-war.

(G McKaige)

Dean, Maybach 1 S2 competing in the Mornington Motor Races at the Balcombe military camp in June 1950.

Stan Jones in Maybach 1 S3 chasing Jack Murray’s Allard J2 at Parramatta Park, Sydney – the first meeting at the venue – on the Australia Day weekend in January 1952.

(J Fleming Collection)

Maybach 1 S3 this is The Age shot shown earlier, with the article as published. If somebody has a photograph of the Victoria Trophy we would all know if the annual for many years event was the Victorian, or Victoria Trophy. Both names are bandied around…

(Repco ad in the Motor Manual Australian Motor Racing Year Book No 4 1953-54)

Just how strongly Repco used the Maybach programme to promote their engineering excellence to the broader populace is unclear to me.

This ad in the horsepower-press below promotes some of the Repco subsidiary produced components used in Maybach, but pointedly fails to note that the car and driver shown are winning the 1954 New Zealand Grand Prix at Ardmore. Time to sack the ad agency and/or the internal copy-boy/girl!

Repco ad from the back cover of the November 4, 1952 Australian Hillclimb Championship, Rob Roy programme

Clearly – to the extent you can see the cars – Motor Manual’s cars and drivers of the year were Stan Jones and Maybach 1 S3, and Jack Brabham and his RedeX Special, aka Cooper T23 Bristol.

Reference and photo credits…

Australian Motor Sports Review 1958-59, Brian Caldersmith, ‘The 50 Year History of The Australian Grand Prix’, John Fleming Collection via Tony Johns, George McKaige and Chester McKaige via their superb two ‘Beyond The Lens’ books, Stan Griffiths, David Zeunert Archive, sensational and rare Dacre Stubbs photographs via Martin Stubbs, VSCC Vic Collection, John Montasell, Clem Smith, Motor Manual, Ivan Pozega Collection, Peter Moore

Tailpieces…

(C Smith)

The Maybach reality: Australia against the Europeans – ignoring the country of origin of the engine! – with Stan as often as not leading as chasing. Here Jones is aboard Maybach 1 on the Adelaide Hills, Woodside road circuit in October 1951, chasing arch-Melbourne-rival come fellow rough-nut, Doug Whiteford’s Lago Talbot T26C. Whiteford won this encounter in what were Stan’s early days in Formule Libre.

(I Pozega Collection)

Maybach 1’s mortal remains were tracked down or found by Jack McDonald in a South Melbourne wrecking/junk-yard in the early 1960s. He rebuilt the car – all of the required donor bits were easier to obtain back then – and soon the old-gal was back on track, in this case a Calder Drags meeting in 1968. Jack is being blown off by Des Byrne’s E-Type Ford V8.

For the last 32 years Maybach 1 has been in the very safe, caring hands of Melbourne racer/historian Bob Harborow, shown below competing at Goodwood in 2006.

(P Moore)

Finito…

(P&O Heritage)

Jack Brabham’s Cooper T45 Climax (F2-10-58) enroute to the hold of P&O Line’s 30,000 ton SS Arcadia while Stirling Moss’ similar Rob Walker car (F2-9-58) awaits its turn at Tilbury Docks.

It’s October 20, 1958, seven weeks before the Melbourne Grand Prix at Albert Park on November 30 where this pair of drivers and cars were the star attractions in a 19 car field. The Arcadia arrived 11 days before the race allowing plenty of pre-event promotion.

I was contacted by P&O Heritage in June last year requesting assistance in identifying the cars and the event to which they were travelling, with the assistance of my good friend, Cooper expert Stephen Dalton, that wasn’t a drama. With their exhibition now well over we can share the shots.

(P&O Heritage)

Arfur Daley! was my first reaction, look at them all with their peaked-caps to ward off the brisk River Thames air. It’s Stirling’s Rob Walker owned T45, chassis F2-9-58, no less than the car in which Maurice Trintignant won the ’58 Monaco GP, and with which Moss was victorious in the non-championship F1 Aintree 200 and Caen GP that year.

Brabham’s F2-10-45 was acquired from the British Racing Partnership: Alfred Moss and Ken Gregory. It had been raced in 1.5-litre F2 events continuously throughout 1958 by Stuart Lewis-Evans in between his Vanwall F1 commitments and Tommy Bridger otherwise. Lewis-Evans had many top-5 placings and one win at Brands in June.

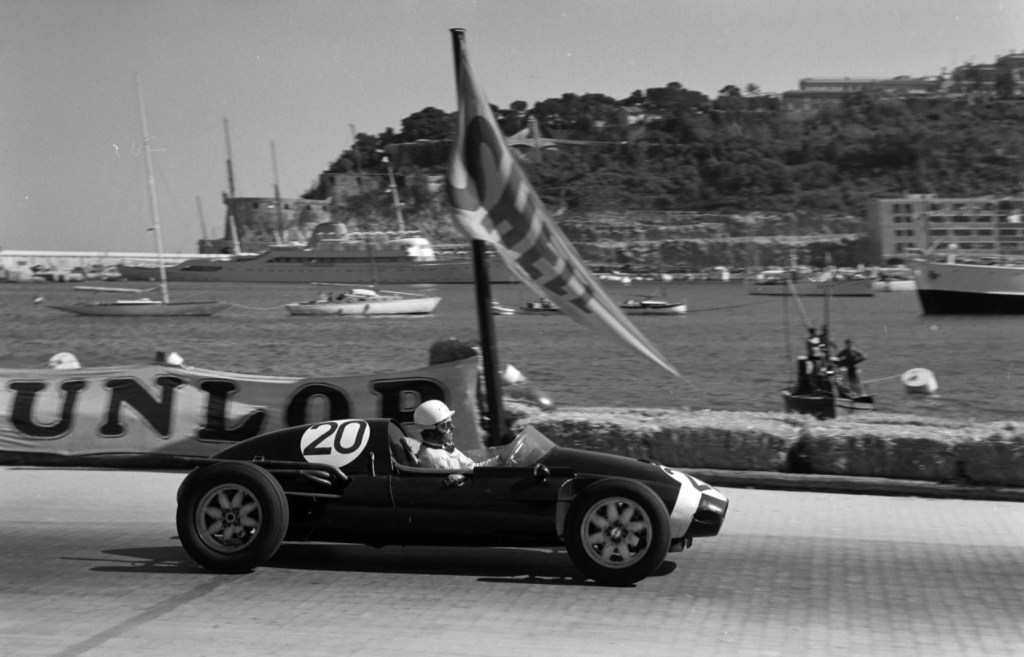

Maurice Trintignant during the 1958 Monaco GP. The Walker T45 F2-9-58 won from the two works Ferrari Dino 246s of Luigi Musso and Peter Collins (MotorSport)
Stuart Lewis-Evans on the hop at Goodwood during the April 1958 Lavant Cup. He was fourth in BRP’s T45 F2-10-58 behind Brabham’s works Cooper T43 and Graham Hill and Cliff Allison’s works Lotus 12s; all cars 1475cc Coventry Climax FPF powered (unattributed)

Still fitted with 1.5-litre Climax FPF, BRP entered Bridger in the Moroccan Grand Prix at Ain Diab. His only GP start, in a six-Cooper F2 race within a race, ended in tears after Tommy spun and crashed on oil dropped by Tony Brooks’ Vanwall the lap before, Bridger completing 30 of the 53 laps. He wasn’t badly hurt, but poor Lewis-Evans died from burns sustained after a separate accident caused by his Vanwall’s engine seizure.

BRP returned the car to Coopers for repair, Brabham then bought it and installed a 2.2-litre Coventry Climax FPF to race in the Antipodes, while the Moss car was fitted with an Alf Francis built 2015cc Climax.

(AC Green)

The trip from Tilbury to Port Melbourne back then took on average, four-six weeks, here the new Arcadia (b1953-d1979) is tied up at Station Pier, Port Melbourne in late March 1954. The trailer leg to transport the cars to Albert Park is a short 6km.

(B King Collection)

The 32 lap, 100 mile Melbourne GP was the eighth of nine Gold Star rounds that year, Stan Jones in the #12 Maserati 250F won the ‘58 title.

Brabham is in #8, #7 is Moss, while another Jones, young Alan is the small white clad figure leaning on the nose of the Ford Zephyr. Moss won the race from Brabham with the very quick Doug Whiteford, Maserati 300S in third

Bib Stillwell was fourth in another 250F with Len Lukey fifth in a Lukey Bristol – Len’s evolution of a Cooper T23. Car #10 is Tom Clark’s 3.4-litre Ferrari 555, the car alongside him is Ted Gray, Tornado 2 Chev.

Moss and mechanic, name please? and T45 F2-9-58 on the Albert Park grid. That November 30, 1958 event was the last at Albert Park until the modern AGP era commenced in 1996 (S Dalton Collection)
NZGP, Ardmore, January 10 1959. The Schell, Bonnier and Shelby Maserati 250Fs used their 2.5-litre torque to lead for a bit on lap one. #4 is Brabham’s Cooper, with Moss #7 behind and between Jack and Carrol – and the rest (LibNZ)

Both cars were then shipped across the Tasman to contest the Kiwi Internationals. Moss won the New Zealand Grand Prix at Ardmore from Brabham in a big field that included Bruce McLaren, Carroll Shelby, Jo Bonnier and Harry Schell on Maserati 250Fs, and Ron Flockhart’s works-BRM P25.

Brabham aboard F2-10-58 at Ardmore in 1959, second to Moss (T Marshall)

Moss (and the Cooper) then returned to Europe for his other commitments while Brabham did the Lady Wigram Trophy and Teretonga International for second/third, then returned home to New South Wales where he won the South Pacific Trophy at Gnoo Blas.

Jack then travelled to Cordoba to begin his F1 season with the February 16 Buenos Aires GP, but not before selling F2-10-58 to Len Lukey. The Melbourne Lukey Mufflers manufacturer used it to good effect to win the 1959 Gold Star, the highlight of which was an epic dice between Len and Stan Jones’ 250F in the AGP at Longford (AMS cover below) which was resolved in Stan’s favour.

The T45 remained in Australia forever, and in a nice bit of Cooper T45/Albert Park symmetry, Stirling Moss drove his Dad, and Jack’s old car in the historic car demonstrations during an Australian Grand Prix carnival in the early 2000s. Both cars are extant…

Etcetera…

(MotorSport)

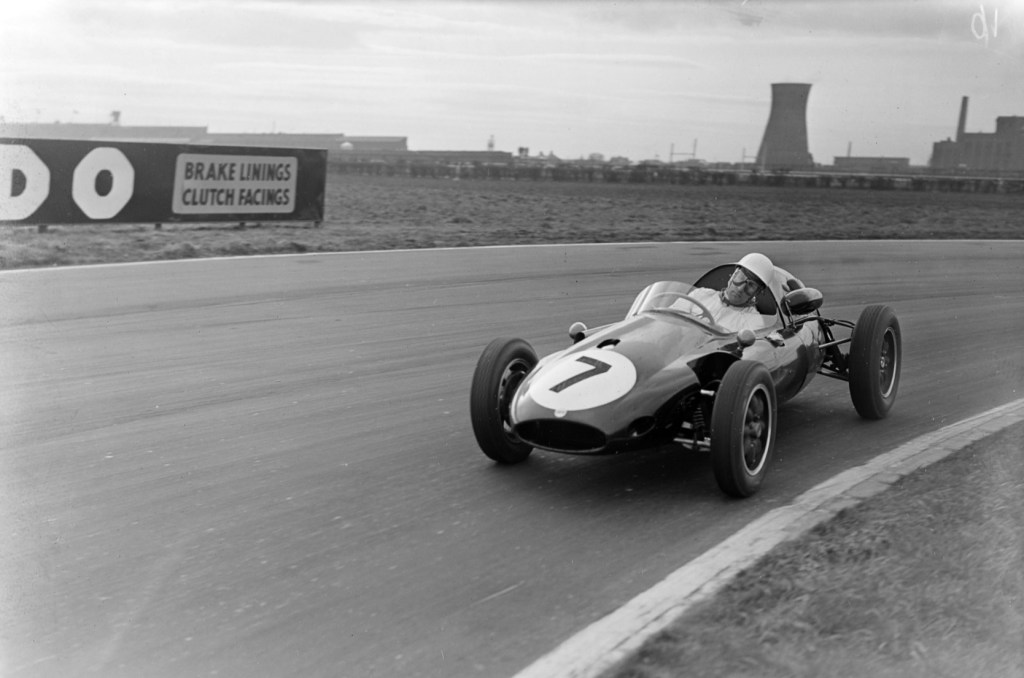

An unmistakable Aintree shot of Stirling Moss aboard Walker’s T45 F2-9-58 on the way to victory in the BARC 200, April 1958.

(unattributed)

Tommy Bridger holding off Bruce McLaren’s works Cooper T45 Climax and Ivor Bueb’s Lotus 12 Climax aboard the BRP T45 F2-10-58 during the May ’58 Crystal Palace Trophy. He was second, bested only by Ian Burgess’ works Cooper T45, in a great performance.

Credits…

P&O Heritage, Allan C Green-State Library of Victoria, Bob King Collection, Stephen Dalton Collection, sergent.com.au, MotorSport Images, unattributed shots via Bonhams photographers unidentified, Terry Marshall, National Library of New Zealand

Tailpiece…

(MotorSport)

Tommy Bridger in the 1.5-litre F2 BRP Cooper T45 Climax F2-10-58 chasing Gerino Gerini’s Centro Sud Maserati 250F at Ain Diab during the October 19, 1958 Moroccan Grand Prix. Gerini was 11th from Q17 and Bridger DNF from Q22 after the accident described earlier.

The race-within-a-race of six Cooper F2 cars comprised T45s raced by Salvadori, Brabham, McLaren, Bridger and Andre Guelfi, plus Francois Picard’s older T43. Bridger qualified behind the works-Coopers of Roy, Jack and Bruce…he was pretty handy. See more about him here: https://500race.org/people/tommy-bridger/

Finito…

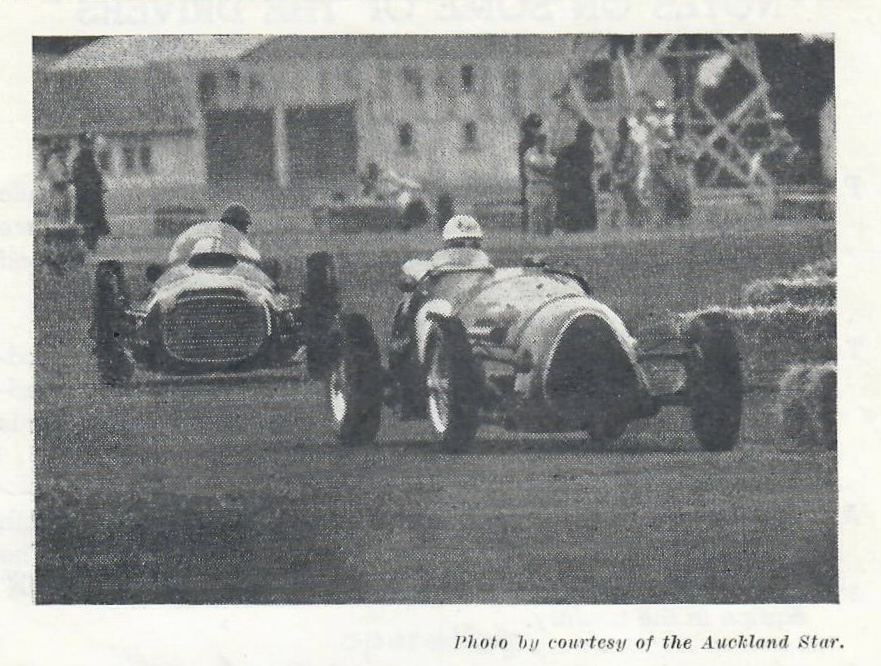

When Stan Jones took the chequered flag at Ardmore to win the New Zealand Grand Prix seventy years ago today – on January 9, 1954 – he became the first Australian car racer to win an international Grand Prix. His weapon of war was the Charlie Dean built, then Dean/Repco Research developed and maintained Maybach 1.

That’s Ken Wharton in the BRM P15 V16 behind, he pitted with mechanical problems and finished second with Tony Gaze’ HWM Alta s/c third.

Victory spoils that much sweeter after the adversity of the previous 24 hours – Charlie Dean all smiles at right rear. Sportscar derivation of Maybach 1 clear (Lib NZ)
Maybach 1, Ardmore 1954. HC Dean in the light, short sleeve shirt. ‘Ecurie Australie’ is the sign below the tonneau. Repco always seemed pretty cute about their lack of signage on Maybachs 1-3 while noting the no-advertising-on-cars rules of the day (N Tait)

I’ve done Stan and this topic to death over the years, see the links at the bottom of this article. So much so, I’ve no photos on this race I haven’t already posted so let’s recognise the occasion and scale of the achievement and then jump to the very end of the Maybach program, in terms of the three cars being Maybach six-cylinder powered at least.

With Repco’s stash of blocks in short supply, Maybach 3 – first raced at Templestowe Hillclimb on April 11 1955 - was powered by a 260bhp @ 5000rpm, 3.8-litre variant of the German SOHC, two-valve engine, albeit the motor was now fuel injected, such work done by Phil Irving and Charlie Dean.

With Big Red Cars growing locally in number – Davison Ferrari 500/625, Hunt Maserati A6GCM and 250F – the big silver beast was hard pushed despite Stan’s undeniable skills at twiddling its steering wheel.

Jones on-the-hop, as always, aboard Maybach 3 at Gnoo Blas in January 1956 before she let go at bulk-revs. Mercedes Benz W196 stylistic influence clear from this angle (R Donaldson)

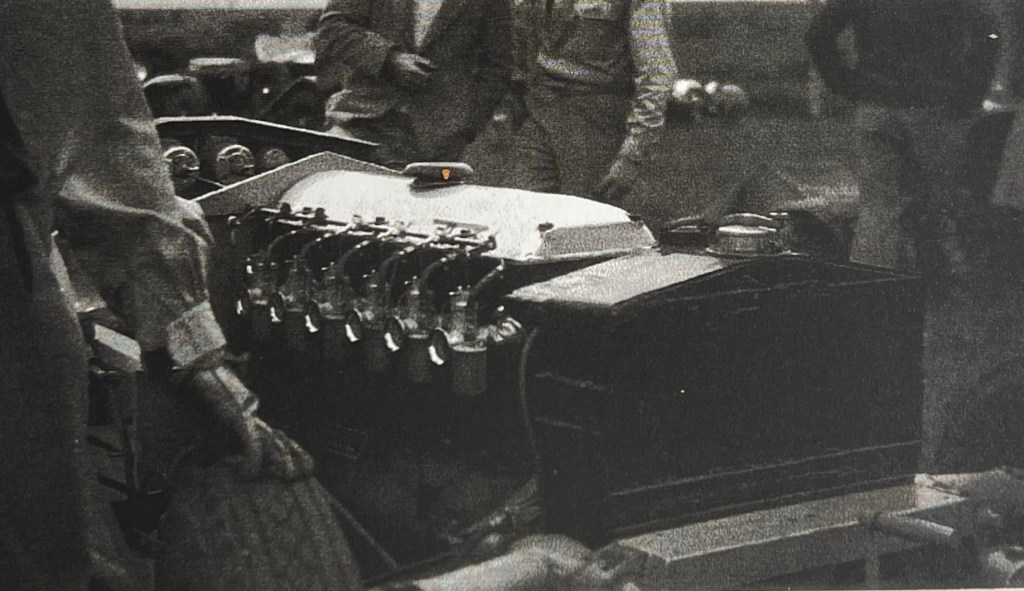

3.8-litre, direct-injected Maybach-six was mounted 60-degrees to vertical. Port Wakefield AGP paddock in 1955. Dean – the very fast Charlie Dean – at the wheel, Jones DNF in the race won by Jack Brabham’s Cooper T40 Bristol (E Gobell)

1956 opened with the international meeting at Gnoo Blas on January 30. Reg Hunt’s new Maserati 250F set the pace and won the South Pacific Championship easily against skinny opposition compared with previous years. Squeezing all that Maybach had to offer, on lap 23, with Stan 38 seconds adrift of the 250F, the engine let go in a major way.

Jones then got with the strength and bought a 250F. #2520 was demonstrated by Stan at the Geelong Sprints on May 27, first racing at Port Wakefield the following weekend.

While Stan got to grips with his new Italian Stallion, his mate, the brilliant engineer/racer Ern Seeliger set to work turning Maybach 3 into Maybach 4 inclusive of modified Chev 283cid V8, de Dion rear suspension and other mods.

Stan had an occasional steer of Maybach 4 Chev, winning a Gold Star round in it at Port Wakefield in 1959, but in essence, the Maybach Program of 1946-56 was at an end…oh-so-critical bits of Repco and Oz racing histories.

As Paul Cummins put it, “Stan with the NZ Trophy in one hand and a glass of champers in the other; or is that a martini shaken not stirred?” (Cummins Archive)
(Motor Manual May 1954 T Johns Collection)

Credits…

Auckland Star, Libraries NZ, Bob Donaldson, State Library of New South Wales, Naomi Tait, E Gobell, Tony Johns Collection, Cummins Archive

Tailpiece…

(R Donaldson)

Look out ladies!…

Stan was a good-lookin’ Rooster at 32, that portrait is the best! He’s at the wheel of Maybach 3 during the ’56 SouPac, Gnoo Blas meeting. With hair Brylcreemed back, Raybans and terry-towelling T-shirt sourced from Buckley & Nunn, Stanley really looks-the-goods. Jones had a life of great achievement, he was not a bloke who died guessing, bless him.

Tyre is a Dunlop R1.

Finito…

Credits..

The Car June 1939 via the Bob King Collection…

Finito…

(Bisset)

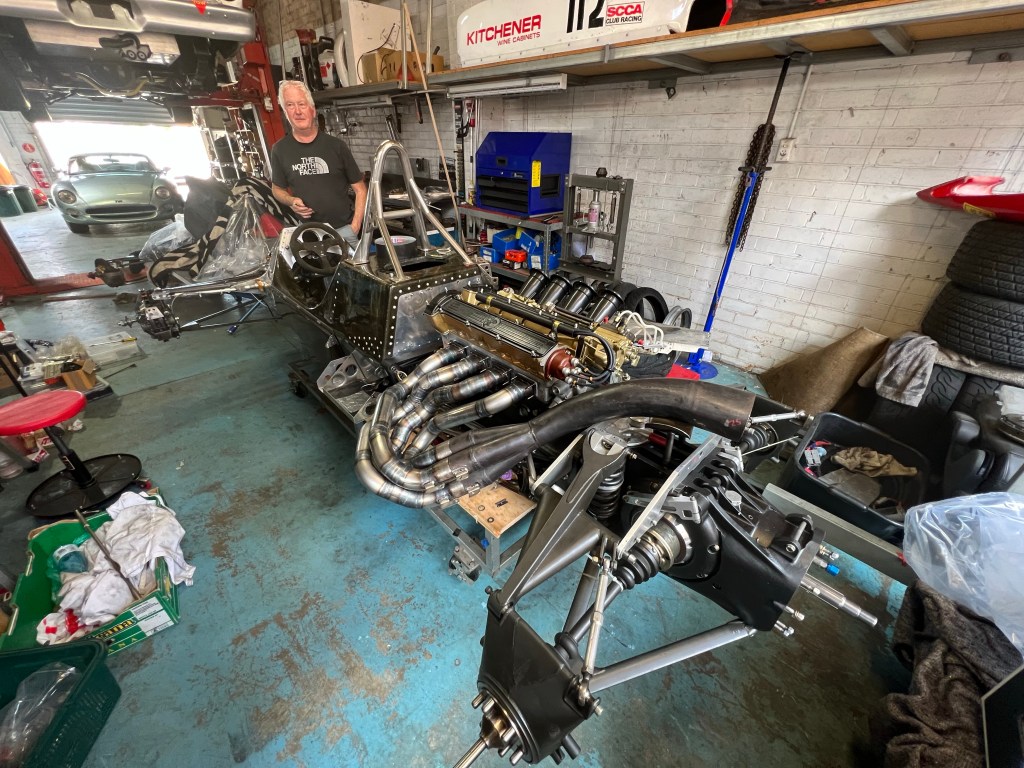

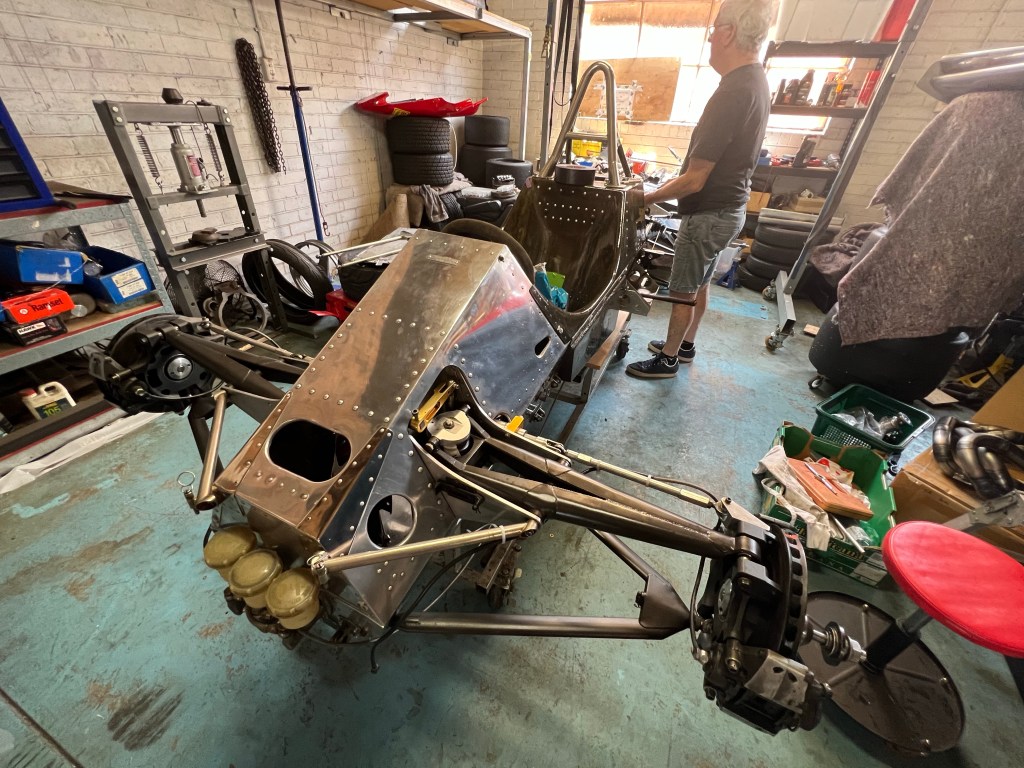

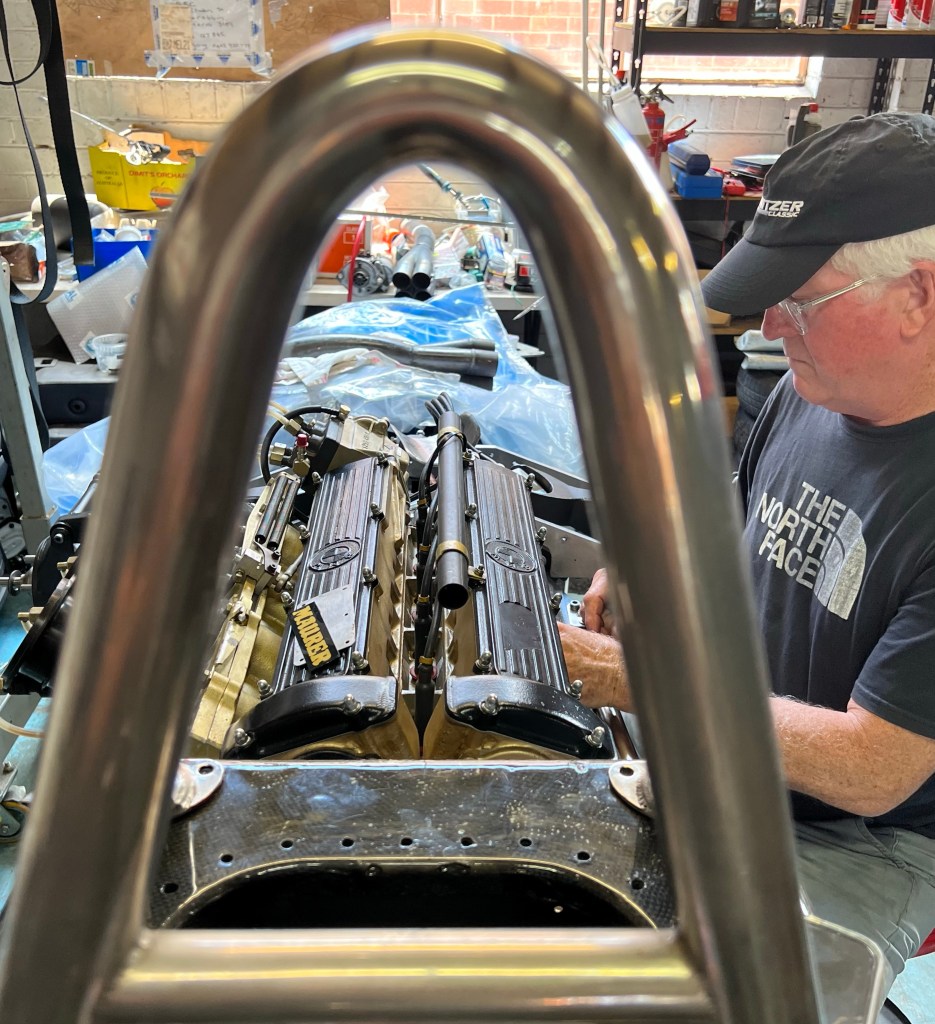

Andrew McCarthy beavers away on the rebuild of his 1982 ex-Beppe Gabbiani works-Maurer MM82 2-litre F2 machine, chassis 04.

For a stock broker, he’s a pretty handy mechanic. He gets a prize for commitment too, this shot was taken at beer-o’clock, lunchtime on December 24, an occasion when most of us normal folks are getting Santa’s snack ready for his night-time arrival.

TVR Cerbera tow car is a nice touch (Bisset)

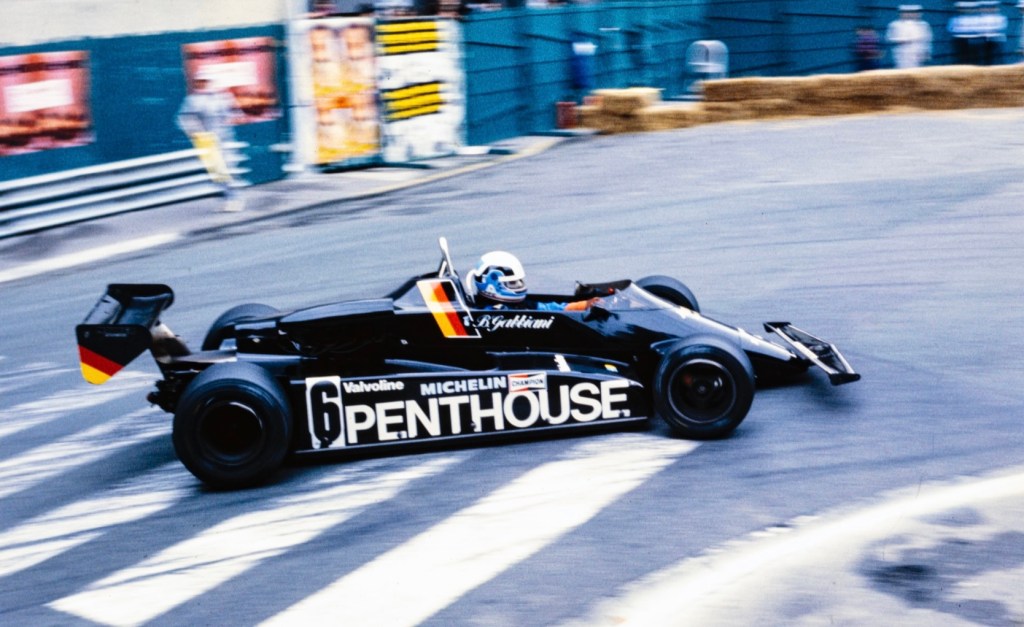

Gabbiani aboard MM82-04 during the 1982 Pau GP, DNF fuel injection (MotorSport)

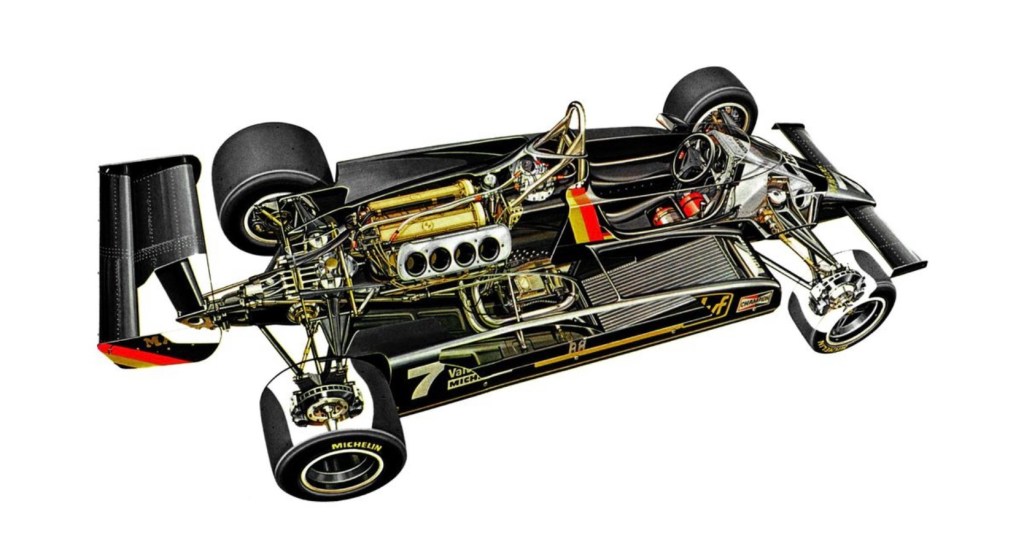

Maurer MM82 cutaway drawing, Bellof machine shown (unattributed)
“…and then it goes like this!” Beppe to Stefan at a late 1981 test session at Paul Ricard. Willy Maurer at right (F Kraling)

The target first race appearance is the Phillip Island Classic in March. Even though the bulk of the hard work in a five year journey so far has been done, there is no shortage of fettling to come to meet that deadline.

The essential elements of Willy Maurer’s, Gustav Brunner penned, period-typical, ground-effect F2 car are an aluminium monocoque chassis, BMW M12/7 four cylinder, DOHC, four-valve, fuel injected 2-litre engine giving about 300bhp and a five-speed Hewland FG400 based transaxle in a bespoke Maurer case.

BMW M12/7 engines were THE ENGINE of the two-litre F2, winning the European title in 1973, Jean-Pierre Jarier March 732, 1974 Patrick Depailler March 742, 1975 Jacques Laffitte Martini Mk16, 1978 Bruno Giacomelli March 782, 1979 Marc Surer March 792 and 1982 Corrado Fabi March March 822. Renault came, conquered and left with their works engines, then Honda followed and stayed. BMW (from 1973) and the Hart 420R (from 1976) were there throughout the 1972-84 class (Bisset)
M12/7 circa 305bhp in-period, “330bhp for the Heideggers” McCarthy says. Kugelfischer-Bosch slide fuel injection (Bisset)
Stefan Bellof, Maurer MM82 BMW during the Spa round in June, DNF accident in the race won by Thierry Boutsen’s Spirit 201 Honda (MotorSport)

Let’s save the Maurer major story for when Mad Andy has MM82-04 running. In essence young entrepreneur Willy Maurer had access to substantial sponsorship cash via the German, Mampe drinks manufacturer.

After an initial sponsorship foray in German Group 5 with Ford Zakspeed and Kremer Porsche, Maurer decided to take one of his drivers, Armin Hahne, into F2. Rather than follow the herd and buy a March or Ralt he decided to build his own cars.

The first 1979 car (MM79) was a slug, then, via former Chevron racer, Eje Elgh, Maurer was introduced to the ex-Chevron team who were out of a job after the demise of the Bolton marque in its original form; said ending was a delayed reaction to company founder, Derek Bennett’s death in a hang-glider crash in March 1978.

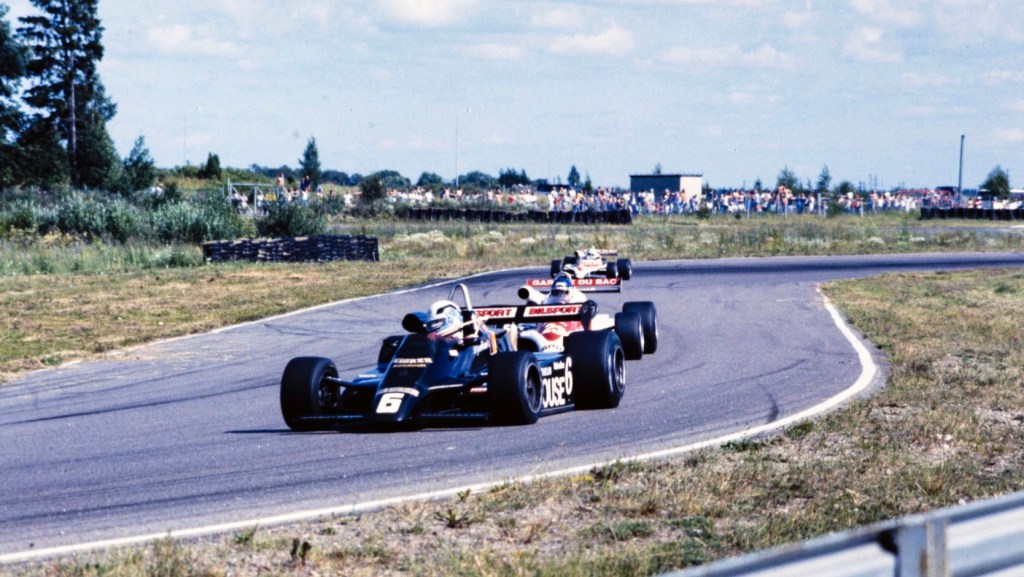

Gabbiani on the way to third ahead of a gaggle of cars during the Mantorp Park, Sweden round in 1982. Johnny Cecotto’s works March 822 BMW won (MotorSport)
The chassis of the car is an aluminium honeycomb monocoque strengthened by carbon-fibre inserts. Front suspension comprises large, wide-based lower wishbones, top rockers and inboard mounted coil spring/Bilstein shock units. Andrew has the trick suspension lock-down linkages but will initially run with the conventional set up (Bisset)

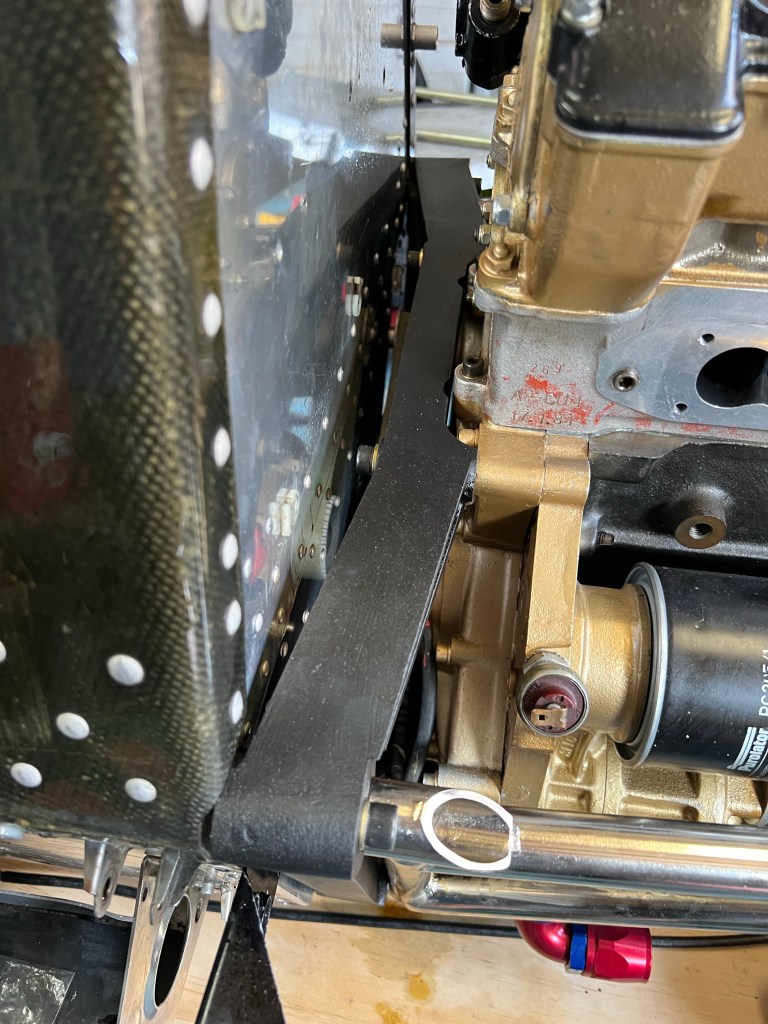

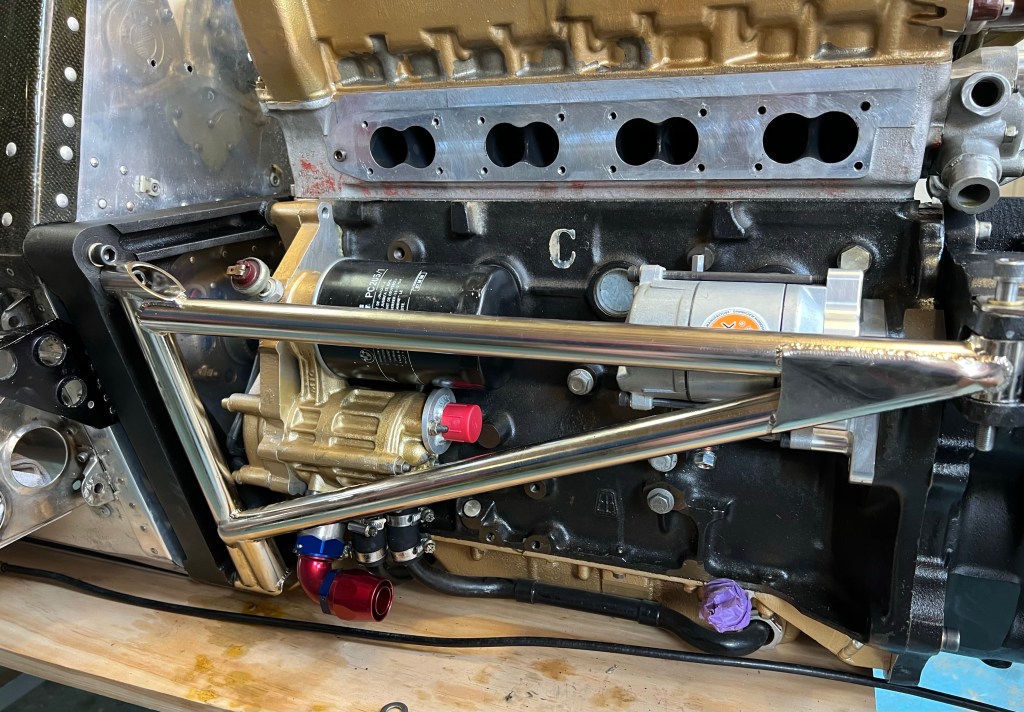

The BMW engine mounts by four bolts to this cast magnesium plate, which has four bolts to attach it to the chassis; note both the aluminium and carbon fibre tub. The beautifully fabricated nickel plated A-frame in this shot and below picks up the rear of the engine (Bisset)
(Bisset)

The 1981-83 Maurers, designed by Brunner, interpreted and engineered by Paul Brown, and built and maintained by a team run by Bennett right-hand-man Paul Owens, Ian Harrison, Paul Brown, Graham Hall and others from premises in West Haughton, Manchester were fast cars which won four Euro F2 Championship races.

German wunderkind Stefan Bellof was victorious in two rounds – winning his first ever F2 race at Silverstone – and set five fastest laps (in 1982), while Roberto Guerrero and Elgh won a race apiece in 1981.

Italian F1 driver, Beppe Gabbiani raced a works MM82 alongside Bellof in 1982. The cars were jets, in part as a result of an ingenious suspension locking mechanism which allowed a very low ride height which enhanced the ground effect created by the car’s underbodies/tunnels, and powerful, but very fragile, short-stroke Heidegger prepared BMW engines.

Corrado Fabi won the championship aboard a works-March 822 BMW (five wins) with Bellof fourth and Gabbiani fifth. Beppe’s best in MM82-04 was second place at Enna. In an appalling run of reliability, he had five DNFs and Bellof six. By contrast, Fabi scored points in eight of the 13 championship rounds.

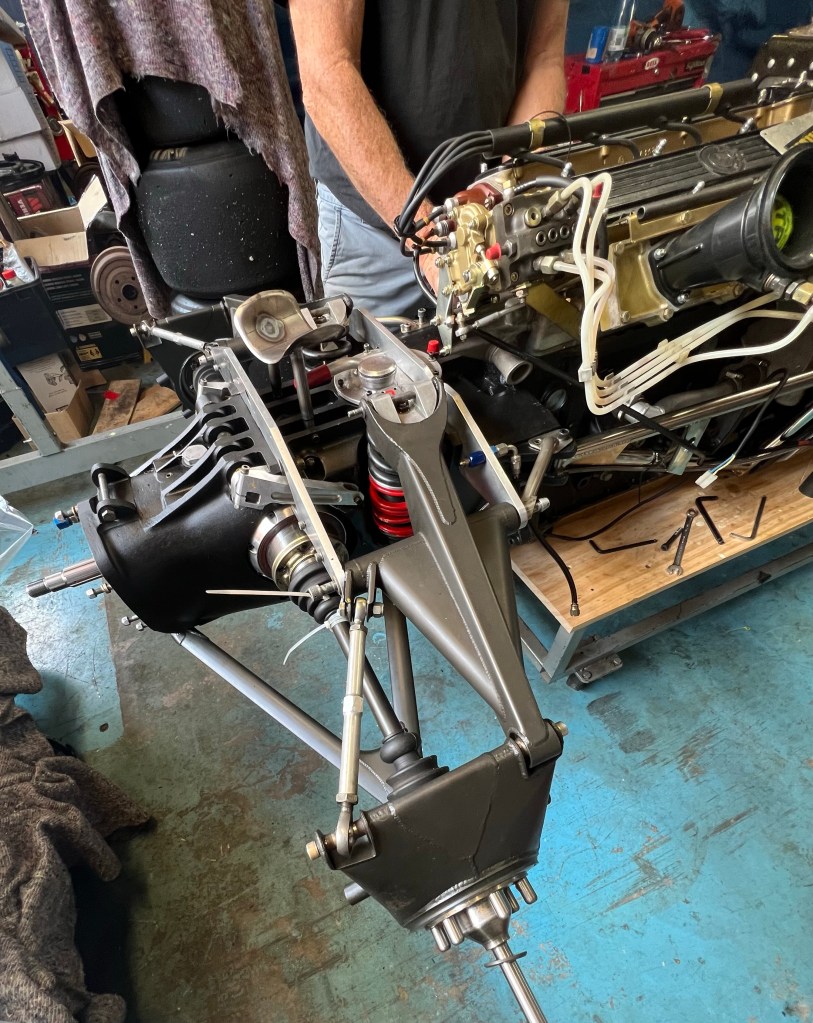

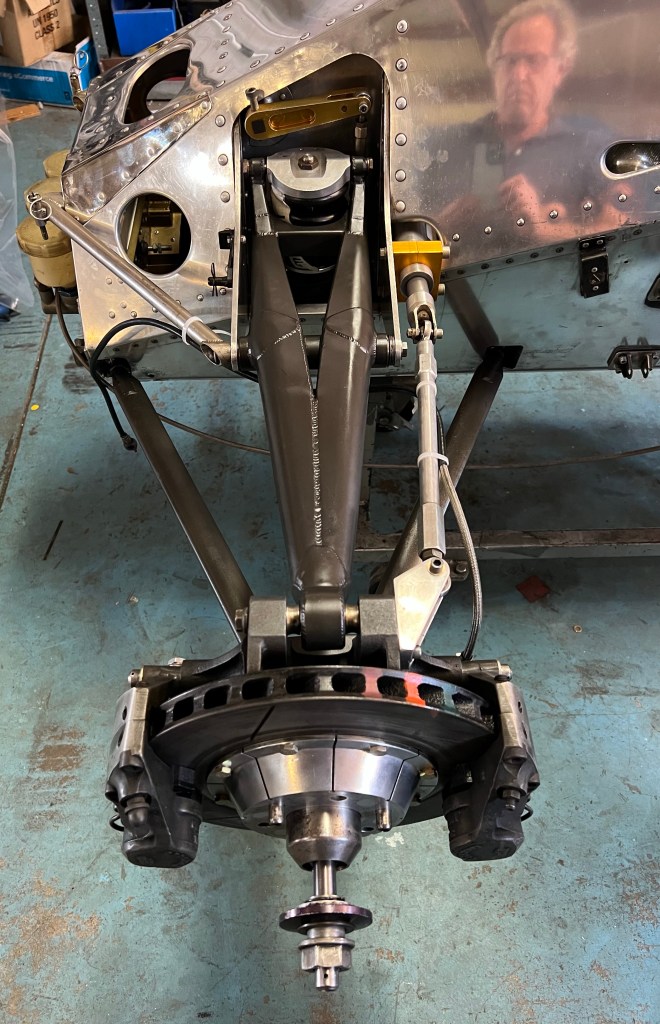

Same rear suspension set up as the front – note the suspension pick-ups on the bespoke cast magnesium Maurer transaxle which uses Hewland FG componentry. That unit contains the dry-sump tank – see the silver filler cap alongside the top of the rocker assembly (Bisset)

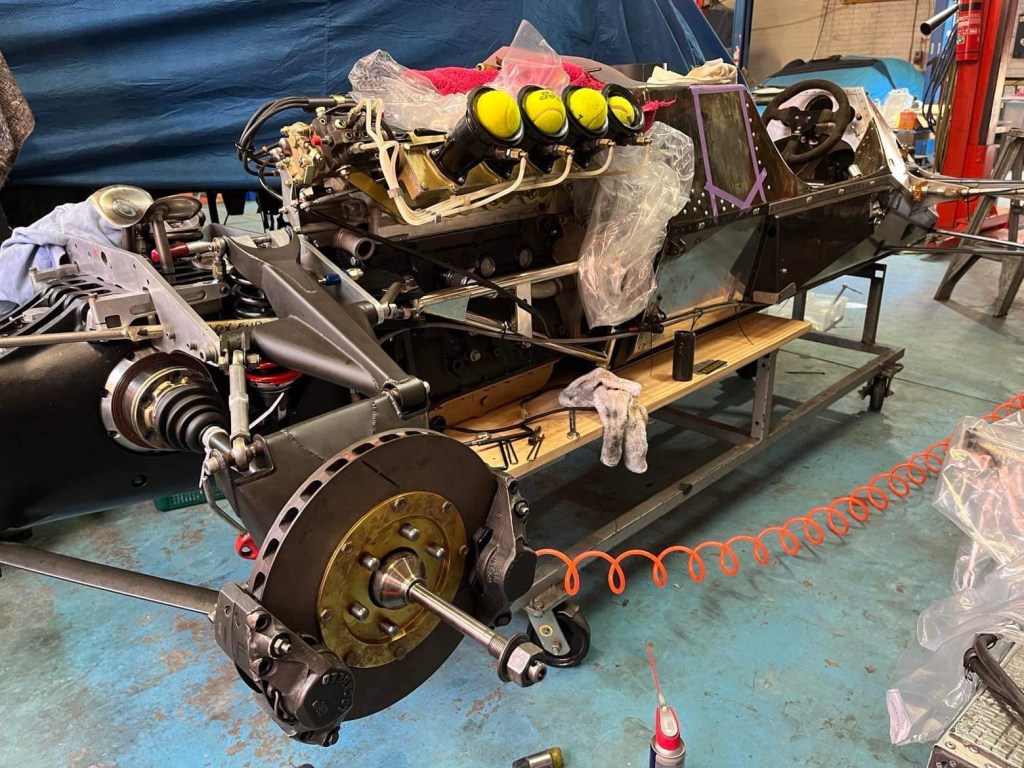

This shot is a couple of days later with rear brake calipers and rotors in situ (McCarthy)
(Bisset)

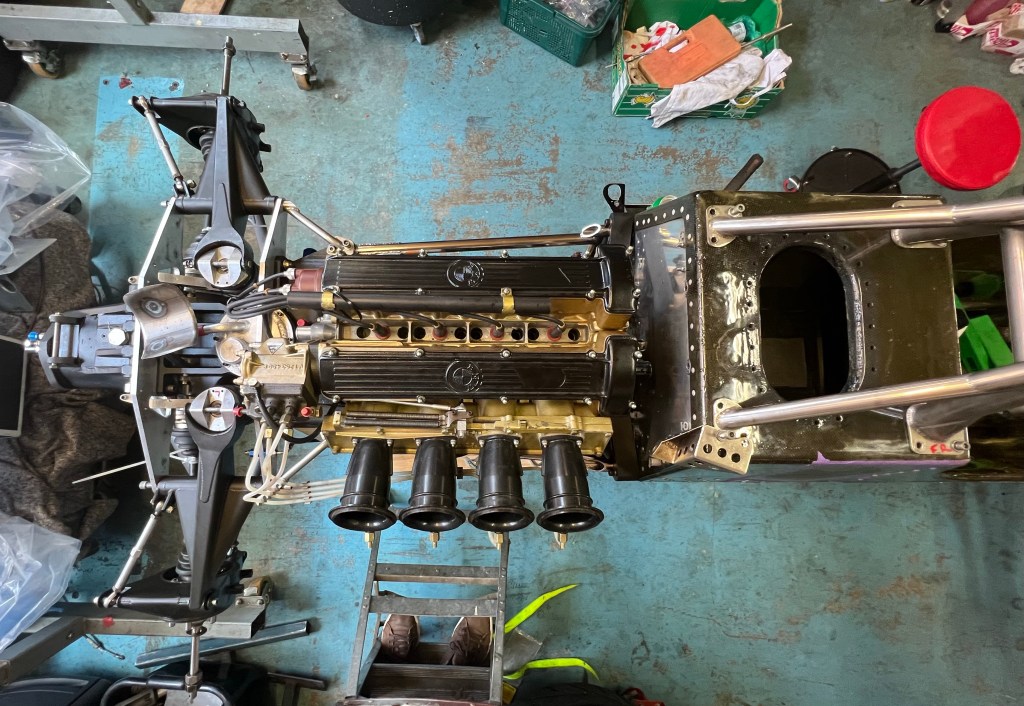

Disposition of the major components clear, a new bag-fuel tank goes in the big ‘ole (Bisset)
Enna, August 1982, DNF engine after only seven laps, Boutsen’s Spirit 201 Honda won (MotorSport)
Gabbiani, Enna, August 1982 (MotorSport)

By the time Maurer relocated the team back to Germany in 1983, after local press criticism, Brunner had already left for ATS and Willy was brawling with Heidegger in the courts.

Gabbiani moved to Onyx March for the 1983 F2 Championship, finishing an excellent third and best-of- the-rest behind the Ralt RH6 Honda duo of Jonathan Palmer and Mike Thackwell.

The MM83’s were still quick in the hands of Stefan, Alain Ferte and Kenny Acheson, but the four points-scoring finishes of the three works cars was an appalling record of reliability as things unravelled. Owens began cutting off the supply of spares…his bills were going unpaid, he decamped at the end of the year. Willy walked away from his F1 design and parked Bellof at Porsche in ’83 and Tyrrell for 1984, where his pace in both teams was of course mega!

It was all over, but not without merit. McCarthy’s car has ingenuity and quality throughout, MM82-04 is one of four Maurers in Australia, oh to have them all on the same grid one day.

“Hop to it Andrew, and hand me another Coopers Red sunshine”…

(Bisset)

(Bisset)

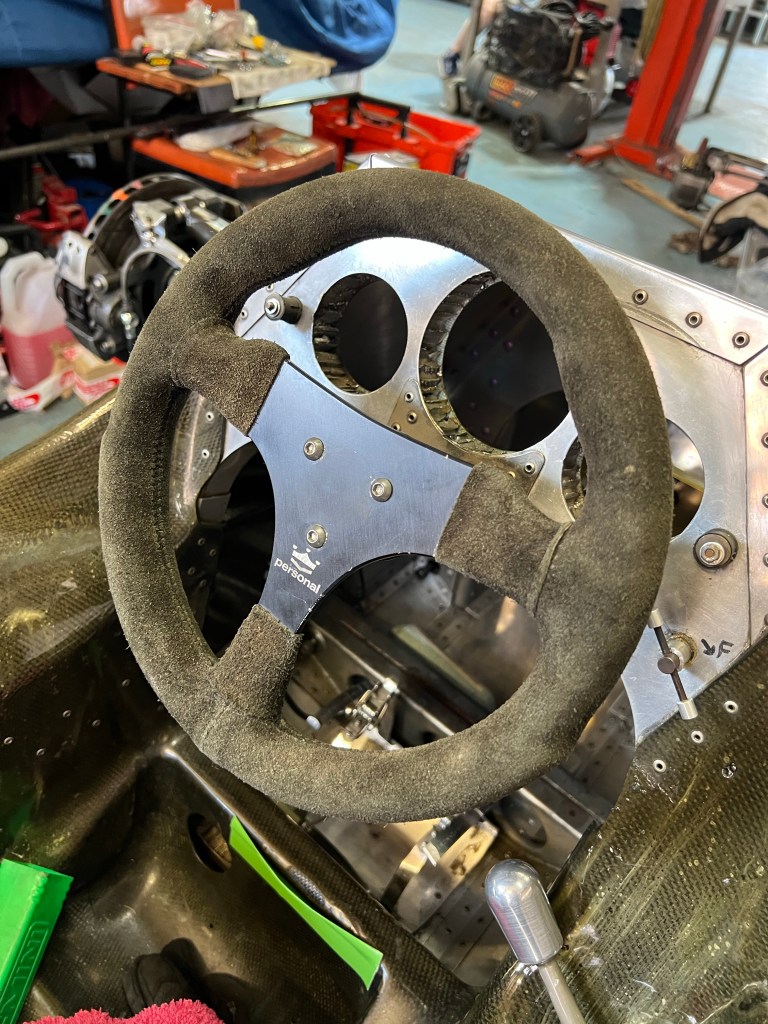

Original Personal wheel to be recovered in leather, and nice look at the magic of ally-honeycomb panels.

(Bisset)

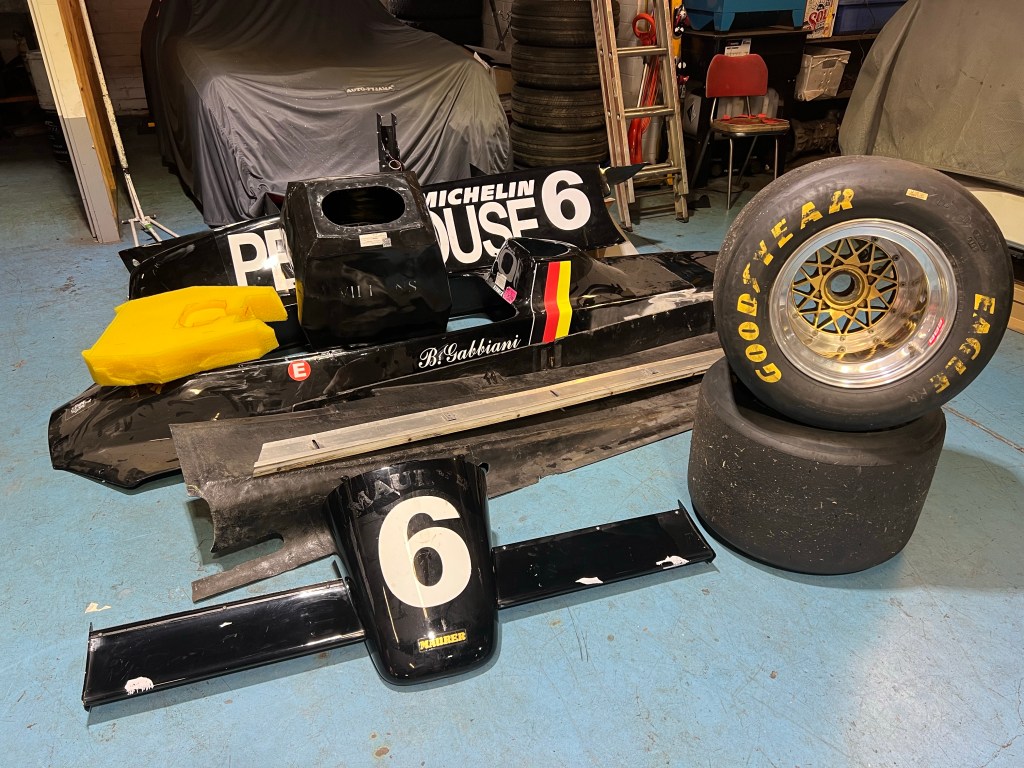

Bodywork, BBS wheels and new Willans fuel cell await their turn for attention.

(Bisset)

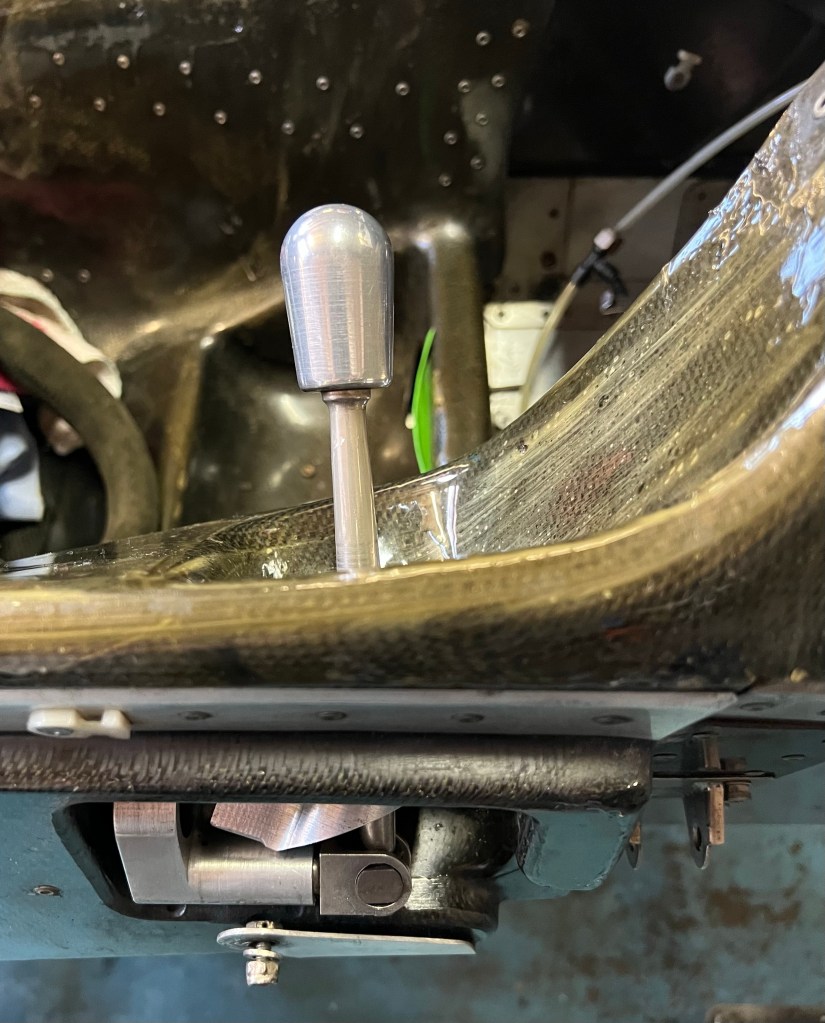

It’s as well McCarthy is a slim (ish) short-arse. The Maurers were works cars built for underfed pubescents, they aren’t like a customer car such as an early Ralt RT4, for example, which do accommodate Ford F150 driving Fat Bobs. Note the steering rack of course, and the way the beefy-bulkheads provide torsional stiffness.

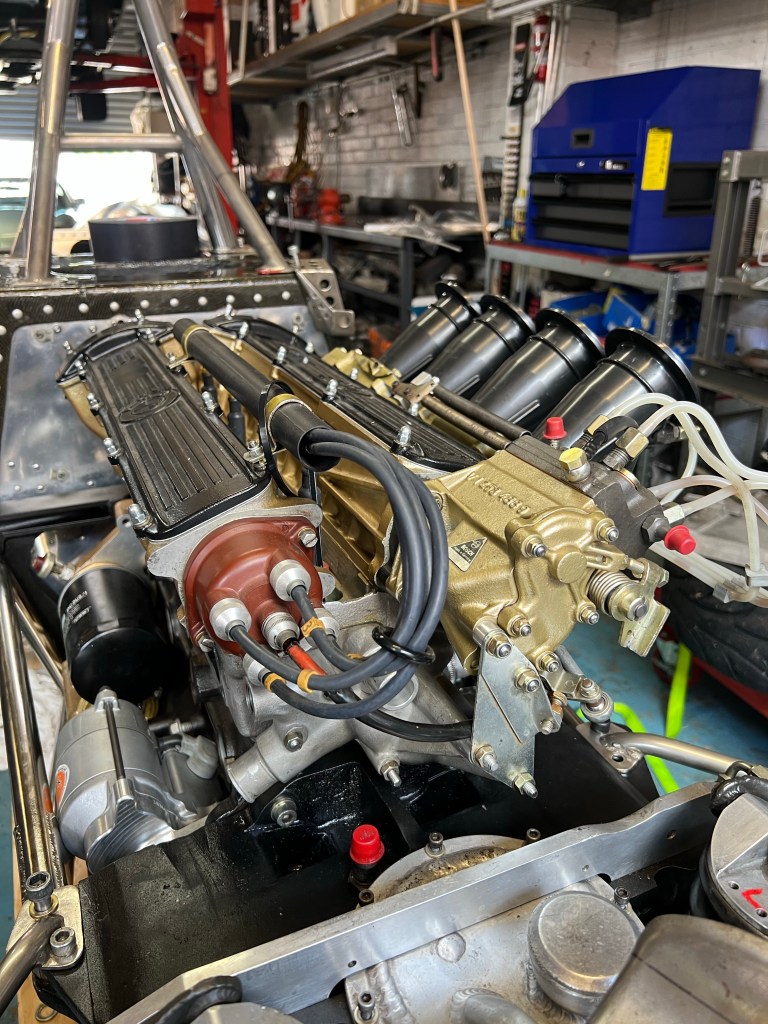

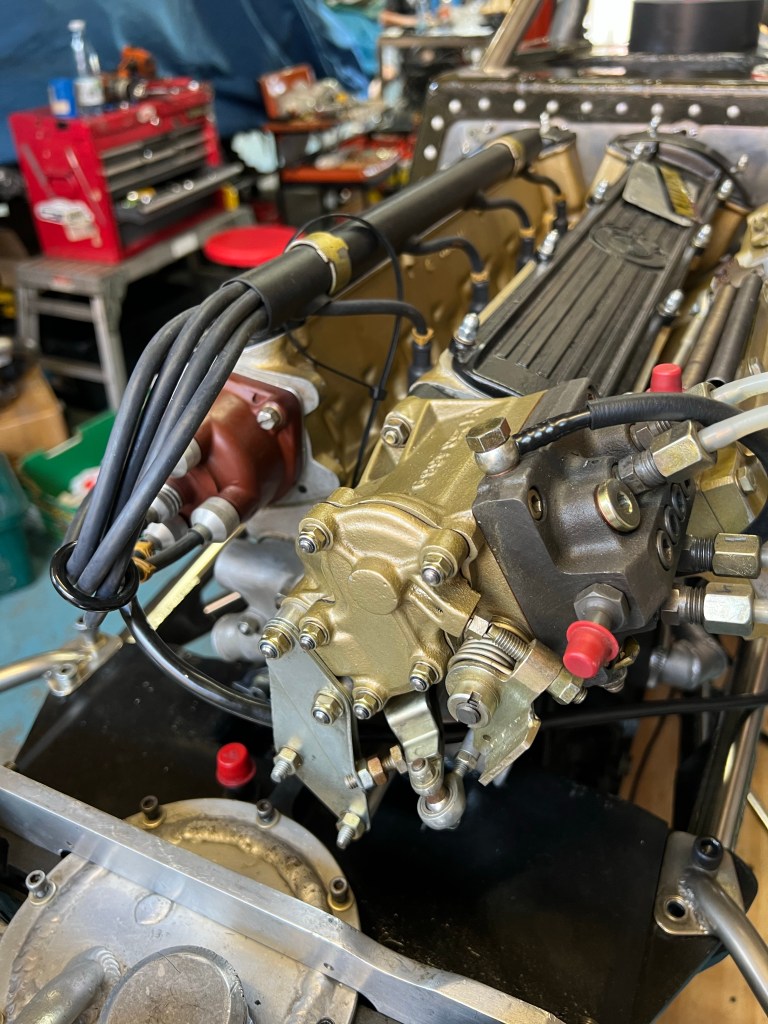

Distributor driven off the exhaust cam, fuel metering unit off the inlet (Bisset)

Andrew wishes to record the work of and thank Sam Henderson of Rotorweld, Auckland NZ for the perfect honeycomb work on the tub floor, Paul Deady at Melbourne’s Dana Engineering for wheel hubs and gearbox machining. Mo Meghji (ex Arrows F1 fabby) in Melbourne did the perfect A-frames and exhaust tig work and Garry Simkin in Sydney, the gearbox internals and setup.

(Bisset)

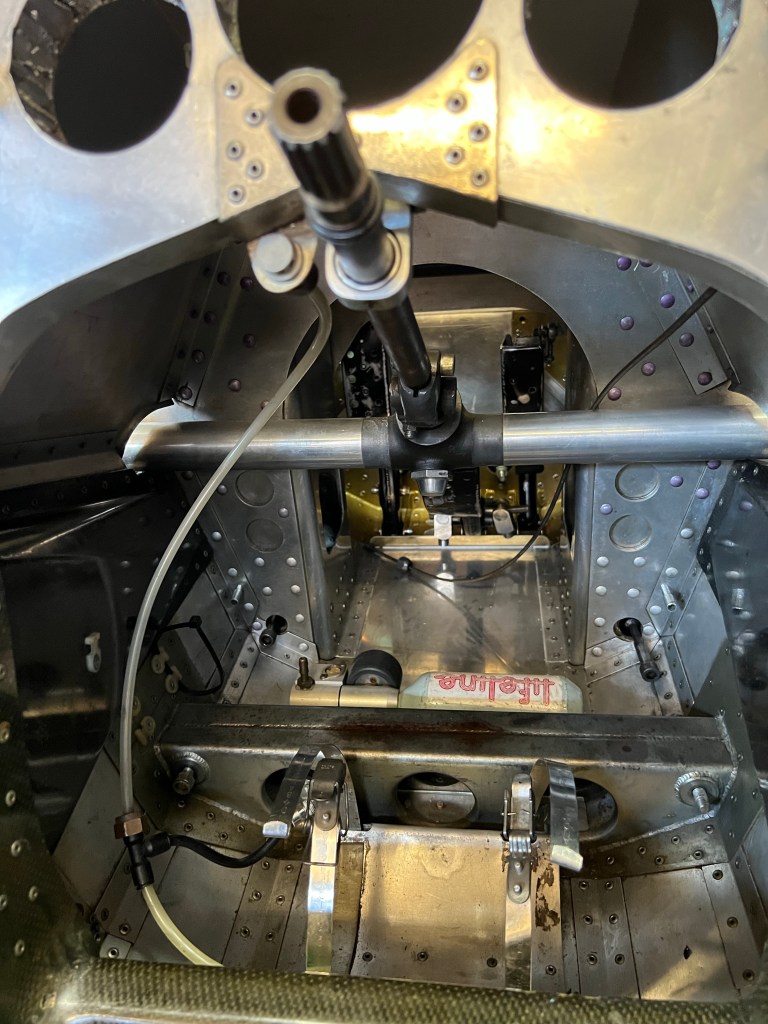

The thing should stop ok…

Credits…

‘Young, Gifted and Black’ MotorSport article by Gary Watkins, F2 Index-Fastlane, MotorSport Images, Ferdi Kraling Motorsport, Mark Bisset, Andrew McCarthy, Stephen Dalton

Tailpiece…

(Bisset)

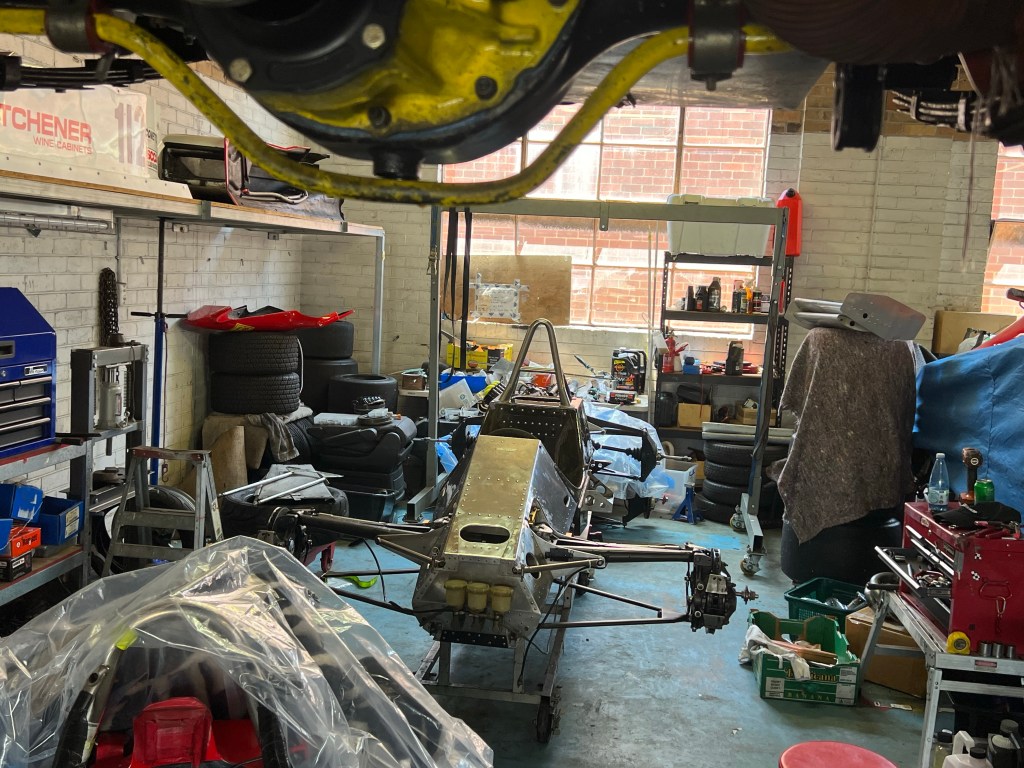

Maurer MM82-04 framed above by a Ford 9-inch diff (attached to a Ford Falcon Sprint) and a Ralt RT4 below.

(M Bisset)

Postscript…

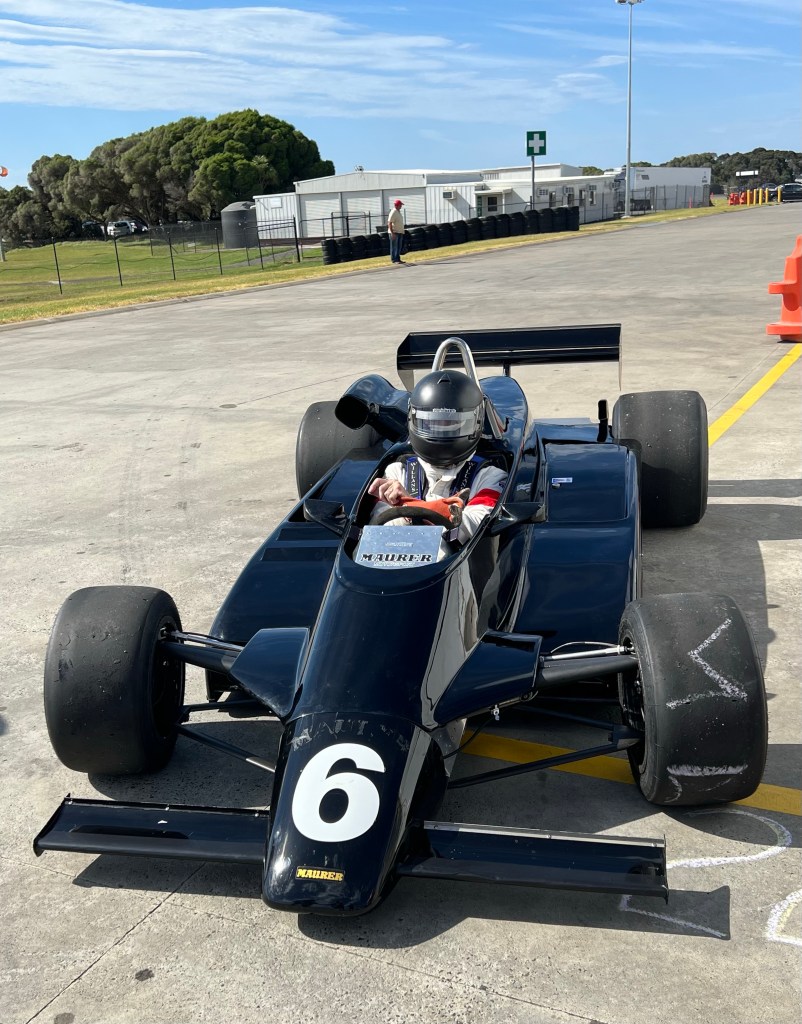

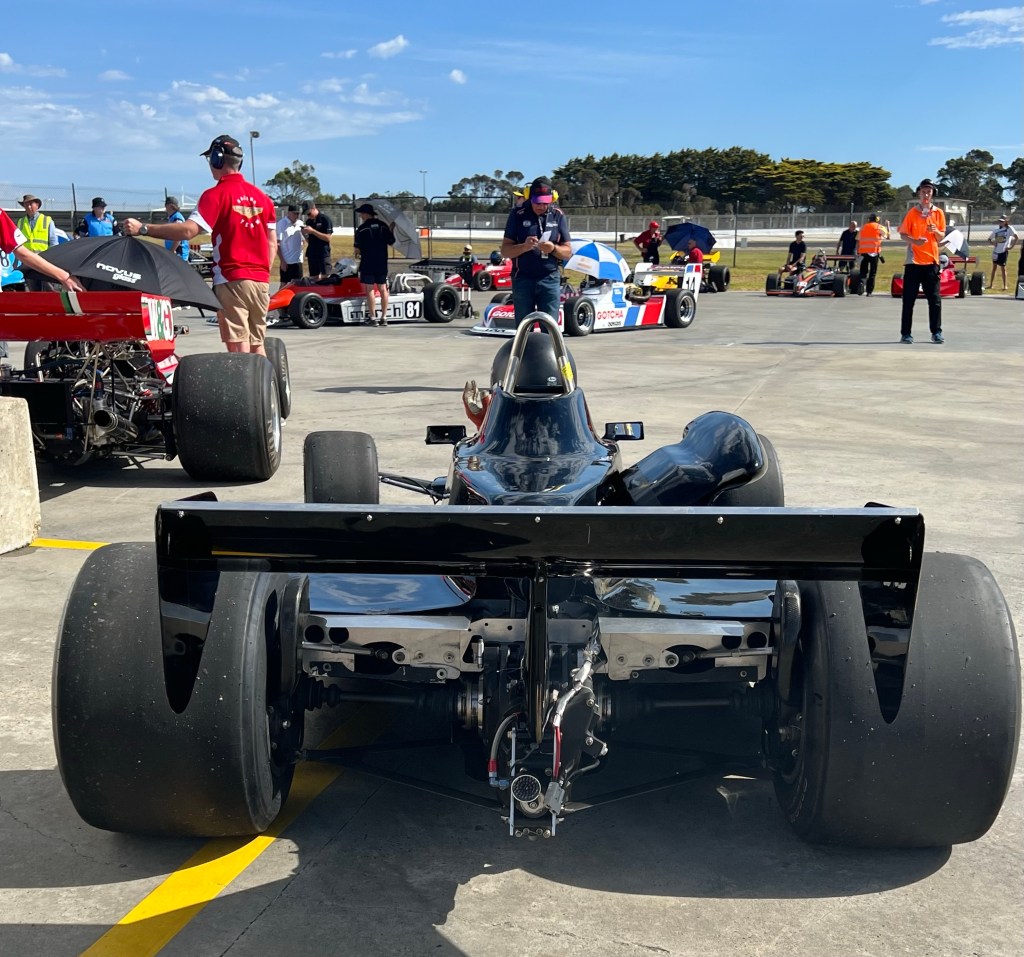

I thought that there was snowflakes chance of McCarthy having the car running at the Phillip Island Classic on March 8-10 but “Ye of little faith!” as my friend said.

Fellow Maurer racer Simon Gardner said, “You should have seen what still had to be done here on Thursday morning”, but he made it even if he ran the car with braking problems and without a clutch at all. The latter is manageable as the races for these cars use rolling starts and it wasn’t hard for us to push the car to allow Andrew to pull it into first.

(M Bisset)
(M Bisset)

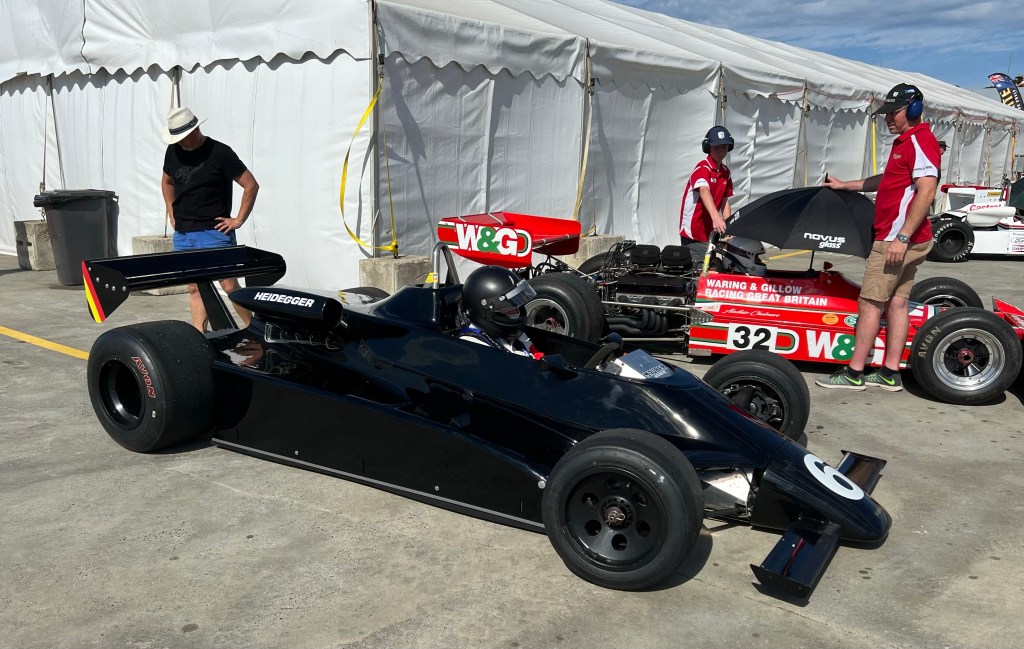

A lower front wishbone retaining bolt came loose going into Southern Loop at about 9000rpm, there was a bit of luck there, and the throttle linkage came loose in the last race but bloody well done getting it all done while holding down a full-time gig.

(S Dalton)

Now all ya gotta do is rectify the dramas and make it safe, the inherent pace of the thing is already clear.

Andrew’s crew, Finn Kelly and Craig Armstrong both deserve valour awards as our intrepid pilot was in ‘hyper-drive mode’ throughout the weekend…

Finito…
