Start of the race won by Jack Brabham’s dominant Brabham BT18 Honda, the little 1 litre car winner of the F2 Championship that year…

Jack won the title from teammate Denny Hulme, similarly mounted, Alan Rees was third in another BT18 powered by the Ford Cosworth SCA engine.


Brabham’s BT18 Honda takes the Reims chequered flag from Toto Roche. (unattributed)

Jack’s business acumen is demonstrated by his ability to form engine partnerships with Honda in F2 and Repco for his F1 and Tasman engines simultaneously, victorious in both F2 and Grands Prix racing in 1966…

Brabham and Ron Tauranac collaborated very successfully with the Japanese engineers, Honda learning much about engine installation and the need for torque as well as top end power. The little ‘S800’ 4 cylinder, fuel injected 1 litre engine developed around 150bhp @ 10000 rpm at the time the Ford based Cosworth SCA developed circa 138bhp and comprehensively blew off the opposition that year. 150bhp per litre for a normally aspirated engine was about as good as it got at the time, apart from Honda’s motor cycle engines anyway!

Honda acquired a Brabham F2 chassis in 1964, so Jack was well aware of Honda’s F2 plans, he tested the car at Honda’s request late in 1964 at and again in January 1965 at the conclusion of the Tasman Series, he reported his impressions of the car in his ‘Motor Racing’ magazine column. ‘The Honda F2 is an all-alloy 4 cylinder DOHC, 4 valve engine with fuel injection…alongside an F2 Cosworth SCA , it is quite a big looking unit and there are some difficulties getting it into the frame…Since then modifications have been made to the unit so it can be mated to a Hewland 6 speed gearbox and sit in its proper position in the chassis’.

honda engine

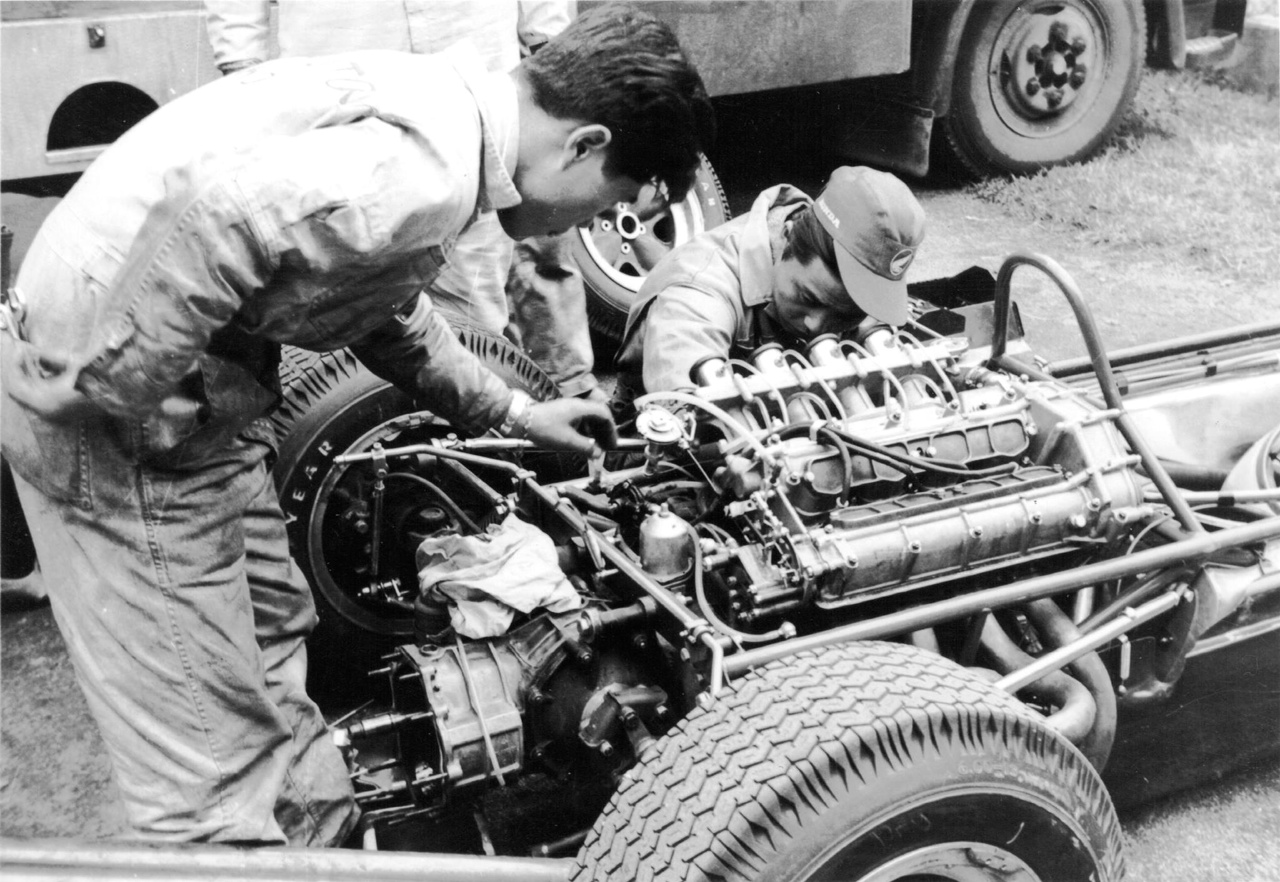

Honda 1 litre DOHC, 4 valve fuel injected 150bhp ‘RA302E’ engine. Jack’s Brabham BT16, Pau GP 1965, DNF in the race won by Clark’s Lotus 35 Cosworth SCA. Electronic ignition take off of exhaust camshaft clear, large size of engine, neat installation and Goodyear tyres suggests 1966. Hewland ratio change in progress, lots of this with the peaky little engine! (Ian Gordon)

‘It runs smoothly and sounds very impressive, makes twice as much noise as the average F2 engine..there is useful power from 6000-9500 rpm, which is a nice wide band and makes the car comparatively easy to drive…Honda agreed to send 2 of their mechanics to be responsible for maintaining the engines during the coming season’. (1965)

In fact 1965 was a learning year for the new partners with Jack impressing upon the Japanese engineers the need for a wider band of power and torque, gearing of the car in 1965 critical.

Jack stepped out of the Honda powered chassis in June, forsaking it for Cosworth SCA power as the engine was developed. He returned to it at Albi in September; Jack took pole, set the fastest lap and finished 2nd to Jim Clark’s Lotus 35 Cosworth SCA by less than a second after 85 laps…the lessons were well learned by Honda for success, make that domination in 1966.


Ron Tauranac and Jack Brabham discussing setup changes to Jacks BT21 Honda, #2 Hulme’s sister car, Monthlery 9 September 1966 (Popperfoto)

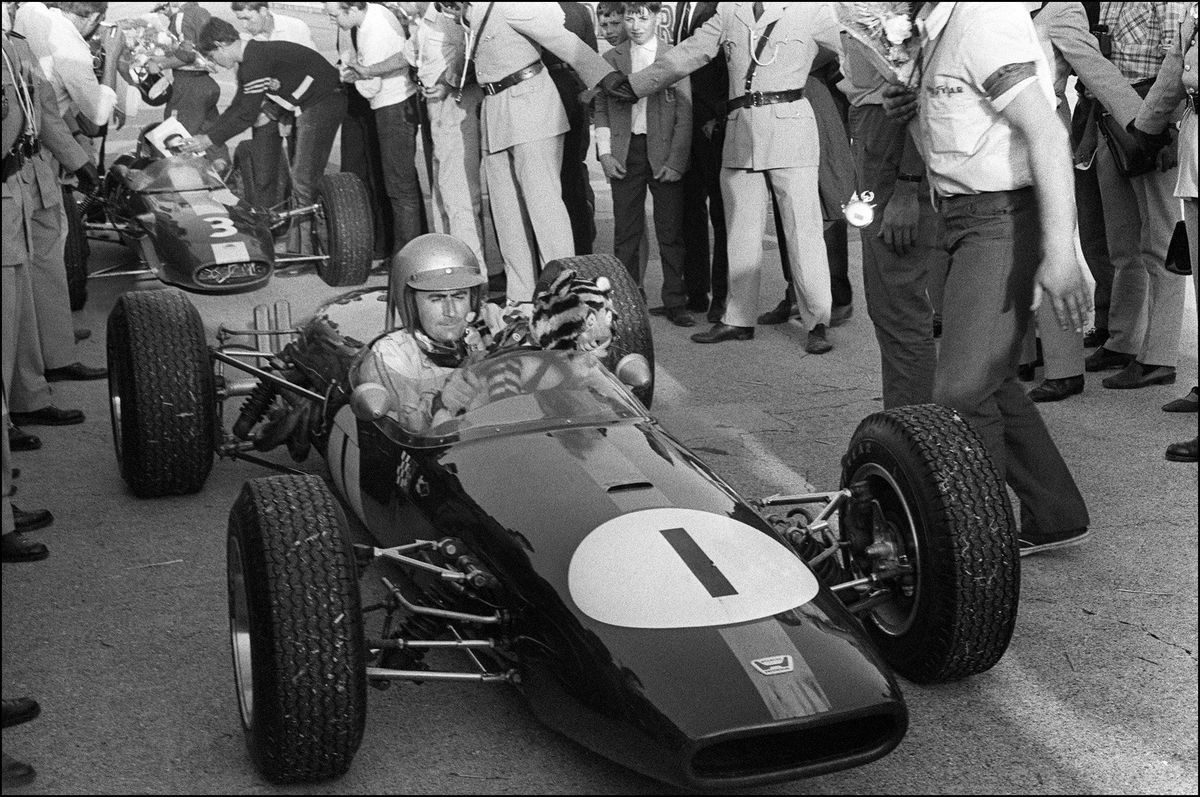

Jack Brabham with the victors garland, Monthlery 1966. Brabham BT21 Honda. Thats Clark’s 2nd place #3 Lotus 44 Cosworth SCA behind, Denny Hulme was third in the other Honda engined Brabham BT18. Note the Honda badge on the nose of Jack’s car. (unattributed)

The FIA introduced a new 1.6 Litre F2 class for 1967, Honda focussed on F1 in 1967 and 1968 before their withdrawal from top level single seater racing…they returned with Ralt in F2 in 1980 the partnership of Honda and their old friend and collaborator Ron Tauranac rekindled after all those years.

They were successful again, winning the European F2 Championship in 1981/3/4, the Ralt Honda’s driven by Geoff Lees, Jonathon Palmer and Mike Thackwell before returning to F1 with Spirit in 1983, this formative partnership replaced with a longer term commitment to Williams in 1984 and the rest as they say is history…

Ralt%20honda%20team%201982

Modern Ron Tauranac/ Honda Partnership. Successful Ralt Honda Team in 1981. Victorious with the Ralt RH6 in the Euro F2 Championship, Geoof Lees won the title, he is to the right of teammate, the black-clad Mike Thackwell on crutches. Ralt RH6; aluminium monocoque ground effect car of the period used the Honda RA261E, 2 litre (1996cc) DOHC, 4 valve , fuel injected n/a engine as a stressed member. Circa 310bhp @ 10500rpm. (unattributed)

Etcetera…

jb brabham honda 65

Jack not looking quite so happy with the car in its formative 1965 year with the new Honda engine. Here at Oulton Park for the F2 ‘Gold Cup’ in September. He qualified his BT16 with the peaky unit well, 6th, but clutch trouble meant a DNS in the race won by John Surtees Lola T60 Cosworth SCA. (Eddie Whitham)

jack and ron

Another Oulton shot, Geoff Brabham in the green jacket far left looking on, Ron Tauranac, Jack and the small team of Honda mechanics. (Eddie Whitham)

honda big exhaust

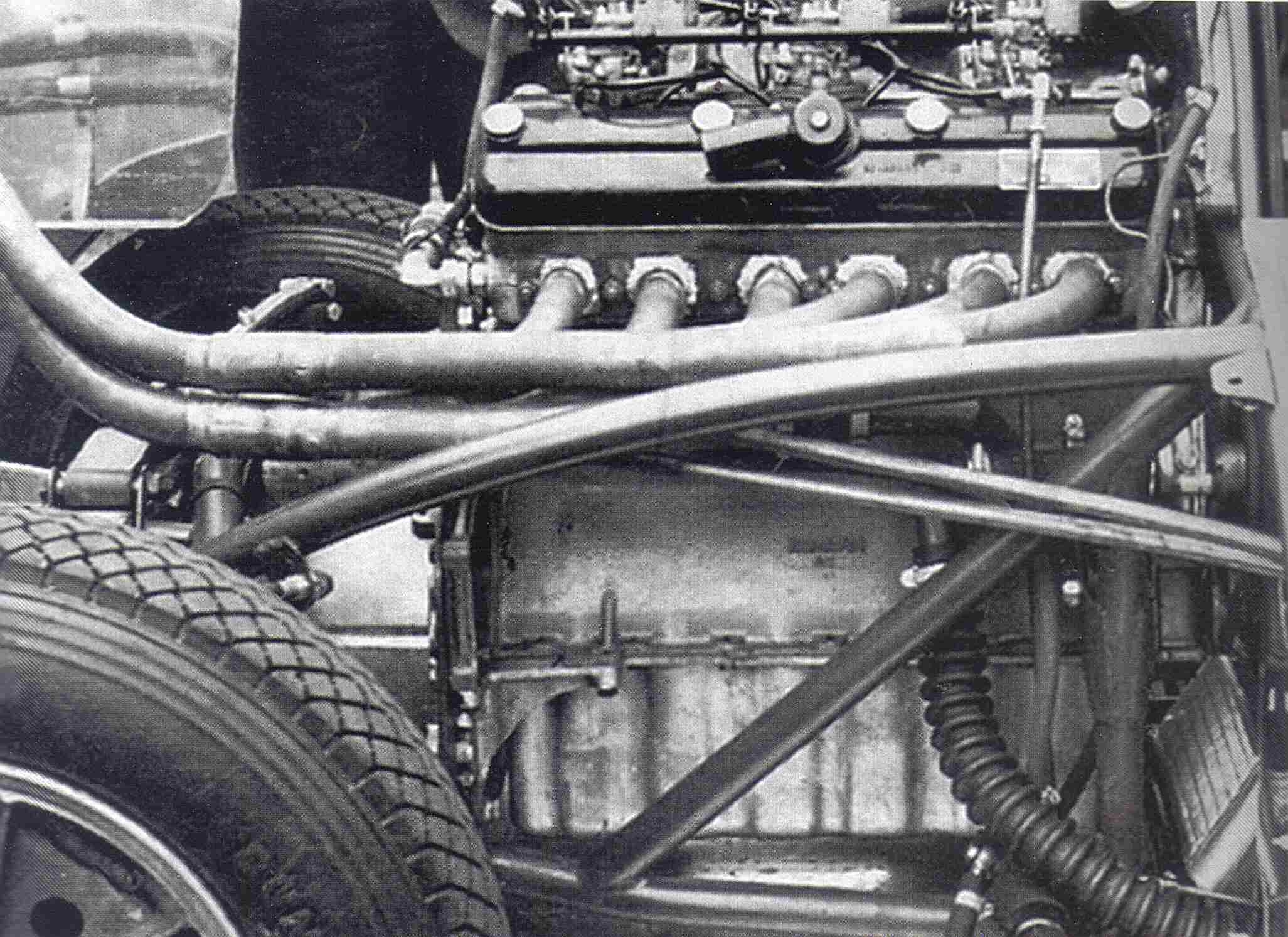

In the early stages much experimentation took place to get the power/torque mix right including exhaust lengths… 1965, paddock place and date unknown. (unattributed)

jack oulton

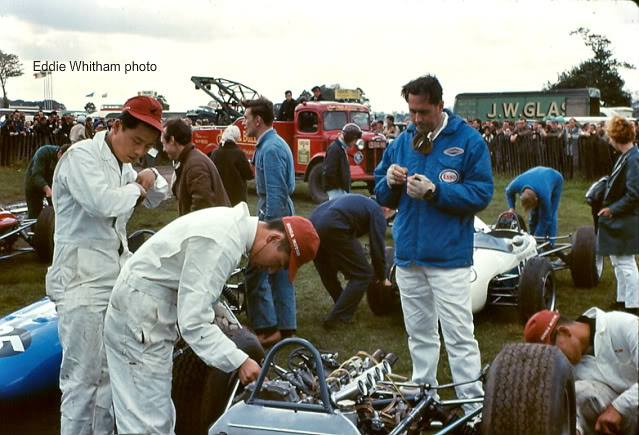

Jack preparing for the off in the Oulton paddock, 1965 Gold Cup. (Eddie Whitham)

jap techs b honda

Another unattributed paddock shot of the Brabham Honda. Roy Billington down the back. Conventional rear suspension and Hewland ‘box. Single top link, inverted lower wishbone, coil spring/damper unit, adjustable roll bar and rubber donut all in shot. (unattributed)

Brabham_Hulme BT18 Honda (F2) Pau GP 1966

Denny ahead of Jack at the Pau GP on April 17 1966. The tables were turned at the events conclusion, Jack and Denny in Brabham BT 18 Honda’s, Graham Hill 3rd in another Brabham, a BT16 BRM. The Brabham Honda 1/2 was achieved at Goodwood, Pau, Zolder, Crystal Palace, Karlskoga and Keimola, Finland that year. (unattributed)


Brabham victorious in the car at Pau with Graham Hill and Denny Hulme joining in the fun (INA)

Tailpiece…

reims f 2

‘Where’d they go?!’ Tailenders on the Reims ’66 F2 grid. (unattributed)

Credits…

Eddie Whitham, Popperfoto , Stephen Dalton and Leigh McMullen for research assistance, ‘Motor Racing’ magazine May/June 1965, Ian Gordon

Finito…















butt

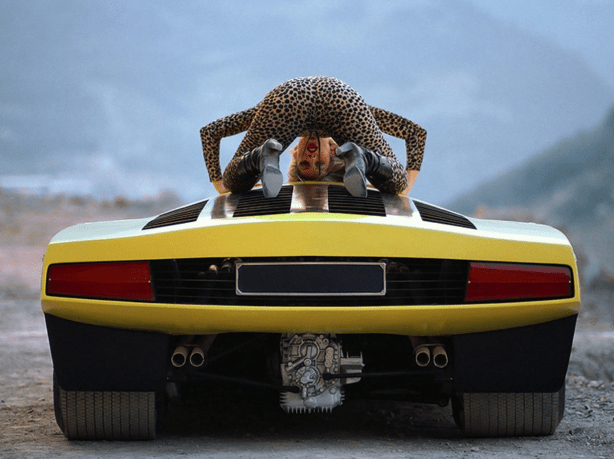

Pininfarina designed, 1969 Ferrari 512S Berlinetta Speciale. And admirer. (Rainer Schlegelmilch)

‘A rather permissive rear end reveals part of the five speed transmission on the Pininfarina Ferrari 512S. There is the almost customary louvered backward look but its Wellsian.

The chassis was a tubular structure with riveted light alloy panels contributing to the rigidity.

The naughty nakedness around the car’s nether regions and the upswept slotted effect adjacent to the rear wheels assists with the expulsion of hot air that can be generated by such a projectile-from brakes, tyres, transmission exhaust system etc. Forward visibility from the two seats was remarkably good-useful with such performance’.

So said Automobile Year 17’s summary of the rear of the Pininfarina designed Ferrari 512S Berlinetta Speciale in 1969. Amazing how appropriate a caption it is for this shot taken 45 years later!

berlinetta

512S Berlinetta Speciale. (Rainer Schlegelmilch)

The original appeal in writing this article was the juxtaposition of  ‘les derrieres incroyables!’ of car and model, but upon closer inspection the fusion of a racer, which had a ‘big hit’ at Monza in 1969 and then contributed its chassis as the basis for Pininfarina’s Ferrari ‘512S’ Speciale show car is an interesting one in itself.

This article is a story about the two Ferrari ‘512S’ based Pininfarina designed Show Cars; the ‘Berlinetta Speciale’ of 1969, actually based on the chassis of a 312P, and ‘Modulo’ of 1970, actually based on a 512S chassis which raced as a 612P. Simple really!

I wrote about the Ferrari 312P a while back, here is the link to that article, i won’t go through the background of these cars again, but its all here; https://primotipo.com/2014/09/21/enzo-ferrari-framed-by-his-312p-ferrari-312p-1969/

side

512S Berlinetta Speciale. (Rainer Schlegelmilch)

Life as 312P ‘0868’ Was Short and Not So Sweet…

The chassis of the ‘512S Speciale’ was the first of the 1969 312P endurance racers completed. It was the car launched to the press at the Hotel Fini, Modena on December 14 1968. In early 1969 it was damaged testing at Vallelunga and therefore didn’t make the season opening championship round at Daytona, but was rebuilt in tine for the Sebring 12 Hour in March.

Chris Amon and Mario Andretti drove the car, the curvaceous 3 litre V12 winning its class and finishing 2nd overall to the venerable 5 litre Ford GT40 of the ‘Jacks’ Ickx and Oliver.

amon sebring

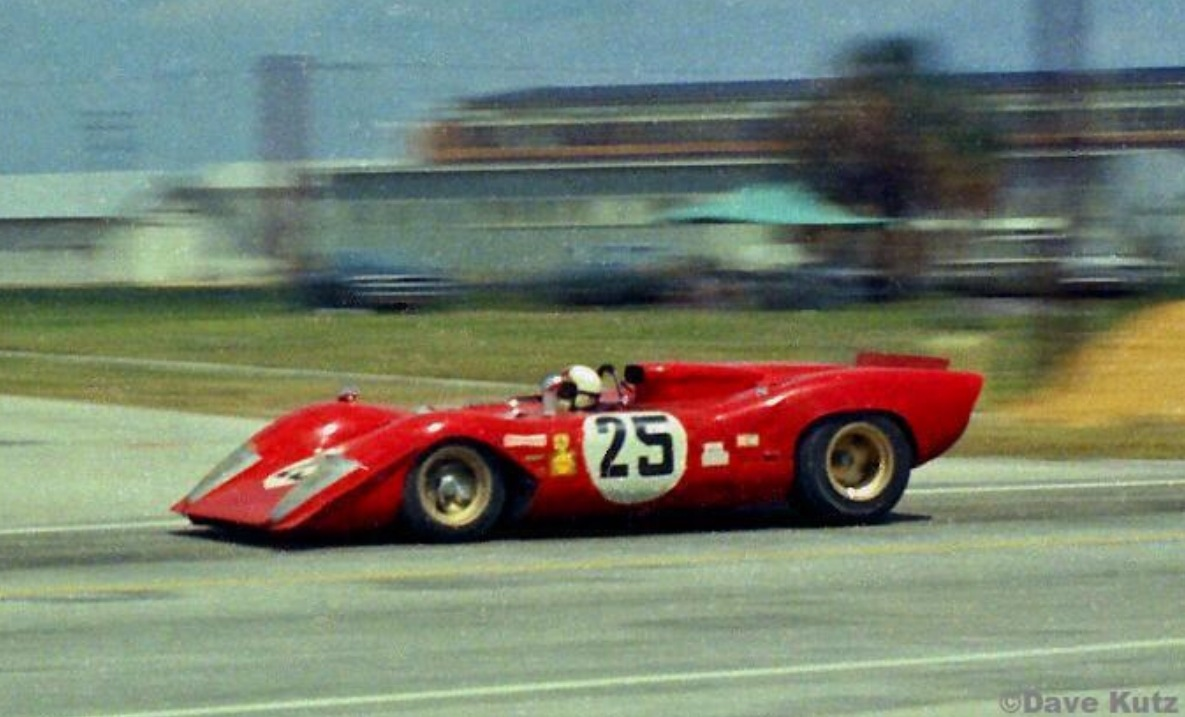

Chris Amon in Ferrari 312P ‘0868’ he shared with Mario Andretti at Sebring in 1970. (Dave Kutz)

pedro brands

Pedro on his way to 4th place in 312P ‘0868’ or ‘0870’…Brands 500 Km 1969. (unattributed)

Amon was paired with Pedro Rodriguez at Brands Hatch, the pair finished 4th in the 500Km race won by Jo Siffert and Brian Redman in a Porsche 908/2. Note that some sources say the Chris/Pedro car was ‘0870’ not ‘0868’ which they say did not arrive. Whatever.

rod rig monza

Rodriguez in 312P ‘0868’ boxing in winner Jo Siffert’s Porsche 908 behind the Hanrioud/Martin Ford GT40.(15th) Monza 1000Km 1969. (unattributed)

A fortnight later, on 25 April the car was entered at Monza for the 1000Km home event, Pedro back behind the wheel this time paired with Peter Schetty, later a successful Ferrari Team Manager.

During the race a left rear Firestone blew, damaging the rear bodywork, Pedro nursed the car back to the pits on lap 66. The crew quickly got him going but had not properly affixed the rear bodywork which blew off the car at high speed causing a huge accident of the type which took Bruce McLaren’s life 12 months later at Goodwood, fortunately without injury to Pedro but comprehensively ‘rooting’ the car.

It was taken back to the factory and put to one side whilst the other two 312P chassis were used for the racing at hand.

pedro monza

Pedro Rodriguez alights the Ferrari 312P ‘0868’ he shared with Peter Schetty at Monza in 1969. This was after the first ‘light hit’ when a tyre blew. When he got back into the car, on its first ‘out lap’ the separation of rear bodywork from the car caused the accident which all but destroyed it, Pedro shaken but ok. (unattributed)

Later in 1969 the chassis and an engine block (as against a complete engine) from 612P CanAm car #0866 was given to Pininfarina as the basis for their ‘Berlinetta Speciale’ styling exercise, the chassis at that point stamped ‘002’ noting the chassis was a 312P not a 512S despite the name…

amon

Chris Amon in Ferrari 512S ‘1012’ shared with Arturo Merzario in the very wet Brands Hatch 1000Km in 1970. They were 5th in the race famously won by Rodriguez’ stunning wet weather drive in a Porsche 917K. (unattributed)

So, why call the Berlinetta Speciale a 512S if  twasn’t? Whilst Enzo’s coffers were full of Fiat lire given the Italian corporates 1969 Ferrari investment, the Scuderia had the not insignificant problem of flogging the 25 512S’ required to be built for homologation into the FIA’s Group 5 to race in 1970.

And no amount of  Ferrari homologation ‘jiggery-pokery’ with promises of cars to be built would satisfy the CSI given the hoops Porsche had to jump to achieve certification of production numbers of their 4.5 litre 917 ‘Panzer-Wagen’ which created the need for all those 512S to be built in the first place… Given the working capital involved in designing, building and carrying the holding costs of unsold cars on his Balance Sheet be in no doubt about just what a priority Le Mans was to Ferrari for all those years.

He would not readily hand victory to the Germans without a fight. So, i suspect the 512S nomenclature was a marketing exercise to do everything possible to promote the car he needed to sell rather than one he was about to drop as works entry at seasons end. (putting the 312PB of 1971 and beyond to one side, that car is still a regulation change away, in 1969 the main game was 5 litres not 3)

fazz

‘In period’ studio shot of the 512S Berlinetta Speciale. (unattributed)

Ferrari’s Design Evolution…

Filippo Sapino longest creative stint was 30 years as design director at Ghia but his most stunning project was the ‘Ferrari 512S Berlinetta Speciale’, completed whilst at Pininfarina for a short while in the late 1960s. Launched at the 1969 Turin Motor Show, the car caused enormous interest as it was the first Ferrari with ‘wedge styling’, a design trend of the late sixties.

Regardless, ‘Sapino had made the most of the floor-hugging physique of the chassis, adding some unorthodox surface treatments to visually transform static into supersonic. Flourishes such as the flip-up canopy completed the Speciale’s theatre’.

Automobile Year 17 said this about the car in its annual review of 1969 ‘Quite the most exciting looking closed car to emanate from the Pininfarina establishment for some time, the Ferrari 512S Berlinetta Speciale pursued the wedge line and with the 5 litre four ohc V12 engine behind the seats it should be one of the worlds fastest cars. The shape was determined after research in collaboration with the Turin Polytechnic, and was the work of 29 year old Filippo Sapino before he left to join the new Ford styling centre in Turin.’

Pininfarina’s Ferrari Modulo, displayed in 1970, based on a 512S chassis was the definitive Ferrari wedge…

modulo

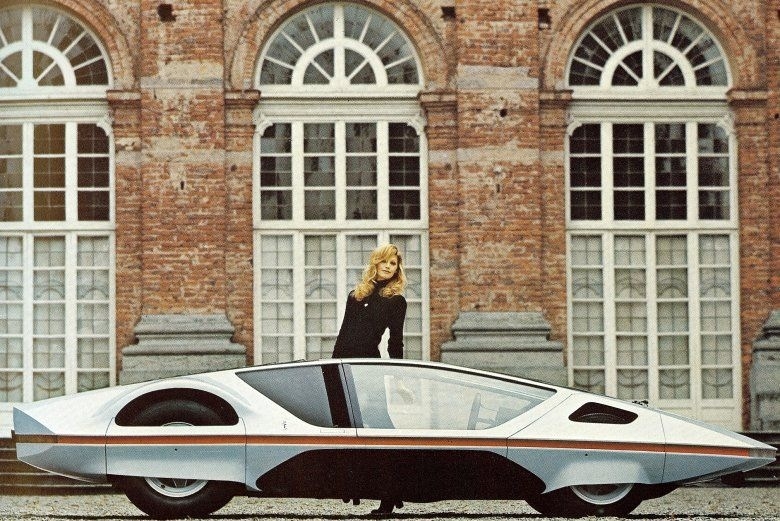

The truly stunning Pininfarina Ferrari Modulo. As stunning now as when first launched at Geneva in 1970. This shot was in Automobile Year 18.

Even though the Modulo was originally designed by Paolo Martin in 1968 the Berlinetta Speciale was the first built and therefore could or should be said to be the more influential in showing the path and creating the inspiration for Ferrari angular/wedge road cars such as the 365GTC/4 (also designed by Sapino), 365 Berlinetta Boxer and 308-328 series of Dino’s

dino

Ferrari publicity shot of Niki Lauda and Clay Regazzoni checking out the ‘wedgey’ Pininfarina designed, Dino 308 at Fiorano in 1976. They are during a lull testing the 312T2 F1 car which is clear to see. (unattributed)

In fact the choice of Sapino’s design as Pininfarinas 1969 Show Star rather than Paolo Martin’s is an interesting bit of Pininfarina politics, which worked out rather well for PF, Ferrari and i suspect both designers.

Paolo Martin already had a successful PF Ferrari ‘show car’ under his belt, the Ferrari Dino 206 Competizione which made its show debut at Frankfurt in 1967. I wrote about this influential car a while back. https://primotipo.com/2014/07/27/ferrari-dino-206-competizione-pininfarinas-1967-yellow-dino-and-ferrari-dino-206-s/

In 1968 at Pininfarina he was wrestling with the design of a dashboard of the Rolls Royce Camargue when he conceived the design of a car which became known as the Modulo, which he described as ‘The craziest dreamcar in the world, the most unique, violent, inimitable and conceptually different’.

Sketches were drawn, Martin had an ally in PF Director Franco Martinengo but Sergio Farina was not convinced even by Martin’s full scale polystyrene model of the car which he completed by August 1968. ‘Why would you draw a car like this?’ he asked Martin. “Its important that they will speak of it’ he replied. Farina’s rejoinder ‘Yes, but they will speak ill of it’.

And so, as its showcar in 1969 Pininfarina went with Sapino’s more conservative, i hesitate to use the word, the car is stunning but in relative terms the car is conservative beside the Modulo, as was everything else was when the car appeared at Geneva in 1970.

Emboldened by the success of the Berlinetta Speciale in 1969 Pininfarina was ready to endorse Martin’s Modulo which made its show debut in 1970, it truly was and is a remarkable milestone in automotive design, still fascinating audiences when it makes occasional show appearances now.

The Modulo is an interesting story for another time, it was based on a 512S chassis but the account is far from clear. The consensus seems to be that 512S chassis ‘1027’ was built up as Ferrari 612P ‘0864’, the car one of 2 (‘0866’ the other) raced by Chris Amon in the 1969 Can Am series. At the end of the cars unsuccessful campaign, the McLarens M8B Chevs dominant that year, its remains including the original chassis less chassis plate was given to Pininfarina to be used as a base of the Modulo.

612

Ferrari 612P CanAm car, Ferrari factory shot. The car grew wings and other aero appendages but fundamentally lacked grunt whatever its chassis shortcomings relative to the Mclaren M8B Chevs dominant that year. One 612P was built using 512S chassis ‘1027’, and then at the end of the season the car was dismantled and the chassis used as the basis for the Modulo. (Sefac Ferrari)

The photo shoot atop a mountain top at Como, Italy which inspired this article was shot by noted racing photographer Rainer Schlegelmilch, Who knows what its all about, and who cares…both car and babe shown to great effect!

berlinetta 2

Etcetera…

612 engine

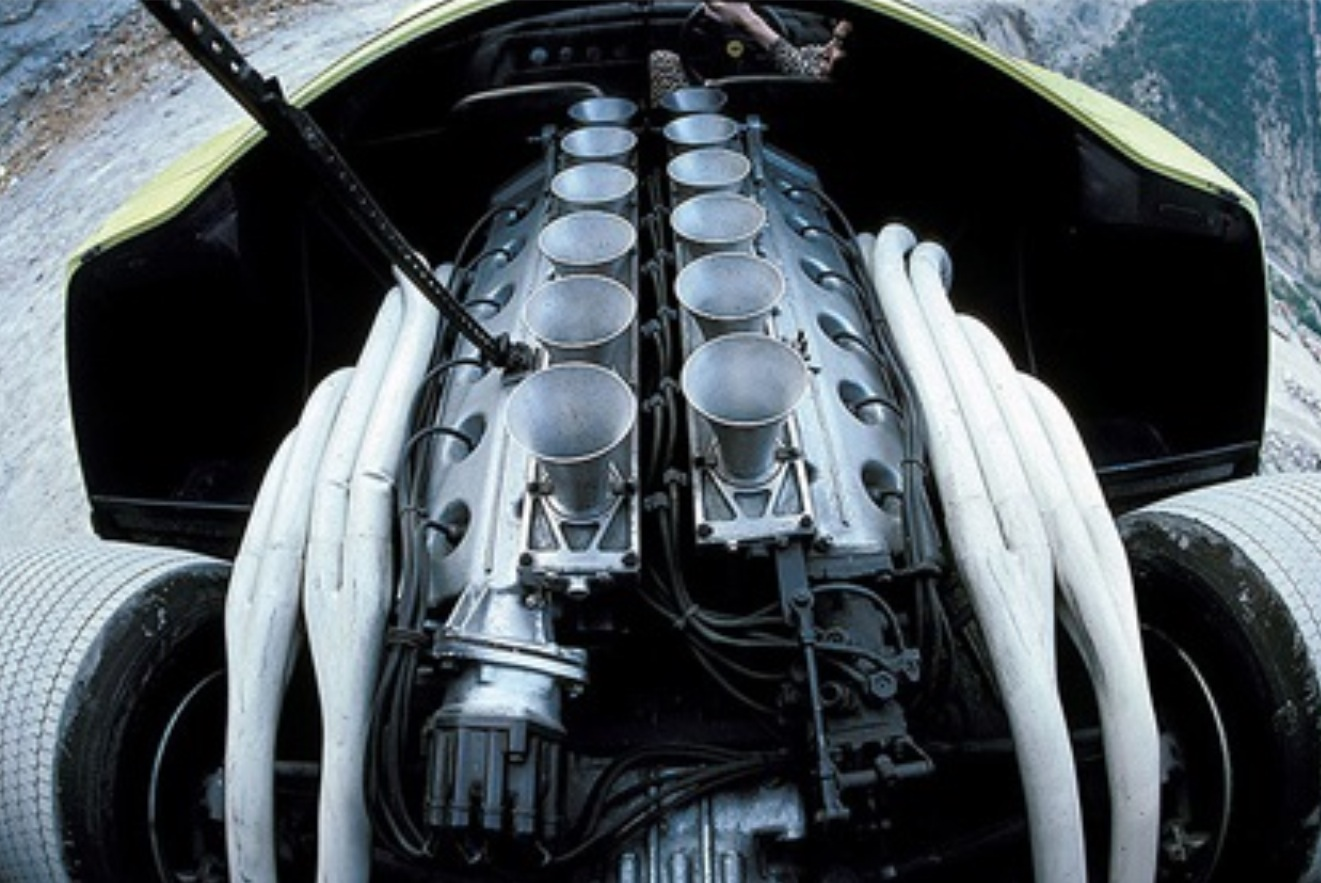

512S Speciale engine compartment filled with the 6 litre V12 ex 612P ‘0866’. Its a dummy engine, original block but no internals, the car is not and has never been ‘ a runner’. Looks the goods all the same. (Rainer Schlegelmilch)

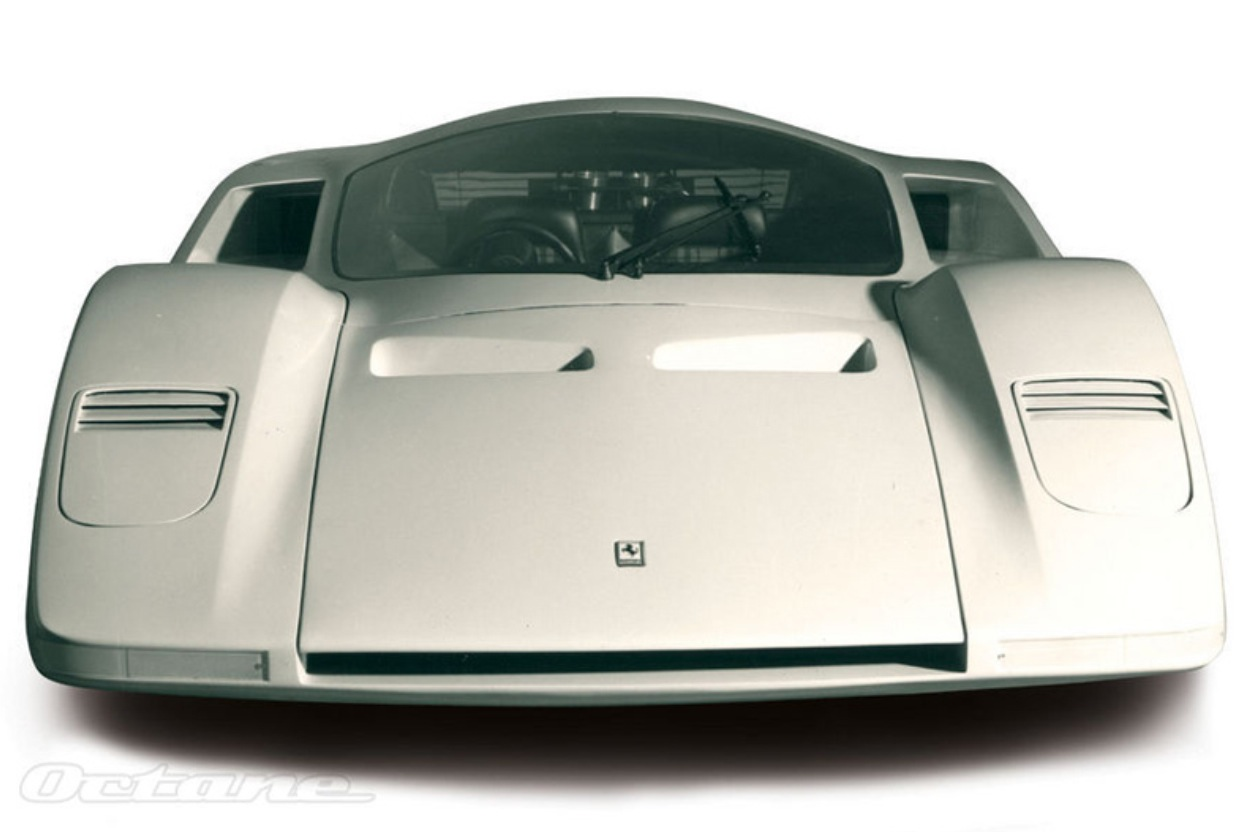

berlinetta front

Berlinetta Speciale, great from any angle. (Octane)

Bibliography and Credits…

barchetta.cc, ferrarichat.com, Automobile Year 17, Classic Driver

Rainer Schlegelmilch, Octane

Finito…



rob roy start

(George Thomas)

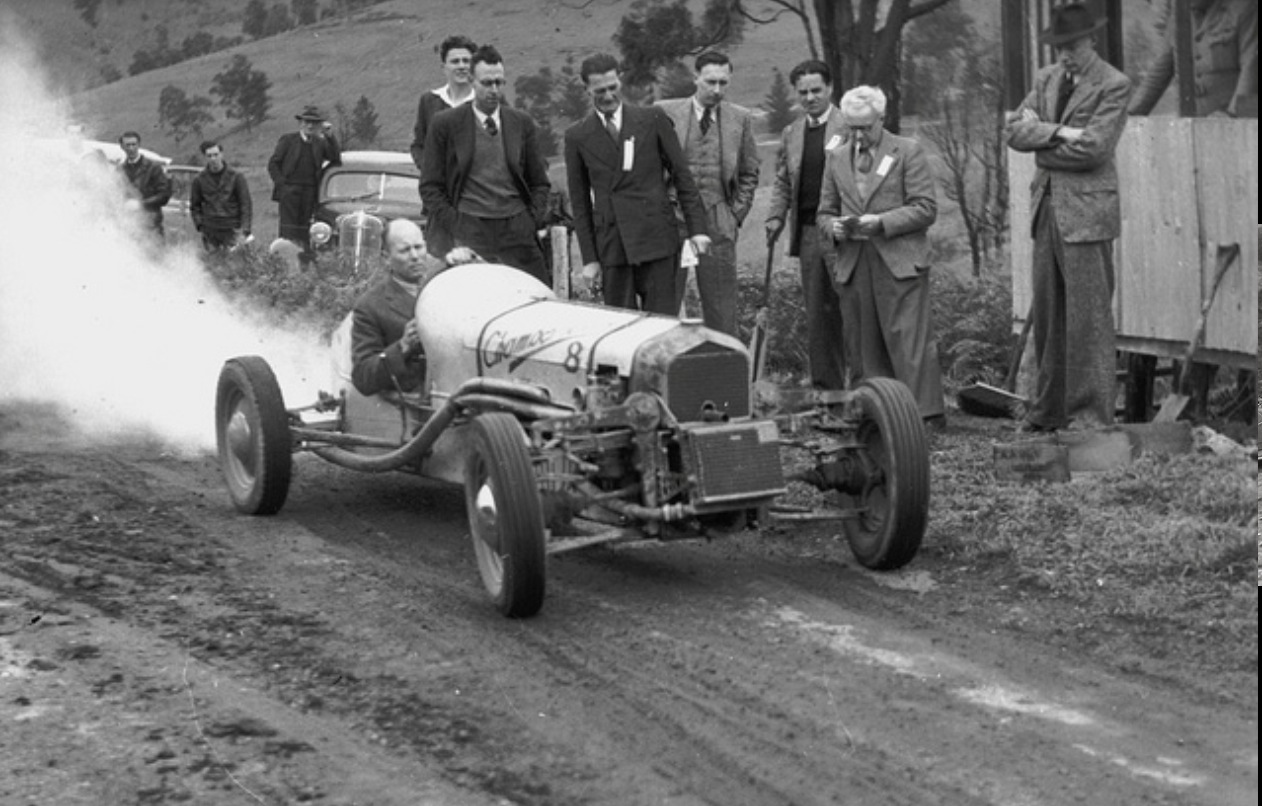

Jim Hawker launches the Chamberlain 8 off the start at Rob Roy, 17 June 1946, the car enveloped in a haze of acrid, blue, two-stroke smoke, spectators ears ringing with the sound of the ‘banzai’ engine at 7000rpm…

Introduction…

As you will see from this article, the Chamberlain 8 is a remarkable car built by equally amazing men, Bob Chamberlain and his brother Bill Chamberlain with later support of some of Australia’s most talented engineers.

This long piece is in two parts with several subsections;

The first is a reproduction of an article about the car written by John Medley published in a marvellous magazine, Barry Lake’s ‘Car’s and Drivers’ way back in 1977.

John is one of Australia’s best known Racing Historians having written for numerous publications in Australia and overseas for years. He is also a racer and author of two books; ‘Bathurst Cradle of Australian Motor Racing’ and ‘John Snow Classic Motor Racer’. In addition he contributed 3 chapters to Graham Howard’s seminal  ‘History of The Australian Grand Prix’.

A subsequent ‘Letter to The Editor’ of ‘Cars and Drivers’ by John Cummins, who worked on the car at Chamberlains’ post war is included as Part 1B to add more detail.

A summary of the cars history post war is written by me (Mark Bisset) based on John Hazelden’s book ‘The Chamberlain: An Australian Story’, John owned the car after the Chamberlain brothers deaths, the book chronicles the ‘Beetles’ full history inclusive of every event in which it participated. This subsection is Part 1C of the article.

The second part draws from a book written about Bob Chamberlain, ‘Chamberlain Australian Innovator’ and his significant engineering and business achievements which were so much a part of the first century of automotive engineering in Australia. The book was was written by Bruce Lindsay.

Part 1.by John Medley…

That which hath been is that which shall be; and that which hath been done is that which shall be done; and there is no new thing under the sun. Is there a thing whereof men say ‘See, this is new?’ It hath been already in the ages that were before us’- Ecclesiastes…

ch side

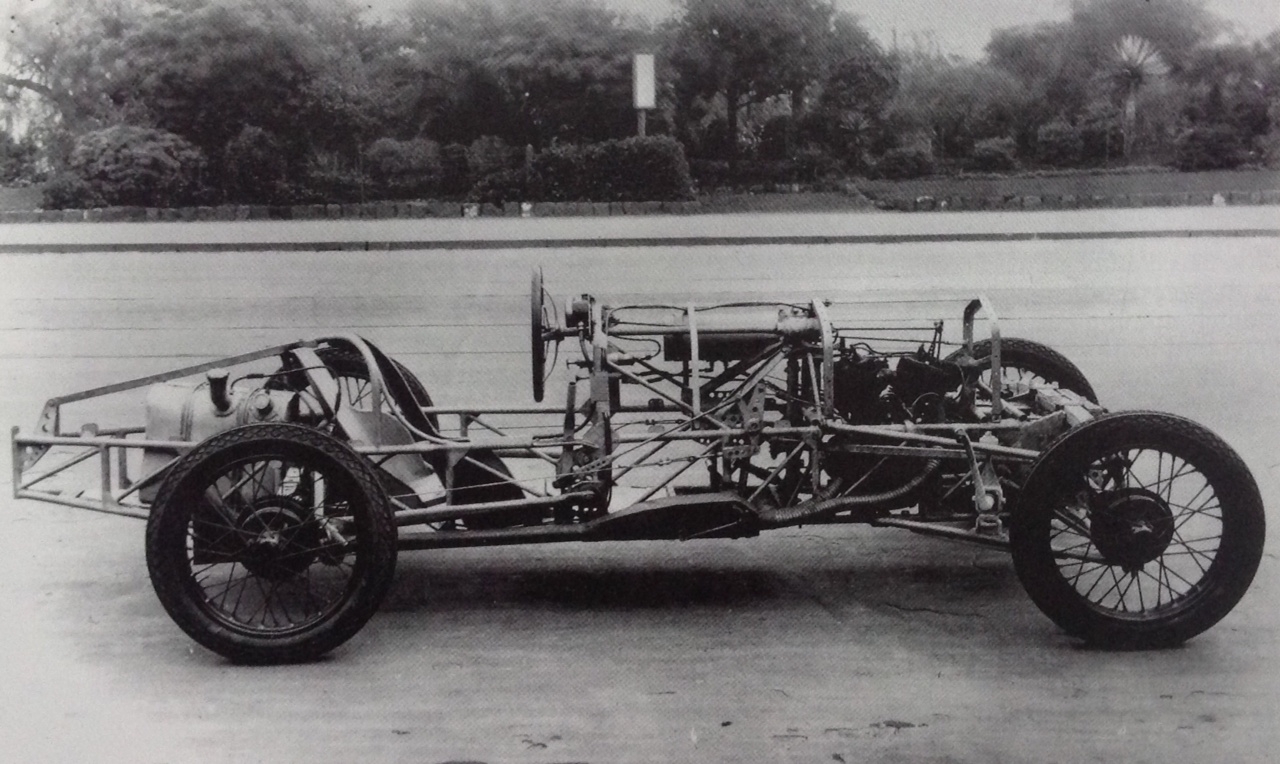

The Chamberlain Special ‘The Beetle’ with the Indian motorcycle engine in 1929. The light, multi-tubular, triangulated, spaceframe chassis is clear in this shot. 1929 remember! (The Chamberlain)

Australian motor sporting history has seen some quite remarkable instances of original thinking-the V6 1.5 litre Clisby engine, the Waggott four-cylinder engine, Eldred Norman’s Eclipse Zephyr Special, Jim Hawker’s Peugeot V8 engine, the Offenhauser copy based on Salmson engine, to name but a few.

Perhaps the most remarkable of them all, however, was a car created almost 50 years ago in Melbourne. It was (and is) living proof that there is little new under the sun. The mind boggles at the time, patience effort, and skill that went into its construction.

ch drawing

Bob Chamberlains original layouts of the ‘Beetle’ done under candlelight whilst Bob worked in the Mallee, rural Victoria. (The Chamberlain)

Imagine, if you can, a one off special built almost 50 years ago (now 90) and having the following features;

1. A 4 cylinder stepped bore, 8 piston, vertically opposed, supercharged, 2-stroke engine with 2 crankshafts one of which runs through the skirt of the top pistons.
2. An engine which runs to 8000rpm.
3. Twin plugs per cylinder producing 64000 sparks per minute (from 8 coils) at 8000rpm.
4. Front wheel drive with inboard brakes.
5. Four wheel independent suspension.
6. A space frame chassis of small diameter tubes, much of it triangulated.
7. An 1100cc 85+ BHP motor.
8. Virtually the whole car built in Australia.

Any one of these features would have been remarkable and distinctive in 1929 when the car itself was built, or in the early 1930’s when the present engine was inserted. In combination the assemblage of features makes for one of the most amazing cars the world has seen. That it was constructed by a small group of enthusiasts rather than a large and experienced factory makes it all the more remarkable.

beetle

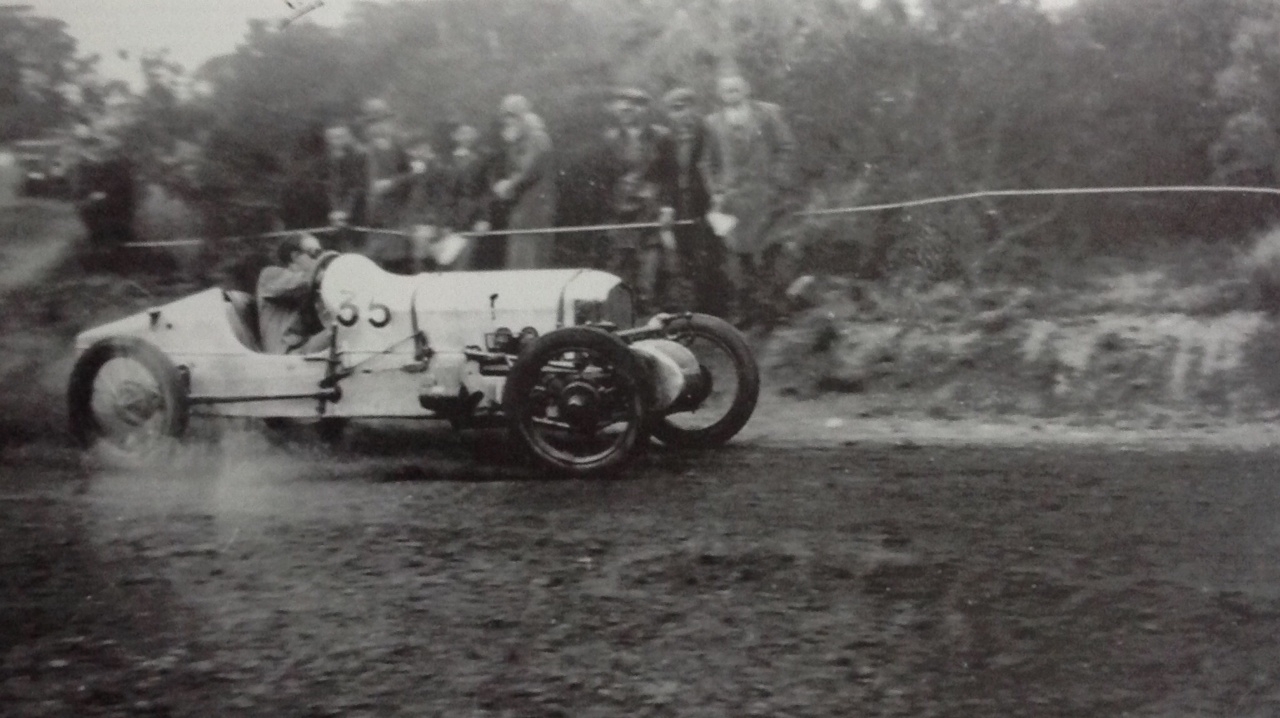

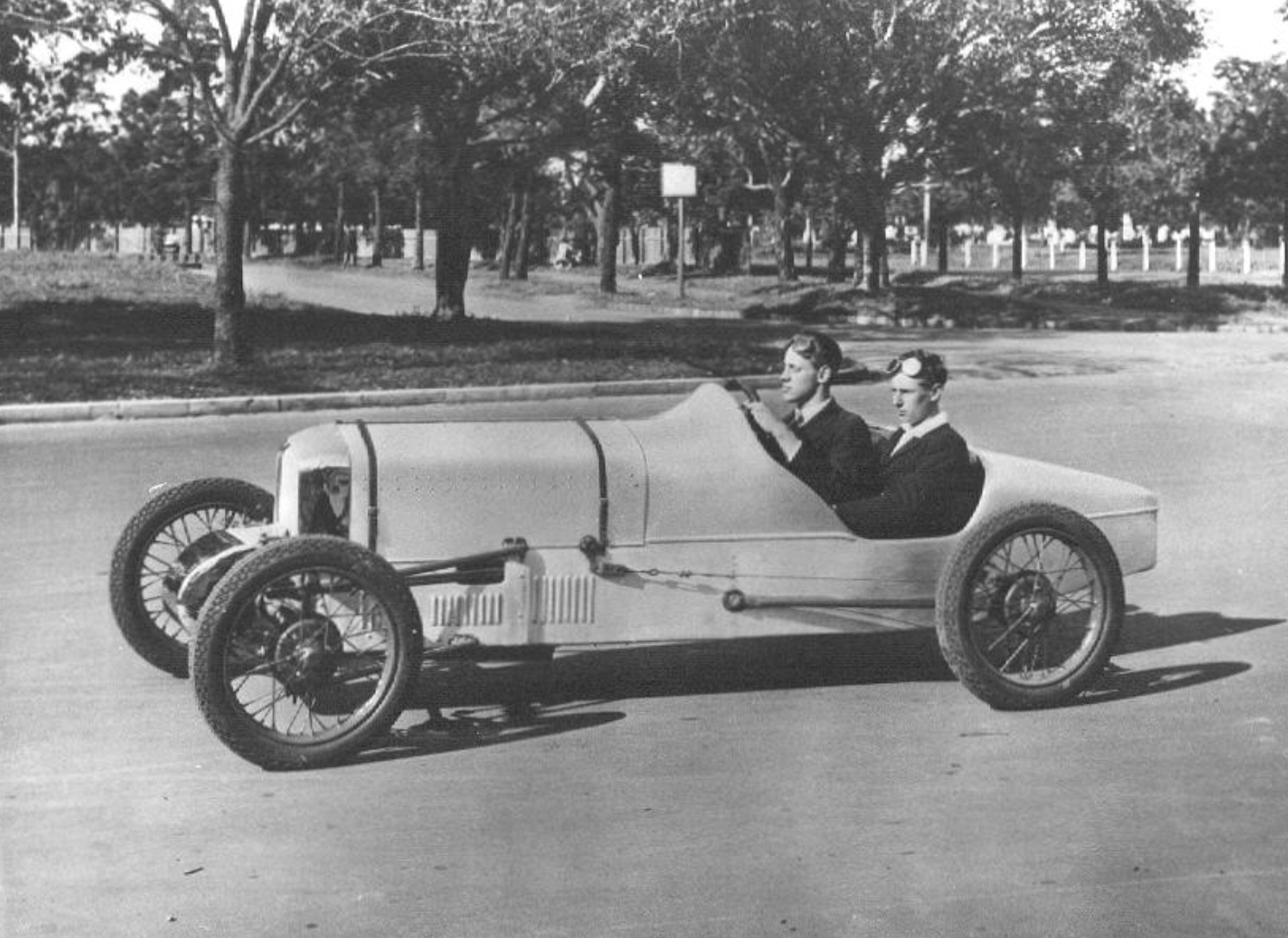

Bob Chamberlain at the wheel of the Chamberlain ‘Beetle’. Circa 1929, car in its original motor cycle engined form.(Chamberlain Australian Innovator)

The car is the ear-splitting Chamberlain Special and its builders are Alan (Bob) and Howard (Bill) Chamberlain (with a little help from their friends). Bob built the original car while Bill built the 8-cylinder, 2-stroke engine.

The Chamberlain last appeared when entered for the Historic racing events at Sandown in 1973. In the early 1950’s it had been put away in a corner of the Chamberlain workshop and more or less forgotten-except when a bit was needed for some project or other, when it was robbed of parts. When it was decided to run the car again in 1973 the Chamberlains found one of the coils, a collection of sprockets, a 2 inch Vacturi carburettor and a large number of racing spark plugs were missing. Replacements had to be found before the car could be enticed from its lair.

It started at the second try after lying idle for about 20 years! The car ran well in private practice on the Thursday before Sandown (mainly practice for Bob Chamberlain who hadn’t raced for 40 years!) A water leak from a corroded engine cover plate was fixed and the car returned to Calder the following day. After an uneventful session Bob stopped and then promptly everything locked solid. At the time they thought it was the clutch but after some dismantling they realised that the problem was the engine bearings. Castrol ‘R’, the vegetable based racing oil which had been in the engine for 20 years had oxidised and gummed up the crankshaft bearings. Castrol supplied a solvent in an attempt to dissolve the mess although they weren’t very confident of its success and, in fact, it didn’t work.

The job of dismantling the complicated engine was just too great in the time available so the car did not race at Sandown, although it was brought along as a static display-a bitter disappointment to its owners and to those who had come to experience the sight and sound of this remarkable car.

bob

Bob Chamberlain in later years with his recreation of the Napier L48 racer. (‘Chamberlain Australian Innovator’)

Bob Chamberlain built the car in 1929, all except the engine being virtually as it is today. The car’s first engine was a big-valve Daytone Indian motor cycle unit. In this form, the road registered car covered thousands of miles but trouble was experienced with the valve gear. A slightly smaller capacity four cam Altoona Indian motorcycle engine was installed, proving more reliable. To increase the capacity and the performance, Norton barrels were fitted to the Indian crankcase. The car now became quite competitive, particularly in sprint events, easily holding the Wheelers Hill (in outer Eastern Melbourne) record for example. It ran in the numerous sprint events run by the Light Car Club of Australia, Junior Car Club and the Royal Automobile Club in Victoria during the period, as well as circuit races at Aspendale (inner Melbourne bayside suburb) and Safety Beach (holiday destination on Melbourne’s Port Phillip Bay).

paper article

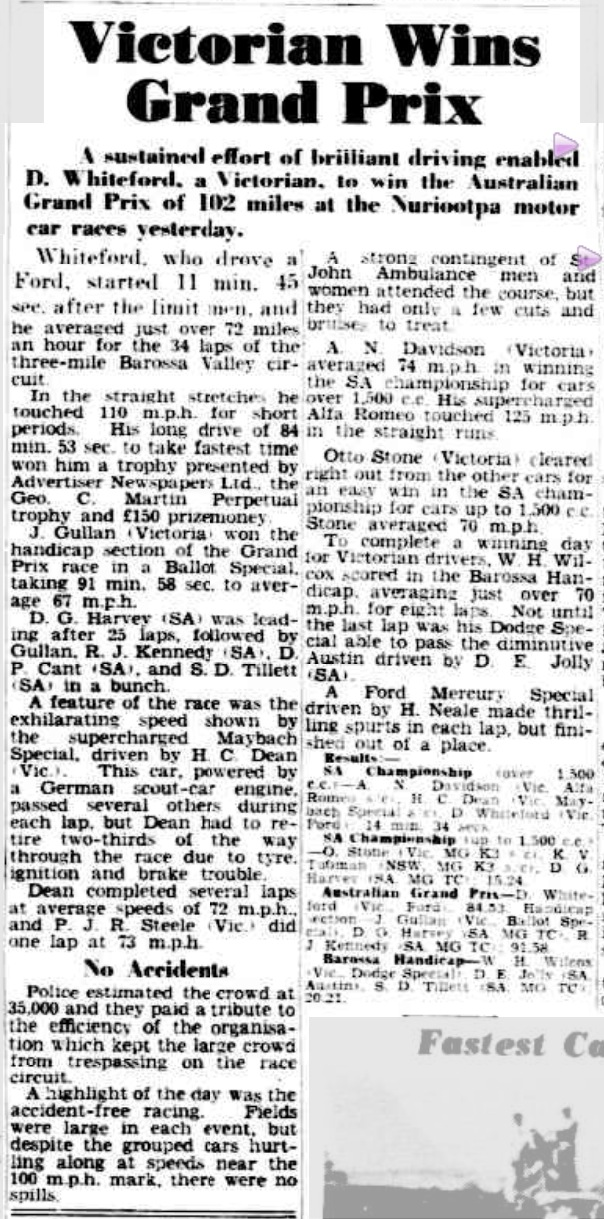

The innovative nature of the car was widely recognised at the time, in this case ‘The West Australian’ 30 October 1930.

Entered 3 times for the AGP at Phillip Island, the car was not successful. At the first attempt a piston seized due to the alloy being unsatisfactory. By the following year the Chamberlains had made their own pistons from ‘Y’ alloy and the car completed practice without any troubles. In the race it only lasted 3 laps, when a crankpin broke.

Bob had trouble recalling a third attempt at the Island but checked his records and found that the car was indeed entered and listed as supercharged, although he is sure the car did not actually race in this form. Bob says that the blower was fitted to the Indian motorcycle engine and the compression lowered in the hope of improving big-end bearing life. It didn’t work out that well but this 2 cylinder supercharged engine powered the car at several meetings at Mebourne’s Aspendale Speedway as well as a number of hillclimbs, with some success.

Then, in 1934, in Bob Chamberlain’s first attempt at Mount Tarrengower, the car crashed not too far from the site of Peter Holinger’s 1977 accident. It has been said of Mount Tarrengower that if you make a mistake you have to fight for airspace with the pigeons. Bob Chamberlain was saved from that battle by a stout tree, which he scored at top speed just beyond the finishing line.

hawker

This photo ‘was taken at the second or third Sprint Meeting held by the Australian Motor Sports Club (quite illegally) on the Old Geelong Road, which ran into the back of the Point Cook Air Base (site of the 1948 AGP) . The pits were on the deep verge on either side of the road so ‘The Law’ couldn’t see the line up of cars from the New Geelong Road. You can easily see in this photo a deep crease on the radiator shell. This is the result when Jim Hawker and George Wightman (who was riding passenger) discovered the hard way at the first sprint meeting that a strand of barbed wire across the road was the demarkation of Air Force property and public road. The deep scuttle served to save them from decapitation-only the car bore the scars to tell the tale.(!) John Cummins. (Cars and Drivers)

Shortly after this Bob Chamberlain went overseas, handing the car over to brother Bill, who built and fitted the engine which is in the car now. Even on the plugs specially made in the UK for the car, oiling up was a problem and the Chamberlain did not appear often in the late 1930’s. Significant advances in spark plug design in World War 2 and the deeper involvement of Jim Hawker gave the car a new lease of life in the early post-war years. Once again hillclimbs and sprints echoed to the high-pitched scream of the Chamberlain.

ch engine fitted

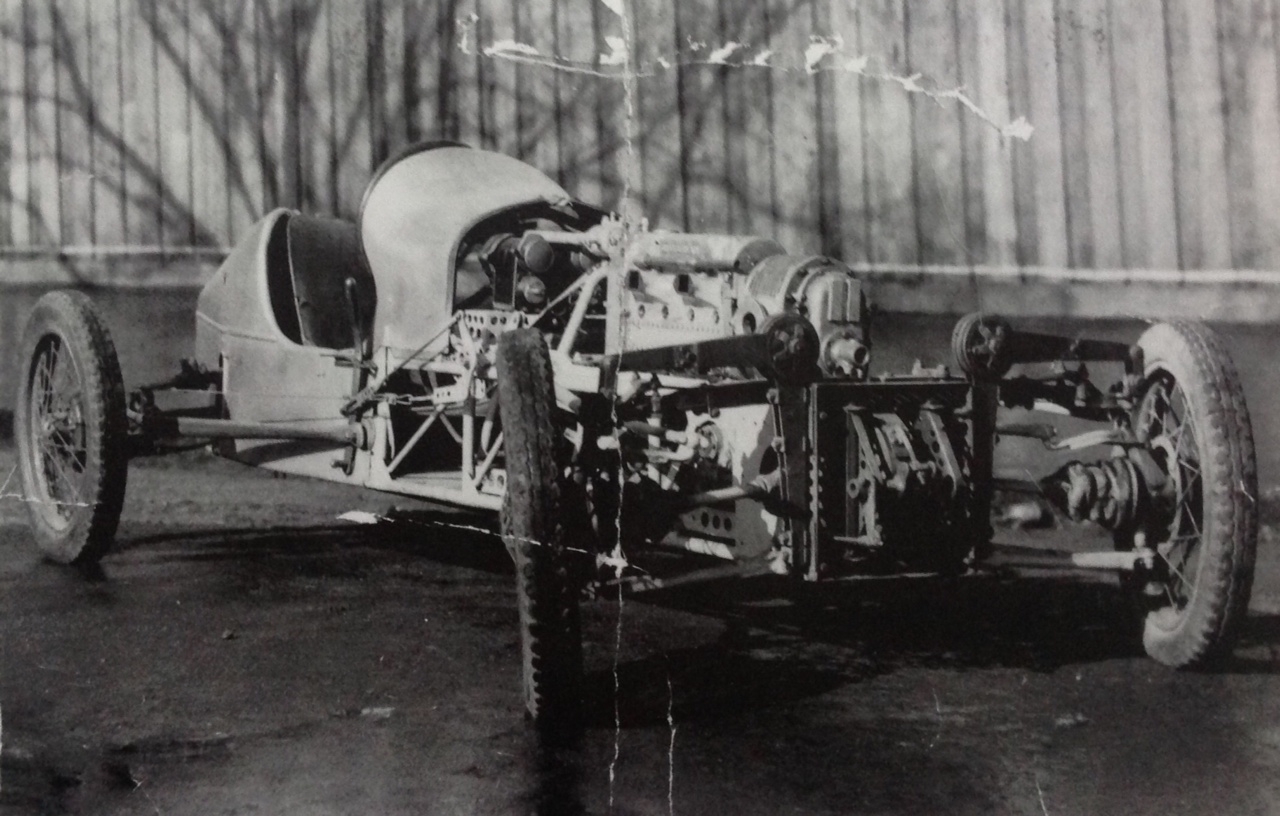

The 4 cylinder, 8 piston 2 stroke engine being fitted to the Chamberlain in 1934. (The Chamberlain)

The engine resembled a design by W Jamieson (not to confused with the famous Murray Jamieson who designed the twin-cam Austin 7 engine and later the ERA engine) which was publicised in the early 1930’s. To the Chamberlains to build one for fun ‘seemed like a good idea at the time’.

The layout, though similar to the Jamieson design, used stronger parts. A Henderson motorcycle crankcase casting, suitably machined, formed the basis. This, rather like the Morris Mini motor, uses unit construction so that crankshaft, clutch, flywheel and gearbox all live in the same oil. On top of this was the block, a very complex casting (which was to cause problems later on). A multi plate cork insert clutch was built and the bottom crankshaft was machined from a 6.5 inch solid steel billet. Fully counterbalanced, this crankshaft runs in three roller main bearings. The bottom pistons have a bore of 62.5mm and a stroke of 75mm, giving the lower pistons a swept volume of 968cc while the upper, opposing, pistons have a swept volume of 100cc giving a total of capacity of 1068cc.

crank

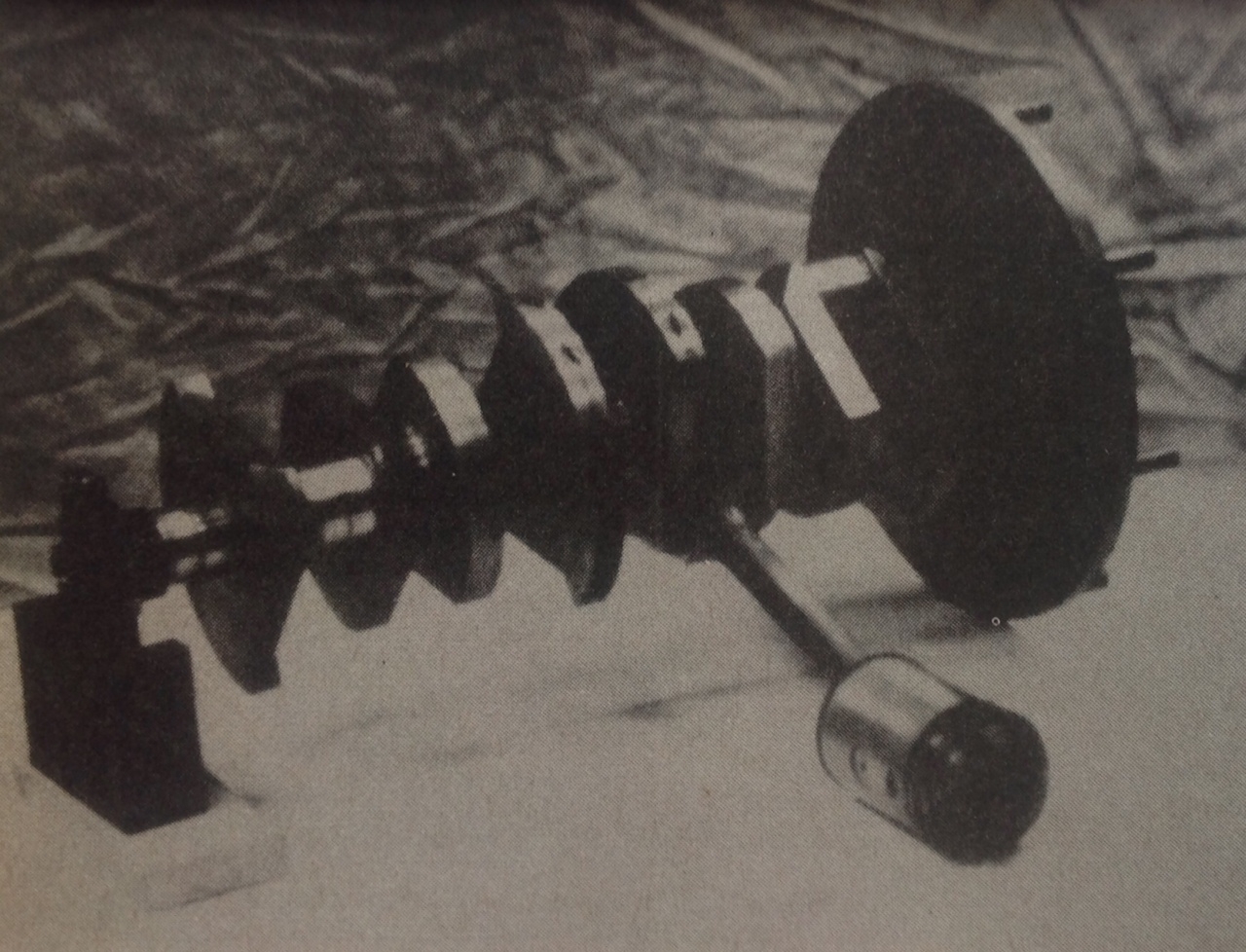

The main crankshaft with one rod and piston. The power is taken off this crankshaft while the top crankshaft operates the small top pistons to give favourable port openings. (Cars and Drivers)

The top part of the bore is narrower, at 35mm, with intake ports at the top and exhaust ports at the bottom. The small piston which moves up and down to open and close the intake ports is of unusual shape, being bottle shaped. The ‘neck’  slides in the bore, exposing and closing the ports. The ‘body’ of the bottle are two holes, one small hole for the gudgeon pin and one large hole through which the top crankshaft (linked to the gudgeon pin by a little 1.5 inches long conrod) passes. This top crankshaft spins in five main bearings and is linked to the bottom crankshaft by chain.

The two pistons per cylinder design allows quite independent timing of the inlet and exhaust ports-thereby overcoming one of the inherent shortcomings of a normal one piston per cylinder two stroke design. The top crankshaft is actually timed 27.5 degrees behind the lower crankshaft. This allows the intake ports to remain open after the exhaust closes, to take advantage of the higher blower pressure-which then can actually pressurise the ingoing gases in the cylinder.

ch piston

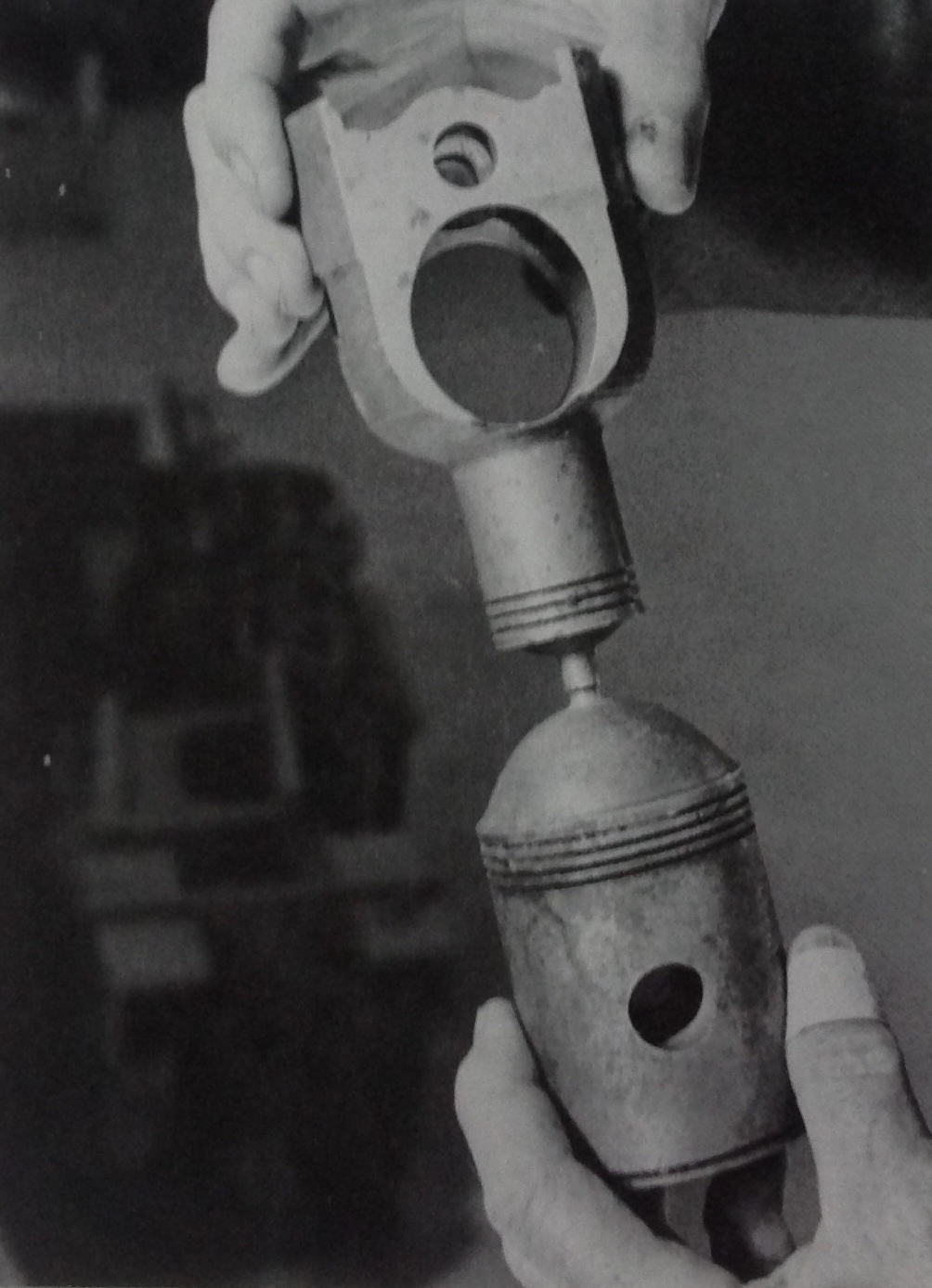

An upper and lower piston. The very short throw upper crank passes thru the centre of the top piston to the gudgeon pin seen at the top via a very short connecting rod. The projecting parts where the 2 pistons meet are bosses to facilitate machining-are later taken off. JM. (The Chamberlain)

The distinctive feature of the engine is the short inverted top connecting rod. With this design feature the great angularity of the conrod produces very much greater movement of the piston near outer dead centre (port opening position ie: when the opposing pistons are furthest apart) than near inner dead centre (firing position when the pistons are closest together) for any particular crank angle. This enables a much greater port area to be obtained for a particular timing.

A snag, though, proved to be the complicated casting of the block. Because of this, the ports were not all in line, so it was necessary to alter the height of every piston in order to get the port timing correct for each cylinder. Then, to maintain the right compression ratio for each cylinder, the shape of the head of each piston had to be machined differently and the pistons were therefore not interchangeable. Once all this was done, by trial and error, educated guesswork and continued experimentation, the engine ran well.

After much experimentation, electrics were supplied by eight coils, one for each plug. The pre-war mica-insulated plugs with thick copper electrodes were a continual source of worry; aluminium oxide insulated plugs developed during WW2 solved this.

hawkwr 16th rob roy

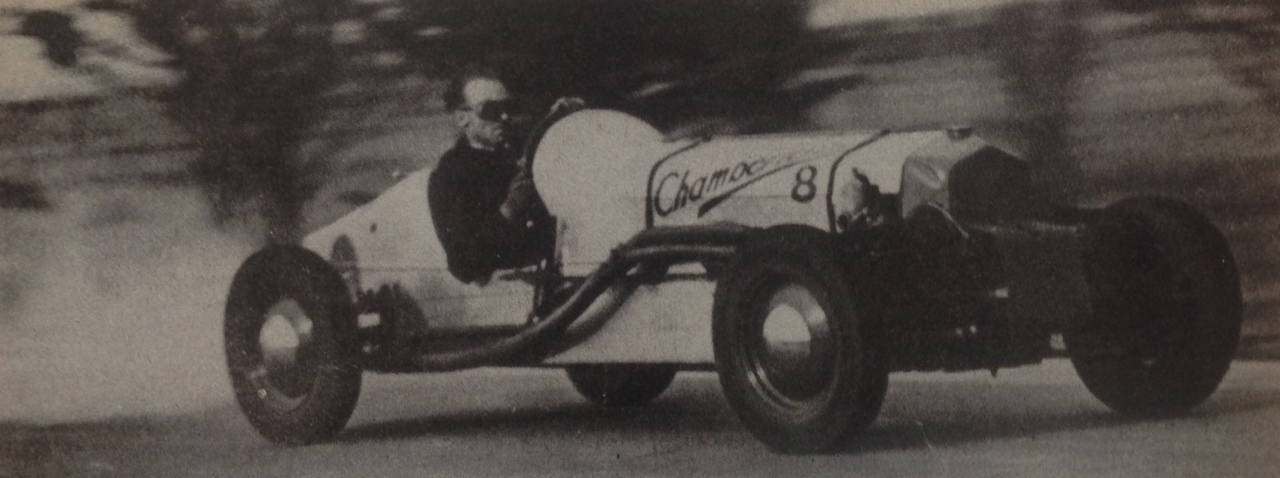

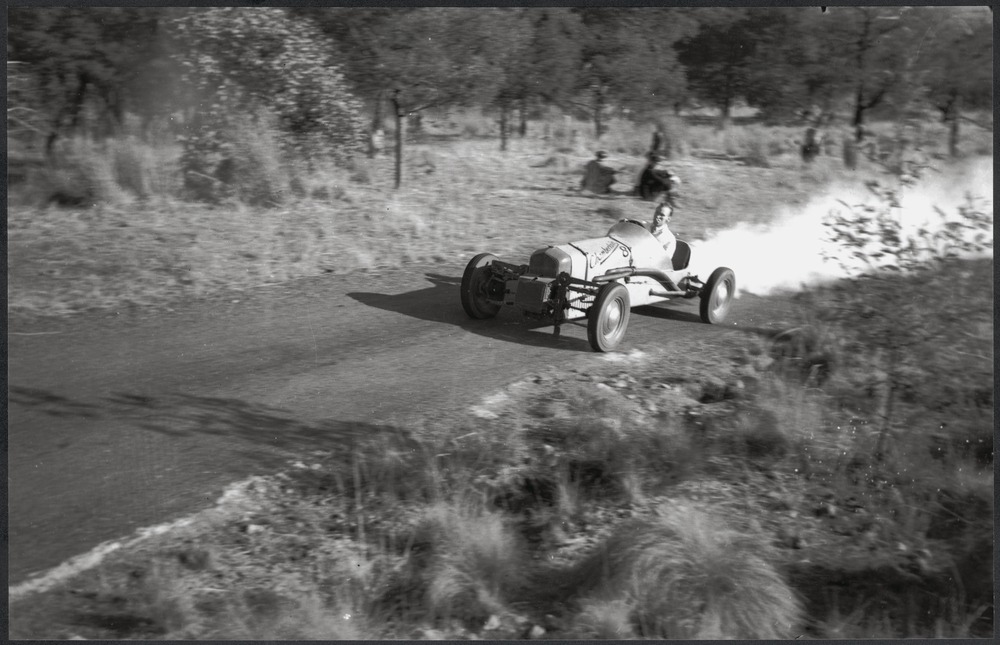

Jim Hawker, Chamberlain 8, 16th Rob Roy 1948. (George Thomas)

Carburetion is by a huge device of SU design but built entirely in Australia. A 1/2 inch diameter fuel line feeds pure alcohol via huge float needles and huge jets and needles to this hungry motor. Getting the needle taper correct and mixtures right over the whole range required an immense amount of patience and hard work. A large Rootes-type supercharger sometimes running at 28lbs boost, is driven by chain from the top crankshaft.

Firing order is 1-2-3-4 and the engine runs anti-clockwise when viewed from the front. For reasons of balance the 90 degree angle between the crankpins is made at the centre bearing so that crankpins 1 and 2 are opposite one another, likewise 3 and 4.

No true power figures are available. Apparently the engine has been dynoed’ once, showing 84bhp at 5800rpm, although this was with the engine running on standard petrol, with low compression (6:1) pistons fitted and with only 12lbs boost from the supercharger. The ultimate power output was probably quite a bit higher than this figure.

A chain transmits power from a bevel drive on the front of the bottom crankshaft to a 3 speed ‘crash’ gearbox (also built by the Chamberlains).

ch front

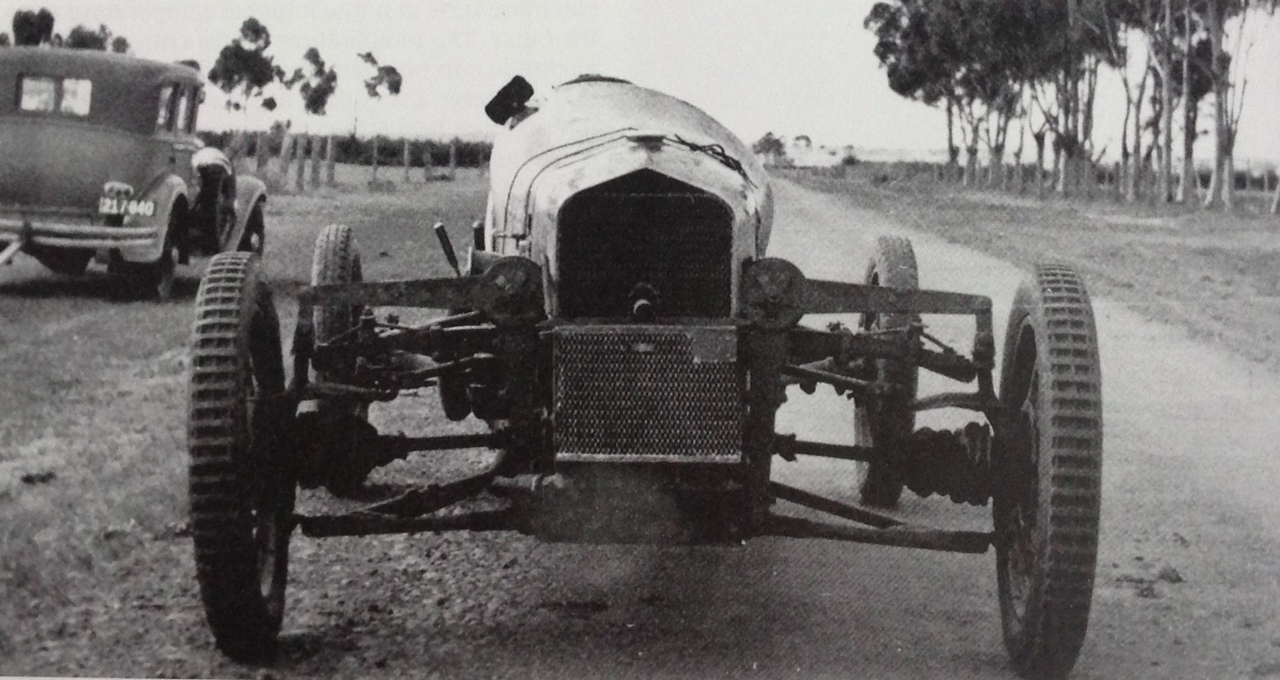

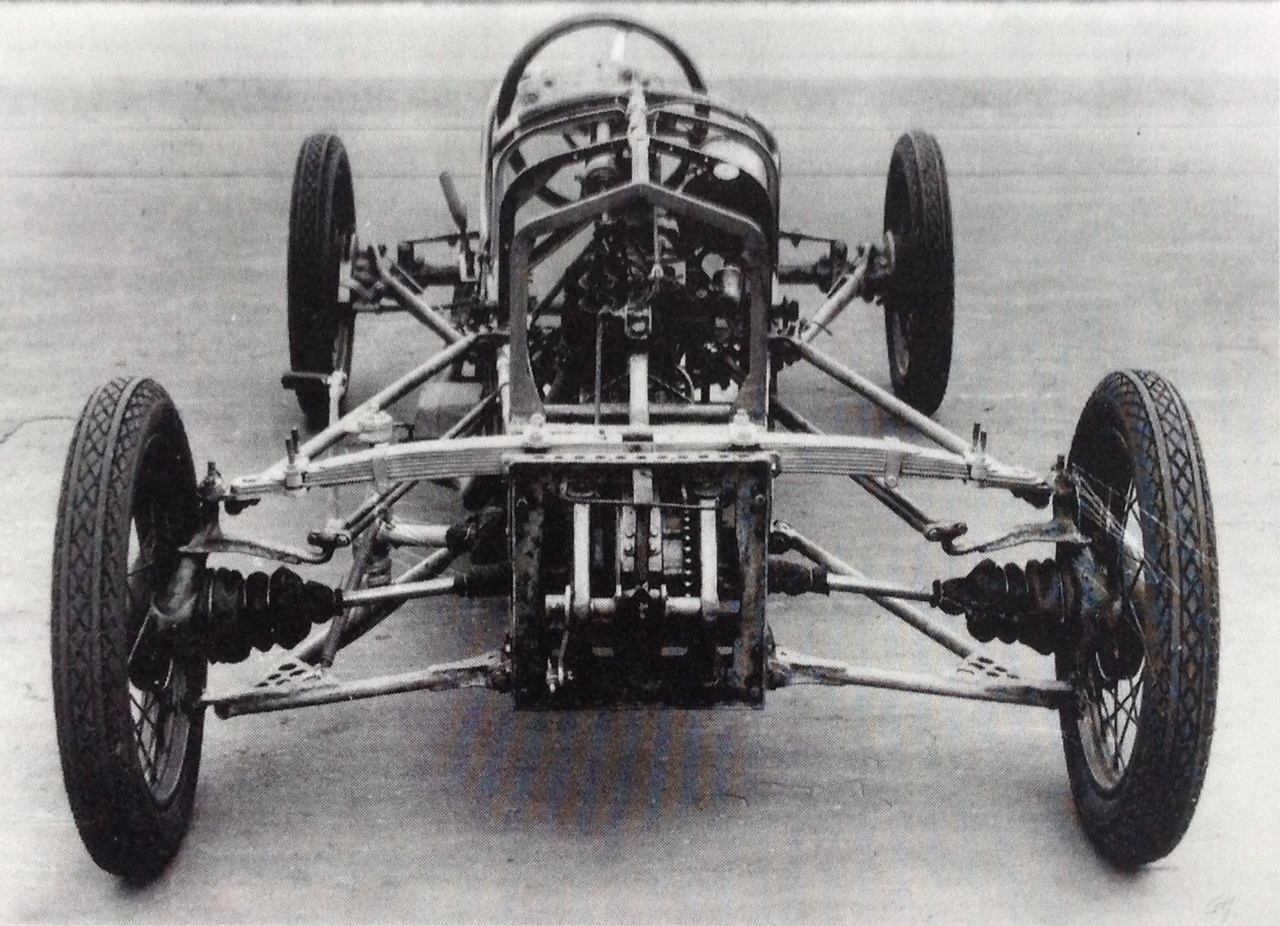

Front shot shows FWD, CV joints made by the Chamberlains. IFS by transverse top leaf spring with locating ‘radius rod’, lower wide based wishbones, Hartford friction dampers not fitted in this shot. Gearbox and chain drive clear as is the tiny nature of the car. Brakes inboard drums. ‘Less is more’ ignoring the complexity of the engine! Car here in its early motor-cycle engined form. (The Chamberlain)

The tubular space frame chassis is very light and strong, having been lengthened by 4.5 inches to accommodate the present engine. Rear suspension is by transverse leaf spring and swing axles. Front suspension is also by transverse leaf spring and lower wishbones. Typically vintage Hartford shock absorbers provide damping. Front drum brakes (cable operated) are inboard to reduce unsprung weight. Chamberlain designed constant velocity joints are used to transmit the drive.

The radiator is in 2 halves, the top half above the axle, the lower half in front of the axle. The large radiator core thus permitted does not spoil the frontal appearance.

The narrow body is typically late twenties in appearance, with the passengers seat staggered back from the drivers. Only a little over 2 feet wide at its widest, the body was built to accommodate the 9 stone Bob Chamberlain in 1929, plus riding mechanic. Now, nearly 50 years later the car  has only enough room for 14 stone of Bob!

At a mere 11 cwt, the Chamberlain is very light for a car of its period, and possesses healthy acceleration even now.

It is, without doubt an astonishing car, a monument to the enthusiasm, dedication and sheer mechanical ingenuity of a small group of enthusiasts ‘because it seemed like a good idea at the time’.

Let us hope that we once again will be able to hear the ear-splitting scream and see the tyre destroying acceleration and characteristic cloud of dense blue, 2-stroke smoke of the inimitable Chamberlain 8.

cutaway 1

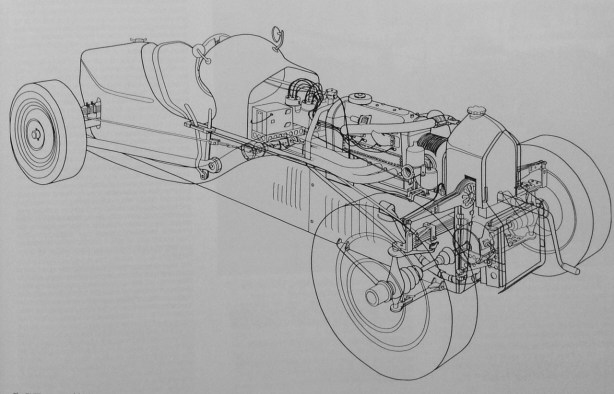

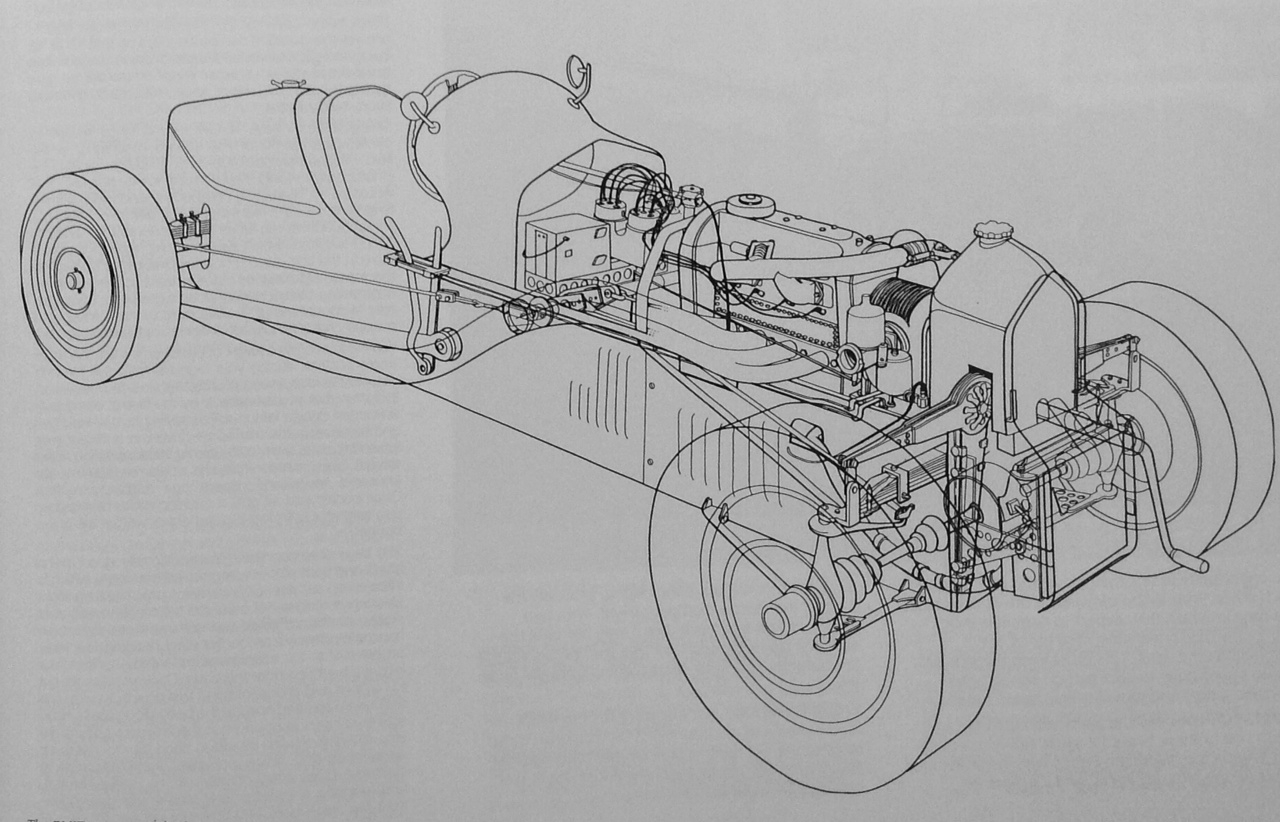

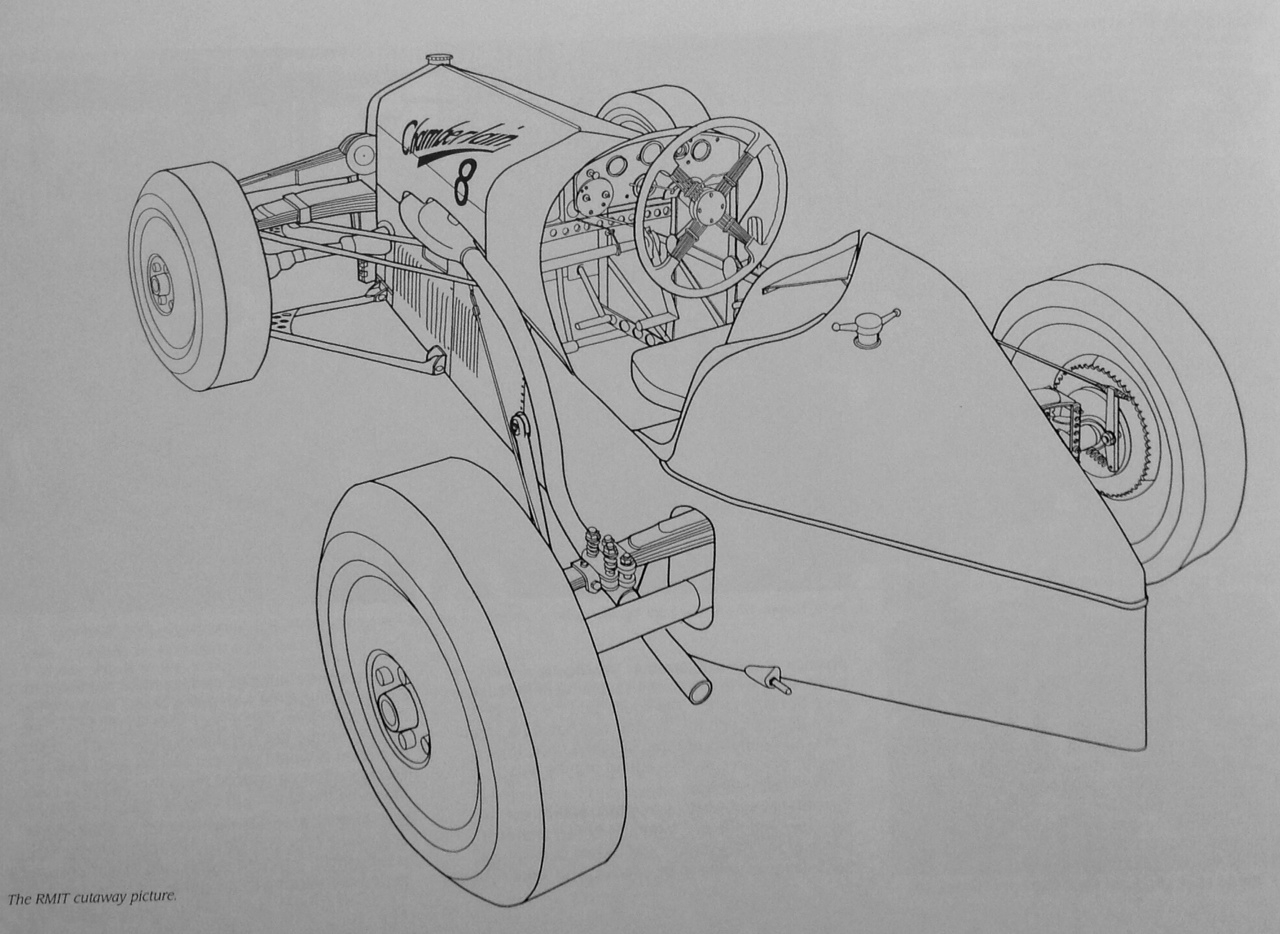

Cutaway drawing of the Chamberlain done by RMIT Engineering students. Car in its definitive 2 stroke, 4 cylinder form. (The Chamberlain)

Part 1B.by John Cummins…

Australian Racer John Cummins worked for the Chamberlains and wrote a letter to the editor of ‘Cars and Drivers’ #3 to recount his experiences having read John Medley’s article above.

These are truncated excerpts from that letter…

‘I was very interested in the article on the Chamberlain 8 as it formed the basis for most of my early motorsport experiences in the workshop and at the few hillclimbs and events held in the immediate post war period. I was apprenticed to the Chamberlain’s organisation from 1946 to 1950 and this was the time when the ‘Beetle’ as it was known inside the factory was rebuilt and developed’.

The team involved in the car comprised most of the brains in Australian automotive engineering. There was Bill Bargarnie, representative at the 1936 Isle of Man Motorcycle races, speedcar builder/driver…Allan Ashton of AF Hollins who used to look after Alf Barrett’s Alfa Monza, BWA builder and also prepared the cars of Lex Davison, Reg Hunt and others…Phil Irving…Len Sidney responsible for the invincible Mussett Velocettes of the period and Co-Founder of the 500cc Car Club in Australia…Jim Hawker who at the time had only trials experience…was involved in many projects including building a V8 Peugeot engine from ‘two fours’.’

Some additional background material to John Medley’s excellent article…It took Grimwade castings 32 tries before they were able to cast a block that was usable and was not completely porous’.

‘After the post-war period it had so much power that the Henderson crown wheel and pinion wouldn’t stand the torque, pushing the crown wheel away from the pinion. Being front wheel drive, it was necessary to strip the engine down to the bare crankcase before a complicated machining job could be done with the Kearns horizontal borer, which allowed enough room to fit a very thin, but large diameter thrust race between the crown wheel and the inside of the gearbox casing.’

‘The conrods in the engine were from an A-Model Ford and the SU carburettor, which was later replaced by a Vacturi, was of 2.5 inch diameter and was brought to Australia by Bill Bargarnie before the war as partly machined castings-Alan Ashton and Bill making the rest of the parts in the Chamberlain factory.’

Jim Hawker tried all over the world to get the correct type of spark plugs for the engine before finally giving up and making them himself. The centres were obtained from Olympic and the body and locknuts came from Pyrox Australia. Templates were made for each heat range, special drills ground for the correct internal shape of the plug body and a large number of grinding wheels of the aluminium oxide type were ordered. With 8 plugs to a set plus spares in each number of the heat ranges, a formidable total number had to be made. Jim set up a turrett lathe with the hexagon bar and started producing the outer bodies. Yours truly had the job of rough grinding the centres by hand on a pedestal grinder. The bodies were then heat treated and the spark plugs assembled. The pattern maker made a beautiful wooden box in which to hold this enormous range of hand-made plugs.’

‘The reason behind all this effort, of course, was that the correct mixture and the correct heat range of plugs were essential as a holed piston in that complex engine meant hundreds of hours of stripping and rebuilding’.

cutaway 2

Rear cutaway. (The Chamberlain)

tarrengower

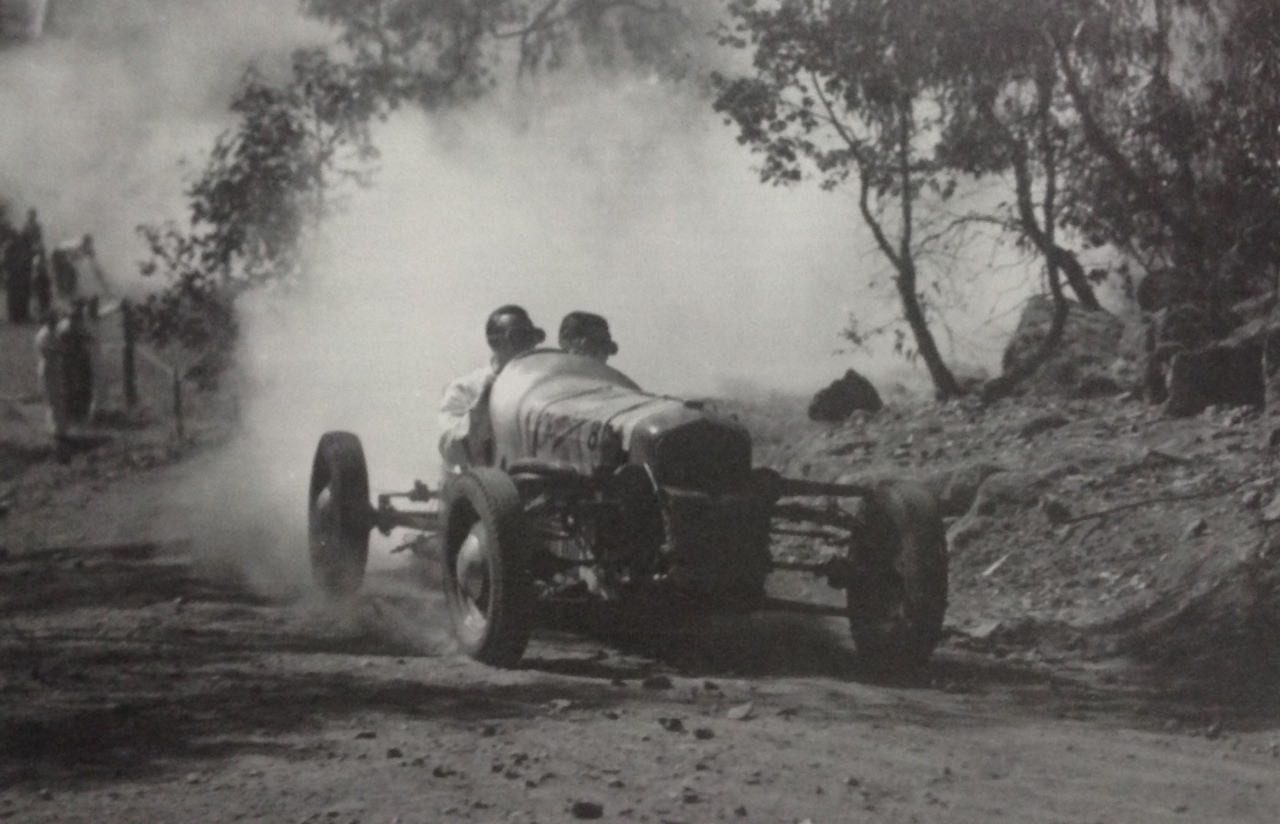

Jim Hawker and George Wightman, Chamberlain 8, Mt Tarrengower, April 1947. (The Chamberlain)

Part 1C.Chamberlain 8 Post-War: A Summary…

As the War was finally over the minds of enthusiasts turned again to motor racing. Engineer and 1934 Isle of Man competitor Bill Balgarnie worked for Chamberlain Industries during the war, he prepared the car for the first event in Victoria post-war, a Hillclimb at Greensborough, in Melbourne’s outer north-east in November 1945.

As usual, the car misfired. Bill was convinced the engine was starved of fuel and set about machining an SU type carburettor of around 2 inches in diameter from castings he acquired in the UK pre-war. He also made changes to the ignition system.

Bill Chamberlain took over the car when Balgarnie went to WA to work on the Chamberlain tractor manufacturing project. Chamberlain only raced it once at Rob Roy before he too moved to WA, giving the car to his cousin Jim Hawker to develop after he was demobbed from the RAAF.

Hawkers two fundamental changes were to make higher compression pistons to suit the better post-war racing fuel and making his own spark plugs, as related by John Cummins above.

These used local ‘Olympic’ aluminium oxide insulators, Jim forming by hand, a range of ‘hot ends’ to make a range of ‘cold’ plugs. A quick test run down Salmon Street, Port Melbourne was successful, Hawker entered the Mount Tarrengower, Easter 1947 meeting winning its class. Pakenham Airstrip in May followed, then the Geelong Road illegal, as in unauthorised by the authorities, sprints in June resulted in FTD. Rob Roy in November was also entered.

geelong

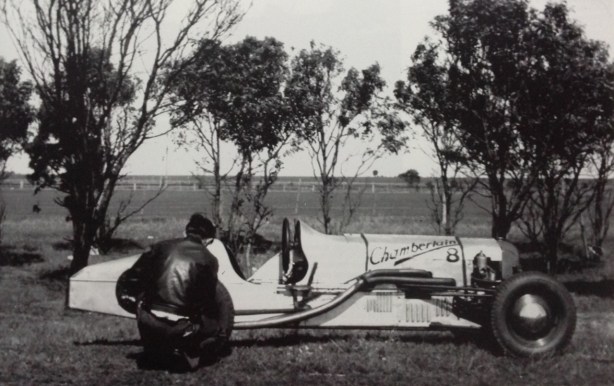

George Wightman checking the cars tyre pressures. Geelong Road sprints, September 1947. (The Chamberlain)

There were still ignition problems so Jim came up with a solution; 8 coils, 1 for each plug, 4 contact breakers, 4 complete double ignition systems , 64000 sparks per minute. The result 96bhp @ 7000 plus rpm. The new ignition system passed with flying colors, no problems at all with a sprint at Killara Park, the home of Lex and Diana Davison near Lilydale.

Having got the car running really well Hawker then sought more power. He made some higher compressions pistons, about 10.5:1 and increased the speed of the blower to run at above engine speed, this produced 15 pounds of blower pressure, previously this was 12 pounds. He increased it further to 18 pounds .

An event at Rob Roy in May 1948 convinced Jim, when he failed to better his previous Rob Roy time that 15 pounds was the optimum. ‘Rootes type superchargers were notoriously inefficient above 15 pounds pressure, and to obtain 18 pounds pressure I was running at about 7500 rpm and losing out by the increased power required to drive the blower’ said Hawker.

Rob Roy 1948 was to be the last race for Jim although he did do a demonstration at Rob Roy 47 years later!

The Beetle was parked at the back of the workshop in Salmon Street and Jim concentrated on marriage, his role as factory foreman and his role in taking new Chamberlain Industries products to market

And so, the Chamberlain was moved around the workshop, contributed the odd part to other cars until 1973, when as John Medley’s article explains the car was entered at Sandown 1973, missing this meeting as a competitor it was present as a static display which aroused enormous interest from those who knew about it and young ones like me who were gobsmacked at its specification and significance.

phil island

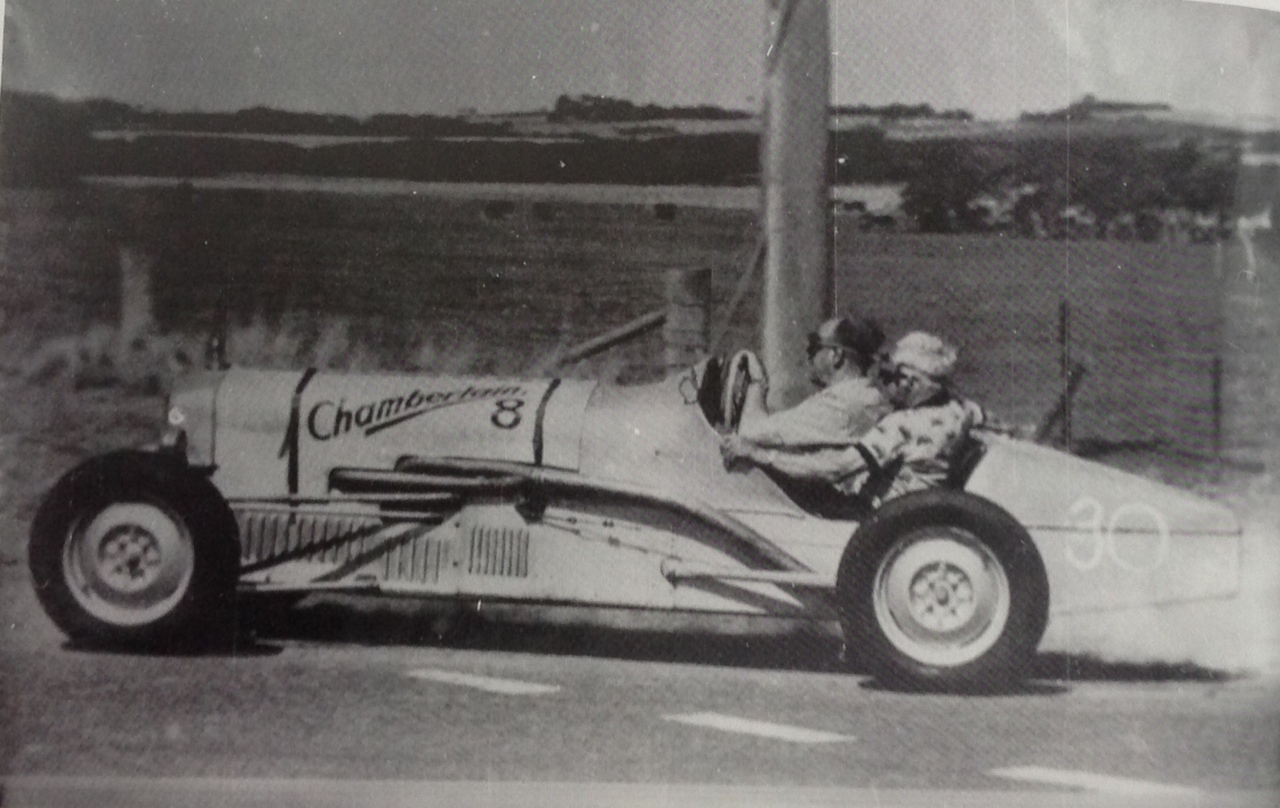

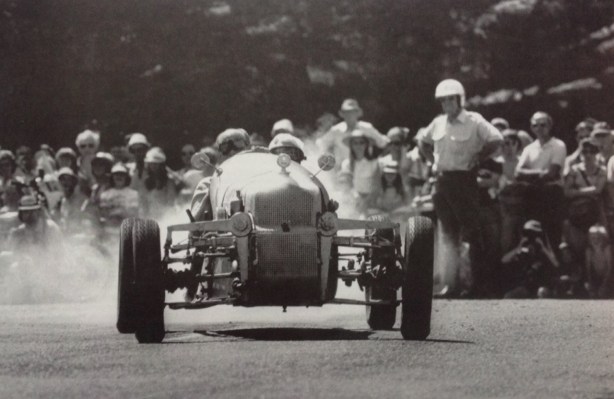

Bob Chamberlain and Eric Price rounding Heaven Corner, on the original Phillip Island road circuit during the 50th Anniversary AGP Celebrations in March 1978. Car cornering hard, shot shows how well the cars all independent suspension geometry works! (The Chamberlain)

The car was again prepared to run at the 1978 50 Year anniversary of the first Australian GP at Phillip Island.

The engine and supercharger were overhauled by Bill, with some modifications to the clutch, the addition of an electric Bendix fuel pump to replace the hand operated one, some paint touch-ups and removal of Hawkers dent in the radiator shell caused by the Geelong Road mishap all those years before…

The car set off on the touring assembly but overheated, then the supercharger seized on Sunday, upon inspection post event the nut screwing the rotor to the shaft of the supercharger had unscrewed and jammed against the cover. But the car had at least run again!

bob

Bob Chamberlain blasts away at the Mount Tarrengower start, October 1989. (The Chamberlain)

The old car then raced occasionally at Historic Events; Sandown September 1978, Mount Tarrengower November 1980, Geelong Speed Trials, along Eastern Beach in 1982 and 1984, 1984 and 1986 Mount Tarrengower misbehaving at most of these events.

bill and bob

Bill, left and Bob Chamberlain, Geelong Sprints November 1986. (The Chamberlain)

Geelong 1986 was the wonderful cars final event with the Chamberlains, Bill fell seriously ill and died, with Bob passing way in 1992.

Bill Chamberlain’s children inherited the car after Bob’s death. After consultation with Jeff Dutton, local auctioneer and purveyor of fine cars the Beetle was auctioned… and bought by Dutton who planned to pop it on his wall as a static exhibit in his fine Church Street, Richmond, Melbourne premises.

john

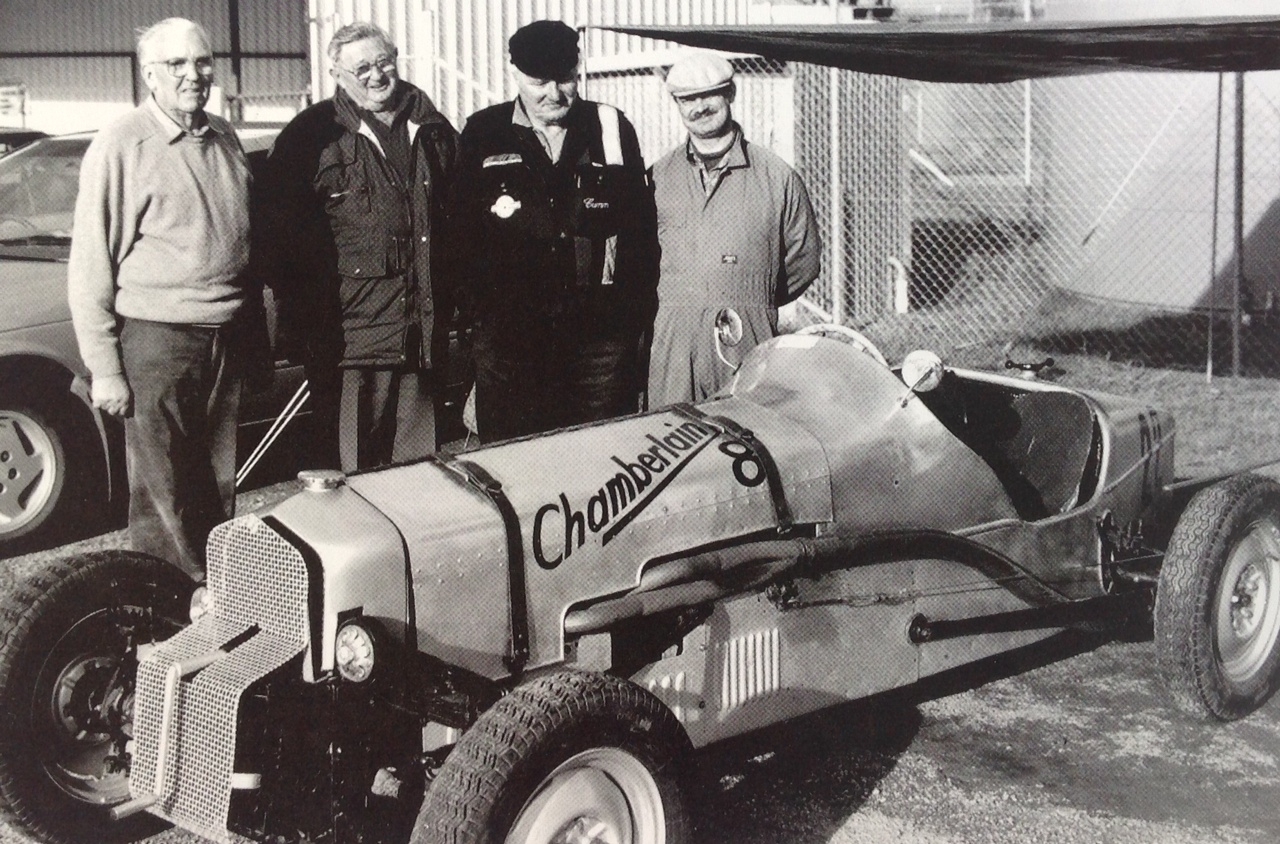

Historic Winton 1995. Chamberlain 8 and L>R Jim Hawker, George Wightman, John Cummins and then owner John Hazelden. (The Chamberlain)

The car was a static exhibit at a function to launch the reopening of Rob Roy Hillclimb by the MG Car Club. John Hazelden, a Melbourne enthusiast with diverse car interests, and passionate about the Chamberlain 8 did a deal with Dutton, the car was his, to be used as the Chamberlains intended, the deal done in March 1993.

The scope of this article does not extend into the the modern era, Hazelden used the car…and enlisted Jim Hawkers help to prepare it competing at Geelong, Winton, Mount Tarrengower, Rob Roy, the Adelaide Grand Prix and at the Albert Park Grand Prix carnival…in more recent times the car has changed hands, the engine is being rebuilt, the car at the time of writing is the star exhibit at the ‘Shifting Gear: Design, Innovation and The Australian Car’ exhibition at Federation Square, Melbourne.

https://primotipo.com/2015/05/13/shifting-gear-design-innovation-and-the-australian-car-exhibition-national-gallery-of-victoria-by-stephen-dalton-mark-bisset/

chamber 1

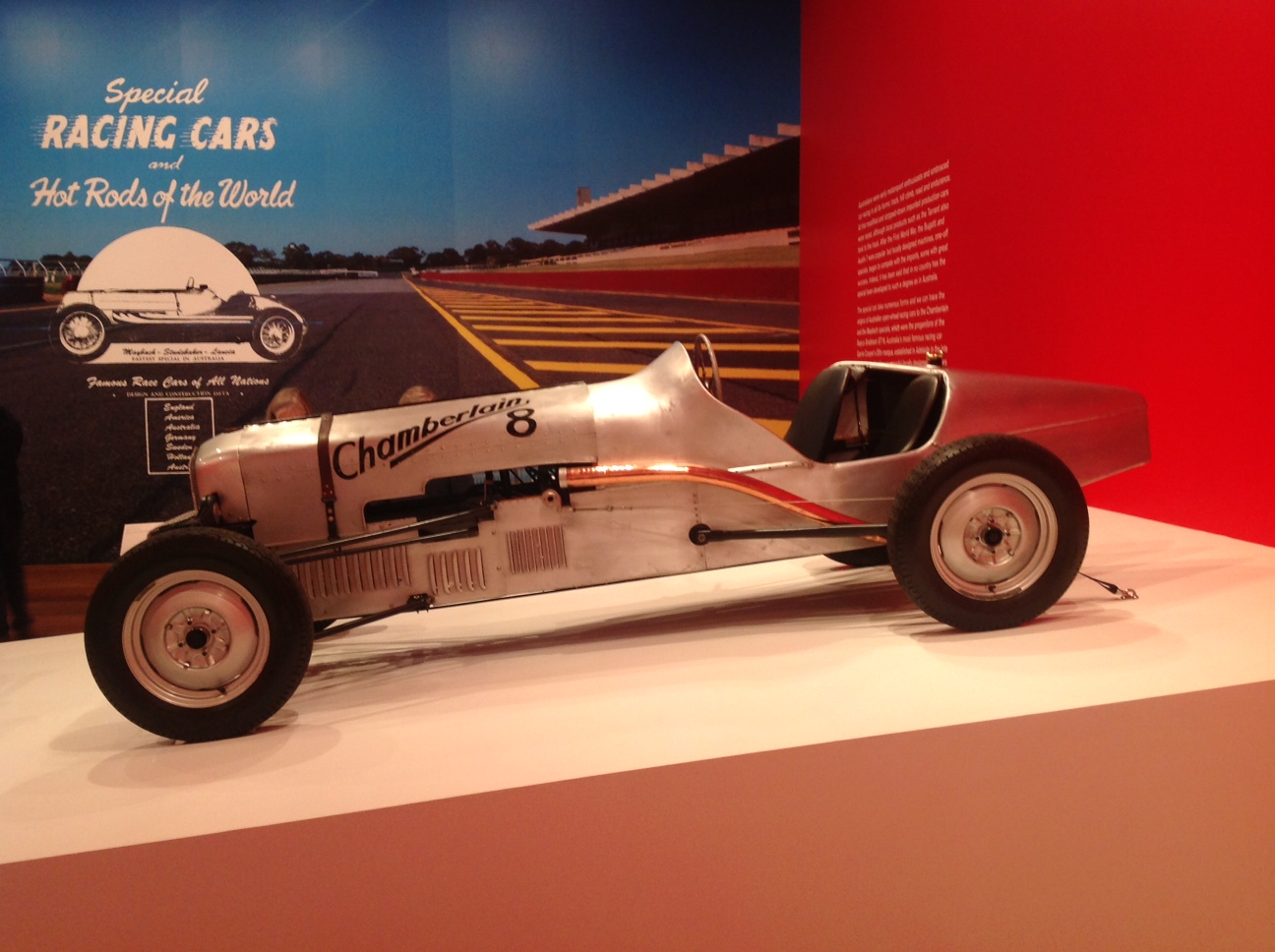

Chamberlain 8. National Gallery of Victoria, sans engine, July 2015. (Mark Bisset)

book on chamberlain

Part 2.by Bruce Lindsay…

‘Chamberlain Australian Innovator’: Author Bruce Lindsay…

Check out the website to this wonderful book about Bob Chamberlain and his immense contribution to the automotive industry in Australia.

http://users.chariot.net.au/~blindsay/index.html

What follows is Bruce Lindsay’s synopsis of his book, reproduced in full, as it is a summary of Bob Chamberlain’s life and achievements.

‘CHAMBERLAIN – Australian Innovator

Alan Hawker (Bob) Chamberlain inherited a legacy of engineering innovation. His maternal uncle was one of Australia’s most outstanding pioneer aviators, Harry Hawker. His father had established an engineering business in suburban Melbourne, which later led to the incorporation of the Australian Ball-Bearing Company Pty Ltd which survived to 1969.

He was born on 16th July, 1908. Raised in an environment where inventiveness and lateral thinking supplanted textbook designs, he graduated in Mechanical Engineering and joined the family firm. The Australian Ball-Bearing Company spread its activities very much more widely than may be assumed from its name. Commencing with the reconditioning of roller bearings, at a time when imported bearings were almost impossible to obtain, the company was incorporated on 4th October, 1922. It augmented its strong market position by expanding into the design and manufacture of kerbside petrol dispensing equipment, general engineering applications, and construction of major industrial plant such as factories and fuel depots. In all such ventures the young Bob Chamberlain was deeply involved.

From his late teens he was captivated by motor racing, and was fired to enter competitive events. In 1929, barely 20 years old, he designed and built a purpose-built hillclimb racing car, notable for its all-welded triangulated steel tube space frame, front wheel drive, and independent suspension on all four wheels. He raced this car with some success, but the modified motorcycle engines used in the car were so highly stressed by racing conditions that they frequently expired due to piston failure. His brother, HF Bill Chamberlain, built a revolutionary 4-cylinder, opposed piston, supercharged two-stroke engine for the car in 1934, in which form it survives in racing condition in private ownership in Melbourne.

Motivated by the necessity of producing replacements for their racing car, the family company embarked on the manufacture of pistons for internal combustion engines, Bob negotiated the rights for the aluminium-and-copper alloy patented by Rolls-Royce Motors in England, and the family established in April, 1937 the Rolloy Piston Company. From humble beginnings, this company grew to be the principal supplier of pistons to manufacturers including General Motors-Holden and the Ford Motor Company, in the 1950s producing 90% of original equipment pistons for the Australian motor industry, and 100% of pistons required by all Holden vehicles up to and including the FC model.

As early as 1931, Bob designed and patented a revolutionary hydraulic transmission, some years before General Motors first marketed their “Hydramatic” hydraulic gearbox. It was known in the works as “Bob’s oil gear”. Bob continued to be active in the design and patenting of a range of mechanical applications, including wheel suspension, novel transmissions and pistons. As late as 1955, the income from royalties paid on his patented designs was yielding more than £49,000 per annum.

prototype

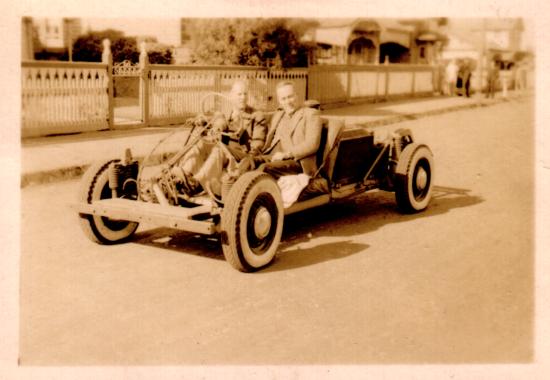

Bob at the wheel of his 1937-8 prototype car chassis, under its own power for the first time in Port Melbourne. The car was much later fitted with a body by Jim Hawker, completed by Alan Hawker, and survives in the York Motor Museum in Western Australia.(Chamberlain Australian Innovator)

Late in the 1930s, the Federal Government sought actively to encourage the development of Australian secondary industries, as the nation emerged from its agricultural heritage into a world demanding self-sufficiency in manufactured goods. The Government of the day elected to encourage such development through a series of legislative inducements, offering “bounties” for the local production of manufactured items ranging from barbed wire to traction engines. Bob Chamberlain responded to the Engine Bounty Act and the Tractor Bounty Act of 1938 by designing and constructing novel prototypes.

His motor vehicle displayed once again his original and lateral thinking, utilising a tubular space frame, independent four wheel suspension, and a mid-mounted engine driving the rear wheels. This was at a time when conventional designs employed a heavy cruciform or ladder chassis frame, seldom were even the front wheels independently sprung, and heavy motors were almost invariably located above the steered wheels. Two prototypes were laid down, one survives at the York Motor Museum in Western Australia. Events such as the Second World War and the decision by General Motors-Holden to start local production killed off the venture.

tractor and chamberlain

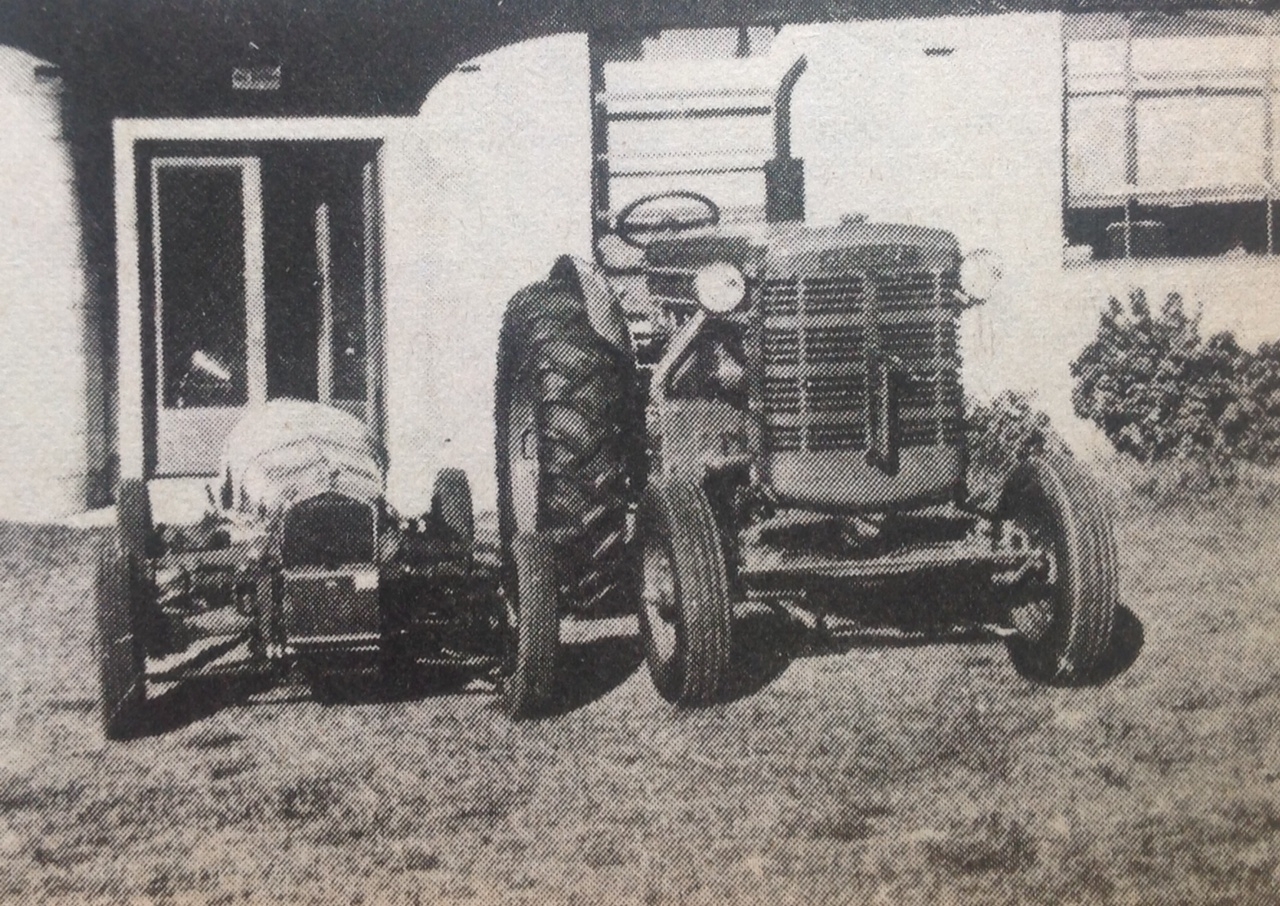

The Chamberlain 8 with the first of the Chamberlain tractors, also designed and built by the Chamberlains, in 1946. JM. (Cars and Drivers)

In response to the tractor bounties being offered, Bob designed revolutionary prototypes, in Melbourne, of a new type of tractor specially suited to the conditions of Australian broadacre farming. A growing national population needed more food, and State Governments hastened the opening of marginal lands. In Western Australia, for example, the minimum size for an economically viable wheat farm in such lands was in 1950 deemed to be 2000 acres. Parts for the prototypes of the tractor were constructed at Port Melbourne as early as 1943, but War interrupted the development of a promising design.

Bob Chamberlain was then commissioned to work with local and American designers on War machines, at the express direction of the Rt Hon R G Menzies, then Prime Minister of Australia. He utilised the experience gained in the USA to contribute to the Australian Tank Project, intended to supply the Australian Army with a medium-weight tank in such quantities as would serve to repel the expected invasion of northern Australia by the Japanese armed forces. The Australian Cruiser AC1 tank incorporated much of his conceptual, design and engineering work, even though for political reasons it never saw quantity production. He worked on a range of significant wartime projects as part of the Directorate of Ordnance Production until 1943.

Drawing upon his experience in the remanufacture of ball bearings, he was required to plan and equip a roller bearing manufacturing facility intended to serve the War effort, and which was to be located in Echuca in northern Victoria as part of the Commonwealth Government’s decentralisation program. Although hostilities ended before this facility saw full production, it remained operational to serve the needs of an emerging industrial and manufacturing infrastructure.

Immediately following the end of the War, the need for expanded agricultural production was made more pressing by the return to Australia of servicemen and servicewomen requiring to be absorbed into the workforce, many of whom were to be resettled on the land. Imported tractors were scarce by virtue of their high cost, and their subjection to rigorous quotas because of tight restrictions on foreign exchange. So there was renewed Government interest in Bob’s prototype tractor.

Remarkable for its audacity and its dimension, a plan was in 1946 agreed between the Federal Government (who made available a new but unused munitions factory in outer suburban Perth, sold now-unwanted munitions and associated machinery to the new venture at 50% of new price, and assured Loan Council approval for the provision of funds to the West Australian Government to establish a new tractor manufacturing industry); the West Australian Government (which agreed to establish a high-powered Government Committee to oversight the project, and deputed senior bureaucrats to assist at every stage of its development); the State-Government-controlled Rural & Industries Bank of Western Australia (which supplied an overdraft facility upon which Chamberlain Industries may draw in order to develop their manufacturing facility, and which by 1954 had reached the staggering amount of £3.5 million – representing more than 60% of the Bank’s total capitalisation); and the new company.

tractor 40k

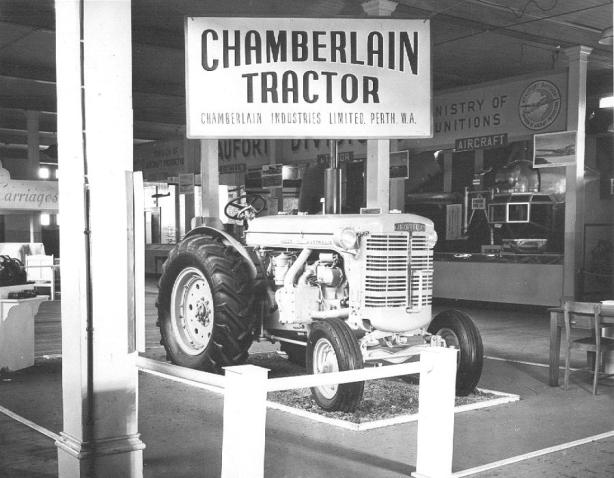

The first Chamberlain tractor – the 40K – built in Welshpool WA and displayed in 1946. (Chamberlain Australian Innovator)

Although the first tractor was not completed until three years after announcement of the “WA Tractor Project” – in 1949 – it was immediately evident that its large size and weight giving outstanding traction in rough country; its ability to haul large implements to more quickly prepare large acreages and to similarly harvest their product; its ability to travel at relatively high road speeds between distant land holdings; its competence to run on cheap and available kerosene during times of petrol restrictions; and its ruggedly simple design requiring minimal attention beyond routine maintenance, made the new design instantly successful. The “40K” model as that first tractor was known remains operational in sizeable numbers, fifty years after they were built, supported by a cult following amongst the enthusiasts of agricultural machinery.

With an eye to lifting the profile of his new designs, Bob produced in 1955 a one-off version of his new medium tractor capable of high road speeds. This tractor followed the highly publicised “Redex” (and later “Mobilgas”) Around Australia Trials. Images of the 110 kph-tractor were flashed around the world, as “Tail End Charlie” mopped up a field of bedraggled, bogged, broken and expired vehicles between Perth and Darwin (initially), and later along the entire route. Its performance was a promotional coup for the company, and the original vehicle remains on exhibit in Perth.

Bob continued to design new and evolutionary tractors and farm implements suited to attachment to the new style of large tractor, working from Melbourne, while his brother FH managed the Perth operation and designed a highly successful version of the “stump jump” plough. Bob saw the need for a smaller tractor, adaptable to industrial applications and specialist roles in the growing of crops such as grapevines, cotton and sugar cane. His “intermediate” tractor – dubbed the “Champion” – was introduced in 1956 and, like its predecessor, was an immediate success despite its extended gestation period. Bob had assumed the role of Managing Director of the company in 1954, when Chamberlain Industries faced growing financial difficulties, leading to the exclusion of the Chamberlain family in 1956.

Hawker8

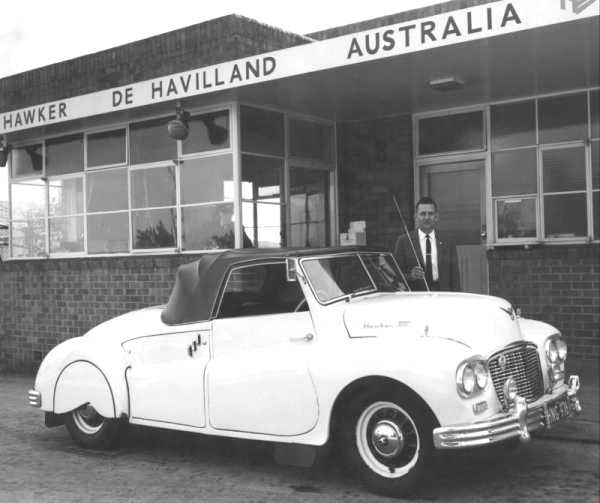

Bob Chamberlain designed his prototype touring car in 1938, later passing it to Jim Hawker for completion. Jim in turn passed the car to his cousin, Alan Hawker, seen here with the car known as the ‘Hawker 8’ outside the Hawker-DeHavilland headquarters in Sydney. (Chamberlain Australian Innovator)

Returning to Melbourne, Bob continued work on the design of yet another tractor, this time a small machine capable of competing with products of the smaller imported brands like Ferguson, Massey-Harris and Fiat. He built two prototypes, of which one survives in Melbourne’s Scienceworks Museum. It was intended to be powered by either a sophisticated (and imported) German M.A.N. air-cooled diesel engine, or the ubiquitous Holden motor car engine, in which latter form the survivor exists.

It was always his intention to franchise rights to manufacture the small tractor, for which purpose he formally registered its design in 1959. Approaches to a number of farm machinery implement manufacturers unfortunately came to nothing, probably because the landscape of tractor design and sales had changed markedly between 1946 and 1959, and competing makes were already well established.

He continued to work for his family companies, developing the motor car oil filter system containing magnetic elements to extract metal particles from lubricating oils. This design was in 1942 taken up by the firm which to this day manufactures oil filters under the Ryco brand name.

In 1969 the Chamberlain family elected to sell their interests in both the Australian Ball Bearing Company and the Rolloy Piston Company to Repco Holdings Pty Ltd, itself an iconic Australian motor engineering company, against which Rolloy had for some time been operating in direct competition.

Undeterred, Bob in 1970 registered a new company under the name of Alan Chamberlain Engineering Pty Ltd, operating from premises within easy walking distance of the former Chamberlain headquarters, in Dow Street, Port Melbourne. This company’s stated purpose was to involve itself in “marine engineering”. Bob had for many years shown a passionate interest in powered boats, and now applied his engineering skills to the development of new products in that field. He took with him two long-serving and very highly skilled staffers – Alan Morgan as a machinist, and Vic Gray as a pattern-maker.

He designed, built and then manufactured a “vertical starter motor” for use with inboard-engined power boats. For this invention he was awarded a Prize of the National Safety Council for 1974. On the premise that inboard-engined boats utilised motor car engines, he observed that their electric starter-motors were located at the bottom of the engines. This placed them dangerously close to the boat’s bilge, which all-too-frequently contained surplus petrol drained from the fuel system above. The sparks generated by the starting procedure regularly ignited the petrol-doused bilge water, resulting in explosions and fires.

chamberlain ace

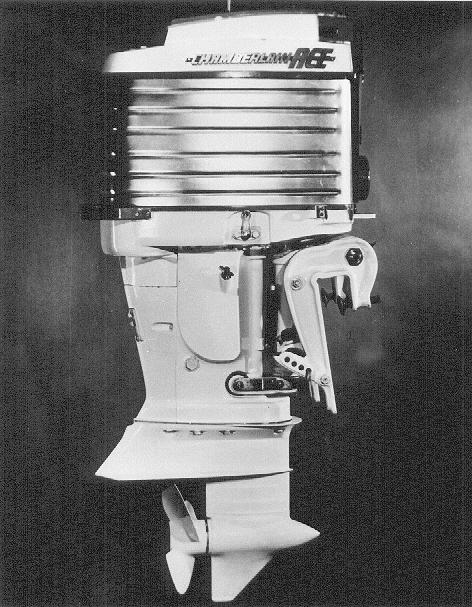

The prototype Chamberlain Ace 4 cylinder twin overhead cam 4 stroke outboard motor. (Chamberlain Australian Innovator)

He also designed and built a form of cushioned vee-drive for inboard powered boats, which was markedly commercially successful. His intended triumph – a brand new four-stroke outboard boat motor, the “Chamberlain Ace” – was like his small tractor probably too late into a market developing rapidly, and whose tide he was sadly too slow to catch. His design parameters called for an economical, 4-stroke motor which would produce 40 hp from a sophisticated design utilising four cylinders and 2 gear-driven overhead camshafts. He laid down parts for eight such motors, but it would appear that only one was built, which failed to reach its designed output, and caught fire on test. The sad reality was that, while under development by such a tiny company, the engine was outstripped in output by motors which were readily commercially available, before it could reach the market.

Bob then turned his attention to the reconstruction of highly significant sporting and racing cars which had come into his possession since 1945. Two of these were 1910-built “Prince Henry” Benz sporting cars; and another was the highly significant 1904-built Napier L34 “Samson”.

In the case of the Benz sporting cars, Bob used all of his considerable ingenuity to rebuild these cars from wrecks to driving condition, under the envying eye of the original manufacturers. The Napier L34 had been built in 1904, and had held the World Land Speed Record amongst its pantheon of racing achievements. Although the car was broken up in 1911, its remarkable engine found its way to Australia, and into the racing power boat “Nautilus”. After being campaigned in this form for many years, the motor had lain idle in a factory workshop in Brunswick, Melbourne, from where Bob rescued it.

napier

Bob Chamberlain with his re-creation of the L48 Racing Napier. (Chamberlain Australian Innovator)

Finding that the original detailed plans for the car’s construction survived in London, he travelled to England and copied sufficient material to enable him and his tiny team to construct a faithful replica of the original car, which he first drove on the road in 1982, and which he shipped to England for the Jubilee of the Brooklands racetrack in 1983. This most significant motor car survives in the Fremantle Motor Museum in Perth, Western Australia.

He continued to work on his historic motor vehicles, and lecture on his life’s work, right up to within weeks of his death in 1992. During his unusually productive life, he had been an important part of the transition of Australia from an agricultural to an industrial economy, charting a path through the hazardous shoals of new experience in the innovative application of engineering principles to industrial design.

This book seeks to catalogue his achievements in the evolution of the new industrial order in Australia, in a way not previously attempted. It uses source documents which include Bob Chamberlain’s comprehensive personal diaries, Government records, patent documents, Federal and State Government Hansard, personal accounts from staffers and customers, and the recollections of his family, friends and employees. It also offers to enthusiasts of his products detailed technical descriptions of his output, a collection of data not previously attempted. While the inclusion of such data in a biography may be seen as being unusual, in this case the engineering output is inseparable from the man, and his biography would be sadly incomplete without it.

The book chronicles the man’s legacy in terms of the respect in which his designs are still held, and the efforts which are being maintained to keep alive his memory.’

Bruce Lindsay.

Etcetera…

Bill Chamberlain Engine.

engine cutaway

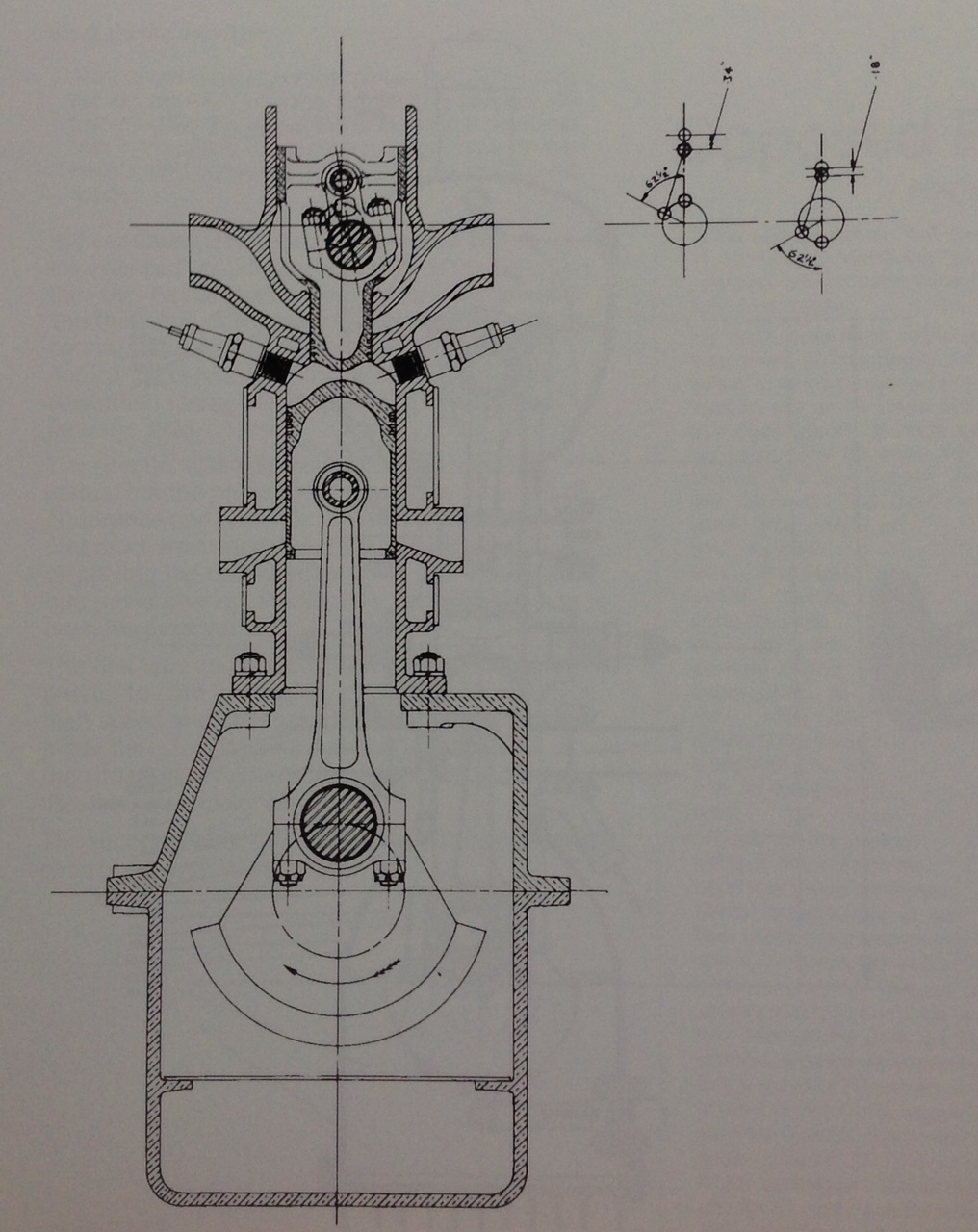

Cutaway of Bill Chamberlain’s 2 stroke, 4 cylinder, 8 piston, 2 crankshaft, supercharged engine (The Chamberlain)

A summary of the engines salient features is as follows; ‘The Chamberlain engine is a water cooled, vertical, inline, 4 cylinder 2 stroke with 2 pistons per cylinder. Supercharged.

The bottom pistons have a bore of 62.5mm and a stroke of 80mm. These bottom pistons control the exhaust ports while the top pistons are much smaller, having a bore of 35mm and a stroke of 25mm. These small pistons control the inlet ports and are of a peculiar shape.

The large hole in the base of the piston allows the small crankshaft to pass through with the gudgeon pin secured at the opposite end to the head. The small crank has 5 main bearings, the conrods are only 1.5 inches long. the bottom crank is much heavier, was machined from solid and has 3 main bearings. The throws are such that the 4 cylinders fire each revolution of the engine. The 2 cranks are coupled together by chain.

With this 2 piston per cylinder design, considerable overlap can be achieved, which is impossible with the single piston 2 stroke design. In this engine the inlet ports are open for 25 degrees of crankshaft rotation after the exhaust ports have closed and, with the inlet ports mounted in the top of the head and the exhaust ports at the bottom of the cylinder wall, better scavenging is possible. The lower connecting rods are from an A Model Ford.

Each cylinder has a sparkplug mounted on either side of the block. (you can see from the overhead photo below the exhaust layout). Two Bosch aero magnetos were obtained in the hope they would cope with the high engine revolutions’, (The Chamberlain)

from above

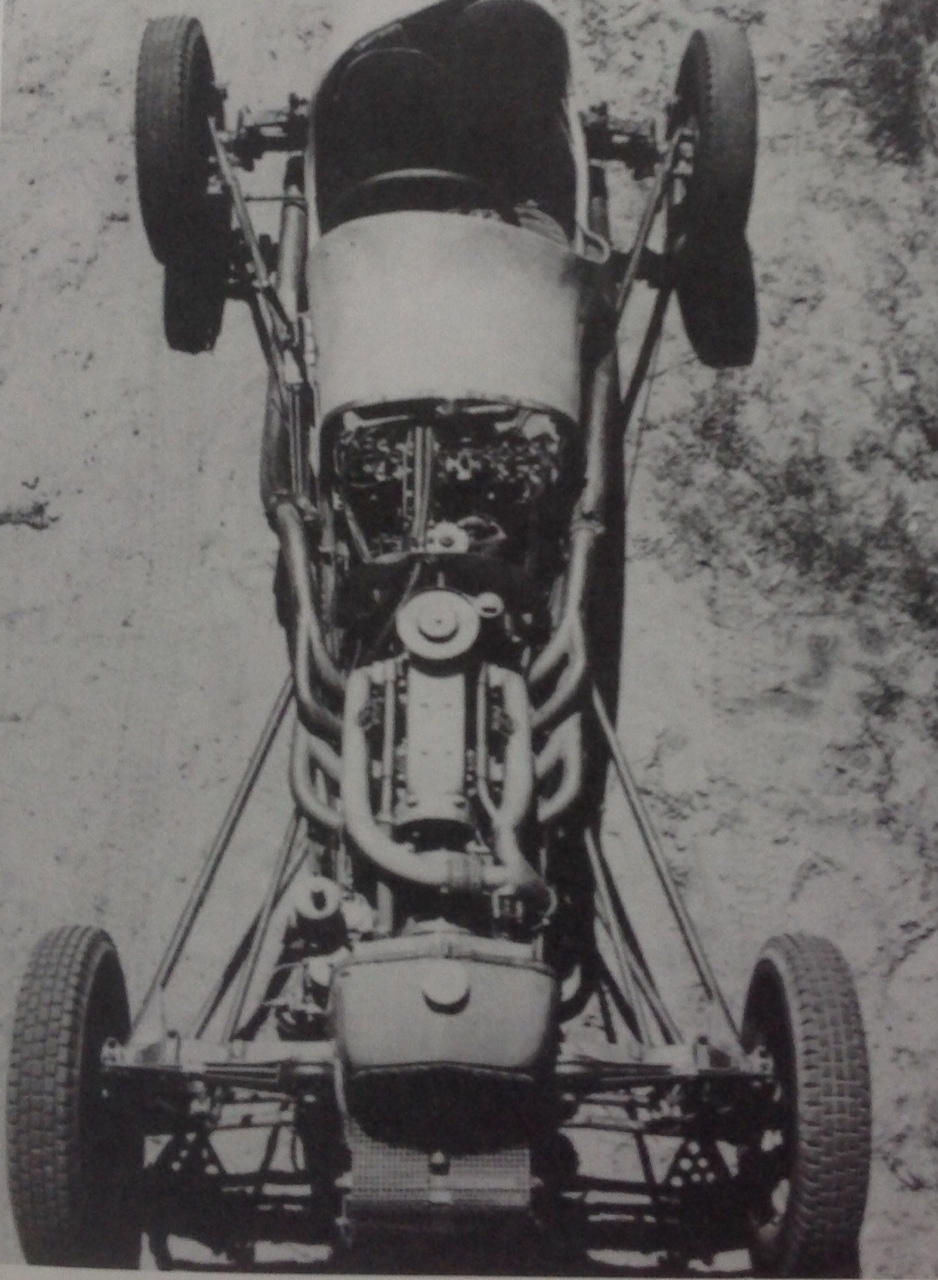

Rare overhead shot shows the basic layout and symmetry of the design. (The Chamberlain)

Pre War.

bob 1

Bob Chamberlain attacks the first corner of Arthurs Seat Hillclimb, Dromana, Mornington Peninsula in 1933. Car motor cycle engined at this stage. Chamberlain. (The Chamberlain)

bob 2

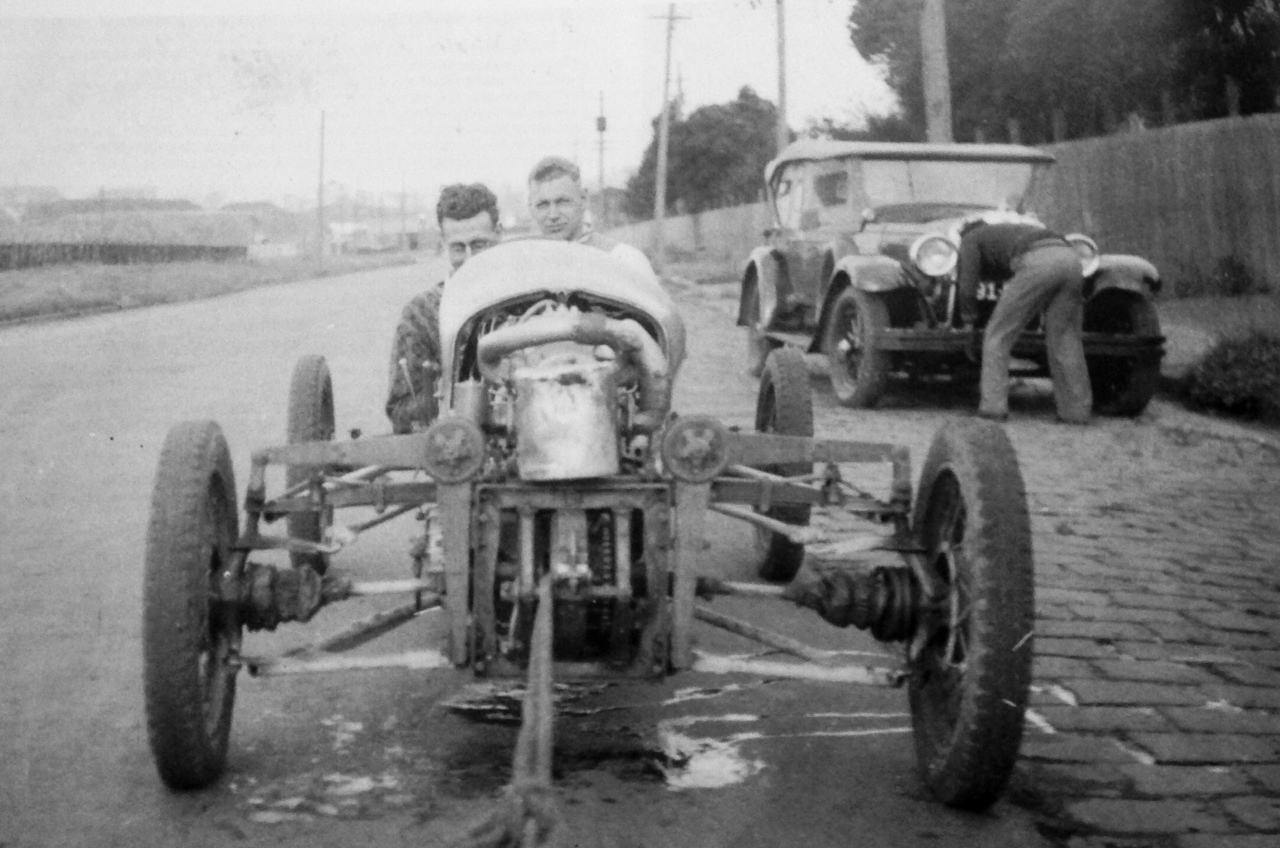

1935, trialling the car, now in 2 stroke form, note water tank on the front. (The Chamberlain)

bob 3

February 1936 testing the car on the backroads near Keilor, close to where Calder Raceway now is. (The Chamberlain)

engine

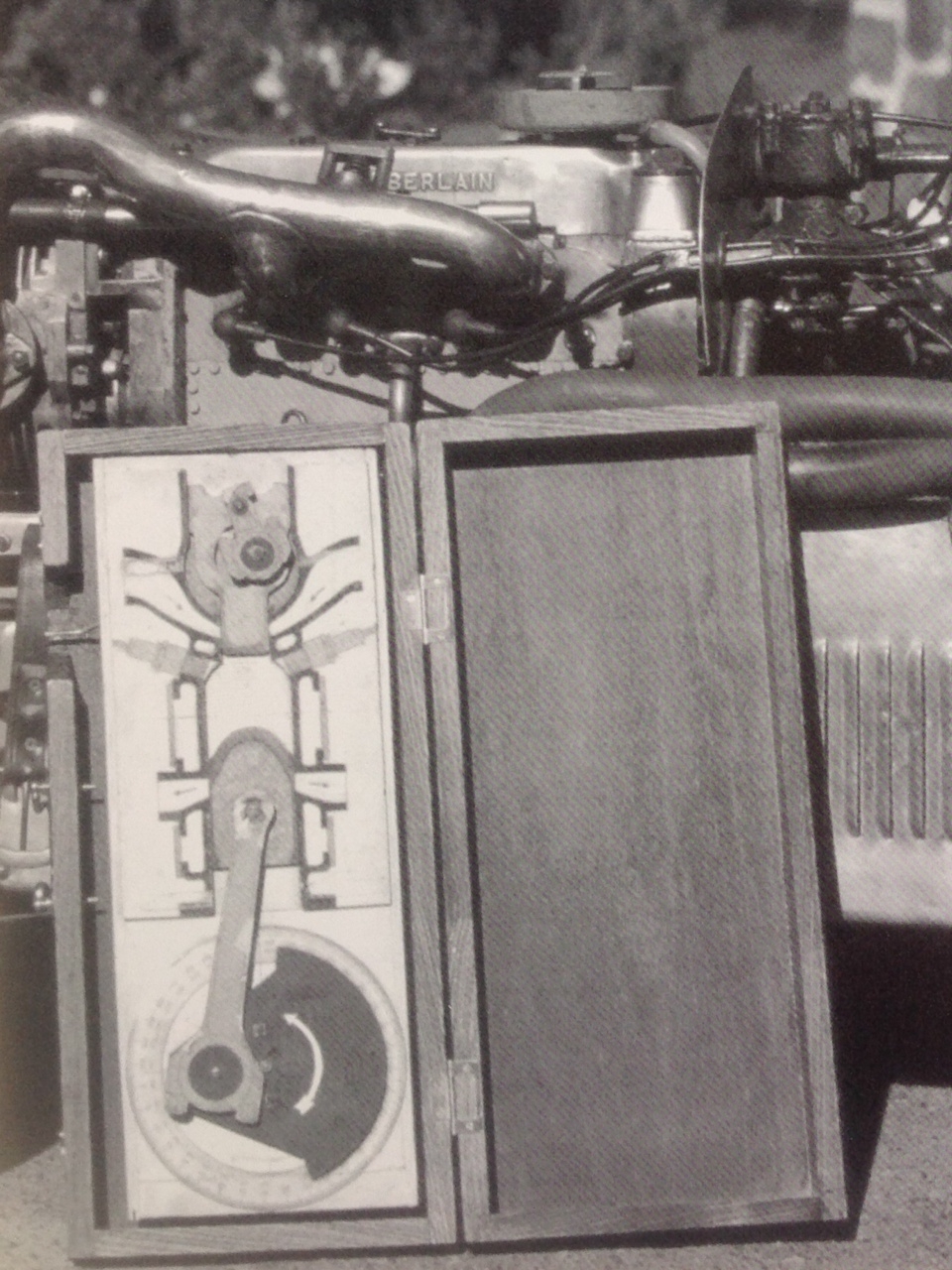

Bill Chamberlain’s wooden model of the engine, made in 1:1 scale, it was used to demonstrate the engines operation and complexities, and to help assess the impact of proposed tuning changes. (The Chamberlain)

Post War.

ch calder

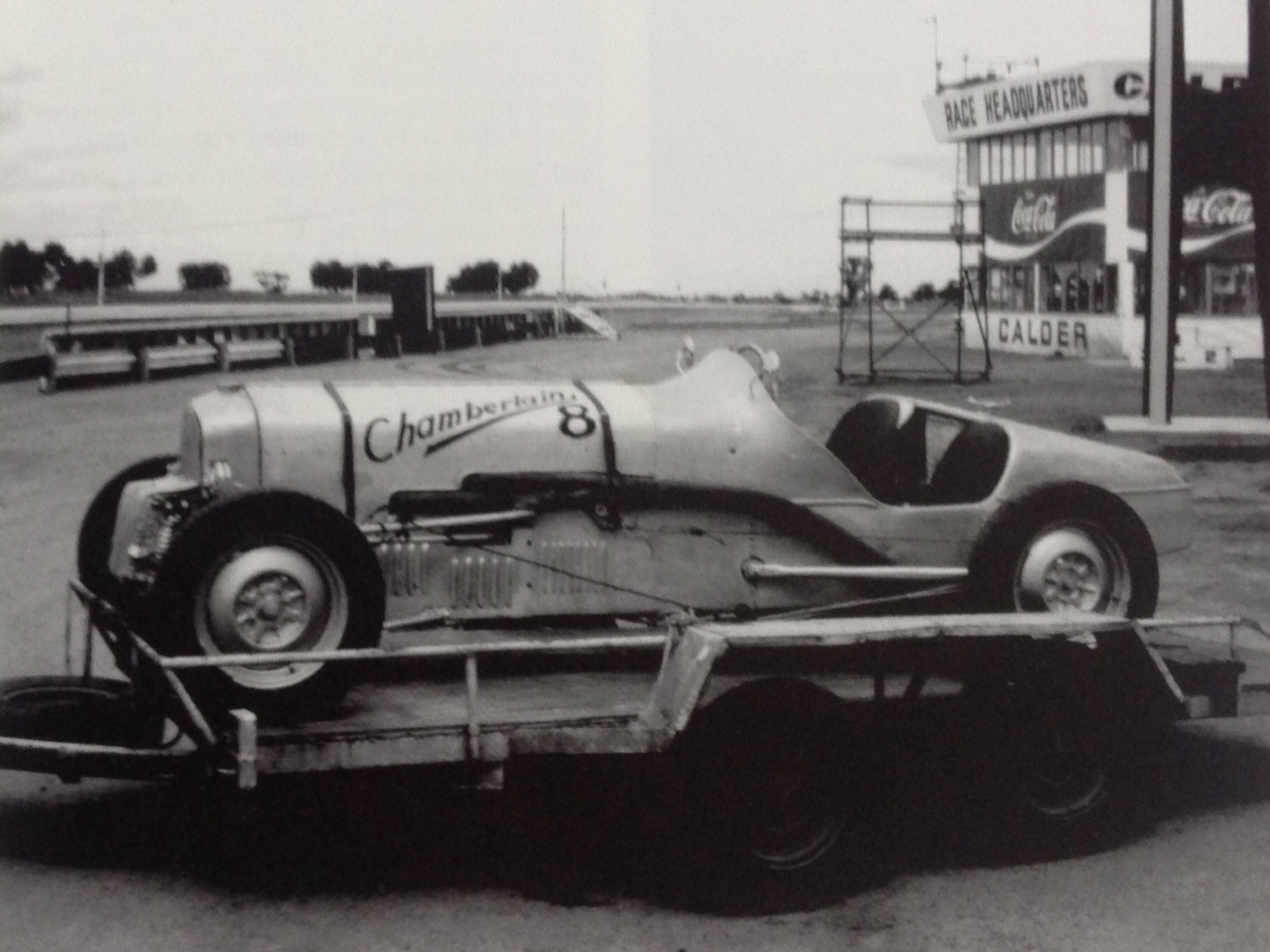

Chamberlain at Calder Raceway 1973, the first time the car had run in over 20 years. (The Chamberlain)

phil island

Bob Chamberlain and Eric Price, Phillip Island 1978. 50th AGP Anniversary. But for the ‘Hawaiian’ shirt it could be 1935…(The Chamberlain)

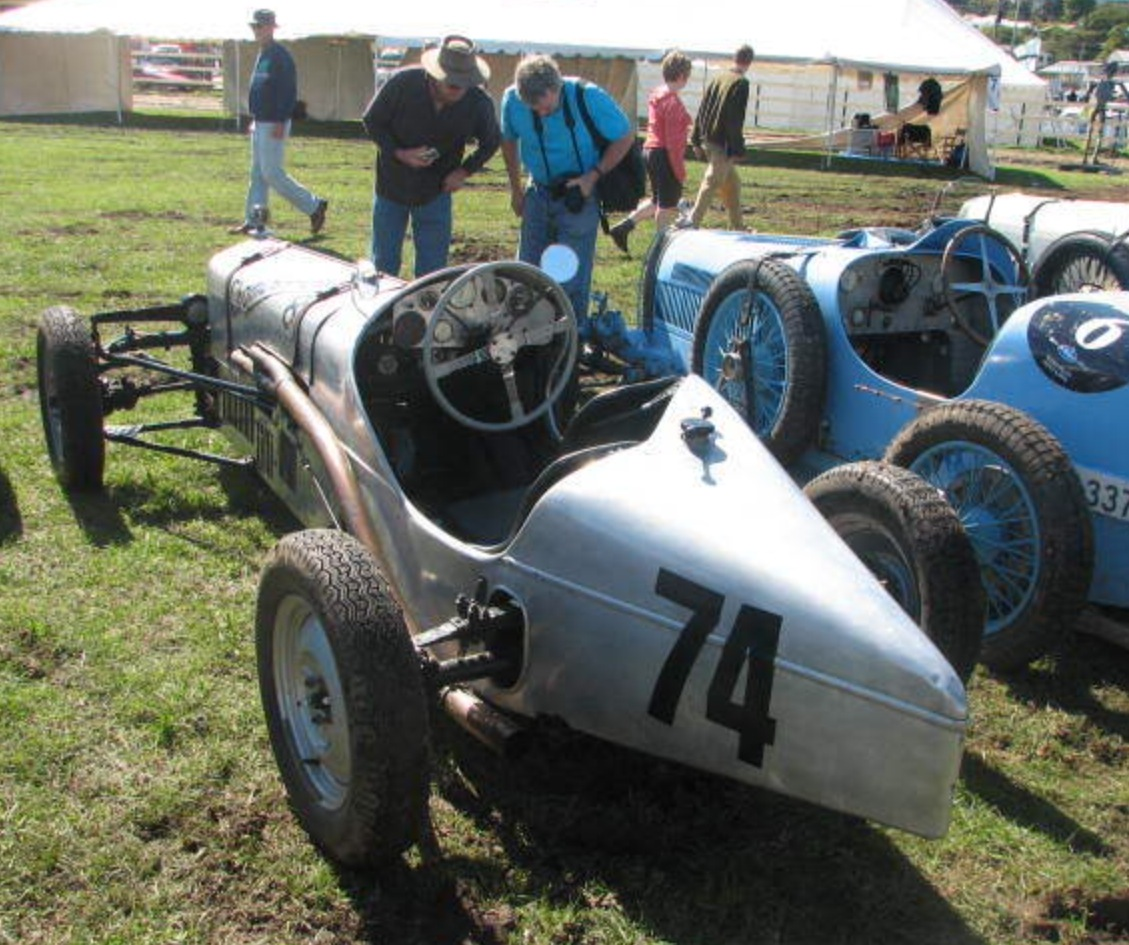

Two shots of the Chamberlain 8 at Queensland’s ‘The Speed on Tweed’ in recent years.

cham tweed front

cham tweed back

cover

John Hazelden’s excellent, and out of print, book. ‘The Chamberlain: An Australian Story’

Bibliography and Credits…

John Medley, special thanks for allowing his 1977 ‘Cars and Drivers’ article to be reproduced. ‘Cars and Drivers’ magazine, wonderful brainchild of the late, talented Barry Lake, Number 2 1977.

Martin Stubbs for the research assistance and encouragement

‘The Chamberlain An Australian Story’ John Hazelden

‘Chamberlain Australian Innovator’ Bruce Lindsay

George Thomas photographs

Finito…




(wirra)

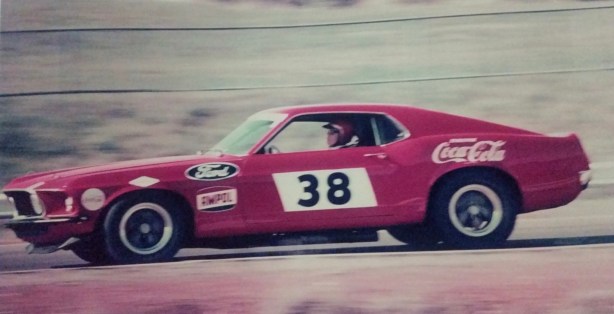

Allan Moffat’s Mustang on Warwick Farms ‘Northern Crossing’, 30 April 1972…

In a country obsessed with touring cars this is one of, if not the most revered of all, even though it never won the Australian Touring Car Championship.

A rare beast, one of 7 ‘factory’ built cars for the 1969 TransAm Championship which Moffat commenced racing in Oz that year.

I am not a ‘taxi racing’ guy but this car is on my ’10 racing cars I would love to own’ list. Still in Australia thank goodness, in the tender loving hands of David Bowden.

This excellent article was written for ‘Australian Muscle Car’ magazine by Mark Oastler and is ‘definitive’, the best i have read on this great car.

http://www.motorsportretro.com/2011/11/1969-trans-am-mustang/

moffat wf

Moffat in search of the apex…Warwick Farm, Sydney, 9 July 1972. (lyntonh)

Etcetera…

Moffat Sandown

Moffat Calder

Credits…

wirra, lyntonh both via The Nostalgia Forum, Stephen Dalton Collection











piquet

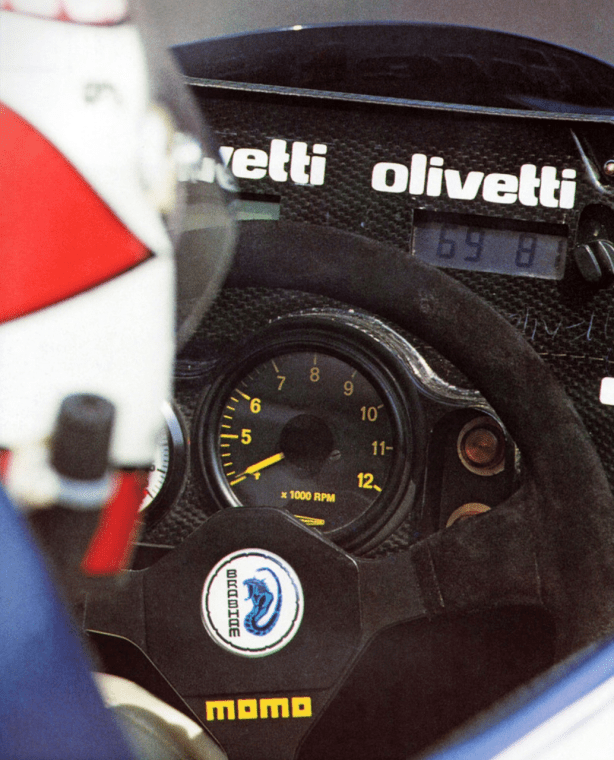

Nelson Piquet’s Momo equipped Brabham BT53 BMW in 1984 (unattributed)

Momo was founded in 1964 by Gianpiero Moretti. He commissioned a local craftsman to produce a custom steering wheel for his racer, this first Momo steering wheel had a superior, thicker grip compared to other racing steering wheels of the day.

Other drivers quickly noticed Moretti’s new ’tiller’ and wanted one, so it started to gain fame within the racing community. The new Momo steering wheel caught the attention of Ferrari driver, John Surtees, who wanted one for his Ferrari 158 GP car, the car in which he won the world title in 1964. https://primotipo.com/2014/11/30/john-surtees-world-champion-50-years-ago/

surtees

Mauro Forghieri and John Surtees with the Momo equipped 1964 F1 Championship winning Ferrari 158. (unattributed)

Moretti created the company ‘Momo’ short for ‘Moretti Monza’ to make steering wheels commercially. Initially his focus was on racing but in the 1970s, the company developed new product lines.

Momo started  production of light alloy wheels and steering wheels for road cars, both for the aftermarket sector and supplying car manufacturers, initially Ferrari but others followed including Aston Martin, Fiat, Honda, Mazda, Mitsubishi, Nissan, Opel, Porsche, Peugeot, Renault, Subaru and others.

I reckon the first Momo i saw was in a cockpit shot of an F1 Ferrari 312B. Wow, it looked good! I was a secondary student at the time, it took me a few years to buy a road car, there were not too many other Cortina GT’s in the Monash University carpark with a Momo steering wheel. As one of my mates said the Momo was worth more then the ‘maroon rocket’ itself, which was an accurate call! Three Momo’s over time graced a succession of Alfa’s, a BMW 325is and a Carrera 3.2. My Van Diemen RF86 Formula Ford is fitted with one ex-factory. Things of beauty aren’t they? And function.

Whilst a Momo fan i never knew anything about the company’s history, despite being aware of Moretti’s racing exploits to an extent, its been interesting to do some simple research.

cockpit

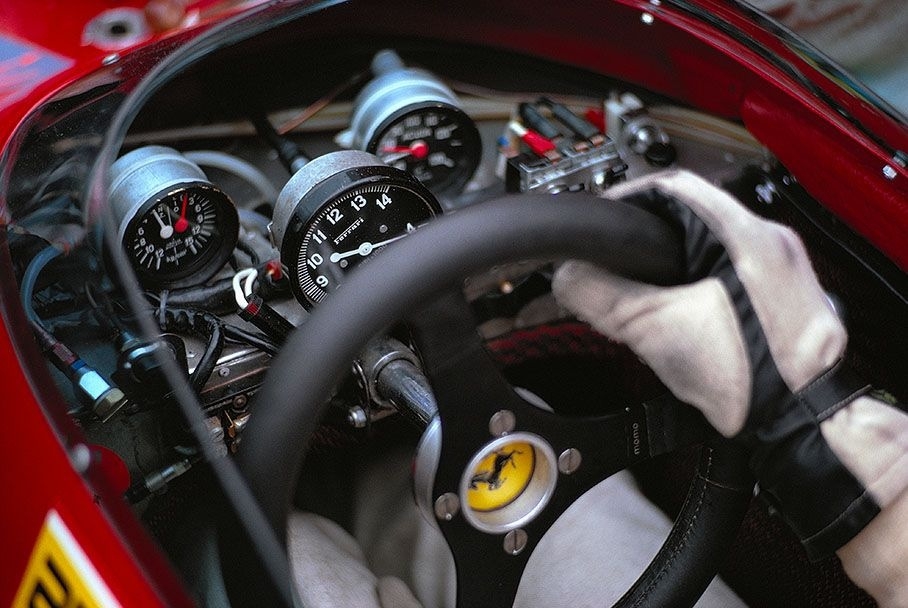

Momo equipped Ferrari 312B in 1971. Clay Regazzoni. (unattributed)

Momo continued its involvement in motor racing with success; in 1983 Brabham won the F1 World Championship, their car Momo equipped with light alloy wheels as well as a suede steering wheel as depicted in the first photo above. In 1998, Moretti won the Rolex 24 Hours of Daytona, the 12 Hours of Sebring, and the 6 Hours Watkins Glen driving a Ferrari 333 SP.

Mario Andretti, Ayrton Senna, Nigel Mansell, Nelson Piquet, Michele Alboreto, Michael Schumacher and earlier, Niki Lauda, Jackie Stewart and Clay Regazzoni won races with Momo steering wheels.

In 1993 ‘Momo Corse’ offering specialized fireproof clothing.

f2002

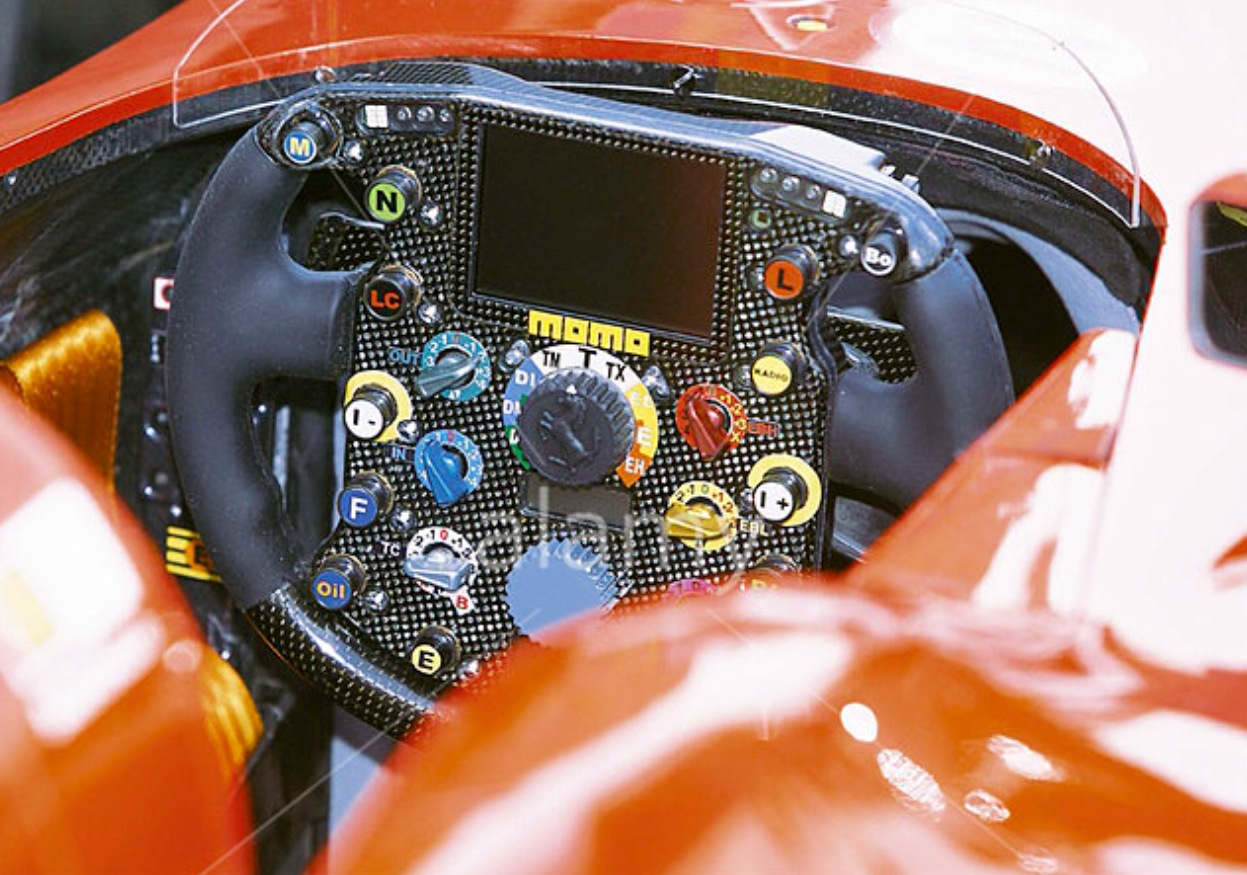

The complexity of the Ferrari F2002 steering wheel is a nice contrast with the simplicity of the decades before…(alamy)

In 1995 Gianpiero Moretti sold Momo to Breed Technologies, an American industrial group which produced airbag systems and steering wheels. Breed Technologies, in turn was acquired by the Carlyle Management Group, a private equity fund. Recently, ‘Momo was bought by a group of investors with a passion for the brand, its heritage and its products and a desire to grow the company back to its roots’, the company website says.

Momo is still focused on light alloy road wheels, but has also continued to develop racing products, an example the supply of steering wheels for the GP2 Championships in Europe and Asia.

momo new

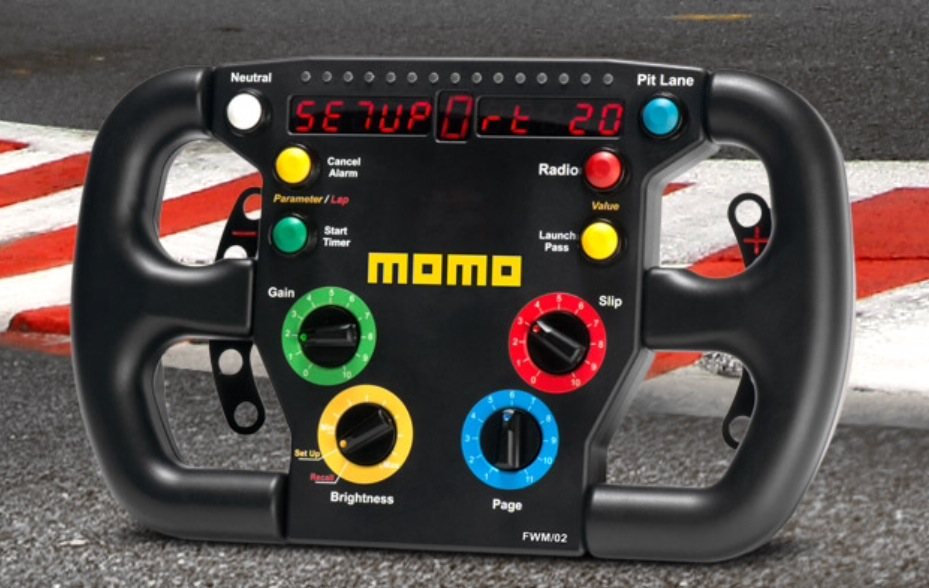

Momo’s current FWM/02 pro customer steering wheel. (Momo)

 Gianpiero Moretti died in 2012 at the age of 71, too young, but the company he founded still makes beautifully designed contemporary products which show the companies ‘racing DNA’…
moretti

Gianpiero Moretti and Piero Lardi Ferrari. (unattributed)

Bibliography and Credits…

Momo corporate website, alamy

jack from kling

Baptism at Aintree – Karl Kling’s Mercedes W196 & Roberto Mieres’ Maserati 250F push Jack at his 1st World Championship F1 event. Cooper T40 Bristol. 1955 British GP. (Jack Brabham Story)

Sixty years ago today, Jack Brabham made his Formula 1 GP debut at Aintree, but first he had to build the car…

The first half of 1955 was full of many goings on for Jack Brabham. With encouragement from the UK RAC motor sporting administrator, Dean Delamont, Jack was convinced to head over to the UK for some motor racing. Little did anyone know the success this would bring – although it was hardly immediate.

It the pages of the February 1955 ‘Australian Motor Sports’ there’s a brief piece on Jack and his trip to the Continent and it rumours that he had ordered a Cooper-Alta and might have a trial drive with Mercedes Benz. To finance such a trip he had to sell his highly developed & successful ‘RedeX Special’ – aka Cooper-Bristol. Stan Jones, having wrecked his Maybach II at the 1954 Australian GP purchased it. Just prior to selling though, Jack had his last race in the ‘RedeX’ at the January 31, 1955 Gnoo Blas meeting. This was a big meeting for the country NSW circuit with international drivers’ Peter Whitehead and Prince Bira running Ferrari & Maserati respectively. For Jack another part of financing the UK journey also meant selling his lathe and some other equipment – all to his later lament.

jack ibsley

The unloved ex-Whitehead Cooper-Alta at Ibsley. (Jack Brabham Story)

Flying to the UK, meant initially leaving his wife, Betty and young son, Geoffrey in Australia. Soon after arriving Jack took delivery of the ex Peter Whitehead Cooper-Alta. In fact he originally set up camp at Whitehead’s Chalfont St Peter’s race garage before a slightly later move to Bob Chase’s RJC Motors operation at Saltdean. His racing activities in the UK, began with the Cooper-Alta at the April 11, 1955 Goodwood Easter Monday meeting. The same meeting Cooper Cars debuted their petite 1100cc Coventry-Climax T39 ‘bobtail’ sports car. Their first foray into what would become a successful ‘Climax’ engine relationship.

brabham GP-1955-debut

Brabham’s brand new, self built Cooper T40 Bristol, Aintree, British GP 1955. Car and driver victorious in the 1955 Australian GP, Port Wakefield later in the year. (unattributed)

History tells us that Jack Brabham never said much, he let his ability do the talking, whether by his driving or engineering skills. But he knew how to get what he wanted. Neither Charles, nor John Cooper ever officially interviewed Jack for a job at Cooper’s Surbiton works. He just hung around often enough until he was one of them.

Despite its Cooper heritage, Jack’s lack of enthusiasm remained for the Cooper-Alta. Even after an engine blow-up at the April 30 Ibsley meeting on the old RAF base, saw him convert it to Bristol power. Meaning he was never going to be satisfied continuing to race that car.

So having gained his new friendship with the likeable John Cooper, Jack was allowed use of Cooper’s Surbiton facilities to knock together what would be his own interpretation of Cooper’s new T39 ‘bobtail’ – shoehorning a big engine into a small sports car. One could even say this was an early incarnation of what would evolve into the Can Am style cars of the mid 60s and onwards.

t40 construction

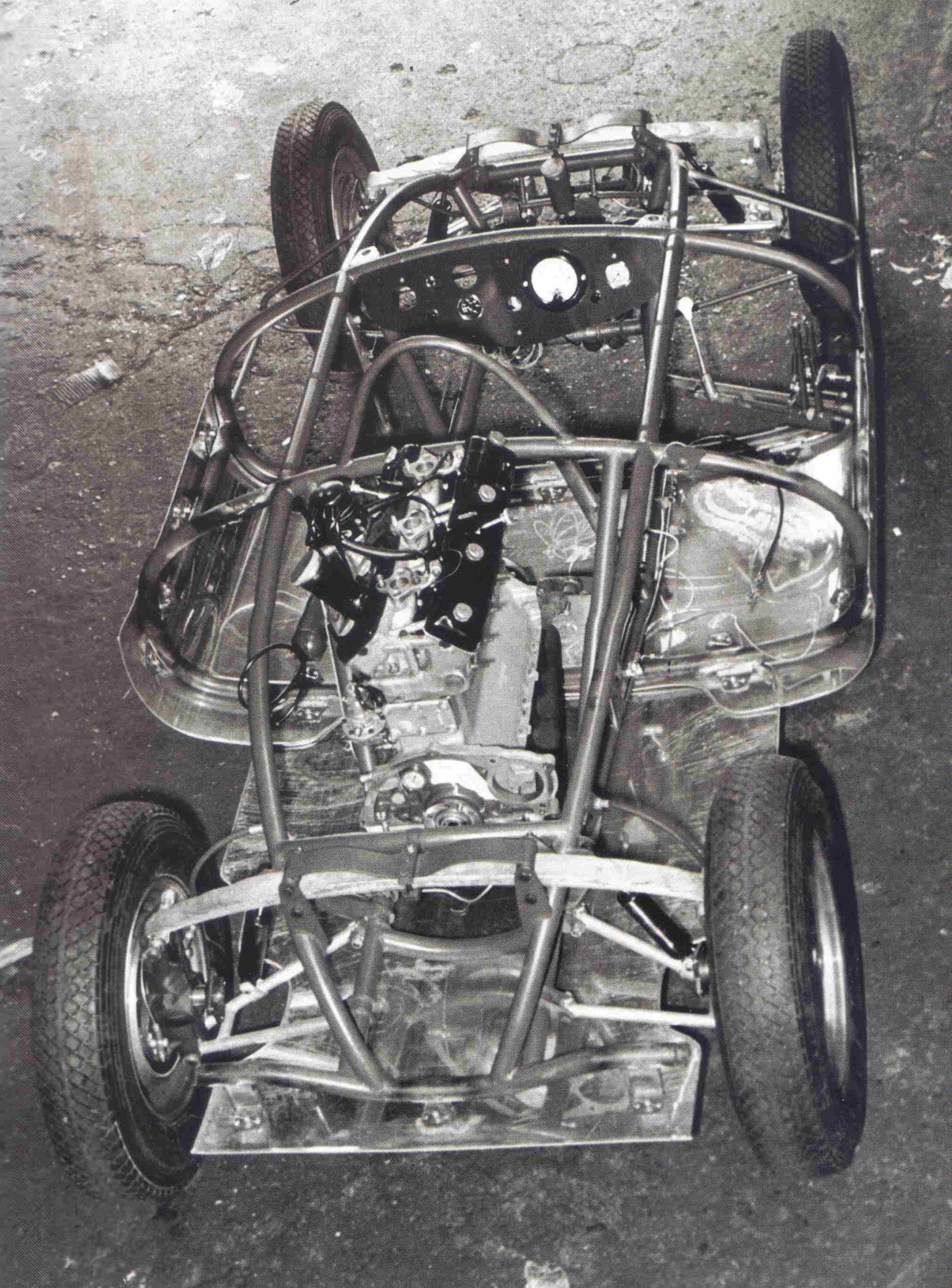

The bare bones of the Cooper T40 Bristol under construction. Tubular ‘curvy in the usual Cooper way’ chassis frame. Front and rear suspension upper transverse leaf spring and lower wishbones with Arnstrong shocks, drum brakes, 2 litre Bristol 6 cylinder engine.(Jack Brabham Story)

Part of Jack building his ‘streamliner’ F1 car, involved adding 50mm to the chassis’ wheelbase to accommodate the familiar to him, 2 litre Bristol 6 cylinder lump – in place of the 1100 Climax 4. Both built with the engine behind the driver. Worth noting is that in some official entry lists the car is claimed to have a 2.2 litre Bristol. Apparently that was the intent, but not reality. It was also built devoid of lights and anything that would add unwarranted weight.

t40 engine

The Bristol 2 litre 6 cylinder in the rear of the T40. (Jack Brabham Story)

This project later tagged as T40 in the Cooper genealogy stakes – with 2 constructed. One Jack would use himself, this car was allocated chassis number CB/1/55 and another that Bob Chase’s RJC Motors would briefly run for Mike Keen. I say briefly, because unfortunately a crash at the August 20, 1955 Goodwood 9 hour took Mike’s life and the ever present problem of fire destroyed the car.

Jack Brabham’s UK presence hadn’t gone unnoticed by the UK specialist motoring press, gaining a few comments in race reports. Autosport magazine even showed off the incomplete T40 in their pages the day before its first race. Admittedly the photo would have been taken sometime before that, but it was a brand new car when it hit the circuit – with no test time.

jack and autosport

Autosport 15 July 1955 Cooper/Brabham announcement.

Liverpool’s Aintree circuit was the venue for the running of the July 16, 1955 British GP meeting. This meeting became Jack’s F1 debut race. The programme even mentions ‘The Cooper Grand Prix entry is a prototype of a full team to be built to race in 1956.’ A slightly premature comment as it turned out and the only F1 Grand Prix the T40 would take part. The car’s haste to complete meant new car sorting was lacking and a rear of grid start. Having liberated the Harley Davidson clutch setup from his Australian ‘RedeX’ C-B before sale, with some irony it was this part that let Jack down at Aintree making for an early retirement at 30 of the intended 90 laps the outcome. The dominant Mercedes Benz W196 team that included Juan Manuel Fangio, Karl Kling and Stirling Moss, saw Stirling taking race honours.

Brabham-Aintree-55-small

Jack Brabham’s Cooper T40 Bristol from Ken Wharton Vanwall VW55 equal 9th, with victor Stirling Moss about to round them up in his Mercedes W196. (Bill Henderson)

Despite the niggling start Jack had more faith in the T40 than the Cooper-Alta. What followed over the ensuing month were national events at July 30 Crystal Palace & August 1 Brands Hatch with further retirements at both. Then crossing over the Scottish border his luck with the T40 began to change at the August 6 Charterhall meeting. Finally two 4th placed finishes in his Heat and Final. Continuing into the following week’s damp August 13 Snetterton. At that meeting Jack was able to mix it amongst some of the motor racing luminaries. Such as Harry Schell & Ken Wharton in Vanwall’s, Stirling Moss in his privately entered Maserati 250F and Roy Salvadori 250F. That being the finishing order for Snetterton’s RedeX Trophy race with Jack slotting in between Stirling and Roy for another 4th place. Had he not spun during his tussle with Moss it may well have been a 3rd place greeting him. This race alone was enough to convince Jack he would return to the UK in 1956 as he was about to send the Cooper T40 home to Australia. Jack and Betty then set to return to Sydney in late September to catch up with their son and more motor racing.

brabham and hawthorn

Jacks thoroughly modern mid engined, ‘central seat sports derived F1 car’ ahead of the over the hill Ferrari 625 of Mike Hawthorn, monstering the little Cooper. MH finished equal 6th in the race with Fazz teammate Eugenio Castellotti. Things got better for Ferrari, the Lancia D50 ‘gifts’ were not too far away! (unattributed)

autocar

The year of 1955 was also a period whereby other Aussies had made the trip to England for a racing holiday. Orders had been placed with Aston Martin for 3 of their DB3S racing sports cars. The ‘Kangaroo Stable’ as it was so named with members being Tony Gaze, David McKay, Les Cosh, Dick Cobden, Tom Sulman & Jack Brabham. Circumstances played against them though. Late delivery of the cars didn’t help, but it was the June 11-12, 1955 running of Le Mans that put the skids on racing soon afterwards with a number of events cancelled as a result to the Pierre Levegh Mercedes going into the crowd at Le Mans.

1955 Hyeres Kangaroo

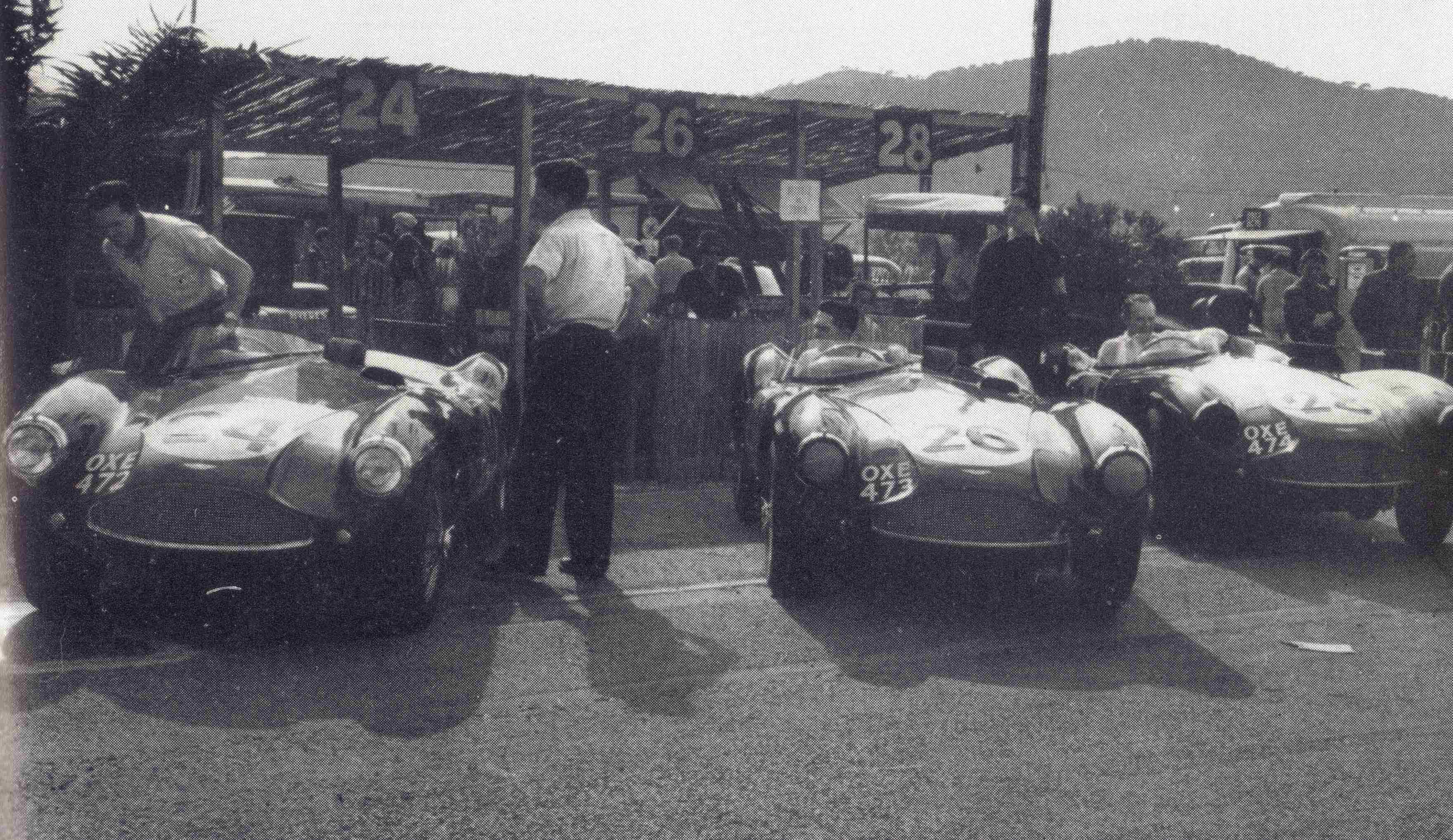

‘Kangaroo Stable’ Aston Martin DB3S at the Hyeres 12 Hour, France 29 May 1955. L>R Gaze, McKay, Brabham, Cosh and Cobden standing near the post. Only Tom Sulman is missing from the shot. Race won by Canonica/Munaron Ferrari 750 Monza, then came the Kangaroo Stable trio; Gaze/McKay 2nd, Cosh/Cobden 3rd and Sulman/Brabham 4th. (David McKay ‘Behind The Wheel’)

Jack Brabham was present at the famous French road course that year, but as a reserve driver for the Bristol team. He got to qualify, but never received the call up to put his helmet on for the race. That may well have been one of several omens Jack was granted in 1955 and over his outstanding career.

Cooper Cars Ltd also had a presence at Le Mans with the John Brown/Edgar Wadsworth Cooper T39 1100 and the Whitehead Brothers Cooper-Jaguar that year, but it was the infancy of Jack and John’s friendship, hence no involvement with the Surbiton marque’s effort

Another instance of Brabham luck was just before he headed for home. September 17 was the Dundrod RAC Tourist Trophy meeting in Ireland, with Jack there to share the Michael O’Shea owned Cooper T39 with London driver, Jim Mayers. An inexperienced French driver, Vicomte Henri de Barry created annoyance for several drivers as he baulked their progress, with those drivers’ having to take risks to get past to further their race on the testing Irish road course. Unfortunately the situation ended as badly as it could with a fiery crash at Deer’s Leap involving several cars. Jim was one of 2 drivers to die at that crash scene – the Cooper scattered to oblivion. This event would also claim another driver, elsewhere around the course. Although not knowing otherwise, Dean Delamont had sought out Betty Brabham, thinking it was Jack involved in the main crash – only to find him in the pit. Jim and Jack had flipped a coin to decide who did the first stint. We know who won…

jack and betty

Together in the UK, Betty Brabham followed Jack mid-year. While their son, Geoffrey stayed with his grandparents in Sydney. Cooper T40 Bristol. (Jack Brabham Story)

So as can be seen there were a few familiar names that helped establish Jack Brabham in those early days in the UK – Whitehead, Chase, Cooper & Delamont. The Bristol marque also played its part with their engine and the Le Mans reserve driver gig. Through them, Jack Brabham, Jim Mayers & Mike Keen are also entwined with their 1955 Le Mans Bristol team involvement. Taking out 7th (Mayers), 8th (Keen) & 9th places behind Jaguar’s Mike Hawthorn, Ivor Bueb winning entry. It was all a taste of the next 15 years Jack would encounter in the highest levels of motor racing, including building more racing cars.

Etcetera…

jack

Jack shipped the Cooper Bristol home to Australia at the end of 1955, and in the saltbush country of the new Port Wakefield circuit, 100Km from Adelaide, won the 1955 Australian Grand Prix on 10 October. A lucky win from Reg Hunt’s ailing Maserati A6GCM and Doug Whiteford’s Talbot-Lago T26C. The first mid-engined AGP win. (unattributed)

Bibliography and Photo Credits…

‘The Jack Brabham Story’ Jack Brabham and Doug Nye, ‘Behind The Wheel’ David McKay, Bill Henderson

Finito…



brm m sport v16 cover

About 15 years ago, I got a phone call from my father, telling me that his brother, my Uncle Henry had passed away at his home in Derbyshire, UK…

I remember Henry from the early 1960s, my dad’s dashing brother, who never married, but whenever he visited, arrived on or in interesting machinery. My first ride on a bike was on his Vincent Comet and then on a legendary Black Shadow. A Mini Cooper was thrilling, even more so, a Cooper S.

We moved to Australia, but news came occasionally of the succession of Lotus, Porsche and latterly turbocharged Nissans of the Silvia and Skyline variety.

brm 1

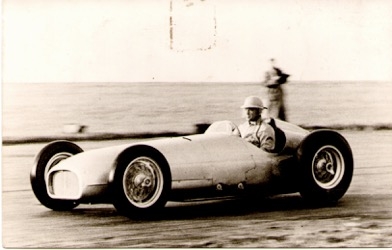

BRM V16, Ken Richardson, Folkingham 15 December 1949. (Marcus Clayton Collection)

I was pleased to receive, as part of a modest inheritance from Henry, a packet of photos, reproduced here. They are obviously very early BRM shots, which I had never seen before. I thought they may have been taken by him as a young man, but 2 of them appear elsewhere on the interweb, so I can only assume they are part of a postcard pack, or press pack. I would date them around 1950/51.

(Contributor/Historian Stepen Dalton advises the photos are BRM Press Kit shots, the cars launch was at Folkingham on December 15 1949, Stephen suspects Henry may have been a ‘BRMA’ or ‘ORMA’ member, the BRM supporters groups. The members of those groups were perhaps provided with copies of the shots. See membership badges below. Stephen has also indicated the likely dates of the track sessions and drivers, i have changed the captions accordingly.)

brm 2

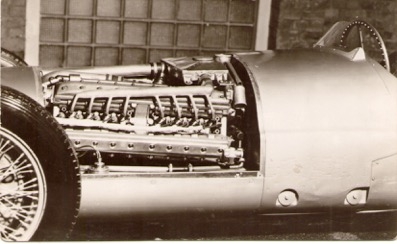

1488cc, centrifugal-supercharged, DOHC 2 valve V16. (Marcus Clayton Collection/Louis Klemantaski)

I have always had a fascination with the BRM. It has been written about extensively, so I can only add my personal take on this machine.

Mark Hales described it as like ‘The Victorians trying to build a moon rocket, and they very nearly succeeded’.

16 cylinders, each of less than 100cc, highly supercharged, spinning at 12,000 rpm, air suspension, disc brakes, with all this componentry, supplied by dozens of different companies, motivated to show ‘Johnny Foreigner’ that British engineering was still the best in the world. Inevitably, when there are so many suppliers involved, with so many radical parts, the project was delayed, time and time again, until the great day when the car had its first race start. It travelled about 3 feet, after breaking an axle at the start.

brm v 16 cutaway

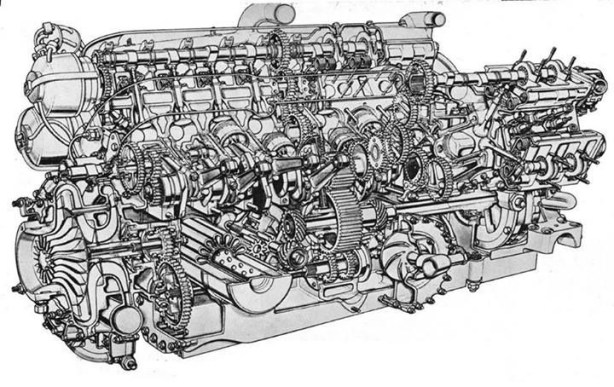

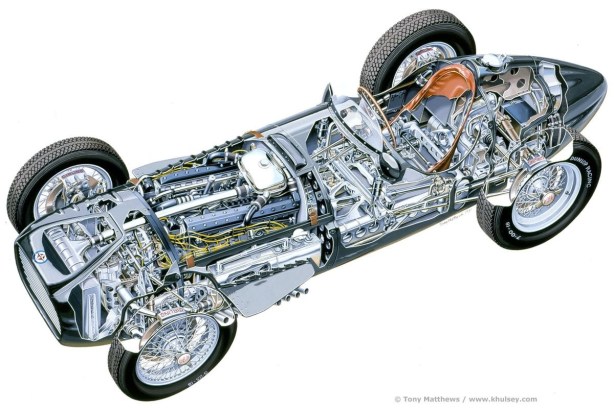

Chassis was tubular comprising double-tube side members, 4 cross members, aluminium body. Suspension at front by Porsche type trailing arms and Lockheed air struts, de Dion rear axle located by a single radius rod each side and Lockheed air struts. Brakes Girling 3 shoe drums,(Mk 2 had discs) Wheels Dunlop centre lock wires with 5.25 inch wide x18 inch diameter wheels at front and 7 inch x17 inch diameter at the rear. BRM 5 speed gearbox with ZF ‘slippery diff, gearchange on RHS, transmission angled to pass to the left of the driver. Engine specifications with engine cutaway drawing below. Weight at the start line circa 862Kg. (Tony Matthews)

The cars were extensively sorted over 3 years before they became reliable. Exhausts changed from full length, to in front of rear wheels, to stubs behind the front wheels. Radiator intakes increased and decreased, oil cooling and filtration revised, nearly every part was altered and changed.

When some cars were being properly restored during the 90s, the original dyno shed was discovered, and on the walls were all the different firing orders tried. I don’t know that the final order used was ever identified.

Of course there is the sound.

I don’t know if it is the greatest sound in the automotive world, but it has to be in the running. I played a recording of the BRM to an engineering colleague, who makes drag racing engines. He thought the BRM sounded like an extremely angry Funny Car, and took some persuading to be convinced that all that fury came from only 1500 cc.

brm 3

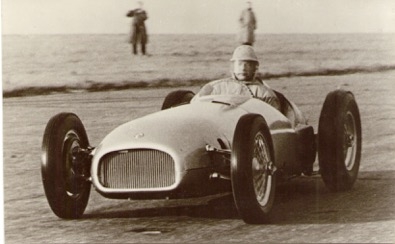

BRM V16, Folkingham, Ken Richardson 15 December 1949. (Marcus Clayton Collection)

None of the drivers really liked the car, as it was unreliable and difficult.

‘The V16 was a thoroughly nasty car,’ said Moss. ‘The brakes were OK, the acceleration was incredible – until you broke traction – but everything else I hated, particularly the steering and the driving position. Handling? I don’t remember it having any…’

Raymond Mays, (Who I think is driving in the photos) ‘Before we went to Albi in ’53, I drove Fangio’s car at Folkingham Aerodrome and I had it up to 190mph on the 2000-yard runway. It was quite frightening, because you could re-spin the wheels at 9800 in fourth gear. I reached 11,800, with a high gear in…’

mays

Ray Mays, BRM V16, Daily Express Int Trophy Meeting, Silverstone 26 August 1950 (J Wilds)

Mays again ‘By the end of that lap, though, Fangio detected a misfire, and, as Mays admitted, ‘When you got a misfire on the V16, it could have been 1001 things… We worked through the night, and at 3.30am it was decided that I would test the car. At that time of the day – early dawn – there were horses and carts about, farmers coming out of gates, but on this long straight road I had the thing up to 180, and I scared myself stiff.’ How wide was the road? I asked. ‘Narrow’. said Mays. ‘Narrow.’

So the cars were ultimately irrelevant, only winning races in Formula Libre after time ran out for them when F1 changed to the unsupercharged 2 litre formula.

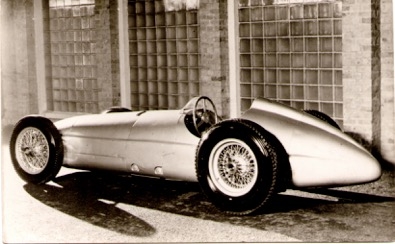

brm 4

Handsome side profile undeniable.(Marcus Clayton Collection/Louis Klemantaski)

The world is a better and more interesting place for the BRMs having been made. It would be unlikely to happen today, as the risks were far too high, but they were, like so many of the automotive and other objects that we so treasure, a delightful folly.

The recording is of Nick Mason’s BRM in 1998, driven by Mark Hales, from ‘Into the Red’.

brm 5

BRM V16 Folkingham. Perhaps Ray Mays on the cars first trial run, 3 December 1949. (Marcus Clayton Collection)

Restoration and Maintenance of This Car, Type 15 Chassis #1 Owned by the British National Motor Museum…

http://www.telegraph.co.uk/cars/classics/brm-v16-appeal/

Etcetera…

brm 6

Another shot at what appears to the be the launch of the BRM Type 15. (Marcus Clayton Collection/Louis Klemantaski)

brm board

Raymond Mays at right doing a bit of ‘stakeholder management’.R>L: Mays leaning, behind him Peter Berthon. Beside Peter, publicist Walter Hill, to his left Bob Henderson Tate from the Ministry of Supply. Standing, still going R>L are members of the ‘British Motor Racing Research Trust’ Bernard Scott and Denis Flather of Lucas, Alfred Owen far left. Seated in front of the table is administrator and later company secretary of BRM James Sandercombe. The meeting is in the study at Eastgate House, Mays family home in 1948. (photo unattributed but caption details ‘BRM Vol1’ Doug Nye)

brm engine cutaway

135 degree all alloy, 1488cc V16 with cast-iron wet liners. 10 bearing crank. DOHC 2 valves per cylinder, Rolls Royce 2 stage centrifugal supercharger fed by 2 SU carbs. Ignition by Lucas coil and 4 Lucas magnetos.Mk 1 Type 15 power 330bhp@10250rpm 1950-460bhp@11000rpm 1951.(unattributed)

BRM V16 crank

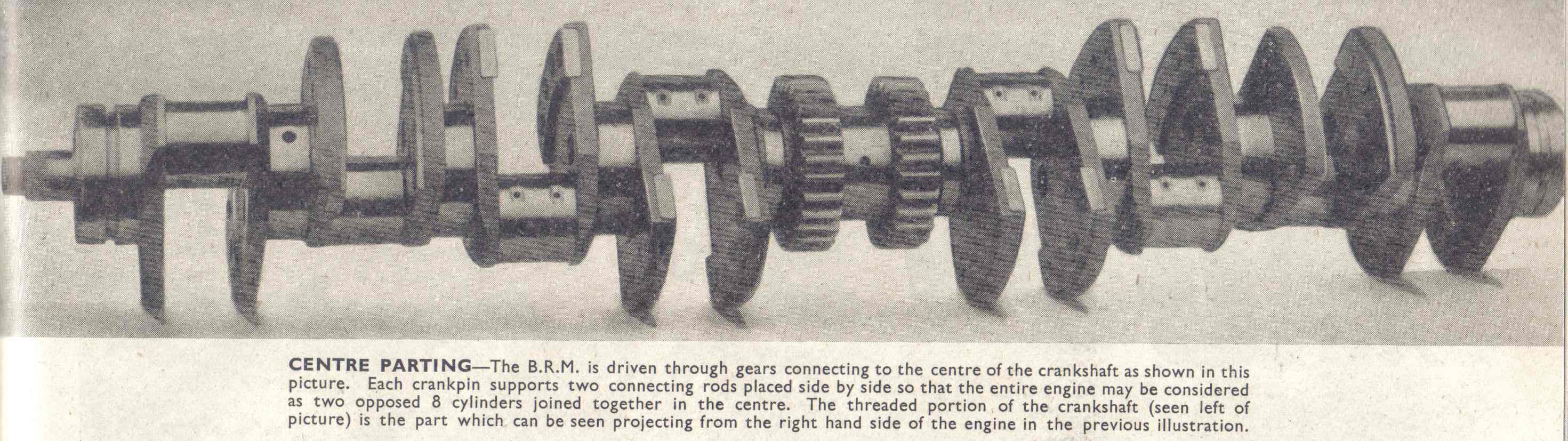

BRM crankshaft, centre power take-off clear. (Stephen Dalton Collection from the ‘BRM Ambassador for Britain Booklet’)

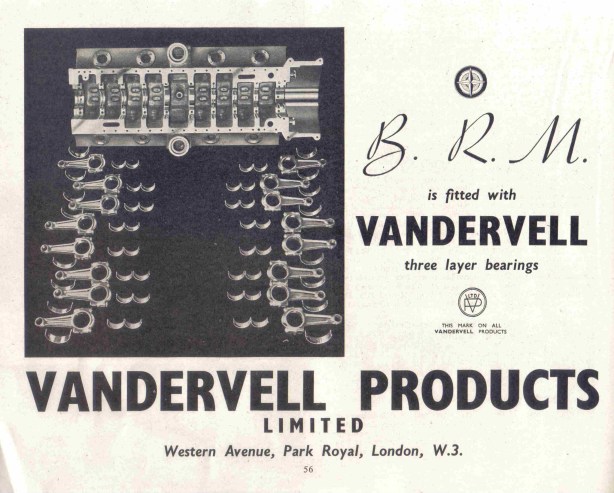

BRM V16 Vandervell ad

(Stephen Dalton Collection from the ‘BRM Ambassador for Britain Booklet’.)

orma

‘Owen Racing Motor Association’badge.

brma

Scratchy ‘BRM Association’ lapel badge.

brm postcard

Photo and Other Credits…

Tony Matthews cutaway, Motorsport magazine, Stephen Dalton Collection, J Wilds, ‘BRM Vol 1’ Doug Nye

Finito…
