Posts Tagged ‘Ferrari 312B’

long beach

(Klemantaski)

Clay Regazzoni oblivious to the ‘Queen Mary’s existence as he races to victory from pole in his Ferrari 312T, US Grand Prix West in March 1976…

I’ve never been to the place but Chris Pook’s idea was a great piece of entrepreneurship.

His first 1975 event, a marvellous demonstration of what is great about F5000 was followed by a championship GeePee in ’76. The other thing that captured my imagination about the place was the Depailler in-car Tyrrell footage. If you weren’t a PD fan, I always was, you had to be so after seeing him flick the 500bhp beastie through the Long Beach boulevards as though it were a 100bhp Lola T342 Formula Ford. The ability that separates the greats from the rest of us. Check it out if you’ve not seen it, look again if you have!;

longbeach clay

Nice portrait of Regga in 1978, Shadow Ford. Looks like a a Bell photo shoot ! (Getty)

Regga, a GP driver with a personality, they seem to breed it out of ‘em these days, anodyne boring liddl’ fuggers they all seem to be. The Swiss Italian had a great weekend in California winning from teammate Niki Lauda’s 312T and Depailler’s Tyrrell 007 DFV, the sound of which (Tyrrell 008 anyway) screaming in protest you can see, hear and feel in the footage above.

Tailpiece: Niki Lauda prepares for the off in the other Fazz 312T, 2nd place for the plucky Austrian reigning champion…

longbeach lauda

Niki Lauda contemplates changes to his Ferrari 312T during Long Beach practice. Mauro Forghieri’s 312T-T4, jewels of cars, circa 525bhp @ 11000 rpm at this stage of the 3 litre flat-12;s long front-running life (Schlegelmilch)

Credits…

Klemantaski Collection, Rainer Schlegelmilch


British GP, Brands 1970

A winning racing cars performance is greater than the sum of its individual components, said items often of great engineering beauty…

The left front corner of the 1970 F1 Ferrari 312B is a good example of an exquisite bit of a very cohesive design which was quicker than the ‘sum total of its bits’.

I wrote an article about this car, a personal favourite a while back, click here to read it;

https://primotipo.com/2016/02/26/life-is-all-about-timing-chris-amon-and-the-ferrari-312b/

So, what have we got?

The upright is fabricated rather than cast, the neat bracket to pick-up the steering arm has a few pick-ups indicative of a bit of experimentation.

The brake caliper is Girling’s, the F1 grid that year split between Girling and Lockheed as suppliers. The disc itself is 10.5 inches in diameter and is cast iron, the use of composites still a decade or so away.

I’ve a feeling Bruce McLaren may have introduced braided steel ‘Aeroquip’ lines for fluids into F1 via his exposure to them in his US Can Am campaigns, his ’66 M2B F1 car certainly had them. Ford fitted them to their Indy Ford V8 engines provided to Lotus from 1963 but Chapman didn’t quickly adopt them for brake and clutch lines in his cars. By ’70 they were F1 passe as here on Forghieri’s Fazz.

The aluminium disc bell, drive pegs for the wheels and centre-lock hubs finish a luvverly, competitive bit of Maranello kit…

Credit…

GP Library, Racecar Engineering

Click on this link for an interesting article on contemporary F1 Cars Braking Systems;

http://www.racecar-engineering.com/technology-explained/f1-2014-explained-brake-systems/

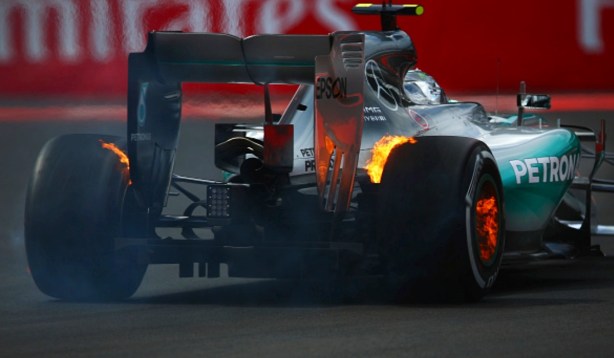

Nico Rosberg, Mercedes F1 W06, Mexico GP practice 2015 (Clive Mason)







modena chis and plane


(more…)

stewart spain

(unattributed)

Jackie Stewart passes the burning molten alloy remains of Jackie Oliver’s BRM P153 and Jacky Ickx’ Ferrari 312B, fortunately both drivers escaped with only minor injuries, burns in Ickx’ case, lucky, it could have been much worse…

On lap 1 of the 90 lap 19 April 1970 event Oliver had a suspension failure at the Ciudalcampo, Jarama, Madrid circuit, ploughing into Ickx and puncturing his fuel tank.

The other P153 BRM of Pedro Rodriguez was withdrawn as a precautionary measure, Ollie reported stub axle failure as the accident’s cause.

ickx ablaze

#2 Ickx Ferrari 312B and Oliver’s white BRM P153, inside an inferno. ‘Bag type’ safety bladder fuel tanks mandated from the start of the 1970 season. The FIA at this time, pretty much year by year changed the regulations to improve safety around fuel tanks; safety foam around tanks in ’72, crushable structures around tanks in ’73, selfseal breakaway tank/hose coupling in ’74. (unattributed)

conflagration

The full horror of the situation confronting the two drivers; Oliver has punched the release on his Willans 6 point harness and is jumping out of the BRM, Ickx is in the process of popping his Britax Ferrari belts…Johnny Servoz-Gavin’s Tyrrell March 701 Ford 5th passes. (unattributed)

ickx

Ickx disoriented and on fire in search of a marshall (Automobile Year 18)

ickx running

A soldier beckons in Jacky’s direction. (Automobile Year 18)

ickx on the ground

The soldier, not a marshall puts Ickx’ overalls fire out. At this stage foam is being sprayed on the car fire but the foam extinguishers were soon emptied leaving water only, the impact on the molten magnesium componentry was to make the fire worse. (Automobile Year 18)

Jack Brabham’s Brabham BT33 Ford was on pole, reinforcing the speed of Ron Tauranac’s first monocoque GP contender, but Jackie Stewart won the race in one of his least favourite cars, the March 701 Ford.

The accident happened at the 2nd corner, the ‘Esses Bugatti’, a stub axle failed and Oliver’s BRM rammed Ickx’ Ferrari puncturing its fuel tanks and releasing 45 gallons of avgas, a similar amount aboard the BRM. Oliver got out quickly, Ickx finally emerged with his overalls on fire, the flames put out by a soldier, Ickx suffering as a result of keeping on his fuel soaked overalls.

‘The accident created race havoc, not only the visibility being dangerously reduced for drivers…but the flaming petrol constituted another hazard. The fire-fighting was abysmal, vast quantities of water being hosed on the flames for a long time-a procedure which caused the magnesium elements to ‘gas’ and flare up time and time again. The BRM was still burning at the end of the race, but miraculously no-one was hurt’ the Automobile Year report of the race said.

Stewart didn’t have the race to himself; he initially pulled away from Brabham and Hulme, electronic dramas causing the Kiwi’s demise. Despite spinning twice Jack chased Stewart and Pescarolo, taking second when the Frenchmans Matra V12 seized, he was 5 seconds behind JYS. Only a few metres separated them when Brabham’s Ford Cosworth failed, allowing Jackie to ease off to take victory.

Bruce McLaren was 2nd, McLaren M14A and Mario Andretti in another privately entered March 701, 3rd.

jack spin spain

The 1970 speed of BT33 was reinforced by Jack’s pole. He won the season opening South African GP. Here spinning on the ‘extinguisher foam rink’. He spun twice but despite that was right on Stewart’s tail when his engine blew. Jarama 1970. (unattributed)

Jarama 1970 was also notable for the race debut of Chapman’s latest design the Lotus 72. Jochen Rindt qualified his 8th, John Miles in the sister car did not make the cut. Rindt was out of the race on lap 8 with ignition failure.

It would take intensive development by Colin Chapman and his team to make the car competitive, the cars monocoques had to be ‘unpicked’ to make the suspension changes to eliminate a lot of the anti-dive/squat geometry and many other modifications but by June they had a winning car; victorious for Rindt in the sad Dutch Grand Prix, unfortunately the fire on that day had far more serious, fatal consequences for Piers Courage and his De Tomaso 505 Ford.

The sad reality of days like Jarama and Zandvoort in 1970, look how ill equipped in terms of fire protective clothing the marshalls are in the photos above, was the acceptance that safety standards in every respect; circuits, car construction and race support services had to improve to societal levels of acceptability. Thankfully we are on a different level in every respect today…

rindt spain

Rindt, Lotus 72 Ford, Jarama 1970. Look at the suspension travel on that early 72! (unattributed)

jochen

Jochen and Colin making a long joblist during Spanish GP practice. The car which won at the Dutch GP in June was a 72C which shows how much change there was in 2 short months. ‘Sol’ pitboard is Alex Soler-Roig who failed to qualify a Lotus 49C. (unattributed)

surtees

John Surtees ran as high as 3rd in his ex-works McLaren M7C Ford but faded and then retired with gearbox problems. Back at base his team were building John’s first F1 car the ‘TS7’ which made its debut at the British GP in July. (The Cahier Archive)

piers courage

Piers Courage during Jarama practice 1970. His Frank Williams De Tomaso 505 Ford non-started after a practice accident. (The Cahier Archive)

Tailpiece: Stewart’s winning March 701 passes the conflagration…

stewart spain 2

(The Cahier Archive)

Credits…

Automobile Year 18, The Cahier Archive



piquet

Nelson Piquet’s Momo equipped Brabham BT53 BMW in 1984 (unattributed)

Momo was founded in 1964 by Gianpiero Moretti. He commissioned a local craftsman to produce a custom steering wheel for his racer, this first Momo steering wheel had a superior, thicker grip compared to other racing steering wheels of the day.

Other drivers quickly noticed Moretti’s new ’tiller’ and wanted one, so it started to gain fame within the racing community. The new Momo steering wheel caught the attention of Ferrari driver, John Surtees, who wanted one for his Ferrari 158 GP car, the car in which he won the world title in 1964. https://primotipo.com/2014/11/30/john-surtees-world-champion-50-years-ago/

surtees

Mauro Forghieri and John Surtees with the Momo equipped 1964 F1 Championship winning Ferrari 158. (unattributed)

Moretti created the company ‘Momo’ short for ‘Moretti Monza’ to make steering wheels commercially. Initially his focus was on racing but in the 1970s, the company developed new product lines.

Momo started  production of light alloy wheels and steering wheels for road cars, both for the aftermarket sector and supplying car manufacturers, initially Ferrari but others followed including Aston Martin, Fiat, Honda, Mazda, Mitsubishi, Nissan, Opel, Porsche, Peugeot, Renault, Subaru and others.

I reckon the first Momo i saw was in a cockpit shot of an F1 Ferrari 312B. Wow, it looked good! I was a secondary student at the time, it took me a few years to buy a road car, there were not too many other Cortina GT’s in the Monash University carpark with a Momo steering wheel. As one of my mates said the Momo was worth more then the ‘maroon rocket’ itself, which was an accurate call! Three Momo’s over time graced a succession of Alfa’s, a BMW 325is and a Carrera 3.2. My Van Diemen RF86 Formula Ford is fitted with one ex-factory. Things of beauty aren’t they? And function.

Whilst a Momo fan i never knew anything about the company’s history, despite being aware of Moretti’s racing exploits to an extent, its been interesting to do some simple research.

cockpit

Momo equipped Ferrari 312B in 1971. Clay Regazzoni. (unattributed)

Momo continued its involvement in motor racing with success; in 1983 Brabham won the F1 World Championship, their car Momo equipped with light alloy wheels as well as a suede steering wheel as depicted in the first photo above. In 1998, Moretti won the Rolex 24 Hours of Daytona, the 12 Hours of Sebring, and the 6 Hours Watkins Glen driving a Ferrari 333 SP.

Mario Andretti, Ayrton Senna, Nigel Mansell, Nelson Piquet, Michele Alboreto, Michael Schumacher and earlier, Niki Lauda, Jackie Stewart and Clay Regazzoni won races with Momo steering wheels.

In 1993 ‘Momo Corse’ offering specialized fireproof clothing.

f2002

The complexity of the Ferrari F2002 steering wheel is a nice contrast with the simplicity of the decades before…(alamy)

In 1995 Gianpiero Moretti sold Momo to Breed Technologies, an American industrial group which produced airbag systems and steering wheels. Breed Technologies, in turn was acquired by the Carlyle Management Group, a private equity fund. Recently, ‘Momo was bought by a group of investors with a passion for the brand, its heritage and its products and a desire to grow the company back to its roots’, the company website says.

Momo is still focused on light alloy road wheels, but has also continued to develop racing products, an example the supply of steering wheels for the GP2 Championships in Europe and Asia.

momo new

Momo’s current FWM/02 pro customer steering wheel. (Momo)

 Gianpiero Moretti died in 2012 at the age of 71, too young, but the company he founded still makes beautifully designed contemporary products which show the companies ‘racing DNA’…
moretti

Gianpiero Moretti and Piero Lardi Ferrari. (unattributed)

Bibliography and Credits…

Momo corporate website, alamy

forg

Mauro Forghieri asks Jacky Ickx about his wonderful creation on the Belgian GP grid, Spa 1970. Inboard front suspension, top rocker actuating a spring/shock, lower wishbone. Twin radius rods at rear in evidence. Single top link, and lower wishbone also used at rear. Well protected Lucas fuel injection trumpets, and low nature of engine clear. (Unattributed)

Jacky Ickx awaits the start of the Belgian Grand Prix, he finished eighth amongst a fantastic battle between Pedro Rodriguez and Chris Amon on this spectacular, fast and oh-so-dangerous classic circuit in the Ardennes…

Amon left Ferrari at the end of 1969 , a team he adored and had raced for since 1967. He had been very competitive throughout in F1, Sports Prototypes, and the Tasman Series, but the Championship F1 victory he sought had eluded him.

spa 1970

Spa vista 1970. (Bruce Thomas)

Mauro Forghieri designed the all-new 312B for 1970… the core of which was a horizontally opposed 12 cylinder engine utilising only 4 main bearings to minimise power-sapping frictional losses. The ‘Boxer’ engine layout allowed a very low centre of gravity, and cleaner airflow for the rear wing.

boxer

Engine ‘Type 001’. 180 degree, DOHC, four valve, Lucas fuel injected ‘Flat 12’. Distributor, coil and Dinoplx electronic ignition. Very oversquare at 78.5×51.5 Bore/Stroke, 2991cc. 11.8:1 compression ratio, circa 460BHP at 12000RPM in 1970, rising to over 525BHP throughout the 70’s. (Unattributed)

Chris tested the car late in 1969, several massive engine failures convinced him to leave the team to drive a competitive car powered by the dominant, powerful and reliable Ford Cosworth DFV V8. And so it was that his Cosworth DFV powered March was beaten throughout the seson by the 312B’s and in Belgium by the BRM P153 V12 of Rodriguez…

Chris’ Ferrari departure proved to be another of Amons poor timing decisions, his capacity for being in the ‘right place at the wrong time’ was legendary. Forghieris’ design was both reliable and fast in 1970, Ickx won three races and newcomer Clay Regazzoni one, Ferrari narrowly missing the drivers and constructors titles to Jochen Rindt and Lotus.

In fact the engine was brilliant, one of the greatest in F1, powering cars which took Niki Lauda (1975 and ’77), and Jody Scheckter (1979) to world titles, and in endurance form winning all the classic endurance events but the two 24 Hour races at Le Mans and Daytona. In its early form the DOHC, four valve, Lucas injected, 2991cc engine developed around 460BHP at a time the DFV developed around 435BHP.

The chassis of the 312B was also new and whilst not a ‘full-monocoque’, the combination of aluminium reinforced space-frame tubing was very effective and forgiving to drive.

Newcomer Ignazio Giunti was the best placed Belgian GP 312B in fourth, Ickx having a variety of problems. The race was won by Rodriguez by a second from Amon with Jean Pierre Beltiose third, a further 1.43 minutes adrift, such was the pace of Pedro and Chris.

Amon set a new lap record in his chase of Rodriguez at 152MPH, but Pedro was ‘Spa fit’ having set a 160MPH lap in a 4.5 litre flat 12 Porsche 917 the week before…oh to have seen either race!

There was a chicane at Malmedy for the Grand Prix which was unused during the 1000 Km Classic but all the same…160MPH was the fastest ever lap-time of a road circuit anywhere in the world at the time.

312 b cutaway

312 b spa

Jacky Ickx, Ferrari 312B, La Source hairpin, Spa 1970. (Unattributed)

312 b cockpit

The very cosy, comfy cockpit of Ickx’ Ferrai 312B. Lockout for reverse gear in the gated 5 speed ‘box plain to see , Momo steering wheel, Veglia instruments, just luvverly in every way (Unattributed)

Etcetera…

dfv

An all Ford DFV powered front row at the races start: Jochen Rindts’ Lotus 49 wedged by Amons March 701 on the nearside and Stewarts similar pole winner on the outside…Ickx the best of the 12’s on this ultimate power circuit on the second row (Unattributed)

rindt

Out into the Ardennes Forest …Rindt from Ickx, Beltoise, Brabham in the distance and the yellow speck Petersen…Lotus 49 DFV, Ferrari 312B, Matra MS120 V12, Brabham BT33 DFV, and March 701 DFV (Unattributed)

pedro spa

But Pedro Rodriguez won the day in the BRM P153 V12…over the years there have been rumours the BRM engine was ‘fat’ that day, but these have been scotched by Doug Nye amongst others. Also, Pedro was supreme at Spa and Tony Southgates’ P153 and ’71 P160 BRM’s were fast, if not always reliable race-winners (Unattributed)

Photo Credits…

Bruce Thomas, Illustrations Werner Buhrer
