Archive for July, 2017

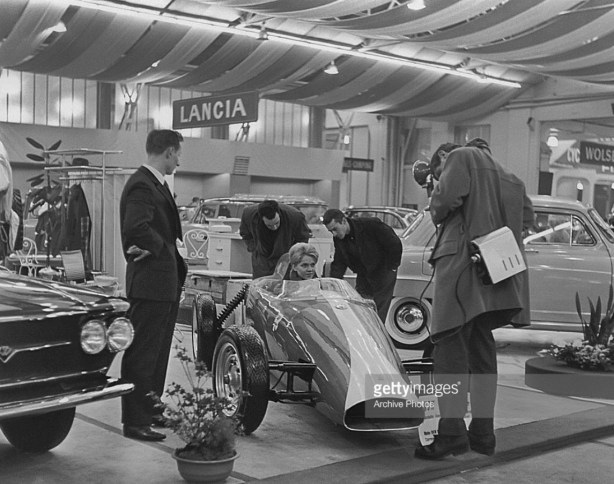

It’s a Formula Junior with a cutie at the wheel during the 1960 Geneva Motor Show…

VW Beetle front suspension, independent at the rear, any ideas as to make and model anyone?

Credit…

Getty

download(1)

Stan Jones struggles to keep Maybach 3 in front of Reg Hunt’s Maser A6GCM during the first lap of the 1955 Australian Grand Prix at Port Wakefield, South Australia…

The two cars were arguably Australia’s greatest special and production racing car at the time. Mind you the ‘special’ descriptor belies the ‘tool room’ quality of the Maybach series of cars in terms of both design and execution by Charlie Dean and his team at Repco Research in Melbourne. The Maserati A6GCM and 250F family are members of one the greatest series of production racing cars ever built. Not that either of them won this particular contest mind you!

Jack Brabham returned to Oz from his first season in Europe replete with a self-built Cooper T40 Bristol, winning the Port Wakefield race in the 2 litre, 150bhp, 1100lb, mid-engined car. Was it the first time a ‘modern era’ post-war mid-engined car won a national Grand Epreuve?

Brabham had luck that weekend in South Australia in a car which later became notorious for its unreliability- he won the race after the retirement of, or problems encountered by some of the races ‘heavy metal’ including Jones ‘works Repco’ 3.8 litre Maybach, Hunt’s Maser 250F engined Maserati A6GCM and another Melbourne motor-trader, Doug Whiteford’s 4.5 litre Talbot-Lago T26C.

Hunt and the Maser were the form combination at the time, Reg took the lead from Jones on lap 1 and lead the race convincingly until the failure of a finger type cam follower forced the Maser onto 5 cylinders, Brabham was soon past into a lead he held for the races duration. Jones had clutch dramas, with Whiteford 3rd, behind Hunt, in a car which raced too late after it’s initial arrival in Australia- devoid of some of the trick bits Doug paid for, shifty furriners!

The 80 lap, 104 mile event was the 20th AGP and noteworthy as the first on a bespoke purpose built circuit, Port Wakefield is 100Km north of Adelaide in flattish, coastal, saltbush country. Previous Grands Prix in Australia were on closed roads or airfields. Port Wakefield, 1.3 miles in length, was used from 1953 to 1961, when Mallala, built on a disused Royal Australian Air Force airfield became the main South Australian circuit.

Credits…

State Library of Victoria, Reg Fulford Collection, G Howard and Ors ‘The 50 Year History of The Australian Grand Prix’

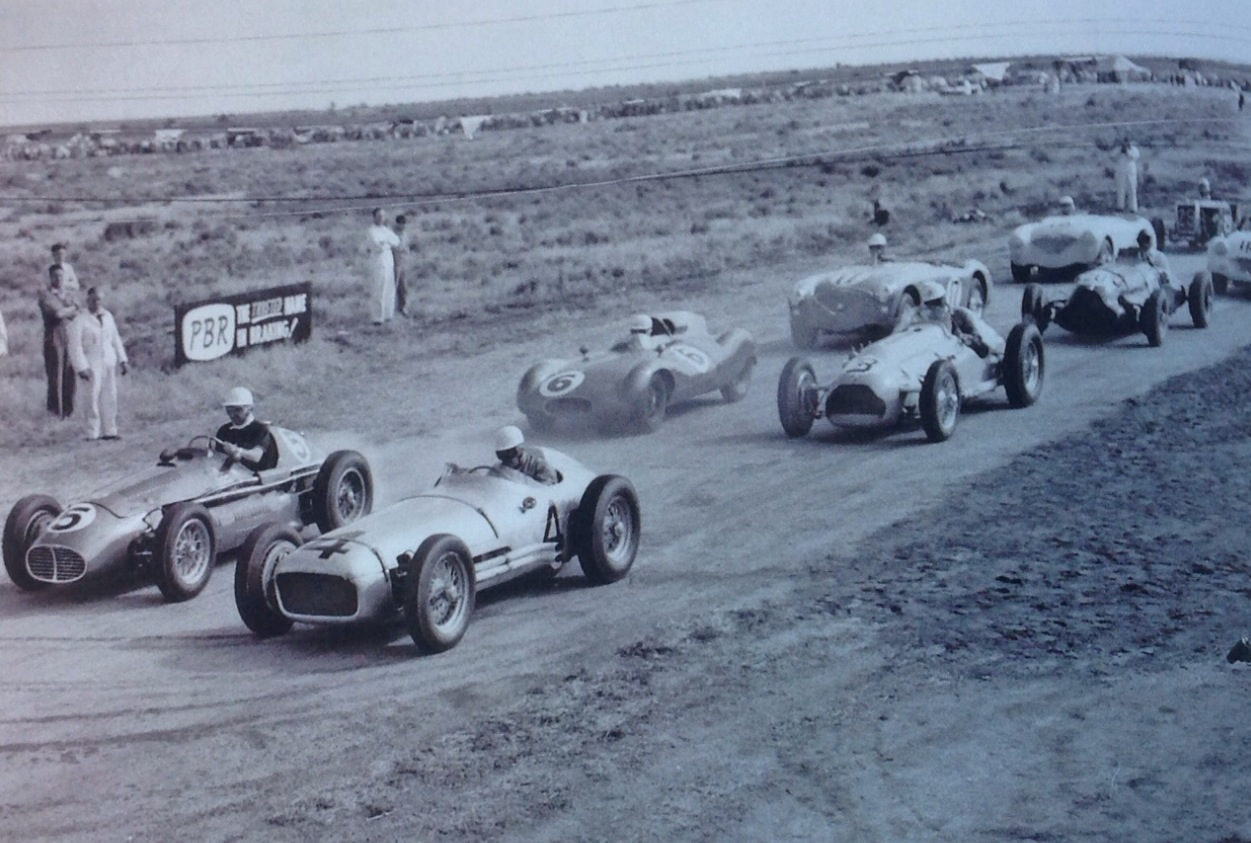

Tailpiece: ’55 AGP, 20 lap, third qualifying heat underway, Hunt and Jones on the front row…

As a cursory glance of the mix of competitors shows, the race is a Formula Libre event. On the second row is Brabham’s streamlined, central-single seater Cooper T40 Bristol and multiple AGP winner Doug Whiteford’s Talbot-Lago T26C. Rather a neat contrast of post, and pre-War technology? On the next row is the Austin Healey 100 of local South Australians Greg McEwin and Bill Wilcox’ Ford V8 Spl. Desolate flat, saltbush country clear.

port w


A parade of Auto Unions through the streets of Zwickau on November 7 1936, Auto Union’s home town to celebrate Bernd Rosemeyer’s 1936 European Championship victory…

The cars were built in the Horch factory located in the town. Bernd Rosemeyer drives the lead car with Hans Stuck, Ernest Von Delius and Rudolf Hasse in the cars behind.

After two years of Mercedes supremacy it was the turn of the mid-engined, 6 litre, 520bhp Type C V16 engined cars. Rosemeyer was the dominant driver winning 3 of the 4 championship rounds- the German, Swiss and Italian GP’s. Rudy Carracciola’s Mercedes W125, powered by a 600bhp 5.6 litre V12 in 1936 took the Monaco race. Rosemeyer also won the Eifelrennen and Coppa Acerbo non-championship events.

Mercedes would be back with a vengeance of course, but for now victory is sweet and to be celebrated…


Rosemeyer’s German GP win 26 July 1936, Auto Union Type C (Getty)

Credit…

Imagno

(Mr Reithmaier)

I love the build up and tension before the start of a big race; here it’s the grid prior to the start of the New Zealand Grand Prix at Pukekohe, in the north of NZ’s North Island on 6 January 1968…

Chris Amon readies himself and his Ferrari Dino 246T before the first round of the 1968 Tasman Series, a race in which he wonderfully and deservedly triumphed. Missing on the front row is Jim Clark’s Lotus 49T Ford DFW. Car #2 is Pedro Rodriguez’ BRM P261, the Mexican is bent over the cockpit of his car but failed to finish with clutch problems. Car #7 is Alec Mildren’s Brabham BT23D Alfa Romeo T33 2.5 V8 with chief mechanic Glenn Abbey warming up the one-off car. Lanky Franky Gardner is adjusting his helmet beside the car, it was a good day for Frank, the car was second.

Look closely and you can see a camera crew behind the Brabham which is focusing on 1967 reigning world champion Denny Hulme and his #3 Brabham BT23 Ford FVA F2 car- Denny’s head is obscured by Frank’s body. Hume boofed the ex-Rindt BT23 during the race badly enough for a replacement chassis to be shipped out from the UK.

I’ve always thought these F2/Tasman Ferrari’s amongst the sexiest of sixties single-seaters. The 166 F2 car was not especially successful amongst the hordes of Ford Cosworth Ford FVA engined cars in Euro F2 racing. However, the car formed the basis of a very competitive Tasman 2.5 litre Formula car when fitted with updated variants of the Vittorio Jano designed V6 which first raced in F2 form and then owered the late fifties Grand Prix racing front-engined Ferrari Dino 246. It was in one of these cars that Mike Hawthorn won the 1958 World Drivers Championship.

Amon won the Tasman Series in 1969 with Ferrari Dino 246T chassis #0008 with fellow Kiwi Champion Graeme Lawrence winning in the same car in 1970 against vastly more powerful, if far less developed Formula 5000 cars. The story of those championships is for another time, this article is about Chris’ 1968 Tasman mount and campaign.

Amon hooking his gorgeous Ferrari Dino 246T ‘0004’ into The Viaduct in the dry at Longford 1968. Early ’68, we are in the immediate pre-wing era, and don’t the cars look all the better for it! (oldracephotos.com/D Keep)

In many ways Chris was stiff not to win the ’68 Tasman, a title, the last, won by the late, great Jim Clark…

Ferrari entered only one car that year with chassis #0004 assembled in Maranello by longtime Amon personal mechanic Roger Bailey and tested at Modena in November 1967. It was then freighted by plane to New Zealand where it was assembled by Bruce Wilson in his Hunterville workshop in the south of the North Island.

The cars chassis was Ferrari’s period typical ‘aero monocoque’, a ‘scaled down’ version of the contemporary F1 Ferrari with aluminium sheet riveted to a tubular steel frame forming a very stiff structure. The 166 was launched to the adoring Italian public at the Turin Motor Show in February 1967.

In F2 form the 1596cc, quad cam, chain driven, 18 valve, Lucas injected engine developed circa 200bhp at an ear-splitting 10000 rpm. It is important to note that this F2 engine, designed by Franco Rocchi, and in production form powering the Fiat Dino, Ferrari Dino 206 and 246GT and Lancia Stratos is a different engine family to the Jano designed engines, evolved by Rocchi, used on the Tasman Dino’s.

The F2 166 made its race debut in Jonathon Williams hands at Rouen in July 1967, and whilst it handled and braked well it was around 15bhp down on the Cosworth engined opposition. Whilst the car was tested extensively at Modena, including 24 valve variants, it was not raced again that year.

Amon, who had not raced in the Tasman Series since 1964, could immediately see the potential of the car, suitably re-engined, as a Tasman contender given the success of the small, ex-F1 BRM P261 1.9-2.1 litre V8’s in the 1966 and 1967 Tasman Series. The same approach which worked for the boys from Bourne could also work in Maranello Chris figured. A parts-bin special is way too crass, but you get my drift of a very clever amalgam of existing, proven hardware as a potential winning car.

In fact Ferrari went down this path in 1965 when a Tasman hybrid of a then current F1 chassis was married to a 2417cc variant of the Jano 65 degree V6 for John Surtees to race in the 1966 Tasman. John had Tasman experience in Coventry Climax FPF engined Coopers and Lola’s at the dawn of the sixties and could see the potential of a small Ferrari.

That plan come to nothing when Surtees was very badly injured in a Mosport Can Am accident in his self run Lola T70 Chev in late 1965. This car, Ferrari Aero chassis ‘0006’ played the valuable role of proving Surtees rehabilitation when he completed 50 laps in the car at Modena. It was in the same chassis that Lorenzo Bandini finished 2nd in the 1966 Syracuse and Monaco GP’s as Ferrari sought to get the new 3 litre V12 F1 312 up to speed, Bandini electing to race the Dino on both occasions. He also finished 3rd aboard the car at Spa. The allocation of this more competitive car to Bandini rather than team-leader Surtees was amongst the many issues which lead to the confrontation between John Surtees and team manager Eugenio Dragoni during Le Mans practice and Surtees departure from the team.

An unidentified fellow, Jim Clark, Ferrari engineer Gianni Marelli, Chris Amon and Roger Bailey share a joke during the 1968 Longford weekend. Chassis ‘0004’ is fitted with the 24 valve V6 covered in the text. Note the quality of castings, fabrication and finish, inboard discs, sliding spline driveshafts and single plug heads of this very powerful- but less than entirely reliable engine in 1968 form, it’s shortcoming cylinder head seals (oldracephotos.com/Harrison)

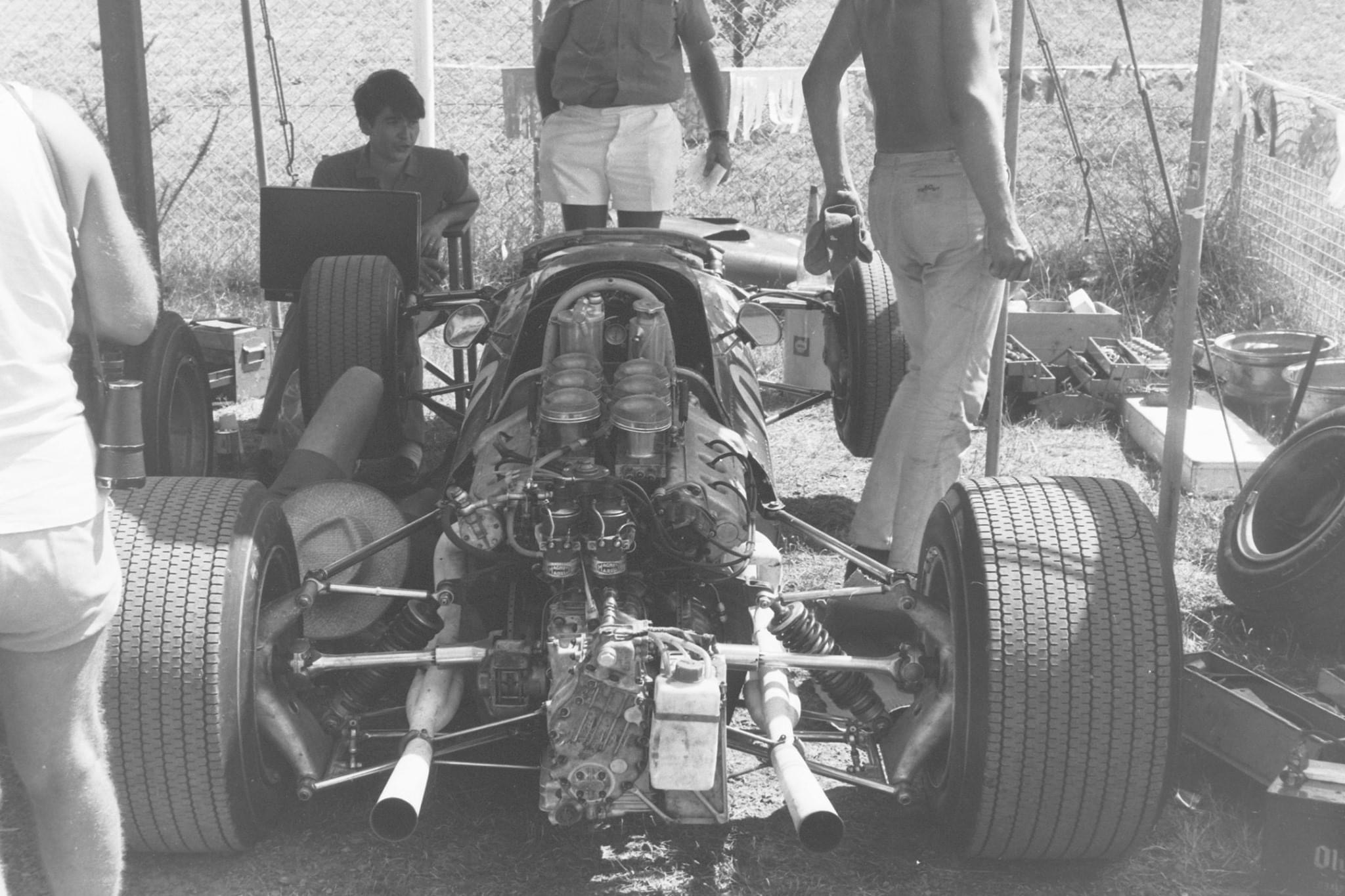

The engine of the 166/246T was carried in a tubular subframe attached to the rear of the monocoque which terminated at the drivers bulkhead. The car was fitted with a 5 speed transaxle designed by Ingenere Salvarani and Girling disc brakes.

Suspension was also similar to the contemporary F1 cars in having an front upper rocker and lower wishbone with inboard mounted spring/shocks and conventional outboard suspension at the rear- single top link, inverted lower wishbone, two radius rods and coil spring/shocks.

For the 1968 NZ races- Chris won at Pukekohe after Clark retired and at Levin, leading from flag to flag, was 2nd to Clark at Wigram and 4th at Teretonga- a 3 valve variant (2 inlet, 1 exhaust) of the 65 degree fuel injected V6 was fitted which was said to develop around 285bhp @ 8900rpm from its 2404cc.

Chris crossed the Tasman Sea with a 9 point lead in the Series from Clark and the might of Team Lotus. It was a wonderful effort, whilst Ferrari provided the car free of charge, and took a share of the prize money, the logistics were of Chris’ own small equipe. And here they were serving it up to Gold Leaf Team Lotus with a couple of World Champions on the strength, plenty of spares and support crew.

For the four Australian races a 24 valve version of the engine was shipped from Maranello. Its Lucas injection was located between the engines Vee rather than between the camshafts and had one, rather than two plugs per cylinder. This engine developed 20 bhp more than the 18 valver with Chris promptly putting the car on pole at Surfers Paradise, a power circuit. He won the preliminary race and had a head seal fail whilst challenging Clark in the championship race.

At Warwick Farm he qualified with the 18 valve engine and raced the 24 valver having rebuilt it- they only had one of the motors. He was challenging both Clark and Hill in the race and then spun in avoidance of Hill who was having his own moment…he was 4th on the tight technical Sydney circuit.

At Sandown during the AGP, the pace of the car, and Amon, was proved in an absolute thriller of a race in which he finished 2nd to Clark- let’s not forget the best driver in the world driving the best F1 car of the era powered by the Tasman variant of the greatest GP engine ever- and took fastest lap.

As the team crossed Bass Straight from Port Melbourne on the ‘Princess of Tasmania’ Chris knew he had to win the Longford ‘South Pacific Championship’, with Clark finishing no better than 5th to win the Tasman title.

At Longford, still fitted with the 24 valve engine, which must have been getting a little tired, he qualified a second adrift of Clark and Hill. He finished 7th in a race run in atrocious conditions on the most unforgiving of Australian circuits having initially run 2nd to Clark but then went up the Newry Corner escape road and suffered ignition problems from lap 10.

Piers Courage won in an heroic drive aboard his little McLaren M4A Ford FVA F2 car that streaming day, in a series which re-ignited his career.

Chris was a busy boy during the Australian Tasman leg as he also drove David McKay’s Scuderia Veloce Ferrari 350 CanAm/P4 in sports car support events at each round in addition to the little Dino.

These races were outstanding as they all involved close dices between Chris and Frank Matich in his self designed and built Matich SR3 powered by 4.4 litre Repco Brabham ‘RB740’ V8’s- with Frank getting the better of him in each of these races. The speed of the Matich was no surprise to Chris though, both had contested rounds of the Can Am Championship only months before the Tasman in the US.

Click here for my article on the Ferrari P4/CanAm 350 #’0858’ Chris raced in Australia;

https://primotipo.com/2015/04/02/ferrari-p4canam-350-0858/

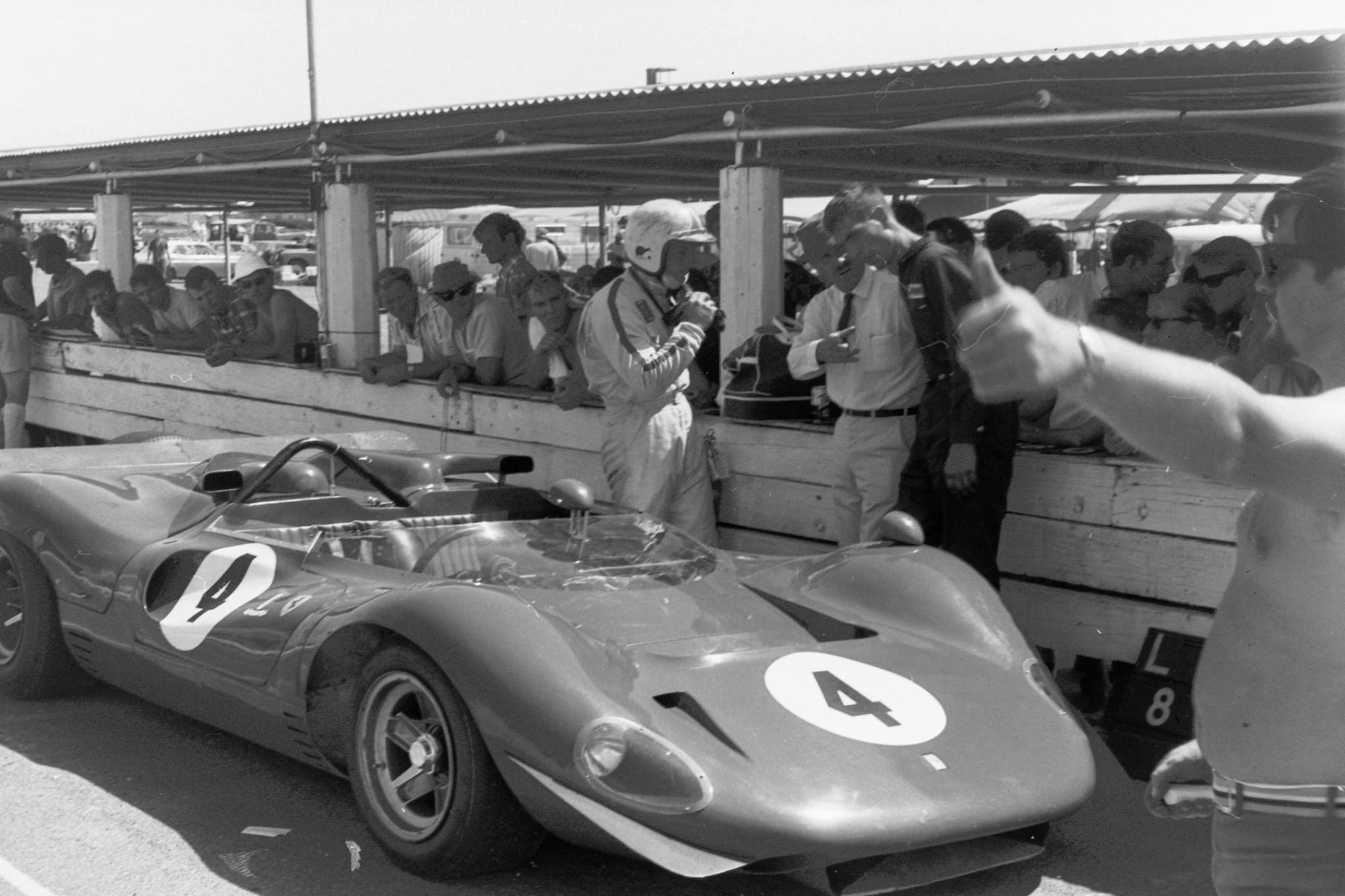

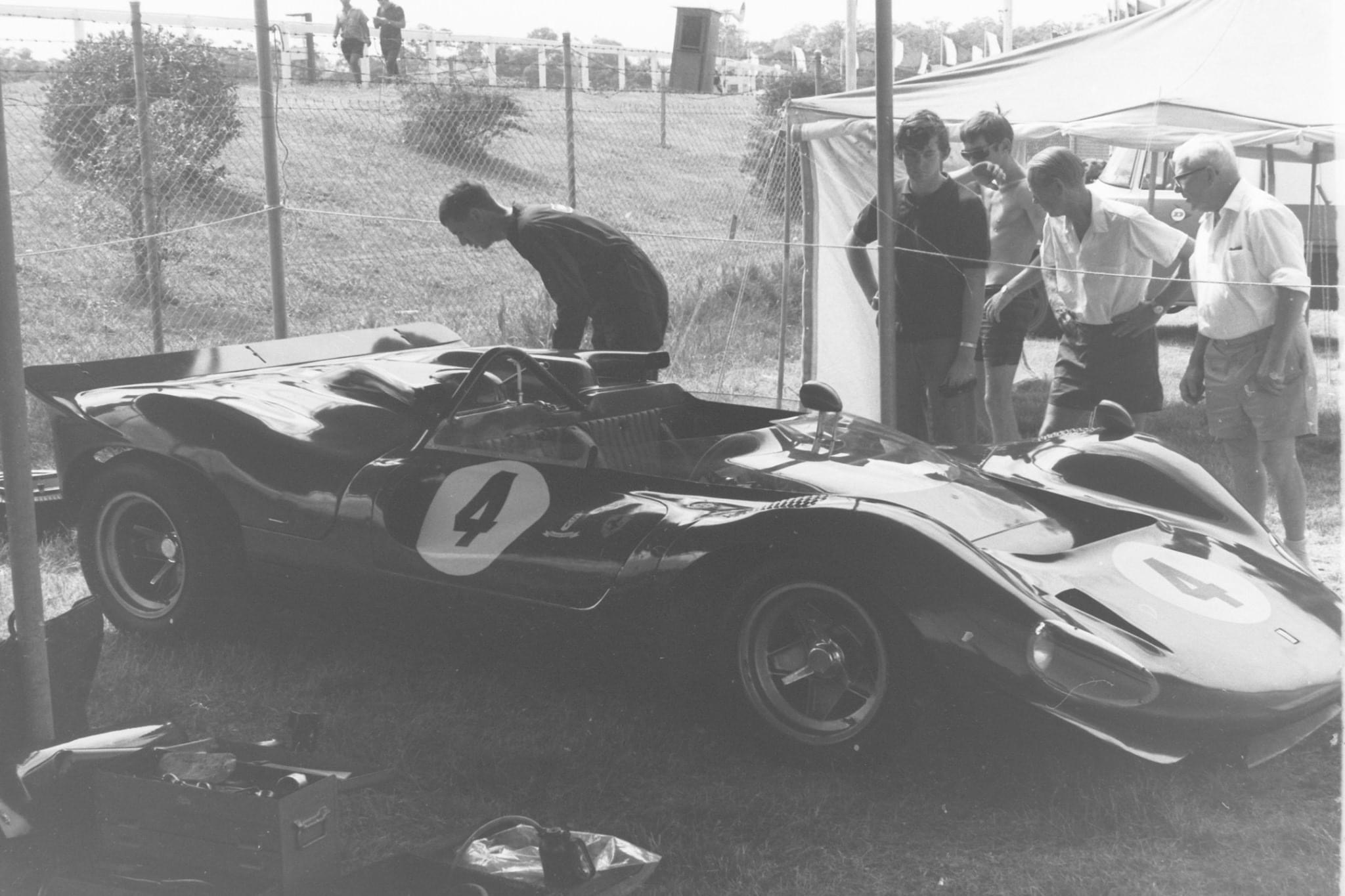

Amon lines David McKay’s Scuderia Veloce Ferrari P4/350 Can Am up for Longford’s The Viaduct during the 1968 Longford Tasman meeting. Matich didn’t take the SR4 to Longford so Chris had an easy time of it that weekend. The sight and sound of that car at full song on the Flying Mile at circa 180mph would have been really something! (oldracephotos.com/D Keep)

For the ’69 Tasman Chris applied all he learned in 1968 returning with two cars, the other driven by Derek Bell, four well developed 300bhp 24 valve engines with the logistics taken care of by David McKay’s Scuderia Veloce.

He promptly lifted the Tasman Cup in a very successful campaign from Jochen Rindt, Graham Hill and others. With a little more luck, or greater factory commitment in 1968 it may have been two Tasman’s on the trot for the Maranello team and Chris…

Bibliography…

oldracingcars.com, sergent.com.au, ‘Dino: The Little Ferrari’ Doug Nye

Photo Credits…

Mr Riethmaier, oldracephotos.com, Rod MacKenzie

Tailpiece: Love this moody, foreboding Longford shot by Roderick MacKenzie. Chris has just entered the long ‘Flying Mile’ in the streaming wet conditions during Monday’s ‘South Pacific Trophy’ famously won by Piers Courage little McLaren M4 Ford FVA F2 car. 4 March 1968…

(Rod MacKenzie)





brabham art

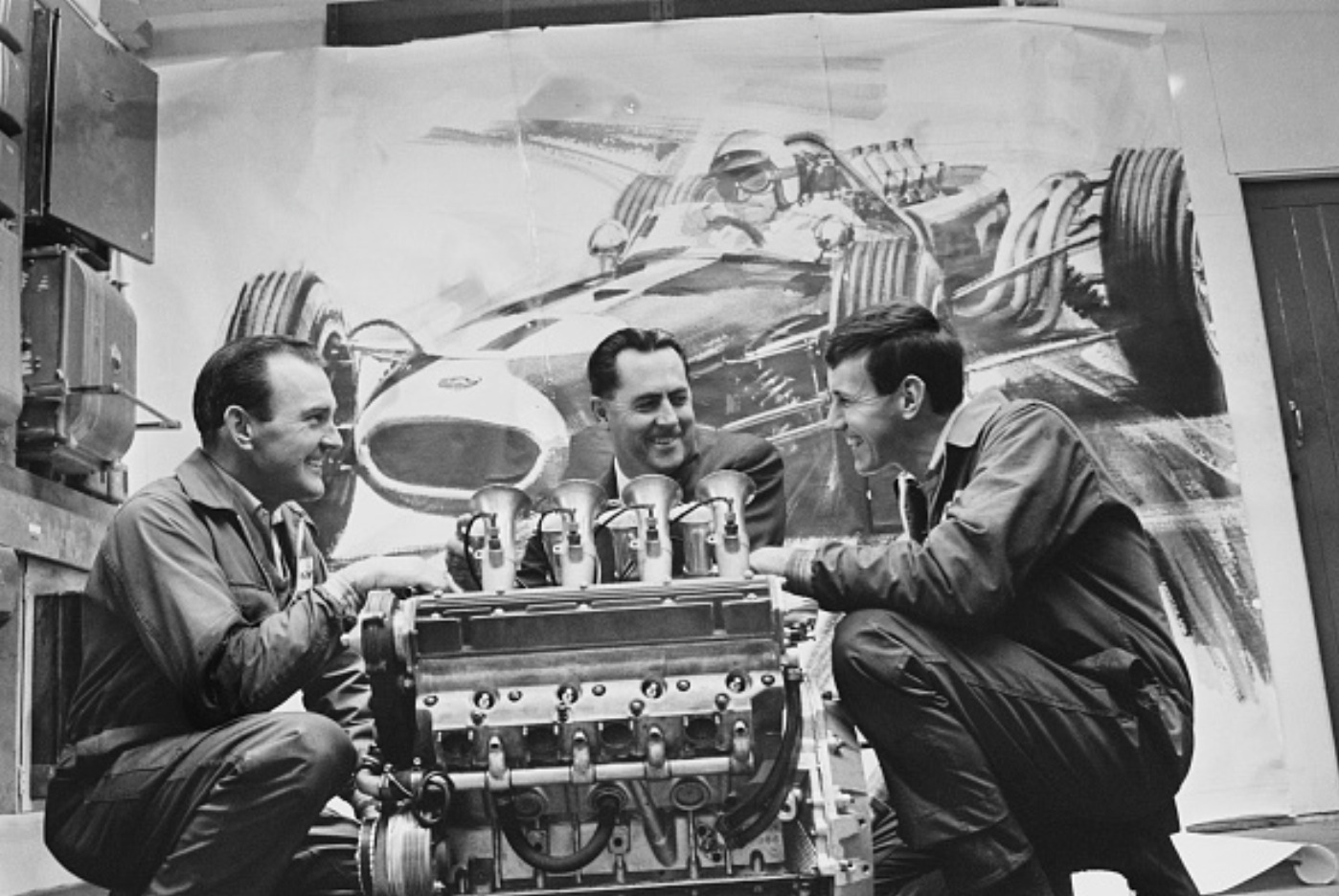

Jack Brabham, long time ‘Brabham Racing Organisation’ Chief Mechanic Roy Billington (left) and another fella, ‘twould be nice to know who, on 25 April 1967…

‘Co-stars’ in this studio shoot, which seems to be one of a series taken that year, is the Brabham BT19 pictured in the background and the Repco Brabham ‘RB620’ 3 litre V8 which is the engine/chassis combination with which Jack won the 1966 F1 Drivers and Constructors titles.

I have written comprehensively about both this engine;

https://primotipo.com/2014/08/07/rb620-v8-building-the-1966-world-championship-winning-engine-rodways-repco-recollections-episode-2/

and the 1966 F1 Championship Year;

https://primotipo.com/2014/11/13/winning-the-1966-world-f1-championships-rodways-repco-recollections-episode-3/

I love the shots!…

Credit…

Len Trievnor

Tailpiece: Jack’s ‘Dr Evil’ pose?…

blackie


(Heritage Images)

I’m constantly in awe of the talents of the photographers whose work is displayed in this ‘masterpiece’ of mine…

Take a careful look at the composition and execution of this shot of Phil Hill’s Dino at Monaco in 1959; the use of light, the way the shadows of the palm tree and building architecture frame the shot of the snub-Monaco nosed Ferrari 246 and the expression on the American drivers face. The shadow of the photographer gives a sense of involvement.


(Klemantaski)

Things were pretty tough for the front engined brigade by ’59 of course, Jack’s first Cooper title was bagged that year. In the process of trying to keep up, Enzo’s brigade created quite the most beautiful cars in these later Dino’s. The snub nosed car not so much but checkout Tony Brooks slinky, curvaceous chassis above during the BARC 200 at Aintree on 19 April ’59. Jean Behra took the win that day in a sister car, the Scuderia may have been lulled into a sense of false security by this non-championship event result.


Brabham on the way to his first GP win at Monaco in 1959, Cooper T51 Climax (Cahier)

It was very much a Cooper T51 Climax year; they won three of the five non-championship events (Moss took 2, Brabham 1) with Ferrari and BRM taking one apiece (Behra and Flockhart). Ignoring the Indy 500 which was part of the world championship back then, there were eight GP events. Cooper won five (Brabham-Monaco, British and Moss-Portugal and Italy 2 races each for the Aussie and the Brit and McLaren-US 1 win). Ferrari won two (Brooks-French, German) and BRM won one, the break-through first win for the Bourne marque and Jo Bonnier aboard a P25 at Zandvoort.


(unattributed)

Its front is a little ‘fugly’, the looks only a mother could love, ‘snub nosed’ Dino, Hill rounding the Gasworks Hairpin, Quay in the background. Oooh, la, la from the rear tho. All things Italian look great from the back!? Hill hustling his Dino, thru the Mirabeau right hander.


(LAT)

Have a look at Phil’s car below in August on the hugely picturesque and dangerous Monsanto road course during the Portuguese GP, DNF when Lotus 16 mounted Hill G spun in his path taking out both cars. Moss won in a T51 Cooper Climax from Masten Gregory similarly mounted, Gurney the best placed Ferrari in 3rd.

I guess by definition these Dino’s are the ultimate expression of the front engine GP car given Enzo persevered at least a year longer than he should have…


(LAT)

Credits…

Heritage Images, Klemantaski Collection, LAT, Cahier Archive

Tailpiece: And what a tail. I’m cheating really, this is the butt of Phil’s ’58 Dino, this pictorial article is about the ’59 cars…


’58 Moroccan GP; Moss won in a Vanwall VW57 from Mike Hawthorn and Phil, both Dino mounted, Mike won the ’58 World Title at this race (LAT)

Photo is another masterpiece of composition and high-speed shutter work during the Moroccan GP at Ain-Diab, Casablanca Morocco on 19 October 1958. Check out the different tail treatment from the later cars earlier in the article and ‘three piece’ fabrication of the Ferrari’s rear tail section comprising from driver back; the fuel tank, then oil tank and finally small curvaceous endplate, Italian panel bashing at its best.

Finito…


An Australian daily broadsheet newspaper ad to promote Repco’s 1967 Grand Prix successes…

Thats Michael Gasking giving the 1967 F1 RB740 V8 ‘a tug’ on the Maidstone, Melbourne dyno before shipping the usually still warm engine off to the Brabham Racing Organisation in Guildford, England.

Credit…

Michael Gasking Collection
