Archive for December, 2021

(Terry Marshall)

Dennis Marwood tries to focus on the job at hand while the 2.30pm Pukekohe-Auckland express rattles past: New Zealand Grand Prix, Pukekohe, January 8, 1966.

He did well too, placing his ex-works Cooper T66 Climax 2.5 FPF – chassis FL-6-63- fourth in the race won by Graham Hill, from Jackie Stewart aboard works BRM P261s, and Jim Palmer racing the ex-Clark Lotus 32B Climax.

Cooper’s best F1 days were well-past by 1963 when the spaceframe T66 was designed and built by Owen Maddock and his Surbiton team. An advance on the prior T60, the car was still a mid-grid machine despite being lighter, stiffer and slimmer. Driven by Bruce McLaren and Tony Maggs, McLaren’s second place at Spa was the team’s best result.

1964 was even grimmer, despite ’61 World Champ, Phil Hill, joining the squad. In a season of insufficient speed and lousy reliability, Bruce was seventh (5 retirements in 10 rounds), and Phil equal 19th in the World Drivers Championship. “Poor preparation, and indifferent engines supplied by Climax who now recognised Lotus as their major client and development partner, with Brabham next in line, cost them dear”, wrote Doug Nye.

Zeltweg vista. Phil Hill leads Jim Clark’s Lotus 33 Climax and Chris Amon, Lola (MotorSport)
Ooooh-sheeeet and Holy Moses, or thoughts to that general effect. Phil examines his fried Cooper while Bruce McLaren tries not to think of John Cooper’s reaction. Wonder who the visitor with the Qantas travel bag is? (MotorSport)

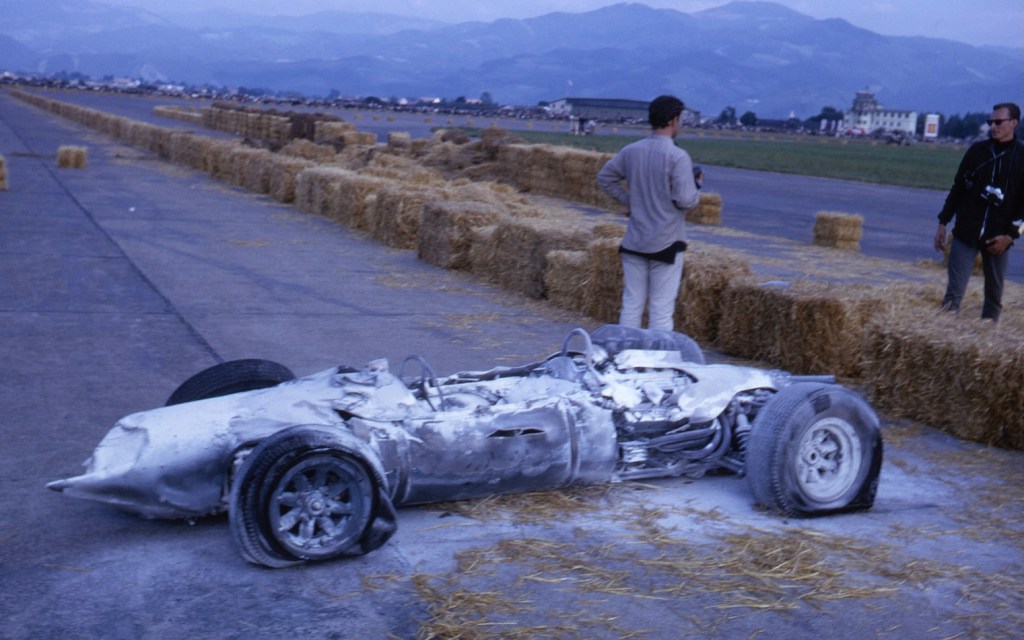

F1-6-63 doesn’t look too flash but chassis damage was minimal, so not too dramatic a repair for a crew of talented Kiwis…(socalclicker@esc)

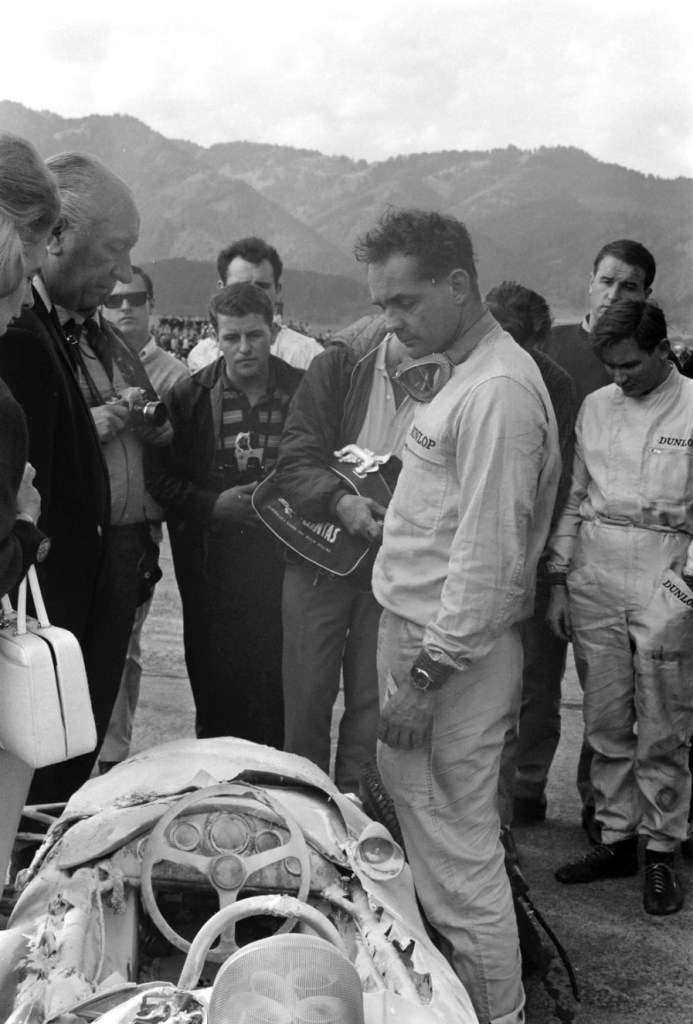

Phil’s nadir was on the Zeltweg aerodrome, Austrian GP weekend where he crashed his Cooper T73 during practice, then repeated the dose on the same corner in his replacement machine, T66 F1-6-63, during the race, albeit this time component failure may have been the cause.

The car struck the wall of straw bales on the entry to the runway section of the track, rear suspension collapsed, and caught fire. Phil escaped quickly, unscathed while the car burned to a crisp in a spectacular, frightening display of pyrotechnics. Up front Lorenzo Bandini’s Ferrari 158 won a race of constantly changing fortunes.

John Cooper fired Phil, but they later kissed-and-made up allowing Hill to finish an awful season. His confidence was restored with some stonking drives aboard a Bruce McLaren Racing Cooper T70 Climax during the ’65 Tasman Cup.

Oopsie, Bruce Abernethy deals with a Cooper T66 moment during the 1965 NZ GP at Pukekohe, while Ken Smith takes to the track fringes in avoidance, Lotus 22 Ford 1.5 – Kenny still racing and just turned 80. DNF for Bruce, 12th for Kenny, Graham Hill won in the Scuderia Veloce Brabham BT11A Climax (unattributed)

While the Cooper had been ‘thoroughly-heat-treated’, the chassis was ok, and was quickly bought by visiting Kiwi, Bruce Abernethy, who shipped it home. It was repaired and modified by Bill Hannah at his Havelock North workshop to take a Coventry Climax 2.5-litre FPF four-cylinder engine, for Tasman racing, rather than the 1.5-litre Climax FWMV V8 with which it was originally built.

Abernethy negotiated a deal whereby the car was owned and raced by the Rothmans Driver Promotion Scheme (later Ecurie Rothmans). The team overseen by Rothmans boss, Ken Simich, MANZ and Pukekohe chief Ron Frost, and former Kiwi ace, Ross Jensen.

Abernethy had a poor season and was replaced by Paul Fahey, he had some good drives in the car but decided touring cars were more his thing. In mid-1965, Morrisville dairy farmer, Dennis Marwood was tested, along with two other drivers, and got the gig.

Marwood aboard T66 F1-6-63 during the January 1966 Lady Wigram Trophy (motat.nz)
In the best of company, Marwood being lapped by Graham Hill, BRM P261 during the 1966 Lakeside 99

Despite a touring car background, Dennis took to the challenging open-wheeler like a duck-to-water in his first drive in November 1965. He was immediately on the pace of the front-running locals in Gold Star events; second at Pukekohe in December.

During the ’66 Tasman Cup, his best results were a pair of fourths at Pukekohe and Teretonga from six races, including the Lakeside and Warwick Farm Australian rounds. Later that year he won the Pukekohe and Renwick Gold Star events – and again at Timaru in 1967, but reliability and budget issues got in the way of results. The team had only one, old FPF and suggestions to ‘buy some new tyres’ were rebuffed by Jensen.

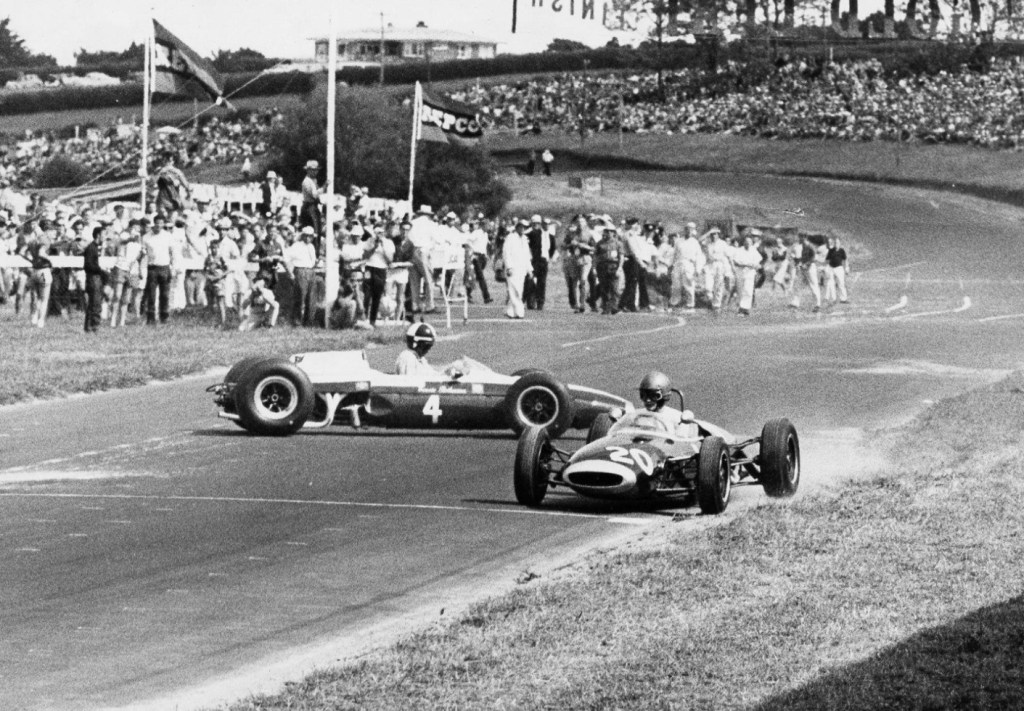

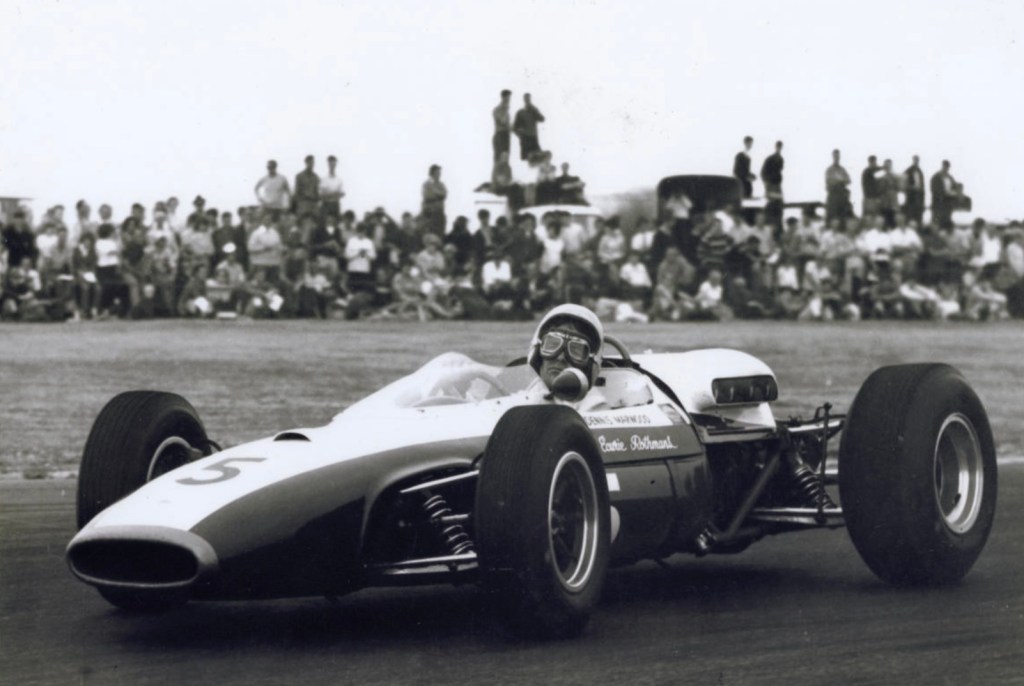

Dennis aboard the Rothmans Cooper during the Pukekohe reverse-direction meeting, September 1966 (J Inwood)

Rothmans considered purchase of a more competitive 2.1-litre ‘Tasman’ BRM P261 V8 – mighty quick machines – but decided they had had enough and sold the car to Peter Maloney.

Marwood went into business with Ray Stone, in South Auckland based Performance Developments, and a stellar career in single-seaters and big tourers. Click here for more on Dennis; Tasman Cup F5000 Racing – Dennis Marwood – Jim Barclay

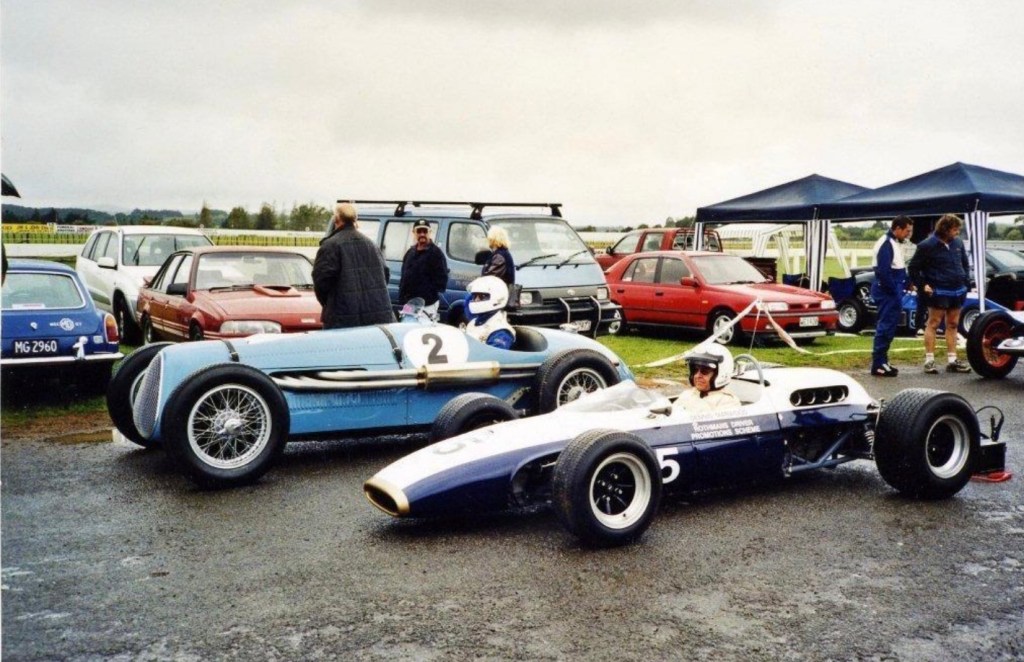

T66 F1-6-63 was restored and lives a sedentary life in New Zealand. Dennis Marwood (below) reunited with his old car, at Pukekohe in April 2009. Bob Harborow is alongside in the John Sheppard built Maybach 1 Replica, winner of the 1954 NZ GP in Stan Jones’ hands.

(jimbarclay.nz)

Etcetera…

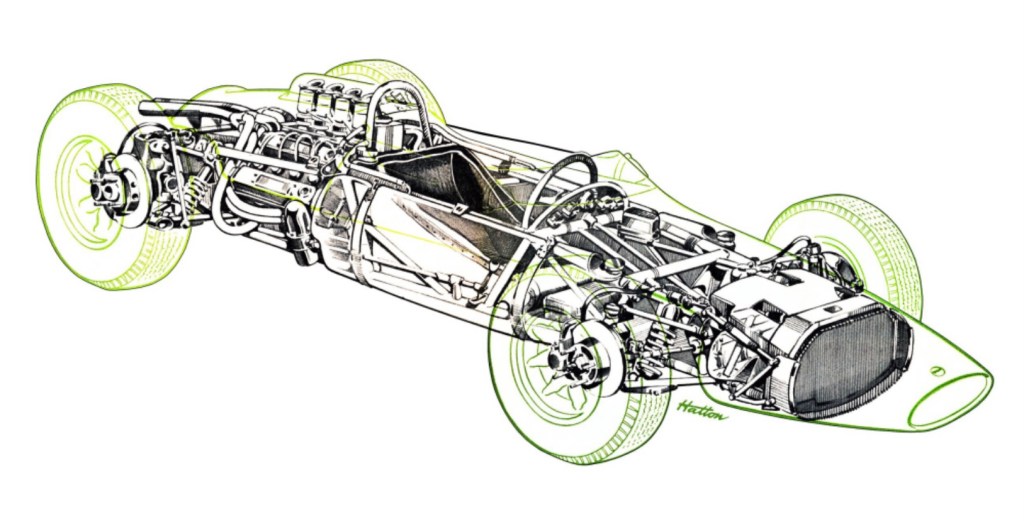

Cooper T66 Climax FWMV V8 cutaway (B Hatton)

The Cooper T66 chassis remained a spaceframe despite the monocoque onslaught around it, not that such technology was a barrier to ongoing Brabham success. Of multi-tubular construction, the frame comprised 1 3/8 and 1 1/2 inch 18-gauge steel tubing with smaller transverse and diagonal members, plus triangulation of the corners of the cockpit opening. Mild sheet steel reinforcement was welded to the floor section between the front and rear bulkheads.

Suspension used Alford & Alder (Triumph) uprights, upper and lower wishbones at the front, coil spring/dampers and adjustable roll-bar. The rear used cast magnesium uprights, fabricated upper and lower – wide based – wishbones, coil spring/dampers and adjustable roll-bar.

Brakes were Girling disc, 10.25 inches/9.75 inches in diameter front/rear. Cooper cast magnesium wheels were 13-inches in diameter and 6/7 inches wide front/rear.

The F1 engine was the ubiquitous Coventry Climax FWMV 1.5-litre, DOHC, two-valve, Lucas injected circa 200bhp V8. In Tasman spec the equally ubiquitous Climax FPF 2.5-litre, DOHC, two-valve, Weber 58DCO fed four gave about 235bhp. The transaxle was Cooper’s own C65 six-speed.

Credits…

Terry Marshall, Allan Dick in Classic Auto News, ‘History of the Grand Prix Car’ Doug Nye, Jack Inwood, Gooding & Co, socalclicker@esc, Museum of Transport and Technology, oldracingcars.com, jimbarclay.nz, Brian Hatton

Tailpiece…

(Gooding & Co)

Montage of Phil Hill’s Zeltweg accident and lucky escape. This mix excludes the mighty conflagration which followed once the fire took hold, aided and abetted by the hay-bales, there with safety in mind…

It was only when poor Lorenzo Bandini – winner of this race – perished in a gruesome firey accident aboard his Ferrai 312 during the 1967 Monaco GP that haybales were finally excluded from the standard suite of race organiser safety precautions.

Finito…

Seasonal Salutations…

Posted: December 24, 2021 in Obscurities
(NAA)

You lucky bastard Santa, a Bondi Beach smorgasbord by the look of it.

This type of wanton abuse of the female form is unacceptable these days of course, but it was kosher in 1969, thankfully.

We are a multi-cultural lot over here, Christmas seems to be ‘celebrated’ by most of the religious brands, even those where it isn’t strictly part of the worship-regime.

Thanks for reading primotipo again this year, hopefully we – Bob King and I – have provided some solace from the dreaded Covid-lurgy.

I’m off to the beach for a few days armed with my just arrived Miller Bible, ‘The Miller Dynasty’ by Mark Dees. ‘Me mate, Big-Bad-Brucie bagged it on Ebay for $A260 – a snip he tells me. It’s the poverty pack First Edition, the ducks-guts Second Edition is more like $A800, hells-bells. All I’ve got to do is find somewhere to hide from she-who-must-be-obeyed for a few days. @ 527 pages, ’tis weighty and substantive.

Racing of a different kind at Albert Park! It’s a dropkick from my doorstep, most days start with a run or walk of the joint, roll on the April 10 Australian GP. Covid permitting…

Stay well all! And thanks.

Etcetera…

The Auto Action magazine dudes have created an Historics section within their website. You may find some of these digitised (what a painful process it is!) old articles of interest, the tab is here; Historics Archives – Auto Action Keep an eye on it, expect a couple of posts a week.

This 1974 one is a beauty by the late, great Phil Irving about ‘Production Based, or Free Design Engines’; PHIL IRVING : PRODUCTION BASED OR FREE DESIGN ENGINES? – Auto Action Bob Watson’s ‘Giovanni Bracco and the Lancia B20’ is an interesting piece about a bloke I knew little; GIOVANNI BRACCO AND THE LANCIA B20 – Auto Action One for the Maxi-Taxi fans is Tony Glynn’s wonderful technical appraisal/interview with Larry Perkins on the build of his/Peter Brock driven 1991 VN Holden Commodore Group A; PERKINS’ 1991 MOBIL 1 HOLDEN GROUP A COMMODORE BUILD – Auto Action This one by Heath McAlpine was published in 2018 upon the re-entry of the Ford Mustang to Australian racing; GALLOPING MUSTANGS – Auto Action

As I say, keep an eye on the website as articles will be uploaded every few days.

Credits…

National Archives Australia

Finito…

(Getty Images)

Evocative shot of Peter Collins in his Ferrari Dino 246, 1958 #246/002, during the July 1958 British Grand Prix at Silverstone.

He won the race by 24-seconds from Mike Hawthorn who took the World Drivers Championship that year, before perishing in ‘that’ road-dice with Rob Walker shortly thereafter.

I’ve done these cars to death, both front-engined F1 jobbies and their related mid-engined Tasman cousins, but another bunch of photos got the juices flowing again.

In an enthralling, tragic season, Luigi Musso died at Reims, then Peter Collins crashed fatally at the Nurburgring only weeks after Silverstone (in this same chassis) during the German Grand Prix. Vanwall, with whom Ferrari battled all year – winners of the Constructors Championship – also lost a driver at the season’s end when Stuart Lewis-Evans died of burns sustained at Ain-Diab in Morocco several days after the race.

(MotorSport)

This Moroccan GP start-shot of Vanwall mounted Stirling Moss bolting away from a Ferrari, this time with Phil Hill at the wheel, says a lot about the rivalry between the teams during a year in which British F1 pre-eminence began. Vanwall and Cooper, to whom Tony Vandervell would pass the torch, were on the rise.

The shot below shows Hawthorn’s car (1958 #246/003) being attended to in the Silverstone paddock. Note the traditional twin-main tube Ferrari chassis, and subsidiary tubes, and powerful V6 engine canted to the right to allow the driveshaft to pass alongside the driver.

By contrast, the Vanwall had a Colin Chapman designed, light, multi-tubular spaceframe chassis, and far less sexy, but powerful, torquey, twin-cam, two-valve – same as the Ferrari – in-line four cylinder engine.

(MotorSport)
(MotorSport)

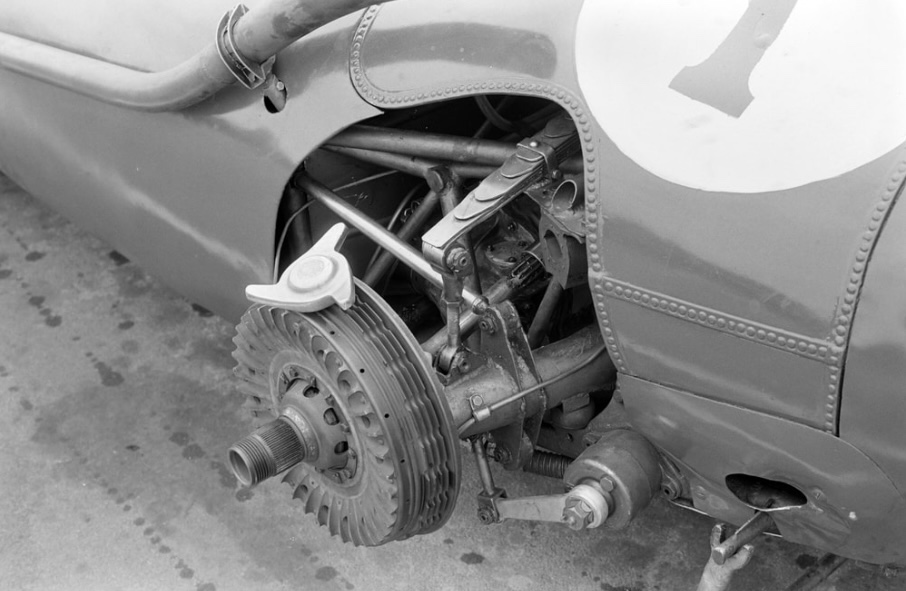

At the start of its life the Dino rear end (Collins’ car at Silverstone above) comprised a De Dion axle, transverse leaf-spring, twin radius rods, Houdaille shocks and drum brakes. By 1960 it was independent with coil springs, telescopic shocks and disc brakes, such was the relentless pace of change and level of competition wrought by the mid-engined Cooper T51 and Cooper T53 Climaxes in 1959-1960.

In late August, Hawthorn and Moss battle on the Boavista seafront in Portugal. Stirling won on the cobblestones by five seconds from Mike, settling up a nail-biting end to the season at Monza and Ain-Diab.

Brooks’ Vanwall won from Hawthorn at Monza, while Moss had a gearbox failure. In Morocco, Hawthorn put his car on pole from Moss, in the race the positions were reversed. Mike took the title by a point from Stirling in a season in which the best five placings were counted.

The stunning shot of Phil Hill below, hooking his Dino (1958 #246/004) into a right-hander in the wilds of Morocco shows all that was great – and incredibly dangerous – of Grands Prix racing compared with the (sometimes) between the white lines ‘car park’ F1 competition of today. Grand Prix Racing it ain’t…

(MotorSport)

Credits…

MotorSport and Getty Images

Finito…

(S Van den Bergh )

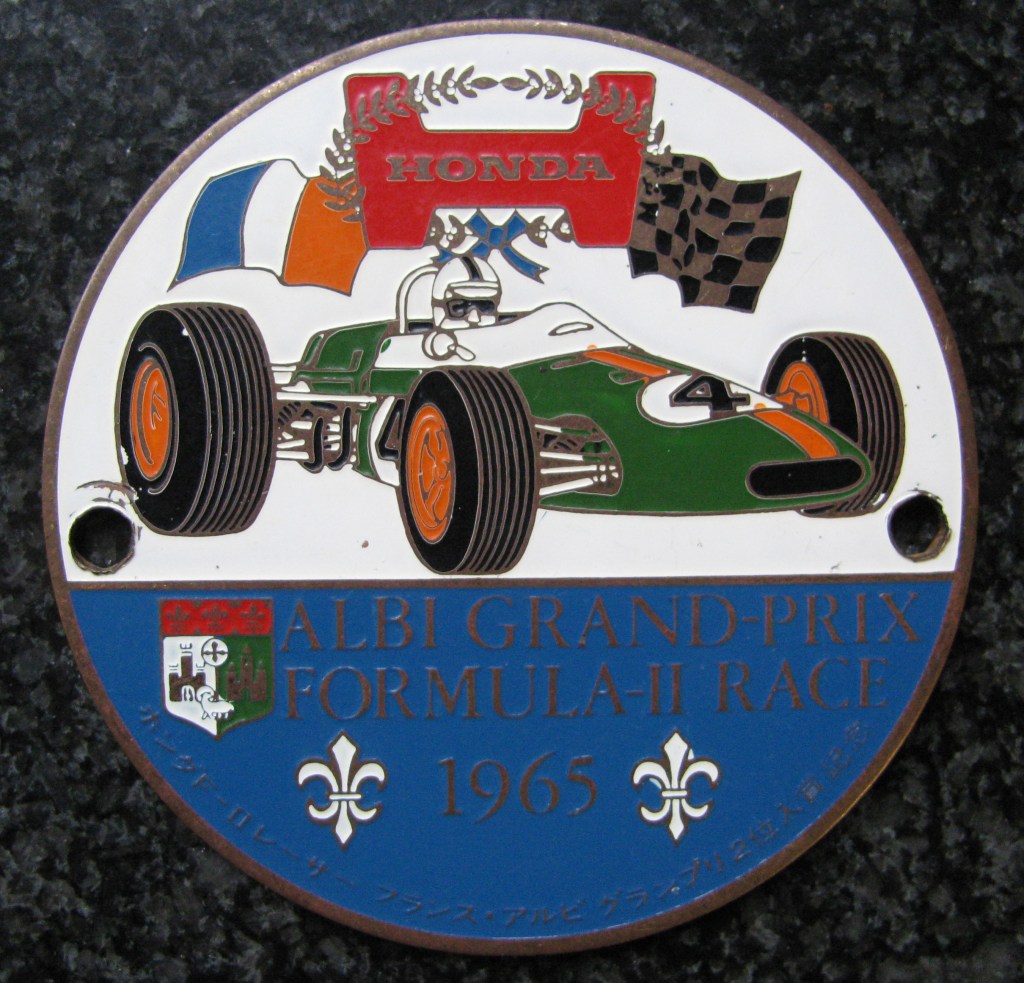

It’s an interesting car badge, don’t you reckon?

One of our friends in Belgium, Stef Van den Bergh, bought it recently and wants to know more about it. ” I am curious who made it. I suppose it was Honda since Brabham isn’t even mentioned on the badge. How many were made and were they sold, or given as a present?”

So there is the challenge folks. Was it made by Honda, the Albi GP organisers or their merchandise people, or perhaps a ‘renegade’ wanting to cash in on Honda’s presence in F2 as well as Grand Prix racing?

The real McCoy – and below fitted to the nose of Denny Hulme’s Brabham BT18 at Montlhery in September 1966. That weekend Jack Brabham won from Jim Clark’s Lotus 44 Cosworth SCA with Denny third, having started from pole. That season, many races were Brabham-Hulme one-two’s

When Richie Ginther won the 1965 season – and 1.5-litre formula – ending Mexican Grand Prix, Honda bagged it’s first of many F1 successes.

Honda entered F2 with Brabham that year, see here for an earlier piece I wrote about this topic; ‘XXXII Grand Prix de Reims’ F2 3 July 1966: 1 Litre Brabham Honda’s… | primotipo…

Brabham raced a BT16 powered by S800 Honda engines at four meetings in March and April 1965; Silverstone, Oulton Park, Snetterton and at Pau with poor results. Honda set to work to produce an engine which wasn’t so peaky from May to August, then Brabham reappeared at the Oulton Park Gold Cup and the GP Albi later in September. He retired with clutch dramas at Oulton but was right on the pace at Albi, finishing second to Clark’s Lotus 35 Cosworth SCA by six-tenths of a second after nearly two-hours, and 309km of racing…Honda were in town!

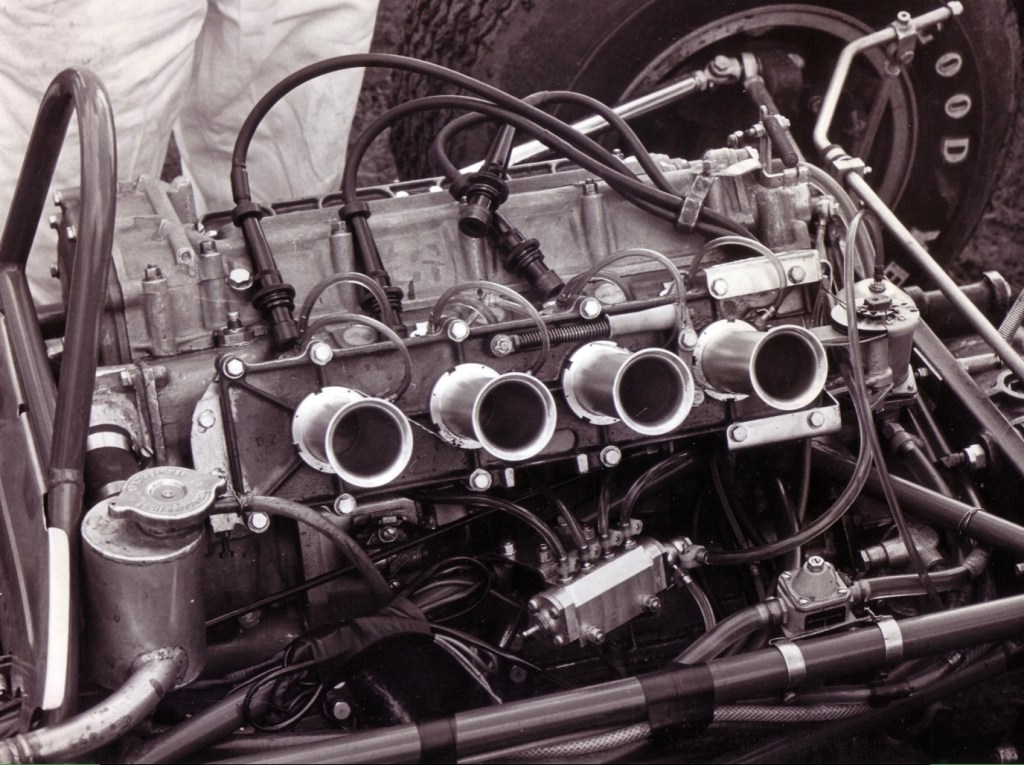

1965 Honda RA300E F2 engine in a Brabham BT16 chassis : 1-litre (72×61.2mm – 996cc) all alloy, DOHC, four-valve, fuel injected circa 135bhp @ 10000rpm (1965 RA302E 150bhp @ 11000rpm) four cylinder engine. Weight 145kg (Brabham Family Archive)
Jack from Denny at Goodwood during the Sunday Mirror Trophy on April 11, 1966. Brabham BT18 Hondas one-two (Honda Racing)

The calibre and depth of F2 grids then is shown by looking at the Albi field, in order of finishing (or not); Jim Clark, Jack Brabham, Denny Hulme, Jochen Rindt, Alan Rees, Mike Spence, Frank Gardner, Bob Bondurant, Jo Schlesser, Jean Vinatier, Brian Hart, Trevor Taylor, Silvio Moser, Guy Ligier, Mike Beckwith, Graham Hill, Geki Russo, Peter Revson, Henry Grandshire, Eric Offenstadt, Ludovico Scarfiotti, Paul Hawkins and Richard Attwood. Five world champs, a couple of Indy winners, three Le Mans victors and two Can-Am Cup champions.

Ron Tauranac and Jack Brabham had plenty of balls in the air during 1965, apart from the usual manufacture of production racing cars and the running of works teams (Motor Racing Developments and Brabham Racing Organisation) in F2 and F1. They had nascent engine programs with Honda (F2) and Repco Brabham Engines (Tasman and F1), and in addition were helping Goodyear develop tyres which were critical to Brabham, MRD, BRO and RBE’s two 1966 F1 championship wins; the manufacturers and drivers championships.

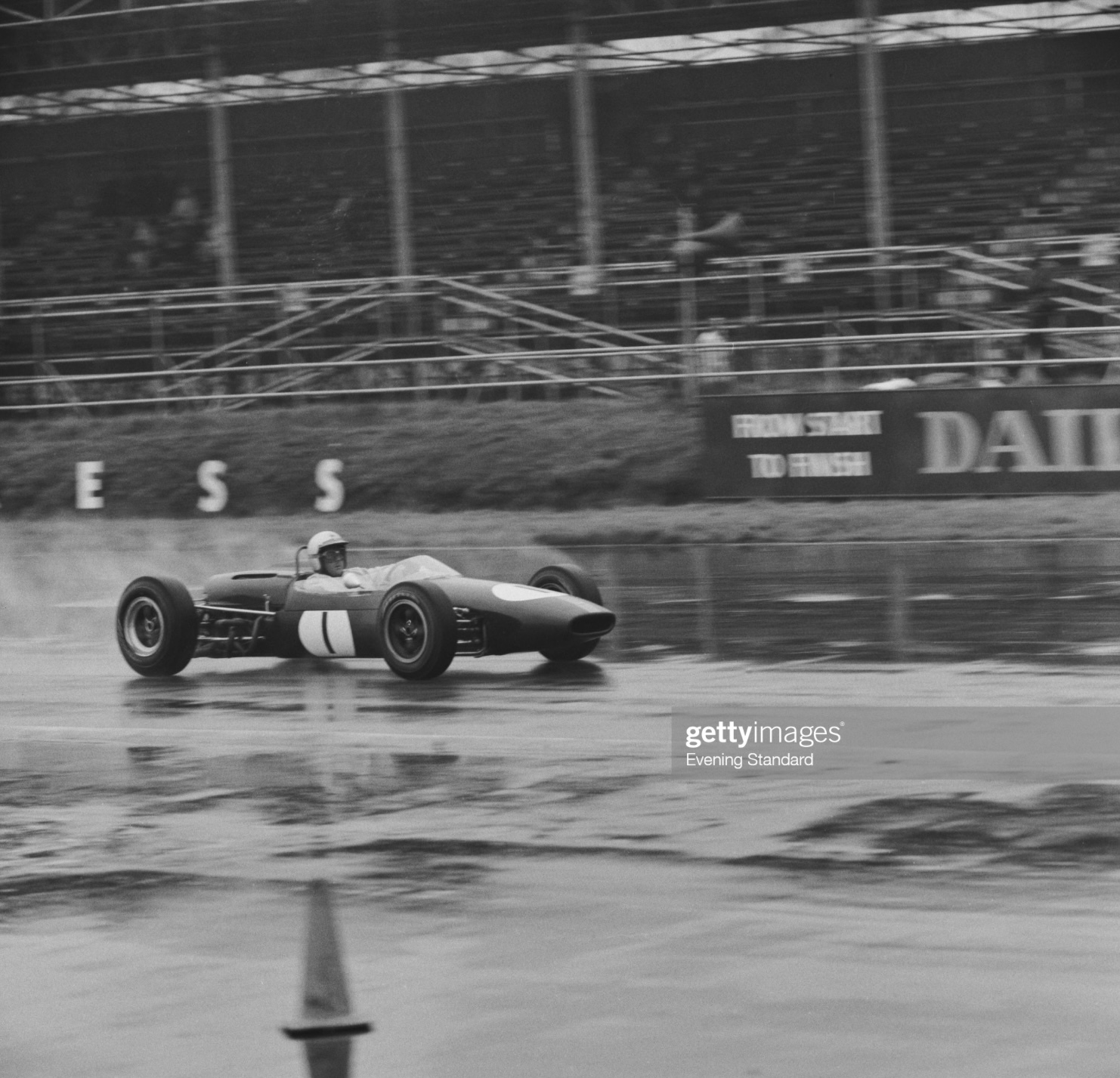

Jack Brabham, Brabham BT16 Honda during practice for the cancelled BARC Senior Service Trophy at Silverstone on March 20, 1965. The race was cancelled due to excessive amounts of water – visible – on the circuit

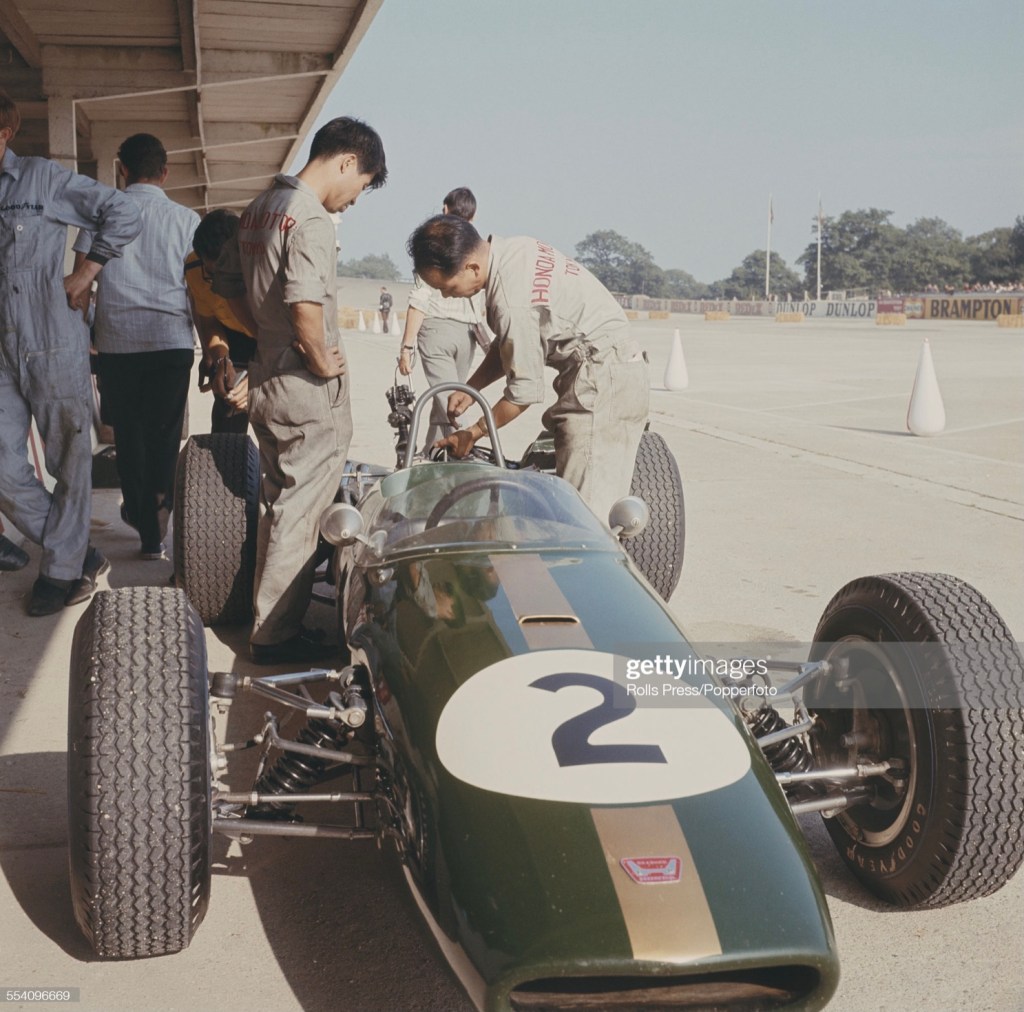

Ron Tauranac at left with stopwatch board, and Jack attend to changes during practice at Montlhery during the September 11, 1966 weekend. Brabham BT21 Honda. Brabham won by three seconds from Jim Clark’s Lotus 44 Ford SCA with Hulme two seconds behind Jim

The European F2 Championship commenced in 1967, the first year of the 1.6-litre F2. Despite the lack of a title in 1966 (although Brabham won the six round French F2 Championship) Brabham Honda were absolutely dominant. Of 16 major races held in Europe, Brabham won 10; Goodwood, Pau GP, GP Barcelona, GP Limborg, the London Trophy at Crystal Palace, GP Reims, the Kanonloppet at Karlskoga, Finland GP, GP de L’ille France at Montlhery, and the GP Albi. Six of these events were Brabham Honda one-twos, with Denny bringing his car home behind his team-leader. Hulme won two races as well, the GP Rouen and Trophee Craven A on the Le Mans, Bugatti circuit.

Credits…

Stef Van den Bergh, F2 Index, Getty Images, Brabham Family Archive, Honda Racing, MotorSport

Tailpiece…

(MotorSport)

A couple of happy-chappies after the conclusion of the Pau GP on April 17, 1966. Jack and Denny finished in line astern aboard Brabham BT18 Hondas, with five-tenths of a second between them. Back in third, nearly 1 1/2 minutes adrift was Graham Hill in John Coombs’ Brabham BT16 BRM P80. Brabhams filled six of the top ten placings.

Finito…

(B Daley)

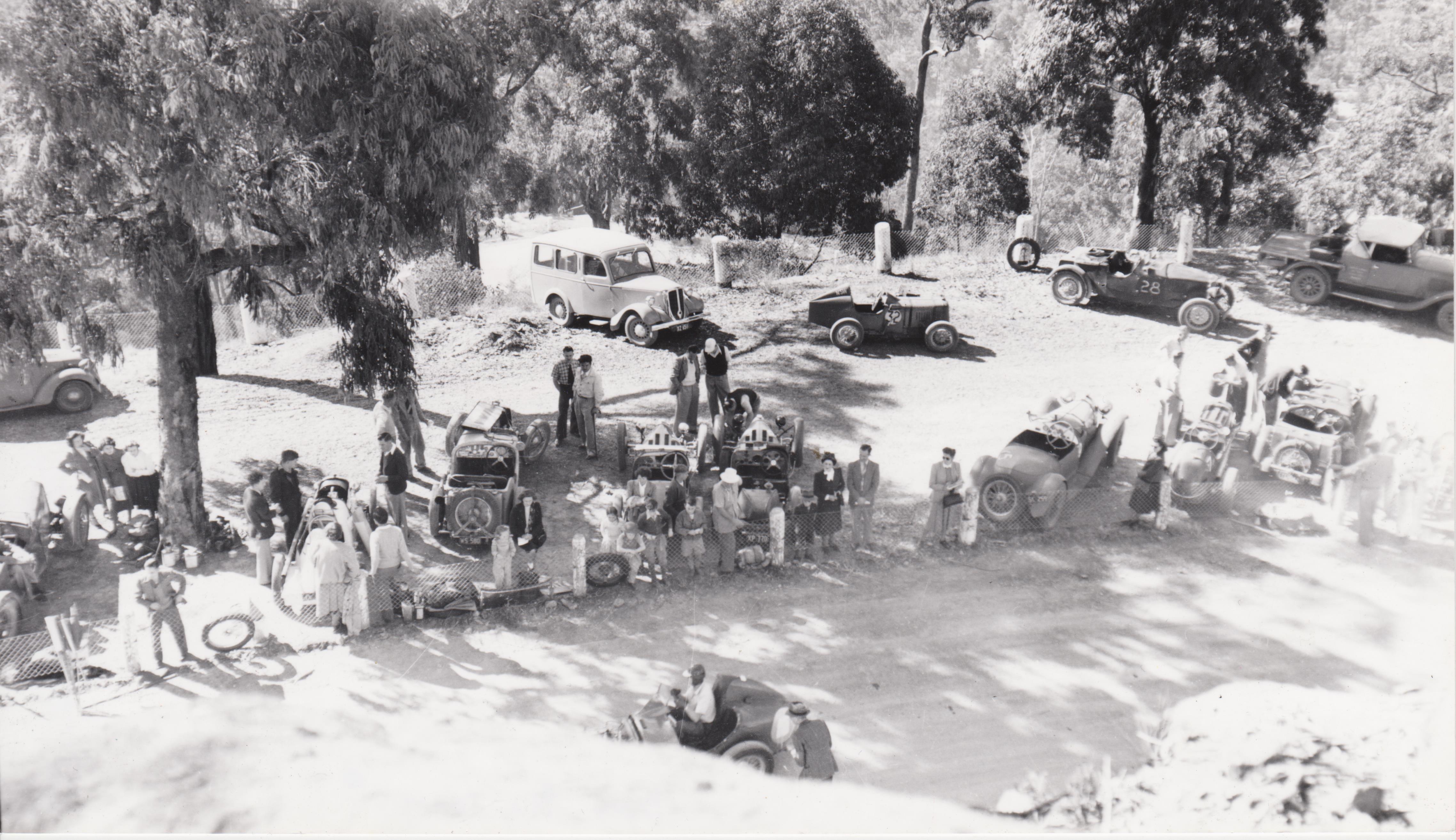

A Bill Daley photograph of Hawkesbury hill climb, circa 1948.

How many of these cars ran in an Australian Grand Prix, is the question which pops into my mind?

In the absence of a programme for the event, this classic study of racing cars taken at Hawkesbury Hillclimb has left the experts unable to identify all the cars; we call on our readers to fill the gaps.

The photograph came from the VSCCA (NSW) collection, per favore of Richard Walton. Note the spectating ladies with their handbags; they look as though they may have come straight from church.

Surprisingly, the owner of the Jowett Bradford van has been identified. John Medley says it belonged to Bob Pritchett – familiar to many of us as the ‘RBP’ of ‘Spotlight’ in Australian Motor Sports (R. Beal Pritchett). Kent Patrick describes the van as: “The bronchial Jowett Bradford – (which will) roll over with its engine stopped”. Within coughing distance to the right of the van is the unmistakeable shape of the Sulman Singer (#32) as it appeared pre-war in Tom Sulman’s hands. Kent speculates that the Riley, next in line (#28), might be Len Masser’s Lynx Sprite. I guess the next is a ubiquitous Ford A ute.

The nearest line of cars, backed up to the fence, pose some real problems. The car to the left of the tree is a mystery; the one to the right has an external exhaust on the left side – what is it? We then have the ex-Bill Thompson K3 MG (with bonnet open) – Kent suggests it might have been owned by Ken Tubman around this time. Ken was a graduate of Fort St School, a pharmacist, and is best remembered for winning the first Redex Round Australia Trial in a Peugeot 203. He still had the K3 in the sixties; we recall him bringing it to the Geelong Speed Trials as a spectator.

The first Grand Prix Bugatti with the folded full width windscreen is probably the Type 37 of Frank Lyell, chassis number 37160. This car had been discovered abandoned in a shed behind the Federal Hotel in Narromine a few short years before – it changed hands for 10 pounds! To its right is Type 37, chassis number 37209 owned by Irwin ‘Bud’ Luke, who was very competitive in the car; he finished seventh in the Australian Grand Prix at Leyburn in 1947. Kent thinks it might be Bud attending to the front wheel with his partner Ida at the rear of the car.

The touring bodied Bugatti bears elegant coachwork by Carrosserie Profilée and is chassis number 4264. It was probably owned by Doug Helsham and likely powered by a Chrysler Six. ‘Gelignite’ Jack Murray’s Day Special is next (second car from the right), a Ford V8 powered Type 39 Bugatti, chassis number 4607, which won the 1931 Australian Grand Prix driven by Carl Junker. The last parked car appears to be an Austin ‘7’ special, possibly Frank Lyell’s car. Of course, the car leaving the starting line (partially obscured at the bottom) is Frank Kleinig in his eponymous special.

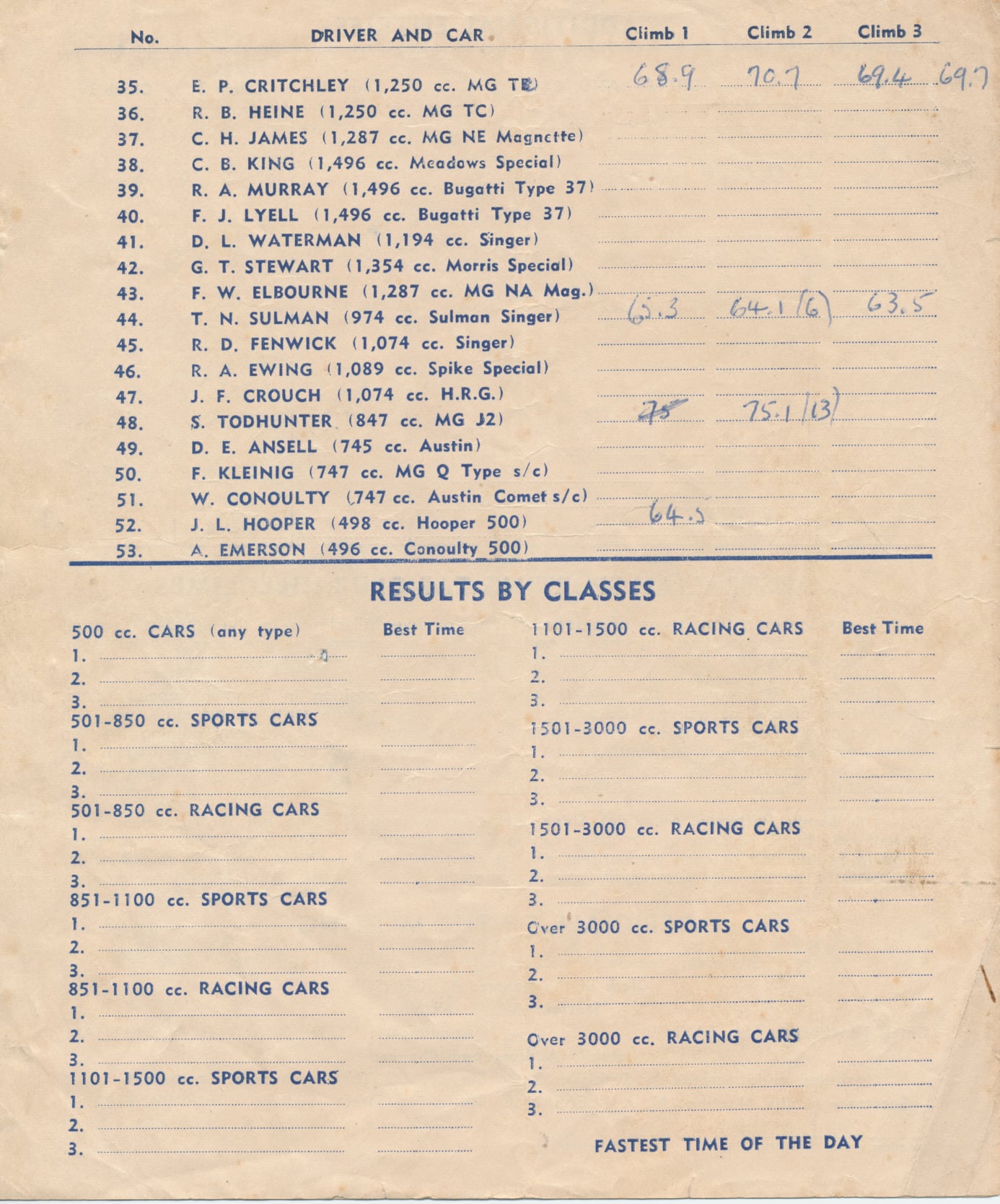

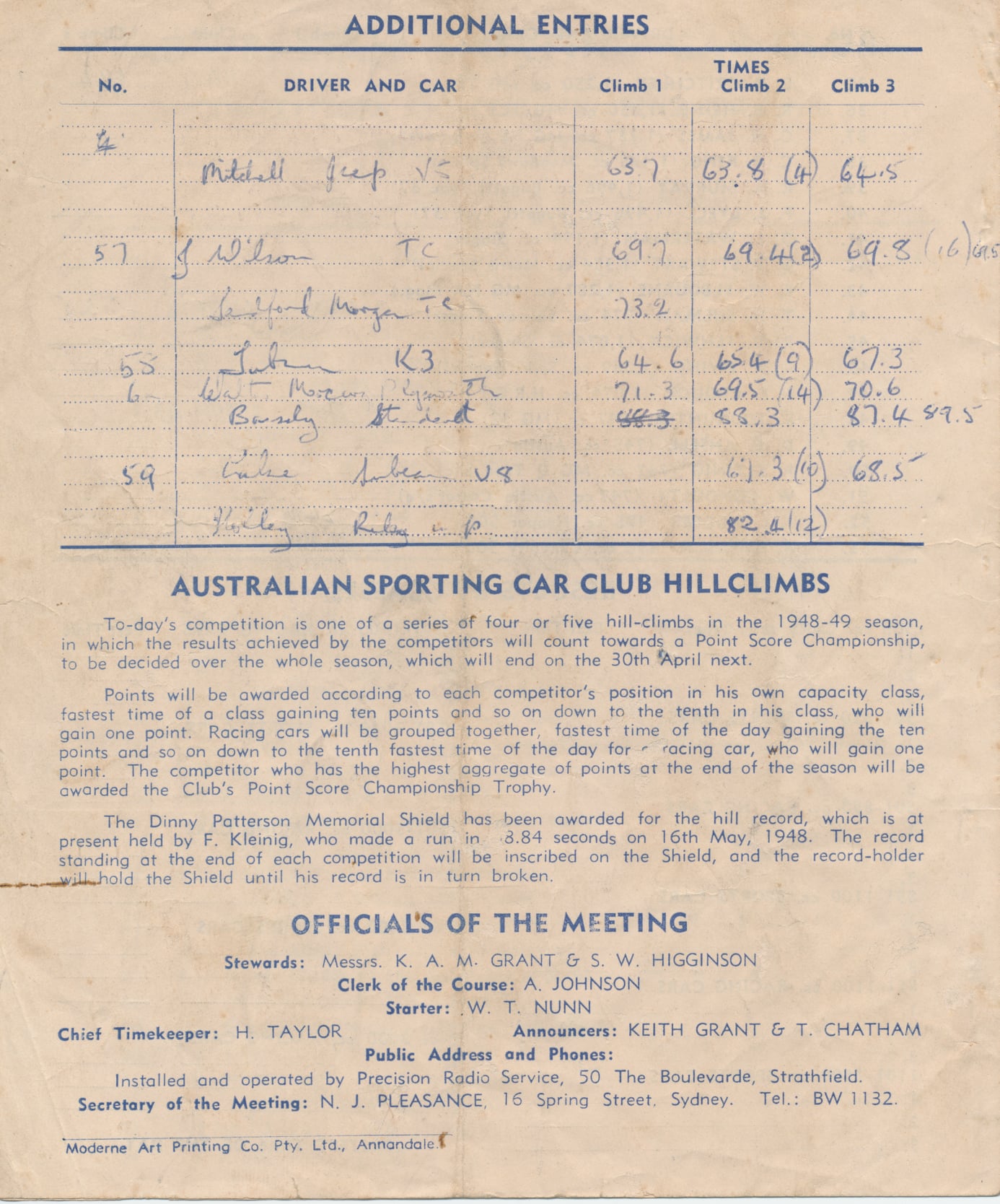

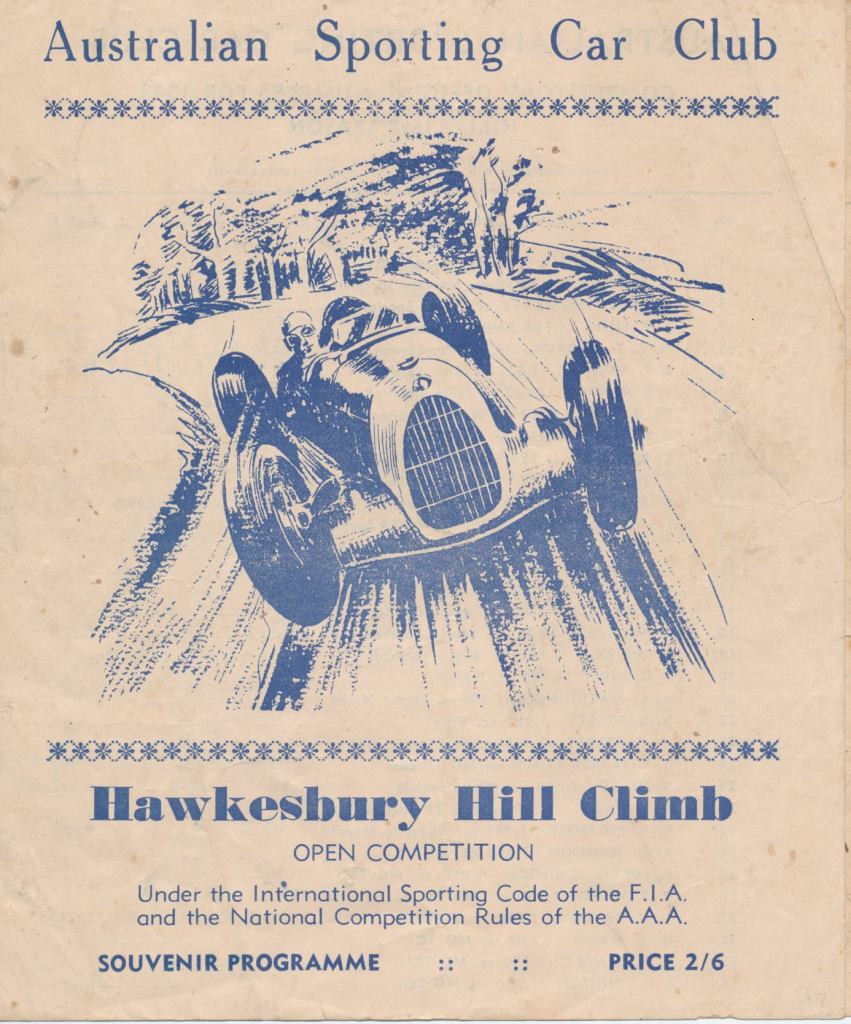

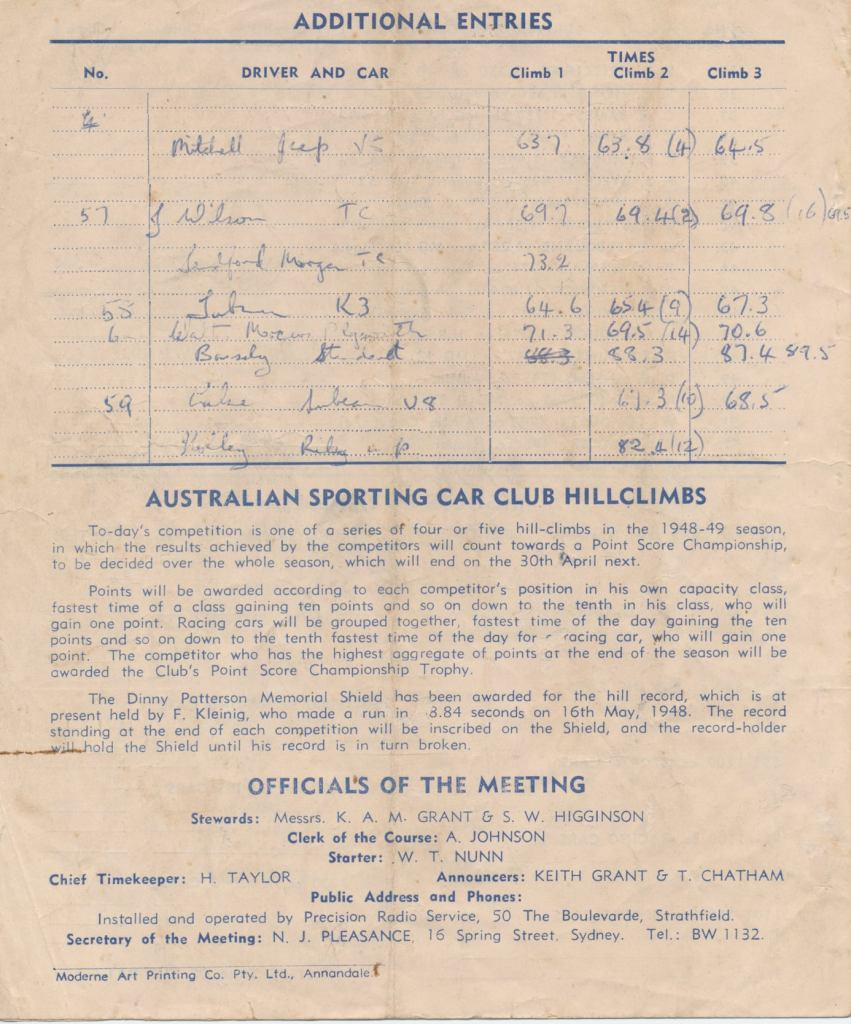

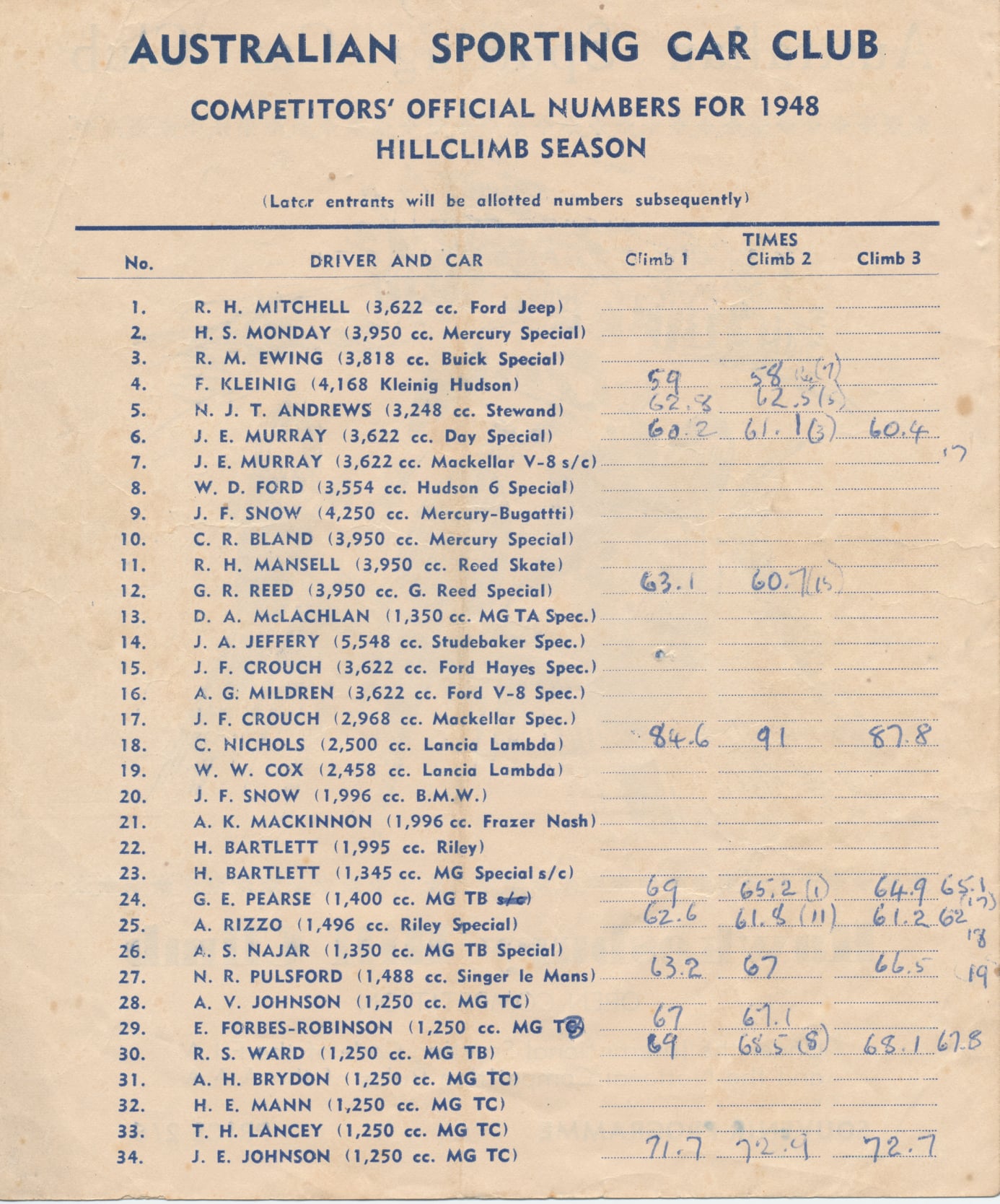

Since writing this, Cummins Archive (Paul Cummins) have posted on Facebook a 1948 programme for Hawkesbury hillclimb. It is not ‘our event’ as the numbers on recognizable cars differ – viz. Sulman Singer 32 in the photo and 44 in the published programme. This programme might help with the identification of some of the other cars – could Riley number 28 be the Rizzo Riley and the last car, which appears to be an Austin ‘7’ special be that of Ted Ansell? The list of competitors, which is a virtual Who’s Who of immediately post-war NSW racing drivers, appears to confirm Kent Patrick’s suggestion that the K3 MG is that of Tubman – see his listing under ‘Additional Entries’.

(Cummins Archive)
(Cummins Archive)
(Cummins Archive)
(Cummins Archive)

Credits…

Bob King Collection, Cummins Archive via Paul Cummins

Finito…

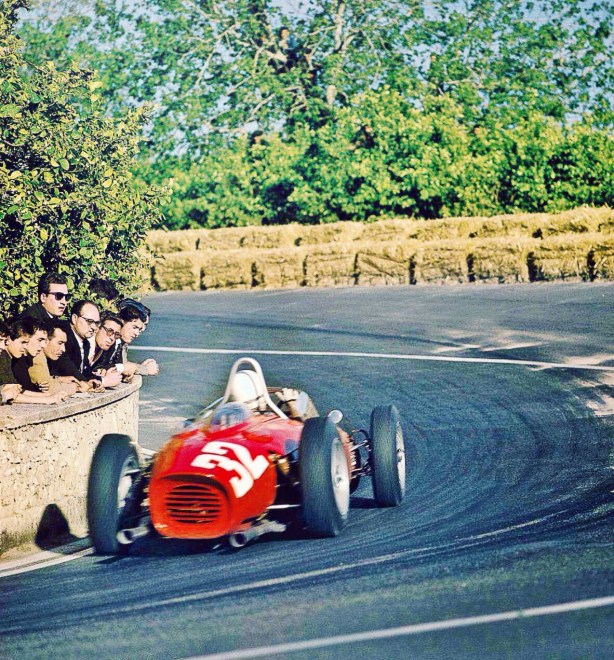

baghetti syracuse gp 1961

Giancarlo Baghetti on the way to his maiden Grand Prix win in his first GP aboard Ferrari 156 chassis 0008. He won four Grands Prix in 1961; the French at Reims, and three non-championship events here at Siracusa on April 24, in Napoli thee weeks later, and the Coppa Italia at Vallelunga in October …

The Syracuse locals are enjoying Giancarlo’s delicate touch and the glorious howl of the little 1.5-litre V6 around the 3.478 mile Sicilian street circuit, look closely at the kids in the trees!

While the 156 was the class of the field in 1961, Baghetti beat a field of depth in Syracuse. Dan Gurney and Jo Bonnier were second and third in Porsche 718s, then came Jack Brabham’s works Cooper T55 Climax, Roy Salvadori’s Cooper T53 Climax, and in sixth and seventh places were Jim Clark and Lorenzo Bandini in Lotus 18 Climax and Cooper T51 Maserati respectively.

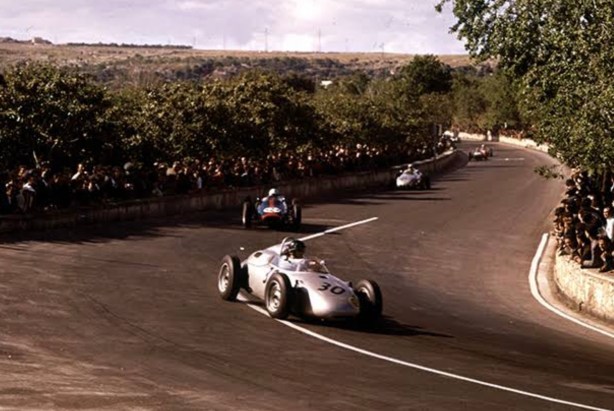

John Surtees’ Cooper Climax sandwiched by the Gurney and Bonnier Porsche 718s at Syracuse in 1961 (Motorsport)

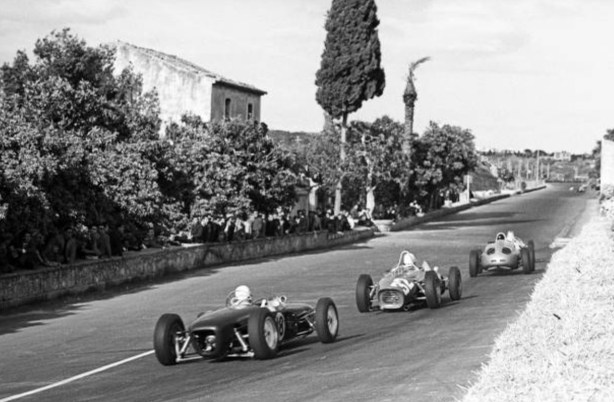

Moss chasing Baghetti and Gurney; Lotus 18, Ferrari 156 and Porsche 718 (B Cahier)
Moss in a Rob Walker Lotus 18 Climax chases Jo Bonniers’ Porsche 718 at Syracuse. Jo was third and Moss eighth with a misfiring engine (unattributed

Despite the presence of the-greats, Baghetti popped the Ferrari into second slot on the grid behind Gurney on pole. He didn’t make a great start, appearing in seventh place at the end of the first of 56 laps, but used the power of the car to progress forward through the field to lead Gurney and Surtees by the end of the sixth lap.

Once in front he led with calm, consistent precision, keeping Dan at bay to win by five seconds. The youngster’s only mistake was to whistle up the escape road at the hairpin on his victory lap when he missed his braking point whilst waving to an adoring Sicilian crowd!

The car Giancarlo raced is the very first mid-engined Ferrari – the 246P Richie Ginther debuted at Monaco in 1960, chassis 0008. This morphed progressively from a 2.5-litre GP car into the prototype 1.5-litre GP 156 by the 1960 season’s end. See this story about a most significant Ferrari, it is a great pity Enzo destroyed it along with all of its other 156 brothers and sisters; https://primotipo.com/?s=ferrari+246p

0008 always raced with the 65-degree 1.5-litre V6 rather than the definitive 1961 120-degree variant which Richie Ginther was to give debut at Syracuse, but didn’t at the last minute due to oil scavenge problems revealed in testing at Modena. Checkout this article on the testing of the 120-degree motor here; https://primotipo.com/2018/09/11/ferrari-156-testing/

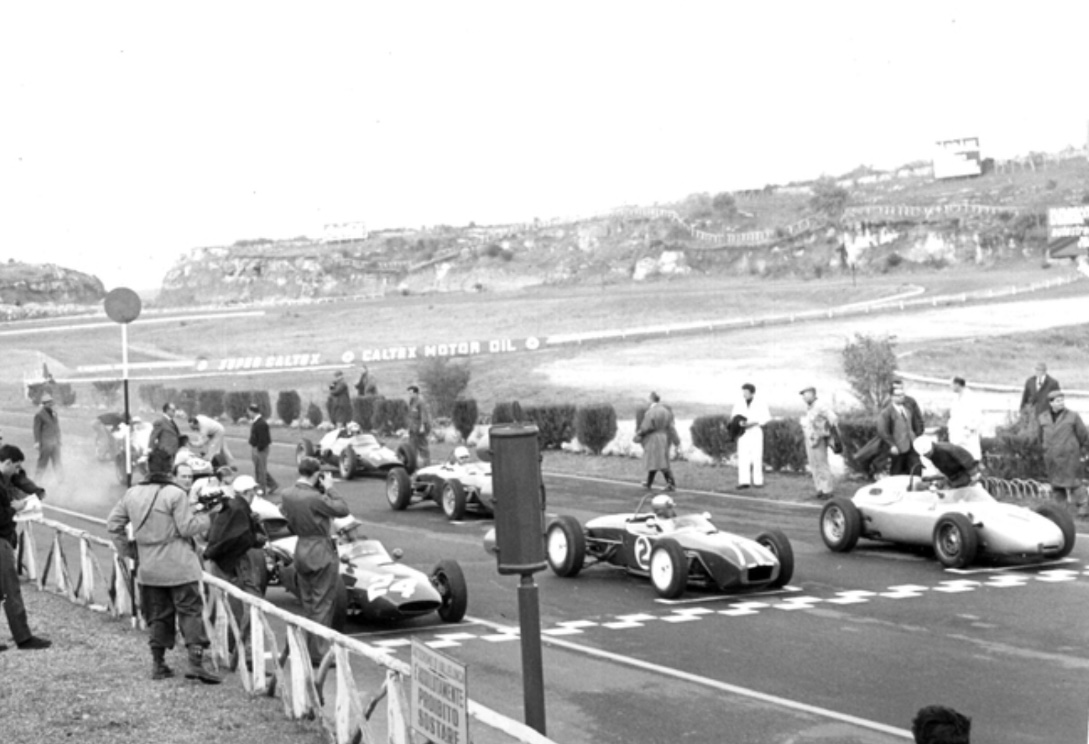

Innes Ireland and Jim Clark- #20 is Jim’s Lotus 21 Climax (B Cahier)

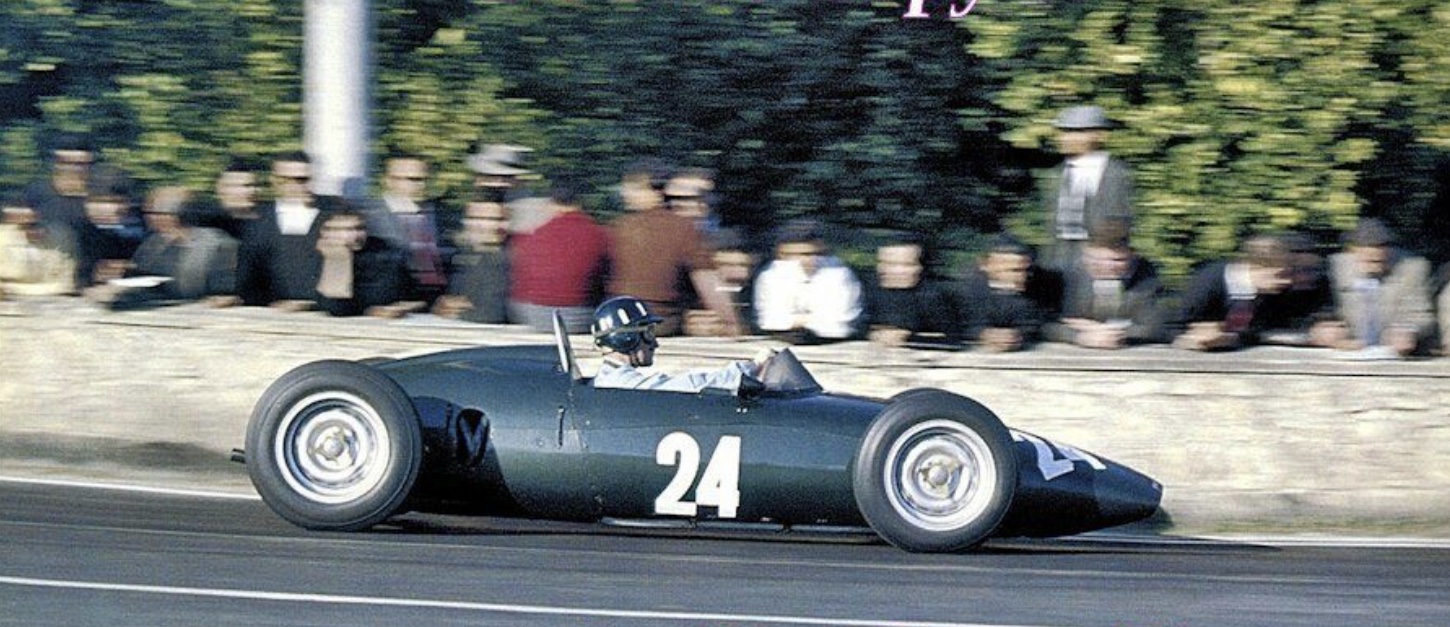

Graham Hill, BRM P48/57 Climax FPF (unattributed)
Giancarlo, Syracuse 1961 (unattributed)

By the start of 1961 0008 was already an old nail, so Ferrari were happy to hand the machine over to a grouping of Italian car clubs – the Federazione Italiane Scuderia Automobolistiche (FISA) as a means of developing promising Italian drivers. While the car was entered by FISA, it was prepared by the factory – very well prepared as it transpired!

Giancarlo had impressed in 1960 at the wheel of a Dagrada Lancia Formula Junior, and was awarded the FISA drive. About ten of these front-engined FJ’s were built by Milanese, Angelo Dagrada who was known to Giancarlo via modifications he had made to Baghetti’s industrialist father’s Alfa Romeo 1900 road car, the family owned a foundry in Milan. Giancarlo cut his racing teeth with this Alfa and Abarths in local events.

These interesting cars bucked the Italian trend of using the ubiquitous Fiat inline-four in favour of the Lancia Appia 1098cc ten-degree V4 which was light and compact – and powerful after vast development of the standard cylinder head turned it into a crossflow unit.

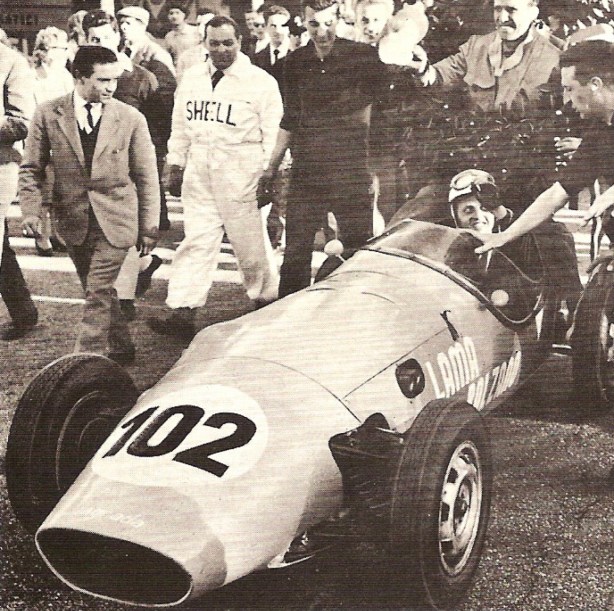

Giancarlo aboard his Dagrada Lancia FJ at Monza on 25 April 1960 (unattributed)

Giancarlo was seventh in the 1960 Campionato ANPEC/Auto Italiana d’ Europa Formula Junior Championship with one win from only three point scoring rounds. In front of him was Colin Davis, Jacques Cales, Denny Hulme, Lorenzo Bandini, Henri Grandsire and Henry Taylor.

Baghetti’s win depicted in the advertisement below was a big one, the VIII Trofeo Bruno e Fofi Vigorelli at Monza on April 24-25 attracted 43 cars, 16 were non-qualifiers. Giancarlo won both his heat and one of the two finals, to win on aggregate from Juan Manuel Bordeu and Henri Grandsire aboard Stanguellini Fiats. The class field included such notables as Colin Davis, Carlo Facetti, Carroll Smith, Lorenzo Bandini, Rob Slotemaker, Ludovico Scarfiotti, Geki Russo, Gerhard Mitter, Eric Carlsson, John Whitmore, Teodoro Zeccoli and Tony Maggs.

In the Campionato Italiano, he was equal fourth with Geki Russo behind Renato Pirocchi, Roberto Lippi and Antonio Maglione, and second in the Prova Addestrativa behind Antonio Maglione.

Some sources have it that Giancarlo was a controversial choice for the FISA ride, but if you look at the races entered/won, his strike rate looks pretty good. In addition, his Dagrada was generally felt to be an inferior weapon to the Stanguellini Fiat used by most of his rivals; the choice stands the sniff test I think, whatever the case, he certainly grasped the opportunity with both hands.

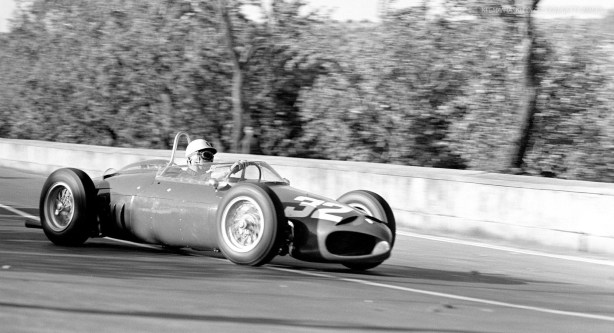

Baghetti’s purple patch continued at Posillipo a month later when he won the Gran Premio di Napoli on May 14, again at the wheel of 0008.

On this occasion he finished the 60 lap, 150km road course race in front of Peter Ashmore’s Lotus and Bandini’s Centro Sud Cooper T51 Maserati, after Roy Salvadori gave chase early in the race, only to be thwarted by a puncture in his Yeoman Credit Cooper Climax.

The entry was devoid of championship front runners on this occasion, they were otherwise engaged at Monaco, Stirling Moss in one-of-those drives won the race aboard Rob Walker’s Lotus 18 Climax, one of three championship events which didn’t go to the 156 that season. The German GP also fell to Maestro Moss in the nimble, less powerful Lotus 18, and at Watkins Glen Innes Ireland won the first GP for Team Lotus, and himself, aboard a Lotus 21 Climax.

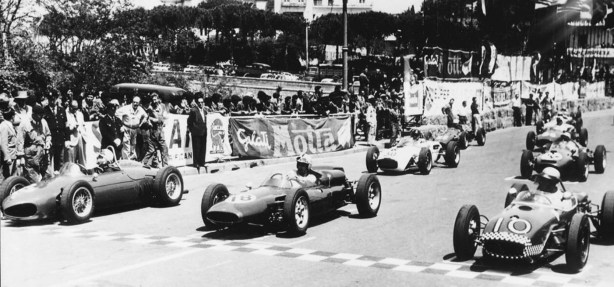

GP di Napoli, Posillipo 14 May 1961 grid. Baghetti 156 at left, Roy Salvadori, Cooper T53 Climax and then Gerry Ashmore’s Lotus 18 Climax at right. Row two is Ian Burgess’ Lotus 18 Climax at left and Lorenzo Bandini’s Cooper T51 Maserati at right. Row three is Giovanni Alberti, de Tomaso Osca at left and Menato Boffa, Cooper T45 Climax at right. Baghetti won from Ashmore and Bandini (unattributed)
Hill, Ginther and Von Trips – Ferrari 156 by three front row at Reims in 1961 (unattributed)

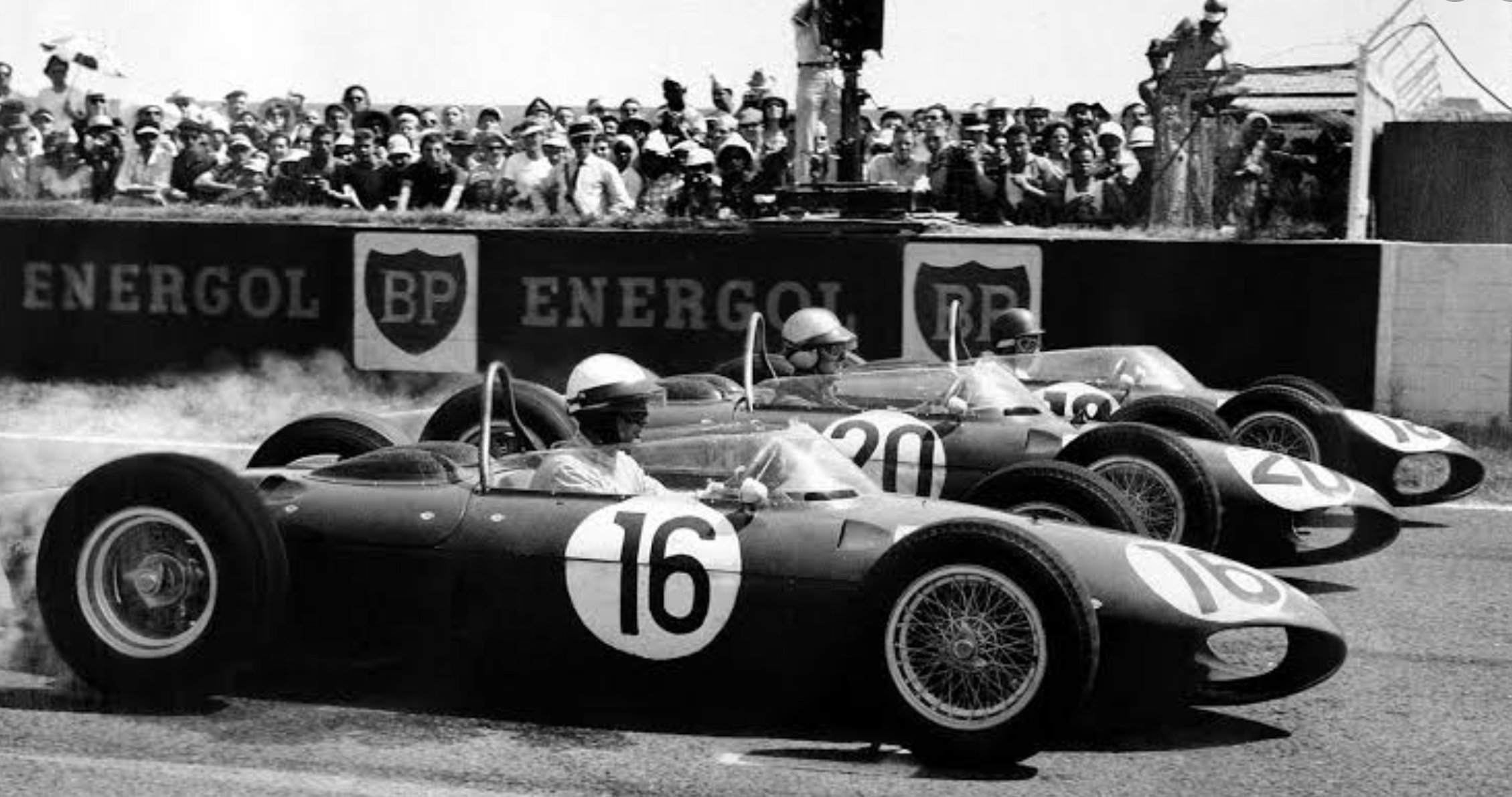

Reims start with Thillois in the distance, July 2, 1961. Up front its Hill, Ginther and von Trips from left to right, with Moss in the Walker Lotus 18/21 Climax on his own, and the rest- winner Giancarlo was Q12 but started poorly and is the red spec almost straddling the dashed-yellow line, about six cars from last. All of which says a lot about the Italian cars power and torque out of the slow Muizon and Thillois corners (Motorsport)
Who said the Lotus 21 had better brakes than the Ferrari 156?! Innes Ireland runs into strife under brakes whilst attempting to slip under Giancarlo watched by Jim Clark in another 21, Graham Hill, BRM, Jo Bonnier, Porsche 718, Bruce McLaren’s Cooper T55 Climax and Dan Gurney in the other works Porsche 718, Reims 1961

0008 went back to the factory for a freshen up and then joined the three factory entries of Phil Hill, Taffy von Trips and Richie Ginther at Reims on the July 2 weekend for the French Grand Prix.

There he took a stunning victory a tenth of a second clear of Gurney’s Porsche 718 with Jim Clark’s Lotus 21 Climax a further minute adrift. It was an all Ferrari front row with Hill on pole and Ginther and von Trips alongside, Giancarlo was Q12.

Hill led from the start, in that order, until Richie spun giving third place to Moss’ Lotus 18 Climax – behind this group there was a massive slipstreaming battle involving the Gurney and Bonnier Porsche 718s, the works Lotus 21 Climax’ of Jim Clark and Innes Ireland, Graham Hill’s BRM P48/57, Bruce McLaren’s Cooper T55 Climax and Giancarlo.

Two of the most important aspects of longevity for a race photographer are a sense of self preservation and fleetness of foot …Bonnier, Baghetti, Clark and Gurney, Reims 1961 (unattributed)
Clark, Baghetti and Ireland exit Thillois (Motorsport)
Spinner Ginther in front of Lucien Bianchi, Lotus 18/21 Climax (B Cahier)

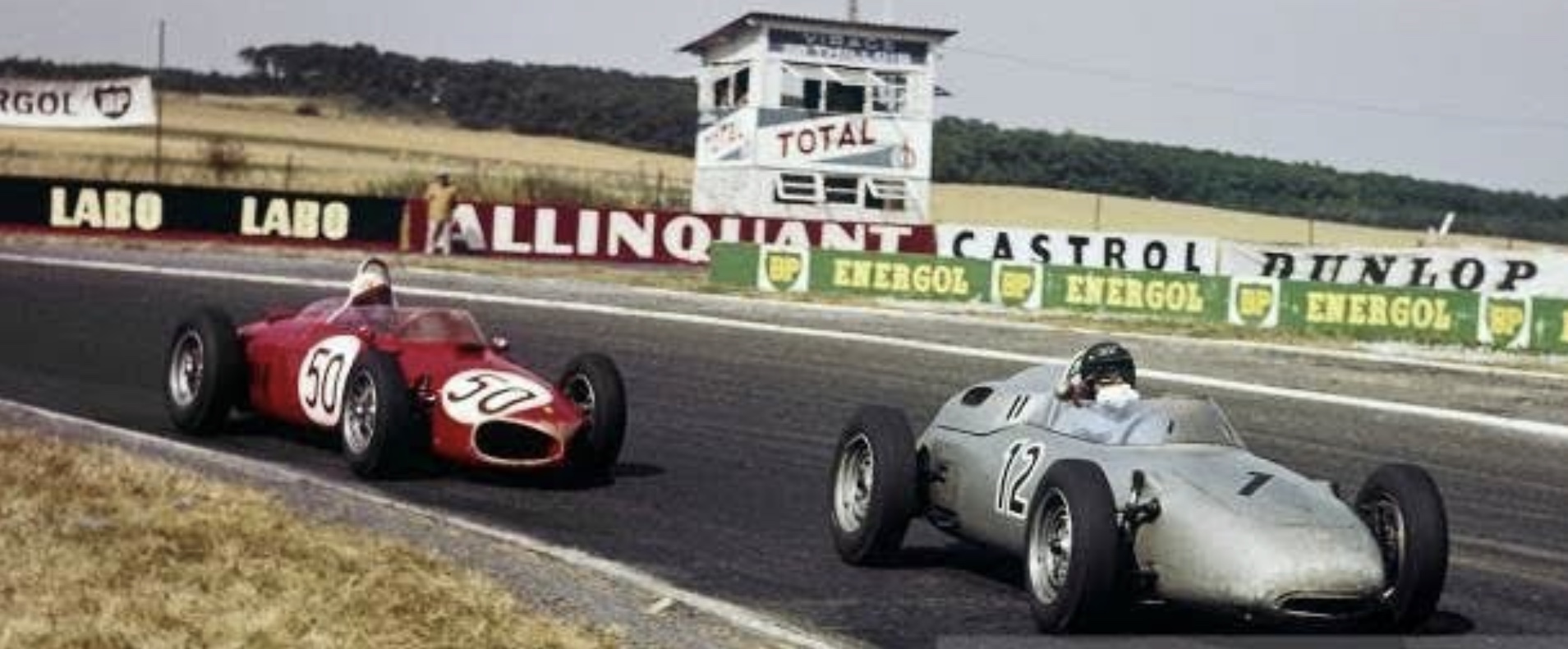

Gurney and Baghetti in the final stages (B Cahier)

Taffy had engine trouble after 18 laps so he was out, Phil Hill spun on the surface which was becoming very slippery in the intense heat on lap 38, he managed to restart but was a lap down. Then Ginther led, but he too spun, and had no sooner recovered before having engine problems – no oil pressure after 40 laps, Moss had brake problems so he too retired after completing 31 laps.

Progressively the challengers fell away leaving a man-on-man battle which went on for many laps, with the lead changing by the lap between Dan Gurney – one of the finest drivers of the era – and still to win his first championship Grand Prix, and GP debutant Giancarlo Baghetti.

On the final lap, Dan out-braked Giancarlo into Thillois, the last corner, but on the sprint to the line – with more punch than the four-cylinder Porsche – Baghetti dived out of Gurney’s slipstream a couple of hundred yards before the finish in a perfectly timed move to win by the narrowest of margins from Gurney, Clark, Ireland and McLaren.

Giancarlo’s 1961 run of success wasn’t over yet, as noted at the outset, he won the minor, Prima Coppa Italia at Vallelunga on October 12. This time he raced a Porsche 718, winning both 30 lap, 106 km thirty minute heats from pole, taking the overall win on aggregate from Ernesto Prinoth, Lotus 18 Climax, and Nino Vaccarella’s Cooper T51 Maserati.

The balance of Baghetti’s career is dealt with in this article, sadly, the precocious talent of 1961 faded way too quickly; https://primotipo.com/2015/05/08/giancarlo-baghetti-lotus-49-ford-italian-grand-prix-1967/

Aintree 1961 (Echo)
Coppa Italia, Vallelunga October 12, 1961. #24 Nino Vaccarella rebodied Cooper Maserati T51, #2 Ernesto Prinoth, Lotus 18 Climax and at right Giancarlo Baghetti, Porsche 718. The Lotus 18 Maserati on row two is Gaetano Starrabba (unattributed)

The 1961 Ferrari 156 : Technical…

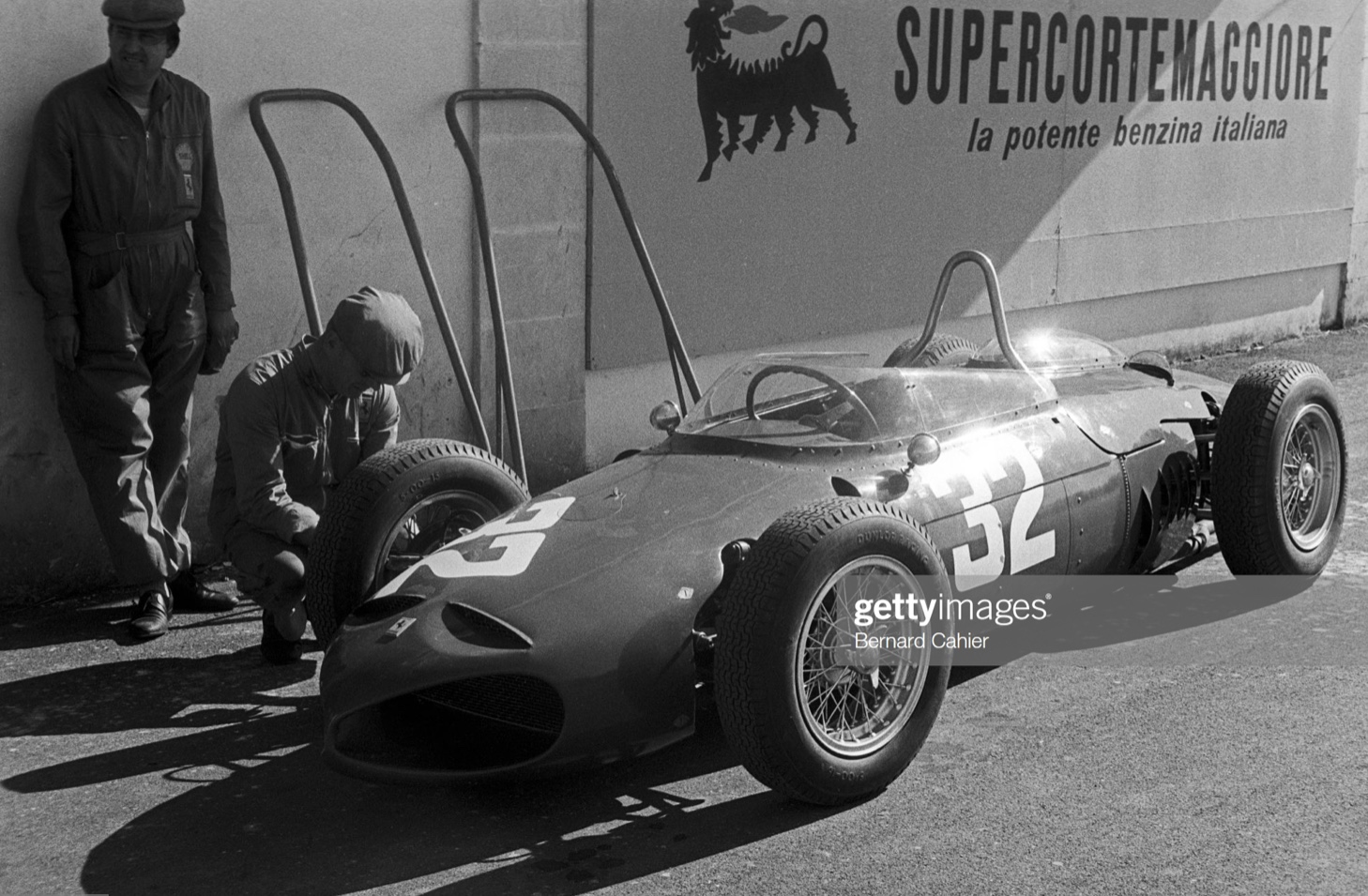

For early 156 Dino enthusiasts these photographs of 0008 taken by Bernard Cahier at Siracusa on this Tuesday April 25, 1961 long-weekend will be of great interest as they show the first chassis in its definitive 1961 form.

All 156’s built and raced in 1961-1962 started right here, or I guess twelve months before if you argue that the original 2.4-litre 246P version of 0008 was the starting point, which of course factually it was.

The bodywork of the car is ‘unique’ in that it has two supplementary air intake slots on the cowling, it’s very sleek compared to 0008 as it was in early 1960, to the form shown above. The shark-nose was supposedly low-drag, Carlo Chiti deployed it in his 1961 sportscar designs as well, the approach was a function of work in Ferrari’s scale-model wind tunnel.

It may well be that the shark-nose design was suggested to Chiti by Medardo Fantuzzi, one of Ferrari’s favoured external body-builders. He modified a Maserati 250F for Kiwi Ross Jensen (#2508) in this manner in late 1957, and then two other 250Fs for Temple Buell (#2533 and 2534). Fantuzzi built the 156 and sportscar bodies.

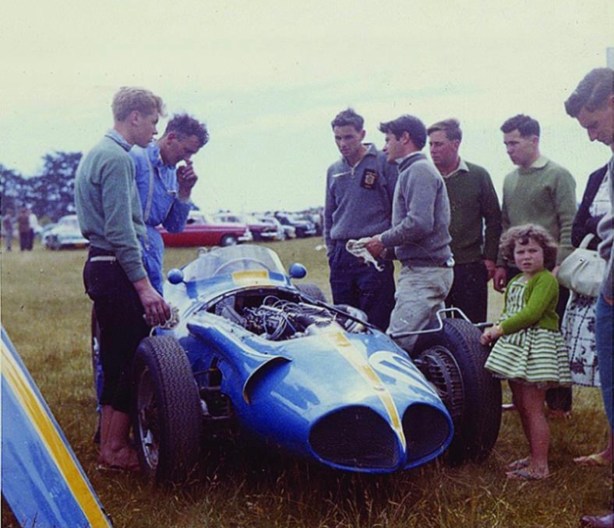

Maserati 250F ‘2508’, ex-Moss/Jensen, when owned and raced by Brian Prescott at Wigram, NZ in April 1961. Medardo Fantuzzi nose to the fore (Classic Auto News)

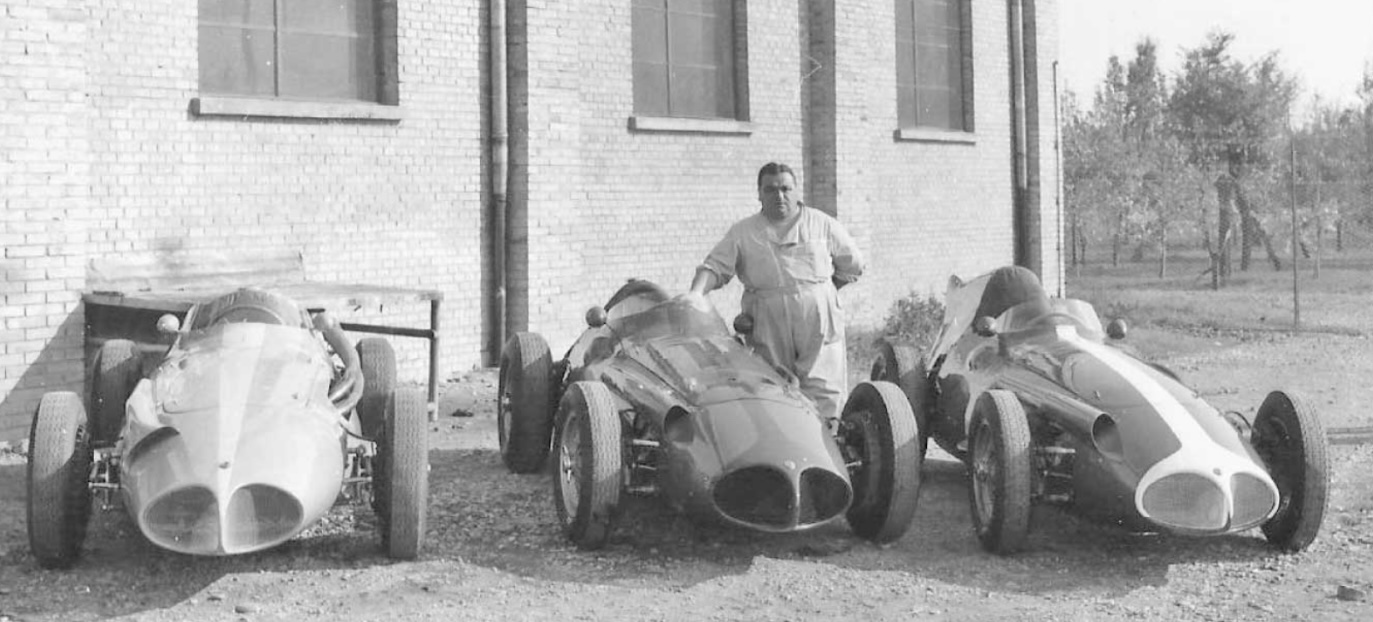

Medardo Fantuzzi with the three ‘shark nose’ Maserati 250Fs at his Modena factory in late 1957 or early 1958. Jensen’s at left – he finished second to Jack Brabham in the January 11, 1958 NZ GP in his upgraded car – the two Temple Buell machines alongside (unattributed)

Doug Nye described the chassis thus ‘The multi-tubular chassis itself was crude and hefty looking, not as unimpressive as a Cooper’s – not least of all its tube runs were straight – but not a patch on the lightweight lattice of a Lotus, BRM or even a Porsche.’ Big, butch, beefy and crude the chassis was, but it certainly did the job in 1961. It was only when the chassis sophistication of the Brits was harnessed to the power of the Coventry Climax and BRM V8s in 1962 that the class of ’61 became the dunce of ’62.

The main chassis rails were made of 1 1/2 inch steel spaced vertically 15 inches apart, the 120-degree motor required bulged top rails for installation, whereas the 65-degree unit did not, its rails were straight. The 120-degree frame swallowed the earlier motor whereas the wide engine wouldn’t fit into the narrower 65-degree frame.

Suspension front and rear comprised upper and lower braced wishbones and coil spring/damper (Koni) units, roll bars were adjustable both front and rear although it appears Giancarlo didn’t race with a rear fitted in Siracusa. Chiti set the cars up with bulk static negative camber, I guess the race Dunlops fitted to the 156 liked the setup.

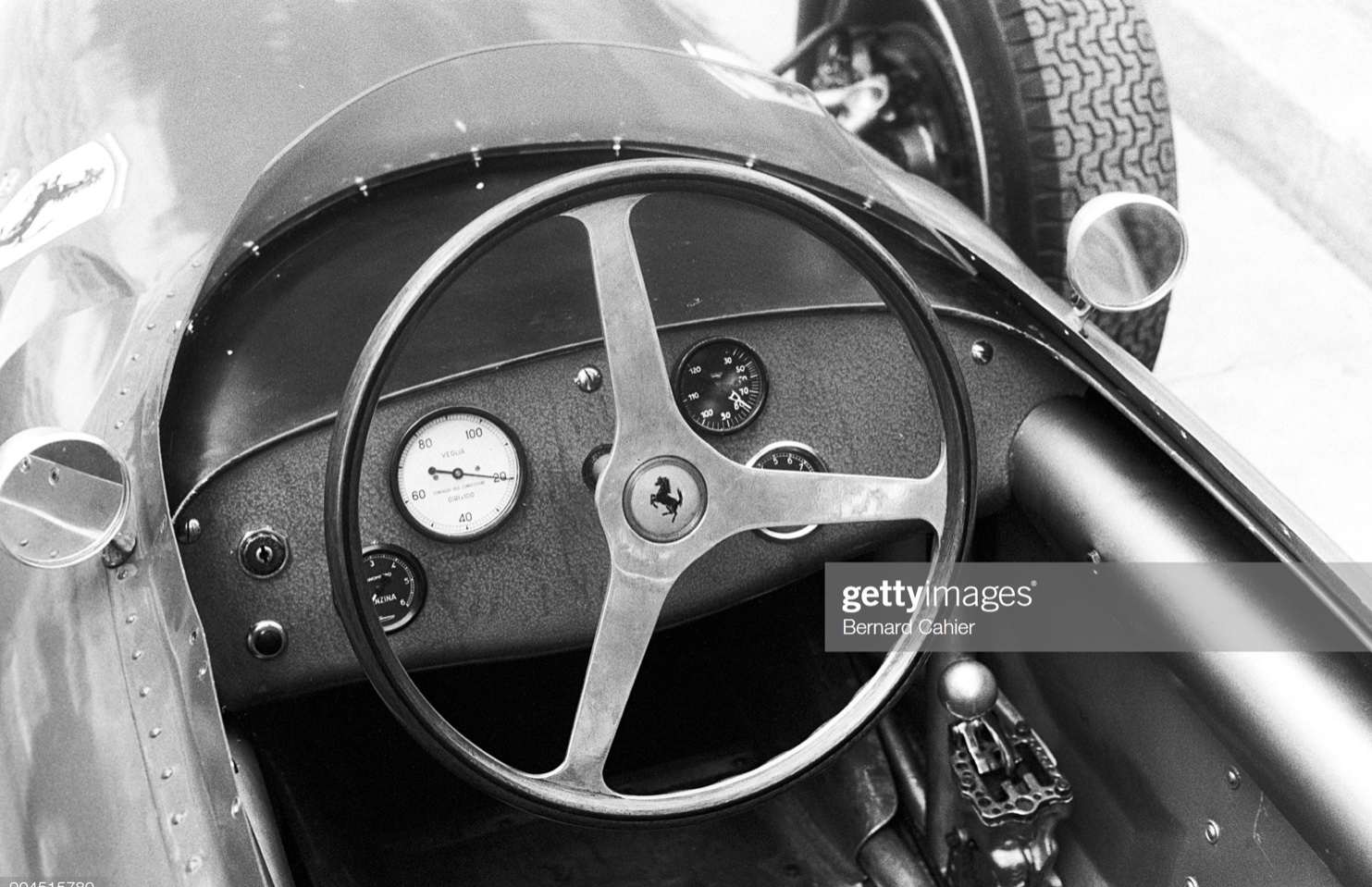

156 cockpit, Monaco 1961

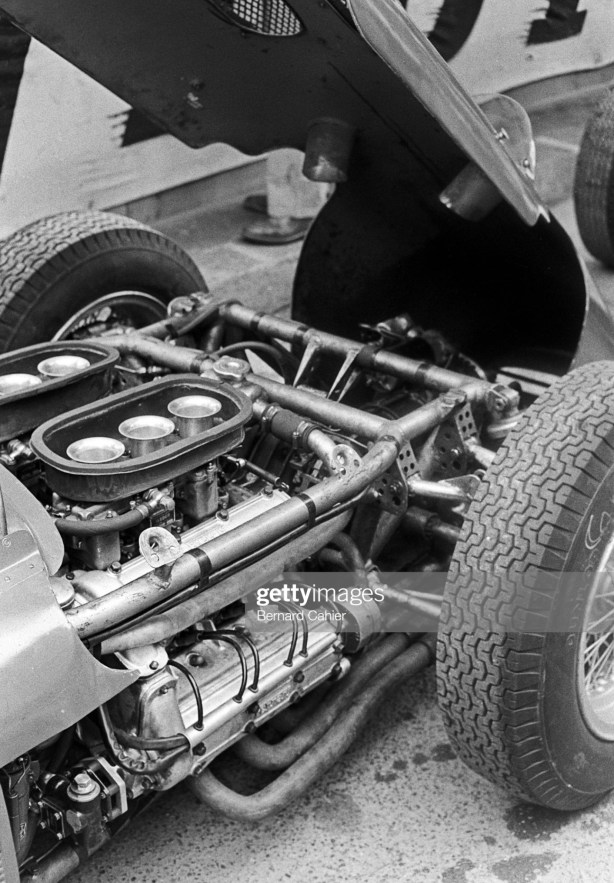

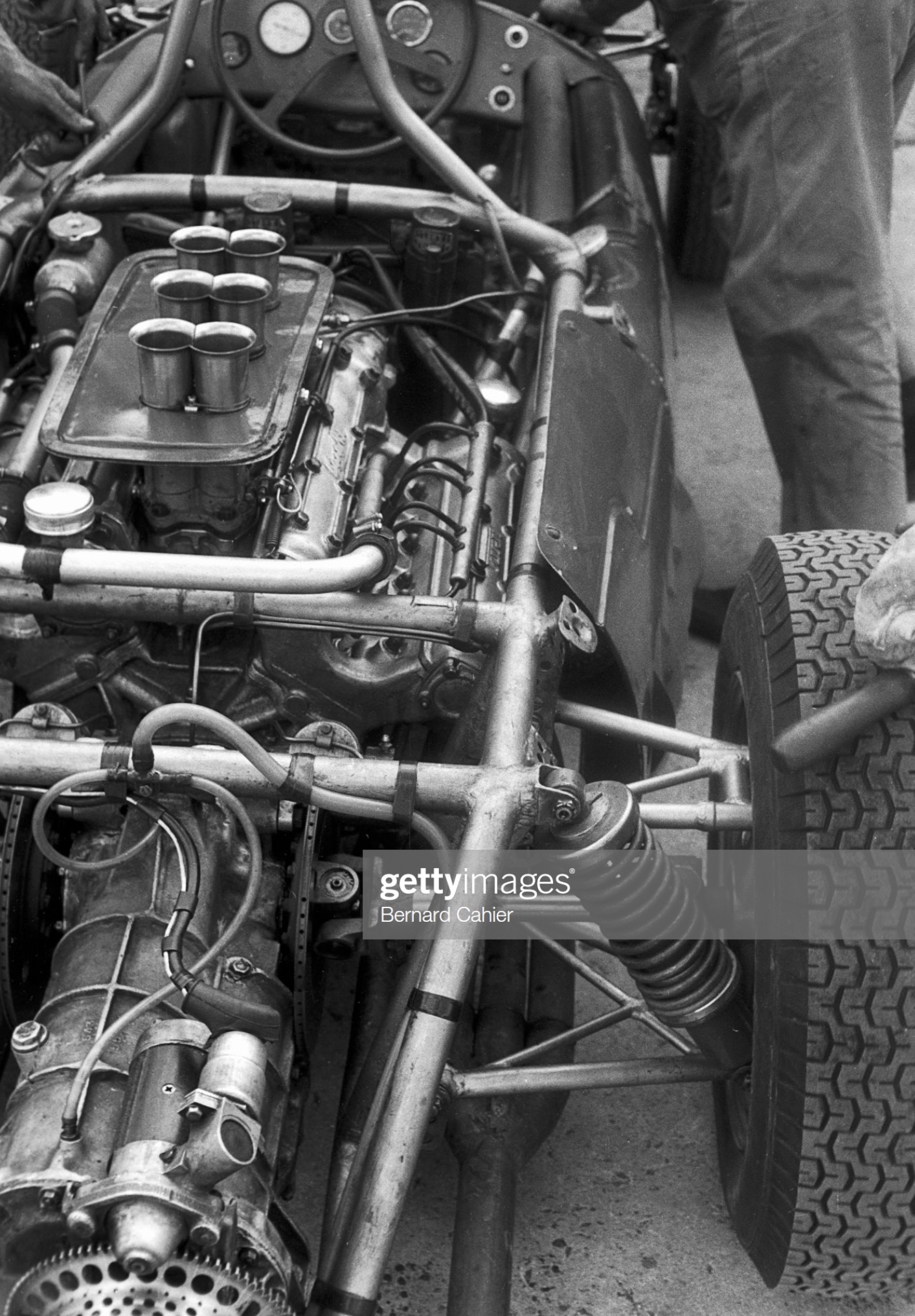

Engine bay of 0008 at Syracuse. Note the beefy spaceframe chassis Doug Nye described as being welded together by ‘Mr Blobby’. 65-degree second series Tipo 156 V6, bore/stroke 73×58.8mm, circa 180bhp fed by three 38mm Webers. The 120 degree engine had two bespoke triple choke Weber 40IF3C carbs. Note the large transaxle and starter motor, no rear roll bar fitted, suspension by upper and lower wishbones, ventilated disc brakes are inboard

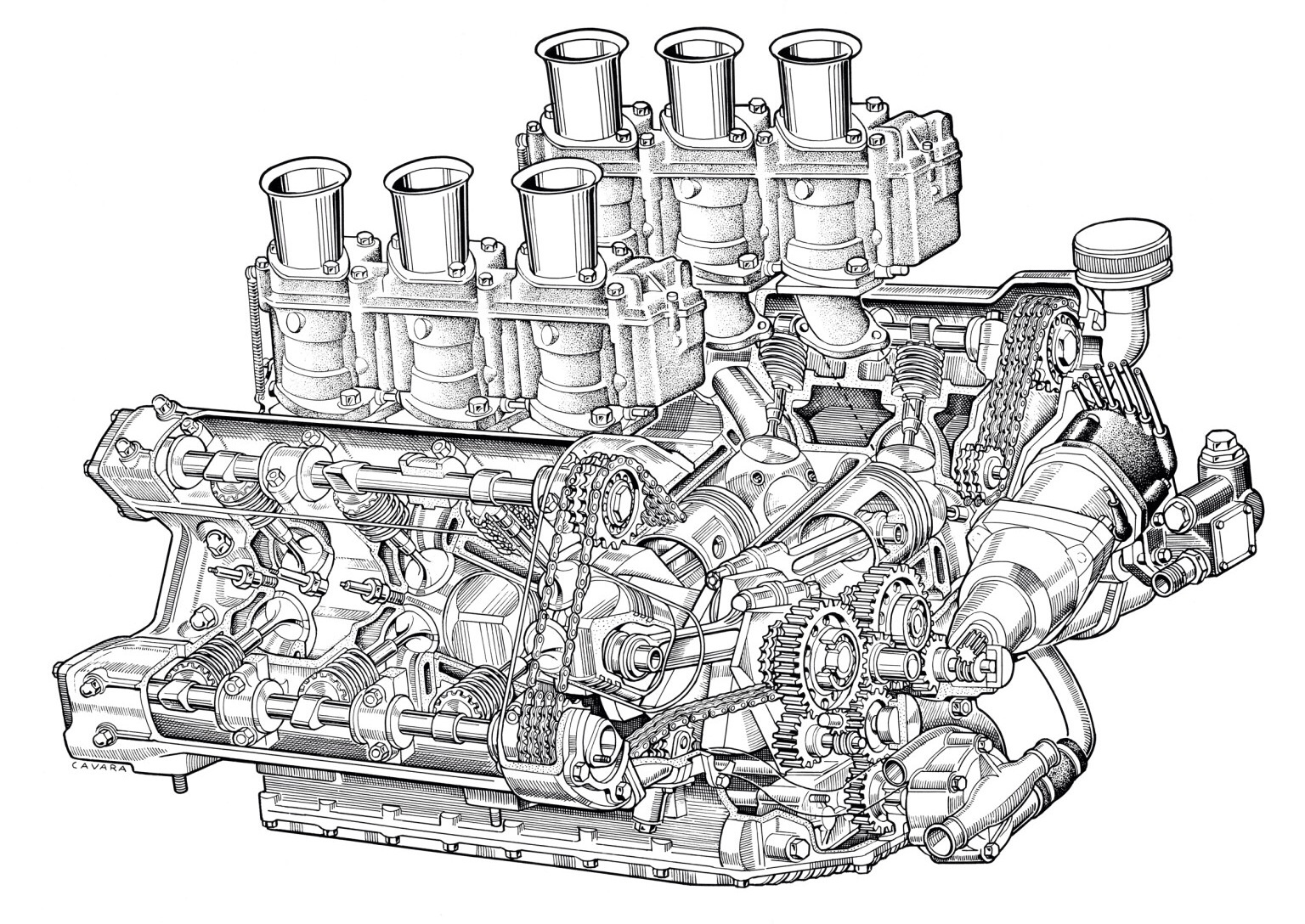

The 1.5-litre Vittorio Jano (and team) designed 65-degree V6 first appeared as a front-engined F2 car in 1958. The DOHC, chain-driven, two-valve, twin-plug, triple Weber fed motor developed circa 180bhp @ 9000rpm and was fitted to a scaled down version of the then current 2.5-litre Lancia D50 derived – and then further evolved – V8 engined 801 F1 chassis, then designated 156.

The capacity of Jano’s V6 engine grew progressively to 2417cc in which form the Ferrari Dino 246 won the 1958 drivers championship for Mike Hawthorn.

As time went on it became clear Ferrari had the makings of an excellent car for the new 1.5-litre F1 which commenced on January 1, 1961, and which was expressed in the evolution of 0008 from a chubby, pudgy 2.4-litre F1 car at Monaco in May 1960 a svelte shark-nosed 1.5-litre F2 machine before Monza in September.

Chiti’s definitive engine for 1961 was a new variant of the Dino using a very wide-angle V6 of 120-degrees to lower the engines centre of gravity, and simplify manufacture of the engine’s crank. A motor of this width would not have fitted comfortably into the front-engined Dino 246/256 chassis.

The two camshafts were still chain driven, the heads still two-valvers, and still twin-plug. The dimensions of the 1960 Solitude 65-degree engine were adopted – bore/stroke of 73mm x 58.8mm for a capacity of 1476.6cc. Nye reports that all of the major castings were made in Siluminum, the 120-degree engine weighed 225 pounds, 30 pounds less than the good ‘ole Coventry Climax 1.5-FPF four cylinder motor.

Carburettors were bespoke, beautiful Weber triple-choke type 40 IF3C. Ferrari initially claimed 190bhp @ 9500rpm but ‘initial tests only yielded 177, which was still 30 more than the FPF’ used by the English teams in 1961. Jano also gave the existing 65-degree engine a bit of a tickle as a second-string unit, pending enough 120-degree engines to go around the three car Scuderia Ferrari team. When the FISA team were present four 156s presented a formidable challenge to the opposition…

Compare and contrast. Richie’s 156 0001, the prototype 120-degree engine chassis during the 1961 Monaco GP weekend. Note how low that engine sits in the chassis, trick triple throat Webers clear
(G Cavara)

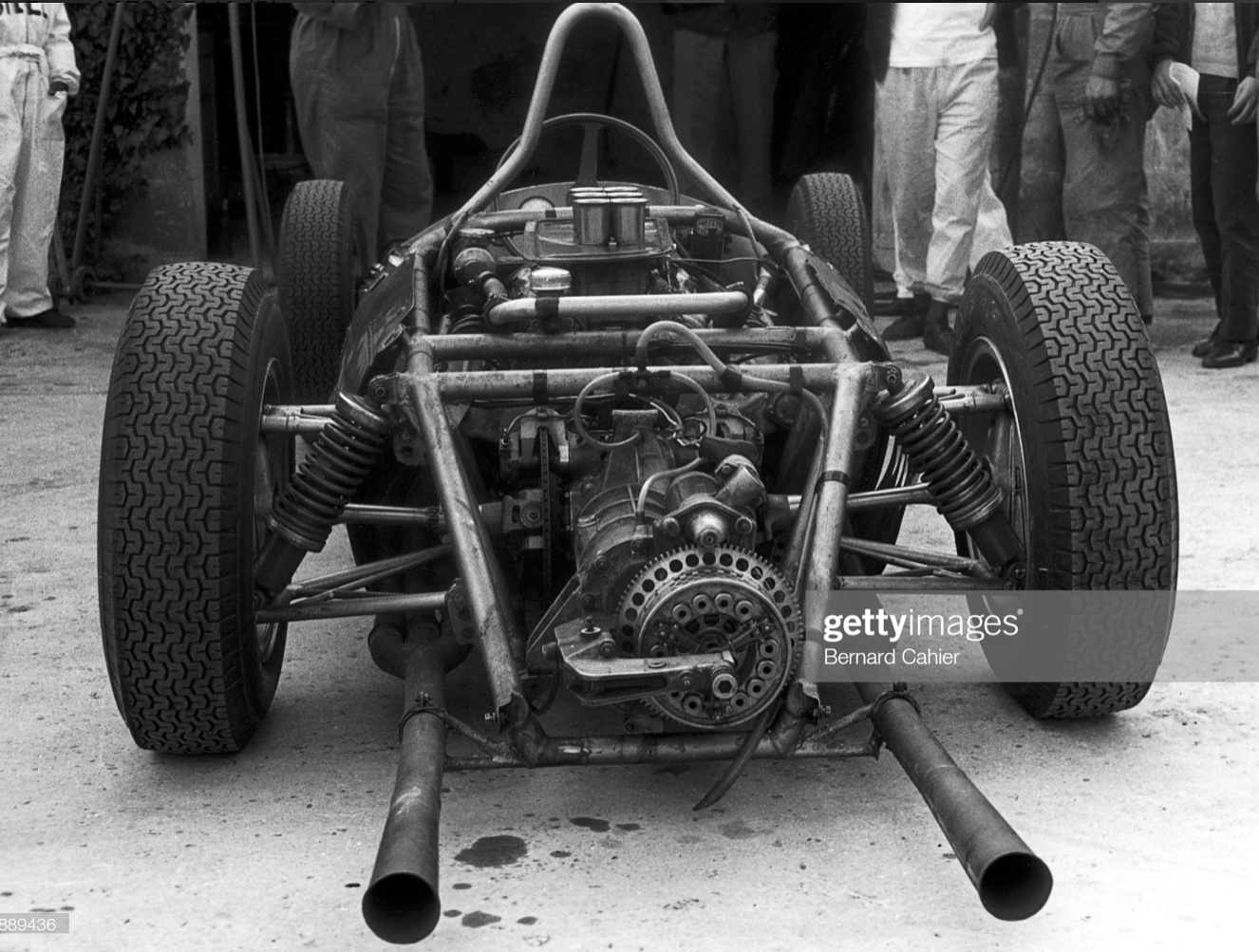

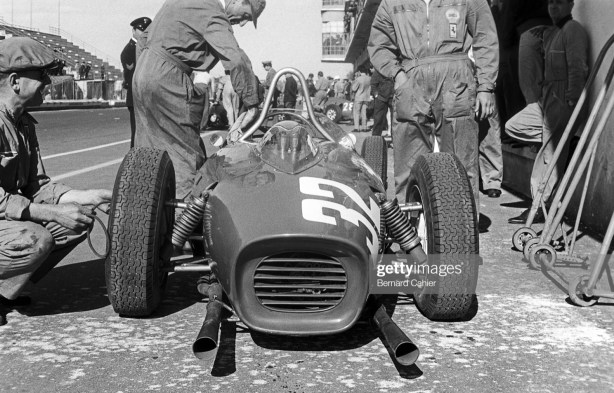

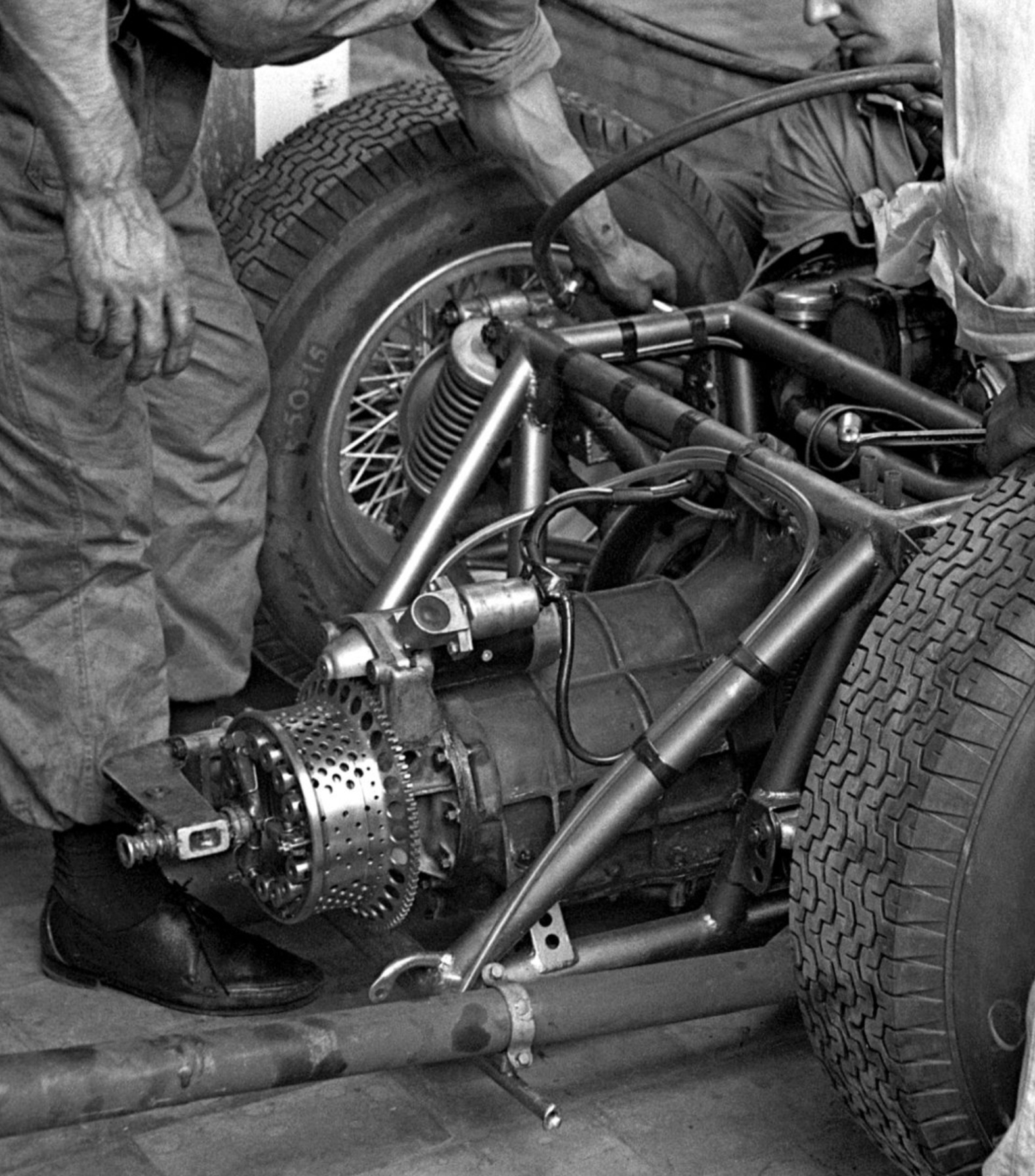

0008 butt, Syracuse 1961
(B Cahier)

While the V6s in either format were delicate, compact little things, the transaxle was anything but- however it did prove problem free, as Ferrari gearboxes down the eons have tended to be. The same ‘boxes were used with both engines – these 16.25 inch long units were developed versions of the five speed and reverse transaxle used in 0008, with the clutch assembly exposed to the breeze on the end plate. The thing looks bigger than it actually was due to a wide bell-housing between engine and transmission to push the engine forward in the frame to obtain the weight distribution Chiti sought.

Nye records that Ferrari appear to have built eight chassis during 1961. 0008 was numbered in the 246 Dino sequencing, in addition there were new chassis’ serials 0001-0006, with two appearing under the 0003 number. Von Trips won the Dutch and British GP’s in 0004 which was destroyed in his fatal Monza accident, Hill won at Spa in 0003, and Monza in 0002 while Giancarlo won at Reims in our friend, 0008.

And what about poor old 0008 you ask?

Giancarlo raced it at Aintree in the British GP the week after Reims (#58 below) doing enough damage to the prototype for it to be scrapped; he crashed at Waterways Corner while avoiding another competitor having his own moment when running in twelfth place from Q19. Of course all the 156s were ultimately destroyed, but if only one of the many chassis built between 1960-1962 were to have been preserved surely it would be this one…

(Echo)

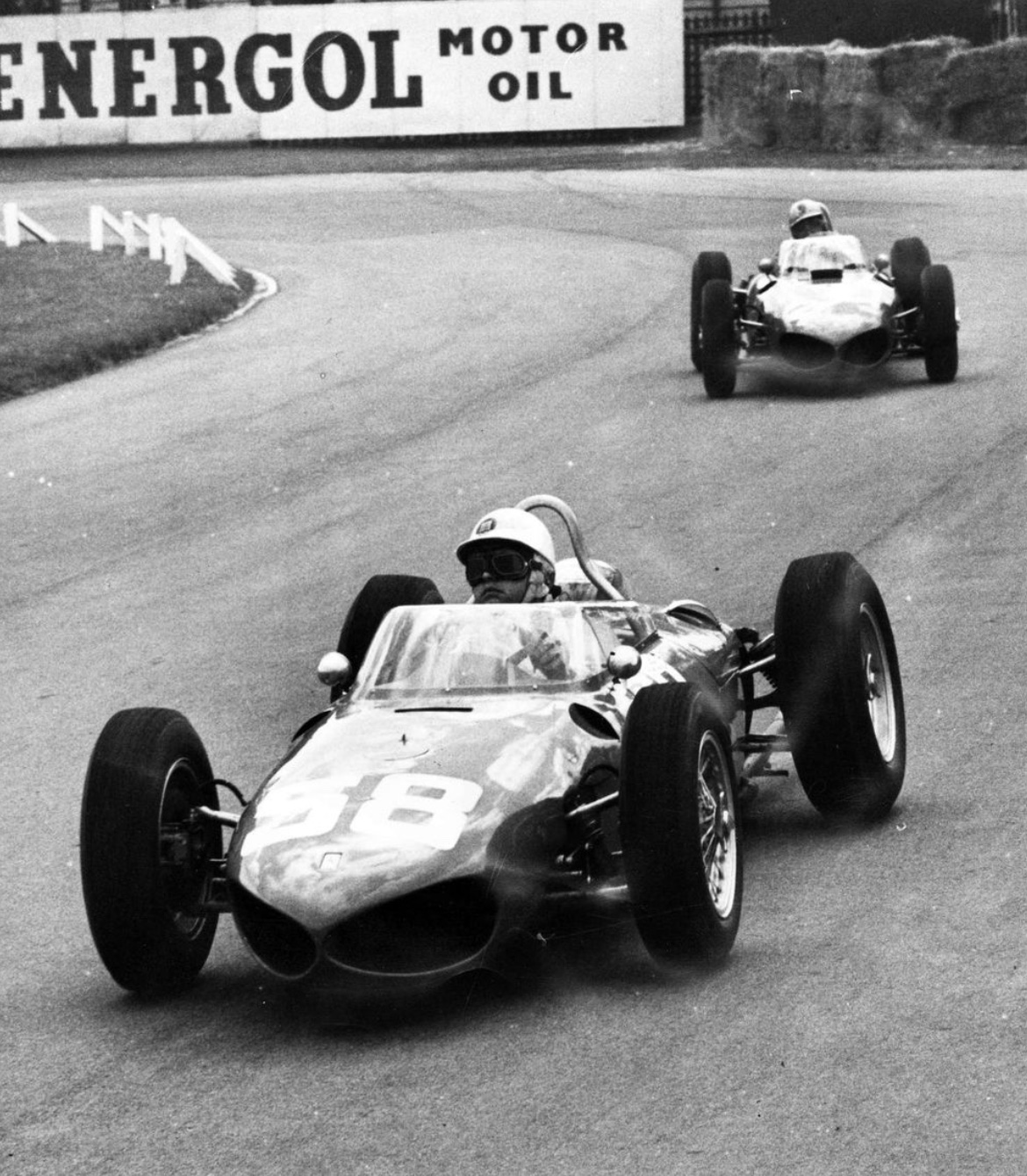

Giancarlo above while up front Taffy von Trips won the July 15 British Grand Prix from his teammates Hill and Ginther, Jack Brabham was best of the rest, 68 seconds behind Von Trips in his Cooper T55 Climax.

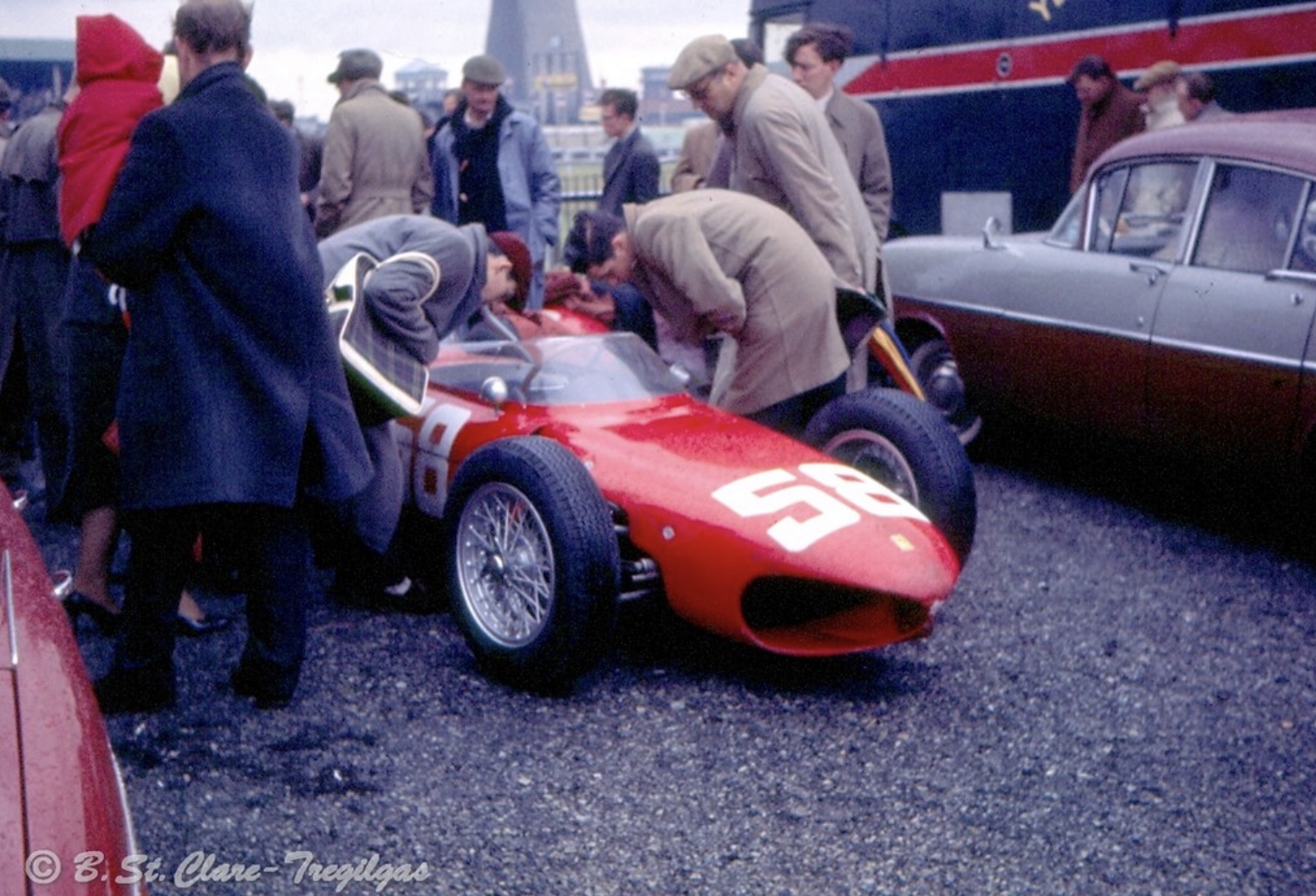

0008 in the Aintree paddock, note the different nosecone fitted to the car compared to that used in the Syracuse heat. Wire wheels were very much old hat by this stage, Ferrari retained them in 1962 but Campagnolo’s were part of the 156/63 package in 1963.

Etcetera…

(B Cahier)

Whether the shark-nose was more aerodynamic or not is a moot point. Didn’t Carlo Chiti put his styling stamp on the Ferraris of the time with these oh-so-distinctive visual cues.

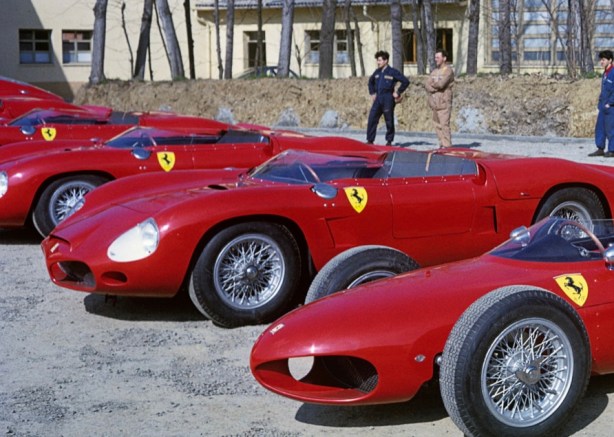

I’m cheating a bit here, this Ferrari launch shot in Maranello was in February 1962 not that the 156 was much different, to its cost – 246SP at left.

(B Reeves)

Baghetti in the FISA 156 from Moss’ Rob Walker Lotus 18 Climax at Syracuse in 1961. Nice.

(Echo)

Dry practice at Aintree, Baghetti from Von Trips, the winner, chassis 0008 from 0004. The former was scrapped after this race, the latter destroyed in Taffy’s horrific accident at Monza in September.

Bibliography…

‘History of the Grand Prix Car’ Doug Nye, Veloce Today article by Pete Vack, F2Index, Wikipedia, F1.com

Photo Credits…

LAT, Motorsport, Bernard Reeves, Giuseppe Cavara, Getty Images-Bernard Cahier, Echo Liverpool, B St. Clare-Tregilgas, Classic Auto News

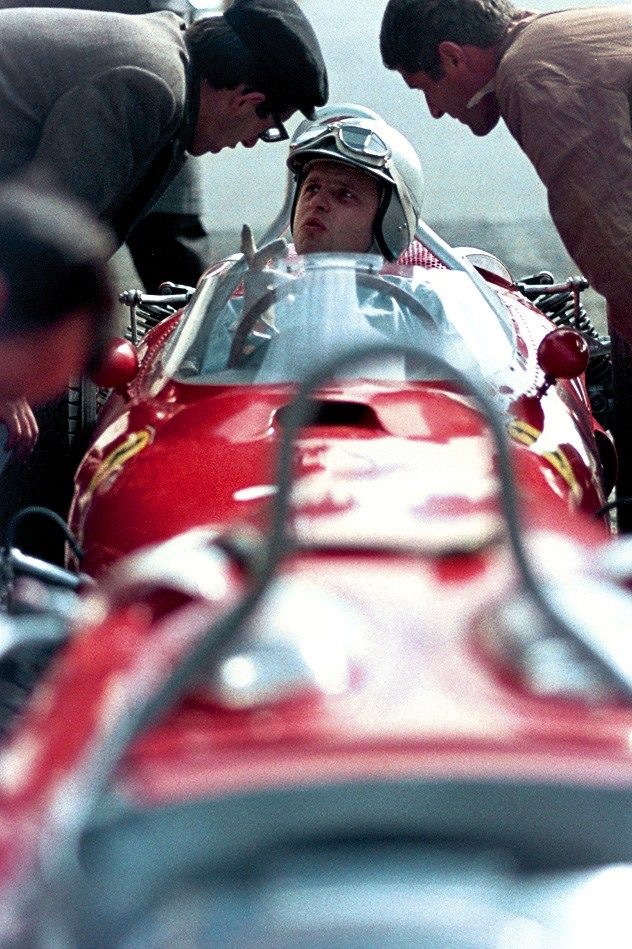

Tailpieces: Giancarlo Baghetti at the wheel of his Ferrari 156 during 1961…

baghetti 1961 (unattributed)



(unattributed)

Listen Mauro, I think we need to try this. Baghetti, place unknown in 1961, Ferrari 156.

Finito…

Formula One : The Australian and New Zealand Story is John Smailes’ latest masterpiece, and what a ripper read it is!

24 ANZACs faced an F1 starter, another 13 tested or raced in non-championship F1 events, this is their story told in John’s relaxed, engaging, informative style chockers with facts.

This time Allen and Unwin have cranked up the production budget, the book is a larger hardback and many of over 150 photographs are colour throughout 295 pages.

Smailes’ (he has now written five books with Allen and Unwin) books are passion projects, each one takes about a year to write, he interviewed 44 of his victims in 2019-2021 (or their nearest and dearest) so it has lots of new stuff, it isn’t a regurgitation of what’s gone before.

The format is ‘chronological interesting’. Whammo, he opens with Oscar Piastri – why not start with the future – before launching into the pre-war generation. There are a couple of drivers with stand-alone chapters, the rest are shared and neatly fuse, for example; Frank Gardner and Paul Hawkins, The Brothers Brabham, the ‘Best Opportunity : Worst Luck’ duo of Chris Amon and David Walker, ‘The Bruce and Denny Show’, and ‘Aussie Grit’ Webber/Ricciardo combination. The telling of the story(s) is skillfully cohesive rather than a bunch of stand-alone chapters.

As with his ‘Speed Kings’ Indy book, John has maintained his focus on others who made it to F1 as well as drivers; it’s fascinating to read about designers, team managers/principals, race officials and entrepreneurs in addition to those behind the wheel.

I’d rate myself a subject matter expert on half the drivers but I learned plenty, even about them. It’s a book the knowledgeable will enjoy, but equally assumes no racing expertise so the kid (or partner) you are trying to nurture in the right direction will engage and enjoy.

It’s a buy folks, $A39.99 from all the usual outlets in Australia and New Zealand. For international readers the ISBN is 978 1 76106 531 6 or http://www.allenandunwin.com

Miller 122

My first exposure to Bob Shepherd’s artistry was in the first issue of the late Barry Lake’s marvellous and way too short-lived Cars and Drivers magazine published in early 1977.

John Medley chose a Shepherd drawing of a Miller 122 to support an article he wrote about the ex-Zborowski machine which raced in New Zealand, and briefly in Australia pre-war, after the untimely death of the wealthy Briton at the wheel of a Mercedes during the 1924 Italian GP.

I’ve always been blown away by Shepherd’s work when I have tripped over it. Discussions with Bob King about the Miller led us to his copy of Graham Howard’s book (Racing Cars Through The Years) of Shepherd’s drawings published in 1993. Diana Davison/Gaze made available the Davison Family Collection of Shepherd images to Howard to allow the book to be published.

So little is known about Bob Shepherd we figured it was time to put something on the record more widely available than those lucky enough to have a copy of that marvellous book.

I asked Bob to do a bio, but after re-reading Graeme’s Introduction in the book, he said “How can I top that!”

So, here it is, Howard’s words shortened only a smidge, and a small selection of drawings which I think demonstrate Bob’s mastery of his art. The descriptions of each car are exactly as they appear in the book.

MG R-type Midget, 1935. Zoller blown at 24-28lbs, MG’s tiny single-cam four (57mm x 73mm, 746cc) delivered 120bhp – more than the Q-type’s leaf-spring chassis could handle. Hence the all independent 750cc R-type, MG’s first ever pure-racing car, with far-sighted backbone chassis and torsion bar parallelogram wishbone suspension. Drawing appeared in the March 1958 AMS.
Bob Shepherd in 1960

“To countless Australians Bob Shepherd the artist was also Bob Shepherd the historian, primarily because of the series of articles he wrote and illustrated for the magazine Australian Motor Sports, starting in August 1946 and continuing for than 15 years.

With a distinctive combination of knowledge, passion and flair, he carried his audience into the magic world of the racing and high performance cars of Europe and (to a lesser degree) America, broadly from the time of the French Grands Prix through to the end of the 1930s. Month by month, car by car, Shepherd spread before his readers the treasures of the Vintage era and the legendary cars of the 1930s which laid the foundations for post-WW2 motor racing. Over the years he gave AMS readers an education in motoring history unrivalled anywhere in the world.

Not that he confined his energies to Australia. He sent drawings overseas to MotorSport and to the Bugatti Owners Club journal Bugantics and was singled out by British engineer-historian Laurence Pomeroy, in the second edition of his milestone book The Grand Prix Car, for having been particularly helpful in suggesting improvements and corrections to the original work. The significance of this acknowledgement needs to be emphasised – that, while far removed from the Northern hemisphere’s factories, archives and authors, Shepherd was nonetheless the master of details which had eluded even the most eminent of British motoring historians.

Even more remarkable was that Shepherd had no formal training, either as an engineer or as an historian, or for that matter as an artist. The writing and illustrating of his monthly AMS pieces, and the maintenance of his correspondence with enthusiasts around the world, was done from the lounge room of his house in the time he had spare from family life and his job as a stores clerk.

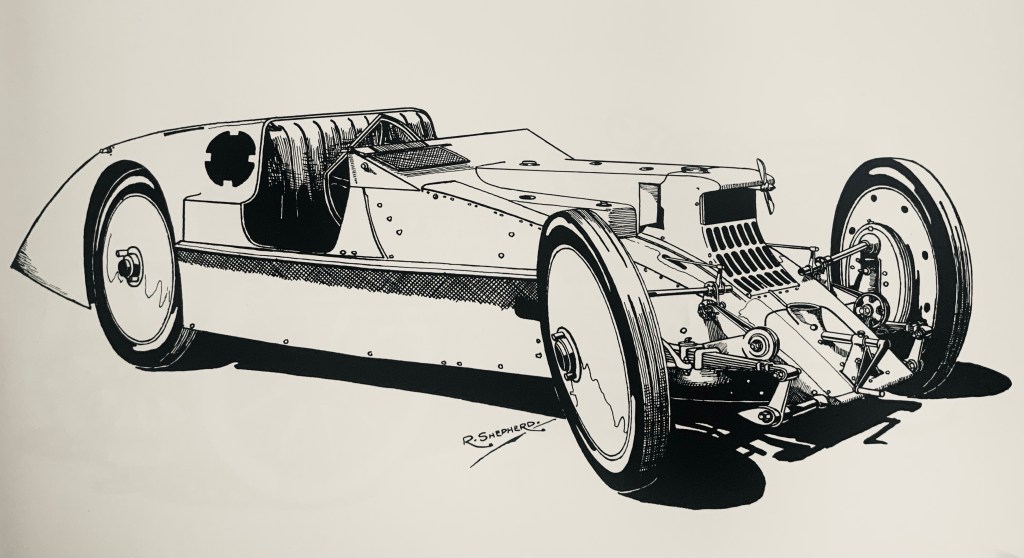

Itala 12-cylinder fwd, 1926. Tested but never raced, these innovative cars would have competed against such classics as the 1.5-litre Delages. They were true single-seaters with fully independent suspension; the supercharged V12 engines were built in 1500cc and 1100cc form, the single central camshaft flanked by its two rows of horizontal valves. Drawing appeared in the August 1952 AMS.

He was born in 1914 in the Sydney suburb of Pagewood, where his father was a hairdresser. He was the oldest of three children; he and his brother Sydney were each dux of Daceyville Primary School in their respective years, and Bob was later also dux of Cleveland Street High School, but university was out of the question. Cars and drawing were his great interest, but work in the motor trade was impossible to find: eventually a family friend heard of a job at Davis Gelatine, and he worked there until his retirement in 1979, holding a staff position from 1964. He married Joan Manhood in 1940, they had three children.

As a schoolboy Shepherd had started writing to overseas car manufacturers for catalogues; these catalogues, his voluminous international correspondence, and dissected copies of The Motor, The Autocar and MotorSport formed the basis of his archives, kept in rows of manila folders in large glass-fronted cupboards.

His drawings were made using the simplest of methods and materials. A pencilled grid, or a pair of dividers, would be used to transfer dimensions and proportions from the chosen source photograph onto a sheet of his favourite cartridge paper, and the drawing would start in HB pencil, which would be rubbed out after the final version had been inked-in using mapping pens. All his work was freehand – there were no rulers or artificial aids like French curves. He did most of his drawings on Sundays after church, working for four to five hours, resting his paper on a wooden board and taking advantage of natural light. It would usually need two Sundays to produce a drawing; those for AMS were sent to Melbourne (always by registered mail) in cardboard cylinders accompanied by the text for his article which – like his letters – would be written in copperplate script, blue ink on unlined paper.

He was not comfortable drawing vehicles in action, or drawing people, and he showed no interest in drawing aircraft or motorcycles. Almost all his work was black and white: AMS itself was not printed in colour. In some drawings he used a wash, rather than hatching, to provide shading: when he did use colour, for example for private commissions, it was with complete success. His black box of watercolour pigments, bought when he was 12, is still in use by one of his grandchildren.

Bob Shepherd’s colour drawing of a 1922 Bugatti Type 30 (B King Collection)

Delage 2-litre V12, 1923-1925. After two relatively unsuccessful years as unsupercharged cars, the V12s were supercharged for the 1925 season (as illustrated) and finished 1-2 in the French Grand Prix. The four-camshaft engines (51.3mm x 80mm, 1984cc), unusual in having the exhausts in the centre of the Vee, gave about 190bhp in supercharged form. This drawing appeared in the June 1954 AMS.

As well as his work for AMS, he provided illustrations for many club magazines and illustrated ‘Vintage Types’ for the Vintage Sports Car Club of Australia, he was one of its founding members. His first published drawings may have been the series ‘Australia’s Best Known Speed Cars’ in Motor in Australia and Flying in 1939. He was sometimes asked to suggest shapes for rebuilds or of new racing cars. As a boy he had watched racing on the banked concrete saucer at Maroubra but went to few race meetings in later years. More surprisingly, he never owned a car (although he had part shares in several), seldom drove, and did not hold a licence, he never travelled outside New South Wales.

Yet he was in no way reclusive or narrow in his interests. While a reluctant partygoer, he was a most entertaining teller of stories, had an astonishingly broad general knowledge, was a keen reader, loved opera (he did his drawings with ABC radio playing) and was well enough known as a fisherman for there to be an unofficial ‘Shepherd’s Rock’ at nearby Kurnell.

There was little to single out the family house in Maroubra Bay Road. Shepherd took his research seriously – he shared in some ferocious debates in his correspondence columns – but there was absolutely no pretence; there was nothing in his manner to hint that here was one of the foremost authorities on motoring history. Joan and Bob Shepherd made everyone most welcome, whether they were famous names or awed tram-travelling young admirers (for which all those young admirers remain very grateful).

Voisin Grand Prix, 1923. Gabriel Voisin was a pioneer French aviator and aircraft manufacturer, as well as an innovative car maker. His cars for the 1923 French GP had only around 75hp from their 2-litre six-cylinder Knight double-sleeve-valve engines, but had aerodynamic body work and disc covered wire wheels and a true monocoque chassis of plywood and sheet metal. The drawing appeared in the September 1956 AMS.
This is a spread from Bob Shepherd’s Maserati scrap-book, a simple but effective way of archiving material, I guess we all have one, or many! (D Zeunert Collection)

Like many remarkable people, Bob Shepherd was a paradox. He almost never drove a Vintage car, seldom went to the Vintage club meetings, yet was – without realising it – the Australian Vintage movement’s finest publicist. He never travelled outside Australia, never saw any of his beloved cars in their heyday, yet he knew them in minute detail and could picture them with elegant clarity. He had rare gifts yet remained a modest and gentle man. With this book we remember that man.”

Graham Howard, Sydney, 1993.

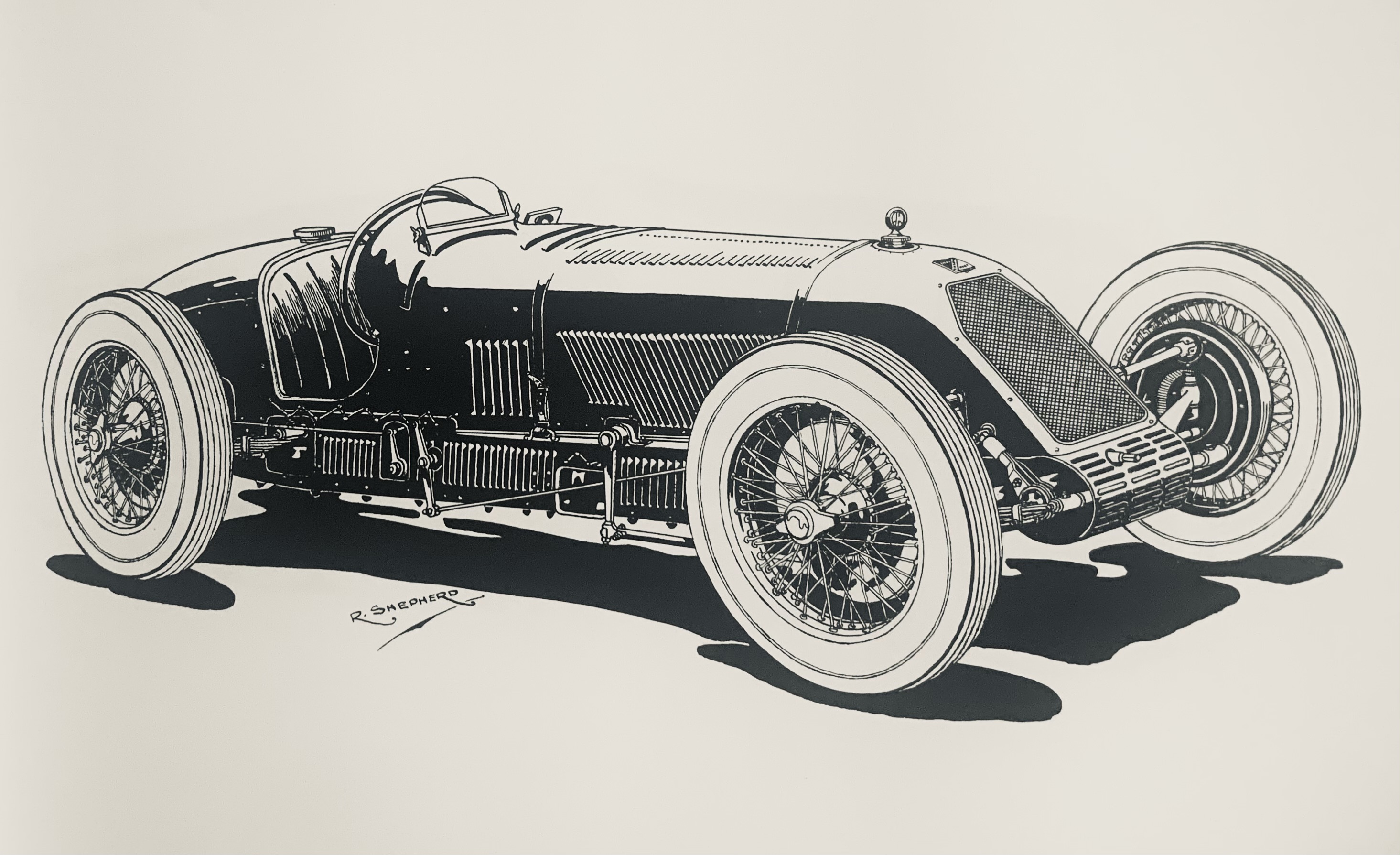

Talbot-Darracq 1.5-litre, 1926 (above). Continuing Darracq’s pre-1914 racing tradition, the company’s cars for the 1926 1.5-litre formula were 140bhp supercharged twin-cam straight-eights (56mm x 75.5mm, 1488cc). Engine and gearbox were slightly offset to the drivers left. A much modified version of one of these cars (still in 2021) survives in Australia, imported after WW2. The drawing appeared in the October 1951 AMS.

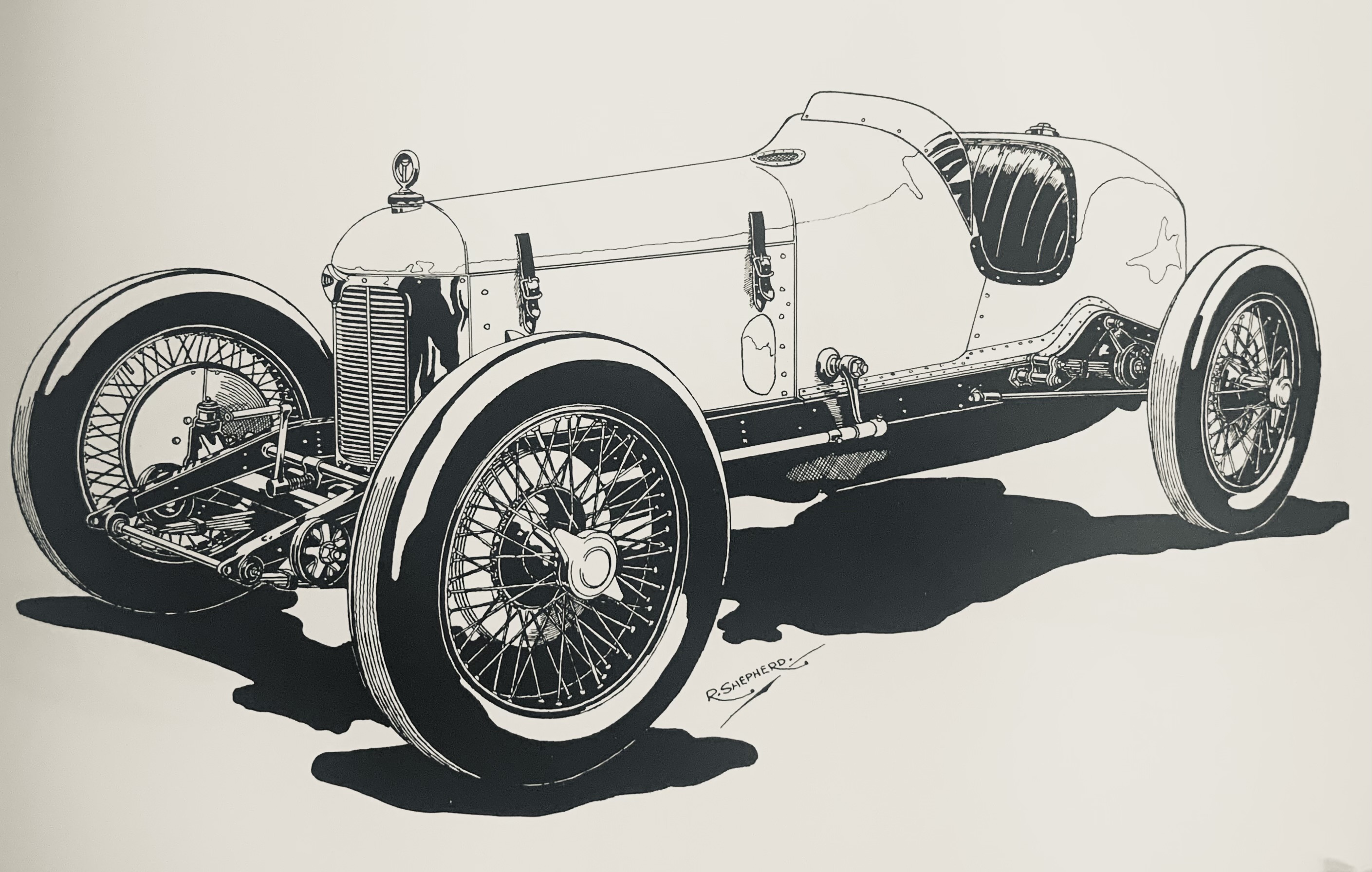

Oops, nearly forgot the Miller 122 at this pieces outset. Miller, 1923. Influenced by Fiat, Harry Miller used two valves per cylinder in hemispherical chambers when he scaled down his 183-cubic inch straight-eight for the 122-inch (2-litre) limit applying from 1923, obtaining an unrivalled 120bhp. Supercharged from 1924, and reduced to 91c.i. from 1926, these engines won Indianapolis in 1923, 1926, 1928 and 1929. That drawing appeared in the April 1957 AMS.

Credits…

‘Racing Cars Through The Years’ Bob Shepherd and Graeme Howard, Bob King Collection, David Zenuert Collection

Tailpiece…

Finito…
