SPA 1907 GP car, 14.75 litre, 4 cylinder engine

Ernesto Ceirano and his mechanic race their SPA during the Brescia road race on 2 September 1907…

The 1907 running of the Coppa Velocita di Brescia was 8 laps of a testing, dusty, gravel 23.4 mile course.

1907 was the second season of Grand Prix racing, events organised that year were the French Grand Prix, Targa Florio, Moscow-St Petersburg, Kaiser Preis, Ardennes Circuit, Coppa Florio and the Coppa della Velocita.


The road race started in Brescia, Lombardy and then passed through the towns of Montichiari, Castiglione, Lonato, Rezzato and then returned to Brescia. The Automobile Club of Milan organised the event which took 1,100 volunteers to run, it gives some idea of the resources required to run these road events even by the relaxed ‘safety standards’ of the day.


Cagno in the winning Itala (Getty)

Held on September 2 1907 the race was won by Alessandro Cagno’s Itala from Victor Demogeot in a Darracq with Rene Hanriot third.

Born into modest circumstances Cagno was said to be the third FIAT employee with roles as test driver, Giovanni Agnelli’s personal driver and works racer. He also competed successfully in powerboats and was an entrepreneur-an aviation pioneer who survived to a ripe-old age, he died in 1971.













J Alezy, Clement Bayard during the Coppa di Velocita. A 1905 Gordon Bennett car- 12.8 litres, T-head developing circa 120bhp @ 1200 rpm (Getty)

Adolphe Clement was a wealthy businessman who owned the rights to manufacture Dunlop Tyres in France. In 1896 he was part of a partnership which took over the Gladiator Cycle Company. A motorised cycle soon turned into the manufacture of cars in 1899, by 1907 the company was building nearly 3000 cars per year


The CB race team was lead by Albert Clement, Adolphe’s son, who died whilst practising for the French GP in May 1907. The 1907 GP cars used in the Coppa were those built originally for the Gordon Bennett races in 1905. They were 12.8 litre, T-head engines developing a reputed 120bhp at 1200rpm.


Victor Demogeot, Darracq. Engine 15,268cc, 4 cylinders ‘ bi-cylinder’ blocks, OHV, brake on transmission (Getty)

Pierre-Alexander Darracq (1855-1931) was one of the first to mass-produce cars, his first fortune made from a bicycle business named ‘Gladiator’, the business later acquired by Adolphe Clement and others. In 1904 Darracq were the most successful manufacturer in the world building 1600 cars, but he never learned to drive! For Alfisti his Italian subsidiary is significant in providing the origins of Alfa Romeo.

He sold the company to British interests in 1913 having lost significant amounts of money with cars powered by a Henriod rotary-valve engine design which failed dismally.


Caricature of M Darracq dated 22 December 1901 (Emile Cohl)




















Demogeot’s Darracq at speed (Croci)




































Felice Buzio, Diatto-Clement. These cars were created by a partnership of Clement and Diatto, Turin coach builders, between 1905 and 1909. They were Clements built under licence, specification of this car unclear. In 1909 C-B left the business, the cars were renamed ‘Societa Fonderie Officine Frejus’ catchy innit! (Getty)

Etcetera…


Cagno, Itala

In 1904 Matteo Ceirano left the company he founded with his brothers to create his own marque, Itala. In 1906 he left Itala to create ‘SPA’ Societa Piemontese Auomobili with chief designer Alberto Ballacco. I am not certain of the specification of the car pictured in this articles opening shot, perhaps the car is one of two 6 cylinder models they produced that year, perhaps 4 cylinders. Contributions as to spec gratefully received.









































Credit…

Topical Press, Getty Images

Tailpiece: Cagno again in the victorious Itala, grandeur of the occasion clear!…







Some of Ferrucio Lamborghini’s artisans completing the chassis of the prototype Lambo P400 Miura in Sant ‘Agata October 1965…

The car was famously shown as a chassis only, this very one, at the Turin Show in 1965 and was a ‘starlet’ even unclothed. It made its bow ‘dressed’ by Marcello Gandini at Geneva in 1966, only four months later.


Credit…

Keystone, Klemantaski Collection

Tailpiece: The new Lamborghini factory near Bologna in 1963…





Smile for the camera boys! The presence of local lads Bobby Unser and Mario Andretti at Watkins Glen in 1968 must have added 25,000 punters to the gate?…

A good deal of interest was added to the end of season 1968 races by the participation of American aces Mario Andretti and Bobby Unser at the Italian and US Grands’ Prix on 8 September and 6 October.


Andretti checking out his nice, new Simpson Team Lotus overalls, Hill convinced the Hinchman product the better Nomex choice! Monza 1968 (Peter Darley)

Mario raced a third works Lotus 49B and Unser a factory BRM P138 vacated by Richard Attwood. Both did quick times at Monza before returning to the US to race in the ‘Hoosier 100′ at Indy but were precluded by racing back at Monza due to a rule which forbade drivers competing in another event within 24 hours of a GP.


Bobby Unser and Mario Andretti enjoying each other’s company prior to the ‘Michigan 250’, at Brooklyn, Michigan International Raceway on 13 October 1968. Ronnie Bucknum won in an Eagle Offy with Mario 2nd in a Brawner Offy. Its clearly not the chassis Mario is sitting in here which is Ford engined. Unser DNF in another Eagle Offy  (Upitis)

Unser was primarily a USAC racer whilst Mario mixed road racing with a diet of speedway events on dirt and champcars as well as the occasional NASCAR event. I wrote an article about the greatest all-rounder a while back, click here to read it; https://primotipo.com/2014/10/24/the-most-versatile-ever-magic-mario-andretti/


Unser during the USGP at Watkins Glen 1968, its a pity he didn’t seek other F1 opportunities, his speed and ‘tiger’ potent down the decades, BRM P138. DNF engine (Upitis)


Mario put the ‘cat amongst the pigeons’ by plonking the Lotus 49B Ford on pole ahead of all the aces of the day. Unser’s weekend didn’t start so well, boofing the P138 in the first session of practice, he qualified 19th. His cars engine failed in the race on lap 35.


Andretti jumped away from the start well but was headed by Jackie Stewart by the end of the first lap, on lap 14 his Lotus was losing its bodywork causing a pitstop which dropped him to the back of the field. The Lotus’ clutch failed on lap 32. Jackie Stewart’s Matra MS10 Ford won from Hill’s Lotus 49B and John Surtees’ Honda RA301.


Graham Hill at the pit counter whilst Colin and Mario arrive at a pole winning setup, Watkins Glen 1968 (Upitis)

Andretti impressed Colin Chapman bigtime with his speed, mechanical feel and sympathy. It wasn’t until 1976 that the ‘planets aligned’ and eventually the two great men worked together again. The Lotus 77 and 78/9 wing/ground effect cars the result, not to forget the 1978 World Championship of course!


Osterreichring 12 August 1979, DNF clutch failure without completing a lap in the race won by Alan Jones’ Williams FW07 Ford (Schlegelmilch)



Lotus 79 Ford, British GP, Brands Hatch 1978. Checking the tyre temps, Andretti famously brought ‘stagger’ to F1, DNF here with engine dramas, Carlos Reutemann took a Ferrari 312T3 win (Schlegelmilch)

Credits…

Alvis Upitis, Rainer Schlegelmilch, Peter Darley

Tailpiece: Hi-winged Lotus 49B Ford, Watkins Glen 1968, Andretti…








sew

There has to be an interesting article in evolution of the GeePee cockpit and controls over time, does there not? Here its the tiller of the Johnny Herbert’s Stewart SR3 Ford on the grid of the 1999 Spanish GP at Barcelona on 30 May…

He retired from the race with transmission failure on lap 40 of the 65 laps, the event won by Mika Hakkinen’s McLaren MP4/14 Mercedes. Rubens Barrichelo was generally the quicker of the two Stewart drivers that season but Johnny broke through for the teams first and last Grand Prix win at the Nurburgring on 26 September.

talbot

(Adoc/Corbis)

Fifty years before, the state of the art is demonstrated by one of the Talbot Lago T26C’s, being fuelled on the Albi GP grid on 10 July 1949, quadrant for the pre-selector ‘box and chassis plate clear below the wheel in shot. Wonderful image isn’t it!?

Credits…

Tobias Heyer, Adoc/Corbis

richie

(Schlegelmilch)

One of the BRM mechanics shows his mates some naughty pictures on his iPhone 6S, Zandvoort, Dutch Grand Prix July 1965…

The shot says everything about the regard the BRM team had for their old driver. By that stage Richie was driving for Honda, famously the American won the very last race of the 1.5 litre F1 for Honda in Mexico City that year.


Stewart #12 and Hill #10 BRM P261’s in the 1965 Zandvoort paddock (Schlegelmilch)

At Zandvoort the growing competitiveness of the RA272 was again on display, Richie qualified the car 3rd and finished 6th, the race won by Jim Clark’s Lotus 33 Climax.

The BRM’s finished 2nd and 4th, Stewart in front of Hill, both in P261’s. Dan Gurney was 3rd in a Brabham BT3 Climax.

Checkout my article on the early Honda GP cars;

https://primotipo.com/2014/12/12/honda-ra271272-1-5-litre-v12-19645-gp-cars/

Credits…

Rainer Schlegelmilch

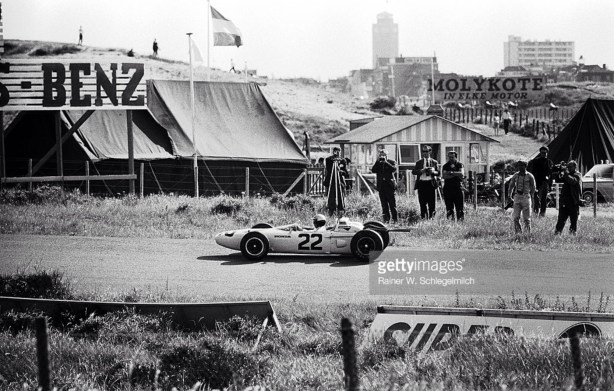

Tailpiece: Richie Ginther’s Honda RA272 during the Dutch GP , 18 July 1965, Rainer has captured such an unusual view of the North Sea circuit…


(Schlegelmilch)






(VHRR Collection)

Murray Carter blasts his Carter Corvette sporty across the top of Mount Panorama in October 1961, just before the daunting drop into Skyline. The cars fuel injected, 5 litre, 300bhp V8 echoed between the eucalypt trees and into the valley below…

Its such a wonderful shot, he looks lean and lithe-he is only a little bloke, you can see the injection trumpets and ‘maggie’, sitting proud of the unpainted, aluminium bonnet fashioned by Murray’s own hands.

Murray was running 2nd in the 75 mile Australian Tourist Trophy on 1 October, behind Bib Stillwell’s 2.5 litre Cooper Monaco Climax and Frank Matich’s Jag D Type before retiring on lap 8 with diff failure in the 19 lap event. Look closely at the photo and you can see the smoke from a differential which is about to cry ‘enough’!

It was a classy field of great depth, the competitiveness of Murray’s self constructed car amongst the factory built Jags, Aston’s, Coopers, Maserati and Lotus’ clear; as was its top speed, 154mph down Conrod during practice! Stillwell won from Matich and Bob Janes Maserati 300S.

Carter has been around forever. Born in 1931, i thought he looked like an old codger at the first race meeting I attended, the 1972 Sandown Tasman round, the ignorance of a 14 year old. He raced his Ford Falcon GTHO Phase 3 at that meeting in the ‘South Pacific Touring Car Championship’, a series of races held throughout the Australian Tasman Rounds.


Carter racing his Ford Falcon GTHO Phase 3 351 V8, at Hume Weir on the Boxing Day weekend in 1971, this is the car in which I first saw him race at Sandown a month or so later (Dick Simpson)

An out and out racer, he still runs a Corvette C5 in Victorian race meetings the car prepared in his Moorabbin workshop, in Melbourne’s southern bayside suburbs, where all of his cars have been built down the decades.

Murray raced other cars but for years was a Ford stalwart, never a factory driver but the recipient of plenty of assistance from Broadmeadows. He was no slouch either, 2nd in the Australian Touring Car Championship in 1975 in a Falcon GT 351 Coupe and 4th in 1980 in a similarly powered Ford Falcon XD, his best performances. At Bathurst his best finish was 3rd in 1978 in a Ford Falcon XC GT Coupe this time sharing with single-seater ace, Kiwi, Graeme Lawrence.


Carter pictured in his Ford Falcon XB GT351 Hardtop/Coupe at Hell Corner, Bathurst in 1975. He was 2nd in the ATCC that year in this car, the title won by Colin Bond in a Holden Torana LH SLR5000/L34 5 litre V8. At Bathurst he shared his car with Ray Winter, a very quick F2 driver, Murray qualified the car 7th but DNF after only 53 laps. Brock and Brian Sampson, another driver who has raced until a road accident put paid to his racing, forever, won in an L34 Torana (unattributed)

Like so many drivers he started racing bikes, campaigning a Triumph Tiger 100 at circuits like Fishermans Bend in 1948, aged 17 before switching to cars with a Jaguar XK120.

In search of more speed but as a panel beater unable to afford a factory car he set forth to create a more competitive mount. His original intention was to build a mid-engined single-seater to compete in Gold Star events, Australia’s National Drivers Championship, which was run to F Libre at the time.

Unable to locate a suitable transaxle to cope with the 283cid Chev’s power and torque, Murray placed the relatively light, small block Chev well back in his space frame chassis locating the 4 speed box behind it. He achieving 50/50 front/rear weight distribution that way.


Murray aboard the car in its original single-seater form at Phillip Island in March 1960. The car was all but destroyed at this meeting after Murray and Bib Stillwell swapped contact. Note the Cooper wheels, vestigial body and short exhausts. Very simple-and fast. Spaceframe chassis, upper and lower wishbone front suspension with coil spring/damper and well located solid rear axle again with coil spring/dampers. Other car on the grid anyone? A Cooper Bristol perhaps? (autopics.com)

The car raced in chassis form with vestigial panels to support a race number at Fishermans Bend in October 1959. It was immediately competitive, even achieving 4th place in the Philiip Island Gold Star round, behind the Coopers in December 1959.

Back at Phillip Island in March 1960, he had an argument about local real estate with Bib Stillwell and came off second best, rolling the car and all but destroying it.


Murray racing the Carter Corvette in a support event, at the international meeting held at Ballarat Airfield, Victoria in the summer of 1961, 12 February. Is that George Spanos’ Elfin Streamliner Coupe in the pits-he still owns that car 60 years later! The feature race, the Victorian Trophy was won by Dan Gurney from teammate Graham Hill, both in 2.5 litre BRM P48’s (autopics.com)

Looking at the plethora of Cooper T51’s coming into Australia and at the growth of sportscar racing, he decided to rebuild the car as a sportscar constructing the functional aluminium body himself. The Carter Corvette reappeared at in October 1960.

The car was immediately successful, winning races and holding lap records around the country.

When CAMS adopted Appendix K, GT Racing in Australia, Carter modified the car with vestigial coupe bodywork. Whilst it looked as ugly as sin it remained fast finishing the one race 1963 Australian GT Championship in 2nd place at Calder. The event was won by Bob Jane in his factory built LWT Jaguar E Type, a car acquired with rather a greater budget than Murray’s beast!


Carter in the ‘orrible looking but fast Carter Corvette after the addition of a roof to allow it to comply with new regs introduced by the CAMS. Windscreen thought to be an FE or FC Holden rear window mounted upside down. The boy from Moorabbin was a clever improviser! (Dalton)

Eventually the car fell into disuse but still exists, wonderfully restored by the talented Lou Russo in 2007 or thereabouts, and driven by his son Michael in historic events. Meanwhile, Murray Carter, forever young at 86, races on…


Carter pictured with one of his old ‘HO’s lovingly restored, in recent times. Car is the Phase 3 HO pictured above at Hume Weir, in its war paint carried during the 1972 Bathurst 500 in which Murray was 10th. Globe alloy wheels homologated not long before the ’72 500 made these beasts look a treat! (carcavalcade.com)

Credits…

VHRR website, Stephen Dalton Collection, Peter D’Abbs/autopics.com

John Medley ‘Bathurst: Cradle of Australian Motor Racing’

Tailpiece: Bob Jane’s lightweight E Type leads the Carter Corvette at Calder…


(Dalton)








Tony Rudd and one of the BRM crew either sorting a problem or firing up Harry Schell’s P25 so the Bourne engineering chief can get back to his hotel, Monaco 1959…


Behra’s Ferrari Dino 246 you can just see on the left then Moss and Brabham, both Cooper T51, #48 Phil Hill Fazz Dino, #22 McLaren and #32 Trintignant Coopers T51. #16 and #18 Schell and Bonnier in BRM P25’s outside Brooks Dino. #20 Flockhart P25 BRM and behind him Graham Hill’s Lotus 16 Climax (unattributed)

In a sign of the times Jack Brabham won the race from Tony Brook’s front engined Ferrari Dino 246, Jack and third placed Maurice Trintignant in mid-engined Cooper T51 Climaxes. Jack of course took the first of his drivers titles that year and Cooper the constructors.


Jack on his own on the Monaco quayside in 1959, on his way to his first championship GP win, Cooper T51 Climax. His last the 1970 South African GP at Kyalami (Cahier)

It wasn’t a great weekend for the BRM boys; all three cars retired, Ron Flockhart, Jo Bonnier and Harry with a spin, brake’s and an accident and a split fuel tank the causes respectively.

mon butt

Stunning shot of Tony Brooks’ Dino chasing Harry Schell’s BRM into casino Square, Monaco 1959 (Heritage)

brm cutaway

BRM P25; spaceframe chassis, 2491cc DOHC, 2 valve, Weber fed 4 cylinder engine developing circa 275bhp@8000rpm, 4 speed ‘box. Suspension; upper and lower wishbones and coil spring/dampers and De Dion and coil spring/dampers at the rear. Front disc brakes, single disc on the transmission at the rear (C La Tourette)

The team broke through for its well deserved first win in 1959, Bonnier took the next race, the Dutch GP on 31 May, beating Jack and Masten Gregory in Cooper T51’s.

mon babes

BRM babes; hard for the mechanics to focus surrounded by this lot. The photo has done the rounds but i’ve never read the identity of said poppets if anyone can advise, BRM P25, Monaco 1959 (unattributed)

Credits…

Klemantaski Collection, Cahier Archive, Heritage Images, C La Tourette

Tailpiece: Harry Schell’s BRM P25 clips the inside of the kerb on entry to a corner in his pursuit of Cliff Allison’s Ferrari Dino 246 at Zandvoort in 1959, JoBo’s P25 took a famous win, Harry DNF, Allison 9th…







Great to see Innes Ireland maintain focus AND have the head space to follow Sirling Moss home in the  1960 US Grand Prix…

Bit of a tight fit in the cockpit of his 18, it would have been a bit more comfy in his 19 Sportscar, albeit not as much fun.

He  won the USGP in his Lotus 21 Climax the following year, the Scots only championship GP win. His talent deserved more but life was for living, he was a champion with joie de vivre!

Innes took Team Lotus first GP win in the process so ’twas a big weekend for Innes, Chapman and the Lotus 21.

The photo below is Ireland leading Dan Gurney’s Porsche 718 and Graham Hill’s BRM P48/57 Climax on his way to victory in 1961.


(unattributed)



Credit…

Dave Friedman, Getty Images

Tailpiece: Innes, Silverstone, circa 1961…


(Getty)




The spare Lotus 48 Ford FVA, chassis 48-2 during the Eifelrennen Euro F2 round in the Nurburgring pitlane on 24 April…

Oliver’s Lotus Components entered Lotus 41B was the most successful of the Lotus works entries, he finished 11th. The Team Lotus duo of Graham Hill were 15th with Clark retiring with fuel metering unit failure. The latter two drove Lotus 48 Ford FVA’s, Oliver’s car was an update of Lotus’ 1966 contender. Jochen Rindt won the race in a Brabham BT23 FVA.


Oliver on his way to 4th place and first F2 home during the Oulton Park Spring Trophy. His Lotus 41B was behind the Brabham Repco’s of Jack and Denny Hulme, and the Honda RA273 of John Surtees. 15 April 1967 (Brian Watson)

Oliver raced for the Charles Lucas factory Lotus F3 team in the second half of 1966, driving a Brabham BT18 Ford and Lotus 41 Ford finishing third in the Les Leston British F3 Championship, Harry Stiller won it from Chris Lambert.

For 1967 Oliver contested the British F2 Championship, finishing 5th, as well as many Euro F2 rounds, for 1968 he was a member of the ‘works’ F2 team racing Lotus 48’s together with Jim Clark and Graham Hill.


Lotus Team compound during the 25 June 1967 Reims GP weekend. The white car is Ollies Lotus 41B 7th. Jim Clark is talking to Jackie beside his car #8 Lotus 48 DNF, the car under the cover is the spare carrying #8. Hill is talking to the mechanics next to his chassis, 2nd. The race was won by ‘F2 King’, Rindt in a Brabham BT23 FVA (unattributed)

Then, in the worst of circumstances he ascended to the F1 team upon Jim Clark’s death at Hockenheim on 7 April during the second round of the 1968 Euro F2 Championship.

Oliver was 5th in the championship won that year by Henri Pescarolo’s Matra MS5 Ford, Rindt the dominant driver, as ever, in the category but ineligible for the title as a graded driver.

Olivers first Gold Leaf Team Lotus F1 race was the Monaco Grand Prix in which he qualified his Lotus 49B Ford 13th but was out on the first lap after colliding with Bruce McLaren.


Oliver Q10 in the Dutch dunes where the Lotus 49B made its victorious debut in Clark’s hands the year before. He was non-classified having done insufficient laps. Jackie Stewart won in a Matra MS10 Ford (unattributed)

In a character building year, he had a monster accident at during French GP practice when the cars rear wing support failed-pinging the fence of a chateau on an amazing 125mph trip thru the Rouen countryside. He was able to walk away but the car was hors ‘d combat, so that was his meeting.


Oliver reflecting on life after a wild, wild, wingless ride thru rural France. Whilst his mechanic reflects on the long night ahead (sic) Jackie is sussing out his DG300 box and rear suspension which is 50 metres back up the road from whence he came (unattributed)


The chateau gates Oliver hit are to the right past the Lotus 49’s rear end (unattributed)


Chapman, Hill and Oliver during the tough 1968 season (unattributed)

His best result from a year in which Graham Hills tour de force of leadership gave him and the team world titles was Q2 in his home race at Brands Hatch, the race won by Jo Sifferts Rob Walker Lotus 49B, and 3rd in the season ending Mexican GP, Hill was the winner of that race.


Oliver DNF gearbox after qualifying 2nd, ahead of Jo Siffert 1st both in Lotus 49B’s, Chris Amon 2nd, Ferrari 312, the last car in the group Surtees Honda RA301 5th (Getty)


Oliver leads Pedro Rodriguez BRM P133, 3rd and 4th in the 1968 Mexican GP, 3 November. Hill won from Bruce McLaren (unattributed)

For 1969 Jackie was off to BRM, Jochen Rindt took his Lotus seat for 1969 in an ‘all star’ team with Hill. It was a tough year in  1969 as BRM had  ‘lost their way’ in a design sense, the P133/138/139 uncompetitive, better was to come  in 1970 with the Tony Southgate designed P153.


Oliver, BRM P133 Monaco GP 1969 , Q13 and DNF with an accident of lap 1. Hill won in a Lotus 49B Ford (Schlegelmilch)


Jack Oliver giving his brand new BRM P153 V12 plenty during the season opening South African GP weeeknd at Kyalami in March 1970. Car looks gorgeous without its Yardley branding! Brabham won in a Brabham BT33 Ford, Oliver DNF with gearbox dramas (unattributed)

Chapman waxed and waned between monocoques and space frame chassis for his ‘small bore’, production single-seaters throughout the 1960’s…

Whilst the marketing advantage of a you-beaut monocoque ‘just like Jim Clark’s Lotus 25’ was clear, equally the relative cost of repair of a spaceframe, especially in the field, a long way from the Norfolk was something which wasn’t lost on a lot of customers. Local garagiste ‘Louis the Torch’ may have been able to fix bent RF corner tubes, but he was less likely to be able to assist with curved sheet metal/aluminium complexities…

Statistically the most successful FJ/F3/F2/FB cars of the 1960’s were Ron Tauranac’s spaceframe Brabhams which were built to a consistent design philosophy throughout.

The cars were simple, strong, fast and forgiving straight outta the box. The latter because Jacks ‘finely tuned arse’ in testing contributed the ex-factory suspension settings which could be relied upon as a competitive, starting position by customers. Plenty of championships were won by not straying too far from them.


Jim Clark, Pau GP, 25 April 1965, victorious in his Lotus 35 Cosworth Ford SCA from Richard Attwood’s Lola T60 and Jochen Rindt’s Brabham BT16, both also SCA powered (unattributed)




































Pau GP, ’65 JC ponders setup changes on his monocoque Lotus 25 inspired 35 (unattributed)









Lotus Components 1965 F2/3 car was the monocoque 35, a modified version of the 1964 32, with Clark winning plenty of races in the car including the  Trophee de France, the Scot won 3 of the 4 rounds.

Aussie John Joyce (later the designer of magnificent Bowin racing cars when he returned to Australia) with assistance from Dave Baldwin were briefed to build a spaceframe F3/F2 frame for 1966 designated the 41. The Lotus brains trust were having second thoughts about monocoque chassis suitability in the junior classes. Issues were cost, weight and utility and expense of repair. The 41 was raced from 1966 to 1968 and whilst a good car didn’t have the factory support needed to further develop it, the exception the Lotus Components 41 raced by Oliver. The chassis was also raced in the US FB class.

The works Lotus F2 car for 1967, the first year of the 1.6 litre F2, the Lotus 48 was a monocoque, the car Oliver raced was the customer 41B, a spaceframe.

Both cars were comprehensively blown off by Tauranac’s Brabham BT23 which had some mighty fine pilots; aces like Rindt, but also coming drivers who extracted all the performance the car had to offer. The Matra F2’s, the MS5 and MS7 were also fairly tidy, fast (monocoque) devices…


Leo Geoghegan, Australian Gold Star Champion in a Lotus 59 Waggott 2 litre in 1970. Here at Oran Park, Sydney that year (oldracephotos.com)

Chapman’s 1969 F3/F2 car, the Dave Baldwin designed 59 was a spaceframe. Its successor, the final Lotus production racing cars produced in volumes, the 1970 69 was a spaceframe for FF/F3 (spaceframe chassis are mandated in FF) and a monocoque for F2. Go figure!? Mind you, the 59 and 69 were very effective, successful tools whatever the variant.


Jochen Rindt doing his thing in his Lotus 69 FVA during the Crystal Palace Euro F2 round, the ‘London Trophy’ on 25 May 1970. Jochen’s car DNF battery lead, Jackie Stewart’s John Coombs Brabham BT30 FVA won the race. The 69, a monocoque, was a mighty fine car in the hands of the works and customers, competitive into 1971 (unattributed)

These Lotus chassis changes are only of arcane interest over the decade I guess. Perhaps the reasons for the choices were simply the opinions and preferences of the individual designer who worked on each cars design or layout, not that I am suggesting Chapman ever lacked clarity about direction or objectives in terms of giving design direction!

In terms of the general specifications of F2 cars of the early 1.6 litre Formula, those and that of the engine de jour, the Ford Cosworth FVA 1.6 litre unit are well covered in my article on the Lotus 48, click here to read it, there is no point repeating it all;

https://primotipo.com/?s=lotus+48

ollie

Lynn Oliver, Monaco 1968. Husband Jackie and Bruce McLaren collided on the first lap, both DNF. Car is Lotus 49B Ford, Graham Hill’s sister car won (Schlegelmilch)

Credits…

Rainer Schlegelmilch, Brian Watson, oldracephotos.com, Getty Images

Tailpiece: Ollie’s Lotus 48 aerobatics at Klostertal during the ’67 German GP weekend, he was the F2 category winner…


In a great performance Jackie was 5th in a Lotus 48, the race won by Denny Hulme’s Brabham BT24 Repco (Schlegelmilch)




(Rod MacKenzie)

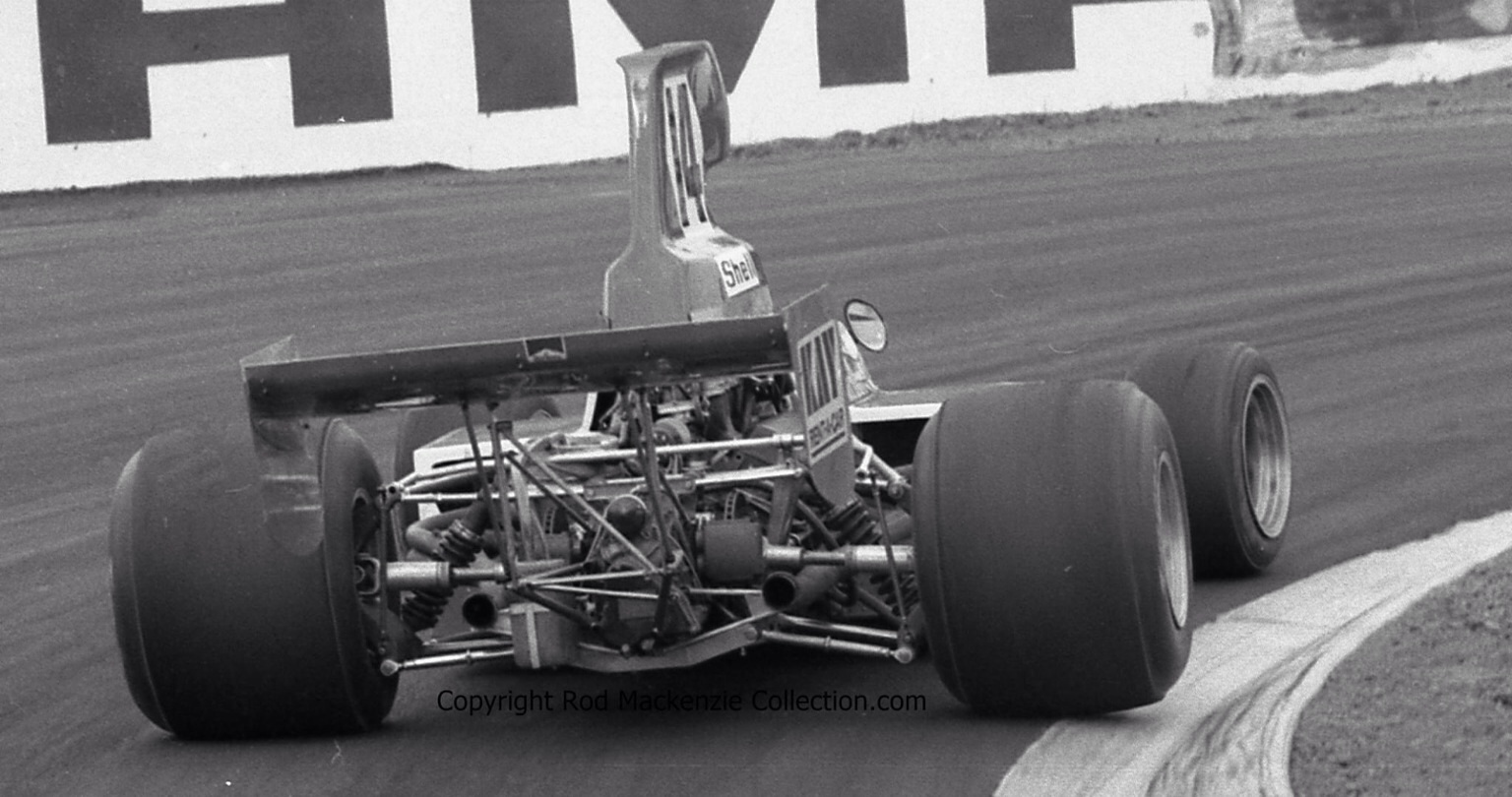

Graeme Lawrence ‘bang on line’ as Kevin Bartlett remarked upon seeing this shot of the Kiwi champions Lola T332 Chev going through Oran Park’s new ‘twiddly bits’ during the 1974 Australian Grand Prix…

There is something great about seeing a racing cars mechanical elements isn’t there? Rod MacKenzie has captured them beautifully in this shot.

These Lola’s are favourites of mine as some of you would know, and a topic about which I have written at length, specifically Peter Brennan’s restoration of Lola T330 ‘HU18’- Lella Lombardi’s old bus. So I won’t bore you with the technical details again, it’s all in this series of articles, attached is the link to the first of them;

https://primotipo.com/2014/06/24/lellas-lola-restoration-of-the-ex-lella-lombardi-lola-t330-chev-hu18-episode-1/

There is so much to see back there starting, of course, with 5 litres of fuel injected Chev, say 520bhp in period. The poor Hewland DG300 5 speed transaxle coped, just, as long as it’s components were adequately lifed, the ‘box was originally designed around ‘effete’ 3 litre F1 engines, not, big, butch Chevs.

The beefy sliding spline driveshafts are clear as are the big inboard brake calipers and ventilated cast iron discs. These Lolas were beautifully finished, all of the steel fabrications were finished in shiny nickel plating.

Suspension is period typical at the rear; single upper link, two lower links, the earlier T330 you will see via the link above had inverted lower wishbones. Uprights were magnesium alloy, fore and aft location provided by radius rods. The shocks are double adjustable alloy bodied Koni’s. Adjustable roll bars were of course also fitted front and rear. Rod MacKenzie’s shot is so sharp you can see Graeme has the rear bar set at full soft, trying to get rear end bite out of Oran Park’s slower turns no doubt.

The big airbox is clear, within 12 months most of the T332’s on the planet had converted to an all enveloping engine cover cum airbox to better flow air over the car and onto the rear wing, this development was first made by the Haas/Chaparral crew in the US on Brian Redman’s car.

Big, wide Goodyears put the power to the road, the wheels are Lola’s own 14 inch diameter cast magnesium jobbies; within 12 months 15 inch American Jongbloed’s were de rigour on these beasts.

A car of beauty indeed!

Graeme was very successful in it; he came within a bees-dick of winning the ’75 Tasman Series in a last round shoot out at Sandown with fellow T332 pilots, Warwick Brown and John Walker, that story is told here, the battle resolved in Warwick’s favour, the only Aussie to win the coveted Tasman Cup;

https://primotipo.com/2015/03/12/the-mother-and-father-of-lucky-escapes-john-walker-sandown-tasman-1975/

Graeme also won the Kiwi Championship, the Gold Star with Lola in 1974/5.

Credits…

Rod MacKenzie, Terry Marshall

Tailpiece: ‘Team Lawrence’ and trusty T332 after a Tasman Levin win in 1975…


(Terry Marshall)

The circumstances for the upload of these two photos by Rod and Terry Marshall were in honour of the recent passing of Graeme Lawrence’s late father Doug, helping Graeme out of the car above. He was an integral part of his sons motor racing from the start. Clearly there is deep respect and affection amongst former competitors and their crews on both sides of the Tasman for Doug Lawrence. RIP Sir.
