Archive for October, 2014

olivier 2

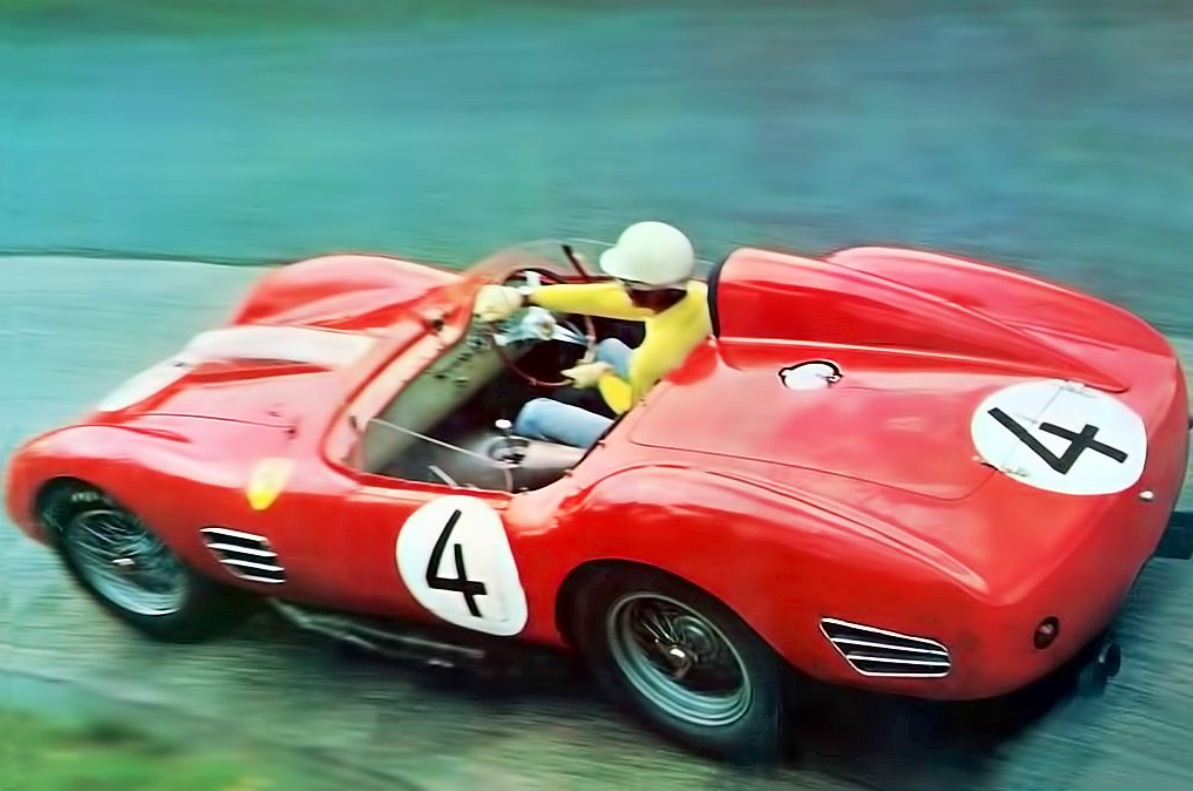

Olivier Gendebien in the Ferrari 250 Testa Rossa 59 he shared with Phil Hill to second place in the Nurburgring 1000Km in 1959…

Olivier was an interesting driver, born in Belgium in 1924 he fought the Germans as part of the Belgian Resistance movement, joined the Britsh Army and became a paratrooper.

After the War he worked in the forestry industry in the Belgian Congo and met a rally driver, commencing his own rally career. He won the Tulip Rally with Pierre Stasse in an Alfa 1900 Ti in 1954 and soon  came to the attention of Enzo Ferrari who signed him as both a Sports Car and occasional Grand Prix driver.

ring

Another view of Gendebiens # 4 TR at rest in the ‘Ring pits. #1 is the winning DBR1 of Moss/Fairman, #15 is the Porsche RSK 718 of Umberto Maglioli/ Hans Hermann (Pinterest)

Grands Prix…

belgian

1961 Belgian GP, Spa. Gendebien finished fourth in a Ferrari 156, behind the other similar cars of Phil Hill, ‘Taffy’ Von Trips and Richie Ginther, Hill on his way to the 1961 World Championship.Gendebiens car is painted in Belgiums national racing color, yellow, the car entered by ‘Equipe National Belge’. Less powerful than his teamamtes cars, the 156 was still a formidable weapon (Pinterest)

He competed in 15 Grands Prix, making his debut in a Ferrari 625 in Argentina 1956 finishing fifth. His best season was in 1960 at the wheel of a ‘Yeoman Credit’ Team Cooper Climax , his best results in the French and Belgian Grands Prix.

bristh

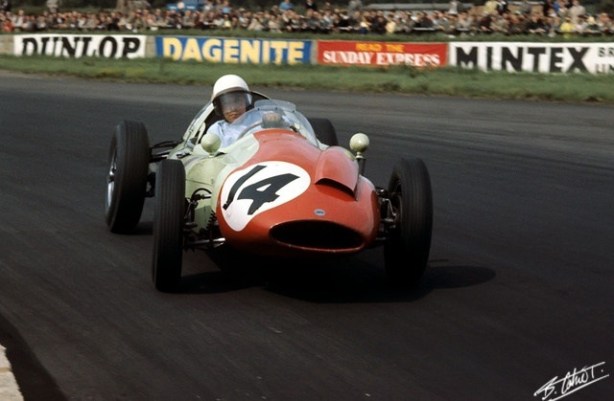

Olivier Gendebien in the 1960 British GP, Silverstone. ‘Yeoman Credit’ Cooper T51 Climax (The Cahier Archive)

Sports Car Ace…

sebring 19659

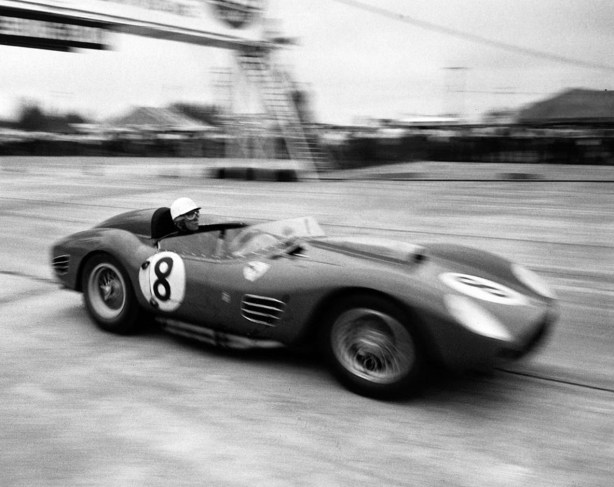

Ferrari 250 Testa Rossa 59, Olivier Gendebien, Sebring 1959. Gendebien shared the car with Americans Chuck Daigh, Phil Hill and Dan Gurney (Pinterest)

Whilst he was quick in a single-seater he was supreme in Sports Cars, Phil Hill the only driver who was his equal in the Ferrari Team during this period.

He first won Le Mans with Phil Hill in 1958, winning again with him in 1961 and 1962. He also won in 1960 with Paul Frere, his fellow Belgian. He won the Tour of Sicily, the Tour de France, and the Reims 12 Hour twice. Victorious also in the Targa Florio and Sebring 12 Hours thrice, he won the Nurburgring 1000Km once.

Gendebien was from a wealthy family, and under pressure to quit racing by his wife, retired after his fourth Le Mans win in 1962 aged 38. During retirement he ran a succession of businesses dying in the South of France in 1998.

targa 1962

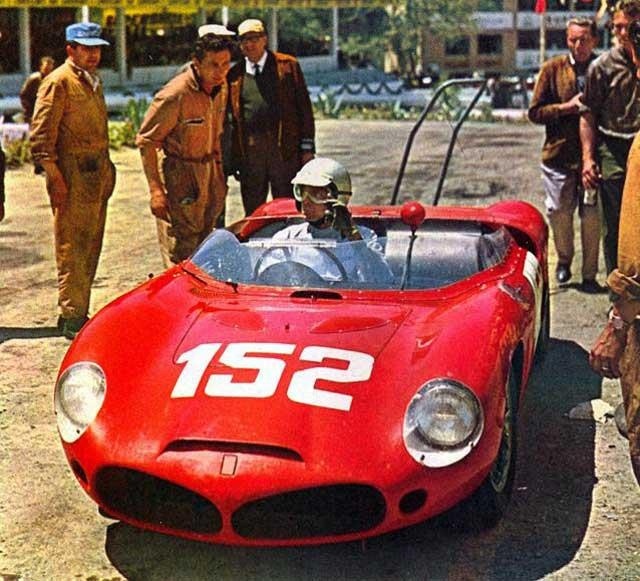

Pitstop for the Gendebien/Ricardo Rodriguez/Mairesse Ferrari Dino 246SP, Targa Florio winners 1962 (Pinterest)

le mans 59

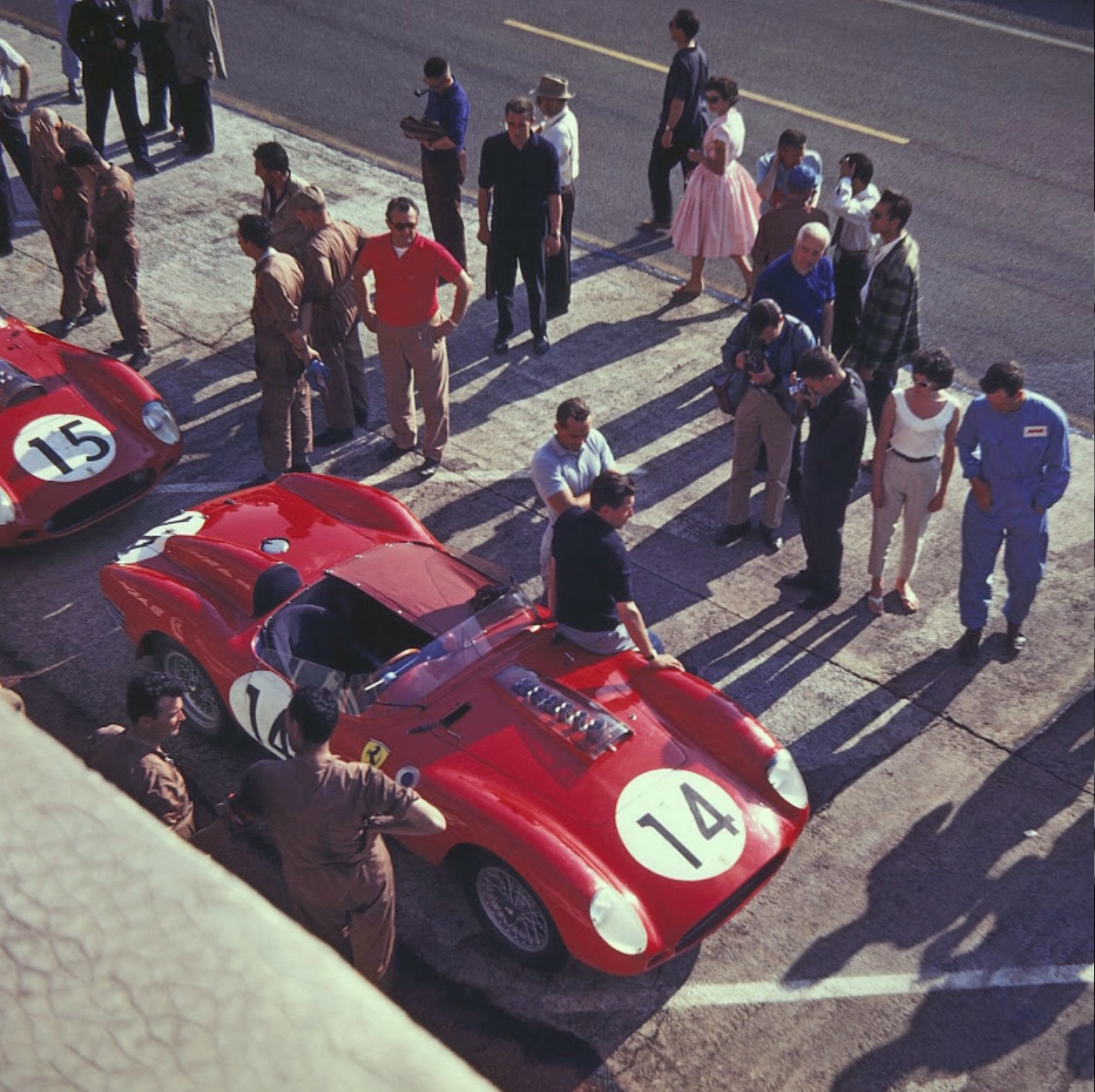

Le Mans 1959. The Gendebien/Hill Ferrari 250 TR 59, with Olivier sitting on the car talking to Phil Hill. Salvadori/Shelby won in an Aston Martin DBR1. Car # 15 is the Cliff Allison/ Hermanos da Silva Ramos TR . Both DNF(Pinterest)

bubbles

Gendebien, left,  and Hill enjoy the spoils of their 1962 and last Le Mans victory together. Olivier retired shortly thereafter. Car was a Ferrari 330 TRI/LM. The last front engined car to win Le Mans. Hill competed well into the decade, his last international win the Brands Hatch 1000km in a Chaparral 2F in 1967. (Pinterest)




Etcetera…

frencj gp

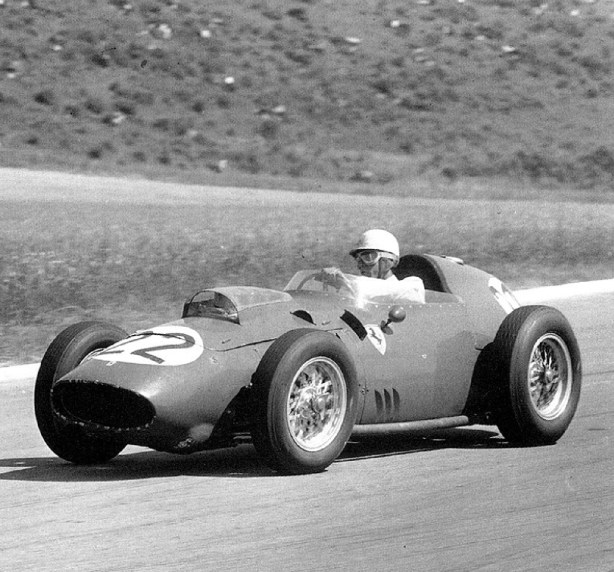

1959 French Grand Prix in a Ferrari Dino 246. Olivier finished fourth in the race won by his teammate Tony Brooks in a similar car. Olivier made his GP debut in a much less competitive Ferrari 625 in Agentina 1956 but still finished 5th on debut (Pinterest)

fazz

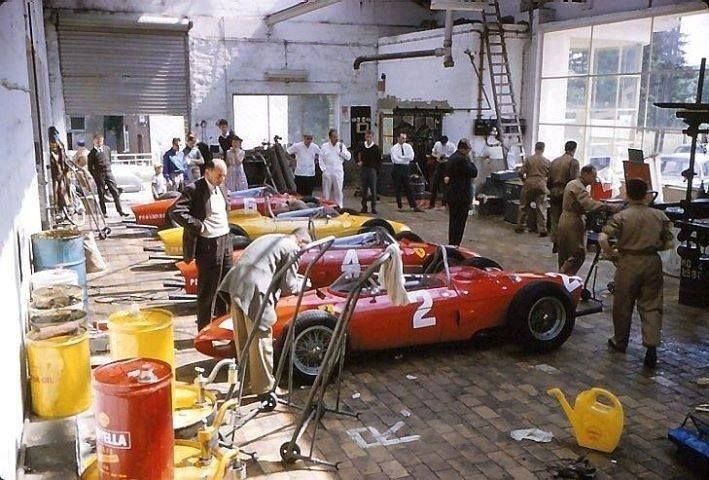

Ferrari pits Spa 1961. The 4 156 cars being prepared, Gendebiens yellow car contrasts the # 2 car of Von Trips, the winning #4 of Phil Hill, and Richie Ginthers third placed car # 6. The more you look the more you see… (Pinterest)

gendebien

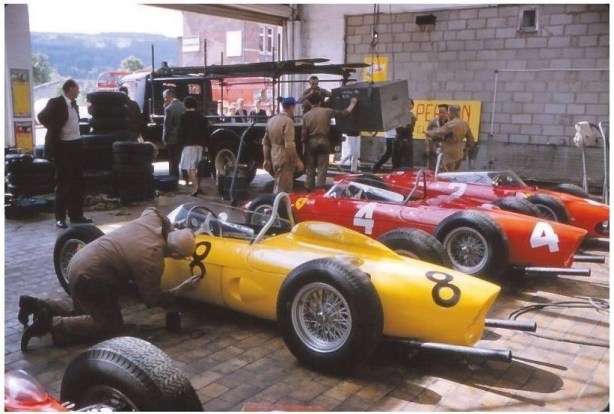

Same scene from the other side of the Ferrari pit (Pinterest)

bekoan butt

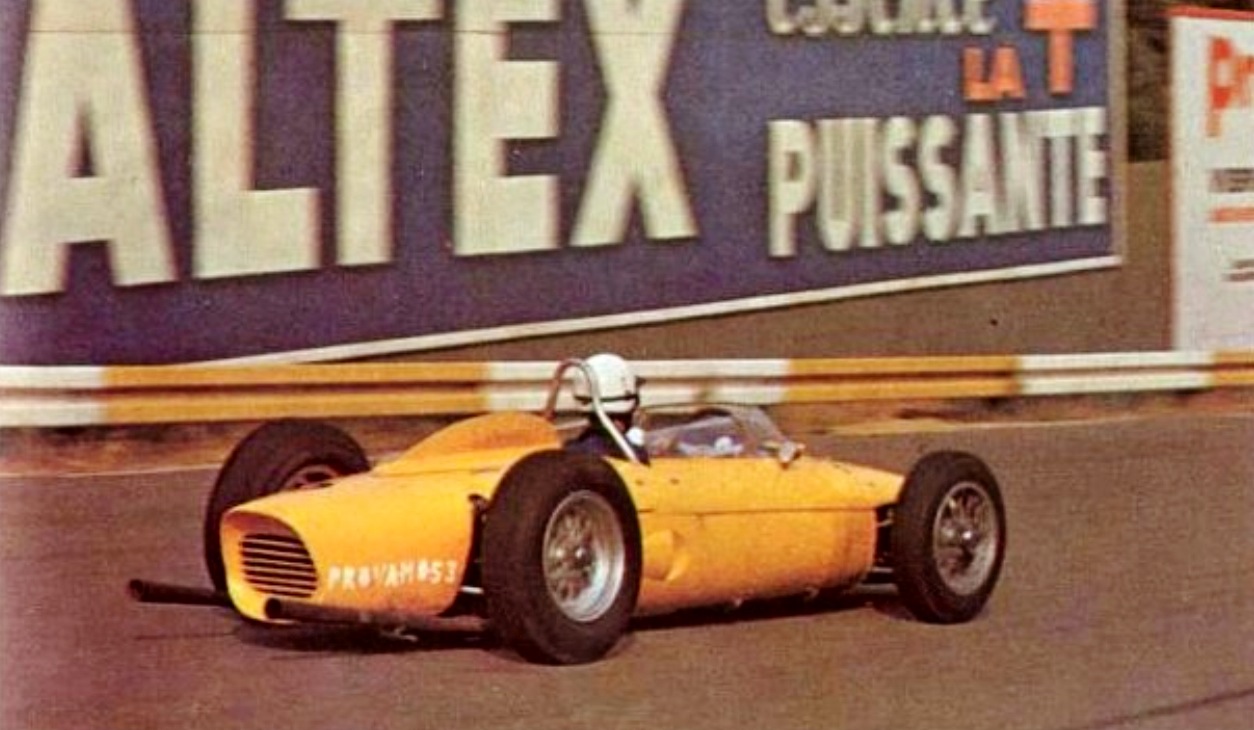

Belgian butt shot..rear of Gendebiens Ferrari 156, Spa 1961 (Pinterest)

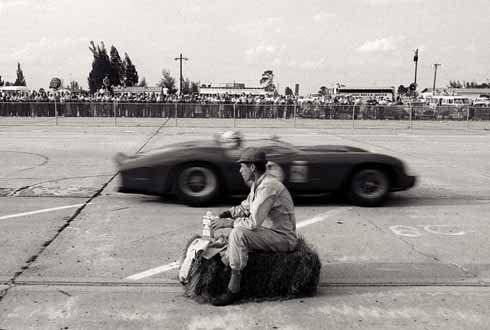

olivier

Gendebien watching the Ferrari 250 TR 61 of Ireland/Moss/Fulp/Tavano whizz past. It was disqualified for illegal refuelling. Olivier finished second in a 250GTO with Phil Hill. the race was won by the Bonnier/Bianchi Ferrari Tr 61 (Pinterest)

Photo Credits…

The Cahier Archive, Pinterest

The End…

Advertisements

Lola T330 P Island

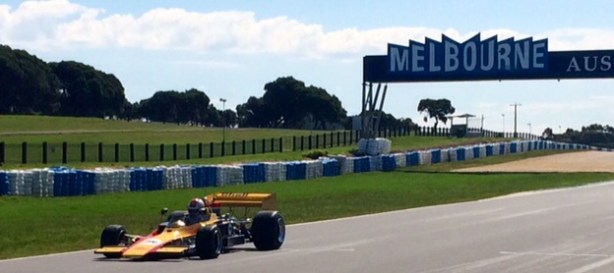

Peter Brennan blasts his Lola down Phillip Islands straight on Saturday 27 September 2014, the car last ran in John Turners’ hands at Brands Hatch on 19 October 1975, only 39 years ago!…

Over the last three episodes of ‘Racers Retreat’ we have covered Peters’ purchase of the car in the US, and its rapid restoration commencing in August 2013, the car finally made its debut at a Phillip Island test day a month ago.

Australian readers should get to Sandown on 7-9 th November to see the car make its first race appearance in a huge field of F5000 cars in the Victorian Historic Racing Registers’ annual historic race meeting at the great Melbourne suburban venue.

John Taylor lola T330 Thruxton 1975

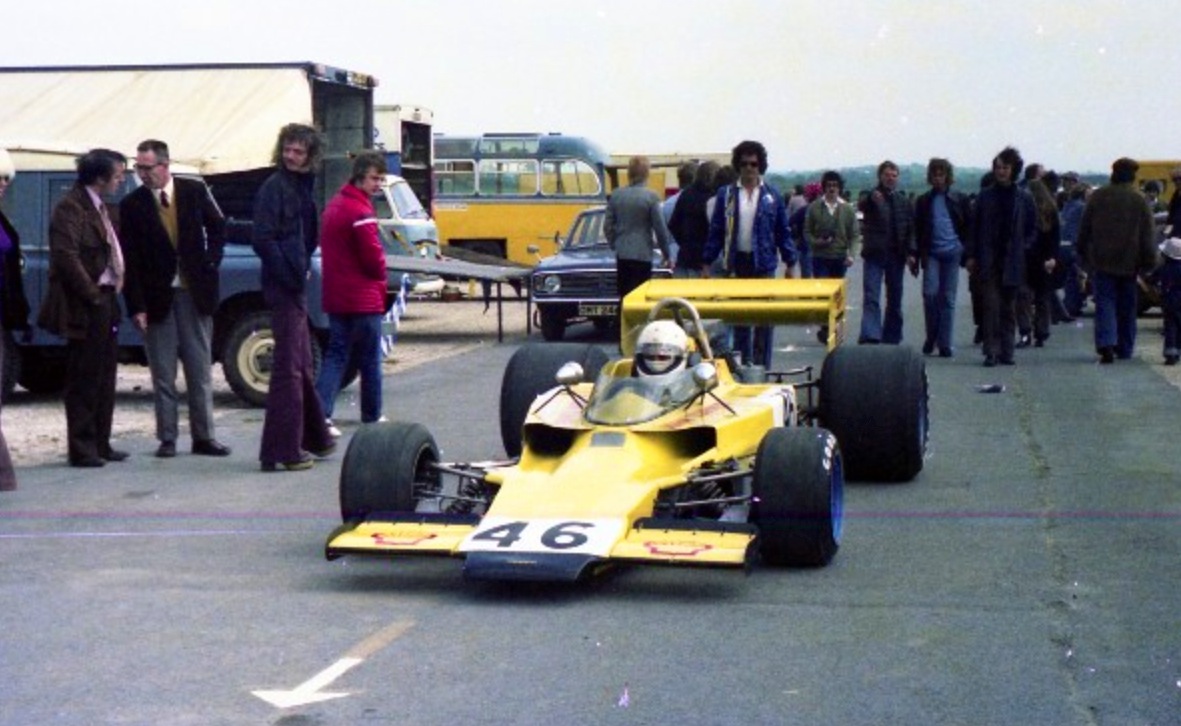

John Turner at Thruxton in ‘HU18’ earlier in 1975 (tinkerwinkerTNF)

John Turner bought the car from Jackie Epstein at the end of 1974, after Lombardis’ year in it. He raced the car in  many rounds of the 1975 Shellsport UK Series, finishing fifth in that final race at Brands, Peter Gethins Team VDS Lola T400 Chev won the race and the sister T400 of Teddy Pilette won the championship.

Turner sold the car to Jim Burnett for use as a central seat CanAm car, and as covered earlier in the series of articles the car was damaged in a factory fire until rescued by Peter many years later…here in his workshop just prior to the massive job of restoration.

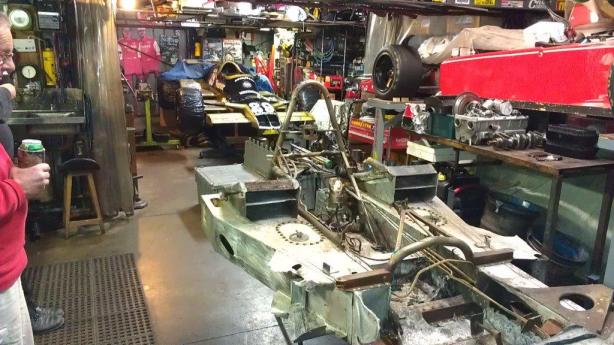

brennans workshop

Phillip Island Test…

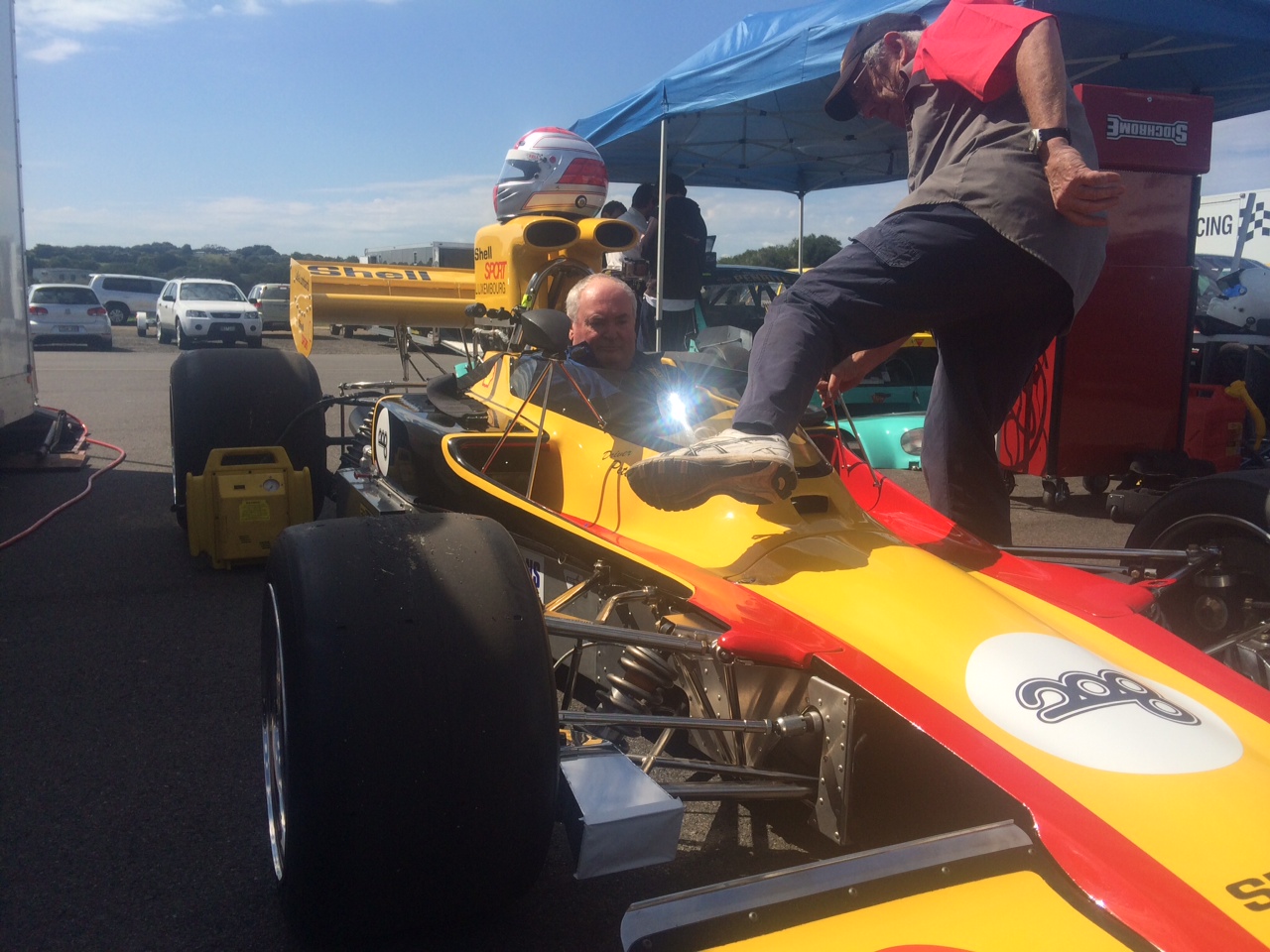

Lola T330 Brennan P Island

Peter Brennan all loaded up…livery all 100% period correct 1973 ‘shellSport 208’ team. Front brake ducts taped over in this shot

It was a beautiful September day, fortunately the ‘Islands weather gods were smiling…’I had been looking forward to the first run of the car, checking and re-checking the thing over the prior weeks, and firing it up a million times, then the bloody thing wouldn’t start for the first session!’

‘I had plenty of advice of course, but the bloody magneto had cacked itself, they are like a flighty girlfriend , here one minute and gone the next! I didn’t take a lot of spares with me, but i did have a spare mag, so we fitted that and were ready to rock and roll’.

‘Off we go ot onto the circuit in session two, i went about eighty metres and it died, i slowed down and it cut out. I checked the fuel pressure and volumes, the engine is on Webers. After a lot of thought i took the air-boxes off the carbs and that did the trick. I hadn’t created vents in the airboxes to allow excessive pressure to escape, the set-up cannot be fully sealed, i got advice from Peter Molloy and others after the weekend’.

vent tubes

Look closely at this shot, on the RHS of the carb base plate near the rollbar and you can see the breather holes cut to relieve surplus pressure in the airbox…4 thirsty 48 IDA Webers…’nasty’ magneto cap just visible to the left between the oil tank and carb base plates

‘After that change the car was sensational, even using the basic initial settings. Later in the day i did 6 1:36 laps without pushing hard at all. The thing is a jet, really quick. Most of the fiddling around on the day was just getting comfy in the car, the gearchange is a little close to me and the cockpit is as tight as…i’m not a svelte 18 year old anymore!’

‘Before Sandown we need to just check the thing over, the airbox bleed is done, re-align it and so on. Its amazing how much fuel the thing uses 3.7 litres per lap. I can afford the car but not the fuel to put in it, i used 90 litres on the day at $3.75 per litre! Time to drill an oil-well at home in the eastern suburbs’.

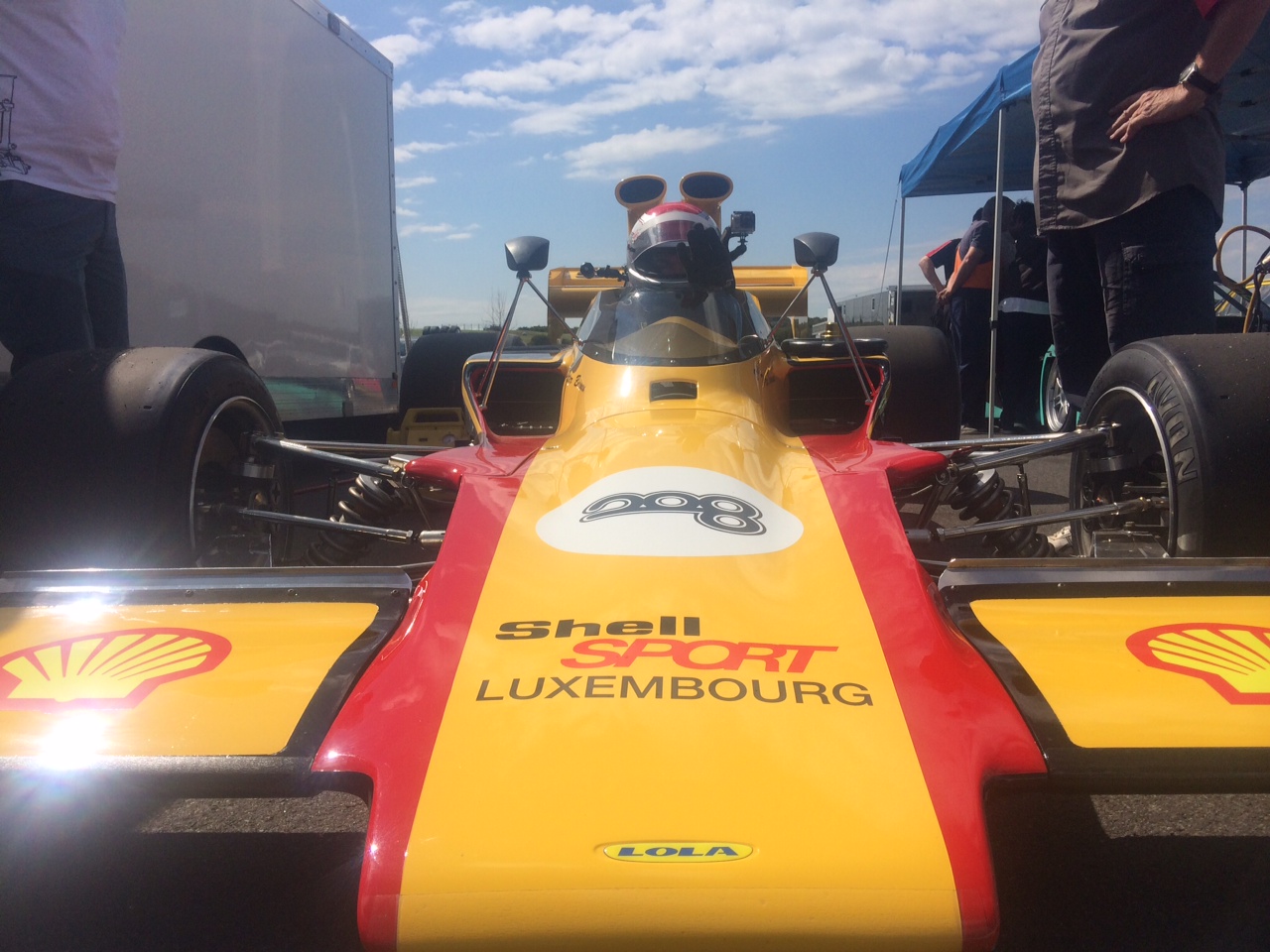

Lola T330 P Island front

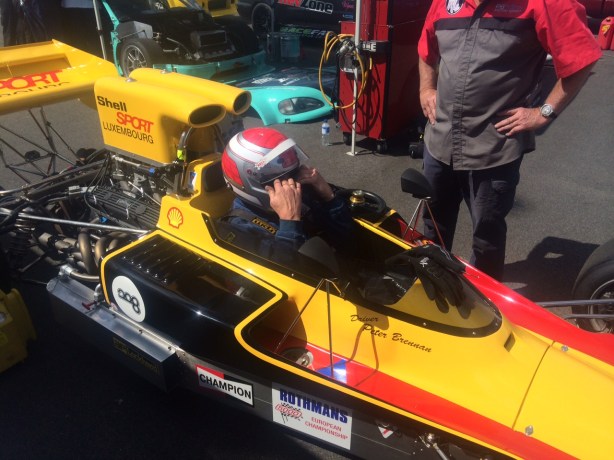

Lola T330 Brennan up

See the rear wing compared with episode # 3. Far-back original wing supports banned by FIA at the end of 1973..attention to detail in the restoration superb, our mature age driver doing his best to find some space…

Lola T330 B & W

‘HU18’ to early, original T330 spec. Carbs common in the UK then, early airbox setup, far rear mounted wing, and none of the T332 mods to the tub, bodywork and suspension that most 330’s modifed to T332 spec received in period to keep them competitive

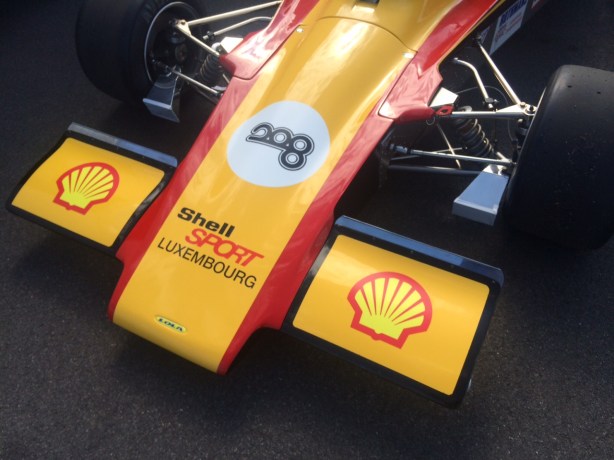

Lola T330 nose

Front suspension typical of period. Upper and lower unequal length wisbbones, coil spring damper units (Koni double adjustable alloy shocks), adjustable roll bar

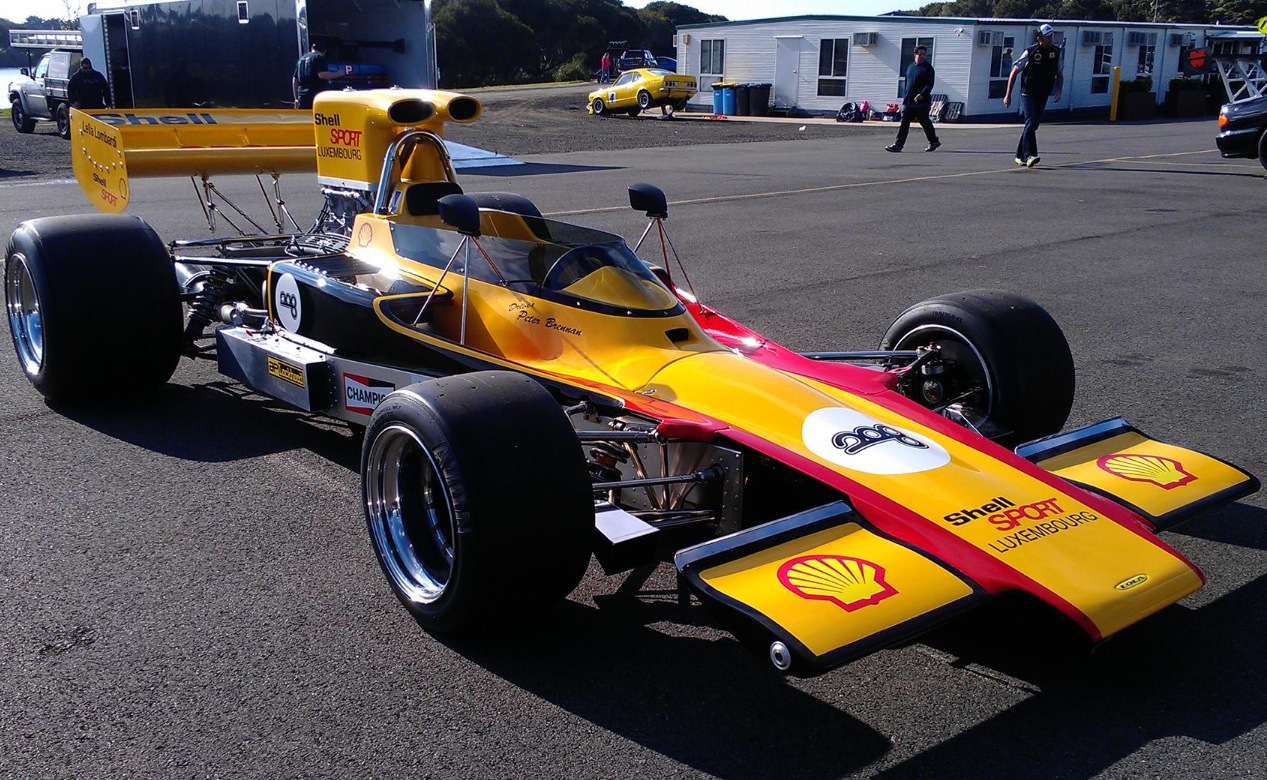

Lola T332 Chev 'HU18' Phillip Island

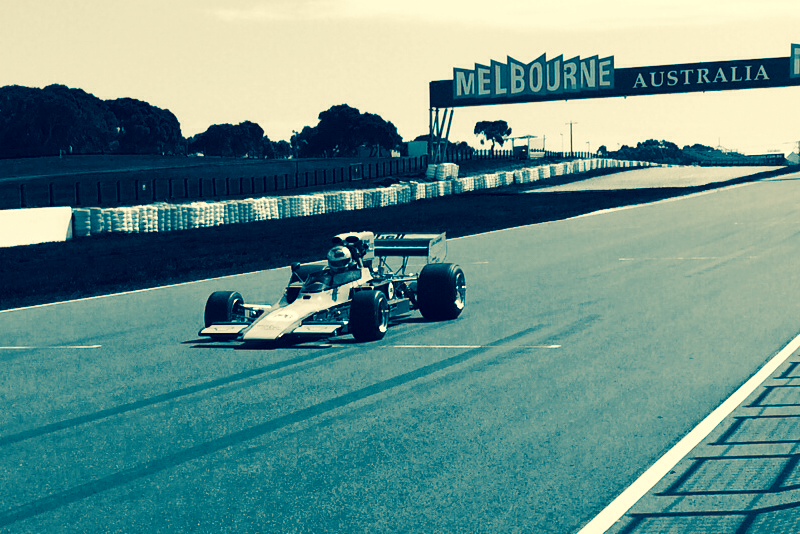

Lola T330 Brennan P Is front straight

Roll on Sandown for Episode 5 in November, be there if you can!…

Photo Credits…

Peter Brennan, Jay Bondini

Finito…

mario

Mario Andretti ‘using the cushion’ during qualifying for the ‘Sacramento 100’ Champ Car event, California, Fall 1969…

The ‘Sacramento 100’ was contested at the California Sate Fairgrounds, in Sacramento California, 100 laps of a 1 mile oval on 28 September. The event was won by Al Unser from Gary Bettenhausen and brother Bobby Unser. Mario had a loss of oil pressure, retiring his 1960 Kuzma D/Offy on lap 83, winning $853 for his efforts…

Magic Mario…

andretti 66

Bernard Cahiers’ portrait of Mario Andretti circa 1966

One of my mates contends that the title of ‘most versatile racer ever’ goes to John Surtees hands down, its hard to argue with the ‘World Championships on two wheels and four’ line of logic. The only other contenders are Mike Hailwood and, perhaps Johnny Cecotto with Hailwood the far better credentialled of the two on four wheels.

But what about most versatile on four wheels?

Right up until the 1970’s the nature of drivers contracts allowed them to race in other classes, in fact the pro’s needed to race lots of cars to earn the start and prize-money to eke out a living. The likes of Jim Clark could and would jump from Lotus Cortina, to Lotus 30 Sports Car, to Lotus 25 GP car, and then some, in British National Meetings.

It isn’t necessarily the case that drivers will be equivalently quick in single seaters, sports cars, touring cars, on bitumen and dirt, and road and speedway courses, but that is the criteria to apply in working out our ‘most versatile’.

If we limit ourselves to the absolute elite, Grand Prix Winners, there are a few names which usually come up in these conversations; Stirling Moss, Jack Brabham, Graham Hill, John Surtees, Dan Gurney and Mario Andretti to name a few.

I am not discounting the Pre-War aces who raced GP and Sports cars on varying surfaces, but suggest the greater variety of cars was available to post-war rather than pre-war drivers.

hill and mario

Lotus GP teammates that year, Mario Andretti and Graham Hill , Indy 1969. Hill an absolute candidate for ‘most versatile’, the only winner of motor racings ‘Triple Crown’ ; World F1 Title, Le Mans and Indy victories (unattributed)

Moss apart from his obvious success in GP and Sports cars, also rallied successfully.

Brabhams career started on Sydney Speedways, and then encompassed single seaters of all types, front and mid-engined like most of his peers, some sports cars, and some touring cars. He also raced ‘Champcars’ and CanAm. So Jack has to be ‘up there’ in consideration.

John Surtees is very similarly credentialled to Brabham without the Speedway or equivalent dirt experience.

Dan Gurney is also similarly credentialled to Jack, but without the dirt background. He came from the West Coast Sports Car scene, not through the rough and tumble of Dirt Speedways, and then into Road Racing in the way AJ Foyt, Parnelli Jones and Mario Andretti did.

Mario is hard to toss as our ‘most versatile ever’…

He started in Speedway racing sedans and midgets, then into faster cars, dirt champcars, paved speedway champcars, into Nascar whilst still racing on Dirt Speedways and then as he built his name and reputation into road racing.

He was scooped up for the factory Ford GT40 program, to Lotus in Grands Prix, and all the rest, but still, well into the 1970’s racing speedway…he walked away from GP racing for a while in the early-70’s as he could not get the driving variety he sought by signing a restrictive F1 contract, ‘Vels Parnelli’, the American team with whom he made his F1 comeback allowing that freedom.

Its interesting to look at just one season, 1969 to see the breadth of cars, classes, surfaces, and circuit types on which he raced, just to test my contention…

Lotus 64 Indy 1969

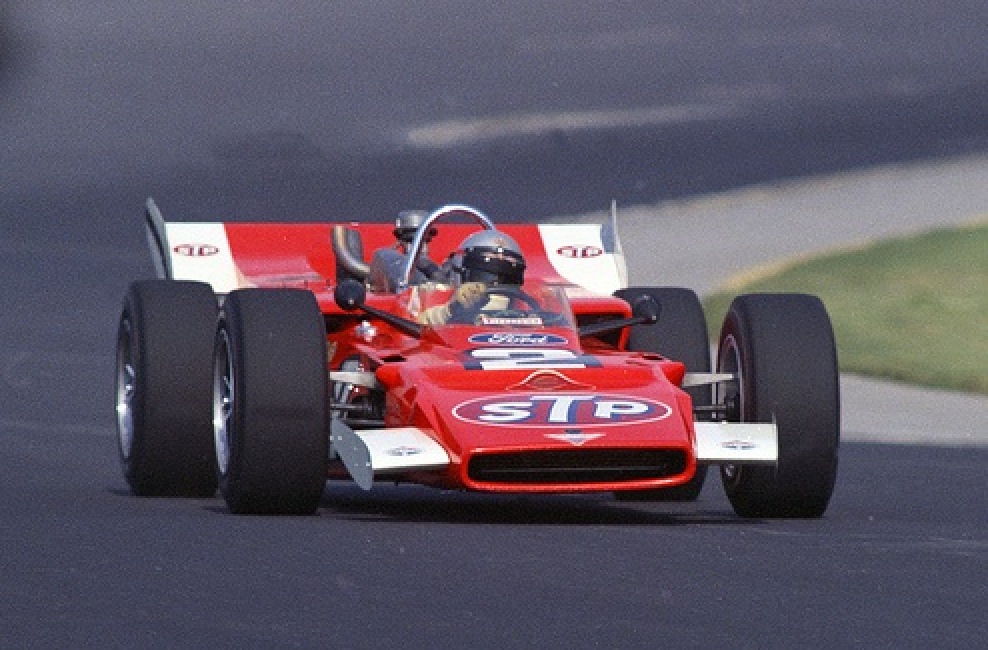

Andretti testing the Lotus 64 Ford, 4WD and turbo-charged at Indy. The car was fast in testing, but a hub failed causing Andretti to hit the wall hard, with no time to rectify the problem, the cars were withdrawn and Andretti drove his regular USAC mount, a Hawk Ford to victory (unattributed)

Early in the year he raced at Sebring, co-driving a factory Ferrari 312P with Chris Amon…

312p

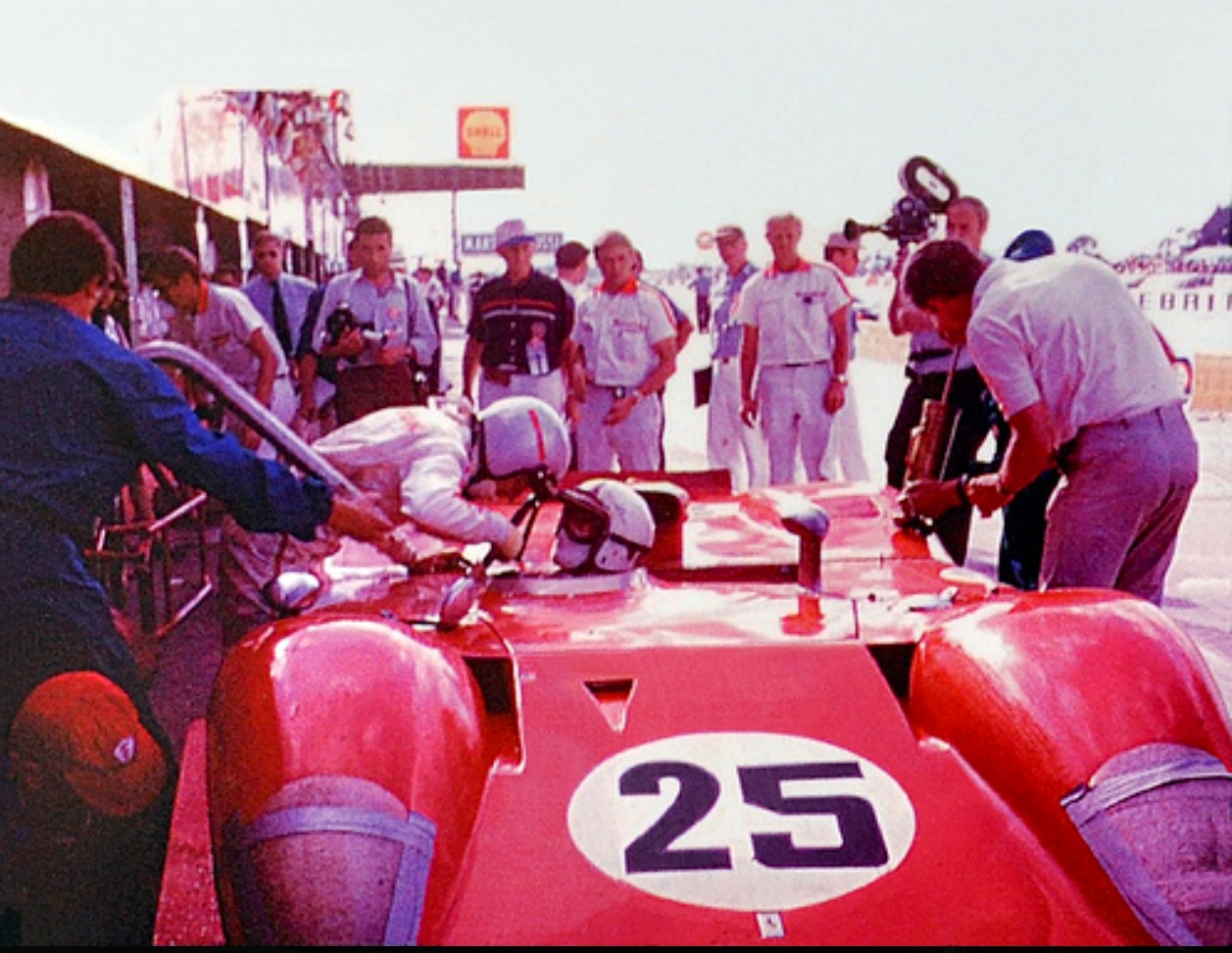

Andretti hands over to Chris Amon in the Ferrari 312P, this car a 3 litre V12 engined Group 6 prototype. Sebring 1969 (unattributed)

In March he did the first of three 1969 Grands’ Prix for Lotus… the South African GP, he also contested the German GP at the Nurburgring and US GP at Watkins Glen later in the year.

His first GP was at Watkins Glen, in upstate New York, the year before, 1968, he put his Lotus 49 on pole, really shaking the established order. In 1969 he drove both the conventional Lotus 49 and experimental, four-wheel drive Lotus 63, quite different challenges, the latter a very unsuccessful car.

LOTUS 63

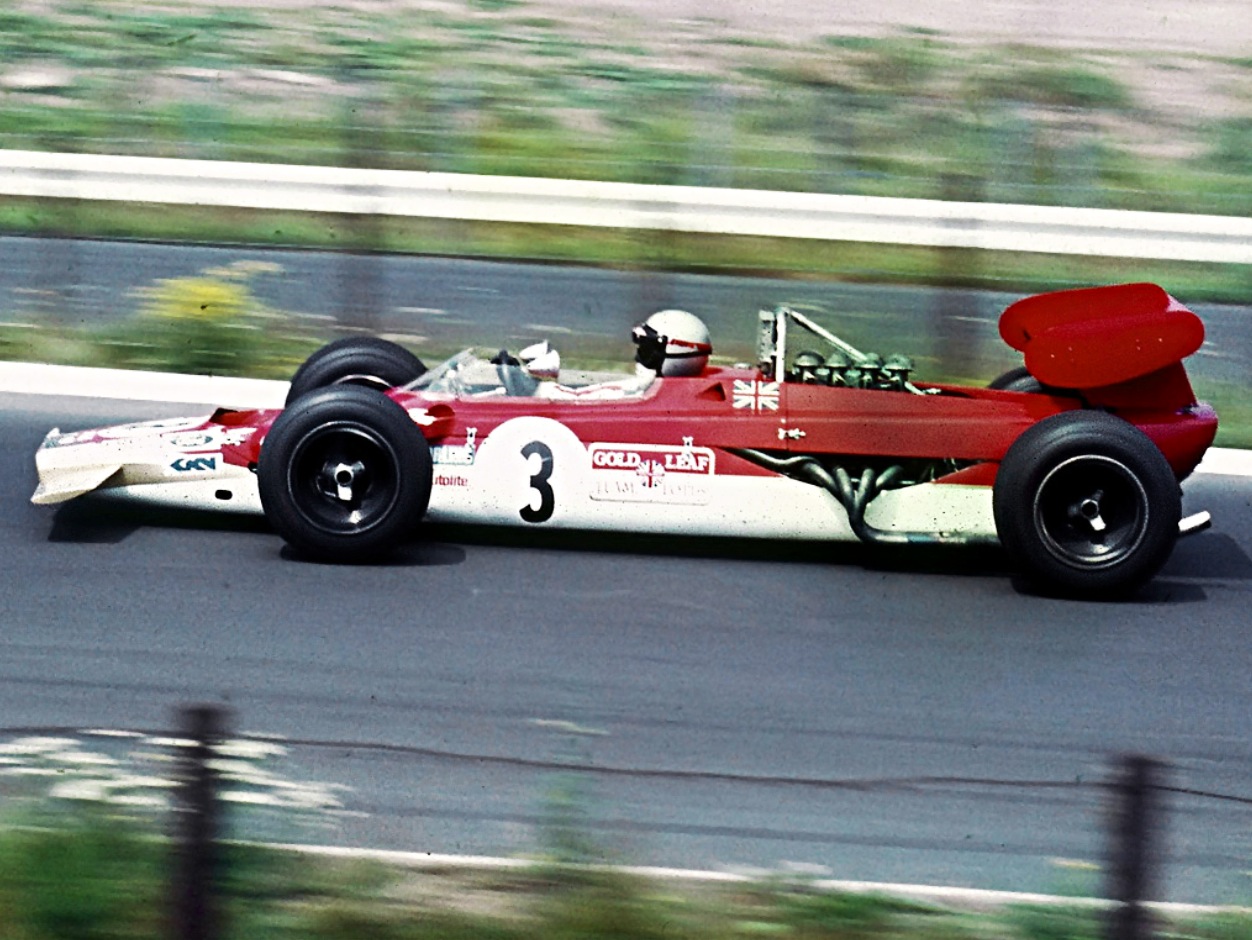

Another challenge…driving the Lotus 63 Ford 4 wheel drive car on the Nurburgring, one of the toughest driving challenges in one of 1969’s worst cars. The 4WD experiments that year of Matra, McLaren and Lotus were all unsuccessful, tyre technology and wings providing the grip the teams sought with 4WD (unattributed)

His primary program for 1969 was the USAC Championship…

brawner

Andy Granatelli of STP, crew and Andretti in the 1969 Indy winning Brawner Hawk Ford, a turbo-charged 2.65 litre V8 (unattributed)

Most of May was spent at Indy, very successfully, winning the 500 in his turbo-charged Brawner Hawk III Ford V8 on the famous Super Speedway. He won the 1969 USAC Championship which was contested on five dirt speedways, ten races on paved tracks, eight on road courses, and a hillclimb, this series alone a true test of a drivers versatility and adaptability.

In late June he contested the Pikes Peak Hillclimb…winning it in a mid-engined Chevy V8 powered open-wheeler on the famous dirt course 12.4 mile ‘climb to the clouds’.

hawk ford

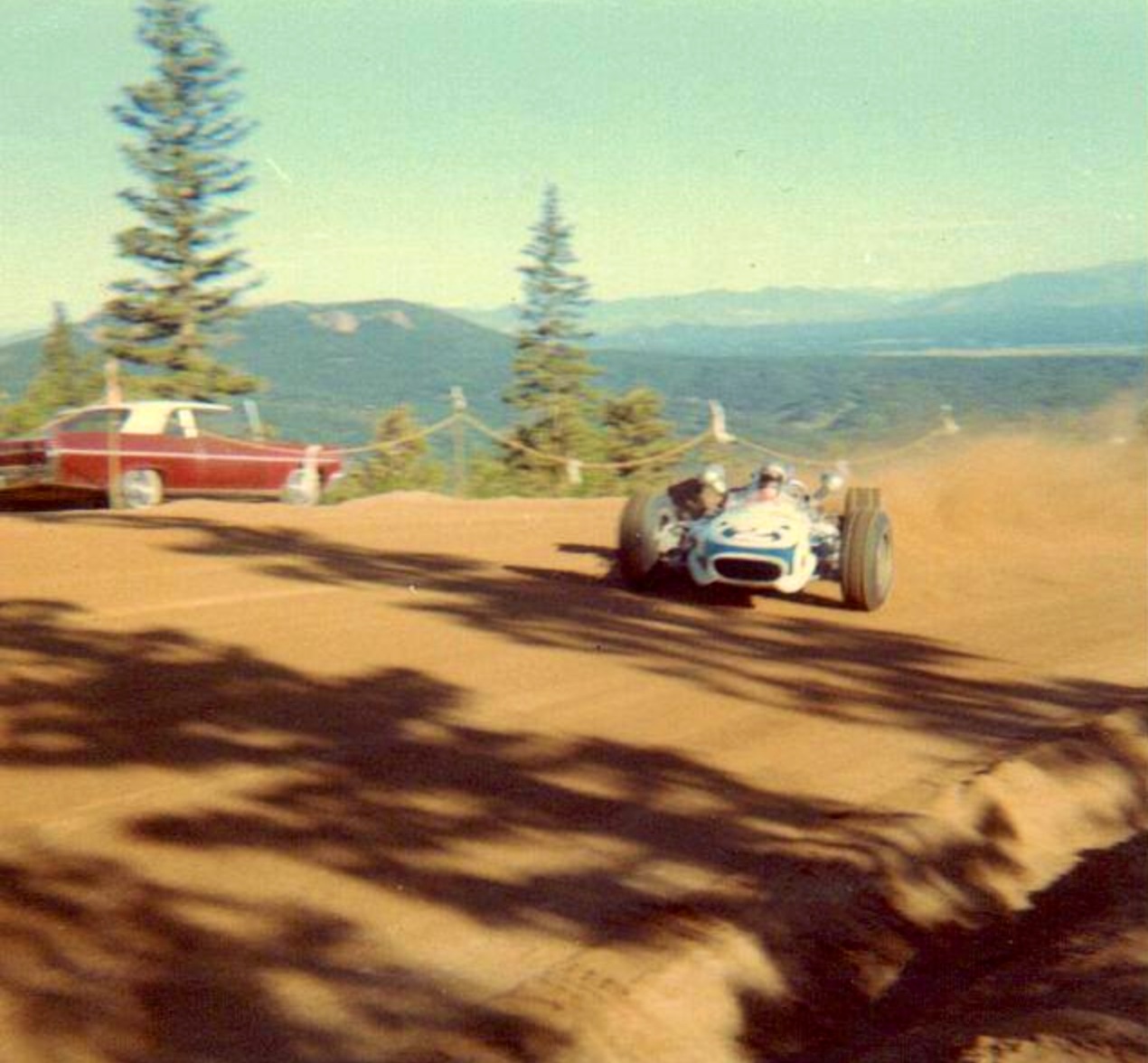

Andretti in his Hawk Ford, Pikes Peak 1968, he was 4th in ’68, won in ’69, the majestric but challenging nature of the course readily apparent…(unattributed)

The CanAm was run annually in the Summer…Holman & Moody entering a Ford 429 powered McLaren M6B in several of the events, not a particulary competitive car but another quite different driving and engineering challenge. Andretti in a factory McLaren M8B would have been quite someting to watch!

mclaren

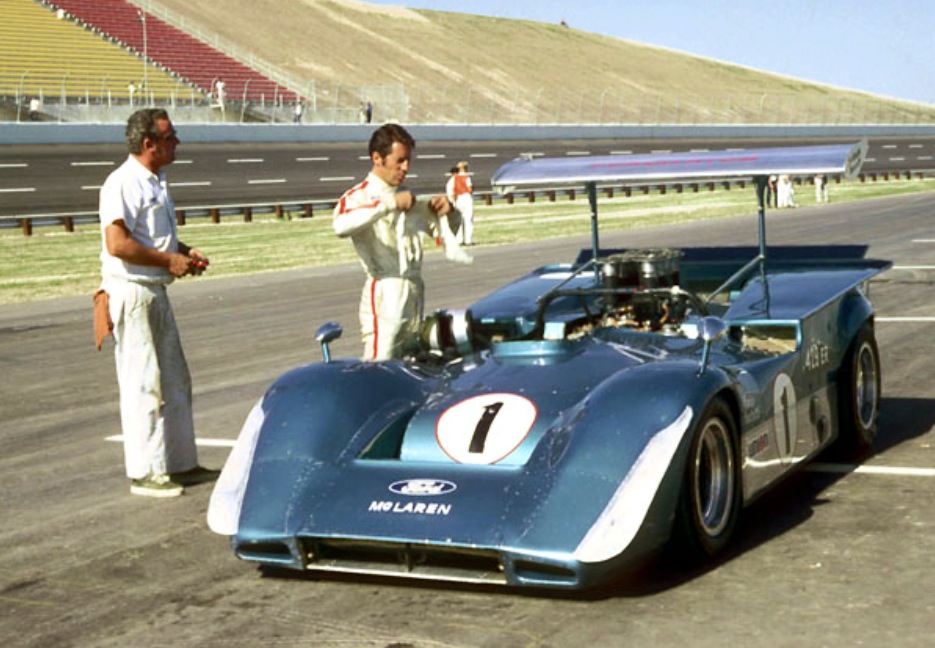

Andretti prepares to board his ‘Holman & Moody’ entered and prepared McLaren M6B Ford 429 CanAm car at Texas International Speedway, test session (unattributed)

Mario only did one Nascar event in 1969…at Riverside in February, one of the road racing circuits on the tour, it was never a big part of his career but still demonstrates his versatility.

Mario Andretti Riverside 1969, Ford

Mario in his Ford, ‘Motor Trend 500’ Nascar race on the Riverside road circuit February 1969. He qualified 7th and was classified 18th after engine failure on lap 132 (spokeo)

Mario raced on 34 weekends in 1969…his season commenced with a front-engined rear drive Ford Nascar and then a Ferrari mid-engined 3 litre V12 sports prototype…the Lotus’ GP cars he raced were the 3 litre Ford Cosworth normally aspirated V8 powered 2WD 49, and the 4WD 63.

His Hawk ‘Indycar’, for paved road-courses and speedways was a mid-engined single-seater, 2WD car powered by a turbo-charged Ford V8, but he also practiced the Lotus 64 mid-engined 4WD Turbo Ford at Indy.

His dirt-track ‘Kuzma’ was a front engined, rear drive 4 cylinder Offy powered single seater His McLaren CanAm car a mid-engined sports car powered by a normally aspirated 429CID Ford, finally his Pikes Peak car was a Chev engined ‘Grant King’.

The variety of cars and different driving challenges are enormous, the differences in cars and venues in one year of his career qualifies him as our most versatile ever! Let alone the other four decades in which he competed.

Andretti won the World Drivers Championship in a Lotus 79 Ford in 1978…he returned to Indycars after leaving F1, his last Indycar win in 1993, perhaps the only big win which eluded him is at Le Mans, but he was successful elswhere in sports cars of course.

He is synonymous with speed, and revered globally as a champion driver, sportsman and ambassador for our sport…he is also, surely, the most versatile driver ever?

Andretti Ford Mercury 1969

The gift of communication…Andretti with the press, Riverside 1969. Ford Mercury Cougar (unattributed)

Photo Credits…

Pinterest unattributed, Spokeo, The Cahier Archive

niki

Niki Lauda aviating his 312T in the Eifel Mountains, 1975…

He won the race and the world championship for the first time that year.

Ferrari turned the corner of uncompetitiveness with the 312B in 1970, the combination of chassis and new ‘flat 12’ engine was very competitive in the second half of the season.

Into 1971-3 they largely lost the plot with their chassis…Mauro Forghieri returned from the wilderness in late 1973.

The 1974 combination of Lauda, then in his third year of F1, Ferrari ‘returnee’ Clay Regazzoni, Forghieri and very young Luca Di Montezemolo as Team Manager commenced an era of Ferrari success if not dominance.

The cars were powerful, relatively light despite the additional fuel load needed by the Flat12 relative to the Ford Cosworth V8, handled superbly and were as aerodynamically advanced as the competition, until the ‘game-changing’ Lotus 78 arrived at least .

Lauda, Regga, Reutemann, Villeneuve, and Scheckter extracted all the performance as well.

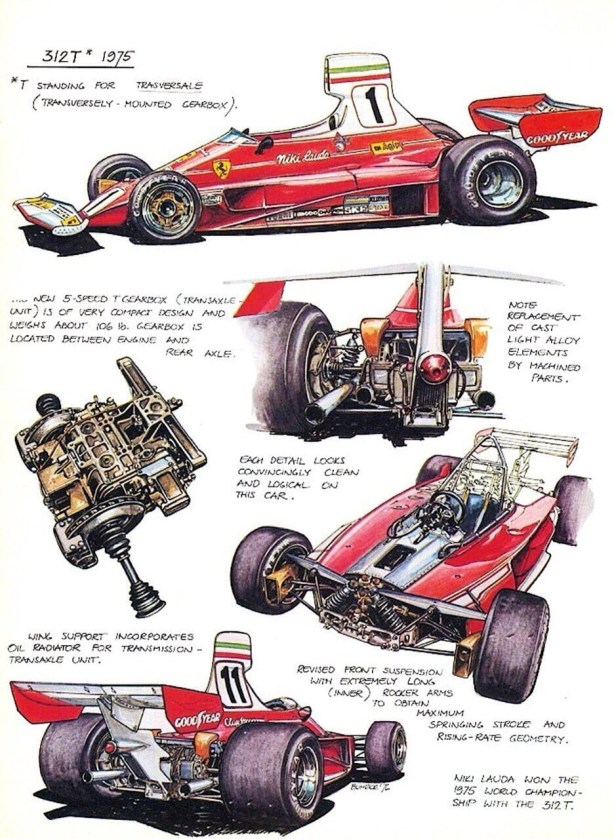

The 1975 312T, so called because of the transverse location of the gears within the ‘box was the start of a series of cars which won drivers world titles in 1975, ’77, and ’79 for Lauda twice and Jody Scheckter once.

The car was not the prettiest of the mid-70’s to my eye but was an incredibly cohesive, beautifully integrated design. Without doubt one of Ferraris finest.

Lauda was up for the developmental and testing task, it was why Ferrari hired him but he also proved he was a winner. Montezemolo welded the group into an effective fighting unit, rather than the ‘Palace Intrigues’ of Maranellos’ past holding the Scuderia back …

regga

Clay Regazzoni, Ferrari 312T, Nurburgring 1975. DNF engine. (Pinterest)

fazz

niki

Enzo Ferrari, Luca Di Montezemolo & Niki Lauda, test session at Fiorano 1974 (Pinterest)

Photo Credits…

Pinterest unattributed, Werner Buhrer drawings

1962 Longford touring cars

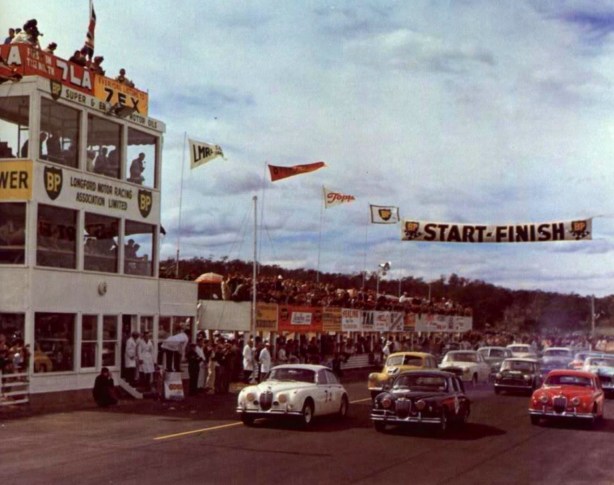

Start of the 1962 Championship race held during the Longford Tasman Series meeting, an all Jaguar  front row. Bob Jane Mk 2, Bill Pitt and Bill Burns in Mk 1’s from left to right…

The race was close fought with Jane winning from Pitt and Burns. Jaguar dominated the early years of the ATCC, winning the championship in its first four years. In those far away days the event was decided in one race!, a huge difference to the contemporary ‘V8 Supercars’ title which is decided over fourteen rounds, using three different race formats in Australia and New Zealand.

longford

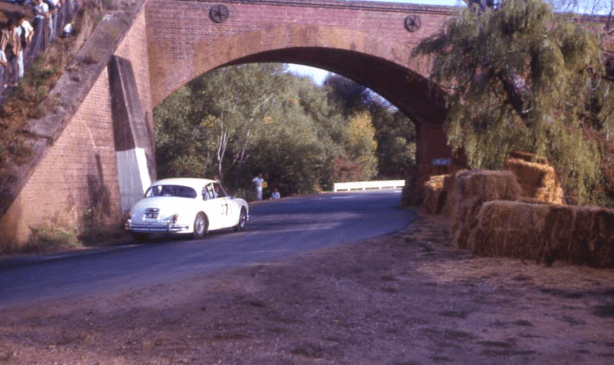

Fantastic and unusual shot of Bob Jane in the winning Jag Mk2 entering ‘The Viaduct’ at Longford. Hay bales and the ‘stout’ (its still there) brick structure encouraging purity of line and application of power on entry! (Geoff Smedley)

jane

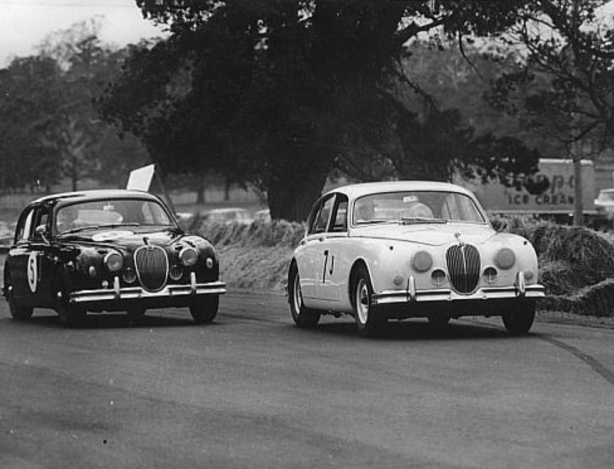

Bob Jane Mk2 ahead of Pete Geoghegan Mk1, 3.8 and 3.4 respectively in the Monday, Longford touring car race, Mountford Corner. Jane won, Pete DNF after leaving the road near The Viaduct. (Keverell Thomson Collection)

The inaugural championship was held at Gnoo Blas, Orange NSW, with victory going to David McKay’s Mk1, Bill Pitt prevailed at Lowood, Qld in 1961, similarly mounted and Bob Jane at Longford and Mallala, SA Mk2 in 1962/3.

1969 was the first year the title was decided over multiple rounds in five states, ‘Pete’ Geoghegan winning in his famous, second Ford Mustang.

Touring cars are not my thing, but these shots well and truly capture the ‘fun of the fair’ and a sense of Longford which is spoken about in reverential terms, if also in awe of its danger and technical difficulty by those lucky enough to have been or raced there.

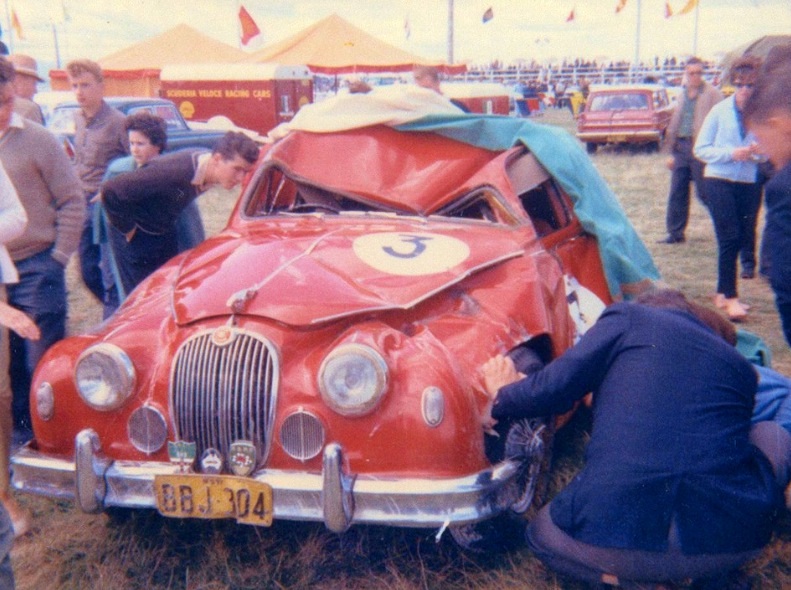

As a postcript, Bill Burns very luckily survived a high speed multiple rollover in those pre-seat belt and rollbar days, two years later, 1964 at the end of the ‘Flying Mile’ just before Mountford Corner.

Burns Jag Longford 1964

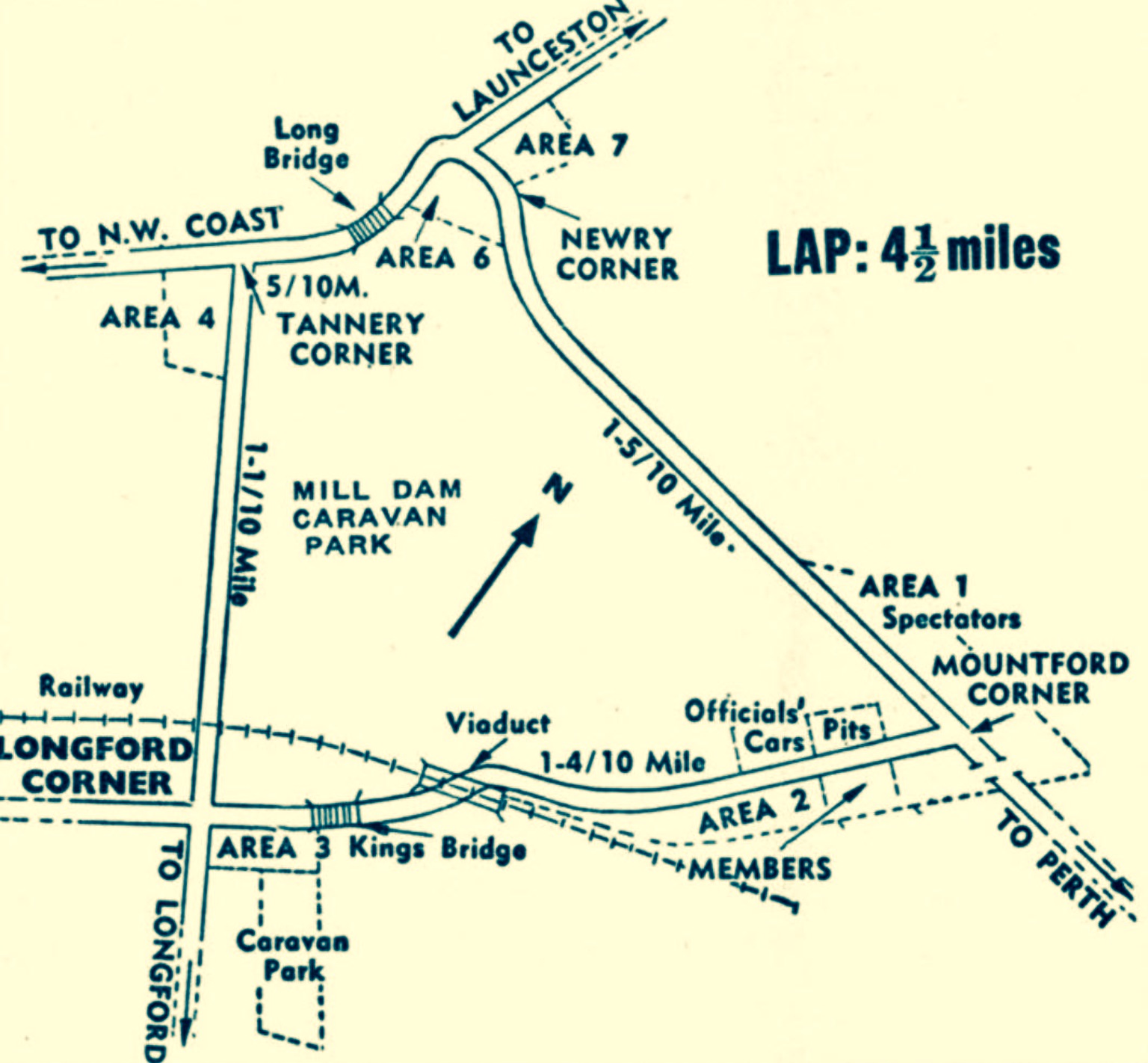

Longford map

Photo Credits…

Unattributed shots via Ellis French, Geoff Smedley, Keverell Thomson Collection

francois

Lisa in Pete Arons ‘Bell Magnum’…

The iconic John Frankenheimer 1966 ‘Grand Prix’ is an evocative racing epic most of us have seen, if you haven’t make sure you do, it captures the Grand Prix cars of the sixties very essence!

Described by some film purists as ‘a few million dollars worth of star power and a nickels worth of plot’, from a racing point of view its superb, and features cameos of some of the stars of the day including Phil Hill, Graham Hill, Juan Manuel Fangio, Jim Clark, Jack Brabham and Jochen Rindt.

Francoise Hardy plays Lisa, the ‘romantic interest’, in the politesse of the sixties, of Ferrari driver Nino Barlini.

francois

(Getty Images)

Hardy first found fame as a singer and was signed to her first record label at 17. She achieved her first Gold Record in 1962 with ‘Tous Les Garcons et les Filles’. She played minor roles in several films including ‘Whats New Pussycat’, and in ‘Grand Prix’, her primary career has always been as a singer, in French, English, Italian, Spanish and German…

She is now 70 and lives in Paris, and still a style icon…

jack

Francoise Hardy and Jack Brabham, Italian Grand Prix , Monza 1966. The car is Jacks’ 66′ championship winning BT19 Repco, DNF in this race won by Scarfiottis’ Ferrari 312. Jack looks happy and who wouldn’t be? (Bernard Cahier)

fazz

‘Lisa’ in Nino’s ‘Ferrari’, which i think, is a Brabham Climax, its certainly a Coventry Climax FWMV V8, despite the exhaust…anyway its all about Francoise not the car…many of the cars used in the film were F3 cars in ‘F1 Drag'(Pinterest)

Credits…

Bernard Cahier, Pinterest

hunt wintoin 2

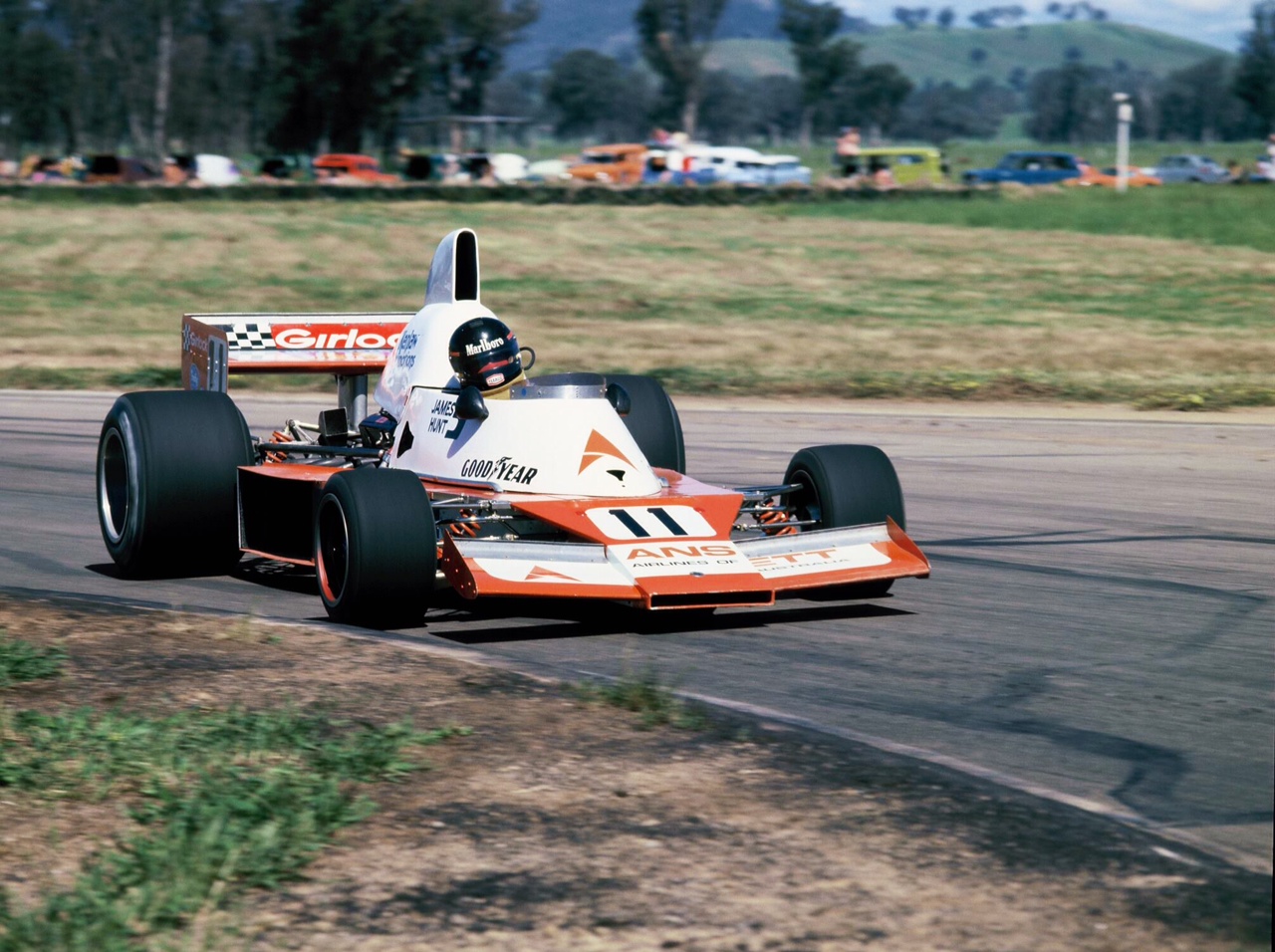

Ian Smiths’ wonderful shot shows James Hunt balancing his Elfin MR8B Chev on the turn into the Winton Esses, 29 October 1978, his final race win. Winton ‘Rose City 10000’. (Ian Smith/ autopics.com.au)

James Hunt wins the ‘Rose City 1000’ at Winton Raceway, Benalla, Victoria, Australia in October 1978…

hunt and friends

James Hunt was a hit with the spectators, media, and the Elfin Team, a professional in every respect. ‘Kojak’, McLaren mechanic Ray Grant to Hunts’ right. Winton paddock. (oldracephotos.com)

Racing in Australia…

Hunt enjoyed his interlude in Australia, he was frustrated with his McLaren M26 in F1, McLaren having lost their ‘design mojo’, the Colin Chapman/Peter Wright ground effects Lotus 78 and 79 dominating the 1977 and 1978 seasons. Mario Andretti easily won the World Drivers Championship in 1978, Hunt finished thirteenth, and failed to complete races on nine occasions.

spanish gp

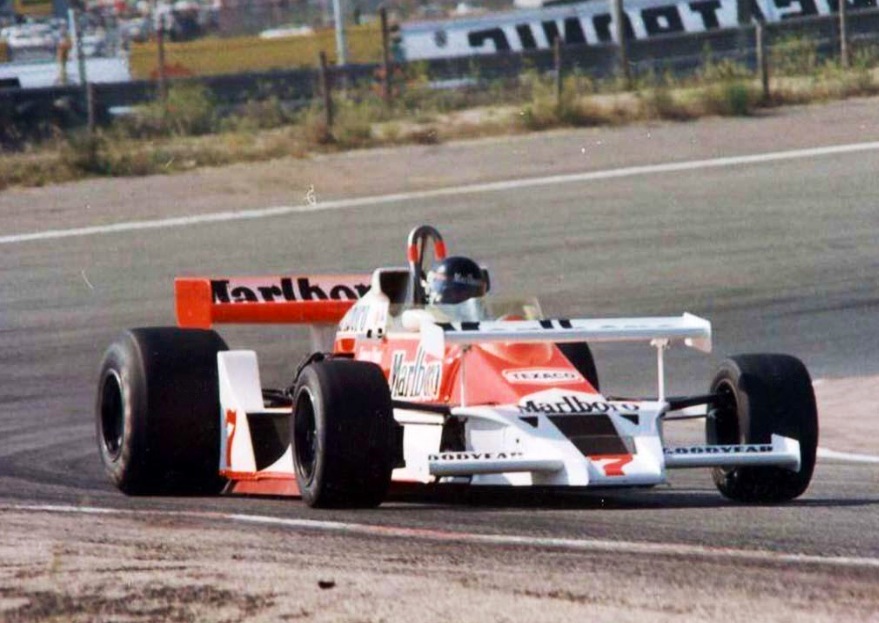

In search of grip, downforce…the ground effect Lotus 79 got something for nothing whilst everybody else played catch-up in 1977-8. Hunt in his bi-winged McLaren M26 Ford, Spanish GP 1978. Andrettis’ Lotus 79 won from pole, James a lap down in 6th place (pinterest)

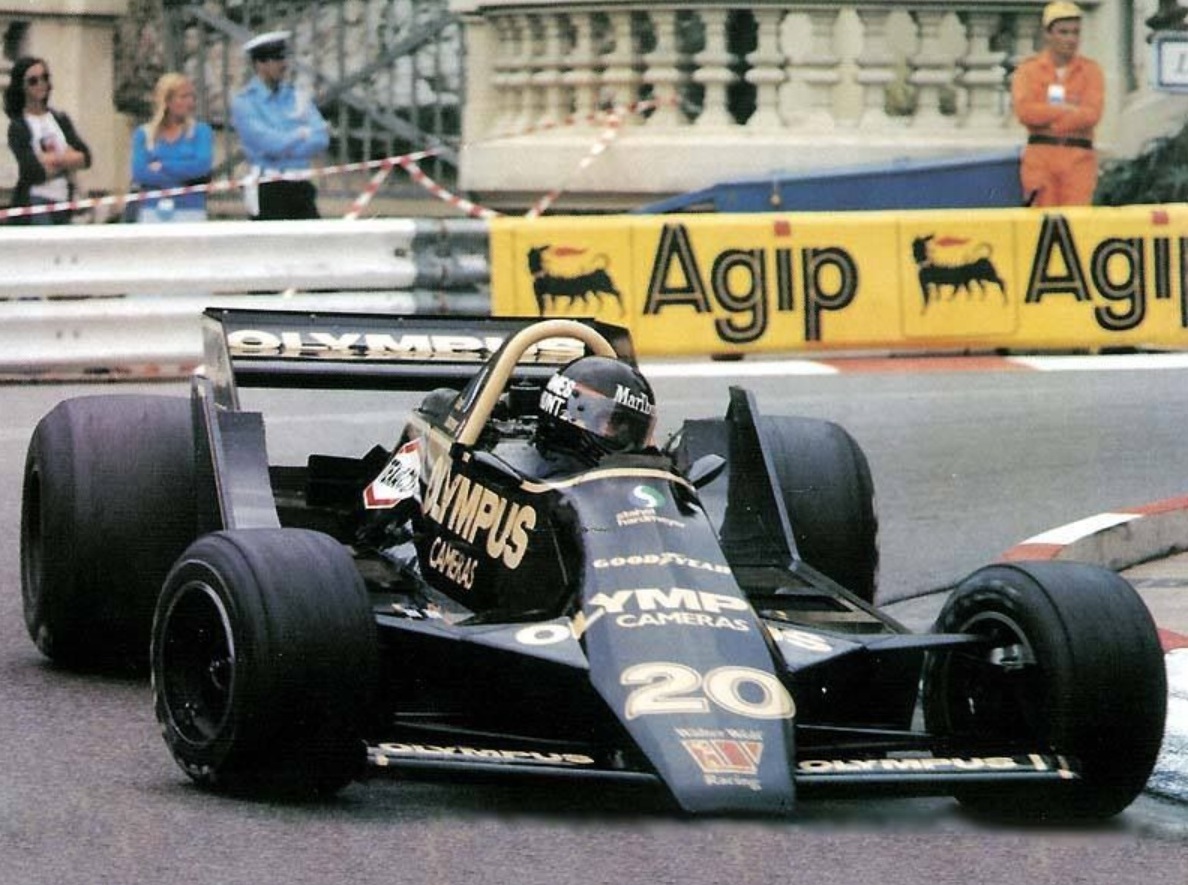

James joined Wolf for 1979, optimistic that his old mate and designer from the Hesketh days, Harvey Postlethwaite could ‘produce the good’s, but frustrated with the nature of ground effect cars generally, and the lack of competitiveness of the Wolf WR9 specifically, retired from racing at Monaco.

So, we were lucky to see the first recent World Champion in Australia at all, his late 1978 Winton victory, in fact his last race win of any kind!

The whole exercise was bizarre really, the Winton event an annual stand alone race outside the ‘Gold Star’ the then prestigious series to decide Australia’s Champion Driver, the Australian National Championship Formula at the time was Formula 5000, for single seaters powered by 500BHP production based V8’s.

‘Kenlaw Promotions’ Ken Campbell, together with the Benalla Auto Club, the Winton promoter, secured Hunt for $30000, half paid up front and half after he raced plus expenses, a lot of money at the time. Elfin were to be paid $10000 for supply of the car ‘end to end’, that is prepared and maintained at the circuit.

A huge amount of publicity was generated by Hunts presence in Australia, attendances at the circuit on the weekend, of around 15000 people on raceday reflective of interest in both his driving talent and flamboyant tabloid lifestyle. He arrived ‘pissed’ but still handled the media upon arrival with aplomb! Hunts’ entourage included his brother Peter, his McLaren mechanic Ray Grant, and a friend.

The car was entirely prepared by the Elfin crew, lead by Peter Fowler, based at racer Bryan Thomsons’ workshop in nearby Shepparton…Hunt arrived in Australia after the season ending Canadian GP, no doubt the experience in country Victoria was a reminder of his English Club Racing roots!

John Lanyon in the ‘Elfin Bible’ (‘Australia’s Elfin Sports And Racing Cars’ by John Blanden & Barry Catford) outlines in detail how professional and easy Hunt was to deal with, treating the car, team and Garrie Cooper with a great deal of respect..

Elfin MR8 Chev…

cooper race debut

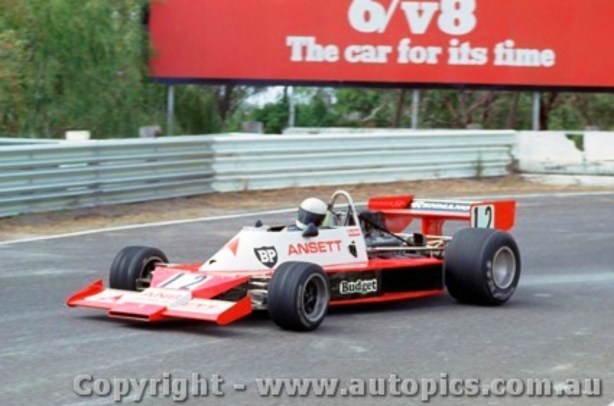

Garrie Cooper debuting the brand new Elfin MR8 Chev # ‘8761’ at the Sandown round of the ‘Rothmans Series’, February 1976. Chisel nose and relative size of the car a contrast to the smaller MR5/6. No airbox at this stage, side deformable structure nicely integrated into side, rearward mounted radiators. Car beautifully finished and detailed, suspension all nickel plated and gleaming in the Summer sun…

Elfin were Australia’s foremost manufacturer of racing cars, Garrie Coopers small concern in Edwardstown, South Australia producing well over 250 cars and over 20 different models from the late 1950’s, until the late 1980’s after his death. The company still produces road sports cars.

The MR8 incorporated all of the knowledge Cooper accumulated in building ‘big bangers’ ; the 400, ME5, and MS7 V8 Sports Racers and particularly the MR5 and MR6 F5000 cars.

Elfin built 4 MR5 Repco Holden engined cars; ‘works cars’ for Cooper and John McCormack and customer cars for Max Stewart and John Walker. The MR6 was bespoke for McCormack, and designed around the light, aluminium Repco Leyland ‘P76′ V8.

Consistent and dogged development of McCormacks MR5 and MR6, by both Elfin and McCormacks’ own team based ‘around the corner’ from the Elfin factory, the MR6 once fitted with a Repco Holden engine, produced race and championship winning cars.

But the bar was raised with the Lola T330/332, so Cooper needed to produce something special for 1976.

Garrie considered using Repco Holdens again but Repco had long withdrawn from racing so the cost and ongoing development of the small block Chev made that the sensible choice, his first car powered by an ex-Bob Muir Peter Molloy ‘prepped Chev.

The chassis was a conventional aluminium monocoque made of 16 and 18 gauge aluminium, with tubular steel sub frames used front and rear and a roll bar braced fore and aft.

Familiar Elfin rear suspension practice was followed with twin radius rods, twin parallel lower links, single top link, and coil spring dampers. Front suspension was by wishbones top and bottom, again using coil spring damper units, alloy Konis front and rear, and adjustable roll bars front and rear.

rear end

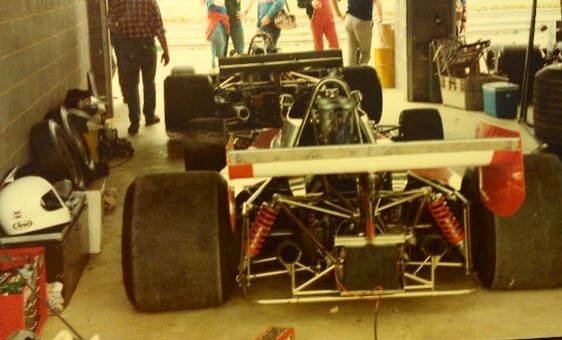

MR8 # ‘8761’  rear suspension. Complex fabrications supports conventional set up of single top link, twin parallel lower links, twin radius rods , and combined coil spring damper (Koni) units, stood up vertically as was the trend of the day. Battery mounted at rear in ‘single post’ rear wing support (Peter Brennan Collection)

Front and rear track was 1625mm, similar to the T330/2, and the wheelbase 2640mm, 30mm longer than the MR5.

A special Elfin casting replaced the standard Hewland DG300 gearbox item and incorporated mounts for both the rear wing and attachment points for the rear suspension subframe.

Brakes were Lockheed and steering Elfins own rack & pinion.

The aerodynamics of the great looking car were a departure from the full-width ‘Tyrrell Nose’ of the MR5/6 to the chisel nose setup Cooper had experimented with on his MR5B.

Three MR8’s were built, one each  in 1976, 77′ and ’78 the cars raced by  champion drivers including Vern Schuppan, John Bowe, Larry Perkins, Bruce Allison, Didier Pironi, and of course Hunt…

Garrie Cooper also raced the cars, his unique contribution as designer/builder/driver critical in keeping the cars competitive throughout this long period.

Hunts car was the Reg Orr owned MR8B Chev, chassis # 8783, the last of the MR8’s built.

The very last Elfin F5000, the only bespoke ground effect Fornula 5000 car built in the world, perhaps the very last F5000 car built in the world, the MR9 Chev is a story for another time…

front suspensin 2

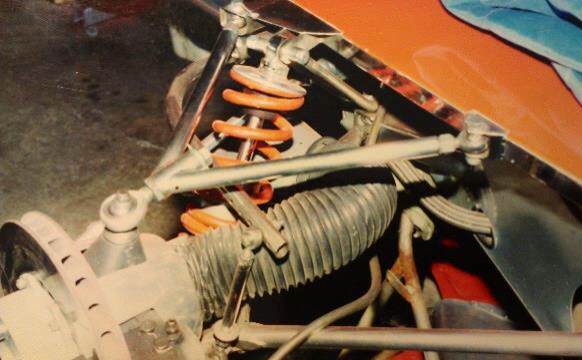

Front suspension conventional unequal length upper and lower wishbones, coil spring/ damper unit and adjustable roll bar. Cast magnesium Elfin uprights front and rear. Car built by the same team but to my mind the MR8 was built to a higher standard of finish than MR5/6 (Peter Brennan Collection)

The 1978 ‘Rose City 10000’…

On the Wednesday and Thursday prior to the meeting the car was adjusted to suit Hunt; seat, pedals, steering, gear shift and a small lever added to the belts to aid exit.

He covered six laps on Thursday but the circuit was dirty and wet Friday, so Hunts first serious drive of the car was on Saturday.

Garrie Coopers diary records as follows ‘ James was very impressive right from the start being very smooth and precise and getting the power on noticeably earlier than the others. Right throughout practice fine adjustments were made to the car to balance it as required. He was always adamant when he pulled into the pits that he see the times he recorded and those of his nearest rivals . After making an adjustment he would go out and improve on his time. This continued through the practice sessions until he finished up putting a string of low 55 second laps…however he seemed to pace himself to the opposition and could have gone quicker again. At no time did he appear ragged or put a wheel off the bitumen…’

Hunt told the local media the Elfin was ‘ A lot better than the Eagle I drove. (He raced an eagle for Dan Gurney in 1974) It seems a good car, it is very forgiving and drives a lot easier. It’s good to have a competitive car for a change. It’s a nice feeling!’ referring to his hapless 1978 season.

Hunt was on pole with a 55 second lap, John McCormack next on 55.7, the race was easily won by Hunt with Alfie Costanzo second around 40 seconds behind in his Lola T332. Mac was credited with the fastest lap, Hunt pacing himself and taking it easy on the car. John Lanyon recalls ‘There was no wear and tear on the car at all. Nothing at all. You would think he hadn’t taken it off the truck. That’s both after practice and the race. he brought the car back in beautiful condition.’

Whilst Hunt was paid, the race was a financial disaster for the Benalla Auto Club and Elfin who were only paid $1000 of the $10000 contracted…still, Barry Catford observed in his book that the win was the fillip the team needed for 1979 after a tough season including Garrie Coopers horrible, but lucky escape from the accident caused by his wing mount failure at Sandown shortly before Hunts’ visit.

hunt close up

How Good Was the Elfin MR8 ?…

Its interesting to speculate about how good the MR8 was in relation to its ‘competitor set’ ; the Lola T332 (first model 1974), Lola T400 (1975), Chevron B37 (1976) , Lola T430(1976), Matich A53 (1974) etc.

Two drivers raced the Elfin and other F5000’s, Vern Schuppan and Bruce Allison.

There are various quotes in the ‘Elfin Bible’ of Schuppan comparing the MR8 favourably with the Lola T332 but later in life he seems to have changed his view.

Despite buying an MR8 to use as a Single-Seater Can Am car, having raced both the Lola T332 and MR8, Schuppan rated the Lola T332 the better car, which begs the question, why buy the Elfin if you thought the Lola the better car?

In any event Vern observes’…The Lola T332 was certainly significantly better than the Elfin MR8, Gurneys Eagle, the Trojan T101 0r the Chevron B28’s. The Chevron I raced was quite tired and also a bit flexible but not in a good way’ Schuppan wrote in Wolfgang Klopfers book, ‘Formula 5000 in NZ & Australia Race by Race’.

He continued, ‘The Lola T332 was a wonderful car, it was quick everywhere, I believe it handled well because it was rather flexible…It was a bit like a big go-kart, and although the flex wasn’t designed into it, it, coupled with quite long rear suspension travel , helped to soak up the weight of the Chevrolet engine. This seemed to give the car an advantage in both slow and fast corners. It didn’t always look quick in slow corners…it just put the power down so well without a lot of sliding around or oversteer. It was excellent too, in the wet.’

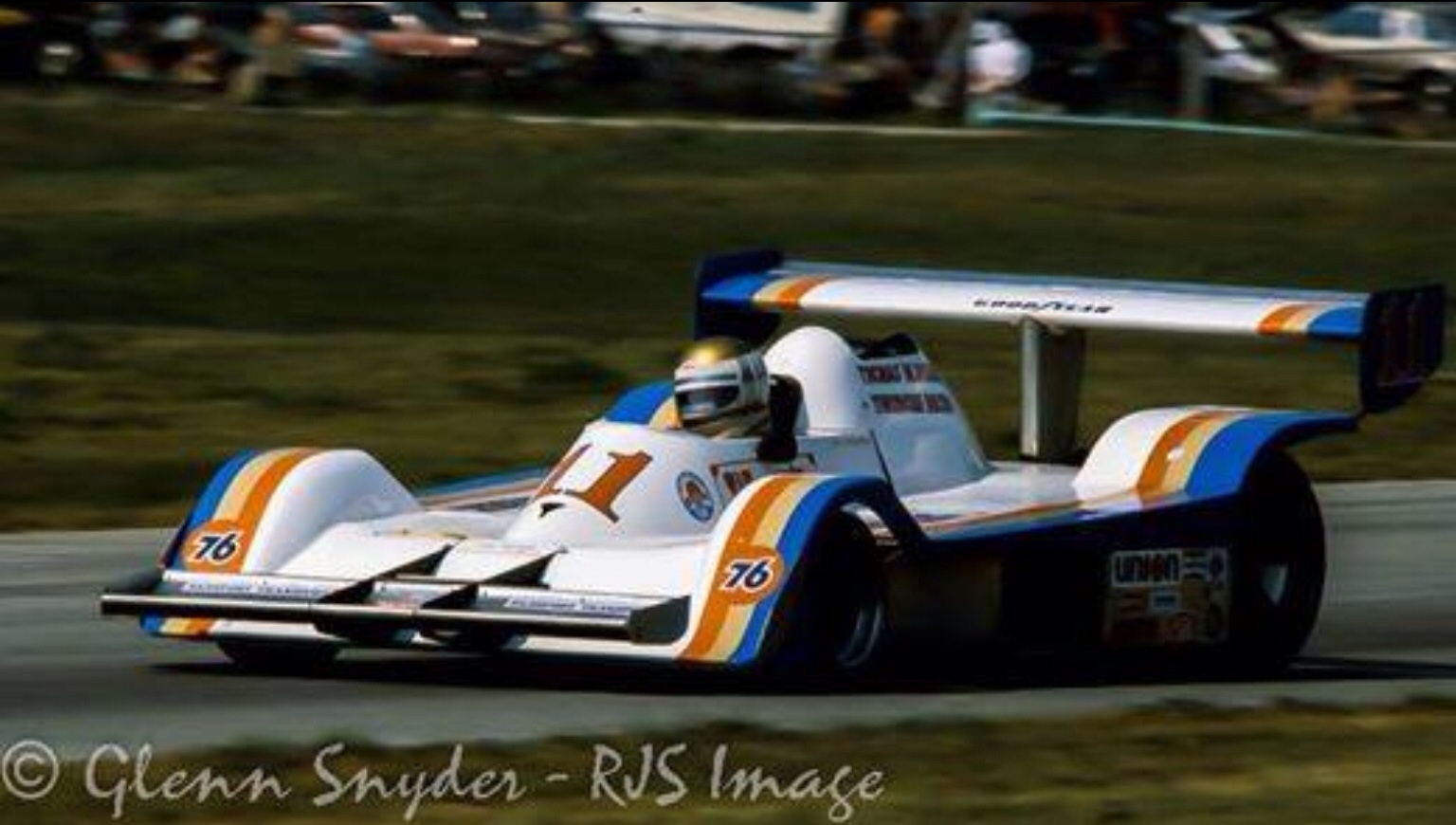

Vern Schuppan in his MR8, chassis # ‘8772’ in Single-Seat Can Am configuration, Road America, Wisconsin 1979. Vern was 5th in the race won by Jacky Ickx Lola T333CS (Glenn Snyder)

Bruce Allison’s F5000 CV started with his ex-Bartlett T332 straight out of  an ANF2 Birrana 274, he took to the 5 litre cars like a ‘duck to water’ and instantly became the ‘enfant terrible’ of the F5000 grid in Australia in 1975, guided, prepared and advised by the great Peter Molloy, as Warwick Brown and Niel Allen had been before him.

Bruce raced the ex-VDS Chevron B37 in both the UK, winning the prestigious Grovewood Award in 1977, and in Australia. He raced an F5000 March for Theodore Racing as teammate to Alan Jones, and also the MR8, once, after he had retired for the first time!

‘I hadn’t raced since my last race in the UK, I got a call from John Lanyon, of Elfins’ to bolster the numbers at Calder in early 1982. I duly practiced on the Friday and raced the car on the weekend finishing in the top 5, I don’t remember exactly where. (Looking at the Elfin book, Bruce finished second to John Wrights’ LolaT400, just in front of Garrie Cooper in the Elfin MR9 and took the fastest race lap) It was such a long time, five years, since I had raced a 5 litre car, I raced a March 781 F1 car in the Shellsport Championship in the UK, that I can’t really make comparisons of the MR8 to the other cars.’

‘I had a lot of success with the Lola, but in the UK the B37 was the quickest of the F5000 and F1 cars running the Shellsport Series that year, and I didn’t finish the season. The Chevron was quicker I believe, through the faster corners, the T332 quicker both through the slower stuff and in a straight line. Overall the Lola had the edge.’

‘In the Theodore Team in the US in 1976 i was number two to AJ (Alan Jones), so AJ got the T332, the March 76A allocated to me, it was a shocker of a car, although it was good in the wet, AJ won a race in it late in the season in wet conditions, when he raced it having boofed the Lola. With the benefit of hindsight I would have been better taking my T332 to the US, it was such a well-sorted car, Molloy Chev and all, I would have been far more competitive…’

Bruce was generous with his time and anecdotes but I’ll save those for an article on the one off, gorgeous Chevron B37 itself.

Peter Brennan has raced and restored an Elfin MR5, MR8, Matich A50, and recently the Lola T330 we have covered in ‘Racers Retreat’. I asked him about the construction of the MR8 relative to the other cars…’The tub on the MR8 is much stronger than the T330/332. It has a good forward roll-hoop, the Lola got that only when it was mandated. The Lola is weak from the drivers knees forward’.

‘The T330 was light, mine is 620Kg, my MR8 was 684 Kg, the T332 will be closer to the MR8 in weight with its deformable side structures, oil lines forward, bigger radiators and heavier bodywork, which in some cars is all-enveloping’.

‘The Lola was much better built than the Elfin in the driveline, spindles, uprights, radius rods etc’.

Race-winner though the MR8 was, their is little doubt, no revelation here!, that the Lola T330/332 was the F5000 of the era, the greatest F5000 car ever, as well as one of the most successful single-seaters of any class in any era of racing history.


Bruce Allison in the Reg Orr owned Elfin MR8, chassis # ‘8783’ at Calder , February 1982, nose of the Cooper ground effect Elfin MR9 Chev alongside…This is the same car James Hunt drove to victory at Winton in 1976 and in which John Bowe had  much success. (Velocity Retro)

Wolf WR9 and Hunts short 1979 Season…

Hunt started 1979 with plenty of optimism and hope but ground effects was a ‘black-art’, designers and engineers learning what aerodynamic shapes of sidepod worked and coping with the sorts of loads the aluminium monocoques of the day struggled with.

Narrow chassis’ to accomodate ground effect tunnels created torsional rigidity problems not encountered by designers to that point. Even Colin Chapman lost his way…the wingless Lotus 80 was a flop, the class of the 1979 field the Williams FW07, the best ‘refined Lotus 79 copy’ of the year, albeit Ferrari won the title as a consequence of the FW07’s late arrival…

Postlethwaites Wolf WR9 was unsuccessful. James ‘pulled the pin’ on a short but stellar GP career in Monaco, opening the door to Keke Rosbergs’ first ‘good drive’, one door closes and another opens…In Hunts case his wonderful partnership with Murray Walker as broadcasters of the BBC GP coverage commenced.

Few of us will forget the Hunt magic and charisma on display at Wonderful Winton all those years ago, and yes, by all accounts the Hunt Touring Group partied hard at the end of the meeting!

wolf

James Hunts’ Wolf WR9 Ford in his last Grand Prix, Monaco 1979. DNF with transmission failure on lap 4, the car was not Harvey Postlethwaites’ most successful design. (pinterest)

Etcetera…

front

MR8 ‘8761’ : cars used chisel nose unlike the earlier MR5/6. Roll hoop provides driver protection and chassis bracing, mandated from 1975 season. Car alongside is the ex Brown/ Costanzo Lola T430 then owned by Bob Minogue (Peter Brennan Collection)

side profile

MR8 pictured is the Ex-Cooper chassis # ‘8761’ then owned by Peter Brennan. Nice profile shot shows beautifully integrated body, deformable structure, the MR8 equal if not faster than any of its imported contemporaries from 1976 to the classes end in Australia in 1982…(Peter Brennan Collection)

motor

‘Motor’ Magazine Australia track test of the MR8 in early 1979. Racer Sue Ransom tested the car with Vern Schuppan doing the timed runs; 0-100kmh 2.9 sec, 0-160 4.9 sec, 0-240 10 sec. Standing 400 metres 9.75 sec. Top speed geared for Adelaide International Raceway 275kmh.     (Peter Brennan Collection)

rose city 10000 poster

Credits…

Ian Smith, autopics.com.au, oldracephotos.com, Glenn Snyder RJS Collection, Pinterest, Peter Brennan Collection

‘Australias Elfin Sports and Racing Cars’ John Blanden & Barry Catford

‘Formula 5000 in NZ and Australia Race by Race’ Wolfgang Klopfer

Many thanks to both Peter Brennan and Bruce Allison for their contributions to this article

Other F5000 Articles…

Frank Matich and his cars.

https://primotipo.com/2015/09/11/frank-matich-matich-f5000-cars-etcetera/

Shadow DN6B Dodge.

https://primotipo.com/2015/10/07/shadow-dn6b-dodge-road-america-f5000-1976/

Finito…

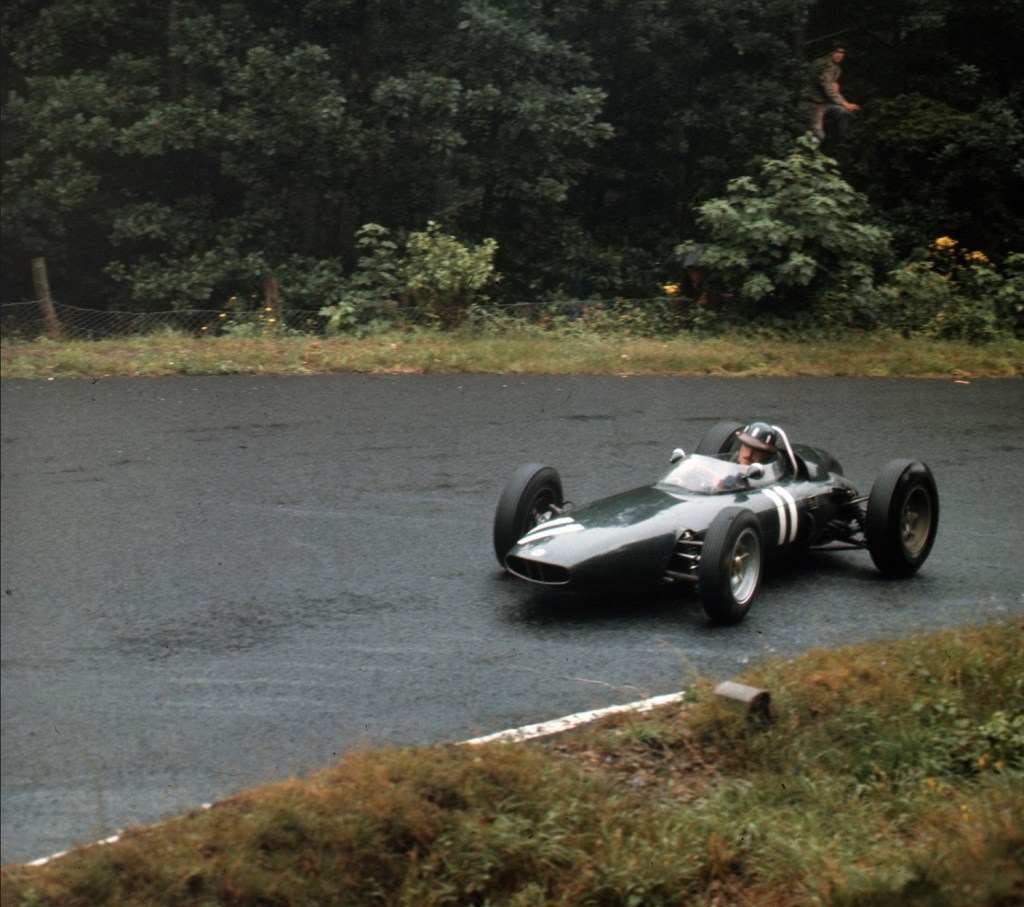

Hill landing after one of  the Nurburgrings’ jumps, he won the race, on the way to his first World Championship…

Wonderful bit of composition on the part of Jesse Alexander! In fact cameras were a big topic of conversation and consternation on this weekend as Hill had an ‘off’ avoiding a TV camera which fell off  Carel de Beauforts’ Porsche in practice.

BRM P57 Chassis…

Graham Hills’ 1962 championship winning mount was a BRM V8 engined variant of the space-framed chassis, Climax engined car used in 1961. Hill fought a season long battle with Jim Clark in Colin Chapmans’ revolutionary monocoque Lotus 25 Climax. The P57 was both reliable and fast, and prevailed in 1962.

Hill famously the only driver to win motor racings’ Triple Crown’; an F1 Championship, Indy’ 500 and Le Mans. (in 1962/8, 1966 and 1972 respectively)

german gp

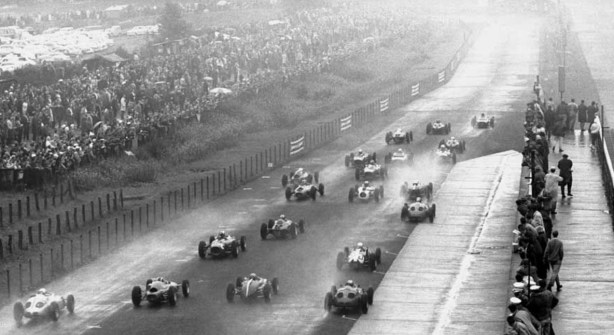

Start of the 1962 German GP, Nurburgring, August 1962 (Pinterest)

BRM Type 56 V8…was a 90 degree V8, it had a bore and stroke of 68.5mmX50.8mm for a capacity of 1498cc. Lucas port fuel injection was fitted, compression ratio was 11.5:1, the engine developed 190BHP at 10250RPM. Customer versions were also sold, these used Weber carburettors and developed at least 180BHP at 9750RPM.

donk 1

This shot shows the T 57 in ‘ultimate form’ with six speed Colotti gearbox and low level exhaust system on its Type 56 engine (Automobile Year 10)

gra

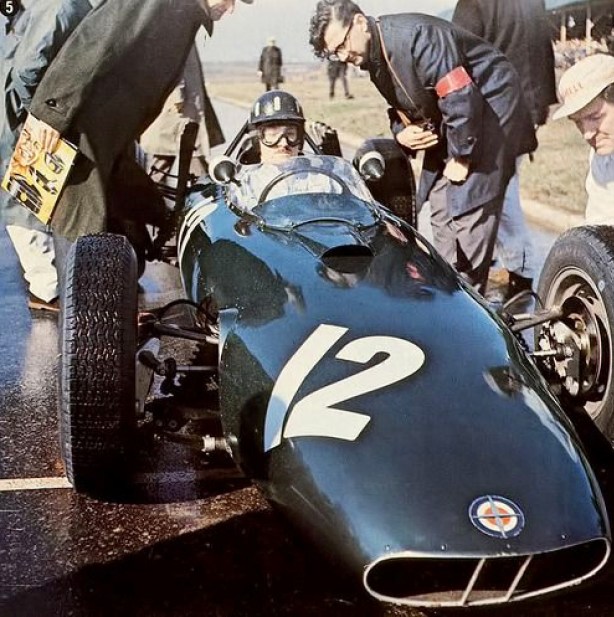

Hill being tended to by BRM Chief Engineer Tony Rudd on the British GP grid, Aintree, July 1962. Hill finished fourth in the race won by Clarks’ Lotus 25 Climax. Note ‘stack exhausts’, upper and lower wishbone front suspension. Body made of electron, fibreglass the ‘norm’ by 1962. (Pinterest)

bruce

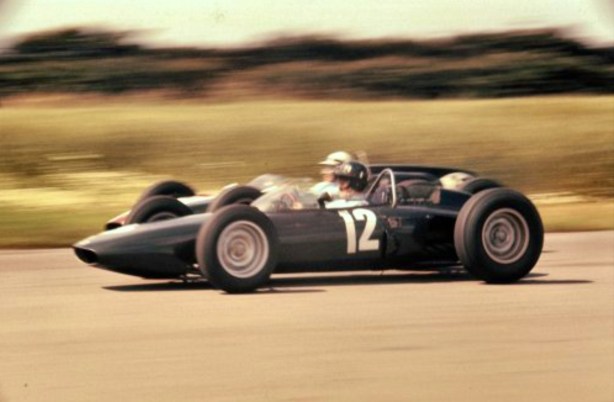

Hill and Bruce McLaren, Cooper T60 Climax , Aintree 1962. Bruce finished third with John Surtees second in a Lola Mk4 Climax (Pinterest)

zandvoort

Hill victorious at Zandvoort, Holland 1962. BRM P57 (The Cahier Archive)

p57 cutaway

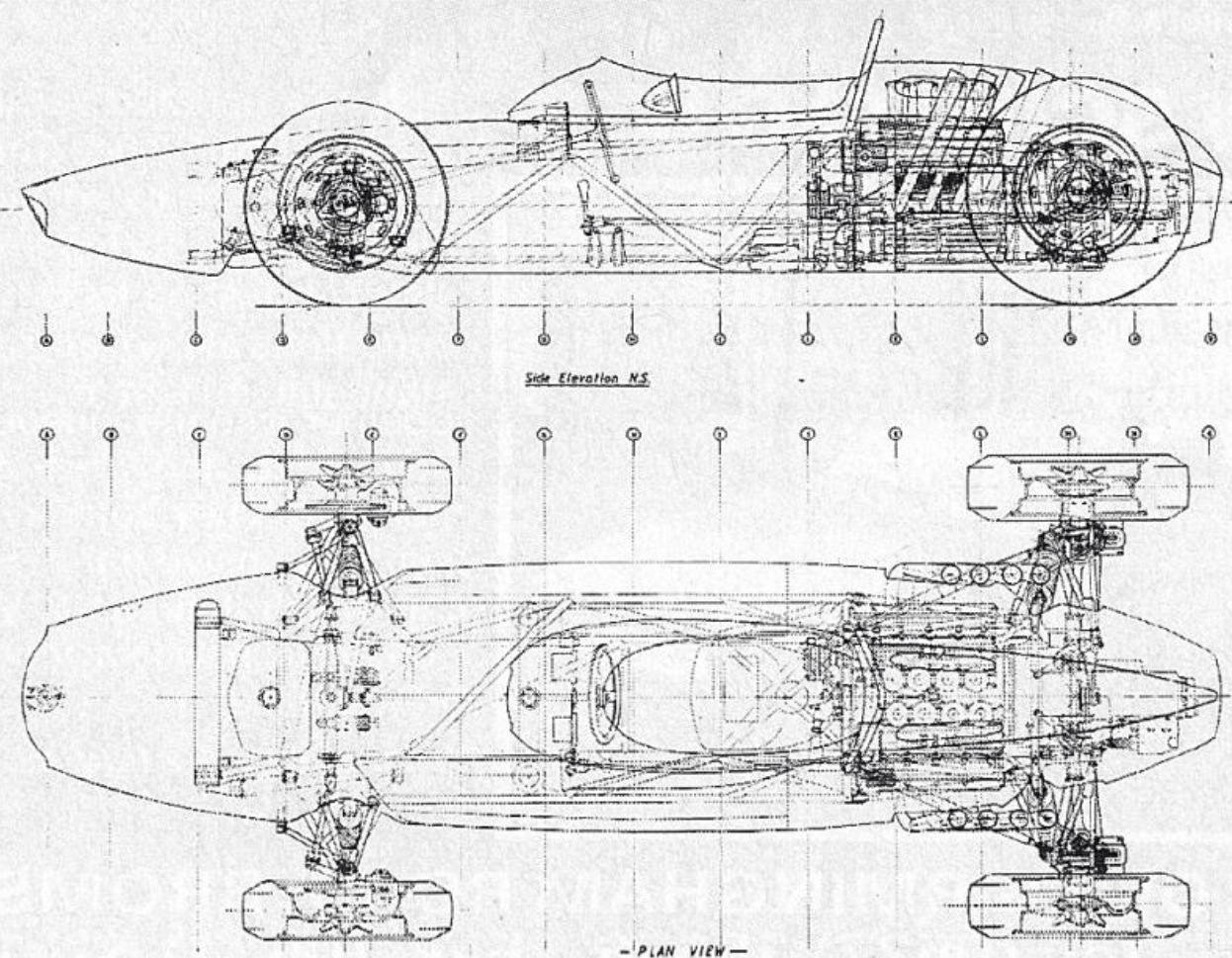

1962 BRM P57 drawings. Spaceframe chassis, wishbone front and rear suspension with coil spring/ damper units. 1498CC DOHC 2 valve, V8. Circa 190BHP @ 10250 RPM. 5 and sometimes 6  speed gearbox. Body made of electron, ‘stack exhausts’ shown replaced by conventional setup later in 1962 (Pinterest)

brm chassis

High level view of the Type 57 chassis shows the standard of finish, upper and lower wishbone suspension front and rear and later low level exhaust system (Automobile Year 10)

donk 2

This shot of the Type 56 BRM V8 shows the earlier ‘chimmney or stack’ exhausts, intake trumpets for the Lucas injection system, rear of the spaceframe chassis, rear wishbone and adjustable sway bar (Automobile Year 10)

Porsche 1962 German GP

Finish shot similar to the opening one…Jo Bonniers’ Porsche landing German GP 1962. (Jesse Alexander)

Photo Credits…

Jesse Alexander, Pinterest, The Cahier Archive, Automobile Year # 10


Brivio won the race, 7 laps of the 72Km ‘Piccolo Madonie’, 504Km, in his Scuderia Ferrari entry, ahead of 4 other ‘Monzas’…

He took 6 hours 35 minutes to complete the race at an average speed of 76.3 KMH, an endurance test to be sure!

Scuderia Ferrari had a busy and victorious weekend, running three Monza’s at the Eifelrennen at the Nurburgring, Nuvolari winning and another three in Targa.

Borzacchini lead the Scuderia Ferrari Targa assault in a Monza 2.6 but retired after hitting a wall near Collesano, Brivio winning with Carraroli third in the other SF entry, both 2.3 Monza’s .

One of Vittorio Janos’ greatest designs, the supercharged straight-eight ‘Monza’ is one of the most successful racing cars of all time.

Vittorio Jano…

vittorio

Vittorio Jano and Phil Hill later in Janos’ life. Pictured in Maranello in 1962, Jano designed the V6 engine which powered Hills’ 1961 World Championship winning Ferrari 156…the car was a ‘slug’ in 1962, the problem the chassis not Janos’ engine…Jano died by his own hand aged 75, frustrated by illness and his diminishing powers. He was 65. (Klemantaski Archive)

Alfa ‘pinched’ Jano from Fiat, where he was a key designer of their 804 and 805 GP cars. He was the leading figure in the design of Italian racing cars for over 30 years, Fiat in the 20’s, Alfa in the 30’s and Ferrari in the 1950’s, mind you his ‘Dino’ derived V6 engines were still winning rallies in the Lancia Stratos well into the 1970’s.

As soon as he joined Alfa he worked on supercharging the P1 GP car whilst also designing the very successful straight-8 P2 for 1924, the car immediately victorious in the French GP.

Alfa won the ‘World Championship’ in 1925 but withdrew from racing in 1926/7, allowing Jano to concentrate on a new series of road cars, the revered 6C 1500/1750 cars the result.

Alfa wanted to return to outright success in motor racing, the first step was the creation of the 8C2300, ‘unquestionably the ultimate sports car of its time and marked the pinnacle of the era for sports cars with cart-sprung flexible chassis and crash-gearboxes..’ according to marque expert Simon Moore.

Context of The Time…

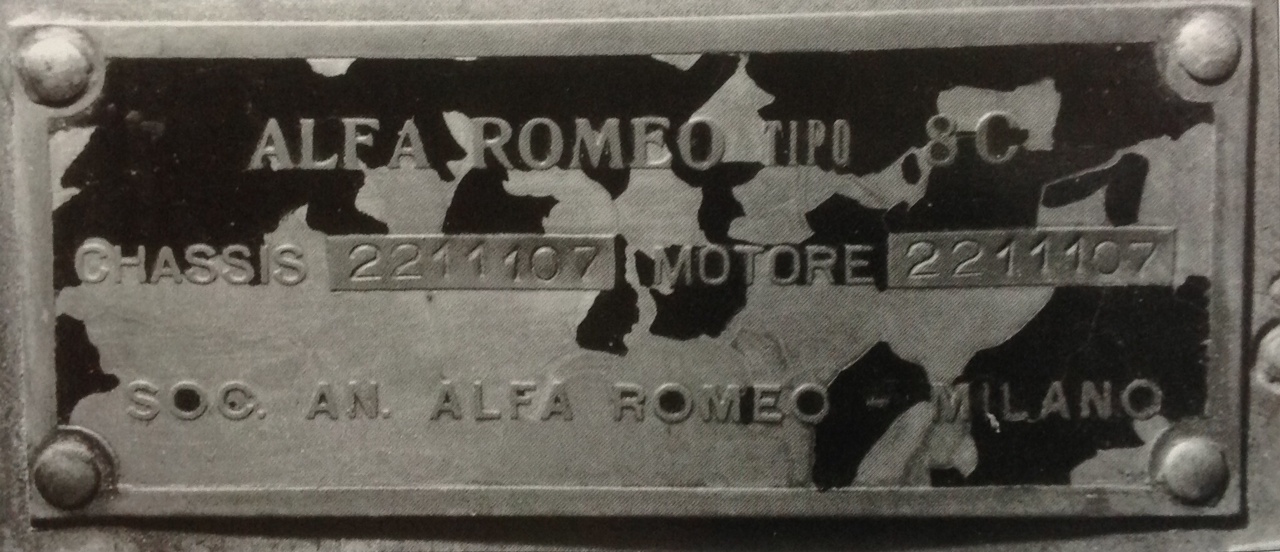

chassis plate

The world was still in recession as a consequence of the collapse of the global economy after the 1929 Wall Street Collapse, Bentley were going through liquidation, Mercedes were entering the market for ‘mass-produced’ cars, whilst Alfa introduced this upmarket car.

Alfa themselves were not immune to any of this, passing through and into the hands of government agencies to make grants to aid industry, ultimately being taken over by the ‘Instituto Ricostruzione Industriale’ in 1933.

8C2300 Design…

monza outline

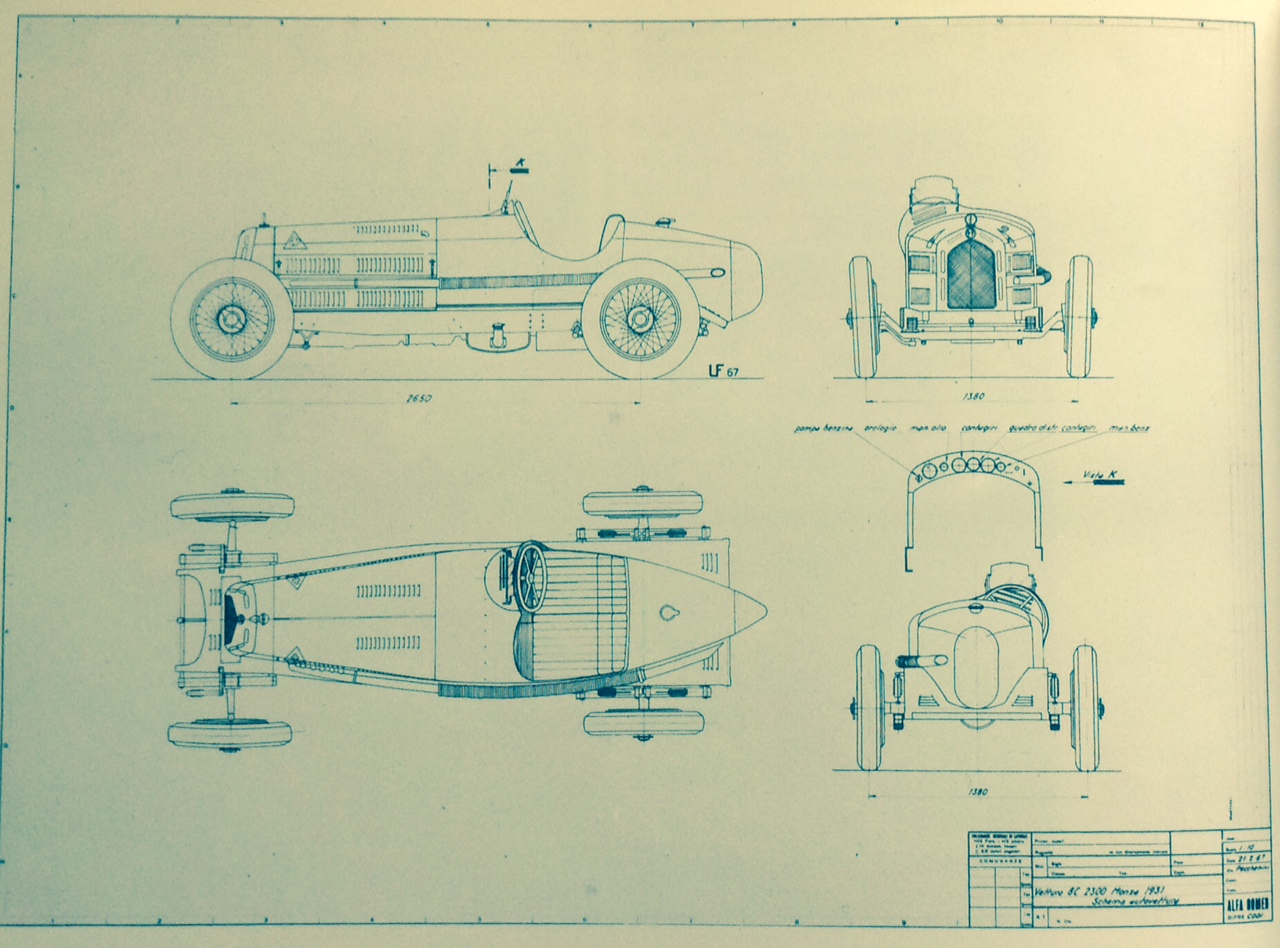

Jano laid down a chassis which was conventional for the period in having channel side and cross members with semi-elliptic leaf springs and friction shock absorbers.

The ‘Corto’ had a wheelbase of 9 feet, and the ‘Lungo’, 10 feet 2 inches. Rod operated drum brakes were fitted of 15 3/4 inches internal diameter and were very powerful by the standards of the day. Knock-off wire wheels were standard competition fare , 5.5 inches wide and 19 inches in diameter.

The rear axle and 4 speed gearbox were of the same design as the 6C 1750.

The engine was both the heart of the car and it’s outstanding design feature.

A straight 8, with a bore and stroke of 65x88mm, the cylinders were cast in two identical blocks of four to allow for a train of auxiliaries to be placed between them. The crank was supported by ten main, plain bearings.

The crank was made of two halves, with two helical gears bolted between them in the centre, one driving the (two) camshafts by two intermediaries, and the other the supercharger, oil and water pumps.

The cylinder blocks were fitted with dry liners, and had separate, alloy detachable heads. The engine was dry-sumped.

A ‘Roots type’ two lobe blower was mounted low down beside the alloy crankcase, fed by a Memini carburettor . The fuel system used two Autovacs from a twenty-four gallon rear mounted tank.

Ignition was by Bosch coil and distributor with the manual control in the centre of the steering wheel.

The engine developed between 165 and 178 BHP at 5400RPM.

monza engine

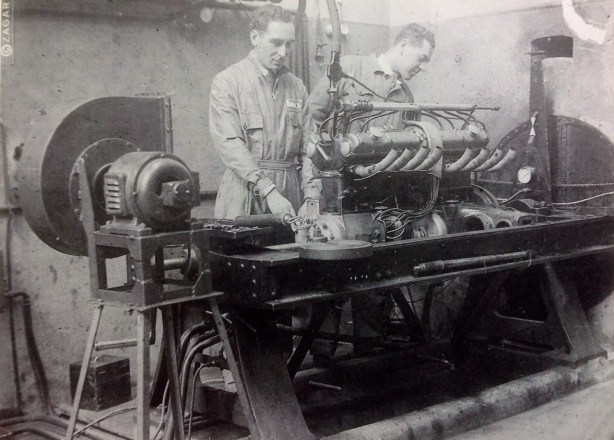

Scuderia Ferrari workshop in 1933. Eugenio Siena left, and Giulio Ramponi right, working on an 8C2300 engine on the test bed. Ramponi a notable figure as a mechanic, riding mechanic and driver for Alfa. He also had a key role in the ascent of  both Whitney Straight, and Dick Seaman as drivers, preparing their cars (@Zagari)

Race Record…

nuvolari

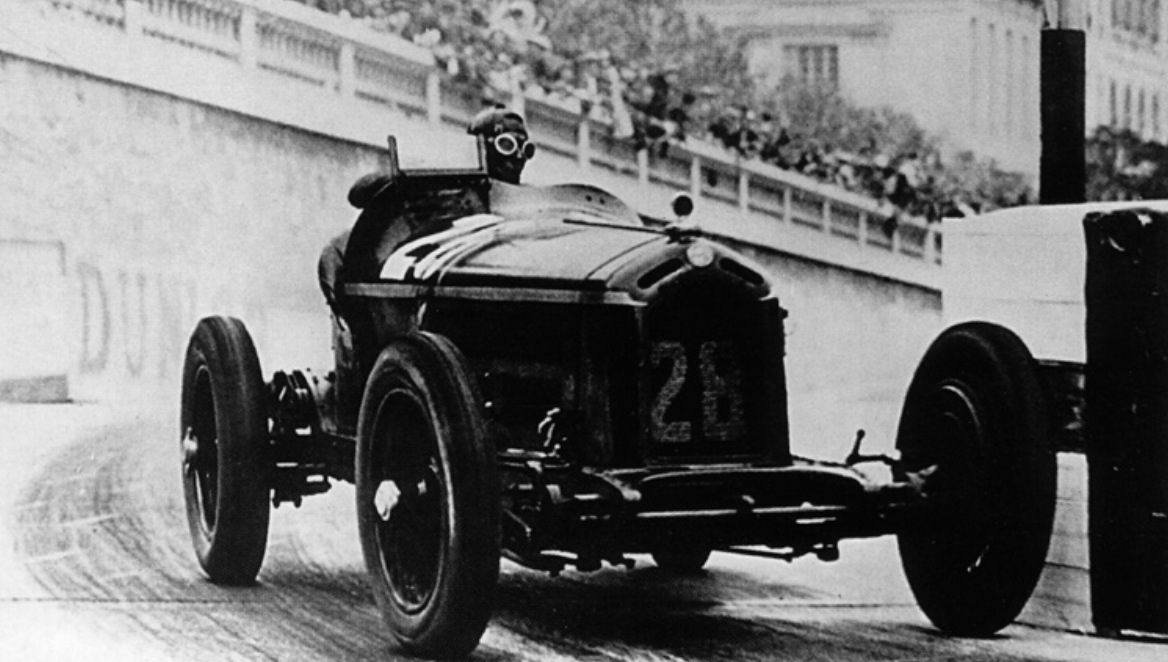

The ‘Monza’ won 2 championship Grands’ Prix, the Italian Grand Prix in 1931, a 10 hour epic won by Nuvolari and Campari, the victory from which the car took its name, and the 1932 Monaco GP. Nuvolari is pictured in his Monza in that race, he won it over a duration of 3.5 hours from Rudy Caracciola, by only 2.7 seconds!, in a similar car. (Unattributed)

The 8C2300 sports cars were incredibly successful winning Le Mans 1931-4, the Spa 24 Hour in 1932/3, Targa 1931-3, and the Mille Miglia 1932-4.

Alfa developed the P3 as it’s pure racing car, during the same period, a straight 8, twin-supercharged , fixed cylinder head car which was incredibly successful in 1932-5. As a consequence the 8C2300 based racing cars won only two championship Grands’ Prix (Italian GP in 1931 and Monaco GP in 1932) as well as many second tier events, not bad for a ‘sports car’ all the same!

Minoia was also crowned European Champion in 1931 driving ‘Monzas’.

Production History…

188 or 189 cars were produced from 1931 to 1934, in three series, with ten ‘Monzas’ officially built by the factory. The number built by Alfa according to Simon Moore is greater than that, ten works racers and a number of customer racers built to similar specifications…where definition of a Monza is ‘ a 2.3 racer with a narrow body, outside exhaust pipe, short front springs and a tail comprising a fuel tank with a pointed crush cone’.

Without doubt a landmark car and one of the very few to be both a great sports car, sports racer and Grand Prix winner…a GP car in which to do the shopping!


Antonio Brivio beside his Monza. He won the Targa twice, in 1933 and ’35, the Mille Miglia in 1936 and Spa 24 Hour race in 1932. He was also a world class bobsledder competing in the 1936 Winter Olympics in Garmisch. (Pinterest)

Etcetera…

monza

monza engines by 2

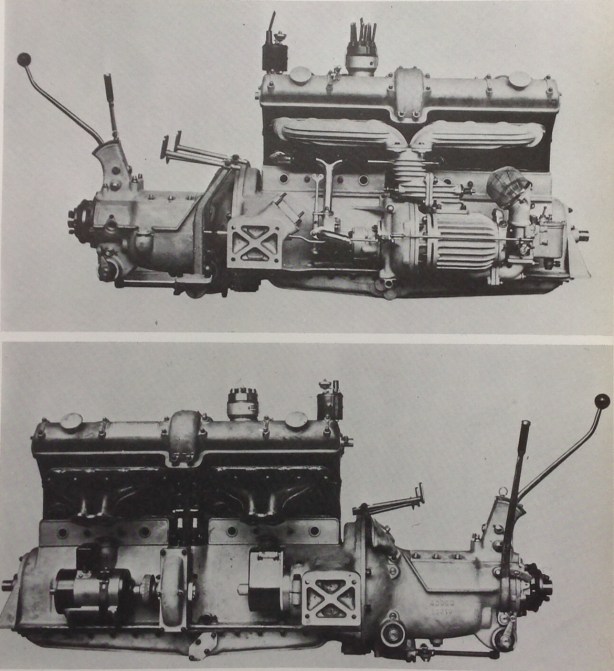

Both sides of the 2.3 litre DOHC straight-8 and 4 speed gearbox. Roots type 2 lobe blower mounted low on RHSide, fed by Memini carburettor. Engine comprised 2 blocks of 4 cylinders with centrally mounted drives from 2 piece crank visible (Alfa Archives)

monza engine cutaway

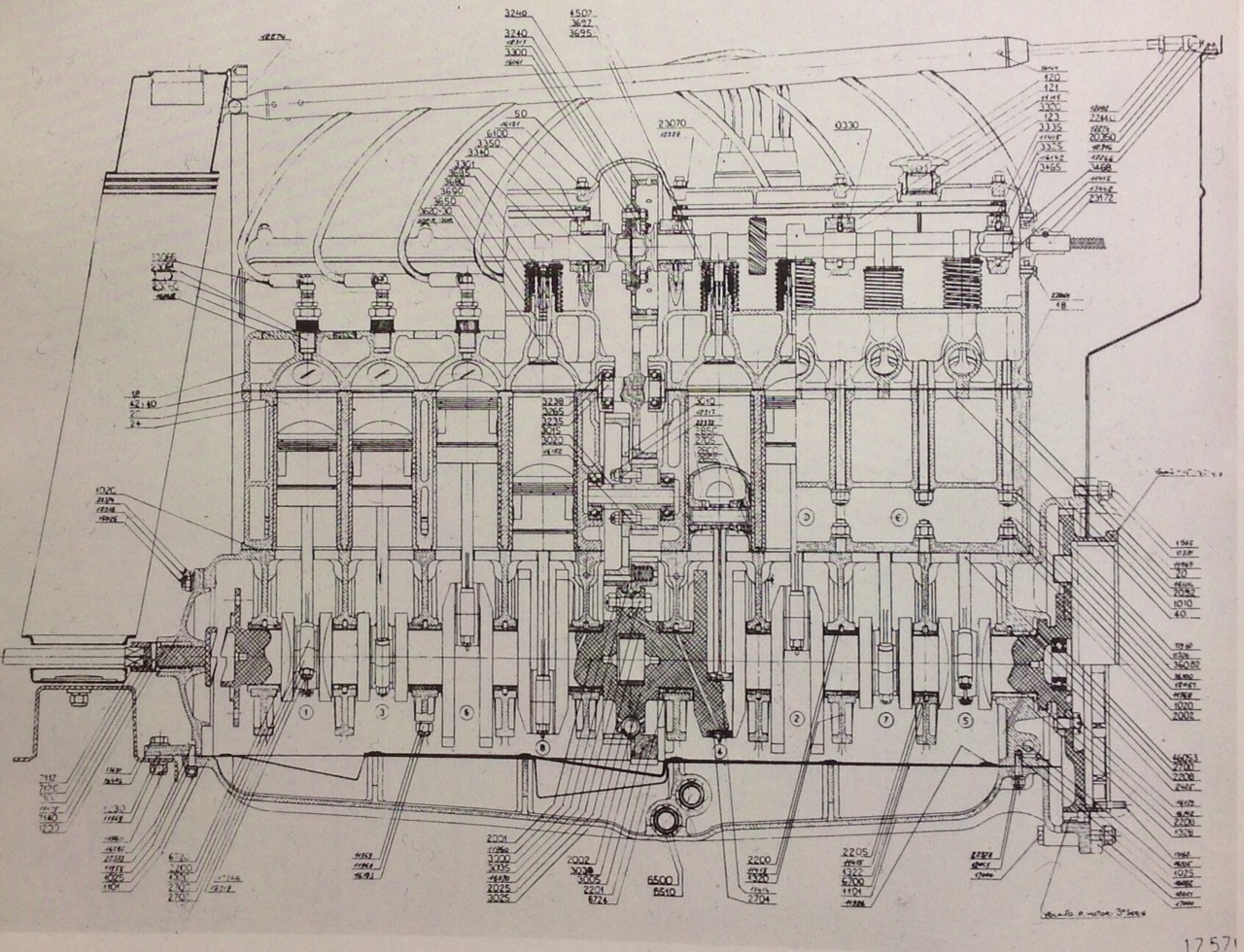

Section of the 8C2300 engine showing how it was divided into 3 levels; one piece cast crankcase, 2 blocks of 4 cylinders in line, and the heads. Both the cam drive, and 2 piece crankshaft are clearly seen (Simon Moore/ Alfa Archives)

monza zoom

Photo and Other Credits…

‘The Legendary 2.3’ Simon Moore, ‘Alfa Romeo’ Hull & Slater

Pinterest unattributed, tintoyslife, @zagari, Klemantaski Archive, Alfa Romeo Archive

Finito…



Mercedes Benz T80…

Posted: October 6, 2014 in Obscurities
Tags:

t80

The Mercedes Benz T80 1939 World Land Speed Record contender on test in 1939…

Pre-War Grand Prix Ace Hans Stuck Senior was keen to take the WSR, convincing Mercedes to build him a car, the program approved by Der Fuhrer as another of the technological triumphs of the Germans young Adolf was keen to show the world.

It was to be the first outright WSR attempt in Germany but the Nazis had World Domination in mind so the program lapsed as World War 2 commenced.

Designed by Dr Ferdinand Porsche…

t 80 body

Car design by Ferdinand Porsche. Steel body, three axles, rear two driven. Drum brakes front and rear. weight 2896Kg, length 8.2 metres, width 3.2 metres, height 1.7 metres. Drag coefficient 0.18

The car was powered by a massive Daimler-Benz DB603 44.5 inverted V12 giving around 3000BHP. It had three axles, two driven, weighed 2.7 metric tons, was over 8 metres long and had a projected top speed of 470MPH.

Aerodynamicist Josef Mickl designed the body which had a drag coefficient of 0.18, astonishing even now.

mb engine

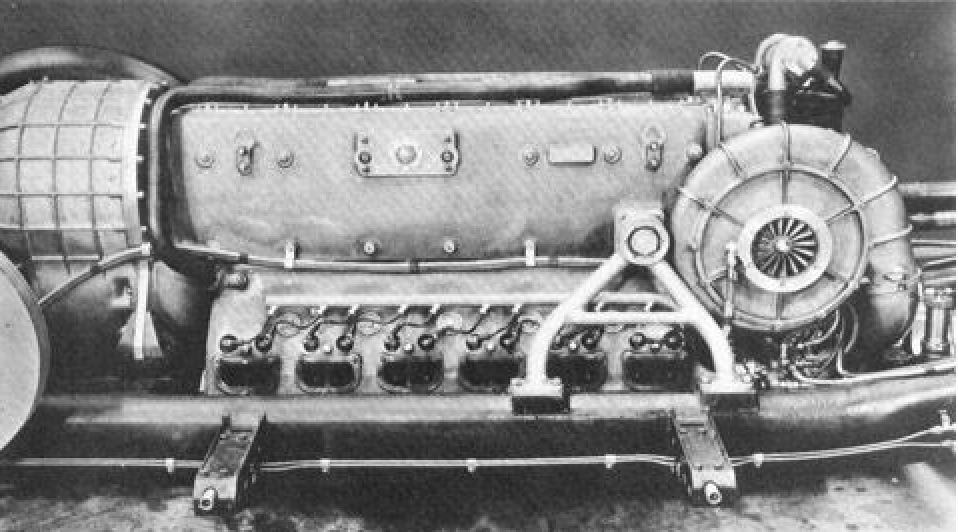

Daimler-Benz DB 603 Aero engine. 44.5 litre, fuel injected, supercharged V12. Circa 3000BHP@ 3200RPM

Record Week…

Stuck was to take the record on a length of autobahn between Berlin-Leipzig, the road 25 metres wide and 10 Km long in January 1940, the car nicknamed “BlackBird’ by Hitler himself.

The event was cancelled, the car stripped of its engine was stored during the war in Karnten, Austria and is now on permanent display at the Mercedes Benz Museum in Stuttgart.

It took untill 1964 for Art Arfons to exceed the projected speed of the T80 in 1940, the turbo-jet powered ‘Green Monster’ attaining 544MPH on the Bonneville Salt Flats.

driving position

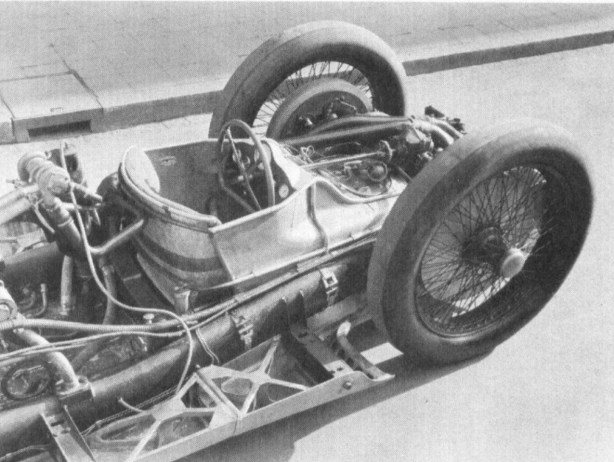

Hans Stucks’ far forward driving position, hefty steel girder frame chassis, drum brakes and tyres of the day designed to cope with projected speeds of the T80…

front

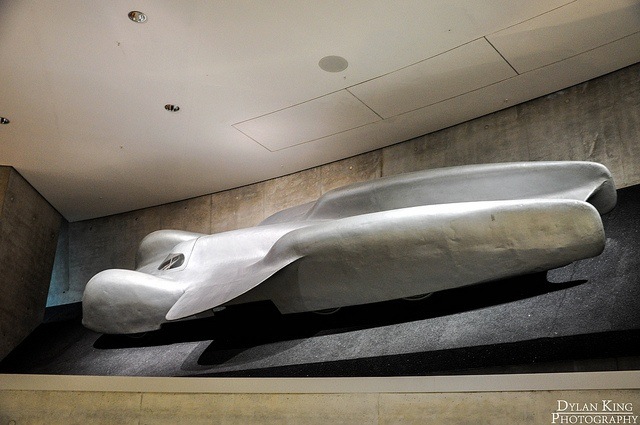

T80 in Mercedes Museum, Stuttgart (Dylan King)

rear

Photo Credits…

Pinterest, Dylan King Photography
