John Surtees poses with his Ferrari 312, the Scuderia’s 3 litre V12 new season and new formula contender, March 1966…

‘Big John’ is probably feeling fairly confident at this point, Ferrari seemed to be as well prepared as they had been for the last formula change from 2.5 to 1.5 litres in 1961. They took the title convincingly of course, Phil Hill won it in the Carlo Chiti designed ‘Sharknose’ 156 V6.

Coventry Climax had withdrawn as an engine provider at the end of 1965, other than some transitional support of Team Lotus with a couple of 2 litre FWMV V8’s to tide them over. Generally, 1966 was a year of transition and therefore of opportunity for those who started the season with a fast, reliable package, the Ferrari seemed just that.

Click on this link for my article on the 1966 Grand Prix season;

https://primotipo.com/2014/11/13/winning-the-1966-world-f1-championships-rodways-repco-recollections-episode-3/

surtees 2

‘Down Under’ Jack Brabham installed the first Oldsmobile F85 blocked Repco Brabham ‘RB620’ V8 into a year old Brabham chassis, BT19, built for the stillborn Coventry Climax Flat-16 engine and contested the Non-Championship South African GP at Kyalami in it on 1 January.

Repco then popped a 2.5 Tasman Formula RB620 V8 into BT19 for a couple of Tasman rounds, at Sandown Park and Longford, each time learning a little more about the engine and making it reliable.

Ferrari’s own 3 litre V12 was a trusty old warhorse which had served them well. It was a reliable Le Mans winning unit and more powerful than the Repco V8 but the car was heavy. Brabham’s BT19 was a light spaceframe and his 300 horses were stallions not geldings.

surtees 3

The first GP of the new F1, the 1966 XV Gran Premio di Siracusa was on 1 April, Surtees won it in a 312 from teammate Bandini’s Ferrari Dino 246. The only other ‘new’ F1’s were the Cooper T81 Maserati’s of Jo Siffert and Guy Ligier both of which failed to finish. So too did Brabham’s BT19 with a Repco failure.

On 14 May the teams met at Silverstone for the XVIII BRDC International Trophy which Brabham won from Surtees and Bonnier’s Cooper T81 Maser.

Game on!

Off to Monaco for the first Championship round on 22 May, Jackie Stewart’s BRM P261 took the race from Hill’s P261 both cars with 2 litre versions of the old P56 V8 1.5 litre F1 engine, and Bandini’s Dino. Surtees and Brabham were out on laps 16 and 17 respectively with transmission dramas.

Bandini’s use of the Dino which as the teams #1 Surtees should have been allowed to race, in Johns assessment the better of the two cars for the unique demands of Monaco, was one of many dramas within the team which famously resulted in the headstrong Brit telling Ferrari to ‘shove it’ costing both a title which they may well have taken.

surtess 4

Surtees joined Cooper for the balance of ’66 and made the cars sing but Jack was away and running taking the title he and Repco deserved but which perhaps should have been Maranello’s not Melbourne’s…

Click here for an interesting article on Surtees;

https://primotipo.com/2014/11/30/john-surtees-world-champion-50-years-ago/

Ferrari 312 Specifications…

312 engine

The heart of any Ferrari is its engine of course, and what a glorious thing the Tipo 218 unit was.

Cast in aluminium alloy with cast iron wet cylinder liners, the 60 degree V12 had dual chain driven overhead camshafts per bank operating 2 valves per cylinder. The compression ratio was 11.8:1, heads incorporated 2 plugs per cylinder which were fired, old school, by a battery of 4 coils. The engine was dry sumped, the cylinders fed by Lucas indirect fuel injection. Claimed output was circa 360bhp at 10,000rpm, the reality probably a little less than that.

312 rear

The engine wasn’t really the cars weakness, it was probably more so the Tipo 589 chassis’s overall weight. Ferrari really didn’t get the hang of building a modern monocoque in the British idiom until they contracted John Thompson to build them one circa 1973!

Before then their tubs were sheet aluminium panels in a double wall riveted to a tubular steel structure. It was effective but heavy. The Ferrari’s suspension, as you can see is period typical; inboard at the front with a top rocker and lower wishbone and outboard at the rear with a single top link, inverted lower wishbone with forward facing radius rods for location. Uprights were cast magnesium with coil spring/shock units. Girling provided the disc brakes, which were inboard at the rear.

The Tipo 589 5 speed transaxle was sportscar derived, beefy and heavier than the DG300 Hewland box which became ‘de rigour’ in the Pommy cars of the era.

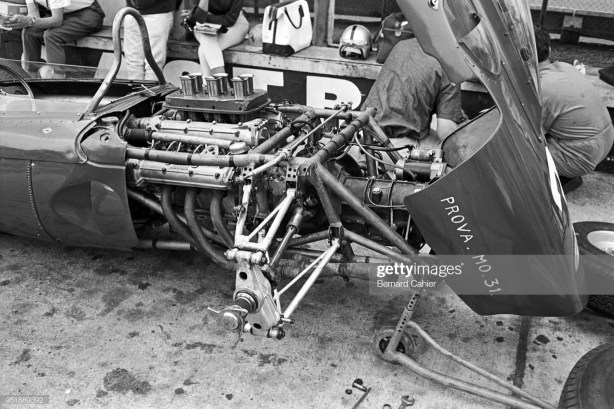

312 engine side

Shot above shows the beautiful standard of Ferrari fabrication and finish. Note the chassis, Lucas injection, twin-plug heads, alternator driven by the cams and wonderful exhausts which are fine examples of the pipe-benders art.

Credits: Popperfoto, GP Library, Reg Lancaster

Tailpiece: Why is that Simple Little Thing So Fast?…


Enzo Ferrari ponders the 1966 consistent speed of Jack’s BT19 Repco at Monza on September 3 1966, the ‘Wonder From Down-Under’ beating the might of the Europeans…

What is he thinking I wonder? ‘why is it so fast, its last years spaceframe chassis, engine from someone i’ve never heard of in Australia and the block is an American Oldsmobile…’

In fact the following day was a good one for the Scuderia, Ludovico Scarfiotti’s 312 V12 took the win from Mike Parkes similar car with Denny Hulme’s Brabham BT20 Repco third.





duce

The numbers of the cars pictured in the Pescara pits do not correspond to the unlimited capacity Coppa Florio race entries. Perhaps cars from the support, 1100cc race (Imagno)

‘Il Duce’, Benito Mussolini attends the 1933 Coppa Acerbo, he is the little stout chap in the nifty Ermenegildo Zegna military suit…

By 1933 Mussolini had been in power in Italy for 11 years, he was elected Prime Minister in 1922, he established a dictatorship in 1925. It’s said he was a motor racing enthusiast, no doubt the public relations benefits of attending high profile events such as the Coppa Acerbo did not escape him.

The 15 August 1933 Coppa Acerbo was an important race that year given changes to the driver line up amongst the Italian teams, some very shortly before the event which gave added interest to the meeting.

Alfa Romeo withdrew from Grand Prix racing at the end of 1932, electing to leave its superb monoposto, the first single-seaters in Grand Prix racing, Tipo B’s behind the closed doors of its Portello works leaving the new Scuderia Ferrari to race older Alfa Romeo Monzas. No amount of remonstrating with Alfa Romeo management by Ferrari was successful in releasing the quicker, newer design. Not early in the season anyway!

As a consequence Ferrari was unable to keep his team together as his drivers sought more competitive mounts. Rudi Caracciola and Louis Chiron formed Scuderia CC, although Louis returned to the Maranello fold later in the year. Taruffi left too, having been forced to cede his car to Nuvolari whilst leading the French GP. Then, after an argument with Ferrari post the controversial Tripoli GP Nuvolari departed, taking his friend Borzacchini with him. Giulio Ramponi went to join Whitney Straight’s private team to add to the rout.

Ferrari fought back of course, hiring Fagioli who was not keen on seeing Nuvolari take the #1 seat at Maserati with Campari also joining him at Scuderia Ferrari. Eventually Ferrari succeeded in having the Tipo B’s released to him in time for the Coppa Acerbo and then the Maserati runners were at a disadvantage!

Fagioli aboard a 2.6 litre Scuderia Ferrari Alfa Tipo B monoposto suggests to Piero Taruffi he is ‘coming thru’, 3 litre Maser 8CM, 1st and 3rd respectively. Vittorio Jano’s Alfa Tipo B/P3 the dominant car of 1932 to early 1934 (Imagno)

So…the Coppa Acerbo loomed. Fagioli had defected from Maserati as did Campari, back to Scuderia Ferrari following a disappointing race at Reims 9 days before. Nuvolari and Barzacchini raced 3 litre straight-8 Maserati 8CM’s as independents. Taruffi too raced a Maserati 8CM in Pescara for the first time.

Scuderia Ferrari entered eight cars; 2 1932 2.6 litre straight-8 monoposto Alfa Romeo Tipo B/P3 which, as noted above, the Alfa factory had just released to Ferrari for Campari and team leader Fagioli. 2.6 litre Monzas were prepared for Trossi, Carraroli and Tadini and 2.3 litre Monzas for Brivio and Comotti. Five Bugattis were entered, not the new 2.8 litre Type 59 which did not appear until the last GP of the year in Spain, but 2.3 litre factory T51’s for Dreyfus and Varzi’s privately entered car. Also Bugatti mounted was Earl Howe and Brunet in Type 51’s with Mille ‘Helle Nice’ in a 2 litre Type 35C. All were straight-8 engines of course.

Enzo Ferrari and riding mechanic during the 1924 Coppa Ciano meeting, Alfa Romeo RL Super Sport (unattributed)

Famous agriculture minister Giacomo Acerbo named the race in honour of his brother Captain Tito Acerbo, a decorated war hero killed towards the end of the war in 1919. The first event was held in 1924 and won by Enzo Ferrari in an Alfa RL Super Sport after a tyre failure befell Campari who was well in the lead in a similar six-cylinder works Alfa to Ferrari’s.

The 25.5Km road course was a daunting one set in the Abruzzi Mountains. The track was loosely triangular in shape like Reims, starting in Pescara on the shores of the Adriatic. After a 1 Km stretch the road turned inland for about 11 Km along a winding road into the Abruzzis.

It plunged through the forests and hill villages of Villa Raspa, Montani, Spoltore, Pornace and Villa St Maria rising 200 metres from the coast. The racers then descended to Capelle sul Tavo and then after a hairpin into the 11Km long Montesilvano downhill straight to the coast at very high speed. The straight was followed by a fast right turn at Montesilvano railway station which led onto the Lungo Mare Straight along the coast back to the start/finish line in Pescara. Nuvolari’s fastest lap in the 2.6 litre Alfa Tipo B monoposto in 1932 was 147Kmh. The event comprised 12 laps, a total of 306Km.

The fast boys in practice were Nuvolari’s Maserati 8CM, Campari’s Tipo B and Varzi in another Tipo B. Varzi was given the car to test by Ferrari but elected to race his Bugatti, Molsheim being not keen on the notion of Achille racing the Alfa. The grid was determined by ballot of course, over 50000 spectators lined the course in anticipation of an epic battle amongst mainly Italian drivers.

Two races were run during the carnival, one of 4 laps for 1100cc cars which was won by Whitney Straight’s MG K3 Magnette. It was an exciting race, Straight’s margin at the events completion only 1/5 second from Barbierri’s Maserati.

The field is away, #24 Campari’s Tipo B, the distinctive shape of big, beefy Giuseppe behind the wheel, #28 Earl Howe Bug T51, #34 Varzi’s similar car and beside him on the left Dreyfus’ light colored works T51. #38 Taruffi Maser 8CM, #46 G Zehender Maser 8CM, #52 Nuvolari 8CM, #26 Silvio Rondina’s 2.2 litre straight-6 supercharged O.M. 665S, #42 R Brunet’s Bug T51 then at far left, straddling the white line the distinctive shape of Fagioli’s winning Alfa Tipo B (Imagno)

Duke d’Aosta, first cousin of the King of Italy, gave the starting signal for the main race for cars of unlimited capacity at 10am accompanied by His Excellency Acerbo. Only 16 cars took the start with many of the entries failing to materialise.

Campari’s red monoposto Alfa was in front followed by Varzi’s Bugatti, Howes green Bugatti T51 and Dreyfus in the factory T51. Soon the faster cars ballotted towards the rear started to come through the field. As they crossed the line at the end of lap 1 Campari’s Alfa was right behind Nuvolari’s Maser, this relentless scrap was to be the pattern of the challenging race. The first lap took Tazio 11m03sec, then came Campari, Taruffi 2s later, then Fagioli and Varzi. Zehender Maser 8CM, and Dreyfus were 6th and 7th already 43 seconds behind the two leaders. Whitney Straight and Ghersi, Alfa Monza 8th and 9th, a second apart were 56s behind the leaders.

Borzacchini was stranded only 12Km from the start with a seized driveshaft universal joint on his Maserati 8C3000 gearbox. He borrowed a bike and pedalled slowly back to the pits to the amusement of the vast crowd. The spectators were more thrilled though, by the dice between old rivals Nuvolari and Campari. They swapped the lead but were always able to see each other. Behind them were Taruffi 3rd, Fagioli, Varzi and Dreyfus.

Nuvolari and Campari raced wheel to wheel on laps 4 and 5, on lap 5 Nuvolari passed Campari and this time began to pull away. When the Mantuan finished lap 6 Campari was 8s back from Fagioli, Taruffi, Varzi, Dreyfus, Zehender and Howe. After 8 laps Nuvolari had extended his lead to 16 seconds and was on course to win the race.

Sensation happened on lap 9 when Campari, still chasing Nuvolari, left the road near Spoltore and was thrown from his Alfa, he was fortunate to be only lightly injured. Earl Howe was quoted in ‘The Motor’ October 1933 ‘Campari took a corner too fast, his car ran up a bank and was overturned, fortunately he was not badly hurt. I nearly hit his car, the presence of which i had no warning’.

Fagioli then inherited 2nd but he was 1m11s behind Nuvolari who completed the 9th lap from Fagioli, Taruffi, Varzi, Dreyfus, Zehender, Howe whilst Pelligrini, Alfa Monza, Grosch and ‘Helle Nice’ were already lapped. Straight had retired his Maserati 26M on course with mechanical failure.

Nuvolari sensibly eased his pace on lap 10, allowing Fagioli to draw within a minute of him, but there was further sensation at the end of lap 11 when Luigi crossed the line in Pescara ahead of Nuvolari! He too, like Borzacchini, had a gearbox driveshaft universal joint seize and was slowly making his way to the pits to rectify it. Career Maserati mechanic/engineer/test driver Guerino Bertocchi poured a bucket of water over the hot, smoking driveshaft to cool it down and Nuvolari resumed the race in a great cloud of steam and smoke but his countryman was well gone.

Tazio drove like only he could and saved 2nd place from Taruffi in the other Maser 8CM monoposto. The spectators gave Nuvolari real shouts of acclamation and appreciation of his wonderful drive as the moral victor of the contest.

Automobil-Revue reported that Fagioli shouted, as the Italian National Anthem was played- ‘But the true victor is Nuvolari’, the great man set a new lap record on lap 7 of 10m31.8s. Varzi was 4th some 4m25s back, Bugatti T51, then Howe 14m18.4s behind Fagioli, also aboard a T51. Pellegrini, Alfa Monza had been lapped once and and was flagged off as were Grolsch, Alfa Monza and Helle Nice, Bugatti T35C lapped twice and thrice respectively.

Nuvolari races to victory or so he hoped! Coppa Acerbo 1933. Maser 8CM, conventional car for its time, a monoposto version of the existing 1932 car with 3 litre supercharged, DOHC straight 8 giving circa 250bhp@5500rpm. Car initially performed poorly as the very narrow chassis was insufficiently stiff- this change made from the Belgian GP in July, the power of the engine could then be more fully exploited. Noteworthy was the introduction of hydraulic brakes on all 4 wheels- revived by Masers 12 years after Duesenberg demonstrated their effectiveness in the 1921 French Grand Prix (unattributed)

Maserati 8CM…

Tazio Nuvolari made the Maserati 8CM sing when he first got his hands on it, it was not the first time the great man achieved results with a car lesser mortals struggled to match.

The engine and gearbox was great from the start, it seems probable the M26 car first raced with the 3 litre straight-8 at the 1932 German GP, but this cannot be confirmed. The 8CM was a more powerful car than Scuderia Ferrari’s bored out Monzas, and more than the equal of Alfa’s Tipo B in terms of power if not the handling and ability of the car to put its power to the ground courtesy of brilliant designer Vittorio Jano’s ‘bifurcated’ twin driveshaft rear end. The Tipo B/P3 was ‘the car’ of the 1932 to early 1934, ‘pre Silver Arrows’ phase!

Maserati designed a beautifully narrow monoposto which presented nicely to the airstream but the period typical 8CM girder chassis lacked structural rigidity. This was addressed by Nuvolari on the eve of the Belgian Grand Prix, his first GP in the car. Nuvolari, after driving the car in practice and being disturbed by its behaviour at speed, diagnosed the chassis shortcomings and took the car to the Imperia car factory at Nessonvaux where additional bracing was added to the chassis and the problem was solved- he won the Spa race.

From that point on the 2991cc, cast iron, DOHC, two valve, Weber (or Memini) fed, Roots supercharged straight-8, giving circa 250/280bhp@5800 racer became a very effective tool, and not just in Nuvolari’s hands.

In 1933 Campari won the French GP in an 8C3000 before decamping to Scuderia Ferrari. Nuvolari took wins in the Belgian GP after his last minute chassis mods and in the Coppa Ciano and Nice GP. It is sad that Alfieri Maserati died during kidney surgery (on 3 March 1932) but he bequeathed his firm two wonderful engine designs in both 1.5 litre 4 cylinder and 3 litre 8 cylinder, DOHC, supercharged layouts before his passing. Winning designs for both the Voiturette and Grand Prix classes.

The 8CM was also a very commercially successful car for Maserati, 19 were built in total, the car became a tool of choice off the back of its 1933 performances for privateers who sought its blend of performance and reliability. Alfa chose not to sell the Tipo B to privateers, having initially announced they were building 25 cars for sale, that decision very much to Masers benefit when drivers sought mounts for 1934.

To comply with the 1934 ‘750 Kg Formula’ regulations the chassis was widened from 620mm to 850mm to facilitate fitment of bodywork to comply with the new cross sectional regulation requirements, with the package otherwise remaining the same. The 8CM was initially a ‘pork chop’, tipping the scales at more than 750 Kg but some judicious weight saving made the car comply.

Beautiful shot of the Maser 8CM showing its narrow chassis, lissom lines, solid beam axle suspension and hydraulically operated, finned drum brakes, splines and knock-on hubs. The where and when is more of a mystery, such are the vagaries of Getty Images captions. Its a weighbridge, the narrow chassis/body suggests 1933, #14 matches the GP de Marseille entry of Goffredo Zehender’s works car at Miramas on 27 August 1933, he was 5th- but its just an educated guess, i’m intrigued to know the facts if any of you have the answer (GP Library)

The Italian and French cars were largely ‘make weights’ as the German onslaught gathered pace throughout 1934, the first appearance of the silver cars was at the Eifelrennen on 3 June. The Bugatti T51 and T59, Alfa Tipo B and Monza’s, and Maser 8CM were fighting for the scraps but were good tools for the ‘non-championship’ Grands Epreuves so prevalent at the time. These races were in the main not contested by the German teams. The most impressive performance in 1934 was Nuvolari’s 2nd place, with the Auto Unions and Mercedes present, at the 1934 Coppa Acerbo. It was a power circuit but there was still the opportunity for circuit knowledge and ‘tiger’ to come to the fore. Luigi Fagioli won the race in a Mercedes W25

In terms of 1934 8CM wins, Benoit Falchetto won both the GP Picardie and GP de L’ V.M.F. at Montlhery and Phillippe Etancelin the GP Dieppe. Whitney Straight had much success with his modified cars at home, winning the Donington Park Trophy and the Mountain Championship at Brooklands and right at the end of the year, the South African GP. Straight also took a heat win in the GP Vichy.

Later in the year Maserati’s factory team focus switched to the new 3.7 litre 6 cylinder engined 6C34, the new engine fitted into the 8CM chassis. Tazio won the Circuit of Naples and Circuit of Modena in these cars that October, but the model was not an outright contender. The net result was that Nuvolari made the decision to join Scuderia Ferrari for 1935. Maserati’s 1935 challenger, the 4.8 litre V8 Maserati RI made its GP debut at Marne that July but was never fully developed when Maserati lost interest in GP racing, it was an unequal struggle after all, the Silver Arrows were well into their stride by then, Tazio Nuvolari’s stunning German GP win aboard an Alfa Tipo B duly noted!.

Technical Specifications…

Engine: As per the text above, in addition- Bore/stroke 69X100mm, compression ratio 6.4:1. Gearbox: 4 speed utilising many Fiat Tipo 522 components, Maserati were to use Fiat gearbox components for many years

Chassis: Sheet steel girder type with aluminium body attached to light weight supports

Suspension: Front- Solid axle with semi-elliptic leaf springs & friction dampers Rear- Live axle with semi-elliptic leaf springs & friction dampers

Steering: Fiat worm and sector. Brakes: Large 4 wheel finned electron drums with hydraulic actuation. Weight: 750Kg in 1934

Bibliography…

kolumbus.f1, ‘MotorSport’ October 1933, ‘The Racing Car Development and Design’ by Clutton, Posthumus and Jenkinson, ‘Maserati: A History’ by Anthony Pritchard

Photo Credits…

Imagno, GP Library, Getty Images







niki

Niki Lauda aviating his 312T in the Eifel Mountains, 1975…

He won the race and the world championship for the first time that year.

Ferrari turned the corner of uncompetitiveness with the 312B in 1970, the combination of chassis and new ‘flat 12’ engine was very competitive in the second half of the season.

Into 1971-3 they largely lost the plot with their chassis…Mauro Forghieri returned from the wilderness in late 1973.

The 1974 combination of Lauda, then in his third year of F1, Ferrari ‘returnee’ Clay Regazzoni, Forghieri and very young Luca Di Montezemolo as Team Manager commenced an era of Ferrari success if not dominance.

The cars were powerful, relatively light despite the additional fuel load needed by the Flat12 relative to the Ford Cosworth V8, handled superbly and were as aerodynamically advanced as the competition, until the ‘game-changing’ Lotus 78 arrived at least .

Lauda, Regga, Reutemann, Villeneuve, and Scheckter extracted all the performance as well.

The 1975 312T, so called because of the transverse location of the gears within the ‘box was the start of a series of cars which won drivers world titles in 1975, ’77, and ’79 for Lauda twice and Jody Scheckter once.

The car was not the prettiest of the mid-70’s to my eye but was an incredibly cohesive, beautifully integrated design. Without doubt one of Ferraris finest.

Lauda was up for the developmental and testing task, it was why Ferrari hired him but he also proved he was a winner. Montezemolo welded the group into an effective fighting unit, rather than the ‘Palace Intrigues’ of Maranellos’ past holding the Scuderia back …

regga

Clay Regazzoni, Ferrari 312T, Nurburgring 1975. DNF engine. (Pinterest)

fazz

niki

Enzo Ferrari, Luca Di Montezemolo & Niki Lauda, test session at Fiorano 1974 (Pinterest)

Photo Credits…

Pinterest unattributed, Werner Buhrer drawings

enzo 2

Enzo Ferrari at the launch of his 1969 endurance contender the 312P…

Motorsports governing body introduced new sports car rules for 1968; Group 4 Sports Cars with a capacity limit of 5 litres and a minimum production of 50 cars, and Group 6 Prototypes with a maximum of 3 litres. In effect the CSI were making obsolete the ‘unlimited cars’ being built by Ford and Ferrari, ( the 7 litre ‘pushrod’ Ford MkIV, 4 litre ‘racing engine’ Ferrari P4)  which they considered were getting too fast for the circuits of the time.

Ferrari, in time honored fashion didn’t race in 1968 in protest at this sudden rule change but returned in 1969 with the Group 6 312P, again in time honored fashion using many parts he had ‘on the shelf ‘ from other cars.

The chassis used was a downsized version of their 1968 Can Am challenger the 612P…It was a semi-monocoque, a spacefarme reinforced by aluminium sheet. The first cars were built with high downforce Spyder bodywork, but later cars were built or re-bodied for Le Mans as stunning low drag Coupes.

312p

Aluminium semi-monocoque chassis. Double wisbones, coil springs, Koni shocks at front. Single top link, lower inverted wishbone, twin radius rods, coil springs and Koni shocks at rear. Adjustable sway bars front and rear. Rack & pinion steering. Ventilated discs all round. 680 Kg.

The 3 litre V12 was based on the highly successful old sports car engine albeit with 4 valve heads and Lucas fuel injection…Ferrari claimed 420 BHP, all of which hit the road through a 5 speed transaxle.

donk

312P engine, 5 speed gearbox and rear suspension. 60 degree V12, 2.99 litres. 77X53.5mm bore/stroke. 11:1 compression ratio. 4 valves per cylinder , DOHC, Lucas fuel injection and circa 420BHP @ 9800RPM. (Tony Adamowicz)

Chassis ‘0868’ was shown to the public at the Hotel Fini in Modena in December 1968, which is probably where this unattributed shot of Enzo Ferrari with the car was taken.

From the outset Ferraris’ sports car plans in 1969 were limited as the development of the 3 litre ‘Flat 12′ engine for F1 in 1970 was Technical Director, Mauro Forghieris’ main project.

The first car was damaged in testing, but repaired and put on pole at Sebring by Mario Andretti, the car finishing second co-driven by Chris Amon despite overheating after a collision with a slower car.

amon

Chris Amon leaps aboard the 312P he shared with Mario Andretti at Sebring 1969.

amon sebring

Smoky Amon. Ferrari 312P, Sebring 1969. Second outright and first in class with Mario Andretti (Nigel Smuckatelli)

The car was very fast at Brands Hatch, but the Le Mans testing weekend revealed the need for slippery coupe bodies on the Mulsanne. The bigger issue was the appearance of the Porsche 917, 25 examples of which had been built by the Germans to comply with the CSI’s new Group 4 rules, not what the rule makers intended at all…

The 312P’s were fast at Monza filling the first 2 grid positions but failed to finish with tyre problems, the Firestones not coping with the rigours of the Monza banking.

pedro 5

Pedro Rodriguez, Nurburgring 1000Km 1969.

The 917 was on pole at Spa, but Amon proved the 312P’s competitiveness again, he broke the lap record at The Nurburgring. At Le Mans the two cars entered were fitted with gorgeous Coupe bodies formed around shortened 206SP Dino windscreens.

The 917 was on the Le Mans pole… but few believed they would last the distance, Amons 312P was damaged by debris from the fatal accident which befell the John Woolfe 917 on lap 1, the other car suffering gearbox failure after a retaining nut vibrated loose several times. Jacky Ickx and  Jackie Oliver won the race in Ford GT40 ‘1075’ the same chassis victorious the year before.

le mans

Chris Amon behind the 312P, now with Coupe body, at Le Mans 1969 with Peter Schetty. The car was out on lap 1, running over debris from the John Woolfe 917 accident (Pinterest)

The arrival of the 917 was  a game changer, Ferrari responded with some of the Lire invested in his business by Fiat, in building 25 512S 5 litre cars to go head to head with Porsche in what many say was the greatest 2 years of sports car racing ever, 1970 and 1971.

The two remaining 312P’s were sold to Luigi Chinetti’s North American Racing Team at the end of 1969, the cars scoring class victories in major races such as Daytona, and Sebring and also racing at Le Mans in 1970 where Tony Adamowicz, and Chuck Parsons were non-classified but tenth. The other car was taken as a spare and unraced.

312 p le mans 1970

Wet weather 1970 Le Mans shot of the NART 312P. (Bruce Thomas)

1970

NART Adamowicz/ Parsons 312P Le Mans 1970 , tenth in the race won by the Herrman/ Attwood Porsche 917K (Pinterest)

The 312P has only a small part in Ferrari racing history but the factory learned valuable lessons from the program when it next raced a prototype, the 3 litre 312PB in 1971, this car using a variant of the F1 ‘boxer’ engine, the 312PB the dominant and championship winning sports car of 1972.

Etcetera…

pits

Amon/Schetty Ferrari 312P Le Mans pits 1969.(Pinterest)


Pedro relaxes before the off, Bridghampton CanAm 1969. (Dogfight.com)






‘0870’ in the 1969 Bridghampton  CanAm pitlane. Rodriguez was 5th in the heavy relatively low powered 3 litre car, Hulme and McLaren 1st and 2nd in McLaren M8B Chevs. (Dogfight.com)

parkes

Mike Parkes in the NART 312P , Daytona 1970. Tall man, and bubble as a consequence (Pinterest)

le mans 8

Another shot of the Adamowicz/ Parsons 312P during Le Mans 1970 (Yves Debraine)

drawing

Interesting drawing showing the differences in dimensions of the Spyder and Coupe versions of the 312P (Pinterest)

Photo Credits…

Pinterest, Tony Adamowicz, Nigel Smuckatelli, Yves Debraine, Bruce Thomas
