A BOAC Bristol Britannia ‘Whispering Giant’ (actually a Britannia based Canadair CL-44D4-1 – thanks Jon Farrelly!) awaits its precious cargo before departure from Heathrow to the fly-away, end of season United States and Mexican Grands Prix, October 1963…
The cars in the foreground are the factory Lotus 25 Climaxes of Jim Clark, victorious at Mexico City, and Trevor Taylor. #1 and 2 are the reigning World Champion BRM P57’s of Graham Hill and Richie Ginther, they finished first and second at Watkins Glen.
#16 is Jim Hall’s Lotus 24 BRM and #14 is Jo Siffert’s similar car. #11 and 12 are Jo Bonnier and Bruce McLaren’s Cooper T66 Climaxes, note that Bruce raced carrying #3 in both events.
For the aircraft buffs amongst us here is a link to a period BOAC documentary about the Bristol Britannia
I love these two photographs of construction of Bristols in the mid-1950s.

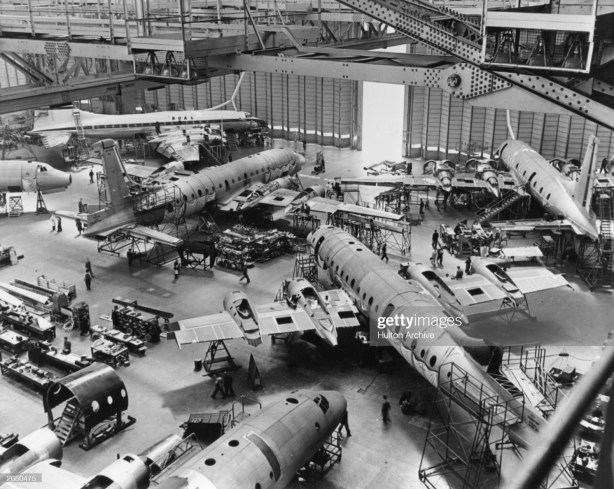

The first shows Britannia 100s being completed in Bristol’s Assembly Hall at their Filton, South Gloucestershire aerodrome/manufacturing facility about four miles north of Bristol, in January 1956.
The second, dated a year earlier, may well have been the inspiration for Colin Chapman’s monocoque Lotus 25! (that was a joke). It’s such a powerful shot showing the conceptual simplicity and strength of such (highly sophisticated) structures.
In 1959 Bristol Aircraft merged with several other companies to form the British Aircraft Corporation, which in turn became a founding piece of British Aerospace, now BAE Systems. BAE Systems, Airbus, Rolls Royce, MBDA and GKN still have a presence on this Filton site. More Bristol Aircraft reading here; https://www.baesystems.com/en/heritage/filton–bristol
Malcom Ramsay and Tony Alcock built a swag of championship/race winning Formula Ford, F3, F2 and Formula Atlantic single-seaters from 1971 to 1978.

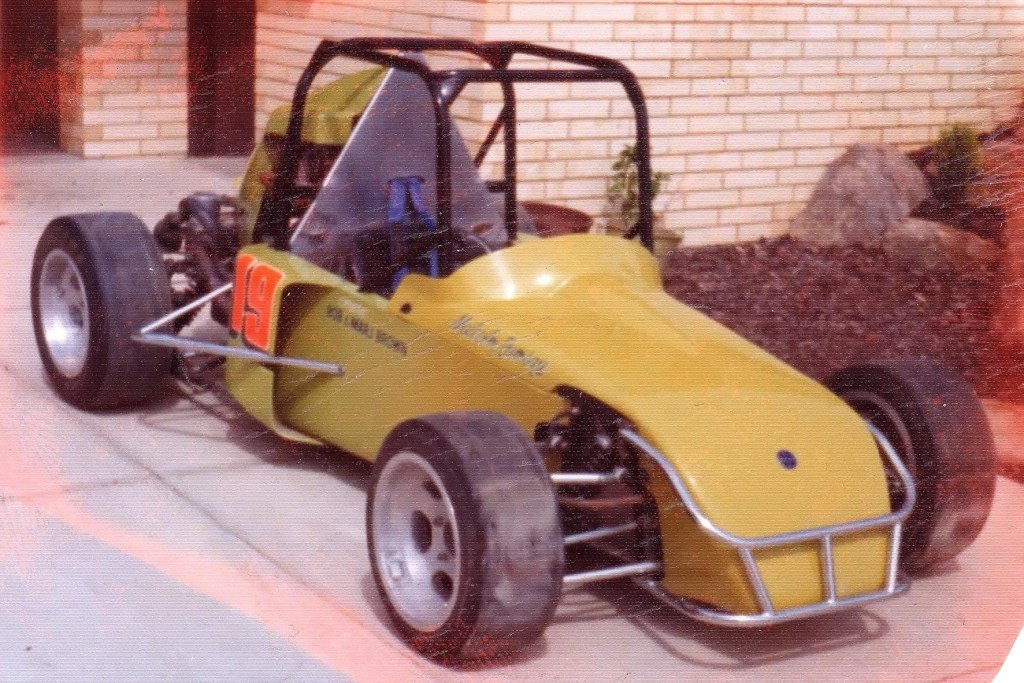

And this mid-engined, supercharged VW powered speedcar.
The project was funded by Bob and Marj Brown, a successful Adelaide business-couple who aided and abetted the careers of Birrana pilots Enno Buesselmann and Bob Muir from 1973-76.
Alcock’s revolutionary spaceframe design was tested by Ramsay on the dirt at Rowley Park, and at Adelaide International’s half-mile, banked, bitumen oval in 1974, it was immediately quick.
It was a step way too far for the conservative controlling body who suggested that “You circuit racing wally-woofdas can take your changes elsewhere!” Or as Ann-Maree Ramsay put it more delicately, the car “was banned due to perceived different handling characteristics compared with the front-engined Sesco and Offy cars of the time.”
The VW engine was a supercharged 1.6-litre flat-four mated to a Holinger modified VW transaxle.
By 1975 the Browns were in England chasing Formula Atlantic fame together with Muir and a pair of modified Birrana 273s.
Ramsay advertised the car in Auto Action, outlining that the S74 was the only car of its type “permitted to race for 18-months on a bitumen-oval, in this very restricted form of the sport.”
Yes, I know it’s a shit-photo, but it seems to be the only one there is, let’s record our history anyway. If you have a better one, please send it to me. The shot is out front of the Ramsay home in Adelaide. If memory serves, it now resides in the Holmes Collection in Brisbane.
Leo Geoghegan and Enno Buesselmann in Birrana 273 Hart-Fords during the 1973 ANF2 Adelaide International round
John Harvey’s 2.5-litre Repco V8 powered Brabham BT11A shrieks it’s way around Warwick Farm on 18 February 1968…
Looks a treat doesn’t it? Nose up out of Leger Corner onto Pit Straight, it was first meeting for the car with its Repco engine.
By 1968 IC-4-64 was an old-girl, albeit a very successful one. It was raced by Graham Hill in the 1965 Tasman Series for David McKay’s Scuderia Veloce, winning the 1965 NZ GP at Pukekohe on its race debut.
Hill won the ’65 NZGP at Pukekohe on 9 January 1965 from Frank Gardner’s similar BT11A and Jim Palmer’s earlier model BT7A, all 2.5 Coventry Climax FPF powered (sergent.com)
The 2.5-litre Coventry Climax FPF four cylinder engine was struggling against the V8’s by then, so Bob bought a 740 Series Repco 2.5-litre V8 to plonk in the back of the BT11A.
John Harvey, Martin’s successor at Bob Jane Racing, contested the Australian rounds of the 1968 Tasman Series so powered. Jim Clark’s works Lotus 49 Ford DFW won the Tasman that year, it was the final championship he won before his untimely death at Hockenheim that April.
740 Series Repco 2.5 Tasman V8 engine. 700 Series Repco block and 40 Series ‘between the Vee’ heads’, the ’67 World Championship winning SOHC, two-valve engine in 2.5-litre Tasman spec as against its 3-litre F1 capacity. Repco claimed 275bhp @ 8,500rpm for the 2.5, and 330bhp @ 8,400 rpm for the 3-litre variant. Lucas injection trumpets, Bosch distributor and plenty of chrome and cadminium plating in shot (P Houston) Harvey in the BT11A Repco at Longford, 1968. The attention Bob Jane placed on the presentation of his cars is clear. Note the seatbelt, six-point? (oldracephotos.com-H Ellis)
Harves’ did three Australian rounds, only finishing the wet, final Longford event. By the start of the Gold Star series he slipped into Jane’s new Brabham BT23E which had been Jack’s 1968 Tasman mount.
Harvey raced the final round of the 1967 Gold Star Series in IC-4-64 after Martin announced his retirement. He was already well familiar with Repco power, the 740 Series Repco had been shoe-horned into his Ron Phillips owned BT14 F2 Brabham.
Third place at Sandown was his only finish in the car. John commented in a Facebook exchange about this car “…On handling, Peter Molloy and I were still developing the chassis setup, however in the Diamond Trophy race in 1967 (pictured below) at Oran Park I set a new outright record on the last lap”, so they were improving the car.
The engine and Hewland ‘box was removed from the BT14 which Jane acquired, and popped into the BT11A which it was figured would better cope with the power than the BT14 F2 frame and related hardware.
IC-4-64 is still alive and well, as part of the Bob Jane Estate, in FPF engined form.
Harvey in the WF pitlane, Tasman meeting ’68. The BT11A has a vestigial spoiler and a few ducts the it didn’t have when CC FPF powered. Jewels of things these ‘Intercontinental’ Brabhams, very successful ones at that (B Williamson) At the Warwick Farm Tasman meeting again (J Stanley) Competitor view of the BT11A and its luvverly Repco RB 740 2.5-litre 275 bhp V8 (P Houston)
Credits…
autopics.com.au-Richard Austin, John Stanley, Peter Houston, sergent.com, Bob Williamson, oldracephotos.com-Dick Simpson, Harold Ellis and Harrisson, oldracingcars.com, Stephen Dalton Collection
The shot of Harvey in the Ron Phillips owned Brabham referred to above, on the way to victory in the Diamond Trophy at Oran Park.
John made his name in speedway and transitioned into road racing in an Austin/Morris Cooper S, and then into open-wheelers in this ex-Bib Stillwell car. The Brabham received progressively bigger Lotus-Ford twin-cams, with Harvey going quicker and quicker, before the machine copped its Repco V8 Birthday between the 1967 Tasman and Gold Star Series. Rennmax’ Bob Britton performed the surgery to pop the Repco into the BT14 frame, creating a BT14 jig in the process.
It wasn’t that successful in Repco form; DNF/DNS at Lakeside, Surfers, Mallala and Symmons Plains, third place in the Sandown Gold Star round in September was the car’s best, behind Leo Geoghegan’s Lotus 39 Repco and Spencer Martin aboard BT11A IC-4-64.
Harvey during the Diamond Trophy meeting at Oran Park (oldracephotos.com-Dick Simpson)
Harvey’s Bob Jane drive commenced aboard IC-4-64 in the final Gold Star round, the Hordern Trophy, at Warwick Farm in December 1967.
So…Harvey in 12 or 14 months drove quite a few different Brabham/engine combinations! BT 14 Ford, BT14 Repco, BT11A Climax, BT11A Repco, and then BT23E Repco for the ’68 Gold Star Series. Mind you he missed the ’68 Gold Star.
The ‘noice new Brabham crashed after a rear suspension upright failed in practice for the opening Bathurst round. Harvey’s big accident and subsequent recovery kept him away from racing for the rest of the year.
Harvey aboard the Jane Racing Brabham BT23E Repco 830, during the Symmons Plains Gold Star round in March 1970, at the end of its competitive life. He won the race from Leo Geoghegan’s Lotus 39 Repco and Kevin Bartlett’s Mildren Waggott (oldracephotos.com-Harrisson)
Tailpiece…
(S Dalton Collection)
The July 1965 Oran Park meeting program shows Harvey’s Austin Cooper S ahead of George Garth’s Ford Cortina GT during the OP May 1965 meeting.

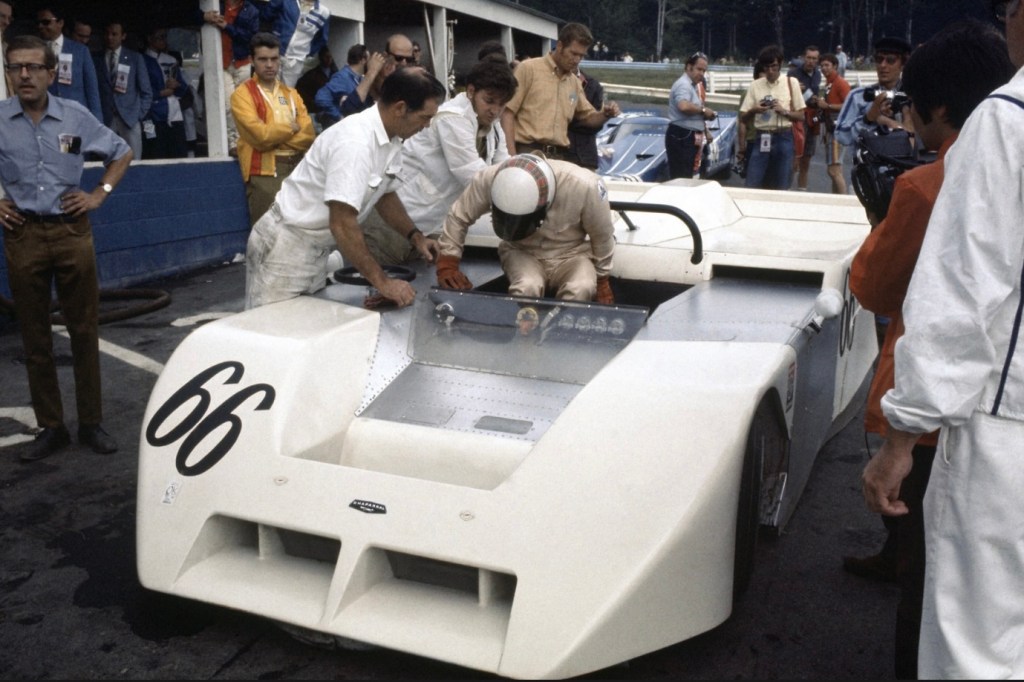

JYS loads up into the Chaparral 2J at Watkins Glen in July 1970 (LAT)
Apart from the Chaparral 2J Chev, name another car raced in 1970 that looks as edgy now as it did way back then?
I still remember flicking through Automobile Year 18 in Camberwell Grammar’s library in 1971 and flipping-my-14-year-old-lid at the sight of the 2J. My oldest mate remembers me saying, “Look at George Jetson’s car!” The only things missing were Jane, Judy, Elroy, and of course ‘rAstro!

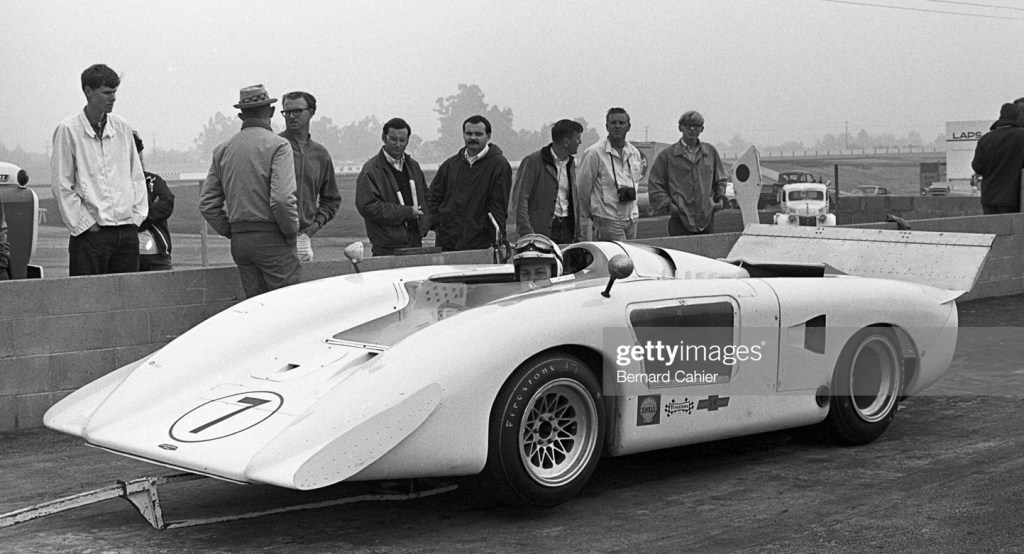

John Surtees, Chaparral 2H Chev at Riverside in October 19692H butt at Riverside in October 1969. Of note is the world’s biggest fabricated aluminium De Dion rear axle and one of the worlds biggest radius rods. ZL1 Chev has a crossover inlet manifold to get the fuel injection trumpets out of the airstream, ditto routing of extractors. Enormous wing fitted in this shot – you can see the vertical support – which is not installed in the shot above, remember too that this car was originally designed and built with the driver fully enclosed inside, something John Surtees pushed strongly against
Jim Hall has gonads the size of pineapples.
His outrageous 1969 offering, the wedgy, door-stop, knee high, De Dion rear-ended 2H was a complete flop. It’s driver, John Surtees, thought Hall had been smoking wacky baccy at Woodstock rather than working with clean-cut Nixon supporters at GM’s Skunkworks to design a new car.
Ever the poker player, Hall doubled his bets and concepted a machine so advanced and fast it was banned after only four races.
The Phil Hill/Mike Spence winged Chaparral 2F Chev looking lonely on the Daytona banking in 1967, DNF (Getty)
Chaparral had been giving the rest of the racing world aerodynamics and aero-technology lessons for five years or so to that point.
By 1970 the aluminium monocoque chassis was passe, so too was the aluminium block 650bhp’ish Chev ZL1 V8, even Chaparral/GM’s semi-automatic three-speed transaxle was a bit ho-hum.
Legend has it the inspiration for the 2J was a child’s fan-mail drawing to Hall of a sports racer being sucked down to the road by giant fans extracting the air underneath.
Whether it was ‘Elroy Jetsons’ sketch, an extension of previous Chapparral/GM R&D work, or divine providence, GM’s Paul Von Valkenburgh and Charlie Simmons, and Chaparral’s Don Gates started modelling the possibilities on Chevy R&D’s Suspension Test Vehicle.
More of a test-rig than a car, it enabled them to play with roll-centres and stiffness, ride height, pitch axis, anti-dive/squat and lots of other stuff; this rig became the 2J test mule.
“Gates worked out a fan and skirt infill defence system while Don Cox, Ernie DeFusco and Joe Marasco engineered a chassis to match,” Doug Nye wrote.
(sportscardigest.com)(sportscardigest.com)
The resulting tricky bits were the slab-sided, fully-fenced bodywork and Rockwell JLO 247cc two-stroke 45bhp snowmobile engine which powered two rear fans nicked from an M-109 Howitzer Tank. That combination could move 9,650 cubic feet of air a minute @ 6,000rpm, creating negative pressure equal to 2,200 pounds of downforce. Unlike other racing cars, the downforce was independent of the speed of the car.
For three-quarters of its footprint the car was ‘attached’ to the ground via skirts made of General Electric’s new, trick, Lexan polycarbonate. The skirts moved up and down with the movement of the car via a system of cables, pulleys and machined arms that bolted to the suspension. On the smoother Can-Am venues the seal was good, with the fans on the car hunkered-down by two inches.
The net effect of all of this was that the car sucked itself to the road, thereby creating immense cornering power and traction.
Stewart on the Watkins Glen grid, Chris Ecomomaki in front looking for a mike (J Meredith Collection)Vic Elford togs-up at Riverside. The car in front is Peter Revson’s Carl Haas entered Lola T220 Chev, Revson is sitting on the pit wall to the right of the Lola’s rear. His performances in that car propelled him into a works-McLaren M8F Chev with which he won the 1971 Can-Am Cup – F1 followed (B Cahier-Getty)
During the 2J’s build Jim Hall was smart enough to give SCCA officialdom a look at the car to ensure it was kosher in the almost-anything-goes Group 7/Can-Am world. The crew-cut mob deemed it hunky-dory to race.
While the car was first tested at Rattlesnake Raceway in November 1969, the complex machine missed the June 14, 1970 Mosport season opener and the following Canadian round at St Jovite. But 2J-001 finally arrived aboard a modest ute (pick-up) at Watkins Glen in mid July.
It’s driver was reigning World Champion Jackie Stewart in a one-race deal supported by GM (weird given the Ford sponsored Cosworth engine which powered his F1 cars). JYS had plenty of sportscar experience, including Can-Am cars, but nothing prepared him for the 2J.
“The car’s traction, its ability to brake and go deeply into corners is something I’ve never experienced before in a car of this size and bulk,” he wrote in Faster! “Its adhesion is such that it seems able to take unorthodox lines through turns, and this, of course, is intriguing.”

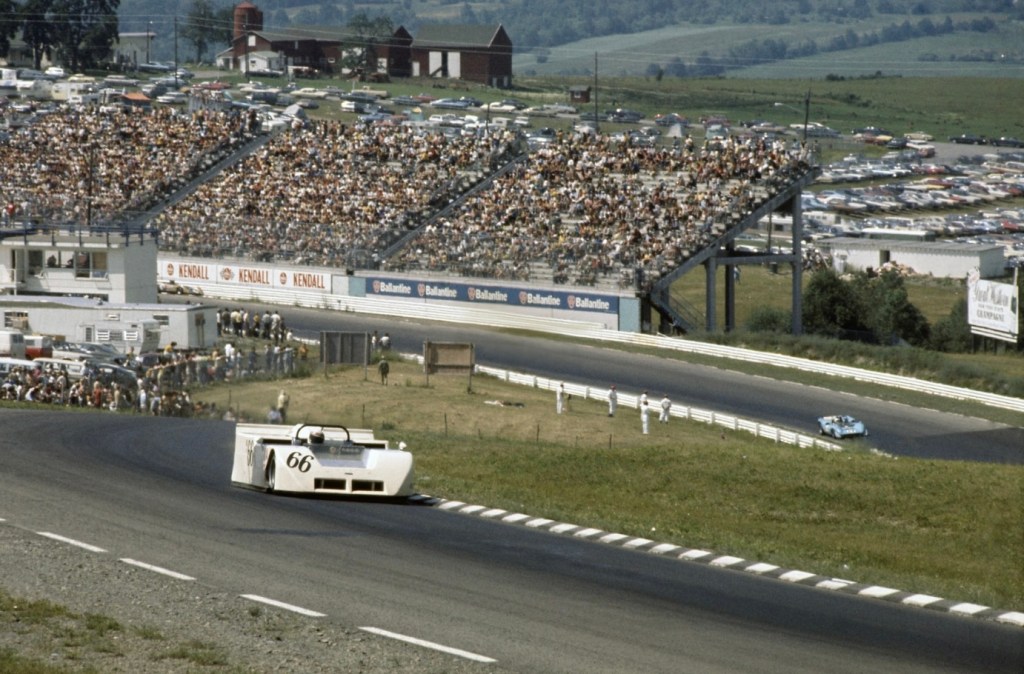

Jackie Stewart during practice at Watkins Glen, and below, a wonderful race day panorama (LAT)(LAT)
Stewart, and Vic Elford, retained by Hall to drive the car for the balance of the series, experienced the same other worldly, steep learning curve – retraining the brain about what was possible – as Mario Andretti encountered with Peter Wright and Colin Chapman’s Lotus 78-79 ground-effect cars in 1977-1978.
In a practical sense, half the problem was keeping the auxiliary engine alive – remember it wasn’t designed for this application – in its new harsh environment with all the trackside detritus the fans sucked up from the bottom of the car and regurgitated out the back at speed. Not to forget the skirts and their support mechanisms. The engineering challenge of this lot was mega.
Stewart qualified the brave-new-world 2J third behind the dominant orthodoxy, Denny Hulme and Dan Gurney’s new Batmobile-Beautiful McLaren M8D Chevs. Jackie closed on Dan during the race before being forced to pit, then went out for another seven laps – 22 in all – he bagged fastest lap before braking problems ended his race.

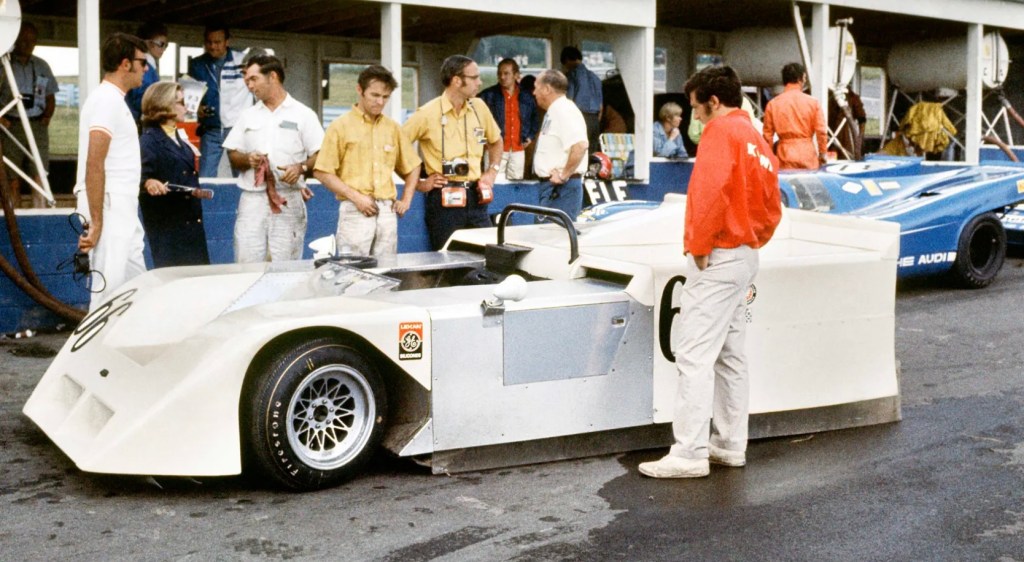

2J-001 at rest in the Watkins Glen pitlane. Sole sponsor decal is for GE-Lexan. Porsche Salzburg 917 of either Vic Elford or Dickie Attwood behind (LAT)Stewart blasts past Attwood’s third placed Porsche 917. While Hulme’s McLaren M8D Chev won at Watkins Glen, the next six placings were taken by Group 5 enduro cars, not the Group 7 cars for which the race was run. Said Porsche 917 and Ferrari 512S’ had already done the Watkins Glen 6-Hours the day before, most without an engine change between the two races. The JW 917 of Pedro Rodriguez/Leo Kinnunen won (unattributed)
Context is everything. The Glen’s Can-Am round was always topped up by Group 5-6 World Endurance Championship cars which were also in town for the Watkins Glen 6-Hour.
The dominant 1970-71 endurance racer was the swoopy-rounded, spaceframe, 4.5-4.9-litre flat-12 engined Porsche 917. Alongside the 917 the 2J looked like a Sci-Fi film prop!
The Texans missed the next three rounds at Edmonton, Mid Ohio and Road America to further develop the car before rejoining the circus at Road Atlanta in mid-September.
Elford recalled his impressions of the car to MotorSport, “Drving the car was just out of this world. The start-up procedure was a bit like an aeroplane I suppose, you didn’t just jump into first gear and drive away.”
“I put my left foot hard on the brake to make sure it didn’t go anywhere, then fire-up the little engine which immediately started to drive the two monster fans at the back, sucking up the air underneath. When I did this the car would literally go: ‘Shhhp!’ and lower itself down to the ground by about two and a half inches.”
Such was the suction of the turbines, the 2J could tootle off on its own at up to 30mph if the brakes weren’t applied.
At Road Atlanta Vic popped it on pole and finished sixth after ignition problems with the snowmobile engine.
“You get to the stage of thinking it’s just not possible to go around any corner at that speed, and adapting to it mentally is the most difficult approach because no other car has ever gone around a corner as fast as this one,” Elford recalled.
“Another great thing about the suction is that it doesn’t allow the cars’s handling characteristics to change as you go through a corner. Whichever way it’s set it remains that way at all times, whether its a fast corner or a slow swerve – it remains absolutely constant.”
Come race day Elford was always impacted by the three speed semi-auto transaxle, rather than the four of the LG600 Hewland equipped competition, that wasn’t the problem at Road Atlanta though, it was the subsidiary engine.
Laguna Seca followed a month later. There, Elford was the only car to go under a minute, a smidge less than two seconds quicker than Denny Hulme, despite never seeing the place before…
“I went around Laguna in 59 seconds and it was about five years before the next car managed to go under a minute, and that was an Indycar!”
He didn’t get to start from pole as the Chevy popped a-leg-out-of-bed in the warm-up early in the day, and there simply wasn’t the time for the Midland boys to pop in a new engine. The complexity of an engine change involved pulling much of the car apart and reassembly, a days work. It was an immense bummer for the Californian crowd.

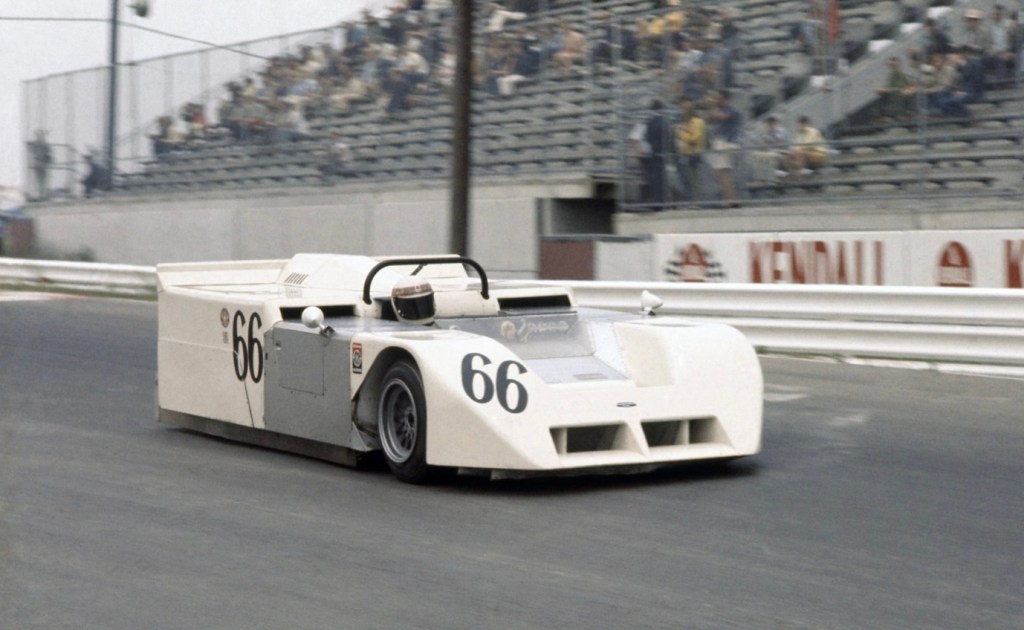

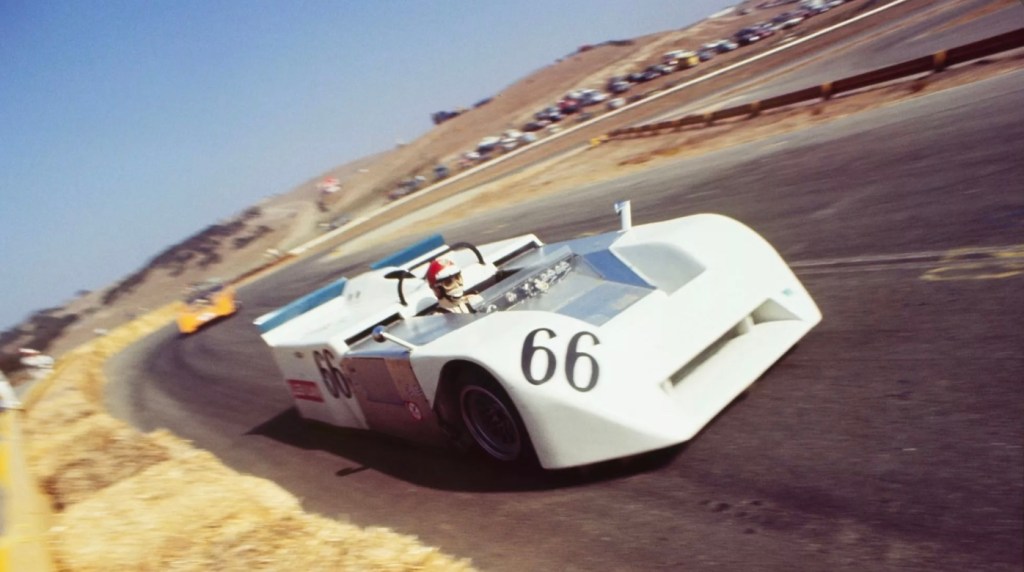

Beautiful Laguna Seca profile shot of Vic Elford shows the unmistakable slab-sided lines of the car and operation of the skirts which appear to be riding the bitumen pretty well (unattributed)Imagine being showered by fast moving trackside shrapnel at 170mph, Dyson have nothing on this vacuum-cleaner! Elford in the Road Atlanta pitlane
The final Can-Am round was at Riverside a fortnight later. There, Elford was again well clear of Hulme in qualifying, this time the gap was a little over two seconds, these are huge margins folks.
“At one point we came into Turn 9 with Denny Hulme just in front of me. I was right up against the wall and I probably didn’t even change gear. I drove all the way around the outside of Denny in third gear. He went straight off, went into the pits and took his helmet off, sat on the pit wall and sulked for the next half hour!”
This time the Rockwell engine didn’t play ball, breaking its crank. The team managed to patch it up and take the start but it inevitably failed on lap two.
And that was it, the howls of protest were loud and long.
Not that there was any way known the 2J didn’t bristle with illegal ‘moveable aerodynamic devices’! No way can the SCCA officials who saw the car pre-season could have thought it otherwise, but – bless-em – they probably thought “Let ‘em run, the crowds will be huge and we’ll see what happens from there.”
In the process of banning it, the SCCA ripped the soul out of Can-Am in that Hall and his boys walked away.
Can-Am’s attraction was its anything goes nature which invited innovation. Anything goes was great, unless, it seems, it threatened the dominant orthodoxy. To me there was Chaparral-Can-Am and Post-Chaparral-Can-Am and the former was vastly better than the latter, with all due respect to Porsche and Shadow.
Elford in front of one of the Papaya-M8D-Terrors at Laguna Seca. Hay bales still very much around in 1970 (H Thomas/Getty)Brian Redman, Jim Hall, the Chaparral crew and their Lola T330/332 Chevs were the dominant US F5000 force from 1974-76. Here the duo are in the Elkhart Lake pits in 1974, Lola T332C Chev
Still, Hall kept his core team together running Lolas in the US F5000 and single-seat Can-Am championships, then had the joy of watching Lotus carry the ground effect torch forward, not that Chapman ever gave any credit his way, our Col never did that to anyone.
Hall then returned with the John Barnard designed ground effect Chaparral 2K Cosworth which won the CART championship and the Indy 500 in 1980 with Johnny Rutherford at the wheel.

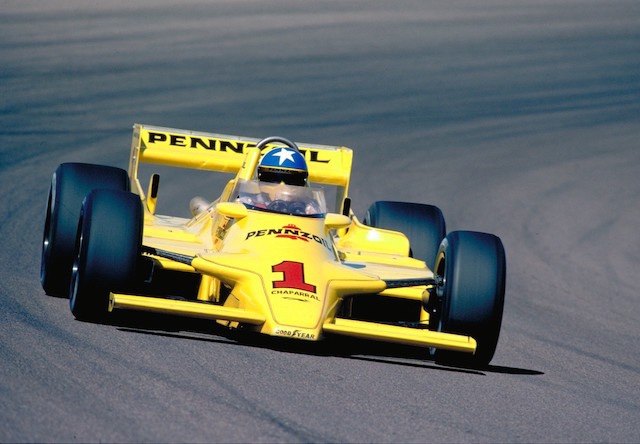

Lone Star JR on the way to a win at Indy in 1980, Chaparral 2K Cosworth (IMS)
That Automobile Year 18 I prattled on about at the start of this masterpiece was hugely influential in stimulating my interest in cars and racing. Six of my Top Ten cars I first saw in that tome; Ferrari 312B, Lotus 72 Ford, Ferrari 512S, McLaren M8D Chev, Ferrari Dino 246GT and of course the Chaparral 2J. The Ferraris and McLaren are all about sex-on-wheels, the 72 and 2J are a tad more cerebral.
This article made me consider what the most influential racing car in my lifetime is? Its ‘gotta be a toss-up between the Lotus 25 Climax and 2J.
All monocoque racing cars are related to the 25, the first modern monocoque. The aerodynamics of racing cars since the Lotus 78 are related to the 2J. Let’s toss the coin as to which is the more influential, let the debate begin!
PS…
I ‘spose you think I’ve forgotten John and Charlie Cooper, but they were doing their mid-engined thing way before I was born, so, I’ve dodged that debate at least. In any event, Auto Union’s mid-engined missiles won GPs pre-war.
May 1967Thinkin, always thinkin. Jim Hall at Riverside in 1966 (B D’Olivo-Getty)
Credits…
MotorSport Images, sportscardigest.com, Indy Motor Speedway, Getty Images, J Meredith Collection, Harry Hurst, Sports Illustrated, Sportscar Digest, MotorSport November 2020 article by James Elson
Tailpieces…
“Aw come on Jim, it’s years since you raced in F1, time to return and give things a bit of a shake up.”
Jim Hall and Jackie Stewart pre-race at Watkins Glen. “Just make sure you have your left foot on the brake when we fire it up or you’ll mow down half the paddock!”
Note the fan-covers missing at Watkins Glen but present in subsequent races.

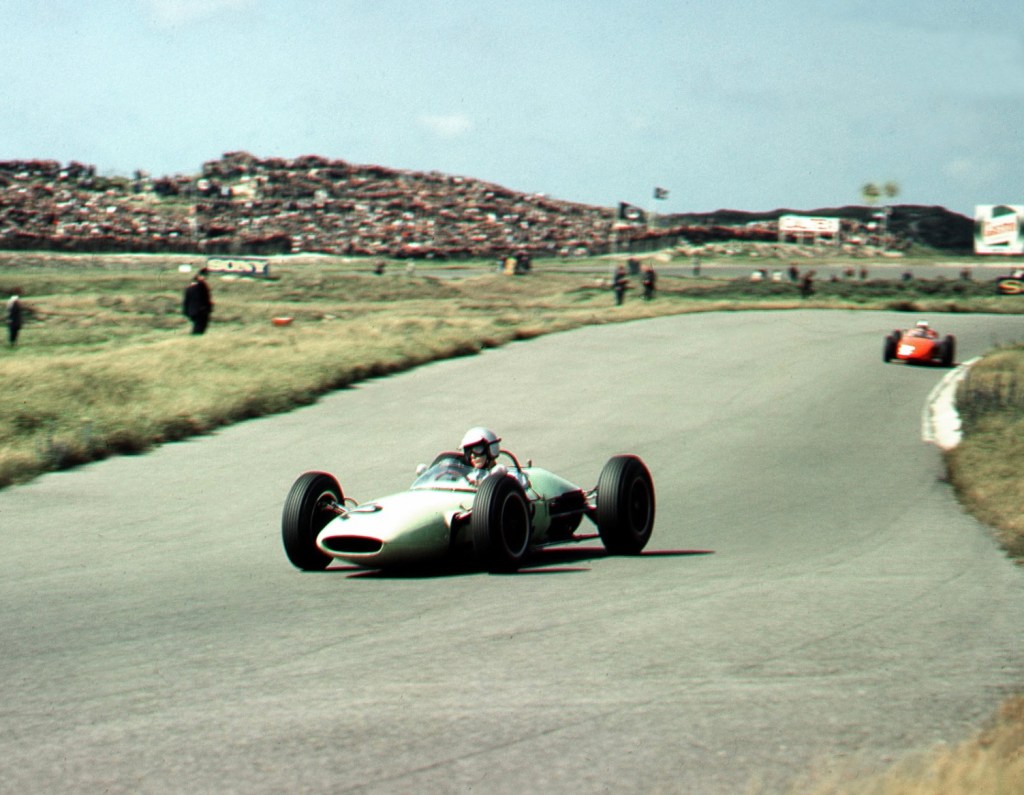

Jim Hall’s British Racing Partnership Lotus 24 BRM during the 1963 Dutch GP at Zandvoort, eighth in the race won by Jim Clark’s epochal Lotus 25 Climax. Carel de Beaufort’s ninth placed Porsche 718 in the distance (MotorSport)
Hans-Dieter Dechent wasn’t quite in on the start of Martini & Rossi’s (M&R) support of motor racing, but his Lufthansa Racing Porsche 910 was the first racer to carry the famous livery substantively, when non-trade advertising was permitted on racing cars in 1968.

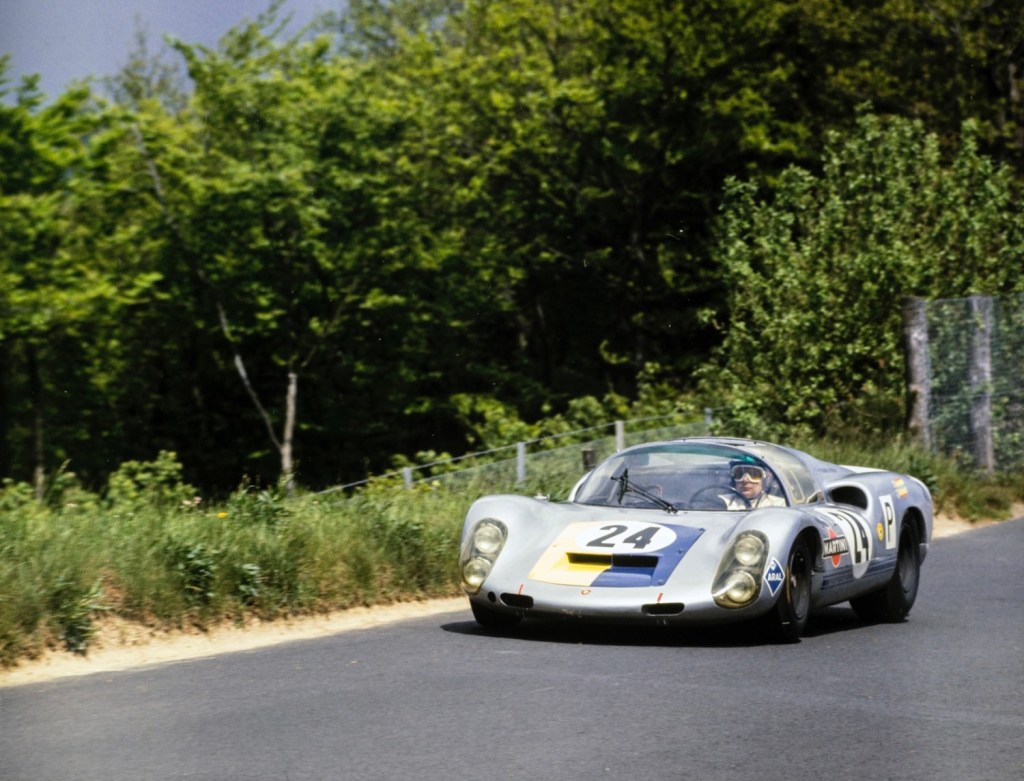

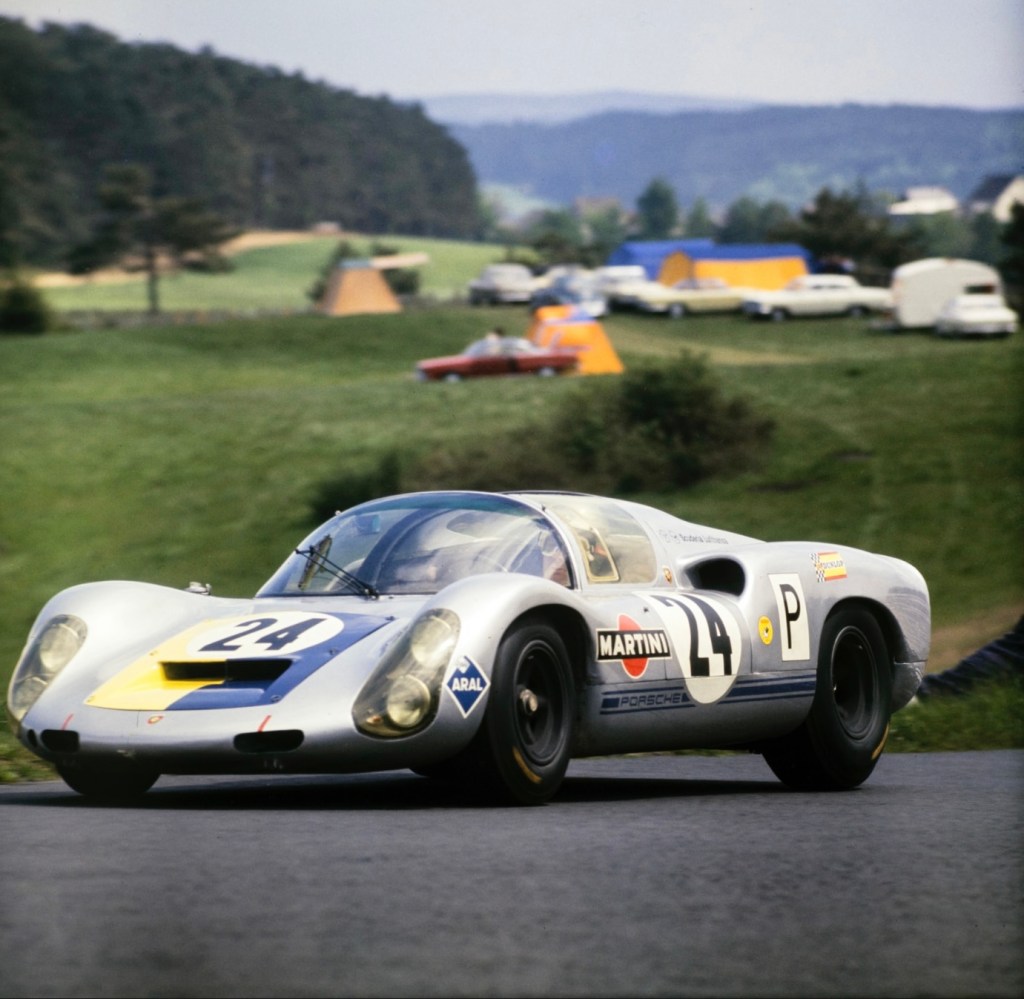

Here he is enroute to a DNF with engine failure in the 910 he shared with Robert Huhn in the 1968 Nurburgring 1000km.
M&R sponsored two Alfa Co US entered Alfa Romeo Giulietta SZ’s raced by Charlie Kolb and Paul Richards at the 1962 Daytona 3 Hours. The machines were devoid of the corporate branding with which we are all so familiar, instead they had Martini & Rossi Racing Team discretely sign-written atop the front quarter-panels.
Paul Richards’ Alfa Giulietta SZ in the Daytona 3 Hours paddock in 1962 (N Cerutti)(MotorSport)
Martini’s German head of PR, Paul Goppert, and his friend, Dechent, took things up a gear with M&R’s support of the Scuderia Lufthansa Porsche 910 (above) owned and driven by Robert Huhn, a Lufthansa executive, together with Dechent.
Among strong results Dechent won his class racing a Porsche 906 in the 1967 Nurburgring 1000Km and was third outright in a 907 at the 1969 Monza 1000Km behind the works 908/2s of Jo Siffert/Brian Redman and Hans Hermann/Kurt Ahrens.
In 1970 the Martini & Rossi International racing team – later Martini Racing – was formed.

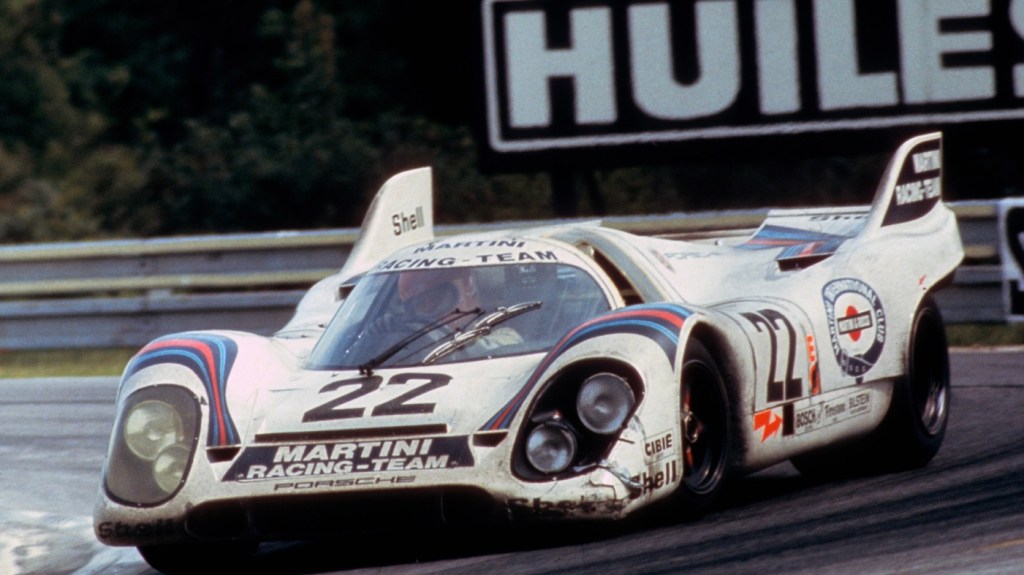

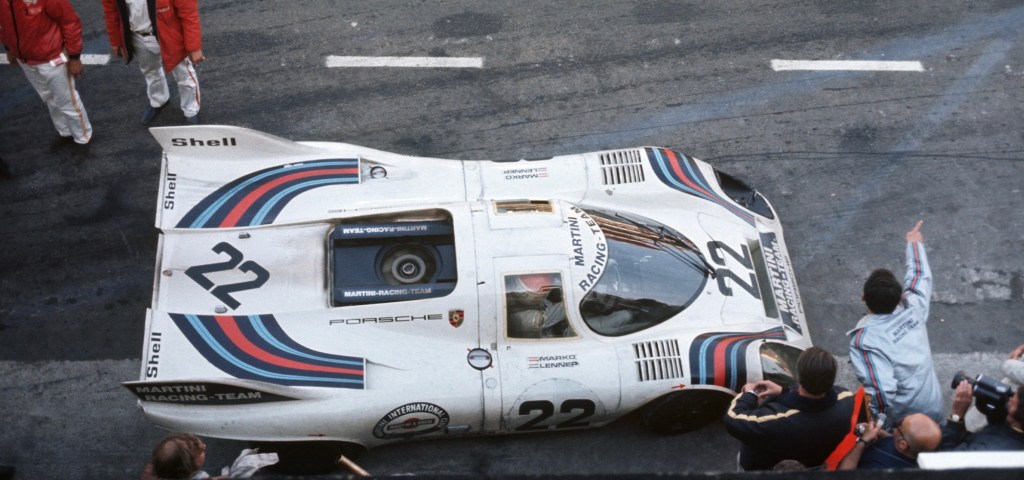

Gijs Van Lennep in the Porsche 917K he shared with Helmut Marko to victory at Le Mans in 1971 (DPPI)(DPPI)
With the assistance of Hans-Dieter the Martini & Rossi relationship with Porsche became enduring. He hung up his helmet to take on the role of Team Manager of Porsche Salzburg in 1970, and in addition had responsibility for the M&R sponsorship. The first M&R Le Mans win followed in 1971, the victorious Porsche 917K was crewed by Gijs Van Lennep and Helmut Marko.
Dechent moved on from Martini Racing to other motor racing team management roles (see here; Motorsport Memorial – Hans-Dieter Dechent) he was replaced by David Yorke at the end of 1971. Lets not forget the critical role Dechent played in ‘commencing’ an iconic team/brand/livery.

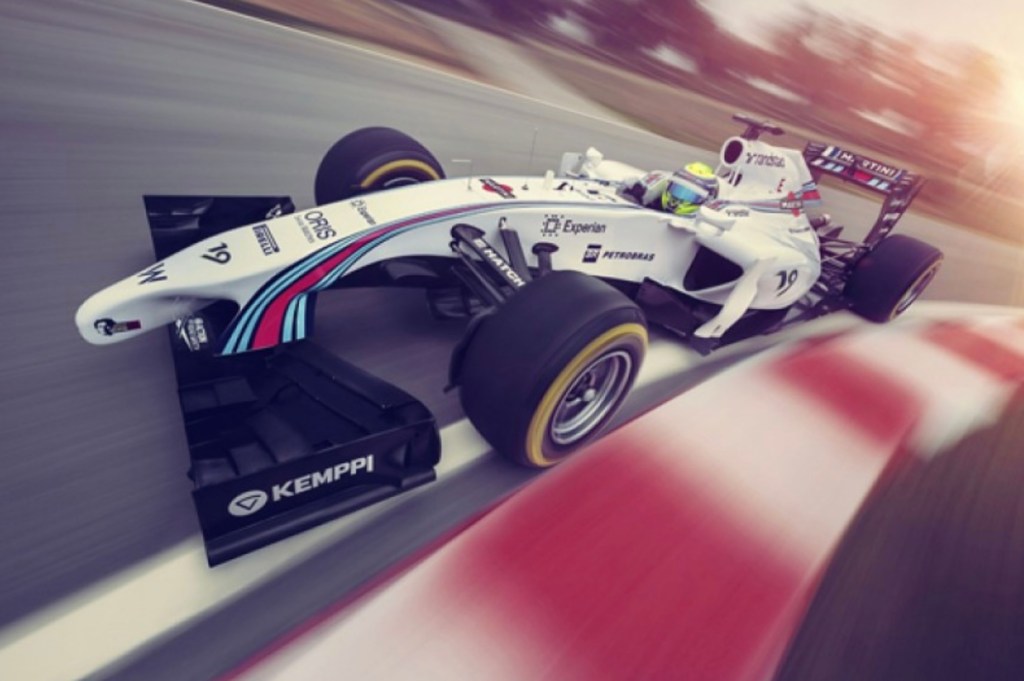

The 2014 Williams FW36 Mercedes with Felipe Massa up. Best results for the year were third places for Valtteri Bottas in Austria, Hungary, Russia and Abu Dhabi, and Felipe Massa in Italy and Brazil (Autosport)
The amazing thing about the Martini & Rossi house-style – as the brand consultants call it – is that it makes every car to which it’s applied look better, faster…
Surely one of the most iconic racing car liveries of all is the car Hans-Dieter Dechent turned over to Porsche designer Anatole Lapine for special treatment in 1970.
The Gerard Larousse/Willy Kauhsen Porsche 917 Langheck, chassis 917/21, first raced at Le Mans in June.

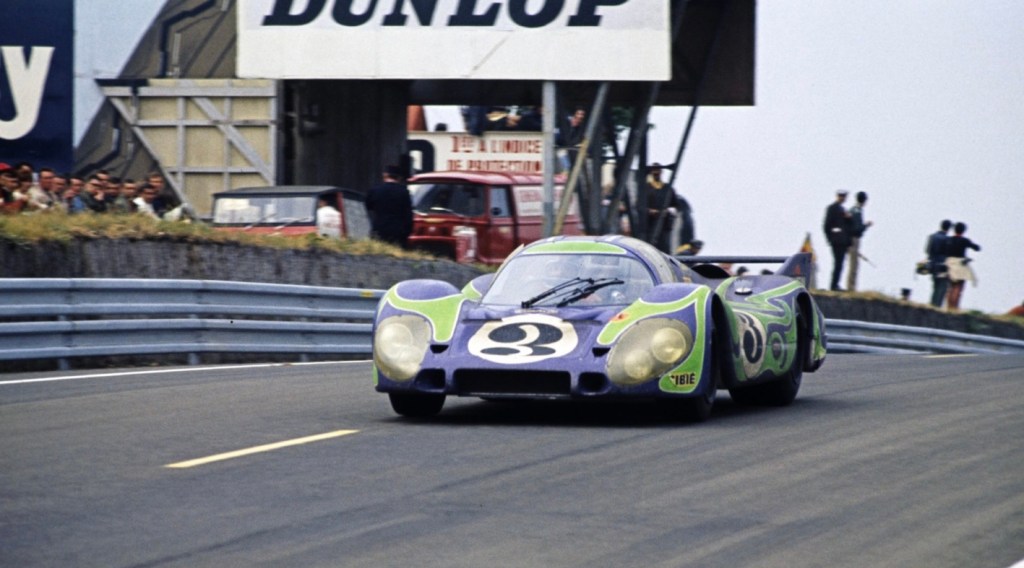

The Martini & Rossi sponsored, swirling psychedelic, green and purple Hippie-Car – second behind the winning 917K of Dick Attwood and Hans Hermann – has a cult following which transcends race-fans.

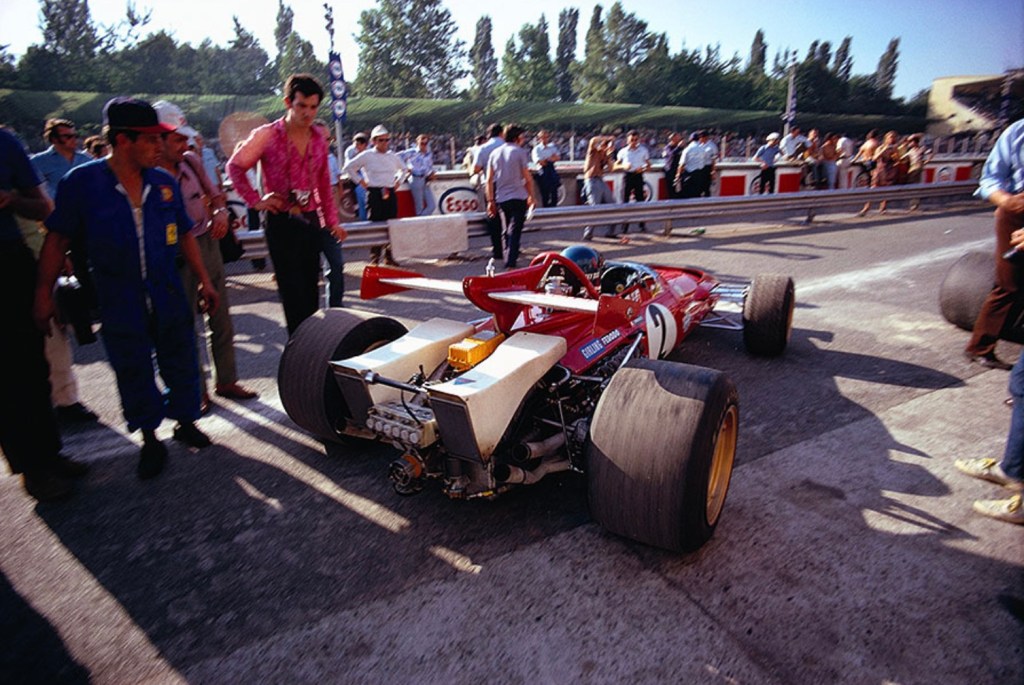

I love these nudie-rudie shots, so many of a car’s secrets are revealed by photographs like this.
Jim Culp caught one of the Ferrari 312Bs raced by Jacky Ickx and Clay Regazzoni at Hockenheim over the August 2, 1970 German Grand Prix weekend coming off its transporter.
Key elements of Mauro Forghieri’s design on display are the low, wide 3-litre, fuel injected flat-12 (180 degree V12 if you prefer) engine and far-back weight distribution; the two oil tanks and related dry sump pump drives, battery, and twin, beautifully ducted oil coolers/radiators.
Ickx started the race from pole, with Regga third but Jochen Rindt’s Lotus 72 Ford prevailed over Ickx by a little less than a second, after a great long dice, with Regazzoni out with engine failure.
In a year of great sadness (deaths of Bruce McLaren at Goodwood and Piers Courage at Zandvoort) it was Jochen Rindt’s last win, and the start of a great run home for Ferrari.

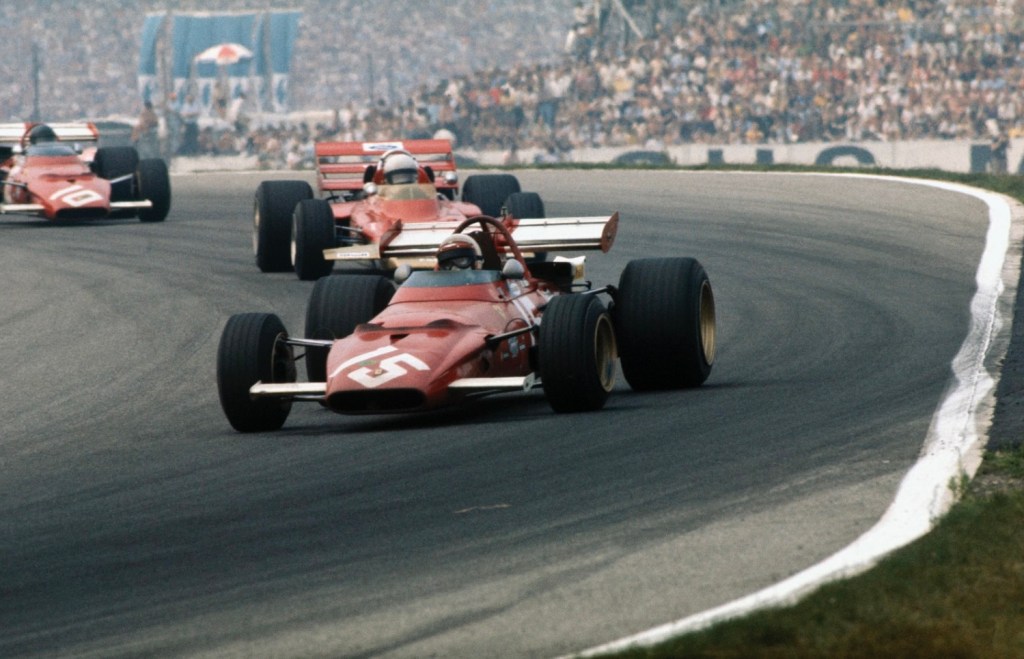

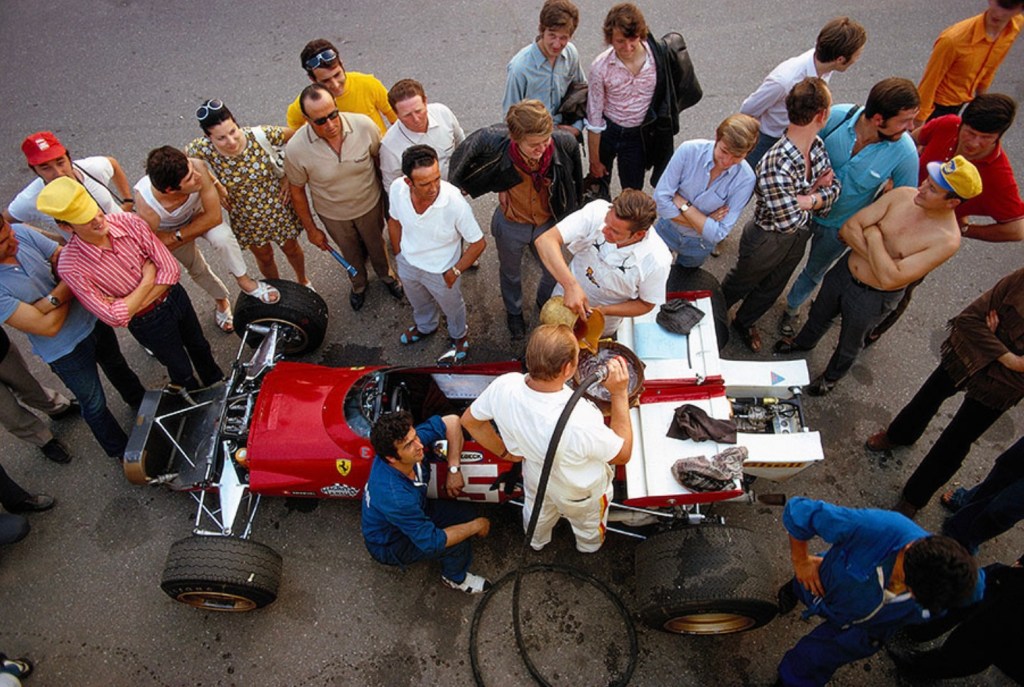

Sheer economy of the design shown in this Hockenheim refuelling shot of Regga’s car (R Schlegelmilch)Regazzoni from Rindt and Ickx early in the German GP (MotorSport)
Ickx won at the Osterreichring a fortnight later, and Regazzoni at Monza after Rindt’s tragic practice accident. Ickx won again at Mosport and Mexico City but Emerson Fittipaldi’s first GP win for Lotus at Watkins Glen helped ensure Rindt won the drivers title, and Lotus the manufacturers championship. Karma prevailed in an unusual year in which race wins were spread among drivers; Jack Brabham, Jackie Stewart, Pedro Rodriguez, Regazzoni, Ickx, Fittipaldi and Rindt.
Ferrari had a torrid time throughout 1968-69. The Ford Cosworth DFV was dominant and used by many of the front-runners. Team-leader, Chris Amon was in winning positions at least four times over this period only to be continually let down – Ickx’ ’68 French GP win duly noted.

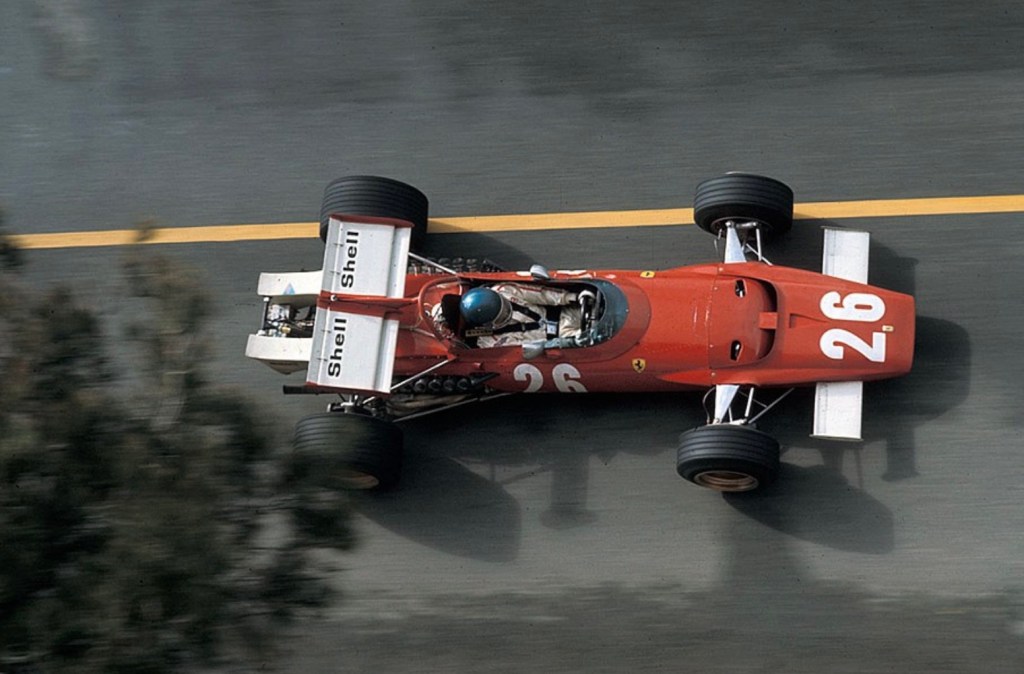

Ickx at Monaco in May. Note the radiator exit duct and inboard rocker front suspension (MotorSport)The Lotus 72 made everything with a front radiator – the rest of the grid – look old, but the 312B was a very effective cohesive marriage of bespoke engine and chassis. Fast and reliable too (G Piola)Chris Amon testing at Modena in late 1969. This shot shows the chassis ‘pontoon’ to which the engine mounts behind the top radius rod. Wonderfully neat and structurally rigid is the way the high roll bar braces to the rear of the pontoon, and forms the wing mount, and fire extinguisher mount!
Forghieri placed a new, clean sheet of drafting paper on his drawing board in 1969, the first such F1 occasion since he led the design of gorgeous, but never fully developed 1964-65 1.5-litre 1512 flat-12.
He again chose a flat-12 given its potential power output, low centre of gravity and lesser weight than the V12 it replaced. He made the engine a stressed member of the chassis, as was the engine on the 1512 – following the lead provided by Vittorio Jano’s Lancia D50 design – but this time the engine attached both to the rear bulkhead behind the driver, and underneath a ‘boom or pontoon’ chassis extension rearwards behind the drivers shoulders. The 1512 bolted to the rear bulkhead.
The Tipo 015 flat-12 – designed by Forghieri, Franco Rocchi and Giancarlo Bussi – was a great engine which powered the Scuderia’s Grand Prix cars from 1970 to 1980 (two drivers titles for Niki Lauda, and one for Jody Scheckter), and won them a World Endurance Championship when fitted in suitably detuned form to 312PB chassis in 1972.
There were a few teething problems early on however. To minimise friction losses and release a few more horses, the engine had only four main bearings, two plain shell bearings in the middle, and ball-bearing races at each end of the crank. With minimal support, crankshaft breakages were so much of a problem that Chris Amon cried “Enough!” and left the team, not even completing the 1969 GP season.

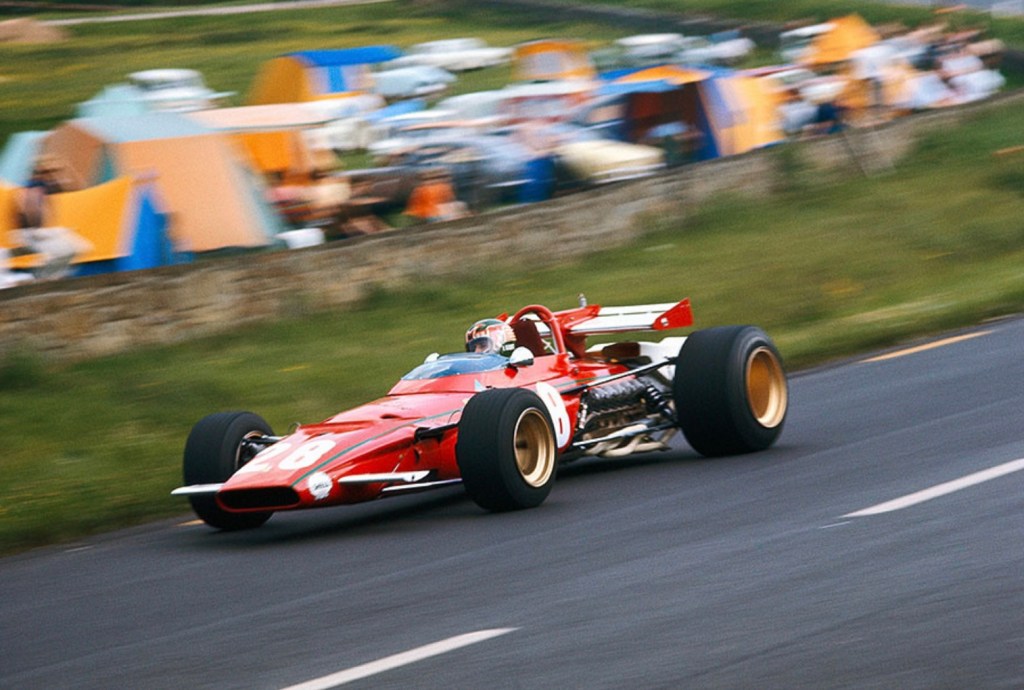

Ignazio Giunti at Spa during his first championship GP. He was fourth in the Belgian GP won by Pedro Rodriguez’ BRM P153 after an epic race-long dice with Amon’s March 701 Ford (R Schlegelmilch)Ickx at Watkins Glen, he started from pole but pitted with a broken fuel line. In a tiger of a drive he went from 12th to fourth, Fittipaldi took his maiden GP win aboard a Lotus 72 Ford. Doesn’t the 312B look long from this angle? You can see the rearward weight bias and relatively clean air in which the rear wing operates thanks to the low engine (MotorSport)
A tilting dyno bed at Maranello enabled cornering oil surge to be monitored, the crank torsional vibration problem was fixed by adding a Pirelli cushion-coupling between the crankshaft and the flywheel.
Before too long the gear driven, twin-cam, four valve, Lucas injected engine produced a reliable 460bhp @ 11,500rpm, which rose over time to about 510bhp @ 12,000rpm.
While Chris made the works March 701 Ford sing in 1970, his solo Silverstone International Trophy win was no compensation for the four wins Ferrari produced with a car he put his heart and soul into at Modena in early testing…

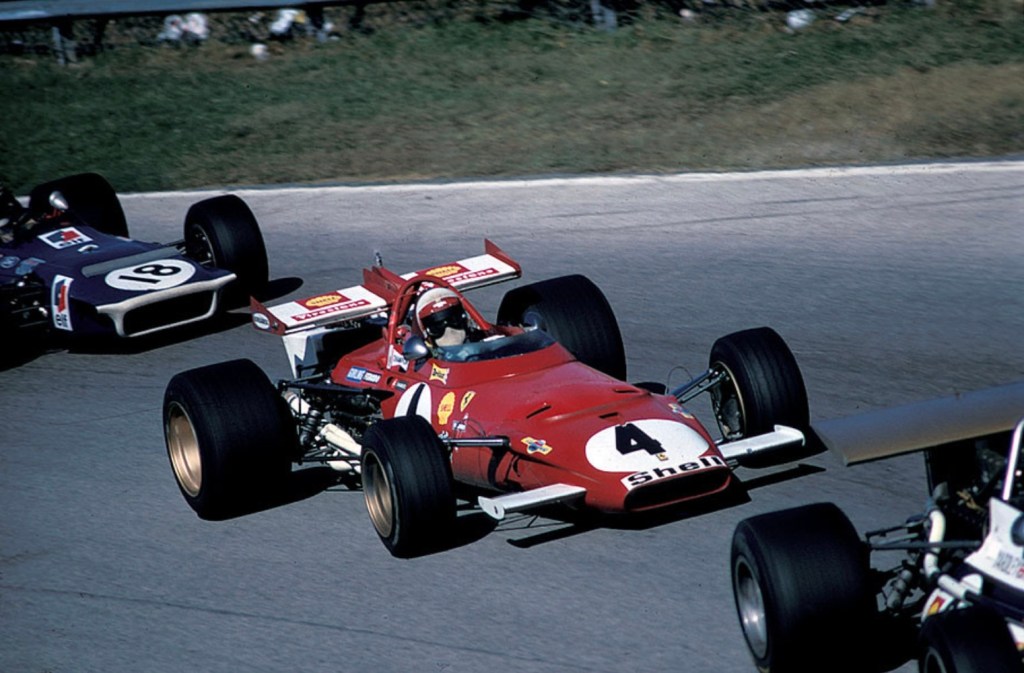

Regazzoni is wedged between one of the BRMs and Stewart’s wingless March 701 Ford early in the Italian GP (R Schlegelmilch)Tifosi Monza 1970, Things Go Better With…(R Schlegelmilch)
While the Italian Grand Prix that year (above) was a terrible weekend, Ferrari had a home win, the tifosi went berserk and Mr Ferrari attended practice as he traditionally did.
Ickx started from pole, Regga was Q3 and Giunti Q5. Regazzoni was the only one of the three to finish, in the right spot too. Ignazio was out with fuel system woes after completing 14 laps, and Jacky with clutch troubles after 25 laps.
Regga won from Jackie Stewart’s March 701 Ford and Jean-Pierre Beltoise’ Matra MS120. Points of GP trivia are that it was the last time a GP was won by a driver wearing an open face helmet, and the last time the first three finishers used different tyre brands; Firestone, Dunlop and Goodyear in first to third respectively.
“The race is in the bag Commendatore”. “Yeah-yeah you told me that last year Mauro” (R Schlegelmilch)Ickx heads out to set pole at Monza (R Schlegelmilch)
Credits…
Jim Culp, MotorSport Images, Rainer Schlegelmilch, ‘The History of The Grand Prix Car’ Doug Nye, Giorgio Piola
Tailpiece…
(MotorSport)
Clay Regazzoni, 312B from Jackie Stewart’s March 701 Ford and Jean-Pierre Beltoise’ Matra MS120 at Druids Hill early in the 1970 British Grand Prix.
Jochen Rindt was well beaten by Jack Brabham that afternoon but a crewman’s fuel mixture switch mistake gifted Jochen the win in an amazing last lap change of fortune. Last lap drama happened at Monaco too, but that day the mistake was Jack’s due to the pressure Jochen applied.
Brian Muir in an Alpina BMW 3-litre CSL during the May 1973 Spa 1,000km.
He shared the car with Hans Stuck, the pair finished second in class, eighth outright, immediately behind the sister Alpina machine raced by Niki Lauda – and Hans Stuck! The race was won by the Mirage M6 Ford prototype crewed by Derek Bell and Mike Hailwood.
Muir is too often forgotten in conversations between enthusiasts in Australia about successful internationals. He was a much respected figure in touring cars and sportscars in the UK/Europe for the better part of 30 years after leaving Australia for the UK for the second time, as winner of the ‘Smiths Industries Driver to Europe Prize’ in late 1964.
Brian Muir chasing David Hobbs at Silverstone during the July 1968 BSCC round, Falcon Super Sprints. They finished the Duckhams Q Trophy in this order, there was nothing in it, both were credited with the same fastest lap (LAT)Brian Muir aboard the works Lotus 62 Vauxhall he shared with John Miles, chases the Helmut Kelleners/Reinhold Jost Ford GT40 during the April 1969 Brands Hatch 6 Hours. The Lotus pair were 13th outright and first in the 2-litre prototype class, the GT40 was 16th. Race won by the Jo Siffert/Brian Redman Porsche 908/02 (MotorSport)Muir aboard the winning Ford GT40 during the April 1968 Barcelona 6 Hours at Montjuic Park. He was co-driven by Francisco Godia-Sales (J Vinals)
Brian had a terrific year in 1973, he raced Alpina tuned BMW CSLs in both the British Saloon Car Championship and the European Touring Car Championship.
In the UK the battle for outright honours was fought between Frank Gardner’s legendary SCA European Freight Services Chev Camaro Z28 and fellow Sydneysider, Muir.
Gardner won the title with wins in six of the eight rounds he contested, Muir won at Silverstone and Brands Hatch to finish fifth overall behind better performing smaller-capacity class cars.
Oopsie, two Sydneysiders at play at Silverstone. Frank Gardner’s Chev Camaro Z28 copping a bit of TLC from Muir’s BMW CSL during the April 1973 International Trophy BSCC round (A Cooper)Brian Muir three-wheeling in his chase of Frank Gardner at Brands Hatch in August ’73. BMW’s homologation goodies for the year included a nice-fat 3.5-litre engine and aero pack including the iconic Batmobile wing. Gardner won the race while Brian DNF with oil pump failure in his 3303cc engine (MotorSport) Muir aboard the Alpina 3-litre CSL he shared to victory with Niki Lauda at the ETCC season opener, Monza 4 Hours, March 1973 (Alpina Automobiles)
Things were better in Europe though.
Brian and Niki Lauda won the first ETCC round at Monza – the Monza 4 Hours – in March leaving four Ford Capril RS2600s in their wake.
Muir was second at the 4-Hour Austria Trophy at the Salzburgring sharing with Toine Hezemans, and again at the following round, the 500km of Mantorp Park, Sweden. Ford Capri RS2600s won both races crewed by Dieter Glemser/John Fitzpatrick and Glemser/Jochen Mass respectively.
Paired with Alain Peitier, Muir’s car failed at the Nurburgring’s Grosser Preis der Tourenwagen with bearing trouble while running the just homologated 3.5-litre engine. It was the first of many bearing problems that year.
In a race – make that series – chock-full of GP drivers, Stuck and Chris Amon shared the winning 3303cc BMW 3.0 CSL from the similarly engined works car of Hezemans/Quester/Harald Menzel, then the 3498cc Alpina entry shared by Lauda/Hans-Peter Joisten.
Muir pulls to a stop with Niki Lauda all set to jump aboard during their successful Monza run at left. Who is the driver near the BMW’s boot? (Automobilsport)Lift off at the Thruxton BSCC round in May 1973. Muir, Gardner and Dave Matthews Ford Capri RS2600 on the front row, Gardner won from Muir and Matthews (MotorSport)Brian Muir aboard the ill-fated 3.3-litre CSL he shared with Hans-Peter Joisten in the early stages of the July ’73 24 Hours of Spa-Francorchamps (unattributed)
Then it was off to Belgium for the classic 24 Hours of Spa Francorchamps.
There, Brian popped the car on the front row – sharing with German racer Joisten – between the works cars of Stuck/Amon and Hezemans/Quester.
Tragedy struck Joisten during the race when he passed two Alfa Romeo 2000 GTVs of Roger Dubos and Claude Ballot-Lena. Travelling too fast, Hans-Peter touched the barriers and was pinged back onto the track, where Dubos saw him and started to brake before being simultaneously rammed by Ballot-Lena, crashing into Joisten’s car. Both Joisten and Dubos were killed instantly in this freak accident.
Hezemans/Quester won from the factory Capri RS2600 of Mass/Fitzpatrick.
The next round was in the Dutch sand dunes at Zandvoort in mid-August. At the end of four hours the Zandvoort Trophy was held aloft by Hezemans and Quester who won from Muir and James Hunt in the Jagermeister Alpina entry. In third and fourth places were two RS2600 Capris led by the Fitzpatrick/Gerard Larrousse machine.
Brian Muir goes around the outside of Ivor Goodwin’s Hillman Imp at Silverstone during the July 1973 BSCC round, DNFs for both, with again, Gardner up front (MotorSport)The other main 1973 ETCC protagonist, the fabulous 325bhp/970kg Ford Capri RS2600. This is the Fitzpatrick/Gerry Birrell car during the Monza 4 Hours in March, DNF (MotorSport)Brian at Spa during the 1,000km meeting, ain’t she sweet? (MotorSport)
Three weeks later the ETCC circus raced at Le Castellet, contesting the 6 Hours of Paul Ricard.
With the RS2600 at the limit of homologated tricks – lookout for the 3.4-litre Cosworth GAA powered RS3100 in 1974 – the BMWs were again on the front row and finished in first to fourth places, a race of complete dominance.
Hezemans/Quester won from Ickx/Hunt, Stuck/Amon and Walter Brun/Cox Cocher. The best of the Capris – the Mass/Jackie Stewart machine – was fifth but 11 laps adrift of the winning car. Brian Muir and John Miles qualified eighth, but their 3.5-litre engine had head gasket failure after water loss.
The final round of the series was the RAC Tourist Trophy, it comprised two heats of two hours each at Silverstone on September 23.
The cat-among-the-pigeons was Gardner’s Camaro, although his speed was handicapped by tyre problems throughout. Harald Ertl’s Alpina CSL won the first heat from the Capris of Mass and Fitzpatrick with Muir a distant ninth having lost his front spoiler early in the race. Second place in the second heat behind Derek Bell’s Alpina machine was better; Brian was third overall behind Bell/Ertl and Mass’ Capri.
Toine Hezemans’ speed and consistency throughout the season paid off, he won the ETCC with 105 points from 42 years old Brian Muir on 77, and Dieter Quester on 75. BMW demolished Ford in the manufacturer’s title, 120 points to 97.
BMW E9 3.0 CSL – Coupe Sport Licht – Group 2 1973…
(B Betti)
A few summary points on salient technical features of this great road and track machine.
The unitary steel chassis had aluminium door, bonnet and boot panels, these and other mods reduced weight by about 200kg to a total of circa 1050kg.
ZF worm and roller steering, ZF or Getrag five-speed, or Getrag four speed box. 10.7 inch disc brakes all around, 12.5 inches X 16 and 15.75 X 16 wheels
Credits…
MotorSport Images, LAT, touringcarracing.net, Jordi Vinals, Alan Cooper, Alpina Automobiles, Automobilsport, Bruno Betti
Tailpiece…
(unattributed)
Brian Muir aboard his Scuderia Veloce Holden EH S4 during the one-race Australian Touring Car Championship at Lakeside, Queensland on July 26, 1964.
Note the ‘Nomex’ Polo-Shirt. Brian led the event late in its 50 laps but a pit stop to replace a tyre ruined his day, he was seventh in the race won by Pete Geoghegan’s Ford Cortina GT.
primotipo...
