Few drivers knew Warwick Farm like Frank Matich and Kevin Bartlett…

They raced at the track from its earliest days, it’s first meeting in 1960 I wonder?, and certainly the last international meeting, sadly the 1973 Tasman round run 12 months after the photos here were taken, Steve Thomson won that very wet race in a Chevron B24 Chev.

Here the two Sydneysiders are attacking The Esses during the 1972 F5000 Tasman round, the ‘Warwick Farm 100’ on 13 February. Matich was 1st in his Matich A50 Repco and KB 3rd in his McLaren M10B Chev, not really a front-line tool by that stage but still quick enough in Kevin’s highly skilled hands to win at Teretonga, the final ’72 Kiwi round, a fortnight before.


Bartlett and original owner Niel Allen had a lot of success in this McLaren M10B ‘400-02’, car now in the tender, loving hands of Alan Hamilton, also a former Australian champion .KB here during the ’72 Tasman race. A Lola T300 would replace the car in time for the domestic Gold Star Series (unattributed)

Matich didn’t have a good Tasman, the A50 was quick enough to win the series but FM didn’t have a lot of luck, the championship was convincingly won by Kiwi arch driver/constructor rival Graham McRae in the Leda/McRae GM1 Chev penned by Len Terry.

Click here for an article on the Matich F5000 cars including the 1972 Tasman Series:

https://primotipo.com/2015/09/11/frank-matich-matich-f5000-cars-etcetera/

Credits…

oldracephotos.com, Bob Williamson Collection

Tailpiece: The Lola T300 was ‘a chick’ with a great arse and hips, visually arresting…


Frank Gardner and Lola T300 Chev ahead of Frank Matich in the ’72 WF pitlane for tweaks. FG won the ’72 NZ GP in this T300 at Pukekohe, his last single-seater win, I think (Bob Williamson)



Frank Gardner split Matich and Bartlett, he was second at Warwick Farm in the factory T300. Frank was not exactly unfamiliar with WF either, mind you no-one would have done more laps around it than Matich, Frank tested tyres for Firestone, and later Goodyear and his cars a lot!

Between Gardner and Bob Marston they concepted a small F5000 based on Lola’s F2 tub. By placing the big water radiators, you needed plenty of coolant to look after the needs of a big Chev, at the cars hips they gave the car, and the T330/332 which followed it their most distinctive and attractive feature. Effective too in terms of aerodynamics and centralising weight, an article on the T300 is one for another time…

Finito…

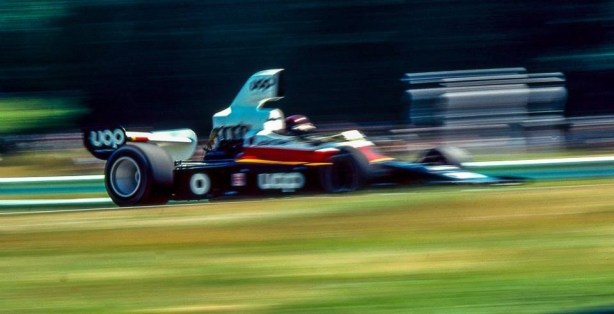

oliver pan

Jackie Oliver’s Shadow DN6 Chev on its way to 2nd place, Road America, 27 July 1975. (Richard Dening Jr)

ollie 2

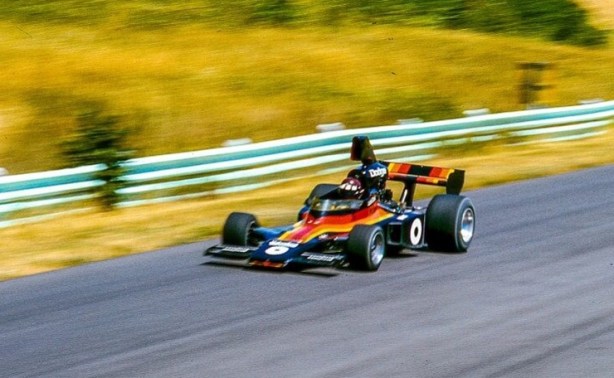

Exactly 12 months later Oliver goes one better in the Dodge engined DN6B, winning the Road America race on July 25 1976. (Richard Dening Jr)

Jackie Oliver takes an historic win in his Shadow DN6B Dodge at Road America on 25 July 1976…

Chev engines won every championship F5000 race in the US from Riverside on 25 April 1971 when Frank Matich took a Repco Holden win in his McLaren M10B through until Oliver’s long overdue Shadow victory, the Lola T332 Chevs of Al Unser and Vern Schuppan were second and third.

Whilst the Dodge was more powerful than a Chev it was also heavier making the packaging of the car and its big cast iron V8 a challenge for designer Tony Southgate.

The Lola T332 was their 1974 production F5000 but was continually developed, the subsequent Lola T400 and T430 not quicker cars, a good 332 was as quick as an F1 car on the common circuits upon which both categories raced in North America. ‘Twas a remarkably good, very fast racing car the Shadow was competing against driven by the likes of Brian Redman, Mario Andretti, Alan Jones, Al Unser and others…

shadow nude

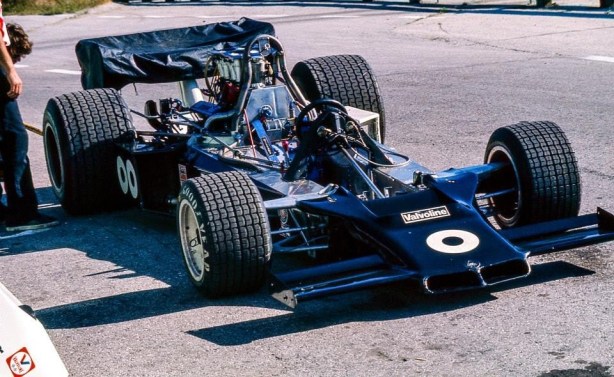

Shadow DN6 Chev. Car based on Tony Southgate’s very quick DN5 1975 F1 contender. Aluminium monocoque chassis. Front suspension lower wishbone and top rocker actuating inboard mounted coil spring/damper. Rear single top link, lower twin parallel links, two radius rods and coil spring/dampers. Adjustable roll bars front and rear. 5 litre cast iron OHV Chev here, Dodge V8 from the Road Atlanta round in August 1975 , Hewlands TL200 gearbox, developed as an endurance racing tranny used rather than the F5000 standard, the ‘brittle’ DG300. Road America July 1975. (Richard Dening Jr)

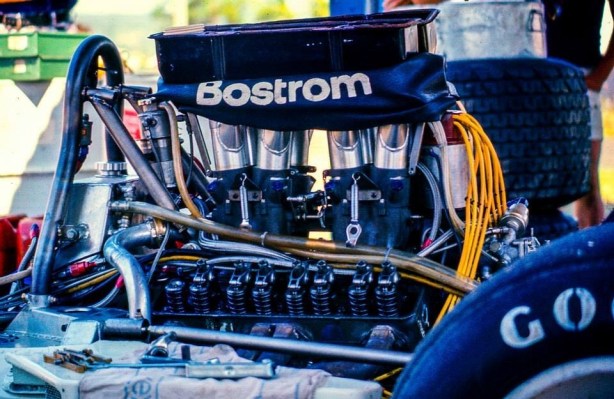

dodge engine

5 litre cast iron, mechanical fuel injected, OHV Chev V8 engine developed circa 530bhp@7800rpm. Rocker covers removed here for Road America July 1975 prep, one rocker missing. Magneto, its yellow ignition leads and fuel metering unit all visible. (Richard Dening Jr)

The Shadow DN6 was based on Tony Southgate’s very competitive DN5 F1 design and was first raced in 1975 powered by the ubiquitous Chev V8. Oliver took 4th place in the championship won by Redman’s T332, the car raced well at both Watkins Glen and Road America.

Gordon Kirby in his 1975 season review in Automobile Year said; ‘Almost immediately the Shadow proved to be competitive and in the last part of the season (the last 4 races) it became even more of a threat when after a long development program the team switched to Dodge engines, based on the same powerplant used in NASCAR by Richard Petty’. (in 1975 the Grand National Stockers were compelled by a carburetion ruling to use 355 cubic inch or 5.8 litre engines). The Dodge developed some 30 bhp more than the Chevys’ but was much heavier. The Shadows were not completely tuned and set up and did not win a single race. The whole of the 9 races were taken by the Lola Chevrolets.’

jpj

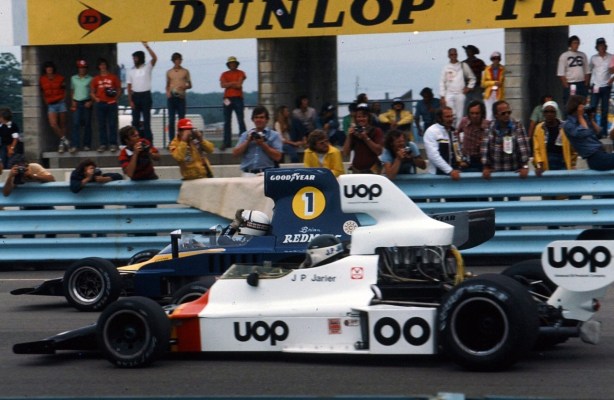

Jean-Pierre Jarier lines up on the Watkins Glen grid with Brian Redman 13 July 1975. Shadow DN6 Chev and Lola T332 Chev. JPJ DNF with a broken oil line, Brian was 1st, Oliver in the other Shadow also DNF with a blown Chevy. (Gary Gudinkas)

F1 drivers Jean Pierre Jarier, Tom Pryce and Jody Scheckter each raced a second car in three rounds at Watkins Glen, Long Beach and Riverside respectively.

All three qualified in the top 5 but retired with mechanical maladies.

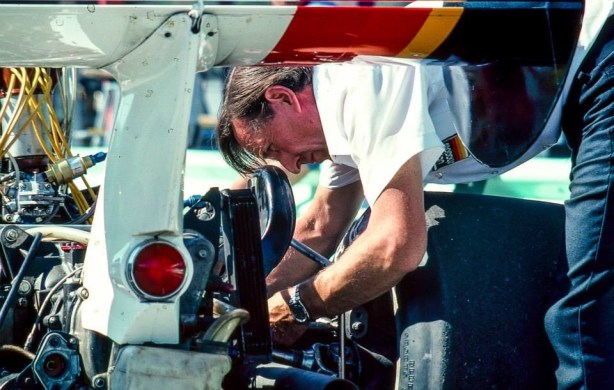

shadow mechanic

Business end of the Shadow DN6 Chev. Engine magneto and fuel metering unit, Hewland TL200 gearbox to which the wing is mounted, neat duct for inboard disc and additional oil cooler all visible. Road America July 1975. (Richard Dening Jr)

1976 Season…

The following Shadow press release written by Rob Buller prior to the Mosport round, the second of the 1976 season, reproduced on the My Formula 5000 website outlines changes to the car and program over the 1975/6Winter.

Development work on the DN6 5000 car has continued over the winter under the direction of Chief Mechanic Ed Stone and Engine builder Lee Muir.

Stone joined the 5000 effort late in 1975 and immediately set about making chassis and suspension changes.’Basically the 1975 season progressed with little development, there wasn’t much time.’ Stone said in a recent telephone interview, ‘I was asked to make some suspension changes and the car was more competitive at the last 1975 race at Riverside with Jody Scheckter driving.

ollie 3

Oliver in the Road America pitlane, July 1976. Shadow DN6B Dodge. (Richard Dening Jr)

‘But the heart of the Shadow development is the new Chrysler power-plant, a joint venture between Shadow and Chrysler’s Plymouth Division. The engine starts life as a 340 cu. in. stock block that is down-stroked to 305 cu. inches. It is fitted with the same injection system that is used on Richard Petty’s NASCAR Dodge.

Chrysler, which is heavily involved in NASCAR and Drag Racing, is new to F5000 racing, a class that has been dominated by the rugged Chevrolet 5 litre engine. As a part of their new kit-car package now under development, Chrysler has contracted with Shadow to do the engine development and sorting.

They supply the engine components to Shadow engine expert Lee Muir, who then hand builds and dyno tests each engine. Chrysler also helps with technical information and advice to Muir, who came to Shadow from McLaren’s engine department.

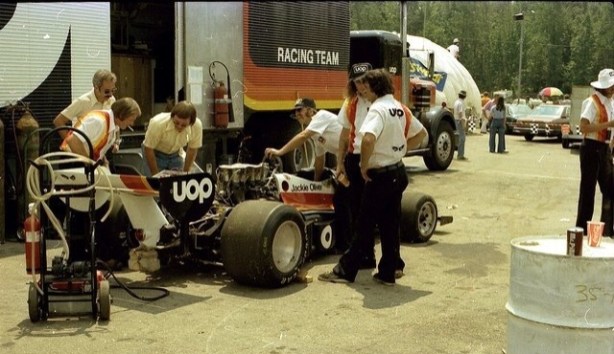

dodge

Race debut of the Dodge engined Shadow DN6 chassis ‘2A’ at Road Atlanta 31 August 1975. Oliver 4 th, race won by Al Unser’s Lola T332 Chev. Specs; Dodge 340cid V8 taken back to 305cid by reducing the engines stroke. 5 litre cast iron, OHV, mechanical fuel injected V8. Bore/stroke 4.04 inches/2.96 inches, power circa 550bhp@7800rpm. Hewland TL200 ‘box. (unattributed)

‘The first outing in 1976 for the Shadow Dodge DN6 was at Pocono, Pennsylvania for the Series opener. Although they weren’t quite ready for the Pocono race, they were very encouraged with the results. Oliver was lying third in his qualifying heat when a connecting rod developed terminal stretch. As they only had one dyno’d engine a spare practice unit was installed for the feature. However, a fuel pump seal split on the grid and  it took 5 laps to change. By the time he joined the fray Oliver was hopelessly behind but by charging hard he was able to run with the leaders.

With that encouraging performance Stone and Muir returned to Phoenix Racing headquarters in Chicago and started preparation of the Shadow for the Mosport race. Further chassis mods have been made utilizing new springs, roll bars and revised suspension settings. To help weight distribution, the water rads have been moved forward a la McLaren Indy car. Muir will have three completely dyno’d engines ready for Mosport’.

don

‘Sponsorship for the F5000 effort is a problem for Shadow. Since the departure of UOP, Nichols has been unable to get the full 5000 program underwritten. Various sponsors are now supporting the Formula One effort on a per race basis while only Goodyear, Valvoline and, of course, Chrysler are behind the 5000 effort. Thus Shadow must watch their budget closely and this, the team feels, will restrict the amount of development they can attempt. Nonetheless the 5000 effort has Don Nichols full support and he won’t field cars unless he can be competitive. And with the driver, new engine and chassis changes he plans to be competitive’.

Oliver lead at Mosport but was held up by a backmarker, Alan Jones snaffling the win, inevitably in a Lola T332 Chev.

Three weeks later he lead at Watkins Glen but a cracked sump ended his race, the Shadow finally won at Road America, Elkhart lake, Wisconsin. It was a good win as Ollie had to overcome diff and flat tyre problems in his heat which meant he started 14th on the grid of the final.

ollie 1

Oliver on the way to victory, Road America July 1976. Shadow DN6B Dodge. Behind is Al Unser’s 2nd placed Lola T332 Chev. (Richard Dening Jr)

After 16 laps he was 3rd, within 3 laps he was past the Lolas of Al Unser and Brian Redman and took a strong win for the team.

ollie mid ohio

Oliver took 2nd place at Mid Ohio on 8 August 1976, Shadow DN6B Dodge. 1976 champ Brian Redman won in a Lola T332C Chev. (Richard Dening Jr)

Two second places at Mid Ohio and Watkins Glen secured third place in the championship again won by Redman’s Haas/Hall Lola T332.

With the demise of F5000 in the US at the end of 1976 and its evolution into 5 litre central seat Can Am from 1977 the Shadow’s raced on into 1977 and 1978 but without success, Lola’s T332/T333 the dominant cars in the early years of the class.

oliver and helmet

Jack Oliver ready to go Road America 1975. CanAm Champ for Shadow in 1974. (Richard Dening Jr)

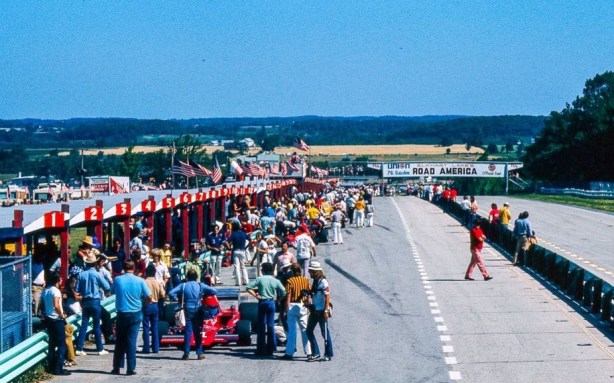

road am vista

Road America pitlane on a beautiful July 1975, Wisconsin day. Redmans Lola T332 at front. (Richard Dening Jr)

Etcetera…

comparo

Comparison of the specs of the F1 Shadow DN5/7 and F5000 DN6 from the 1975 Long Beach GP race program. (Fred Bernius)

Tailpiece…

popsie

Jackie Oliver Fan Club President? Road America July 1975. (Richard Dening Jr)

Photo and other Credits…Richard Dening Jr, Gary Gudinkas, Fred Bernius, My Formula 5000 website,   http://www.myf5000.com/index.html, Peter Brennan and Glenn Snyder for research assistance

Other F5000 Articles…

Elfin MR8 Chev & James Hunt.

https://primotipo.com/2014/10/15/james-hunt-rose-city-10000-winton-raceway-australia1978-elfin-mr8-chev/

Frank Matich and his F5000 cars.

https://primotipo.com/2015/09/11/frank-matich-matich-f5000-cars-etcetera/

Finito…

  1. lella brands

    Lella Lombardi, Lola T330 Chev ‘HU18’ , Brands Hatch ’74



Lola’s T330…

Lola’s F5000 domination started with the ’72 model T300, the process completed by the ’73 T330, and 332, 332C, single seat Can Am T333 variants of the car built over a decade.It is one of the most successful competition cars ever in terms of race wins and longevity, if not THE most successful.

Eric Broadley’s evolution of the T300 produced an extremely competitive car for one of F5000′ s most competitive seasons, the cars aluminium monocoque ‘dressed’ in curvaceous bodywork executed by Specialised Mouldings. If ever an F5000 looked right this was it.

The 1973 season and those which followed proved that beauty was far from skin deep.

T330 ‘HU18’…

T330 ‘HU18’ was sold in March to Jackie Epstein Racing for the ’73 European F5000 championship. Epstein was a long time race entrant of sports cars before changing to F5000 after the death of his business partner, racer Paul Hawkins.

The Radio Luxembourg # 208 sponsorship was iconic at a time when the BBC had a monopoly on the radio airwaves in the UK. Radio Luxembourg, on frequency 208 medium wave were an offshore broadcaster of popular shows into the UK.

The car’s driver for 1973 was ’71 Le Mans and ’72 British F5000 Champion Gijs Van Lennep. His best results a 2nd at Snetterton and 3rds at Mondello Park and Jyllands-Ringen. Whilst Gijs was away on sports car duties Tony Trimmer, Clive Santo and Ray Allen also raced the car, albeit without success.

Teddy Pilette won the 1973 title with a demonstration of consistent speed in his Chevron B24.

brands van l

Into 1974 Epstein signed Lella Lombardi, she had come through Italian racing and European F3 and immediately impressed with her handling of HU18. Her best results 4ths at Brands, Monza, Oulton Park and Mallory Park. In ’74 the title was won by Bob Evans in a T332.

Lombardi raced in F1 for March in ’76, HU18 was sold by Epstein to John Turner, the car also driven by Keith Holland and Richard Scott that year. Hollands 4th at Brands was the best result.

monza

From Europe to Obscurity in the US for 34 Years and into Peter Brennan’s TLC…

Peter Brennan picks up the story, ‘Allen Karlberg was an American working in the UK at the time and was commissioned by countryman Jim Burnett to acquire a car for conversion to a central seat Can Am spec, F5000 having morphed into Can Am in an attempt to improve crowd numbers. The car was shipped to Portland, Oregon in 1977 where it remained for 36 years’

‘It was disassembled and some work done, for example the DG300 had a new crown wheel and pinion but essentially it was untouched, the only thing preventing considerable damage to the car was the fact it was in parts and the bits and pieces far enough away from a workshop fire which melted the right-front corner of the tub some time in the ’90’s.’

‘Burnett died several years ago and his Executors approached Karlberg to sell the car, I was cruisin’ the internet as I do. I was looking for another F5000 to restore and spotted a small ad in a club magazine which said something like ‘fire damaged F5000 for sale, major project’.

‘Whilst their was a lot of junk in the workshop around the bones of the car I could make out what it was and also see that the factory chassis plate was on it. I agreed to buy it and with a little research from the pictures he sent me, the front brake ducts and oil tank, for example, I was confident it was HU18 even before he called me to advise the plates details !’

‘Even though the car had been in bits forever it had remained in the same place so the tub, ‘box, 4 complete corners, wheels and spares, exhaust, radiators, fuel cells, swirl pots etc, etc were all there. Shipping it out of Portland was a pain in the arse but Kevin Bailey’s ‘Cheetah Imports’ always helps me and it finally arrived, then the real work began’.

Our intrepid racer has owned and restored Elfins, Matich and Lola F5000’s, everything but a Chevron. HU18, as the most lightly raced of the surviving T330’s, most of which were converted to T332 spec, is something special.

Peter is the ‘real deal’ as a racer enthusiast ‘…the main reason I do this is that I love the challenge, meeting and making new friends, it’s not all about the racing. It’s a real journey, going to all parts of the world in pursuit of parts and information’.

We look forward to sharing the journey with you PB.

Next month, the mammoth task of resurrection begins.

Tub as found

First photo of the tub allowed Brennan to identify it as probable T330, RHF tub melted away readily visible.

front suspension

Front suspension in need of a crack-test…

Tub as it arrived

‘HU18’ tub as it arrived in Australia

boxes of bits

‘HU18’ as it arrived out of the container in Port Melbourne, despite 34 years of neglect, and the fire, most of the critical parts had remained in the workshop in Portland close to the car

Box

Hewland DG300, oil tank, wheels and discs

wheels

Original Lola wheels, calipers and rear uprights, nose-cone support, suspension componentry, second hand Mota-lita steering wheel,and much-much more

boxes

lotsa stuff…

brennans workshop

‘Racers Retreat’ just arrived’, Peter Brennans workshop in suburban Melbourne…’HU18′ tub, Arrows A1, a Ralt RT4 or 2, Cosworth BDD head and sundry other bits of interest..always an intriguing place to have a beer

pre strip

‘HU18’ tub pre-strip

stripped

‘HU18’ tub post strip…and ready for Episode # 2
