Patrese debuts Arrows A1-06 Ford at Kyalami, South African GP 1979. Q8 and 11th in the race won by Gilles Villeneuve’ Ferrari 312T4 (Schlegelmilch)

What’s it like livin’ and lovin’ the most successful race engine ever built?…

Our ‘Racers Retreat’, Peter Brennan owns and cares for ‘DFV250’. I have decided in fact he is a ‘perick’! Not only can he drive ‘big cars’ very quickly but he can  also reconstruct, rebuild and maintain the things which makes him a multi-talented ‘perick!

OLYMPUS DIGITAL CAMERA

Pete Brennan in the Arrows at Phillip Island, Paul Faulkner’s ex-Jones ’81 Williams FW07 behind (Brennan)


Villeneuve and Patrese, 7th and 5th in the 1979 Belgian GP at Zolder. Ferrari 312 T4 and Arrows A1 ’06’ May 1979 (unattributed)

‘DFV250’ sits in the back of his Arrows A1-‘06’. It was Ricardo Patrese’s car for the early season races in ’79 before Arrows switched to the more advanced but unsuccessful A2 which was not Tony Southgate’s best work. A1-06 was then sold for Aurora Series and Historic F1 use, eventually ending up in the Al Copeland Collection from whom Pierre acquired it after Copeland’s passing.

We will get to restoration of the Arrows and the Ford DFV which was at the ‘dismantle, crack-test and reassemble’ end of the spectrum rather than the ‘reconstruct around the monocoque bulkheads, four corners and ‘box’ huge task which Lola T330 ‘HU18’ represented, soon. Click on this link for a series of articles on that mammoth job which shows Peter’s talents.

https://primotipo.com/2014/06/24/lellas-lola-restoration-of-the-ex-lella-lombardi-lola-t330-chev-hu18-episode-1/

For now I just want to focus on the care and maintenance of a DFV race to race which I expect is rather more involved than that of my ‘Peter Larner Engines’ 105bhp Formula Ford ‘Kent’ moteur?


Clark on the way to the DFV and Lotus 49’s first win, Dutch GP, Zandvoort 4 June 1967. Clark leads Brabham Brabham BT19 Repco 2nd, Rindt Cooper T81B Maserati DNF and Hulme Brabham BT20 Repco 3rd (Schlegelmilch)





Why the DFV you ask?…

Keith Duckworth’s Ford sponsored 1967 3 litre, 4 valve, fuel injected, 2993cc V8 is both the most successful grand prix engine of all time with 155 championship GP wins from 1967-1983 but also part of the winningest ‘family’ of engines. The DFV spun off the 3.9 litre Le Mans winning endurance racing ‘DFL’ and single turbo-charged 2.65 litre ‘DFX’ Indy victor.


Theo Page cutaway of the Ford Cosworth DFV in 1967. All the key elements referred to in the text covered in this superb drawing

Phil Reilly Engineering…

Brennan has tackled all manner of race engines over the years including lots of Chevs, Repco Holden F5000, Repco Brabham V8’s and various Coventry Climax FPF’s, but the DFV was new to him. His ‘guru’, a source of advice from afar and the fellow to whom he sent the his heads was Phil Reilly who has forgotten more about these engines than most people ever knew. His ‘shop, well known to American enthusiasts is in Corte Madera, California. Reilly Engineerings ‘Care and Feeding Your Cosworth DFV’ and Peters practices in looking after ‘250’ form the basis of this article.

dfv lotus

Butt shot of one of the Lotus 49’s upon debut at Zandvoort 1967, ZF 5 speed ‘box, the ratios of which could not easily be changed about to be swapped. Shot shows the brilliant packaging of the DFV. Lotus’ Chapman prescribed a stress bearing V8 to Keith Duckworth inclusive of the way he wanted to attach the engine to the chassis at the bulkhead aft of the driver. Note the tubular brackets either side of the Borg and Beck clutch to which the suspension mounts. Their is no tubular frame or monocoque structure aft the driver, the engine itself forms the function of being the bit to which other bits are attached! Part of the brilliance of the DFV is its combination of power, weight, reliability and cost, the other aspect is the way it integrates with the chassis (Schlegelmilch)

DFV’s and DFV’s…

The development of these engines has effectively never stopped, you can still buy the bits from Cosworth Engineering, inclusive of a new engine should you buzz it to 15000rpm on an errant downchange and pop a rod or three thru its slender aluminium or magnesium flanks.

The DFV in Jim Clark’s winning Lotus 49 at Zandvoort on 4 June 1967 gave a smidge over 405bhp, its power delivery in the early days quite ferocious, coming in with a bang all up top, making it a bit of a challenge for Messrs Clark and Hill. A long stroke, same as Jims, engine like DFV250 gave around 470bhp and 260 lbs/foot of torque at 10500/9000rpm respectively whilst being thrashed to within an inch of its life by Patrese in early 1979.

A wrong turn of phrase really as the talented Italian multiple GP winner was both mechanically sympathetic and great test driver.

ickx

Jacky Ickx, Ensign N177 Ford, Monaco GP 1977, 10th in the race won by Scheckter’s Wolf WR1 Ford (unattributed)

dfv dfv

All go and no show Cosworth Engineering. Subtle stamping of engine number in the engines valley (Brennan)

In fact when ‘250’ was first born it was a Cosworth lease engine used by Team Ensign and supplied to them on December 3 1976.

It was fitted to the N177 chassis’ driven by Jacky Ickx and Clay Regazzoni, multi GP winners both, during 1977.  Without the teams records its not possible to know into which chassis ‘250’ was installed race by race.


Launch of the Arrows A1 at Silverstone in late 1977, maybe they figured the white body against the white snow would disguise its similarity to the new Shadow DN9, the design drawings of which Southgate erroneously thought were his! Patrese in car, Jack Oliver behind left and Tony Southgate at right. The High Court writ was shortly ‘in the mail’ (unattributed)

The engine was then bought by Arrows when the team spun out of Shadow. Jackie Oliver, Alan Rees, Tony Southgate and Dave Wass all felt they could ‘build a better mousetrap’ and left Don Nichols outfit at the end of 1977. The High Court legal stoush about ‘IP infringement’ which followed is a story for another time; in some ways Nichols had the last laugh as Shadow won a GP, the 1977 Austrian when Alan Jones took his first win in an a DN8 Cosworth, whereas Arrows never did win one albeit the business lasted a lot longer than Shadow…

OLYMPUS DIGITAL CAMERA

(Brennan)

The Calm Before The Storm…

Here is ‘250’ all ready to rock on Peter’s dyno; ‘It takes about a day to plumb the thing up, its godda be done very carefully of course. Cosworth prescribe very fully how to do it (see below) Having gotten thru all the preliminary stages of running it in, i gave the thing ‘a tug’. All was okey-dokey for a bit and then all hell broke loose, a huge bang and then schrapnel everywhere!’

‘Thank christ it wasn’t the engine itself. The DFV’s vibrate so much it broke the dyno driveshaft @ 9200 rpm precisely! I have had all manner of donks on that dyno, over 500bhp Chevs etc but nothing has done that before. Having had that happen i still haven’t given it a full power run on the dyno anyway!’

But we are getting ahead of ourselves, the rebuild of the engine itself we will cover in an article about the car.

OLYMPUS DIGITAL CAMERA

Brennan’s dyno driveshaft after Cosworth assault @ 9200rpm (Brennan)

dfv run in

Cosworth’s dyno running in procedures dated 31 October 1977 (Cosworth)

DFV use in Modern Times…

Phil Reilly; ‘If you rev the engine to 10800/11000rpm as Messrs Hunt, Fittipaldi and Jones did you will get the sort of engine bills Messrs Mayer, Fittipaldi and Williams paid!’

‘The DFV with an 11000rpm rev limit is a 3-4 hour motor…which will blow up big-time every now and then…needing an injection of $10-15K of parts and lots of (expensive) TLC…for vintage events use 10000rpm as a normal shift point. Doing this keeps the engine well below its stress point yet still provides enough power to test any drivers skills…the bonus is the engine will live 15-20 hours between rebuilds’.

Geoff Richardson Engineering have been looking after the engines since their heyday, James Claridge provided their perspective; ‘The routine rebuild interval for an engine limited to 10000rpm is approximately 1000 miles’.

‘This would comprise of us stripping it down, crack testing components, inspection of all parts, followed by re-assembly and dyno testing. Replacement of valve springs happens every time.Possible replacement of pistons depending on condition, if they were re-used they would certainly be replaced at 2000 miles. The same applies to all of the valves, they are taken on condition. New con-rod bolts are fitted, all new bearings, a new set of piston rings, and all new seals and O-rings are fitted. Nearly all the other parts are taken on condition and replaced accordingly’.

‘An engine with no issues or catastrophes that we knew the history of and is well looked after might cost somewhere in the region of £12-15000.00 to completely refresh’.

Peter Brennan provides the drivers perspective; ‘ The DFV has three quite distinct phases of power, one bangs in at 5500rpm, the next at 7000, then it goes ballistic at 9000 and all you do is chase gears with the tach going bananas…’ ‘Its not that difficult to get off the line, it obviously doesn’t have 500 plus foot pounds of torque like an F5000, sliding the foot sideways off the throttle at around 8000 rpm and then modulating it to match wheelspin with circuit grip soon has you motoring in the direction of tomorrow pretty smartly!’

Click on this footage of Brennan in the Arrows at the Adelaide Motorfest in 2014, the event uses part of the Adelaide GP circuit and some other streets.

‘The howl of the thing at 10000rpm as it yelps its way from cog to cog along the main straight at Phillip Island; with a 22/24 top fitted, fifth is 183 mph @ 10000rpm is unbelievable and Patrese would probably take it flat! Its not to be believed and relished every time you do it, Southern Loop comes up all too soon, its not the seagulls you are focused on as you turn the thing in believe me’.

allison

Bruce Allison in the March 771/781 Ford, Thruxton or Oulton Park in 1978 (Allison)

Bruce Allison raced Cosworth powered March’s in the Aurora Series in 1978 ‘The record of the engine speaks for itself, it will still be popular in historic racing in 50 years! The engine was powerful, smooth and reliable the cars of course handled better with far less weight at the back than the F5000’s i was used to. The 781 March may have been the 782 with a DFV shoved in it but it was a beautiful handling car, the 761 chassis i used early in the season was not as good but the engines were always great, beautiful to drive’.

Lookin’ After Cossie: These things are like a mistress, stunning to look at but always wanting attention, never happy and a constant sap of cash…

dfv ball

Brennan’s sense of humor never too far from the surface! ’06’ at Sandown historics 2014. Dissertation on the chassis and suspension i will save for the article on the car itself. Shot included to show just how much the engines compact size, packaging and stress bearing nature assists the chassis designer. Compare how Tony Southgate mounts his suspension to the engine via these fabricated aluminium plates compared with Chapman’s tubular structures in the Lotus 49 of 1967. Note back of sparkbox in the Vee, ‘two towers’ behind that to connect with air scoop to cool inboard mounted rear discs, rear suspension outta the airsteam and clear of G/E tunnels, single support for gold rear wing, oil cooler and black painted starter motor with drive going forward (Bisset)

Storage and Fuel System.

The engine needs to be turned over by hand one revolution each week. Turn on the fuel pump as well, this will ensure no two valve springs remain fully compressed for too long and will circulate fuel through the metering unit to prevent corrosion and keep all the seals from sticking in one place.

The fuel filter needs to be changed every 500-700 miles, the engines have a high pressure pump to start and a mechanical one for normal on circuit running. The engine won’t run below 2000 rpm on the mechanical one, the electric one is needed for starting, fuel pressure of 120psi needs to be maintained at all time, at least 95 psi is needed to fire her up.

OLYMPUS DIGITAL CAMERA

‘250’ ‘right bank’ showing both the auxiliary drive belt housing (right) and the super clever oil scavenge/de-aerator pump at left and one of the water pumps in between. The black coupling between oil and water pumps is called an ‘oldham drive’, a flexible joint (Brennan)

Olio.

A more critical liquid than fuel is oil. The engine must be plumbed to Cosworth specs…its data sheet DA0626 for ‘DFV250’ and the like. Its critical the engine never sucks air, at high revs bearing failure will result. At 10000rpm the engine is rotating at 166 times plus per second.

Peter; ‘I use Kendall 20/50 mineral oil, which has a high zinc content which is great for the cams and followers’. The Cosworth oil filter (Part #PP0404) needs to be changed every 300 miles, the oil level needs to be checked religiously as the engine uses as much as 4 quarts every 100 miles.

Oil temperature should be 90-100 degrees centigrade measured at the inlet to the pressure pump. 7000rpm should not be exceeded before the oil is at least 50 degrees centigrade.

OLYMPUS DIGITAL CAMERA

‘250’ ready to be refitted to ’06’ in Brennans eastern Melbourne workshop. Note spark box between the Vee and behind it the fuel metering unit below the ‘aeroquip’ lines, Lucas injection of slide as against butterfly type. ‘Knurled wheel’ beside rear LH injector sets mixture, ‘behind’ this is the drive for the mechanical tach. Line at far right is cable drive for electro-mechanical fuel pump. The more you look the more elegant the packaging of it all is (Brennan)

Spark.

‘250’ has the Lucas ‘Opus’ system which has a pickup on the crank which fires the Opus at 38-40 degrees BTDC. The Opus also has a retard mechanism which is set for starting at 12 degrees BTDC.

The DFV has an alternator which provides sufficient power as long as the electrical  fuel pump is switched off, DFV pilots need to remember this as they zap away from pitlane. ‘Pump Off’ was a familiar pit signal for decades!

Ignition timing is set on the dyno and is usually impossible to change in the chassis. Opus runs at 38-40 degrees BTDC, the sytem needs to be mounted in a cool place, the stock Cosworth mounting between the injection trumpets is usually fine.

The engine must be connected to negative earth with rev limiters set to 10400rpm.

The plugs are 10mm Bosch surface discharge to special order. Warm up plugs aren’t required, with plug life 3-4 race weekends. The plug wells need to be blown out, the HT leads removed with pliers. Plugs are tensioned to 9-10 foot pounds having been coated with ‘Copaslip’ first.

Spark boxes are delicate devices, you will kill them by voltage spikes caused by breaking the earth, so be clear on shut down procedures.

dfv throttle

Throttle linkage of Brennans Arrows at Sandown 2014, ’06’ about to fired up. Note the ‘Opus’ spark box between the injection trumpets and black electro-mechnical fuel pump atop the centrally mounted, between driver and engine, fuel cell. Note radiator header tank and cap, bottom right is roll bar support bracket (Bisset)

Mechanical Installation.

The valve cover engine mounting bolts are 5/16 inch UNF and should be tightened to 16-18 ft pounds, be careful not to over-tighten to avoid cracking or deforming the magnesium casting.

The engine throttle slides have four over-centre return springs at the rear, these are a unique Cosworth invention which both reduces pedal pressure and ensures the slides close fully when you lift your foot. But they are not the throttle return springs which sould be well designed and of the ‘compression type’.

OLYMPUS DIGITAL CAMERA

‘The Bomb’; Distributor cap missing at left, alternator in the middle and fuel metering unit at right, This is driven by a quill shaft off the complex gear set (shaft is only 6mm in diameter and designed to snap in cold weather rather the metering unit itself!) (Brennan)

The system needs to be cleaned and lubed regularly. The metering unit fuel cam should be flushed with aerosol ‘brake clean’ and carefully lubricated with a dab of ‘Copaslip’ before each event. If the fuel cam mechanism is gummy it will cause the throttle to seem to stick on.

OLYMPUS DIGITAL CAMERA

‘250’ this time showing the ‘left side’ of the engine with combined water pump and oil pressure pump/filter assy. 250 engine a ‘twin water pump long stroke engine’ as against later ‘slim line’ from circa 1980 which only had one water/oil pump to maximise the space available for ground effects tunnels (Brennan)

The cooling system must not trap air, use bleeds as required, the system uses a 15-20psi cap. A 50/50 mix of water/glycol keeps corrosion in check and lubricates the water pump. Temperature strips should be used to monitor ‘real’ engine temperatures. The water outlet temps at the back of the heads should be 90-110 degrees centigrade and inlet temps 70-80 degrees.

OLYMPUS DIGITAL CAMERA

‘250’ during its disassembly. Complex gear train to drive 32 valves, with degree plate to record engine valve timing during disassembly as a matter of record (Brennan)

Fuel & Fuel System.

Peter uses 100 octane avgas. Light engine oil is always added to the fuel to increase the life of the metering unit, fuel pumps and valve guides/seats. 20/50 Kendall is used, the ratio 2 ounces to 5 gallons of fuel.

The Lucas system needs 120psi to operate properly. Individual injector nozzles should seal at 50-65psi and thus not leak when the electrical pump is switched on, some leakage at 100psi plus is not unusual but it shouldn’t be pissin out…

The metering unit cam is set to run at specific clearances, typical DFV settings are .006 inch idle and .078inch wide open, these settings are 1 notch from full lean. These settings will be on the engine build sheet, check them periodically.

The mechanical fuel pump seal should be lubricated every 500 miles

dfv_parts

Cosworth DFV and its constituent parts (unattributed)

Trivial Pursuit Question?

The firing order is; 1-8-3-6-4-5-2-7

Cold Weather Operation.

Clearances in the metering unit are so tight that in cold weather the quill drive or the metering unit drive will break. Not a good idea.

In weather below 45 degrees fahrenheit the engine shouldn’t be spun over before warming the metering unit with either a hair dryer or judicious amounts of boiling water being poured over it.

Firing Her Up: The Good Bit.

Warm up plugs and oil heaters aren’t needed, so some of the theatre of a bygone era is lost!

Make sure Arrows isn’t in gear!

Set the fuel cam datum pin to full rich

Switch on the electric fuel pump

100psi of fuel pressure should be present

Crank the engine over for 8-10 seconds with the throttle full open

Then prime each injection trumpet with a delicate squirt of fuel

Hit the Opus system retard switch (switch back across for on circuit work)

Switch on the ignition

Hold the throttle open about 25%, start the engine, but don’t race it as it fires. Hold her steady above 2300rpm, savouring the beautiful music it plays, settle the revs wherever the mechanical chatter is minimised but @ around 2300rpm

Its important not to run the engine below 2000rpm as the cams are not properly lubricated below that

Once the engine settles down with a little temperature switch off the electric fuel pump.

As the engine warms, the engine should be leaned one datum pin down, one notch at a time. With each notch it will spit and crackle a bit until it warms to it.

Engines are set normally to run one notch from full lean, they will be ‘grumpy’ at low speed which is normal.

Oil pressure should be 40-60 psi, make sure your driver has a look every now and then on circuit!

Unsurprisingly running a DFV is more complex than its Ford ‘Kent’ little brother! If the maintenance regime is followed and the driver keeps the engine in its optimum band and doesn’t buzz it on the down-changes, something Ricardo did during his Arrows days according to Tony Southgate then ‘DFV250’ will last around 1700-2000 miles  between rebuilds…

DFV Engine in the Ground Effect Era…

Credits & Bibliography…

Peter Brennan many thanks

Phil Reilly Engineering, Geoff Richardson Engineering

Dossier on Arrows A1-06 written by Alan Henry for oldracingcars.com

Rainer Schlegelmilch

Tailpiece…

arr sticker



french gp 1967

As Jeremy Clarkson would say. The 3 litre Formula 1 ushered in another era when a surfeit of power over chassis grip made the cars spectacular to watch and a challenge to drive…

Here Graham Hill #7 gets off pole with a minimum of Firestone wheelspin, not so Jack Brabham #3 and Dan Gurney #9, Repco V8 and Gurney-Weslake V12 leaving behind plenty of ‘Goodyear’. The noses of the cars behind are Clark’s yellow striped Lotus and Bruce McLaren in Dan’s second Eagle, his own car being not quite yet ready.

french bruce

Bruce McLaren getting the feel of the Eagle T1G Weslake. Q5 and retired on lap 26 with ignition failure. He also raced the car at Silverstone and the Nurburgring (The Cahier Archive)

Dan was on top of his game, he won the Belgian Grand Prix a fortnight before in his Eagle T1G and Lotus the first race for the 49 and its Cosworth engine two weeks before that. But it was the ‘old stager’ Brabham who took the French Grand Prix win in his BT24 from teammate Denny Hulme and Jackie Stewart’s BRM P261.

french jack and dan

Brabham’s BT24 ahead of Dan Gurney’s Eagle T1G DNF fuel line. Circuit Bugatti 1967 (unattributed)

The Automobile Club de France laid out a ‘pissant’ circuit built for the racing school which also used the start-finish straight of the classic 24 hour circuit but the ‘Circuit Bugatti’ had none of the atmosphere, grandeur or challenge of Reims, Rouen or Clermont Ferrand the other options available to them!

The ‘punters’ reacted accordingly, only 20000 showed up, the race was held at Rouen the following year.


Grid ready to go, G Hill popping on the Nomex, Bruce McLaren in an Eagle T1G and to his right Jochen Rindt’s Cooper T81B Maserati DNF engine (Getty)



frencj barabhams

#4 Hulme’s Brabham BT24 Repco 2nd in front of Jack’s car, #16 is Guy Ligier’s Cooper T81 Maserati N/Class. Le Mans paddock 1967. How small, light and neat do those BT24’s look? Champions in ’67 of course with Hulme D (unattributed)


Superb shot of Chris Amon’s Ferrari 312. He qualified 7th and ran as high as 3rd before the throttle cable broke at half distance (Sutton)

Jack lookin’ pretty happy with a good days work in his BT24 Repco both before the race and after its successful conclusion…


(Getty)

Credits: The Cahier Archive, Getty Images, Sutton Images

Tailpiece: You can take the Racing Driver out of the Engineer…

mc laren le mans eagkle

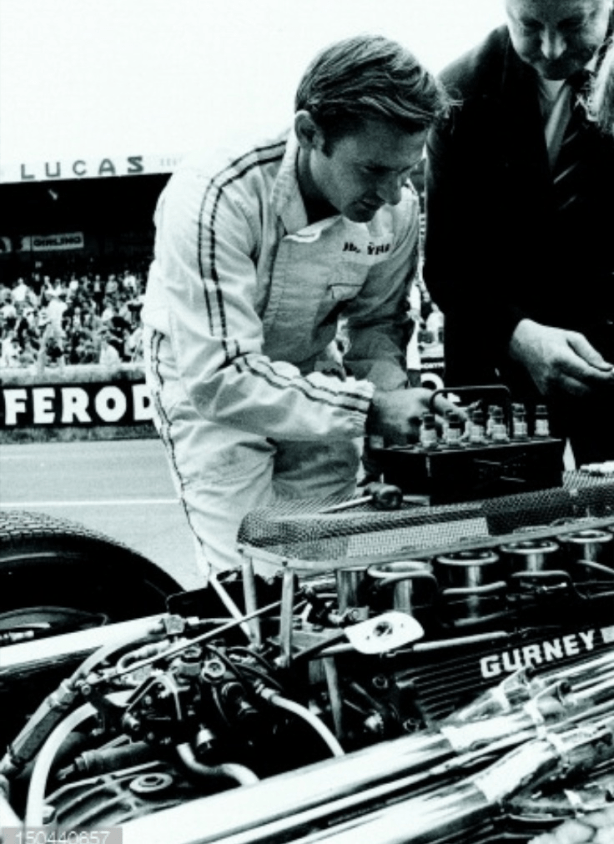

Ever the engineer Bruce helps with a plug change on his Weslake V12. Le Mans 1967 (Getty Images)





baghetti lotus 49

Giancarlo Baghetti relaxes during the Italian Grand Prix weekend, he had a ‘one off’ drive of the Team Lotus spare ’49, backing up Jim Clark and Graham Hill…

He qualified well back on the grid, 17th, and retired on lap 50 whilst running 6th with an engine failure. John Surtees took a fabulous last corner win from Jack Brabham, winning Hondas’ first Grand Prix since Ginthers’ victory in the last race of the 1.5 Litre Formula in Mexico, 1965.

Baghettis’ career started with immense promise, famously winning his first championship Grand Prix, the French in a great dice with Dan Gurney (Porsche) in a Ferrari 156 in 1961….

Baghetti French GP 1961

The stone chips on the nose of Baghettis’ 156 bear witness to the closeness of the race, third place went to Jim Clarks’ Lotus 21 Climax. (sutton images)

French GP finish 1961

Toto Roche waves the chequered flag for Baghetti, winning a famous victory over Dan Gurneys’ Porsche 718, French GP Reims 1961, his championship race debut. (Unattributed)

Baghetti started racing in 1956 in an Alfa Romeo 1900Ti and built a solid reputation as he moved into Formula Junior in 1959. In early 1961 he was selected to drive for the Italian FISA team, an organization formed to promote young Italian drivers by entering them in Non-Championship Grands’ Prix.

FISA struck a deal with Scuderia Ferrari to run a 1960 F2 Ferrari Dino 156 (in effect the prototype of the 1961 F1 car) in the first non-championship races of 1961. The results were amazing, Baghetti, not necessarily the best credentialled candidate won on his GP debut in Syracuse in front of Gurney, Surtees, G Hill, Brabham, Moss, Salvadori, Ireland and Bandini.

syracuse GP baghetti

Giancarlo Baghetti ahead of Dan Gurney Syracuse GP April 1961. Ferrari Dino 156 from Porsche 718. The first of Giancarlos’ wins against stong opposition. (Unattributed)

He followed up with another win in the Napoli GP in May beating Ashmore, Lotus 18 Climax and Bandini Cooper T53 Maserati 2nd and 3rd as well as Roy Salvadori, Andre Pilette and Tim Parnell.

FISA persuaded Ferrari to hire them a 1961 ‘Shark Nose’ for their driver to make his championship GP debut at Reims, he was allocated the car which was to be driven by Equipe National Belge driver Olivier Gendebien, the car quickly repainted from yellow to red.

Phil Hill took pole from Ferrari teammates Von Trips and Ginther, Baghetti 12th fastest. The 3 works Ferrari’s disappeared at the start, only Moss managed to stay near them. Even a quick spin by Ginther dropped him behind the Lotus, but he was soon able to re-pass Moss such was the Ferraris’ power advantage.

Baghetti had made his way to the front of the chasing pack. When Moss was forced to pit with brake problems, the four Ferrari’s lead, this didn’t last as Von Trip’s engine died in the heat.

Hill spun on the melting road surface. The American lost over 2 laps as he tried to restart his hot engine. This left Ginther in the lead with Baghetti fighting the Porsches of Dan Gurney and Jo Bonnier to hold on to second place, a battle that became even more significant a couple of laps later as Ginther pulled off the track with no oil pressure.

Baghetti recounts the last laps …’It was a very hard race. It was hot. The asphalt was melting, the radiator was blocking up and I saw the temperature starting to soar. Luckily I was behind the two Porsches of Gurney and Bonnier and relied on getting a tow along the straights. What you must remember is that this was my first Grand Prix and both Gurney and Bonnier were trying to frighten me by running on either side of me, but I thought that if they could do things like that and get away with it, then I could do it too.

Three laps from the end Gurney and I were fighting for the lead and I realized that to finish first I needed to be in the perfect position to slipstream. Going into the last corner I was right behind Gurney so that as we came out I was on his tail. He sat right in the middle of the track because he obviously knew what I was going to try to do. I waited and when I saw him glance in his mirror when I was on his left, I quickly switched to the right and got past him to win the race.’

Giancarlo Baghetti became the first man in history to win his debut World Championship Grand Prix.

ferrari 156 cutaway

James Allingtons’ cutaway drawing of the 1960 Ferrari 156 F2 car, chassis ‘008’ the car used by Baghetti at Syracuse and Naples was the prototype 1960 car fitted with ’61 ‘Sharknose’ body. Multi-tubular spaceframe chassis, suspension by upper and lower wishbones front and rear. 1476cc 65 degree DOHC 2 valve Weber carbed V6, 185bhp@9200rpm. 5 speed ‘box. Later spec ’61 cars had the 120 degree V6 190bhp@9500rpm. (James Allington)

Baghetti qualified mid-grid for the British GP, spinning off the wet Aintree circuit during the race. For his home GP at Monza he qualified 6th, the other four Ferrari’s were faster. This was the day that von Trips was expected to win the world title, but it was not to be, ‘Taffy’ crashed to his death after contact with Clarks’ Lotus 21, the car flew into the crowd killing 11 spectators on lap two. Baghetti raced at the front until his engine blew on lap 14 and Phil Hill won the race to seal the first World Championship for an American driver. Giancarlo set the fastest lap.

His season ended with his 4th and last GP win, he took victory in a little known event to decide the ‘Prima Coppa Italia’ (Italian Championship for Drivers) at Vallelunga, Baghetti won the 2 heats in a Porsche 718 when his Ferrari was not available for the event. Lorenzo Bandini and Baghetti were tied for the Championship , this event was organised to decide the winner.

What a debut GP season!

ferrari 156 drawing

1961 spec Ferrari 156. (Scuderia Ferrari)

For 1962 Baghetti joined Phil Hill, the ’61 champion in the works Ferrari team (Rodriguez driving a third car occasionally). Enzo rested on his laurels thinking that the 156’s didn’t require evolution to continue their dominance but the Brits had caught up.

BRM, Lotus and Cooper produced cars to beat the Ferrari’s. Lotus debuted the epochal monocoque chassis Lotus 25 at Zandvoort and Coventry Climax produced their FWMV 1.5 V8 in quantities, the BRM team also built a V8, the Type 56 available to customers as well as the ‘works’ BRM P57’s. The British teams shortcomings in 1961 were their engines, the relatively old 1.5 litre variant of the Climax FPF not ‘man enough’ for Ferrari’s powerful V6. It was different in 1962 when their engine power was equivalent to their chassis mastery…

Baghetti scored points at Zandvoort and Monza, but Ferrari was in total turmoil and for 1963 he joined Hill in the mass exodus to Carlo Chiti’s ATS team, an unmitigated disaster for all involved, it effectively destroyed his F1 career. Baghetti drove Centro Sud’s old BRM P57 in 1964, he returned to race in F2, F3 and sports and touring cars, also making an annual apperance at the Italian GP, his last in the Lotus 49 in 1967.

baghetti spa

‘Hitchin a ride’: Baghettis’ BRM P57 gives Phil Hill and Bob Anderson a lift at the end of the 1964 Belgian GP, Spa. Giancarlo was 8th in the race won by Clarks’ Lotus 25 Climax. Hill raced a Cooper T73 Climax and Anderson a Brabham BT11 Climax (G Clayton)

baghetti brabham 65 italian

Brabham entered a third car for Giancarlo at the 1965 Italian GP. He qualified the BT7 Climax poorly in 19th, the engine failed on lap 12 in the race won by Stewarts’ BRM P261. (Unattributed)

baghetti targa 1965

Baghetti at the wheel of a factory Ferrari 275 P2 during Targa 1965, DNF with Jean Guichet. (Unattributed)

After a huge accident at Monza in a Ferrari Dino 166 F2 car in the ‘Monza Lottery GP’ in June 1968 he retired from driving, working as journalist and photographer. He succumbed to cancer in 1995 age 60.

No-one has ever repeated the feat…a quasi factory Ferrari drive on the results of a ‘journeyman’, won his first 3 GP’s, 4 for the year, one of them a championship event and then so rapidly disappeared from sight…

baghetti italian gp 1966

Baghetti at the wheel of a Ferrari Dino 246, Monza, Italian GP 1966. Q16, raced Spences’ Lotus for 5th until the car failed in the race won by Scarfiottis’ Ferrari 312. Car was lent to him by Scuderia after his Parnell  Lotus BRM failed in practice. (Unattributed)

Baghetti Ferrari 156 1962

Giancarlo Baghetti, Ferrari 156 1962. The class of the field in 1961 were at best also-rans in 1962. He is smiling so it must be at the seasons commencement… (Unattributed)

Photo and other Credits…

Mel Turbutt, motorsportretro.com, Sutton Images, James Allington, Scuderia Ferrari, The Auto Channel

Finito…


Jim Clark takes a deep breath as he aims his big, heavy Lotus BRM around Oulton Park in 1966…

The Oulton Park Gold Cup was one of  numerous non-championship F1 races still run in the mid-sixties.

Clark practised the car but discretion was the better part of valour, he raced his reliable, nimble Lotus 33 Climax in the race won by Jack Brabhams’ BT19 Repco, the dominant car of 1966.

Clark finished third in the 33, a car he took over from teammate Peter Arundell after the H16 engine in his Lotus blew up shortly after setting the third fastest time, a time equalled by Jackie Stewarts’ BRM ‘H16′.

The engine famously had it’s only victory, in a Lotus 43 in Clarks’ hands in the US Grand Prix several months later.


Brian Watsons shot of the smoky H16 engine in Clarks’ Lotus 43 about to pop at Oulton Park!

The Lotus 43 was a much maligned car…but the facts tend to suggest it wasn’t quite as bad as many would have us believe. Clark raced the car four times in the 1966 Italian, US and Mexican GP’s and in the first of the 1967 Grands’ Prix in South Africa. He scored one win at Watkins Glen, qualified on the front row three times, once on the second and was competitive in all four events…i’m not saying he wasn’t happy to race a nimble 33 at Monaco rather than the 43 or that he was sorry to forsake the 43 for the 49 at Zandvoort however!

Its technically interesting in that the P75 BRM engine was used as a stressed member of the chassis in the same way the Ford Cosworth DFV in the  49 which followed was, much is made of this aspect of the Ford DFV’s attachment medium to the car but Vittorio Jano used the technique in his 1954 Lancia D50 GP car. T’wasnt the first time it was done.

The BRM engine was attached to the rear bulkhead, as was the DFV to the 49, the suspension mounted to the engine and gearbox as was the case with the 49.

Look at the 43 and 49 from the front and they are hard to pick…conceptually they are similar in terms of chassis and suspension, but look aft of the rear bulkhead and the massive girth of the BRM engine is in marked contrast to the svelte Keith Duckworth designed, Ford Cosworth 3 litre DFV V8… Chapman famously concepting the engine he wanted and the means by which it was to be attached to his chassis…

Jim Clark Lotus 43 BRM Italian GP 1966

The BRM P75 engine was a massive lump…essentially it was two of the P56 BRM 1.5 litre V8’s, but at 180 degrees, placed on top of each other.  Its designed weight of of 380Lbs ballooned to 555Lbs…the DFV weighed less than 400Lbs.

‘Road and Track’ magazine published the scrutineered weights of the cars at the 1966 Italian Grand Prix, the ‘Twiggy like’ Brabham BT19 weighed 1219Lb, a marked contrast to the Cooper Masers 1353Lb, and the ‘pork-chop’ BRM and Lotus 43 at 1529Lb and 1540Lb respectively.

Mind you, the Honda topped the scales at 1635Lb. Interestingly the ‘Hondola’ (Lola designed chassis) which won Monza in 1967 weighed 1309Lb, having lost 300 Kg in twelve months whereas the BRM’s had gotten heavier at 1570Lb…the Lotus 49 weighing 1200Lb.

The DFV at that stage developed about 405 BHP whereas the BRM P75 ‘H16’ never developed its claimed 400BHP and had a lot of weight to carry.

The Lotus 43 was far from the worst Lotus ever built…and many of its GP cars didn’t win Grands Prix, for sure the BRM P75 ‘H16’ engine was never to have the reliability of the 49’s Ford Cosworth DFV which one wag descibed as ‘ the spacer between the rear bulkhead and the gearbox’ such was its dependable nature!

The 49 deserves its place in the pantheon of Great Grand Prix cars but the 43 is conceptually closer to the 49 than Chapman probably wanted to admit at the time…

Jim Clark Lotus 43 BRM US GP 1966

Clark launches his Lotus 43 off the line at the start of the 1966 US GP. He is using the BRM teams spare ‘H16’ engine , his own failing at the end of practice having just qualified behind Brabhams BT 19 on pole. Clark against the odds won. Thats Surtees Coopet T81 Maserati behind and the nose of Bandini’s Ferrari…(unattributed)

Jim Clark Lotus 43 BRM Monza 1966

Clark looks happy enough as he mounts his Lotus, Monza 1966. It looks like Brabhams BT19 Repco being pushed alongside…bulk obvious, weight of engine and gearbox 675 Lbs! (unattributed)

Lotus 43 BRM drawings

Etcetera…

Jim Clark Lotus 49 Ford Dutch GP 1967

Front shot of the Lotus 49 Ford at Zandvoort 1967. Clark up. Hill won on debut after Clarks car retired whilst in the lead..not so different from the 43 at the front at least! (unattributed)

Lotus 49 Ford rear, Clark Dutch GP 1967

The delicate rear end of Jim Clarks’ Lotus 49 Ford on its debut at the Dutch Grand Prix in 1967, in marked contrast to the big, butch BRM ‘H16’! ZF gearbox. Suspension and chassis design oh, so similar to the Lotus 43…as was attachment of engine to chassis and its use as a stress bearing member (unattributed)

BRM H16 engine article

Photo Credits…

The Nostalgia Forum, Brian Watson







Denny Hulme and Jackie Stewart, Levin NZ Tasman 1967 (Digby Paape)

Denny Hulme Brabham BT22 Repco and Jackie Stewart BRM P261, the natty tartan attire of the BRM Equipe a contrast with the more casual Australian approach…Hulmes’ engine is Repco ‘640 Series’ 2.5 litre; original ’66 series Olds ‘600 Series’ block with the ’67 F1 Championship winning ’40 Series’, exhaust within the Vee, heads. Definitive Repco 1967 F1 Championship winning variant is the ‘740 Series’, Repco’s own ‘700 Series’ block and aforementioned ’40 Series’ heads. Early and very important 1967 F1 testing days for Repco, engine making its debut the weekend before at Pukekohe (Digby Paape)

Denny Hulme and Jackie Stewart awaiting adjustments to their cars setup, Levin, New Zealand, Tasman Series 1967…

Digby Paape took these fantastic, evocative shots of Stewart, Hulme and Jim Clark…’I was 22 at the time, my father had been president of MotorSport NZ, and though I was unknown on the North Island I felt I could go anywhere with my Contax, i was masquerading as a journo for the ‘Hutt Valley Motoring Club’, I took all the shots @ F8 @ 250th of a second. Each car only had a couple of mechanics, it was hard to know what was being said. Later on I was the Radio NZ and TVNZ commentator for these and other events, Levin was always hot and the action was close. Close enough for good shots without a telephoto lens’.

Stewart beat Clark in the first Tasman round at Pukekohe the previous week, winning the NZ Grand Prix, the two drivers the class of the field at Levin as well, despite intense pressure Clark won the 50 mile ‘Levin International’ by less than a second from Stewart’s BRM. Richard Attwood was third in another BRM P261 and Frank Gardner fourth in the first of the four cylinder cars, a Brabham BT16 Climax. Denny Hulme retired with ignition problems.

It’s interesting to reflect upon the year to come for each of the drivers?…

Denny Hulme, Brabham BT22 Repco, 1967 NZ Tasman, Levin

Denny Hulme, Brabham BT22 Repco, Levin NZ, 1967 (Digby Paape)

It was a tough Tasman for Denny and his team leader Jack Brabham…

They had great unreliability from the new, exhaust between the Vee Repco 640 Series engines, mainly centred around fuel injection and ignition dramas, but the object of the exercise was really to get the engines race worthy for the 1967 GP season in any event.

Jack did have a good win at Longford, the power circuit in Tasmania and last round of the Series.

Repco sorted the problems, the new Repco (as against the 1966 Oldsmobile blocked 620 Series) blocked 740 Series Repco reliable early in the GP season.

Denny broke through for his first GP win at Monaco, but there was no joy in the victory as Lorenzo Bandini perished in his Ferrari in a gruesome fiery accident, which, finally helped galvanise action to improve safety standards on the worlds’ circuits.


Hulme en route to his first Grand Prix victory, Monaco 1967 in his Brabham BT20, still fitted with the ’66 series ‘RB620’ engine. Jacks car was fitted with the new ‘740 Series’ the engine blowing early in the race. Hill and Amon second and third in Lotus 33 BRM and Ferrari 312 respectively (unattributed)

In a season when five different drivers won a Grand Prix, his consistency paid off, he won the title from Jack with Jim Clark third in the epochal Lotus 49.

1967 CanAm Road America

Can Am Road America 1967 parade lap: #4 Bruce McLaren, Hulme alongside in the other McLaren M6A Chev, Dan Gurney Lola T70 Ford behind Bruce, Jim Halls’ winged Chaparral 2G Chev easy to pick…and the rest maybe some of you can help me with the caption? Denny won the race from Mark Donohue and John Surtees , both in Lola T70 Mk3B Chevs (unattributed)

In a full season, Hulme was recruited by his compatriot Bruce McLaren as his teammate in the CanAm series. Robin Herds’ McLaren M6A Chev was a stunning car and started the teams domination of the series which finally ended when Porsche joined the series, and ruined it! with its 917/10 in 1972.

Denny narrowly lost the series to McLaren but the relationship started a commitment to the team by Denny which endured to the end of his career and saw him race the teams’ F1, CanAm and Indy Cars through to the end of 1974, when he finally returned to NZ.

Jim Clark, Lotus 33 Climax, NZ Tasman, Levin 1967

Jim Clark, Lotus 33 Climax, Levin 1967. ‘R14’ was the last of the trendsetting Lotus 25/33 series built, the first ‘modern-monocoque’ making its debut in Holland 1962…Clarks 2 litre V8 was giving away some power to most of his serious competition, the 2.1 litre BRM’s and 2.5 litre Repco’s but his driving abilities were more than up to closing the deficit (Digby Paape)

Clarks Lotus 33 ‘R14’ was a chassis which had been kind to him…

He first raced it at Brands Hatch in July, and, fitted with the super, trick, only 2 litre version of the Coventry Climax FWMV V8 had served him well in 1966, he drove the car when the heavy ‘H16’ engined Lotus 43 was unsuited to the circuit or circumstances. His best result against the new 3 Litre F1’s was a strong third in Holland.

He won the Tasman series in ‘R14’, assisted greatly by the unreliability of the Brabhams and the BRM P261’s which had been so dominant the year before.

He raced a Lotus 43 in South Africa, the first GP of 1967, then ‘R14’ for the last time at Monaco, finally getting his hands on the Lotus 49 at Zandvoort. By that time he was a British Tax exile so the first time the Scot saw the car was when he drove it in Holland, he hadn’t even tested the thing!

Jim Clark, Lotus 49 Ford, Dutch GP June 1967

Jim Clark on his way to a debut win with the Lotus 49 Ford, Dutch GP, Zandvoort June 4 1967…both engine and chassis changed the face of GP racing in an instant (unattributed)

The car was ‘right’ from the start, he won on its debut, and a further four 1967 races, but Dennys’ consistency got him over the line that year.

The Lotus 49 package was dominant in 1968, but sadly Clarks’ ’68 South African GP triumph, off the back of his 1968 Tasman Series win , was his last, he died tragically in a Lotus 48 FVA  as a consequence of probable tyre failure in the Hockenheim F2 race in April.

The king of the 1.5 litre formula proved he was also king of the 3 litre formula in 1967, and anything else he drove!

Graham Hill heroically galvanised the team after Clarks death, winning the title in 1968, and provided leadership Chapman initially did not, grieving for Clark as he understandably was.

Jackie Stewart took two Tasman Series wins…

Mechanical woes, particularly weaknesses in the cars crown wheel and pinion cost him victories, but his speed was apparent and close to Clark’s. Unlike Jim, who had the F1 Lotus 49 to look forward to, BRM persevered with the heavy, complex and slow ‘H16’ engined BRM P83/115 in 1967.

It was to be a long, character building year…a second and third in Belgium and France respectively but retirement in all eight of the other championship rounds.

Jackie Stewart, BRM P83, Nurburgring 1967

Jackie Stewwart wrestling his big BRM P115 ‘H16’ BRM, Nurburgring 1967. He was running fourth when the transmission failed, ‘yumping’ hard on the ‘tranny at the ‘Ring! Hulme won the race in his light, nimble Brabham BT24 Repco (unattributed)

He had won his first Grand Prix in the little P261 BRM in Italy in 1965 but it was then a ‘long time between drinks’ in F1, his undoubted speed finally reflected in wins when he departed to Team Tyrrell which started running Ford DFV engined Matras in 1968, his first title coming in 1969.


Team Tyrrell ran Matra F2 cars in 1967, Jacky Ickx taking the Euoropean F2 title, and Jackie Stewart, pictured here in an MS7 FVA at ‘Oulton Park’ took one championship win…and critically the team took the view the cars would be successful in F1 (Eddie Whitham)

What duels there may have been as Stewart matured as a driver and took on his friend and countryman Clark?…mind you we saw it in the 1967 Tasman as they were in essentially cars of equal performance, albeit JYS BRM often did not run for long enough for the duels to occur…

As Digby Paape says ‘how lucky we were to see the international drivers in current F1 cars as we did in those wonderful 2.5 Tasman years, the equivalent of seeing Schumacher in that years winning Ferrari’…

Photo Credits…

Digby Paape, Eddie Whitham, Doug Shaw Collection

Tailpiece: Pukekohe 1967…

Love the hats on the gals at the motor racing!

Clearly they have a penchant for ‘Rice Trailers’- it seems said equipment made the trip across the Tasman as well as the two cars, not the happiest of Tasmans for the Repco-Brabham crew despite an ‘all out’ effort to take the Tasman Cup.

Finito…
