Stewart, Hill, Clark, yellow nosed black bodied Gardner, Palmer looking like Clark, Martin in red and Geoghegan white- BRM P261 by two, Lotus 39, yellow nose Brabham BT11A, Lotus 32B of Palmer, red Brabham BT11A of Martin (all but the BRM’s Coventry Climax FPF powered) and Leo’s white Lotus 32 Ford. AGP- the off 20 February 1966 and what a marvellous vista Lakeside is…

The front row of the grid pretty much summed up the 1966 Tasman Cup, the two BRM P261’s driven by Hill and Stewart, two of the finest racers of their time were the class of the field powered by 1.9 litre versions of the ‘P56’ V8’s which won so many races during the 1961-1965 1.5 litre F1, they were quickest cars on the circuit throughout the weekend right from the first session on Friday having recorded laps of 55.5 and 55.8 for the Brit and Scot repectively.

Much of the pre-race press interest centred on the strong BRM presence which included three chassis ‘Graham Hill driving the same car with which he won the 1965 Monaco and US Grand Prix’ and a team of three mechanics, Rivers Fletcher doing public relations all led by Team Manager Tim Parnell- lets come back to BRM’s Australasian representation in a little bit.

Lakeside razzmatazz included girls dressed in chequered flag bikinis, a bagpipes group and a brass band in addition to the on-circuit attractions which included international drivers Clark, Hill, Stewart and Gardner.

David Harding, secretary of the Queensland Motor Sporting Club, quoted the total value of the cars at $A300,000…

Stewart had a huge points lead going into the Lakeside meeting with much expected of Clark after his first win of the series at Warwick Farm the week before.

In New Zealand Graham Hill showed BRM’s form early, winning the opening round, the NZ Grand Prix at Pukekohe on 8 January by 1.5 seconds from Stewart, in P261 ‘2616’ before returning home to the UK to continue tyre and other testing duties. He travelled back south arriving at Mascot for the first of the Australian races, the ‘Warwick Farm 100’, on 13 February.

Richard Attwood won at Levin the following weekend after Stewart had gearbox selector problems having completed 9 laps- Jim Clark was second and Spencer Martin third, Jackie Stewart continued the Bourne boys great form and won the Lady Wigram Trophy at the Wigram RNZAF base the following weekend of 22 January.

Stewart completed a clean sweep of the first four races for the P261 before crossing ‘The Ditch’- the Tasman Sea for Australia- Jackie won the Teretonga International from Frank Gardner and Jim Palmer- the latter had a great season of speed and reliability in the Lotus 32B chassis aboard which Clark took the Tasman Cup twelve months before.

Teretonga wasn’t such a great race for Dick Attwood, as his car ‘2617’, was tagged from behind in the first corner ‘The Loop’ into soft earth whereupon the it rolled trapping the hapless Brit underneath- Spencer Martin and local driver Ian Dawson, also involved in the melee, jumped from their Brabhams and helped marshalls right the car and release the driver.

In fact a ‘switcheroo’ in the cars of Jackie and Richard took place at Wigram. Attwood had his ‘2614’ going like a missile in practice thanks to some judicious testing of bars, tyre pressures and ride-heights with Alan Challis, at which point, Jackie, getting the hang of this Number One Driver caper in Hill’s absence said ‘I’ll have a crack in that’- and so he did winning The Lady Wigram Trophy’ in ‘2614’ the following day.

He kept the same car at Teretonga so the machine, the front bulkhead of which was badly bent, was off for a rebuild to Bourne. It was the car Jackie had raced throughout the 1965 F1 season- ‘2617’ the strength of which would save his life at Spa in mid-1966. We will come back to the individual chassis’ later in the article.

Whilst the drivers flew to Sydney on the Monday after Teretonga Tim Parnell supervised the shipping of ‘2614’ and ‘2616’ to Sydney whilst ‘2617’ headed back to Liverpool, and thence Bourne into the tender hands of the boys in the build shop.

Gardner at left, Attwood, Stewart- Brabham BT11A and two BRM P261s- the off at Wigram 1966. Stewart won from Attwood and Jim Palmer with Frank a DNF after an accident on lap 4 when his brakes failed and he cannoned into Jim Clark, taking them both out of the race (Wigram)



Under the Tote building, Pukekohe. JYS’ P261 chassis ‘2617’, in all of its elegant glory, 1966. Which of the BRM mechanics is it folks? The car is fitted with a P56 type 1930cc engine- inlets between the Vee and exhausts exiting thru the ‘letterbox’ orifice in the side of the monocoque, in BRM speak. Note the colour of the car, red nose band, big BRM badge and air relief ducts atop the nose and tail section leaning up against the wall (CAN)

At Warwick Farm Jim ran away and won by 21 seconds from Hill, Gardner, Stewart, Martin and Palmer, click here for a piece on that meeting; https://primotipo.com/2018/07/03/1966-warwick-farm-100/

Clark had carburetion problems with his 2.5 litre Coventry Climax FPF engine throughout the Lakeside weekend but still managed to pop the car onto row two of practice on the two by two car grid together with Frank Gardner’s similarly powered Brabham BT11A. The Lotus 39 was another mighty car from the Lotus 25/33 continuum but the good ole FPF was struggling a bit from 1966 given the entry into Tasman racing of the BRM and Repco V8’s.

Spencer Martin in the Scuderia Veloce BT11A, and Leo Geoghegan going like a jet in his Lotus 32 was the first of the ANF1.5 twin-cams, a mighty impressive performance on this power-fast-100mph lap average circuit.

Jim Palmer and Greg Cusack shared the next row and the rest- Bartlett, McDonald, Harvey, Andy Buchanan Denis Marwood, Mel McEwin and local boy Glynn Scott rounded out a small field after ‘CAMS cut the grid from 20 to 15 cars’ in the interests of safety.

Graham Hill alights his BRM whilst Spencer Martin’s Brabham BT11A Climax enters the paddock- Glynn Scott, Lotus 27 Ford twin-cam 1.5 approaches in the distance. This is the damp Saturday afternoon session (K Drage)



Magnificent photograph of mutual respect and affection, racer/mechanic Ray Parsons and Jim Clark ponder the next change (B Thomas)

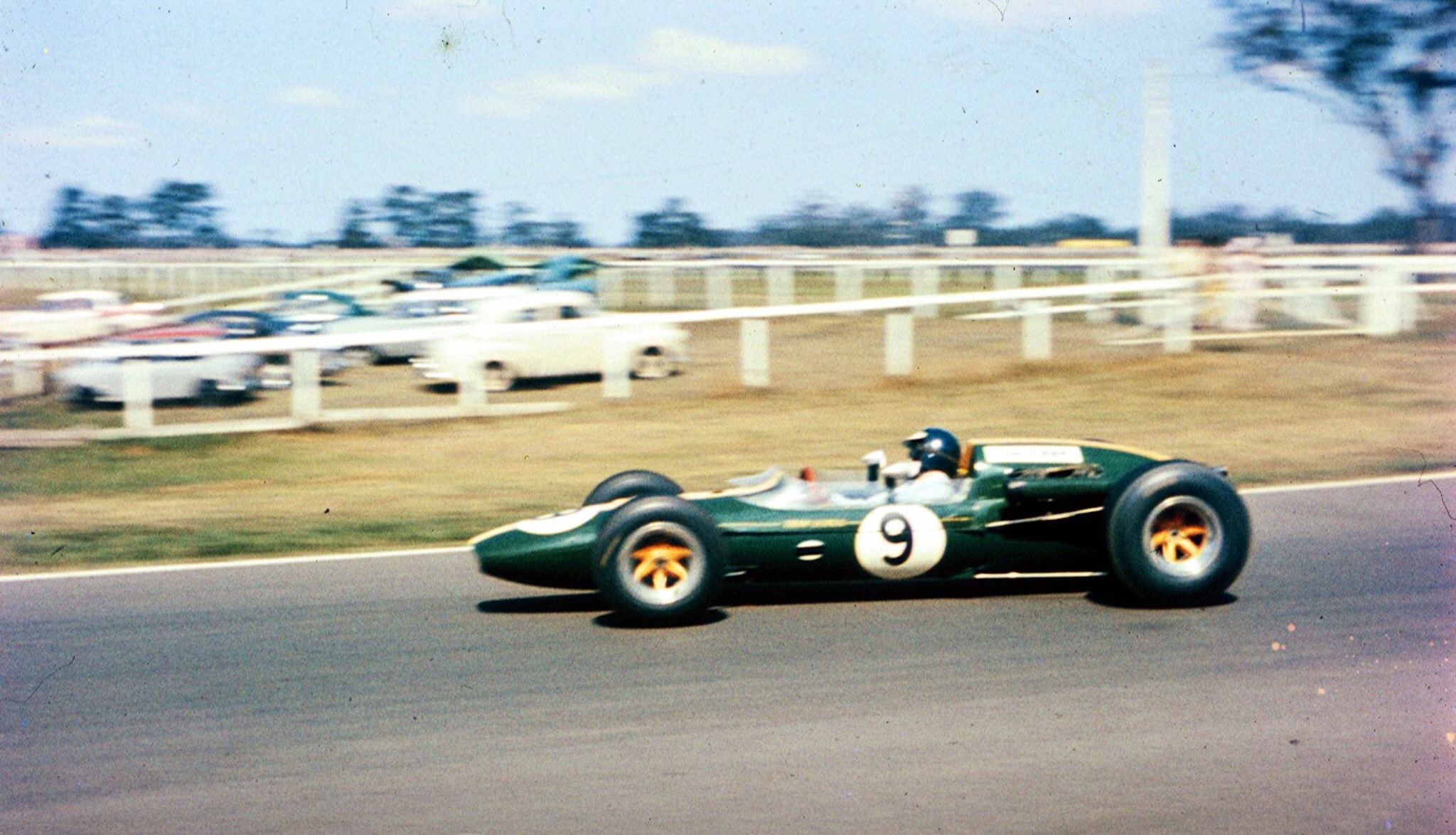

Clark in the very sweet Lotus 39 Climax on Saturday afternoon in the wet- exiting The Karussel (K Drage)



Lakeside 20 February 1966. Dunlop’s Vic Barlow at left, Hill suiting up and ‘Dobbin’ Challis beside Graham’s ‘2616’ whilst Jimmy Collins and Stan Collier look after Jackie’s ‘2614’ behind (BRM 3)

Sunday dawned cloudy and hot, the crowd got a magnificent days motor racing on this, the first occasion Lakeside held an AGP, for their four-dollar entry fee!

In addition to the feature race there were two 10 lap heats for the Tasman cars both won by BRM- Hill won the first from Gardner and Martin and Stewart took the second from the Clark and Geoghegan Lotuses.

Stewart and Hill settled into their front row grid slots and howled away from the off- Stewart, Hill, Clark and Gardner led the high speed train, then Martin, Palmer and Geoghegan.

Cusack got by Geoghegan on lap 5 with ‘Hill tied to Stewart as if by string’, Stewart set a scorching pace from the start, thrilling the crowd, despite this Hill was close behind and always within striking distance.

The race developed into three tough fights between Stewart and Hill up front, then Clark just ahead of Gardner and then a flying wedge of Palmer, Cusack and Geoghegan.

’The race pitch at this point had the crowd running from vantage point to vantage point, a rare thing in open-wheel competition, and to really set the seal on the excitement, the tail closed up and made a magnificent show as Marwood, Harvey, Buchanan, McDonald and Scott raced wheel to wheel’ Des White wrote in his HAGP race report.

Stewart’s gearbox cried enough on lap 28- it was this element of the BRM P261 which became its weak link at 1.9 litres and even much more so at the 2.1 litre capacity the Bourne team raced these cars in the 1967 and 1968 Tasmans.

’Stewart was very hard on gearboxes…Hill suffered persistent clutch slip in the last two races, but otherwise the BRM’s were very reliable. So they should have been too, with the massive Owen group effort which included a public relations man’ wrote Bill Tuckey. Bill is a bit hard on Jackie, the ‘box was the problem not JYS lack of mechanical sympathy.

Then Cusack clipped Palmer in the Eastern Loop when Jim braked a little early and Leo kissed Greg causing Cusack to spin and Geoghegan to re-enter the circuit 100 metres down the road- both retired with bent or busted suspension components shortly thereafter.

Frank Gardner in one of two Brabham BT11A’s Alec Mildren Racing raced that summer, Climax engined, the other was Maserati 2.5 V12 powered and ran in Warwick Farm and Sandown practice- pre-race hype promoted the Brabham Maserati at Lakeside but the car did not make the trip from Sydney (unattributed)



Jim Clark from Frank Gardner with Spencer Martin’s Brabham BT11A just back a bit- third, second and DNF clutch (autopics.com)

Frank Gardner was still pushing Jim Clark hard- he had a great summer in Mildren’s BT11A with better FPF reliability than some- but FG was mighty quick too, i’m not implying his results were solely due to reliability. Then Jim’s Climax took a turn for the worst- losing its edge further so Frank was through to second from Hill up front- Hill won at an average speed of 94.9mph from Gardner, Clark and Palmer.

Hill and Stewart both did equal fastest laps of 55.9 seconds- one second adrift of Clark’s 54.9 second lap record set in the Lotus 32B the year before. Kevin Bartlett’s Alec Mildren Racing Brabham BT2 Ford was the first of the ANF1.5s home in another drive which convinced Mildren KB was ready for the step up into the more demanding 2.5s- something he did with great aplomb later in the year.

Clark’s carburetion problems persisted throughout the series and were solved by John Sheppard when the car passed into his care after Leo Geoghegan acquired it by the simple expedient of solid carburettor mounts.

Jackie fires up the now ‘Central exhaust’ P68 powered ‘2614’ before heading out of the Lakeside paddock. Jimmy Collins, Vic Barlow and Tim Parnell watched by a group of local enthusiasts (BRM 3)



(HAGP)

Graham Hill nose up at Lakeside in a car that was so kind to him- the BRM P261, a machine with which he was synonymous, not the BRM he used to win his 1962 World Title but one he raced from 1963 all the way into 1966 with the H16 BRM P83 duly recognised.

(B Thomas)

Jim Clark with Andy Buchanan on the outside, Brabham BT7A Climax, who finished seventh.

BRM and The Antipodes 1966…

The Owen Organisation had extensive business interests in Australasia (it would be interesting to create a list of the British transnational’s subsidiaries in this part of the world at the companies height) and had of course raced here before- Ken Wharton thrilled Kiwi crowds in a P15 V16 in 1954 at Ardmore and Wigram and Ron Flockhart did all of the NZ Internationals in a front-engined P25 in 1959 whereas the 1961 campaign was a full works representation of two P48 mid-engined 2.5 litre F1 cars- these were raced by Graham Hill and Dan Gurney and on this occasion the visitors came to Australia as well as New Zealand. See here; https://primotipo.com/2019/11/18/ken-wharton-and-brms-grand-turismo-south-in-1954/ and here; https://primotipo.com/2018/03/16/bourne-to-ballarat-brm-p48-part-2/

The local promoters led by Ron Frost (NZ) and Geoff Sykes (Oz) had been doing their job in trying to seduce BRM back here and had a ‘red-hot go’ for 1965 given by that stage BRM had an 1880cc ‘P60’ version of their P56 V8, it was thought the P261 so powered would have been competitive with the 2.5 litre (mainly) Coventry Climax engined ‘Tasman Special’ Brabhams and Lotuses.

In essence Tasman races were 100 miles and had no minium weight limit whereas GP’s were 200 miles in duration and the cars had minimum weight limits so Ron Tauranac’s ‘Intercontinental’ Brabhams, for example, were designed and built to the Tasman formula or rules. Tony Rudd, backed by Graham Hill, felt the P261 at 1880cc would not be a competitive Tasman Cup mount in that the cars would be too heavy and not powerful enough- underlying their opposition (in a document reproduced by Doug Nye in BRM 3) was the (correct) belief that the Tasman program would detract from their 1965 F1 program in the same way Sir Alfred Owen’s BRM-Rover turbine Le Mans racer grabbed scarce resources in 1963 and 1964- it too was foisted upon Rudd and ORO (Owen Racing Organisation) at short notice.

However, in late 1965 Sir Alfred was resolute, the broader commercial needs of the Owen Group (the establishment of an Austin-Morris production facility in NZ, with Owens to provide the necessary components) were met by having ORO’s presence in the 1966 Tasman Cup and as a consequence the team had to ‘make it work’ despite being up to their armpits in the new for 1966, immensely complex, BRM P83’s H16 engine.

Ron Flockhart, BRM P25 during the 10 January 1959 NZ GP on the Ardmore airfield circuit- DNF oil leak, the race won by Stirling Moss’ Cooper T45 Climax FPF 2 litre (Ardmore)



Dan Gurney on the way to the BRM P48’s only International win, the Victorian Trophy at Ballarat Airfield, Victoria 12 February 1961 (unattributed)

Geoff Johnson and his engine design team squeezed the P56 V8 up again from 1880cc to 1916cc and then 1930cc- the latter became the definitive 1966 Tasman spec engine used throughout that summer.

These motors gave between 260 and 270 bhp, which despite the weight of the P261 chassis, was more than enough to trump the circa 240bhp ‘Tasman Specials’. These motors and P61 Mark 2 chassis ‘2616’ Graham’s regular 1965 F1 car first raced to a win by him upon its debut at Watkins Glen in 1964, Jackie in his normal ‘2517’, the last P61 built during the winter of 1964-5 for JYS debut season, and old ‘2614’, first raced by Graham in the 1964 Aintree 200 and used as the team spare throughout 1965 were sent to New Zealand on the SS Tasmania Star which left Liverpool on 29 November and arrived in Auckland on 23 December.

Of interest is that ‘2616’ lives as does ‘2614’ whereas ‘2617’ whilst destroyed and scrapped after Jackie’s death defying 1966 Spa crash was recreated for Richard Attwood as ‘2617R’ in the late nineties- a lovely bit of symmetry given Richard rolled it at Teretonga in 1966 when he was part of others ‘moment’. Finally, for the record, a total of one P61 Mk 1 was built, chassis ‘611’ and six P61 Mk 2’s- chassis ‘2612’ to ‘2617’. The P61 Mk1 ‘611’ was scrapped in 1963 but all of the P61 Mk2’s live, thank goodness.

Despite broken ring problems in testing at Bourne, with a very careful running regime when a motor was first used which involved abnormally large amounts of engine oil in the fuel- the motors proved very reliable throughout that summer- a bonus for Team Manager Tim Parnell and the mechanics- Allan Challis, Jimmy Collins and Stan Collier, the later seconded by Parnell.

One of the compromises made to meet the needs of preparation for the new 3 litre F1 as well as being competitive in Australasia was the appointment of Tim Parnell as Team Manager and secondment of Stan Collier into the ORO group for the trip rather than Tony Rudd and another BRM mechanic make the trip.

Son of Reg- Tim was a racer to the core who had stepped very ably from the cockpit to running his fathers F1 race team upon Reg’ sudden death in January 1964 and was well known to BRM as a customer using BRM V8’s and cars for some years.

And so the scene- cars, engines, drivers, technicians and team management were put in place for an immensely successful summer in competition and commercial terms- seven of eight championship rounds and nine of ten races won with the Tasman Cup secured by Jackie Stewart bolstering even further BRM’s ‘cub’ drivers confidence who had already won his first GP in his first F1 season of 1965 at Monza no less.

‘Technical Tim- plug changing on Graham’s ‘2616’. Very popular, avuncular Tim had spent his entire life in racing and farming- thanks to his father- former BRM V16 driver and pig-breeder Reg Parnell. Tim had been a racing driver before his father’s untimely death in 1964, whereupon he had taken over full-time management of Parnell Racing’ wrote Doug Nye (BRM 3)



(B Betti)

BRM V8 Engine Types/Designations…

I wrote an article about the ‘Stackpipe’ BRM P57/578 in which Bourne and Graham Hill won their 1962 titles and covers the P56 engine in a bit of detail which still stacks up ok, see here; https://primotipo.com/2016/02/05/motori-porno-stackpipe-brm-v8/

It is a bit wanting in terms of the ‘P56’ engine derivatives though, so, having picked over ‘BRM 3’ Doug Nye’s treasure trove of all things Bourne here is a summary of the motors if for no other reason than to provide myself a simple list to refer to the next time i tangentially cover this amazingly, long lived series of race engines.

‘P56’ 1.5 litre V8

Initial design as per the link above- 68.5mm bore and 50.8mm stroke for 1497.7cc. DOHC gear driven two-valve Lucas injected with ‘conventional’ cross flow disposition of inlet and exhaust valves

The engines first drawings of 300 in total were issued in January 1961, the first batch of components received in April 1961, assembly of the engine commenced that June with the first one fired up on 12 July 1961

170bhp was produced by the end of August with the engine first tested against the competition at Monza over that tragic September weekend. Racing began in 1962 with the ‘Stackpipe’ exhausts fitted- 185bhp

Ongoing development gave rise to the 195bhp ‘Monza’ spec which won the 1962 championship

For 1963 a single plane crank version was developed, this allowed the use of a coupled exhaust system which gave the engine a broader power band- with development this produced 205bhp

‘P60’ 1.9 litre V8 1964

1880cc engine developed at Richie Ginther’s suggestion for the 2 litre sportscar class in the US, in original form it produced 240bhp

P56 1.5 litre V8 ‘Stackpipe’ nestled in one of Graham Hill’s P57/578 chassis during 1962



P68 1.5 V8 in the 1964 Monza paddock

‘P68’ 1.5 litre V8 late 1964

Between the Vee exhaust layout- exhaust ports in the Vee, inlets located between the cam-boxes. The space around the engine was unobstructed by exhaust pipes which allowed a stiffer tub to be built and an extra 5 gallons of fuel to be carried

First appearance Monza 1964- first win at Watkins Glen- work over the winter of 1964-5 led to engines giving 215bhp

By the end of the 1.5 litre Formula the best of the engines gave 220bhp and weighed 264pounds

2 litre V8

1916cc and the ‘definitive’ 1966 Tasman engine of 1930cc in capacity

T56 variant gave 260bhp and T68 version 270bhp- both types were used in ORO’s successful 1966 Tasman campaign as close scrutiny of some of the photographs demonstrates

1998cc sportscar version for Matra in 1956 was P56 type with the taller P123 blocks. Fitted to MS620 coupes- these engines with alternators etc designated P100

One of the P261’s in the Warwick Farm paddock in February 1966- P68 1930cc (B Wells- The Roaring Season)



One of the BRM mechanics persuades the P56 2 litre V8 fitted to Peter Arundell’s works Lotus 33 to start during the 1966 US GP weekend at Watkins Glen. He was sixth in the race won by Jim Clark’s Lotus 43 BRM H16- famously that wonderful, complex, mad engine’s only win

P111: 2.1 litre V8

1967 Tasman and beyond specifications

Two engines built initially of 2070cc and gave 287bhp and 292bhp- used the taller P123 blocks

Six engines were converted by the time of the 1967 Tasman – 2 P56 type and 4 P68 exhaust within the Vee type. Engines very reliable, the weakness of the package was the magnesium cased lightweight  P72 six-speed gearboxes which were never designed with the power and torque- and tyre grip by then being produced

Type 80: 1.5 litre Straight-four cylinder Formula 2 engine

’Half’ of one of the 2 litre V8’s – soon gave in excess of 130bhp.

P80 1 litre, four cylinder F2 engine the size of which is ‘overwhelmed’ by the bulk of the P72 transmission



Etcetera…



(M Bisset)

JYS was ‘top of the pops’- on the cover of ‘Australian Racing Annual’ for 1966- these annuals are much treasured and were a useful pot-pourri of the season just gone, they were published by the ‘Sports Car World’ magazine people.

Shots show Stewart on the way to victory at Longford on the entry to The Viaduct, and wearing one of the many garlands popped around his neck that summer. The shot below is Jack in BT19 complete with brand-new Repco-Brabham 620 2.5 litre V8 also at Longford.

(autopics.com)

Graham Hill on the outside of Kiwi Dennis Marwood’s Cooper T66 Climax during the Sunday morning warm-up at Lakeside- DNF oil pressure in the feature race.

(unattributed)

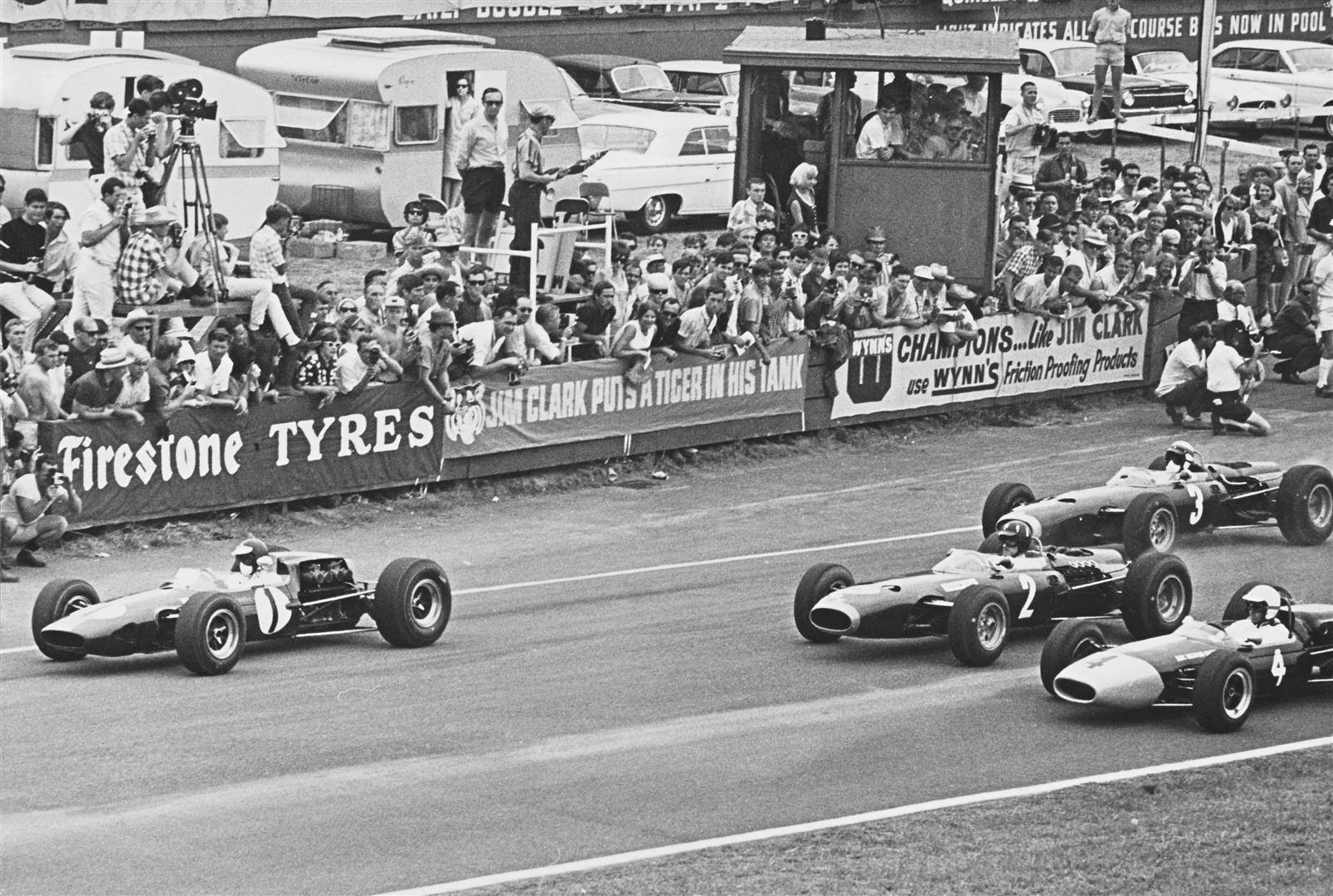

Stewart and Clark off the front row of the grid during the second of the Sunday morning heats.

BRM P261 ‘2614’ and Lotus 39 Climax ‘R12’- they had some titanic dices during their Australasian summer but plenty of fun off-track and shared accommodation throughout, parsimonious Scots as they were.

(autopics.com)

Like a rat up an aqueduct- ‘2614’ from ‘2616’…

GH has his nose shoved right up JYS gearbox which is not helpful as that unit was the weakest link of an otherwise bullet-proof remarkably fast racing car into 1969 generally- and into 1968 specifically when the one P261 which was sent to Australasia- as a support or back-up car to the new P126 2.5 litre V12 was a very popular machine particularly with Pedro Rodriguez who took any excuse he could to pop his bum into the ‘old darlin’ rather than its much younger sister.

(D Cooper)

Pedro Rodriguez in good ‘ole ‘2614’ on the very last weekend a P261 was entered by the factory.

Rodriguez was second in the very soggy ‘South Pacific Trophy’ Longford Tasman round on 4 March 1968, won in fine style by Piers Courage in an F2 McLaren M4A Ford FVA 1.6.

A view is that the only thing between Graham Hill and another world title or so at the time was Jim Clark and the Lotus 25 and Lotus 33- lets make that the only thing between Hill and another title or so was Jim Clark’s God-given other-worldly skills- the gifts that only one driver seems blessed with every decade or so.

The Lotus 25 deserves every accolade accorded it as the first ‘modern monocoque’- the car to which every F1 machine which followed is related. The BRM P61 Mk1 and P61 Mk2 aka ‘P261’ followed the ‘original’ but in almost every respect, other, perhaps than in traction, putting its limited power to the road the BRM was the equal of the 25 and 33- and the BRM ‘P56 Family’ of engines the equal of, if not superior motor however many valves Coventry Climax deployed in its FWMV V8! Tony Rudd, biased as he undoubtedly was, makes this case on pages 232 and 233 of ‘BRM 3’.

Whatever the case, feast your eyes on all of the mechanical gubbins which comprise the whole of a very well rounded package. The car shown is Graham’s F1 P261 during the Mexican GP weekend in 1964- its powered by a P68 1.5 litre V8.

The chassis is an aluminium ‘full monocoque’ made of 18swg ‘half-hard’ duralumin with extension horns supporting engine/gearbox and rear suspension assemblies . Note the period typical inboard front suspension- lower wishbone and rocker actuating a coil spring/damper unit, brakes are solid 9 inch discs outboard- these are light cars remember, brake lines are rubber, we are still a couple of years away from the use of braided steel lines in Europe.

Distinctive BRM steering wheel- who supplied them? Gear lever at left. The engine we have done to death but note the slide Lucas fuel injection, beautiful expressions of the exhaust pipe benders art- you can just see a heat shield beside the radiator cap to keep the hot gasses away from the fuel metering unit which is right behind the roll-over bar.

The rear suspension is again period typical and in contrast to the front is fully ‘outboard’- magnesium uprights, inverted lower wishbone, single top link, twin radius rods to look after fore and aft forces, coil spring/dampers and adjustable roll bars both front and rear. Plumbing for the needs of lubricants is ‘bitsy’ rather than ‘cohesive’ and the lack of shine to the nickel (?) plating doubtless reflects a long hard season- this was the last championship meeting of the year after all. Note the beautifully made splined driveshafts, solid brake rotor and caliper.

I’ve always thought BRM’s gearboxes- i’m not sure if this is a six-speed Type 62 or 72 look a bit butch compared with Mike Hewland’s products of the time but that may not be the case upon having details of said products dimensions and weight. Whilst the boxes’ were the weak link in P261s powered by 1.9 litre V8’s and above that was not the case when 1.5 litre V8s were used which was of course the engine around which the gearboxes were designed at the outset.

Beautifully concepted, designed and built, robust, prodigiously fast cars the performance of which could be accessed by ‘newbees’ and exploited by ‘the gods’ alike.



(S Dalton Collection)



(S Dalton Collection)

Stephen Dalton contributed these pages from the February 1966 Queensland Motor Sports Club newsletter which gives the organisers perspective- note the attention to O,H & S as Stephen points out!

Photo Credits…

‘HAGP’- ‘History of The Australian Grand Prix’ Graham Howard and Others, Kevin Drage, ‘Ardmore’, autopics.com, M Bisset Collection, Getty Images- Bernard Cahier, Alvis Upitis, ‘CAN’ Classic Auto News, BRM 3, Dennis Cooper Collection, Brier Thomas via Richard Croston

Bibliography…

‘Australian Motor Racing Annual 1966’, ‘BRM 3’- ‘BRM: The Saga of British Racing Motors Volume 3’ Doug Nye, various articles by Ken Blair in ‘The Canberra Times’ on 8, 15 and 21 February 1966, Bruce Sergent’s race reports on sergent.com, ‘History of The Australian Grand Prix’ Graham Howard and Others, 1966 Tasman Cup review by Allan Brown in oldracingcars.com

Tailpiece: Clark, Lotus 39 Climax, Lakeside 1966…

(unattributed)

Jim gulps a big dose of Queensland air as he snicks a Lakeside high-speed apex.

Finito…



(B Hickson)

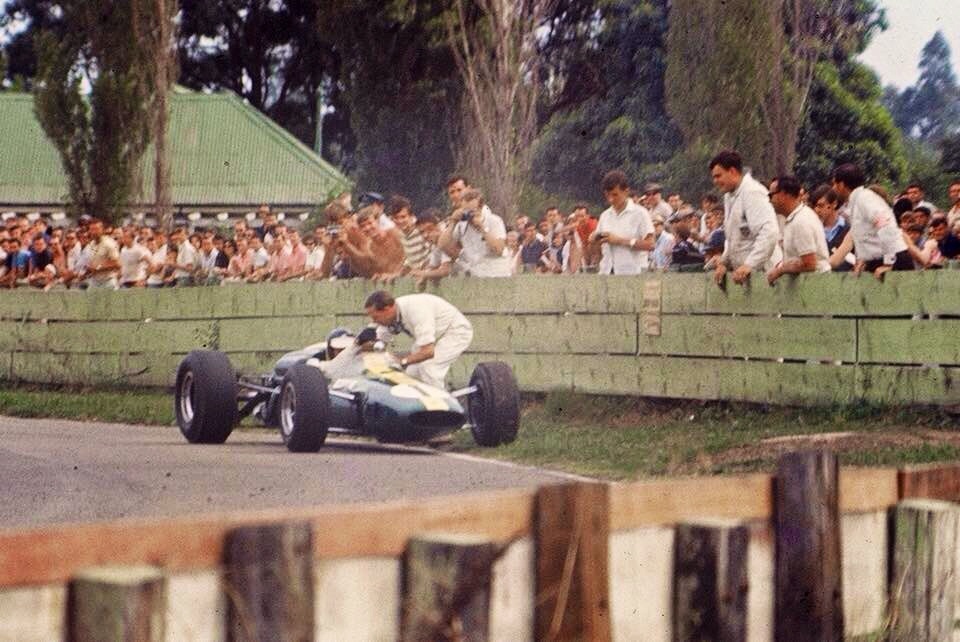

Jim Clark stops his Lotus 39 to collect a celebratory beer after winning the 13 February 1966 ‘Warwick Farm 100’ Tasman round…

Clark won the Tasman Series in 1965, 1967 and 1968. His 1966 mount, whilst a good car, the 2.5 litre Coventry Climax four-cylinder engine was outgunned by the ex-F1 BRM P261, the capacity of which had been stretched from 1.5 to 1.9 litres with Jackie Stewart winning the championship taking four victories from eight rounds.

I wrote a feature article about this one-of-a-kind Lotus 39 a while back; https://primotipo.com/2016/02/12/jim-clark-and-leo-geoghegans-lotus-39/

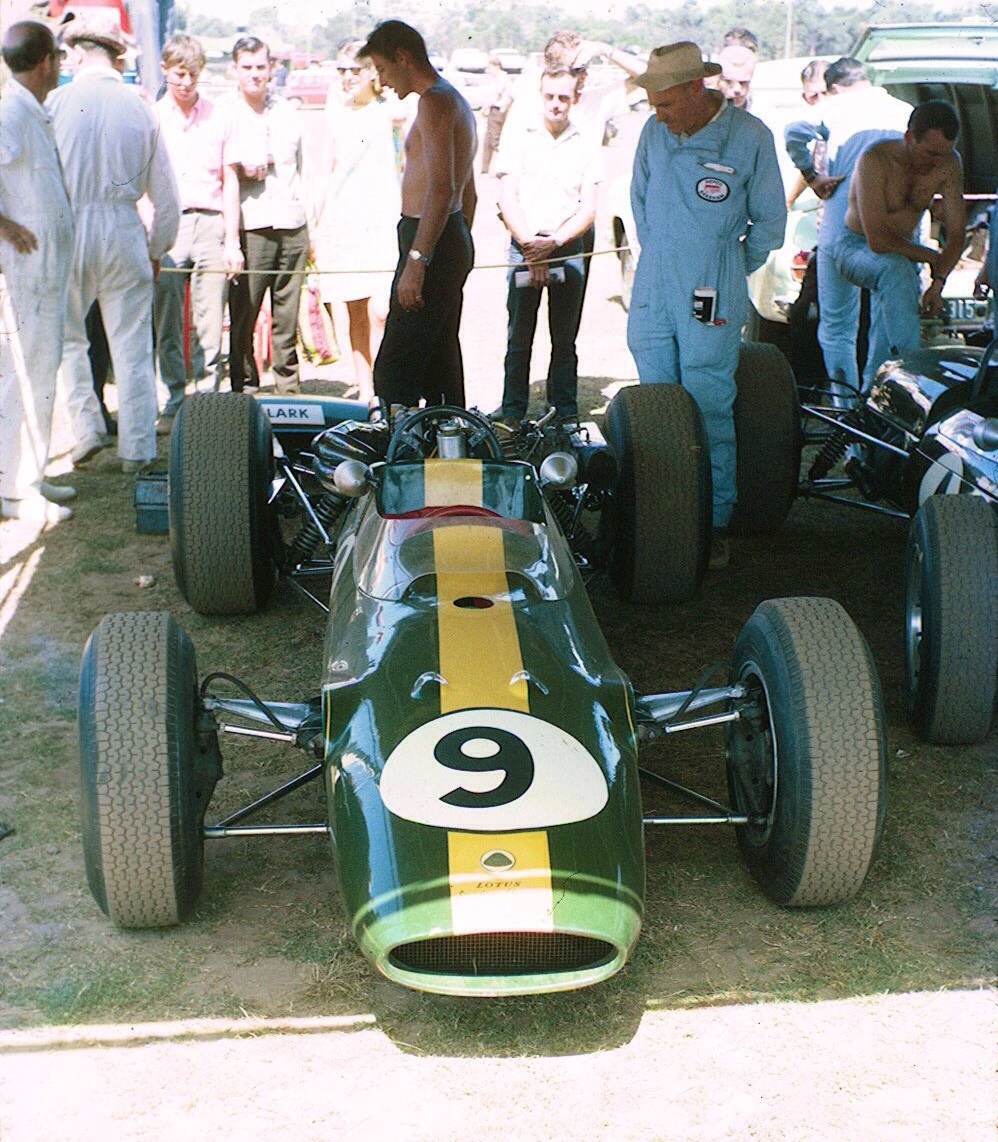

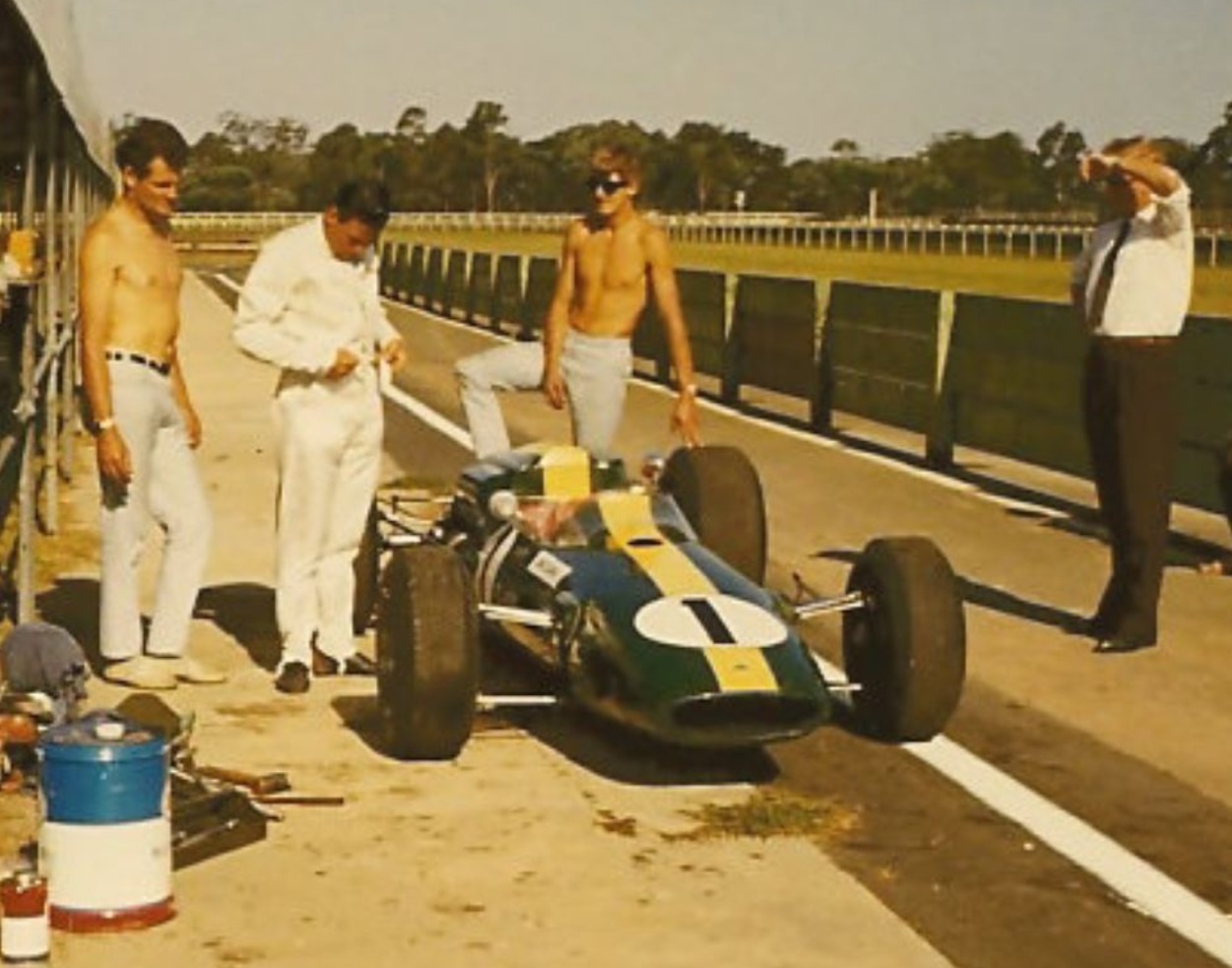

JC and the lads looking fairly relaxed for this Thursday or Friday WF test of the 39, WF pitlane 1966 (ABC)



From the off at WF: Clark’s Lotus 39 scampers away from the Hill and Stewart BRM P261’s and Frank Gardner in Alec Mildren’s Brabham BT11A Climax #4 (WFFB)

Jim’s only 1966 Tasman win was in Sydney- Barry Hickson took this photograph whilst a flag marshall at Homestead Corner recalled that Dick MacArthur Onslow, the Homestead Sector Marshall promised Jim a ‘cold one’ if he won, here in the opening photo, the great Scot has pulled up to collect the promised cool beverage from Dick!

Benz 230SL to Clark’s liking, Homestead Corner fans happy to have JC back after his stop a short time before (B Hickson)



Clark and WF supremo Geoff Sykes swap notes after the 1966 win (WFFB)

Clark excelled at the technical, depending, outer Sydney track, he started from pole and won from Graham Hill, BRM P261 and Frank Gardner in Alec Mildren’s Brabham BT11A Climax with JYS fourth in the other P261.

In fact the ‘Farm was a very happy hunting ground for Jim, he raced there from 1965 to 1968 winning on three of his four visits aboard works Lotus machines- 1965 32B Climax FPF, 1966 39 FPF, and in 1968 aboard a 49 Ford DFW, the 2.5 litre variant of the 3 litre F1 Ford Cosworth DFV. In 1967 he fell short of the mark but not by much taking second to Jackie Stewart’s BRM P261, that Tasman Series the BRM V8’s were stretched to 2.1 litres in capacity. Jim’s 1967 car was an F1 Lotus 33 Coventry Climax FWMV 2 litre V8.

Victory for Clark at WF in 1966 aboard the Lotus 39- a car which would become iconic in Australia thereafter in Leo Geoghegan’s hands in both Coventry Climax and Repco V8 engined forms. And still resident in Oz (unattributed)





Credits…

Barry Hickson, Aust Broadcasting Corp, Warwick Farm Facebook page

Tailpiece: Clark on the way to his 1965 Warwick Farm 100 win, this time in his Lotus 32B Climax, Homestead Corner…

(B Hickson)

And the same 32B chassis in the WF paddock beside Jack Brabham’s Brabham BT11A Climax, with Roy Billington toiling on Jack’s car. Is that Ray Parsons behind the 32B? Who is the Repco clad bloke looking at Jim’s car who attended to Jack every year whilst he was in Oz?

(B Hickson)







Finito…





39 esses

(Vintage Racecar)

Leo Geoghegan slices his venerable Lotus 39 Repco into the Warwick Farm Esses, Tasman Series, 15 February 1970…

Terrific shot, the focus is on the driver, the rest of the car blurred giving the impression of speed, something Geoghegan had in abundance.

Leo ‘made his name’ in this car, he was a front-runner from the time he bought it off Team Lotus at the end of the ’66 Tasman Series; Jim Clark was third in it, until the time it was put aside to make way for his Lotus 59 Waggott later in 1970.

geoghegan agp 1963

Faster! Deep in thought on chassis changes with his very hot mechanic, AGP practice 10 February 1963. Lotus 20 FJ 1.5 Ford 9th just behind Frank Matich in the quickest of the 1.5’s. Winner Brabham in a BT4 Climax 2.7 (David Mist)

Geoghegan had a long background in Lotus single-seaters after he graduated from sedans and sportscars in the team his father, Tom founded. Starting with an 18FJ in 1961 he progressed through 20, 20B, 22, 27 and then a 32, which, when fitted with a 1.5 Ford Lotus Twin cam engine gave him two 2nd placings in 1965 Gold Star events. He stepped up to the ‘big time’ with the Tasman Lotus 39.

32 wf

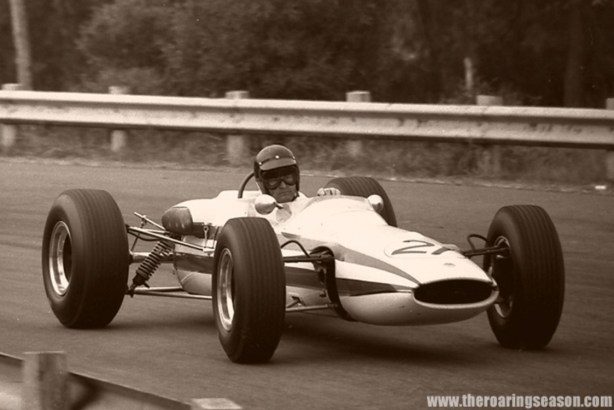

Leo G on his way to 8th in the little Lotus 32 Ford/Lotus 1.5, ‘Warwick Farm 100’ Tasman Series, 14 February 1965 (Bruce Wells/The Roaring Season)

The ‘old girl’ Lotus 39 was frustrating in many ways, its unreliability, like other Repco Tasman users, was notorious, but it gave him the critical 6 points at Symmons Plains in March 1970 before he switched to his new Lotus 59 Waggott. This won him the Gold Star he coveted and deserved…by 6 points from Max Stewart’s similarly powered Mildren. Max’s Gold Star turn would come for the first time in 1971.

39 bathurst

Easter Bathurst Meeting, 15 March 1970, thru ‘The Dipper’. Lotus 39 Repco (Jeff Nield/autopics.com.au)

Lotus 39 ‘R12’….

The Lotus 25/33 series of cars are amongst motor racing’s most famous, the Lotus 25 the first ‘modern monocoque’, Jim Clark took the 1963 and 1965 World Championships’ in Loti’ 25 and 33 respectively.

The 39 is one of this series of cars and like Jack Brabham’s 1966 championship winning BT19 chassis was built for the stillborn Coventry Climax FWMW Flat-16 engine.


Coventry Climax FWMW 1.5 litre Flat-16 engine of 1964/5 (unattributed)

The story of this amazing engine is an article in itself; in a nutshell CC’s Wally Hassan and Peter Windsor-Smith were convinced the best route to more power was higher revs (than their FWMV V8) a ‘multi’ was chosen partially due to Harry Mundy’s exposure to the BRM Type 15 supercharged V16 in the dawn of the fifties. Design commenced in 1963, the prototype was on the test bench in 1964.

Torsional problems of the crank were major issues, the engine also failed to deliver more power than the 4 valve versions of the FWMV, which themselves took a bit of development to better the FWMV 2 valve outputs. Then the 1.5 litre GP formula ended and Jaguar took over Coventry Climax; that combination of factors ended CC’s pivotal role as a successful supplier of racing engines for better than a decade.

39 longford

Graham Hill’s BRM P261 leads Clark’s Lotus 39 Climax and Jack Brabham’s Brabham BT19 Repco off Long Bridge, THAT post in front of GH’s LF wheel marks the apex…Wonderful Longford 1966 (autopics.com.au)

Colin Chapman needed a mount for Jim Clark to defend his Tasman title, he won it in 1965 with a Lotus 32B Climax, the unused 39 sitting in the corner of the Team Lotus workshop was ideal.

He tasked designer Maurice Phillippe to modify the engine bay of the car to accept a Coventry Climax 2.5 litre FPF engine. The 39 was different from its siblings in that the ‘D-shaped’ side pontoons of the chassis were ‘chopped off’ at the bulkhead aft of the drivers seat and a tubular steel subframe substituted to carry the CC Flat-16. Changes were made to the frame to accommodate the FPF.

Big thirsty Weber 58DCO carbs fed 2.5 Climax FPF. The frame to support the engine can be seen as can the rear of the Hewland transaxle (I MacNeill)

The 39 side pods also had a more pronounced belly than the 25/33 to ensure sufficient fuel could be carried, having lost capacity by hacking the ‘rear horns’ off the tub on each side. The suspension of ‘R12’ was pure Lotus 33 and was period typical; top rockers actuating inboard coil spring/damper units and lower wishbones and at the rear inverted lower wishbones, single top link and two radius rods for fore and aft location. Adjustable roll bars front and rear as well of course. Steering by rack and pinion and outboard disc brakes on all wheels.

Chapman bought two Climax engines from Bruce McLaren who didn’t contest the Tasman in ’66, he was too busy building cars for his F1 and CanAm programs having just left Coopers.

The 39 was soon on its way to the Antipodes for its race debut in the NZGP at Pukekohe on January 8 1966.

39 jim

AGP, Lakeside 20 February 1966. Clark 3rd behind Hill’s BRM P261 and Frank Gardner’s Brabham BT11A Climax (autopics)

By 1966 the Tasman game had largely moved beyond the old FPF. Brabham debuted his Repco Brabham RB620 V8 engine and BRM modified its F1 P56/60 V8 engines to 1930cc, Jackie Stewart took the title in a P261 with 4 wins from Hill’s 2 with Clark and Attwood (BRM) 1 win apiece.

Clark had a tough start to his 1966 Tasman campaign partially because Colin Chapman switched his Lotus tyre contract from Dunlop to Firestone not long before the Tasman commenced. The tyres had been developed by Bruce McLaren, he had used them for over a year and they were competitive but the 39 had to be adapted to them.

In addition Clark had a run of misfortunes which also reduced testing time; an abortive race at Pukekohe (gearbox) no practice at either Wigram (oil leak and engine replacement/accident when Gardner’s Brabham brakes failed) or Levin (snapped radius rod in practice/2nd). At Teretonga the cars speed was shown with a heat win from Stewart. He was moving away from Jackie in the final only to go out with a spin on dropped oil on lap 3.

In Australia he took a win at Warwick Farm, always a happy hunting ground for Clark. Graham Hill won the AGP at Lakeside from Gardner and Clark. He was 2nd to Stewart’s speedy BRM at Sandown and was 7th at Longford, he had carburetion problems in practice and a plug lead came off in the race requiring a stop and dropping him to the back of the field. Stewart was again the victor, with Jim finishing third in the series behind the BRM duo.

Clark had an amazing 1965 season winning the Tasman Series, Indy 500 and the World Drivers Championship, his start to 1966 was not quite so good, a portent of a tougher year!

39 longford

Superb Clark portrait by Lindsay Ross. Lotus 39 Climax, Longford 1966. He was 7th after a troubled run, Stewart’s BRM taking the win. Note the cars ‘aero screen’ and truncated monocoque which ends at the drivers bulkhead (oldracephotos)

Geoghegans’ were the Australian Lotus importer so a deal was done to buy the car…

John Sheppard is a legendary mechanic/engineer/car builder and team manager with some of Australia’s greatest cars in his CV; the Geoghegan’s cars, Bob Jane’s Repco Torana, Laurie O’Neills Pete Geoghegan driven Holden Monaro and the Holden Dealer Team amongst an extensive and ongoing career of car construction and team management. Early in his career he was appointed as chief mechanic to the Geoghegans.  Tom took a liking to his work preparing the Youl brothers Cooper, the Tasmanian team were using the Geoghegan’s Sydney workshop at the time. John’s first event with the team was preparing Leo’s car for the Australian Formula Junior Championship at Warwick Farm in September 1963, which he won in his Lotus 22 Ford. He shares some of his recollections about his time with the Geoghegan’s throughout this article.


John Sheppard in the 39 Repco cockpit circa 1967, hat is the Mickey Mouse Club! (John Sheppard)

Essentially 1966 was a learning year for Leo in the big cars in the domestic Gold Star Championship. His limited campaign excluded the Mallala and Sandown rounds, 2nd to Spencer Martins Brabham BT11A at Surfers Paradise his best result. A duff wheel bearing was the cause of a DNF at Lakeside, he didn’t start both the Symmons Plains and Warwick Farm rounds with Coventry Climax engine problems.

Sheppard recalls; ‘The Lotus 39 was a great car although the engine problems we had were a function of very tired engines, the blocks were cracked so it was a problem keeping them running in that first year. When we took over the car they had a strange set-up to deal with the vibrations of the big Climax-four, they put rubber o-rings between the cylinder head and inlet manifold letting them flop around, and i mean flop around so Jim had problems with throttle control. We easily fixed this with a more conventional set-up of putting the o-rings between the inlet manifold and carbs’.

‘We didn’t have problems with the Firestones but i recall Leo, having fiddled around with set-ups based on tyre temps and the like at an early tyre test embarrassing the Firestone guys a bit when his ‘seat of the pants’ set-up changes gave immediate results. Leo was quick in the car straight away, i asked Bob Jane to get his driver (Spencer Martin) to stop baulking mine at Warwick Farm and Bob of course telling me to piss-orf…’

Fifth in the Australian Grand Prix ’67 Tasman Round at Warwick Farm and 2nd the following weekend behind Clarks Lotus 33 Climax FWMV 2 litre V8 at Sandown was indicative of speed and better Coventry Climax reliability.

39 cover

Geoghegan’s Lotus 39 sharing the AMR 1968 cover with Chris Amon’s Ferrari Dino 246T. 39 here with ‘740 Series’ Repco V8 and quite the prettiest thing with its carefully, thoughtfully aerodynamic rear bodywork developed for it by John Sheppard. Knock on wheels, Castrol color scheme just gorgeous with the speed if not always reliability to match

In 1967 Sheppard and his team did a beautiful job converting the car to a 2.5 litre Repco ‘640 Series’, ‘exhaust between the Vee’ spec engine in April. They created quite the most beautiful sixties single seater. OK, maybe Gurney’s Eagle T1G gives it a run for its money! The FPF developed around 235bhp, the ‘640’ 275bhp@8500rpm.

Sheppard; ‘It was an easy decision to go with the Repco, our Climaxes were old and tired and Repco were keen to do business with everyone. It wasn’t the biggest saga to adapt the Repco V8, we made new chassis tubes to accommodate the wider engine and used the original Hewland HD5 gearbox. The suspension geometry wasn’t touched, in fact it wasn’t the whole time i worked on the car (to the end of 1968) which shows the bloke who designed and built it knew what he was about. As tyres evolved we still got the results by simply getting the best from the tyres making set-up changes based around getting tyre temps even across the tread. Basic but important stuff.’

‘The chassis and bodywork, we made a nice rear cowling or engine cover, was done by Alan Standfield who worked out of his fathers ‘Supreme Mousetraps’ factory out near Mascot. (near Sydney Airport) It was all a bit bizarre but he did good work in grotty conditions with loads of noisy machines making springs and sawdust from the ‘trap bases all over the place!’

Leo took his first Gold Star round win at Sandown in September, Sheppo recalls; ‘Early in the Repco piece i said to Frank Hallam (GM Repco) ‘you should be nicer to us because we will win the first Gold Star race for you, he turned and walked away. I had great delight in walking up to him and telling him ‘I told you so’ when we took that Sandown win which was Repco’s first Gold Star win too’

The Climax FPF engined Brabham BT11A’s were superbly driven by Spencer Martin and Kevin Bartlett and just had the legs and reliability to pip the more powerful Repco engined cars of Greg Cusack, Geoghegan and John Harvey that year. Martin took the title.

39 tow rope

On the end of a tow rope as was the case all too often. Here its a Coventry Climax engine failure; the FPF popped back into the car after early 1967 Repco frustrations for the final WF Gold Star round, DNF with overheating (Peter Windsor)

Leo was so miffed by the lack of reliability of the Repco that his team popped the Climax back into the car for the final Gold Star round, the Hordern Trophy’ at Warwick Farm, not finishing that race either, the Climax overheated.

Sheppard; ‘We didn’t have a good run with the Repco’s early in the piece. The 640 Series Repco, the Olds block engine chucked its oil out of the crankcase, the scavenging arrangements were poor, the stiffener plate was ‘out in the breeze’, oil sat on that and got thrown around. Leo said the engine was hard to drive as there was little power below 6500-7000rpm. The 700 Series blocks were better but in many ways by then the opposition had caught up with the Cosworth and Ferrari Dino engines competing in the Tasman. The engine was a clever design though, you could take the heads off without disturbing the timing chest and vice-versa, i give Repco ten out of ten for the way they went about things.’

For the 1968 Tasman Series all local Repco clients engines were updated to the latest specifications with 700 Series blocks.

39 and brm

Leo’s 39 chases Richard Attwood’s BRM P126 at Surfers Paradise 1968. Great butt shot of both cars and a contrast of the beautifully faired Lotus and messy, bulky BRM V12. Neat packaging of the 1967 World Championship winning ‘740 Series’ V8 clear (here in 2.5 not 3 litre form). ‘Between the Vee’ exhausts easy for the chassis designer, no complex plumbing issues of pipes and tubes or an ‘ally tub. Trumpets for Lucas fuel injection and Bosch distributor cap clear also between the Vee. Car uses the same Hewland HD5 gearbox as it did with the Cov Climax FPF engine. Diaphragm to which ‘everything’ attached also clear at the very back of the chassis. Suspension at rear period typical; single upper link, inverted lower wishbone, 2 radius rods forwards for location and coil spring/damper unit with an adjustable roll-bar (Brian McInerney)

Into 1968 the Tasman Series got even tougher as the International Teams brought 2.5 litre variants of their current GP machines; the Lotus 49 DFW and the BRM P126 V12. The Mildren Team acquired a one-off Brabham BT23D powered by a 2.5 litre version of Alfa Romeo’s Tipo 33 sports car engine and Ferrari brought 2 2.4 litre Dino V6’s, the 246T.

Geoghegan, as in the prior year did only the Australian rounds; his 4th at Surfers on the same lap as the new Lotus 49’s in his 3 year old car his best result.

39 surfers 68

Who is the Belle of the Ball? Geoghegan’s Lotus 39 Repco DNF beside Brabhams Brabham BT23E Repco 7th , Rodriguez BRM P126 6th in a P261 with Clarks Lotus 49 1st. Warwick Farm practice, Tasman 1968 (The Tasman Cup)

He lost an oil line at Warwick Farm, finished 7th at Sandown, both events won by Jim Clark’s dominant Lotus 49 and elected not to start the final, very wet Logford round given the lack of a suitable tyre for the treacherous circuit.

39 and 49 surfers

Hill, Gardner, Geoghegan and further back Kevin Bartlett squabble over 2nd place on lap 2 of the Surfers ’68 Tasman round, Clark is up the road. Lotus 49 DFW, Brabham BT23D Alfa, Lotus 39 Repco and Brabham BT11A Climax (Rod MacKenzie)

Kevin Bartlett was the class of the Gold Star fields in 1968 winning the title by 10 points in the Brabham Frank Gardner drove in the Tasman. Geoghegan’s old Lotus was still fast; he took pole at Sandown and Mallala and won the race but otherwise the car lacked the consistency and speed to win the title.

39 catalina

Geoghegan Catalina Park, Blue Mountains, NSW 1968 (Paul Hobson)

Chris Amon took the 1969 Tasman in his superbly driven and prepared Ferrari Dino 246T from Jochen Rindt, Lotus 49 DFW Piers Courage, Brabham BT24 DFW and Derek Bell’s Dino 246T.

Geoghegan, still driving the ‘old lady’ contested the full series; 5th at Pukekohe in the series opening NZGP behind the four drivers above, 4th at Levin, he missed the final NZ, Teretonga round.

39 puke

Leo’s Lotus 39 Repco ‘730 Series’ NZGP paddock, Pukekohe 4 January 1969. 5th in the race won by Amon’s Ferrari Dino 246T (Habu/The Roaring Season)

Straight to Queensland he was a splendid 3rd in the AGP at Lakeside behind Amon and Bell. He was 5th in his home, Warwick Farm race and had fuel tank problems in the final Sandown round.

39 lakeside

Lakeside in the AGP; 4/5 year old car 3rd at Lakeside behind the Ferrari 246T’s of Amon and Bell (Rod MacKenzie)

Seventh in the series, the highest placed local was a superb result for a small team running a 4 year old car against GP Teams running their latest car.

leo

Leo running wings at the Warwick Farm Tasman round on 9 February 1969. Sydney the teams home base. With very low angle of attack mind you. He chose not to run them at the fast Tasman final round at Sandown the following week. He was 5th in the ‘pissin wet race won by Jochen Rindt’s Lotus 49B Ford DFW, therefore this dry day is practice (Dick Simpson)

39 sndoawn 2

Sandown Tasman practice, 15 February 1969. Running head of Alfie Costanzo’s McLaren M4A FVA. Leo DNS with a fuel tank leak, Alf DNF engine (Rod MacKenzie Collection)

For the 1969 Gold Star Series the 39 was more competitive than in ’68 being  fitted with the latest Repco’730 Series’, crossflow head V8 used in the Tasman, this gave 290bhp@8600rpm. The car was now running wings and whilst less aesthetically pleasing than its earlier form was fast.

39 symmons

Symmons Plains Gold Star 3 March 1969. Leo was 2nd to Kevin Bartlett’s Mildren Alfa (right)  (Ellis French)

Interesting shots at Symmons Plains, Tasmania 3 March 1969 above and below. Both the 39 and Kevin Bartlett’s Mildren Alfa ‘Yellow Submarine’ sporting the hi-wings de-rigeur for the previous 12 months and soon to be outlawed over the Monaco GP weekend a month or so hence. My two favourite ‘Australian’ open-wheelers of the 1960’s albeit not in their most aesthtically pleasing form. Bartlett won the round with Leo second.

Repco ‘730 Series’ Repco V8, notice the steel ‘A-Frame’ to brace the wing supports referred to in the text and wider rear wheels but same sized fronts compared with earlier shots. Tyre widths increased dramatically from cars build in 1965 to 1970.

Locating stays for the 39 rear wing beefier than most, the failure of these in a whole swag of cars, notably the two Lotus 49’s of Rindt and Hill during the 1969 at Montjuich Park, Spanish GP the catalyst for the CSI to mandate changes to wings.

39 symmons 2

Symmons Plains Gold Star 1969, Geoghegan’s Lotus 39 Repco, KB’s Mildren ‘Yellow Submarine’ Alfa behind (Ellis French)

39 bathurst 1969

Bathurst Gold Star round 7 April 1969; Max Stewart Mildren Waggott, Niel Allen McLaren M4A Ford FVA and Geoghegan’s Lotus 39 Repco on pole. Brabham won in his BT31 Repco from the back of the grid with the front row all DNF. An accident took out Stewart and Allen, Leo had a gearbox problem (Wayne McKay)

Kevin Bartlett took the Gold Star championship again using the Mildren ‘Yellow Submarine’, initially Alfa Romeo V8 engined and later in the year in Waggott TC4 valve form. This engine developed by Sydney engineer Merv Waggott is a story in itself, it won Gold Stars for Bartlett, Geoghegan and Stewart in 1969-71 beating 2.5’s and in 1971 F5000’s to the title.

Leo was 2nd with 20 points to Kevins 33 and had reliability but perhaps not the ultimate speed, seconds at Symmons Plains and Mallala Gold Star season highlights for the old beast.

The 39’s day finally arrived 4.5 years after it was built; Geoghegan won the 1969 JAF Japanese Grand Prix in the Lotus from Roly Levis Brabham BT23C FVA and Sohei Kato’s Mitsubishi Colt F2-C 1.6. I covered this great win in an article about Leo last year, click here for the link; https://primotipo.com/2015/03/02/leo-geoghegan-australian-driving-champion-rip/

39 jaf

By 1970 F5000 was adopted as the new Tasman Formula albeit 2.5 litre Tasman cars were also eligible, the smaller cars gave the big V8’s ‘plenty of curry’ in that first year with Graeme Lawrence winning in Chris Amon’s victorious 1969 Ferrari 246T ‘008’. Bartlett took the Warwick Farm round in the 2 litre Mildren ‘Yellow Sub’, another small-car win..

39 sandown paddock

Tractable these Repco’s! Chugging thru the 1970 Sandown paddock. Nice shot showing the 33 style tub, fuel filler in front of dash bulkhead and late ’69-70 wing (Jeff Scriven Collection)

39 sandown

Same day as above with Leo in the red hat alongside his mount. Hard to see but front suspension is top rocker, lower wishbone and inboard spring/damper actuated by rocker (Jeff Scriven Collection)

Geoghegan raced the Australian rounds only for 7th at Surfers and Warwick Farm, he was DNF at the Sandown final round.

Into the domestic 1970 season Leo raced the car in the first Gold Star round at Symmons Plains, here below he shares the front row of the grid with John Harvey’s red Brabham BT23E Repco and Kevin Bartlett’s Mildren Waggott ‘Yellow Submarine’. KB’s absence racing in the US for much of the year took out a tough adversary in 1970.

39 symmons 2

Gold Star round 1 1970. Symmons Plains 2 March 1970. John Harvey won in his #2 Brabham BT23E Repco from Leo obscured this side and Bartlett’s #5 Mildren Waggott (autopics.com)

The last significant meeting in which the 39 raced was the March Easter Bathurst meeting in which Niel Allen’s McLaren M10B Chev F5000 car set a lap record which stood for decades. ‘Outright’ open-wheelers have not raced at Mount Panorama given the speeds of the cars and inherently dan gerous nature of the circuit as it was then. And still is, despite huge improvements in circuit safety.

39 bathurst 1970

Easter Bathurst 1970, contrast this shot with the hi-wings from the year before above. John Harvey’s #4 Bob Jane Brabham BT23E Repco ‘830 Series’ Repco V8, Leo’s 39 Repco ‘730 Series’ V8 and Niel Allen’s obscured McLaren M10 B Chev F5000 (Rod MacKenzie Collection)

59 wf

Leo in the new Lotus 59 Waggott, Warwick Farm’s Pit Straight 1971 (oldracephotos/Schell)

Whilst the 1970 Tasman series was run to F5000 the Gold Star Series in an interesting piece of CAMS (Confederation of Australian Motorsport) decision making driven by politics was run to the 2.5 Tasman Formula.

From Leo’s perspective the path was clear; the circa 275bhp 2 litre Waggott engine was powerful, light, reliable and better still would bolt straight into the back of the Dave Baldwin designed F3/F2 Lotus 59. As the Lotus importer, the core of the Geoghegan’s business road cars of course, his preference was a Lotus which could win the title, his F5000 options were a domestic season away.

59 op

The Geoghegan’s cars; Leo’s and Pete’s Touring cars were always beautifully presented, giving the sponsors great exposure. Here the 59 Waggott, in Castrol colors. As beautifully integrated a package as the 39 Repco in its ‘740 Series’ Repco days. Oran Park Gold Star round, 27 June 1970 (Lynton Hemer)

The 59 already had a successful season of racing in Europe with Emerson Fittipaldi taking the 1969 British F3 title and Jochen Rindt and Graham Hill winners in European F2 events; 4 rounds for Jochen and 1 for Graham. In essence the engine and chassis were a proven package.

And so it proved to be; Leo took wins at Warwick Farm and Mallala and seconds at Oran Park and Symmons Plains when the ‘old lady’ 39 held together and scored 6 valuable points…

leo oran park

Leo G during tyhe driver parade before the 27 June Oran Park 1970 Gold Star round won by Max Stewart (Lynton Hemer)

Leo Geoghegan’s Later Open-Wheeler Career…

This article was to have been a ‘quickie’ around the few shots at the start  but as usual i have  ‘rabbited on’.

The article isn’t intended to be a Leo G whole of career one, the focus was the Lotus 39. Leo raced the Lotus 59 Waggott on into 1971, that chassis is still in Australia, i will write about it separately.

Geoghegan was a factory driver for Chrysler, as covered in the other article link provided earlier, he developed and raced Valiant Pacers and Chargers for the Tonsley Park, Adelaide based company in the incredibly popular Series Production (showroom stock essentially) races which proliferated, like a disease, in Australia in the late 1960’s, the growth of ‘Taxi Racing’ in Oz remains undiminished and omnipotent.

274

Leo at Oran Park, ‘works’ Grace Bros sponsored Birrana 274 Hart Ford 1974. Jewels of things, fast ones. Aluminium monocoque chassis, Hart Ford 416B injected, often ‘ally blocked, Twin-Cam circa 205bhp, Hewland FT200 5 speed ‘box (oldracephotos.com/Peter Schell)

But Leo was a ‘died in the wool open-wheeler man’ and accepted a works drive with Adelaide’s nascent Birrana Engineering; Malcolm Ramsay and engineer Tony Alcock built some fabulous cars in three short years which turned upside down the local single-seater market, the jewel like cars winning the Australian F2 Championship from 1973-1976.

Leo took two of the titles in 1973 and 1974, finally retiring from single-seaters at the end of 1974. He went out with a bang though. The 1974 AF2 Championship was one of the most closely contested and competitive openwheeler championships in Australia ever. ‘Van Heusen’ shirts tipped in good sponsorship and established F5000 aces and young thrusters made for some sensational racing. But wily Leo, at 38 still very fast took the title by 4 points from Aussie International Bob Muir in another Birrana.

Birrana Cars is a story for another time.

John Sheppard on Leo as a driver; ‘He was incredibly fast, as good as anyone he competed against capable of just not keeping up with but beating world champions. Leo in a way kept to himself, Pete was more ‘one of the boys’ so Leo and i didn’t discuss his career aspirations but he got a lot of satisfaction from racing with the drivers that he did; world class drivers. He was very precise, Pete would throw around what he was given, Leo used the same bit of road lap after lap, very consistent, precise and fast’.

R12 in Modern Times…

Leo focussed on the 59 but gave Formula Vee ace Bernie Haehnle a test of the 39 in the wet, at Amaroo Park in May 1970. With predictable results, poor Bernie took the left-rear corner off the car. The difference from a 40bhp Rennmax FV to 280bhp Tasman car in the wet would have been marked!

39 after Bernie Haehnle’s Amaroo Park 1970 shunt (D Simpson)



39 wf 1970

Leo G, 1970 Gold Star champion in his old car later in the year at Warwick Farm. 22 November. Lotus 39 Repco (Dick Simpson/oldracephotos.com)

The car was tidied up visually, Leo gave it a run at Warwick Farm late in the year in its original color scheme but still running a Repco engine, it was then offered for sale. The Repco engines on loan were returned to Melbourne and those owned by the Geoghegans sold. Australia’s sports-racing car fields were the beneficiaries of a surplus of ‘cheap’ 2.5 litre Repco V8’s; two Elfin 360’s and  two Rennmax’s  specifically.

39 winton

Darryl Pearsall’s Lotus 39 Ford Twin-Cam ‘R12’ in the Winton, Victoria paddock in 1973/4 (oldracephotos.com)

The long racing life of R12 continued on for a year or so as an AF2 car, Darryl Pearsall the new owner. F2 then was a 1.6 litre, 2 valve class effectively mandating the Lotus/Ford Twin Cam. The car was fitted with a Twin-Cam and when sold was purchased by John Dawson-Damer for his superb collection of Lotus’s in 1976.

The car was restored to its original Coventry Climax FPF engined form and fortunately when sold after JDD’s death and realisation of some of his collection remained in Australia, fitting given the cars Australian history. It lives in Tasmania loved to bits by a lifelong Jim Clark fan, Chas Kelly.

39 restored

Lotus 39 Climax ‘R12’ at the Longford Revival Meeting in April 2011. Restored but not over-restored, a balance we tend to get right in this country! (Ellis French)

Etcetera…

Clark Lotus 39.

39 longford 3

Longford front row 1966. #1 Clark’s Lotus 39 Climax and the two BRM P261’s of Hill #2 and Stewart beside the fence (Ellis French)

clark wf 1966

Clark and mechanics looking typically relaxed during the Tasman. Here at Warwick Farm with R12. February 1966 (unattributed)

Click on this link for a lovely story related to the photo above about the ’66 Tasman.

https://open.abc.net.au/explore/45668


Geoghegan 39.

geoghegan portait

Leo G portrait circa 1963. Colors on helmet ‘Team Total’, the French oil company a strong supporter of motor racing in Australia at the time. Lotus 22 or 27 (Ray Berghouse)

lotus 39 sandown

Sandown Park paddock, Tasman ’67. Leo finished 2nd to Clark’s Lotus 33 Climax FWMV 2 litre V8 in ‘The Sandown Cup’. Nice shot shows the car in its Coventry Climax FPF engined/Castrol Racing colors. This is 26 February 1967, the Repco V8 was installed that April (Mike Feisst/The Roaring Season)


This is a nice shot of the 39 of the Repco 740 Series V8 installation, Surfers Tasman round in February 1968. Cooper S is that of top touring car driver John French (Rod MacKenzie)

39 sandown paddockl

These days the crowds are all over the ‘Taxis’, in the days of yore the focus was where it should be, on fast open-wheelers! Sandown paddock, am guessing Tasman Meeting 1969 (Jeff Morrall)

39 wf

Leo’s Lotus dips under brakes for Creek Corner at the end of Hume Straight in 1970 (Lynton Hemer)

39 repco engine

Lotus 39 business end in its Repco ‘740 Series’ 2.5 V8 days. 275bhp@8500rpm, the engine weighed 345lbs/157Kg. Gearbox Hewland HD5. Note Repco logo on LH cam cover, Smiths tacho drive on the RH cam cover. Lucas fuel injection, Bosch distributor between the Vee. 1967/8 (John Stanley)


Bibliography…

Thanks very much to John Sheppard for his time and recollections

Graham Howard and Ors ‘History of The Australian GP’, oldracingcars.com

Photo Credits…

Vintage Racecar, oldracephotos.com, Peter Schell, Dick Simpson, Bruce Wells, Habu, Mike Feisst/The Roaring Season, Lynton Hemer, Rod MacKenzie, Ellis French, John Stanley, Paul Hobson, Wayne McKay, Jeff Scriven Collection, Ray Berghouse, David Mist, John Sheppard, Brian McInerney, Jeff Nield/autopics.com.au, Tony Loxley ‘Tasman Cup’, Peter Windsor, Ian MacNeill

Tailpiece: Leo takes Miss Queensland for a squirt around Lakeside in the family Lotus 23 Ford. Brother ‘Pete’ raced this car, not certain of the date, but 1965’ish…

39 babe



jaf gp 1969

Leo Geoghegan victorious in the 1969 JAF (Japan Automobile Federation) Grand Prix. Lotus 39 Repco.

One of Australia’s racing greats of the 1960’s and early 70’s, Leo Geoghegan died of cancer aged 78 on 1 March…

Leo won the Australian GT Championship in 1960, (Lotus Elite) the Australian Formula Junior Championship in 1963 (Lotus 22 ) the Australian Drivers Championship, the coveted Gold Star in 1970 in Lotus 59 Waggott and the AF2 Championship in Birranas’ 273 and 274 in 1973 and 1974.

Internationally he won the JAF Japanese Grand Prix in his Lotus 39 Repco in 1969. It was in this car, raced by Jim Clark in the 1966 Tasman Series in which Leo stepped into the premier 2.5 litre ‘Tasman’ class, initially Coventry Climax powered and later with Repco V8’s that Leo more than held his own against the visiting Internationals in what was progressively an older car.

The Geoghegans’ held the Lotus franchise in Australia for many years, it was in a new Lotus 59 powered by one of Merv Waggotts’ 2 litre DOHC engines in which Leo finally won the Gold Star in 1970 after years of plugging away in the evergreen ’39.

leo g wf

Hamming it up for photographer Bruce Wells at Warwick Farm, before the ‘WF 100’ Tasman round February 1966. (Bruce Wells)

Leo and his brother Ian or ‘Pete’ were crowd favourites throughout the 60’s in particular, Leo mainly in open wheelers and Pete in Touring Cars in which he was 5 times Australian Champion.

Most of you outside Australia (85% of you by the way) won’t be aware of the Geoghegans’, this lovely period movie by Castrol ‘The Racing Geoghegans’ positions them nicely into the pantheon of Australian Racing in their day.



Leo was concentrating more on Touring Cars as the lead tester/driver for Chrysler into the early ’70’s in their Valiant Pacer/Charger ‘Series Production’ program but returned to open wheelers when offered the ‘works drive’ by Birrana’s Malcolm Ramsay, these jewel like cars a story in themselves, in AF2 in 1973 and in 1974.

The 1974 AF2 series was one of the most competitive domestic Australian open wheeler championships ever (series sponsorship attracted both the top up and comers and F5000 stars) Leo winning the title against the very best…to watch him in these cars, I didn’t get to see him in his Tasman days, was to see a bloke at the top of his game, a very smooth, precise line driver and aggressive with it. His battles with Bob Muir in another Birrana in ’74 spring to mind especially a very soggy Calder. A magic driver for sure.

leo g lotus 32

Leo in the ‘Warwick Farm 100′ Tasman round February 1966. He finished 7th in the 1.5 litre Ford/Lotus engined Lotus 32. Race won by Jim Clarks’ Lotus 39 Climax, the car Leo acquired at the end of the series. (Bruce Wells)

Ray Bell ‘in period’ journalist with ‘Racing Car News’ had this to say about Leos’ commitment and precision, writing in ‘The Nostalgia Forum’ in 2002.

‘It’s time to look at Leo a little more closely. Maybe at Warwick Farm, his real home circuit and in the Lotus 59, equipped with a nice toey Waggott TC4V engine and good enough to win him the Gold Star… let’s wander over to Homestead Corner… the cars are whistling through, taking that line that clips the two apexes and is so important for their speed down Hume Straight.

Lap after lap, Leo is precise and fast. But look there, on the outside edge of the circuit, where he drifts to between the apexes… see the white line, and then the drop of two inches or so where the bitumen’s been laid over an old entry road? Watch Leo’s rear tyre as he drifts out there…

The wheel had only a couple of inches on the white line… the rest of the tyre was hanging out there with two inches between the tread and the bitumen… two inches from disaster at that speed… every lap!’

One of the greats. RIP.

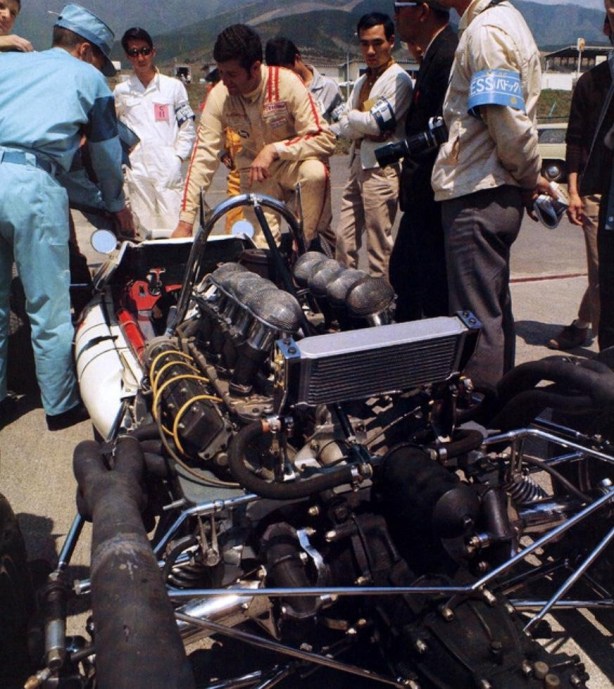

leo fuji speedway

Leo G in the racesuit, Fuji paddock JAF GP 1969. Lotus 39 Repco. Engine here is Repco ‘830 Series’ 2.5 Tasman V8, the ‘ultimate version’ of the Tasman Repcos’ , circa 295bhp@9000rpm. Packaging of this later Repco engine not as ‘neat and cohesive’ as the exhaust between the Vee ‘740 Series’ pictured below. (Unattributed)

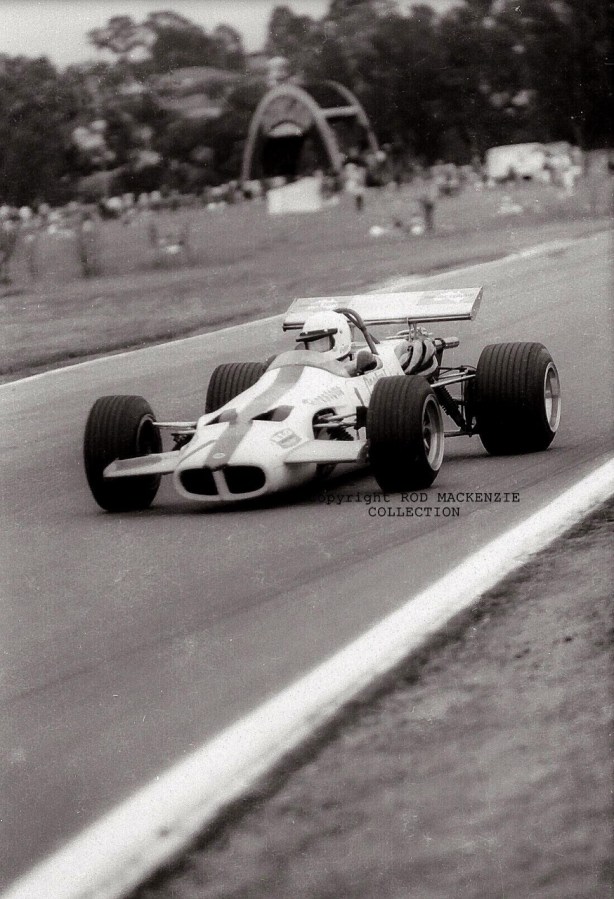

lotus 59

Leo in the Lotus 59 Waggott at WF approaching the ‘Northern Crossing’. AGP November 1970. 3rd in the 2 litre Lotus behind the winning Frank Matich McLaren M10B Repco F5000 and Graeme Lawrence’2.4 litre  Ferrari Dino 246T. (Rod Mackenzie Collection)

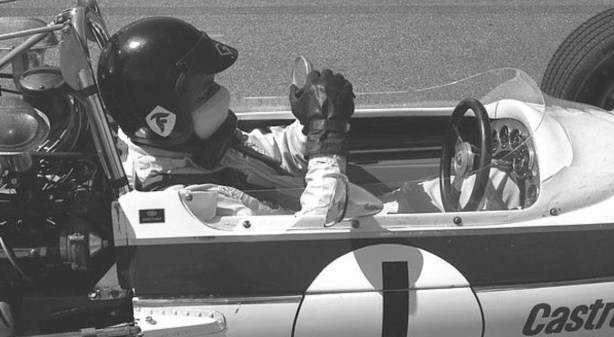

lotus 39 stanley

Quintessential combination for many years, Leo G and Lotus 39 Repco…1969. (John Stanley)

leo g

Wonderful portrait of Leo G by Rod MacKenzie in 1970. (Rod MacKenzie Collection)

Tailpiece…

Wonderful ‘Alec Mildren Racing’ film about the 1969 JAF GP won by Leo Geoghegan and contested by several Australians including the Mildren Racing pair, Kevin Bartlett and Max Stewart.

Etcetera…

lotus 32 hordern trophy

Black helmet and black T-Shirt…Leo G Lotus 32 Ford 1.5, Hordern Trophy, Warwick Farm December 1964. This was a huge win, the little 1.5 beating the big 2.5 Climax engined Tasman cars in this ‘Gold Star’ round. (Richard Austin)

leo and jackie wf

Leo G (left) & Jackie Stewart Warwick Farm Tasman round February 1967. JYS won the race in his BRM P261, Leo 5th and holding the trophy for first local resident home in his Lotus 32 Ford 1.5. (Dale Harvey)

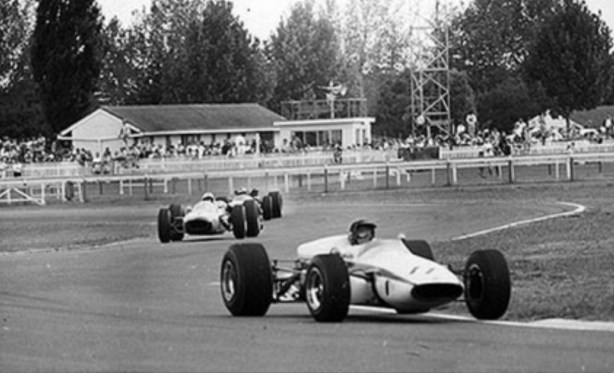

leo wf tasman 1967

Leo, Lotus 39 Climax heading for 5th place during the 1967 ‘Warwick Farm 100’ Tasman round, Kevin Bartlett? perhaps behind, Brabham BT11A Climax 6th. (Unattributed)

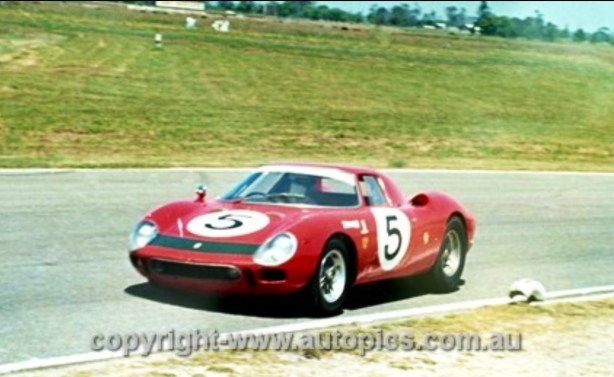

geoghegans surfers 1968

Leo and Pete Geoghegan won the Surfers Paradise 6 Hour in 1968 in the Scuderia Veloce Ferrari 250LM

mr annual

Leo G in his Lotus 39 Repco & Chris Amon Ferrari Dino 246T on the cover of MRA 1968. In this form the car was about as good as a 60’s open-wheeler looked. The conversion from Coventry Climax 2.5 FPF to Repco ‘740 Series’ 2.5 Tasman V8 was done by Geoghegans’ crew lead by John Sheppard, the marriage between chassis and engine superbly executed.

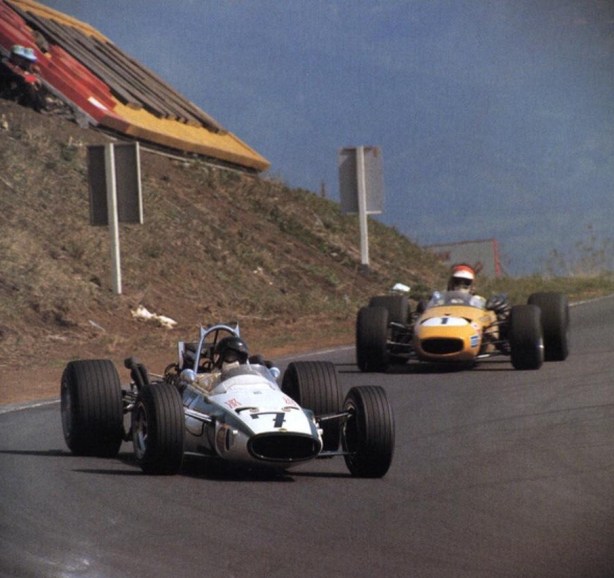

leo and max jaf gp

Leo Geoghegan leading his compatriot Max Stewart during the 1969 JAF GP. Lotus 39 Repco 2.5 & Mildren Waggott 1.6. Race was F Libre. (Unattributed)

lotus 59 wf

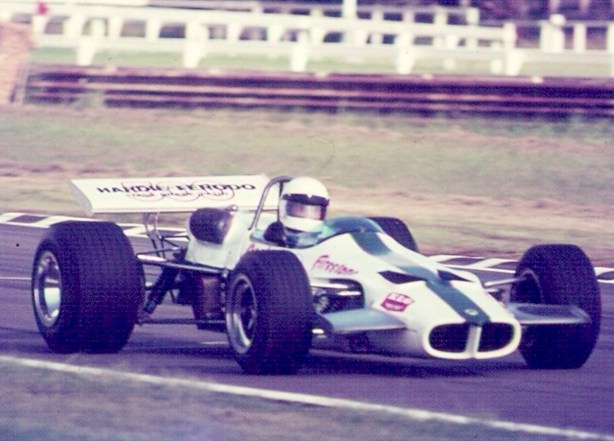

Leo campaigned this Lotus 59 Waggott in 1970 and 1971, winning the Gold Star in the 265bhp 4 cylinder, DOHC injected four valve engined car in 1970. Here at Warwick Farm (lyntonh)

leo charger 1971 wf

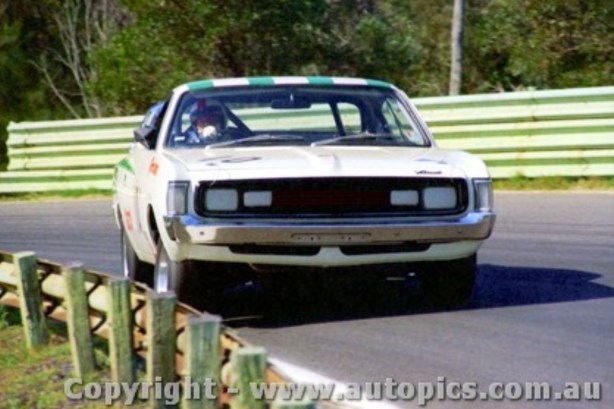

Geoghegan manhandling his Chrysler Valiant RT Charger around Warwick Farm in October 1971. These cars were powered by 265cid in line 6 cylinder OHV, triple Weber 45DCOE engines…together with the Ford Falcon GTHO and Holden Torana GTR XU1 comprised a much loved period of Touring Car racing in Australia. Shortcomings of the Charger were its 3 speed ‘box, 4 speeder from 72’ and under-developed relative to the opposition. Leo G chief test driver/developer and lead driver for Chrysler, cars built at a long since closed factory in Tonsley Park, Adelaide. (Jeff Nield)

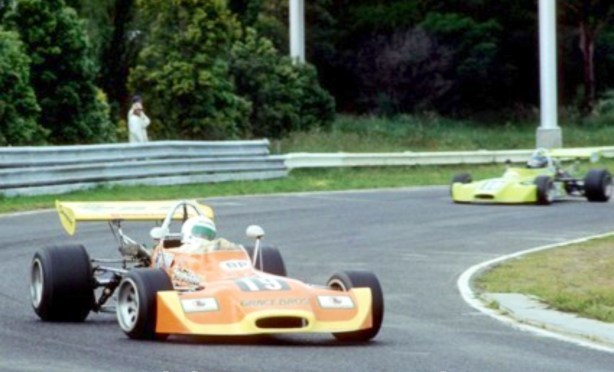

leo and enno birrana 273

Leo Geoghegan and Enno Buesselmann, Sandown 1973. Both Birrana 273 Hart Ford T/cam. (autopics)

Photo and Other Credits…

Bruce Wells, theroaringseason.com, lyntonh, Dale Harvey, autopics.com.au, John Stanley, Rod MacKenzie Collection

The Nostalgia Forum, RayBell, Motor Racing Annual
