Posts Tagged ‘1966 Tasman Series’

(M Williams)

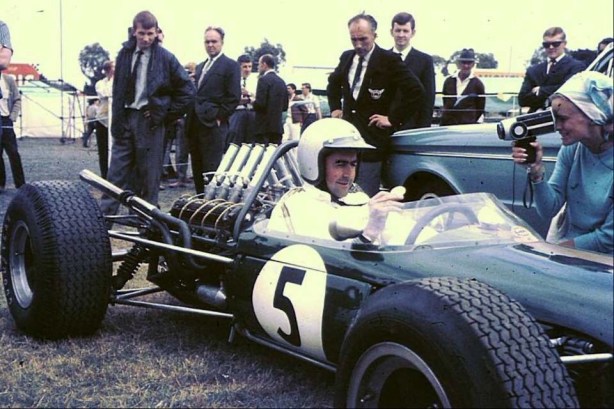

Jack Brabham in his 1966 F1 Championship winning Brabham BT19 Repco during the Sandown Tasman weekend, 27 February 1966…

The pretty little poppet with the camera is far more attractive than the RBE crew from the factory in Richmond/Maidstone. I guess she has been dispatched from Repco HQ in St Kilda Road to catch all the action. Which rather begs the question, what became of the footage missy captured?

The car is powered by a new Repco Brabham Engines ‘620 Series’ 2.5 litre V8- the motor in 3 litre capacity made its race debut in South Africa on 1 January. BT19 was a very busy car in 1966 and well into 1967.

I’ve done this story to death of course, here on the engine; https://primotipo.com/2014/08/07/rb620-v8-building-the-1966-world-championship-winning-engine-rodways-repco-recollections-episode-2/

and here on Jack’s 1966 season; https://primotipo.com/2014/11/13/winning-the-1966-world-f1-championships-rodways-repco-recollections-episode-3/

but these two photos were too good not to share.

Jackie Stewart and Graham Hill created a BRM sandwich for Jim Clark that ‘Sandown Park Cup’ weekend- second in his Lotus 39 Coventry Climax FPF, the BRM lads were aboard 1.9 litre P60 V8 engined P261’s. Jack was out on lap 6 with a failed oil pump causing substantial engine destruction.

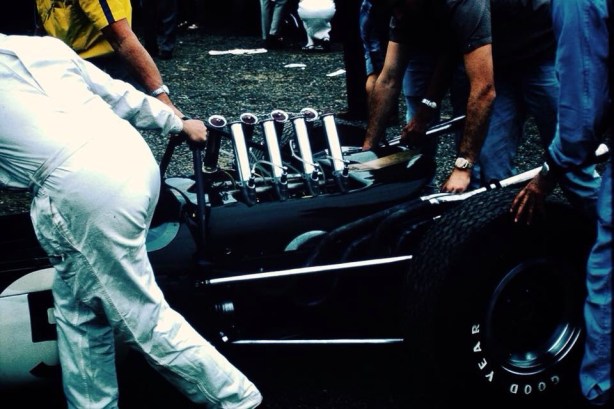

That is RBE620 ‘E2’ 2.5 in its engine bay. Over the next 12 months or so it would have no shortage of Repco RB620, 640 and 740 V8’s popped into and out of it (M Williams)

As is well known, the one and only Brabham BT19 ‘F1-1-65’ was built by Ron Tauranac in 1965 to suit the dimensions of the stillborn Coventry Climax FWMW 16 cylinder engine and lay unused until pressed into service as the first car into which the Repco RB620 V8, designed by Phil Irving, was installed.

Utterly conventional in design, Jack put the light, chuckable car to rather good use throughout 1966- see Werner Buhrer’s outline and drawing of the car below.

Etcetera…

I’d actually finished this piece and then cruised through my archive and noticed how many other photographs I had of this particular weekend.

Some are only of ‘proof quality’ recently posted by Repco-Brabham engineer/racer/historian Nigel Tait, but they are still valuable to share to document RBE history.

So here they are, in sort of chronological order…

(N Tait)

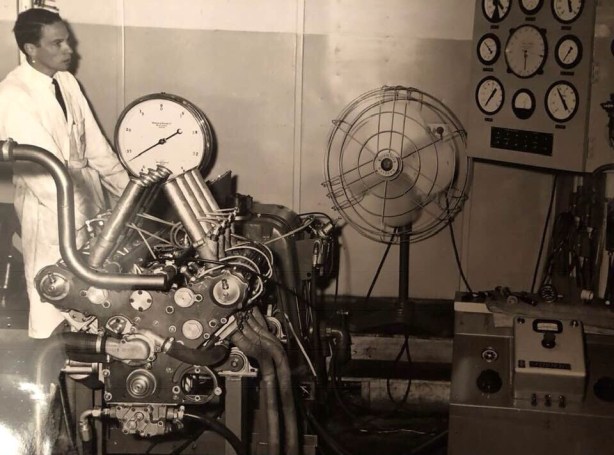

Mike Gasking giving an RBE620 2.5 a whirl in the Richmond test cells in late 1965- is it the engine in Jack’s car at Sandown?- more than likely it is ‘E2’ with those long inlet trumpets, yes.

Gasking was in on the ground floor- he was apprenticed at Repco and was involved in building and testing Jack’s Coventry Climax FPF engines and then throughout the Repco Brabham Engines period to its end.

Dyno is a Heenan & Froude GB4 which remained in Richmond for a while before being transported to RBE’s new digs at 87 Mitchell Street, Maidstone- this move took place in the early weeks of January 1966.

(N Tait)

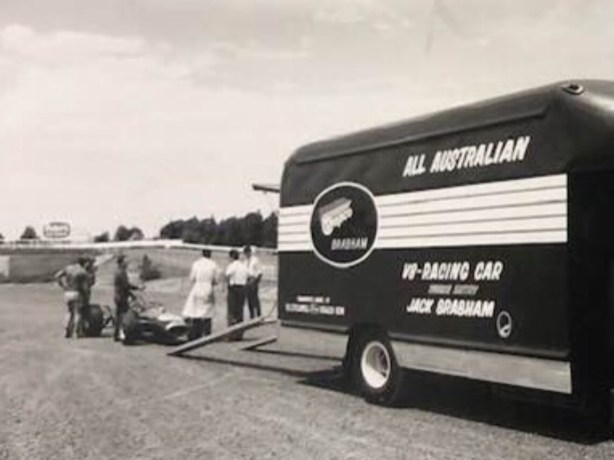

Off she rolls from the truck, ‘Peters Corner’ and the start of the run up the back straight in the background.

BT19 has been a busy already. Fitted with a 3 litre RBE620 V8 the car was shipped to South Africa from the UK fitted with engine # ‘E3’ for the non-championship GP at Kyalami on 1 January.

Phil Irving describes the 3 litre engine as ‘…built up from scratch, with the cylinder heads as drawn for the original 2 1/2 litre, except that the inlet ports were enlarged and re-shaped to improve gas-flow and throttle-slides as developed for the 2 1/2 litre engine, were used. After assembly and short running-in, full power tests returned an output of 310 bhp (in his book Malcolm Preston quotes 280 bhp @ 7500 rpm with 310 bhp achieved several months later)…there was just time for an afternoon shake-down run (Goodwood) before the car was loaded onto the boat (to South Africa)…’

That SA GP was won by the works Lotus 33 Climax 2 litre FWMV of Mike Spence, Brabham retired when the fuel-injection pump seized having set pole and led for all but the last nine of the sixty laps.

BT19 was then air freighted to Melbourne’s Essendon Airport and trucked to Richmond where the 3 litre ‘E3’ was removed and the 2.5 litre ‘E2’  installed for the Sandown.

Many of you will recall Roy Billington, front and centre below, as a Brabham Racing Organisation mechanic for many years. All of Nigel Tait’s Christmases have come at once- he had just commenced at Repco as a graduate Cadet Engineer, his first assignment looking after Brabham’s new car- it does not get better than that at 22! Phil, leaning on the Lukey exhausts with ever-present fag in his mouth!

(N Tait)

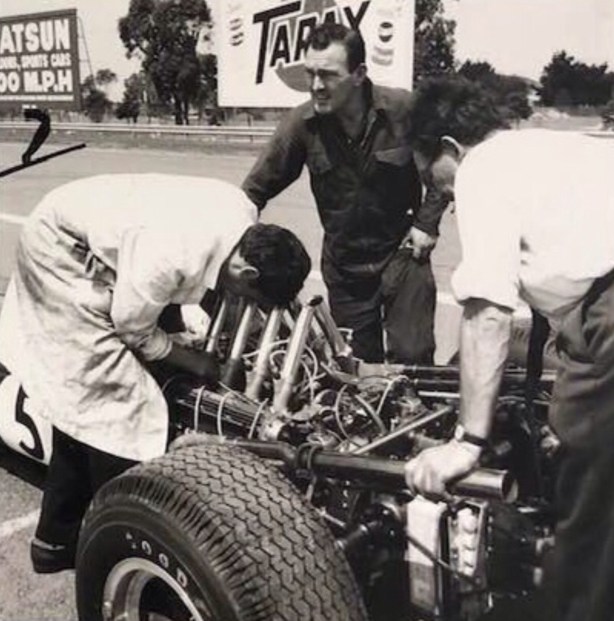

Nigel Tait, Roy Billington and Phil Irving are fussing over ‘RBE620’ 2.5 ‘E2’ In the Sandown paddock on the Thursday or Friday prior to the meeting.

Plenty of pressure, it was the home teams first home race resulting in a massive crowd turnout of 55,000 people on raceday to see Brabham and his ‘all-Australian’ racing car make its local debut.

Irving quotes over 250 bhp was given by the 620 2.5 litre- not much greater than the FPF but the V8 had good mid-range torque and could be revved past it’s power-peak without self-destruction, unlike the short-stroke FPF’s which tended to be rather brittle if over-revved by even a smidge.

(N Tait)

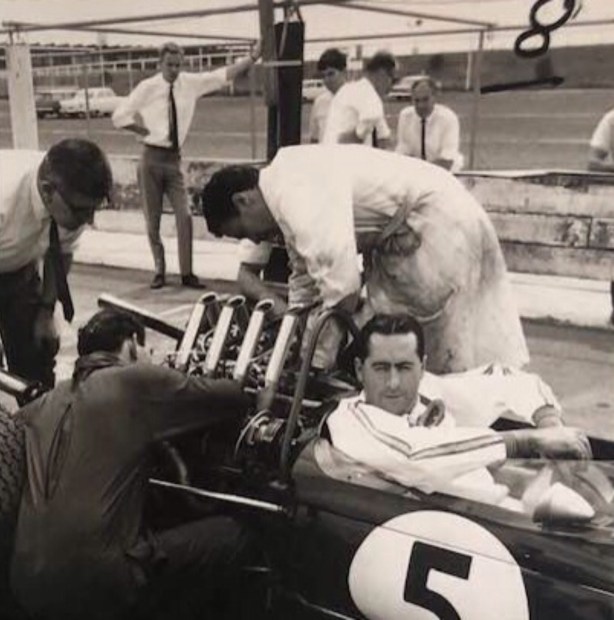

Frank Hallam now joins in the fun between the exhausts- left to right Hallam, Billington, Tait, the very obscured Irving and Black Jack. On the pit counter beyond is lanky Norman Wilson, Peter Holinger, a nun identified fellow and Bob Brown, a Repco Ltd Director.

The sergent.com race report has it that the car was troublesome during practice, with 30 bhp being found overnight to put Jack right in amongst the front-running BRM’s of Stewart and Hill. Nigel recalls Phil getting cross with him on the race weekend , ‘We were working on the throttle slides on the BT19 the night before the Sandown meeting and it turned out to be a very long and late night. I went out to the all-night hamburger place and bought one for Phil but he spat it out. How was i to know he didnt like onions?- a great bloke and very clever’.

(I Nicholls)

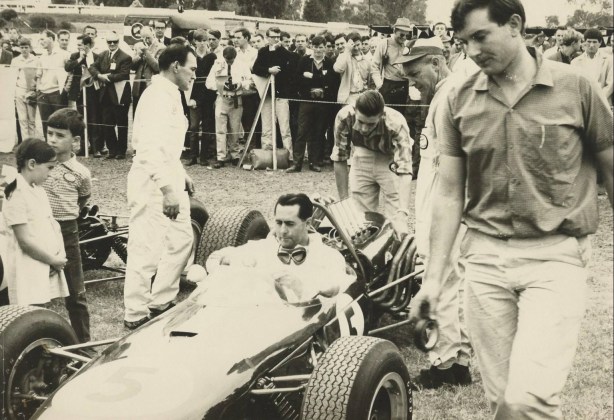

Look at that crowd! Kidlets, Billington- who is the guy in the cap who always looked after Jack whilst he was in Oz and is in ‘all’ the shots?, Nigel Tait at right having cast aside his grotty lab-coat.

At Sandown Jack set a new lap record in his heat, the Exide Cup- the results of two heats determined grid positions.

The Tasman race engine seizure occurred in ‘…that the start of the race was delayed and everyone started with cold engines. The Repco V8’s oil-pump relief valve failed on the first lap (actually the sixth lap according to the various race reports) of the race the oil pressure went up to 160psi, the pump gears stripped and the engine locked up at about 7000 rpm’ according to Phil Irving.

Tait recalls ‘That night…I had the task of removing the pump and dismantling it. Frank Hallam and his wife Norma were there as was Phil’.

The oil pump gears were from a Fordson Major tractor out of an FM diesel model- they were amongst some components from proprietary vehicles used in RB620- which from that day were not sintered but machined from steel.

Rodway Wolfe noted that ‘I remember on the Monday after that Sandown race…when I arrived at the Maidstone factory at 8 am the drawing of the oil pump gear with new specifications was on Kevin Davies, the Admin Manager’s desk. Phil had made the modifications overnight. He (famously) didn’t keep the same hours as other management but he didn’t knock off at 5.30 pm like other management either!…’

‘Frank Hallam arranged for new steel gears to be made while Roy Billington helped me to remove and dismantle the engine. We found two crankpins were badly overheated and the crank was bent, so the crank and the main bearings were replaced, but fortunately the pistons, rings and cylinder liners were undamaged.

Although changing the crankshaft entailed almost completely dismantling the engine, the timing case and oil pump could be handled as units and we had the engine re-assembled with new pump gears and brake-tested by Tuesday afternoon. We stuck it in the car that night and it went off to Tasmania on the Wednesday (to Longford)…’ Phil wrote.

(T Brandt)

Jim Clark and Jack saunter through the Sandown paddock. Not the greatest of weekends for either!

In Jim’s case the 2.5 litre Coventry Climax FPF engine in his Lotus 39- which had been the motor of choice in the Tasman series since its inception in 1964 was now being found wanting by the V8’s of BRM and Repco.

Clark returned the following year with Lotus having taken a leaf out of BRM’s book- their 1967 weapon was a 1.5 litre F1 Lotus 33 fitted with a 2 litre Coventry Climax FWMV V8, with which Jim took the 1967 title convincingly from BRM and Repco Brabham.

(T Brandt)

And again above…meanwhile below the boys are about to pop the car into the truck for the drive back to Richmond and overnight checks before the start of official practice.

‘The start’ of a rather fruitful partnership wouldn’t you say…

Credits…

Max Williams & Nigel Tait Collections, Tony Brandt, Ian Nicholls, sergent.com, ‘Phil Irving: An Autobiography’

(N Tait)

Finito…






































Jackie Stewart’s BRM P261 is pushed onto the Longford grid by Jimmy Collins and Stan Collier on 5 March 1966…

The race is the ‘Launceston Examiner Trophy’, the preliminary Longford Tasman round race, Jackie is being moved onto ‘pole’.

Jackie won the main race, the ‘South Pacific Trophy’ on the Monday from his teammate Graham Hill and Jack’s Brabham BT19 Repco- the new Repco ‘620 Series’ V8, 2.5 litres in Tasman spec having its third race and gearing up for his successful world championship assault that year.

For the BRM boys it would be a more character building F1 year, mind you, Jackie took a great Monaco GP win in his nimble 2.1 litre P261 against the new 3 litre GP cars.

Stewart glides his BRM into Mountford Corner. Note the crossflow ‘inlet between the Vee’ spec of this P60 engine- the more ‘typical’ engine had the exhausts within the Vee(oldracephotos.com.au/DKeep)

In terms of the 1966 Tasman Series it was a BRM rout, the 1930cc P60 versions of the 1.5 litre P56 V8 engined cars won seven of the eight rounds- JYS took four and the title (Wigram, Teretonga, Sandown, Longford) Graham Hill two (NZ GP Pukekohe, AGP Lakeside) and Richard Attwood one (Levin). Jim Clark won the other round, the ‘Warwick Farm 100’ in his Climax engined Lotus 39.

The days of a Coventry Climax FPF winning the Tasman were over- from 1966 to 1970 the 2.5 Tasman Series was dominated by ‘multi-cylinder’ V6 and V8 engines of F1 and F2 extraction.

Lindsay Ross of oldracephotos captured the feeling at the time, ‘After his win at Longford in 1966, a lot of Tasmanians were now aware of Jackie Stewart and i, along with no doubt many other enthusiasts,began following his career.’

‘The podium shot has him shaking hands with Tasmanian Premier ‘Electric’ Eric Reece- he was the driving force behind Hydro-Electric power in the state. He also made sure the Longford roads were laid with the finest hot mix bitumen available. Ron MacKinnon of the Longford Motor Racing Association has the microphones- he owned much of the land around the Longford track.’

Jim Clark, Lotus 39 Climax in front of his fellow Scot at The Viaduct in 1966 (oldracephotos.com.au/DKeep)

Credits…

Spencer Lambert, Ray Bell, Tasmanian Motorist Magazine, Lindsay Ross, oldracephotos.com.au-David Keep

Tailpiece: Stewart, BRM, The Viaduct…

Stewart wheels his BRM into the left-hander under the famous Longford Railway Viaduct, a tricky, fast on approach, downhill corner with minimal run-off area should the pilot goof. Note the spectators on the hill and alongside the railway line at the top.

Finito…

39 esses

(Vintage Racecar)

Leo Geoghegan slices his venerable Lotus 39 Repco into the Warwick Farm Esses, Tasman Series, 15 February 1970…

Terrific shot, the focus is on the driver, the rest of the car blurred giving the impression of speed, something Geoghegan had in abundance.

Leo ‘made his name’ in this car, he was a front-runner from the time he bought it off Team Lotus at the end of the ’66 Tasman Series; Jim Clark was third in it, until the time it was put aside to make way for his Lotus 59 Waggott later in 1970.

geoghegan agp 1963

Faster! Deep in thought on chassis changes with his very hot mechanic, AGP practice 10 February 1963. Lotus 20 FJ 1.5 Ford 9th just behind Frank Matich in the quickest of the 1.5’s. Winner Brabham in a BT4 Climax 2.7 (David Mist)

Geoghegan had a long background in Lotus single-seaters after he graduated from sedans and sportscars in the team his father, Tom founded. Starting with an 18FJ in 1961 he progressed through 20, 20B, 22, 27 and then a 32, which, when fitted with a 1.5 Ford Lotus Twin cam engine gave him two 2nd placings in 1965 Gold Star events. He stepped up to the ‘big time’ with the Tasman Lotus 39.

32 wf

Leo G on his way to 8th in the little Lotus 32 Ford/Lotus 1.5, ‘Warwick Farm 100’ Tasman Series, 14 February 1965 (Bruce Wells/The Roaring Season)

The ‘old girl’ Lotus 39 was frustrating in many ways, its unreliability, like other Repco Tasman users, was notorious, but it gave him the critical 6 points at Symmons Plains in March 1970 before he switched to his new Lotus 59 Waggott. This won him the Gold Star he coveted and deserved…by 6 points from Max Stewart’s similarly powered Mildren. Max’s Gold Star turn would come for the first time in 1971.

39 bathurst

Easter Bathurst Meeting, 15 March 1970, thru ‘The Dipper’. Lotus 39 Repco (Jeff Nield/autopics.com.au)

Lotus 39 ‘R12’….

The Lotus 25/33 series of cars are amongst motor racing’s most famous, the Lotus 25 the first ‘modern monocoque’, Jim Clark took the 1963 and 1965 World Championships’ in Loti’ 25 and 33 respectively.

The 39 is one of this series of cars and like Jack Brabham’s 1966 championship winning BT19 chassis was built for the stillborn Coventry Climax FWMW Flat-16 engine.


Coventry Climax FWMW 1.5 litre Flat-16 engine of 1964/5 (unattributed)

The story of this amazing engine is an article in itself; in a nutshell CC’s Wally Hassan and Peter Windsor-Smith were convinced the best route to more power was higher revs (than their FWMV V8) a ‘multi’ was chosen partially due to Harry Mundy’s exposure to the BRM Type 15 supercharged V16 in the dawn of the fifties. Design commenced in 1963, the prototype was on the test bench in 1964.

Torsional problems of the crank were major issues, the engine also failed to deliver more power than the 4 valve versions of the FWMV, which themselves took a bit of development to better the FWMV 2 valve outputs. Then the 1.5 litre GP formula ended and Jaguar took over Coventry Climax; that combination of factors ended CC’s pivotal role as a successful supplier of racing engines for better than a decade.

39 longford

Graham Hill’s BRM P261 leads Clark’s Lotus 39 Climax and Jack Brabham’s Brabham BT19 Repco off Long Bridge, THAT post in front of GH’s LF wheel marks the apex…Wonderful Longford 1966 (autopics.com.au)

Colin Chapman needed a mount for Jim Clark to defend his Tasman title, he won it in 1965 with a Lotus 32B Climax, the unused 39 sitting in the corner of the Team Lotus workshop was ideal.

He tasked designer Maurice Phillippe to modify the engine bay of the car to accept a Coventry Climax 2.5 litre FPF engine. The 39 was different from its siblings in that the ‘D-shaped’ side pontoons of the chassis were ‘chopped off’ at the bulkhead aft of the drivers seat and a tubular steel subframe substituted to carry the CC Flat-16. Changes were made to the frame to accommodate the FPF.

Big thirsty Weber 58DCO carbs fed 2.5 Climax FPF. The frame to support the engine can be seen as can the rear of the Hewland transaxle (I MacNeill)

The 39 side pods also had a more pronounced belly than the 25/33 to ensure sufficient fuel could be carried, having lost capacity by hacking the ‘rear horns’ off the tub on each side. The suspension of ‘R12’ was pure Lotus 33 and was period typical; top rockers actuating inboard coil spring/damper units and lower wishbones and at the rear inverted lower wishbones, single top link and two radius rods for fore and aft location. Adjustable roll bars front and rear as well of course. Steering by rack and pinion and outboard disc brakes on all wheels.

Chapman bought two Climax engines from Bruce McLaren who didn’t contest the Tasman in ’66, he was too busy building cars for his F1 and CanAm programs having just left Coopers.

The 39 was soon on its way to the Antipodes for its race debut in the NZGP at Pukekohe on January 8 1966.

39 jim

AGP, Lakeside 20 February 1966. Clark 3rd behind Hill’s BRM P261 and Frank Gardner’s Brabham BT11A Climax (autopics)

By 1966 the Tasman game had largely moved beyond the old FPF. Brabham debuted his Repco Brabham RB620 V8 engine and BRM modified its F1 P56/60 V8 engines to 1930cc, Jackie Stewart took the title in a P261 with 4 wins from Hill’s 2 with Clark and Attwood (BRM) 1 win apiece.

Clark had a tough start to his 1966 Tasman campaign partially because Colin Chapman switched his Lotus tyre contract from Dunlop to Firestone not long before the Tasman commenced. The tyres had been developed by Bruce McLaren, he had used them for over a year and they were competitive but the 39 had to be adapted to them.

In addition Clark had a run of misfortunes which also reduced testing time; an abortive race at Pukekohe (gearbox) no practice at either Wigram (oil leak and engine replacement/accident when Gardner’s Brabham brakes failed) or Levin (snapped radius rod in practice/2nd). At Teretonga the cars speed was shown with a heat win from Stewart. He was moving away from Jackie in the final only to go out with a spin on dropped oil on lap 3.

In Australia he took a win at Warwick Farm, always a happy hunting ground for Clark. Graham Hill won the AGP at Lakeside from Gardner and Clark. He was 2nd to Stewart’s speedy BRM at Sandown and was 7th at Longford, he had carburetion problems in practice and a plug lead came off in the race requiring a stop and dropping him to the back of the field. Stewart was again the victor, with Jim finishing third in the series behind the BRM duo.

Clark had an amazing 1965 season winning the Tasman Series, Indy 500 and the World Drivers Championship, his start to 1966 was not quite so good, a portent of a tougher year!

39 longford

Superb Clark portrait by Lindsay Ross. Lotus 39 Climax, Longford 1966. He was 7th after a troubled run, Stewart’s BRM taking the win. Note the cars ‘aero screen’ and truncated monocoque which ends at the drivers bulkhead (oldracephotos)

Geoghegans’ were the Australian Lotus importer so a deal was done to buy the car…

John Sheppard is a legendary mechanic/engineer/car builder and team manager with some of Australia’s greatest cars in his CV; the Geoghegan’s cars, Bob Jane’s Repco Torana, Laurie O’Neills Pete Geoghegan driven Holden Monaro and the Holden Dealer Team amongst an extensive and ongoing career of car construction and team management. Early in his career he was appointed as chief mechanic to the Geoghegans.  Tom took a liking to his work preparing the Youl brothers Cooper, the Tasmanian team were using the Geoghegan’s Sydney workshop at the time. John’s first event with the team was preparing Leo’s car for the Australian Formula Junior Championship at Warwick Farm in September 1963, which he won in his Lotus 22 Ford. He shares some of his recollections about his time with the Geoghegan’s throughout this article.


John Sheppard in the 39 Repco cockpit circa 1967, hat is the Mickey Mouse Club! (John Sheppard)

Essentially 1966 was a learning year for Leo in the big cars in the domestic Gold Star Championship. His limited campaign excluded the Mallala and Sandown rounds, 2nd to Spencer Martins Brabham BT11A at Surfers Paradise his best result. A duff wheel bearing was the cause of a DNF at Lakeside, he didn’t start both the Symmons Plains and Warwick Farm rounds with Coventry Climax engine problems.

Sheppard recalls; ‘The Lotus 39 was a great car although the engine problems we had were a function of very tired engines, the blocks were cracked so it was a problem keeping them running in that first year. When we took over the car they had a strange set-up to deal with the vibrations of the big Climax-four, they put rubber o-rings between the cylinder head and inlet manifold letting them flop around, and i mean flop around so Jim had problems with throttle control. We easily fixed this with a more conventional set-up of putting the o-rings between the inlet manifold and carbs’.

‘We didn’t have problems with the Firestones but i recall Leo, having fiddled around with set-ups based on tyre temps and the like at an early tyre test embarrassing the Firestone guys a bit when his ‘seat of the pants’ set-up changes gave immediate results. Leo was quick in the car straight away, i asked Bob Jane to get his driver (Spencer Martin) to stop baulking mine at Warwick Farm and Bob of course telling me to piss-orf…’

Fifth in the Australian Grand Prix ’67 Tasman Round at Warwick Farm and 2nd the following weekend behind Clarks Lotus 33 Climax FWMV 2 litre V8 at Sandown was indicative of speed and better Coventry Climax reliability.

39 cover

Geoghegan’s Lotus 39 sharing the AMR 1968 cover with Chris Amon’s Ferrari Dino 246T. 39 here with ‘740 Series’ Repco V8 and quite the prettiest thing with its carefully, thoughtfully aerodynamic rear bodywork developed for it by John Sheppard. Knock on wheels, Castrol color scheme just gorgeous with the speed if not always reliability to match

In 1967 Sheppard and his team did a beautiful job converting the car to a 2.5 litre Repco ‘640 Series’, ‘exhaust between the Vee’ spec engine in April. They created quite the most beautiful sixties single seater. OK, maybe Gurney’s Eagle T1G gives it a run for its money! The FPF developed around 235bhp, the ‘640’ 275bhp@8500rpm.

Sheppard; ‘It was an easy decision to go with the Repco, our Climaxes were old and tired and Repco were keen to do business with everyone. It wasn’t the biggest saga to adapt the Repco V8, we made new chassis tubes to accommodate the wider engine and used the original Hewland HD5 gearbox. The suspension geometry wasn’t touched, in fact it wasn’t the whole time i worked on the car (to the end of 1968) which shows the bloke who designed and built it knew what he was about. As tyres evolved we still got the results by simply getting the best from the tyres making set-up changes based around getting tyre temps even across the tread. Basic but important stuff.’

‘The chassis and bodywork, we made a nice rear cowling or engine cover, was done by Alan Standfield who worked out of his fathers ‘Supreme Mousetraps’ factory out near Mascot. (near Sydney Airport) It was all a bit bizarre but he did good work in grotty conditions with loads of noisy machines making springs and sawdust from the ‘trap bases all over the place!’

Leo took his first Gold Star round win at Sandown in September, Sheppo recalls; ‘Early in the Repco piece i said to Frank Hallam (GM Repco) ‘you should be nicer to us because we will win the first Gold Star race for you, he turned and walked away. I had great delight in walking up to him and telling him ‘I told you so’ when we took that Sandown win which was Repco’s first Gold Star win too’

The Climax FPF engined Brabham BT11A’s were superbly driven by Spencer Martin and Kevin Bartlett and just had the legs and reliability to pip the more powerful Repco engined cars of Greg Cusack, Geoghegan and John Harvey that year. Martin took the title.

39 tow rope

On the end of a tow rope as was the case all too often. Here its a Coventry Climax engine failure; the FPF popped back into the car after early 1967 Repco frustrations for the final WF Gold Star round, DNF with overheating (Peter Windsor)

Leo was so miffed by the lack of reliability of the Repco that his team popped the Climax back into the car for the final Gold Star round, the Hordern Trophy’ at Warwick Farm, not finishing that race either, the Climax overheated.

Sheppard; ‘We didn’t have a good run with the Repco’s early in the piece. The 640 Series Repco, the Olds block engine chucked its oil out of the crankcase, the scavenging arrangements were poor, the stiffener plate was ‘out in the breeze’, oil sat on that and got thrown around. Leo said the engine was hard to drive as there was little power below 6500-7000rpm. The 700 Series blocks were better but in many ways by then the opposition had caught up with the Cosworth and Ferrari Dino engines competing in the Tasman. The engine was a clever design though, you could take the heads off without disturbing the timing chest and vice-versa, i give Repco ten out of ten for the way they went about things.’

For the 1968 Tasman Series all local Repco clients engines were updated to the latest specifications with 700 Series blocks.

39 and brm

Leo’s 39 chases Richard Attwood’s BRM P126 at Surfers Paradise 1968. Great butt shot of both cars and a contrast of the beautifully faired Lotus and messy, bulky BRM V12. Neat packaging of the 1967 World Championship winning ‘740 Series’ V8 clear (here in 2.5 not 3 litre form). ‘Between the Vee’ exhausts easy for the chassis designer, no complex plumbing issues of pipes and tubes or an ‘ally tub. Trumpets for Lucas fuel injection and Bosch distributor cap clear also between the Vee. Car uses the same Hewland HD5 gearbox as it did with the Cov Climax FPF engine. Diaphragm to which ‘everything’ attached also clear at the very back of the chassis. Suspension at rear period typical; single upper link, inverted lower wishbone, 2 radius rods forwards for location and coil spring/damper unit with an adjustable roll-bar (Brian McInerney)

Into 1968 the Tasman Series got even tougher as the International Teams brought 2.5 litre variants of their current GP machines; the Lotus 49 DFW and the BRM P126 V12. The Mildren Team acquired a one-off Brabham BT23D powered by a 2.5 litre version of Alfa Romeo’s Tipo 33 sports car engine and Ferrari brought 2 2.4 litre Dino V6’s, the 246T.

Geoghegan, as in the prior year did only the Australian rounds; his 4th at Surfers on the same lap as the new Lotus 49’s in his 3 year old car his best result.

39 surfers 68

Who is the Belle of the Ball? Geoghegan’s Lotus 39 Repco DNF beside Brabhams Brabham BT23E Repco 7th , Rodriguez BRM P126 6th in a P261 with Clarks Lotus 49 1st. Warwick Farm practice, Tasman 1968 (The Tasman Cup)

He lost an oil line at Warwick Farm, finished 7th at Sandown, both events won by Jim Clark’s dominant Lotus 49 and elected not to start the final, very wet Logford round given the lack of a suitable tyre for the treacherous circuit.

39 and 49 surfers

Hill, Gardner, Geoghegan and further back Kevin Bartlett squabble over 2nd place on lap 2 of the Surfers ’68 Tasman round, Clark is up the road. Lotus 49 DFW, Brabham BT23D Alfa, Lotus 39 Repco and Brabham BT11A Climax (Rod MacKenzie)

Kevin Bartlett was the class of the Gold Star fields in 1968 winning the title by 10 points in the Brabham Frank Gardner drove in the Tasman. Geoghegan’s old Lotus was still fast; he took pole at Sandown and Mallala and won the race but otherwise the car lacked the consistency and speed to win the title.

39 catalina

Geoghegan Catalina Park, Blue Mountains, NSW 1968 (Paul Hobson)

Chris Amon took the 1969 Tasman in his superbly driven and prepared Ferrari Dino 246T from Jochen Rindt, Lotus 49 DFW Piers Courage, Brabham BT24 DFW and Derek Bell’s Dino 246T.

Geoghegan, still driving the ‘old lady’ contested the full series; 5th at Pukekohe in the series opening NZGP behind the four drivers above, 4th at Levin, he missed the final NZ, Teretonga round.

39 puke

Leo’s Lotus 39 Repco ‘730 Series’ NZGP paddock, Pukekohe 4 January 1969. 5th in the race won by Amon’s Ferrari Dino 246T (Habu/The Roaring Season)

Straight to Queensland he was a splendid 3rd in the AGP at Lakeside behind Amon and Bell. He was 5th in his home, Warwick Farm race and had fuel tank problems in the final Sandown round.

39 lakeside

Lakeside in the AGP; 4/5 year old car 3rd at Lakeside behind the Ferrari 246T’s of Amon and Bell (Rod MacKenzie)

Seventh in the series, the highest placed local was a superb result for a small team running a 4 year old car against GP Teams running their latest car.

leo

Leo running wings at the Warwick Farm Tasman round on 9 February 1969. Sydney the teams home base. With very low angle of attack mind you. He chose not to run them at the fast Tasman final round at Sandown the following week. He was 5th in the ‘pissin wet race won by Jochen Rindt’s Lotus 49B Ford DFW, therefore this dry day is practice (Dick Simpson)

39 sndoawn 2

Sandown Tasman practice, 15 February 1969. Running head of Alfie Costanzo’s McLaren M4A FVA. Leo DNS with a fuel tank leak, Alf DNF engine (Rod MacKenzie Collection)

For the 1969 Gold Star Series the 39 was more competitive than in ’68 being  fitted with the latest Repco’730 Series’, crossflow head V8 used in the Tasman, this gave 290bhp@8600rpm. The car was now running wings and whilst less aesthetically pleasing than its earlier form was fast.

39 symmons

Symmons Plains Gold Star 3 March 1969. Leo was 2nd to Kevin Bartlett’s Mildren Alfa (right)  (Ellis French)

Interesting shots at Symmons Plains, Tasmania 3 March 1969 above and below. Both the 39 and Kevin Bartlett’s Mildren Alfa ‘Yellow Submarine’ sporting the hi-wings de-rigeur for the previous 12 months and soon to be outlawed over the Monaco GP weekend a month or so hence. My two favourite ‘Australian’ open-wheelers of the 1960’s albeit not in their most aesthtically pleasing form. Bartlett won the round with Leo second.

Repco ‘730 Series’ Repco V8, notice the steel ‘A-Frame’ to brace the wing supports referred to in the text and wider rear wheels but same sized fronts compared with earlier shots. Tyre widths increased dramatically from cars build in 1965 to 1970.

Locating stays for the 39 rear wing beefier than most, the failure of these in a whole swag of cars, notably the two Lotus 49’s of Rindt and Hill during the 1969 at Montjuich Park, Spanish GP the catalyst for the CSI to mandate changes to wings.

39 symmons 2

Symmons Plains Gold Star 1969, Geoghegan’s Lotus 39 Repco, KB’s Mildren ‘Yellow Submarine’ Alfa behind (Ellis French)

39 bathurst 1969

Bathurst Gold Star round 7 April 1969; Max Stewart Mildren Waggott, Niel Allen McLaren M4A Ford FVA and Geoghegan’s Lotus 39 Repco on pole. Brabham won in his BT31 Repco from the back of the grid with the front row all DNF. An accident took out Stewart and Allen, Leo had a gearbox problem (Wayne McKay)

Kevin Bartlett took the Gold Star championship again using the Mildren ‘Yellow Submarine’, initially Alfa Romeo V8 engined and later in the year in Waggott TC4 valve form. This engine developed by Sydney engineer Merv Waggott is a story in itself, it won Gold Stars for Bartlett, Geoghegan and Stewart in 1969-71 beating 2.5’s and in 1971 F5000’s to the title.

Leo was 2nd with 20 points to Kevins 33 and had reliability but perhaps not the ultimate speed, seconds at Symmons Plains and Mallala Gold Star season highlights for the old beast.

The 39’s day finally arrived 4.5 years after it was built; Geoghegan won the 1969 JAF Japanese Grand Prix in the Lotus from Roly Levis Brabham BT23C FVA and Sohei Kato’s Mitsubishi Colt F2-C 1.6. I covered this great win in an article about Leo last year, click here for the link; https://primotipo.com/2015/03/02/leo-geoghegan-australian-driving-champion-rip/

39 jaf

By 1970 F5000 was adopted as the new Tasman Formula albeit 2.5 litre Tasman cars were also eligible, the smaller cars gave the big V8’s ‘plenty of curry’ in that first year with Graeme Lawrence winning in Chris Amon’s victorious 1969 Ferrari 246T ‘008’. Bartlett took the Warwick Farm round in the 2 litre Mildren ‘Yellow Sub’, another small-car win..

39 sandown paddock

Tractable these Repco’s! Chugging thru the 1970 Sandown paddock. Nice shot showing the 33 style tub, fuel filler in front of dash bulkhead and late ’69-70 wing (Jeff Scriven Collection)

39 sandown

Same day as above with Leo in the red hat alongside his mount. Hard to see but front suspension is top rocker, lower wishbone and inboard spring/damper actuated by rocker (Jeff Scriven Collection)

Geoghegan raced the Australian rounds only for 7th at Surfers and Warwick Farm, he was DNF at the Sandown final round.

Into the domestic 1970 season Leo raced the car in the first Gold Star round at Symmons Plains, here below he shares the front row of the grid with John Harvey’s red Brabham BT23E Repco and Kevin Bartlett’s Mildren Waggott ‘Yellow Submarine’. KB’s absence racing in the US for much of the year took out a tough adversary in 1970.

39 symmons 2

Gold Star round 1 1970. Symmons Plains 2 March 1970. John Harvey won in his #2 Brabham BT23E Repco from Leo obscured this side and Bartlett’s #5 Mildren Waggott (autopics.com)

The last significant meeting in which the 39 raced was the March Easter Bathurst meeting in which Niel Allen’s McLaren M10B Chev F5000 car set a lap record which stood for decades. ‘Outright’ open-wheelers have not raced at Mount Panorama given the speeds of the cars and inherently dan gerous nature of the circuit as it was then. And still is, despite huge improvements in circuit safety.

39 bathurst 1970

Easter Bathurst 1970, contrast this shot with the hi-wings from the year before above. John Harvey’s #4 Bob Jane Brabham BT23E Repco ‘830 Series’ Repco V8, Leo’s 39 Repco ‘730 Series’ V8 and Niel Allen’s obscured McLaren M10 B Chev F5000 (Rod MacKenzie Collection)

59 wf

Leo in the new Lotus 59 Waggott, Warwick Farm’s Pit Straight 1971 (oldracephotos/Schell)

Whilst the 1970 Tasman series was run to F5000 the Gold Star Series in an interesting piece of CAMS (Confederation of Australian Motorsport) decision making driven by politics was run to the 2.5 Tasman Formula.

From Leo’s perspective the path was clear; the circa 275bhp 2 litre Waggott engine was powerful, light, reliable and better still would bolt straight into the back of the Dave Baldwin designed F3/F2 Lotus 59. As the Lotus importer, the core of the Geoghegan’s business road cars of course, his preference was a Lotus which could win the title, his F5000 options were a domestic season away.

59 op

The Geoghegan’s cars; Leo’s and Pete’s Touring cars were always beautifully presented, giving the sponsors great exposure. Here the 59 Waggott, in Castrol colors. As beautifully integrated a package as the 39 Repco in its ‘740 Series’ Repco days. Oran Park Gold Star round, 27 June 1970 (Lynton Hemer)

The 59 already had a successful season of racing in Europe with Emerson Fittipaldi taking the 1969 British F3 title and Jochen Rindt and Graham Hill winners in European F2 events; 4 rounds for Jochen and 1 for Graham. In essence the engine and chassis were a proven package.

And so it proved to be; Leo took wins at Warwick Farm and Mallala and seconds at Oran Park and Symmons Plains when the ‘old lady’ 39 held together and scored 6 valuable points…

leo oran park

Leo G during tyhe driver parade before the 27 June Oran Park 1970 Gold Star round won by Max Stewart (Lynton Hemer)

Leo Geoghegan’s Later Open-Wheeler Career…

This article was to have been a ‘quickie’ around the few shots at the start  but as usual i have  ‘rabbited on’.

The article isn’t intended to be a Leo G whole of career one, the focus was the Lotus 39. Leo raced the Lotus 59 Waggott on into 1971, that chassis is still in Australia, i will write about it separately.

Geoghegan was a factory driver for Chrysler, as covered in the other article link provided earlier, he developed and raced Valiant Pacers and Chargers for the Tonsley Park, Adelaide based company in the incredibly popular Series Production (showroom stock essentially) races which proliferated, like a disease, in Australia in the late 1960’s, the growth of ‘Taxi Racing’ in Oz remains undiminished and omnipotent.

274

Leo at Oran Park, ‘works’ Grace Bros sponsored Birrana 274 Hart Ford 1974. Jewels of things, fast ones. Aluminium monocoque chassis, Hart Ford 416B injected, often ‘ally blocked, Twin-Cam circa 205bhp, Hewland FT200 5 speed ‘box (oldracephotos.com/Peter Schell)

But Leo was a ‘died in the wool open-wheeler man’ and accepted a works drive with Adelaide’s nascent Birrana Engineering; Malcolm Ramsay and engineer Tony Alcock built some fabulous cars in three short years which turned upside down the local single-seater market, the jewel like cars winning the Australian F2 Championship from 1973-1976.

Leo took two of the titles in 1973 and 1974, finally retiring from single-seaters at the end of 1974. He went out with a bang though. The 1974 AF2 Championship was one of the most closely contested and competitive openwheeler championships in Australia ever. ‘Van Heusen’ shirts tipped in good sponsorship and established F5000 aces and young thrusters made for some sensational racing. But wily Leo, at 38 still very fast took the title by 4 points from Aussie International Bob Muir in another Birrana.

Birrana Cars is a story for another time.

John Sheppard on Leo as a driver; ‘He was incredibly fast, as good as anyone he competed against capable of just not keeping up with but beating world champions. Leo in a way kept to himself, Pete was more ‘one of the boys’ so Leo and i didn’t discuss his career aspirations but he got a lot of satisfaction from racing with the drivers that he did; world class drivers. He was very precise, Pete would throw around what he was given, Leo used the same bit of road lap after lap, very consistent, precise and fast’.

R12 in Modern Times…

Leo focussed on the 59 but gave Formula Vee ace Bernie Haehnle a test of the 39 in the wet, at Amaroo Park in May 1970. With predictable results, poor Bernie took the left-rear corner off the car. The difference from a 40bhp Rennmax FV to 280bhp Tasman car in the wet would have been marked!

39 after Bernie Haehnle’s Amaroo Park 1970 shunt (D Simpson)



39 wf 1970

Leo G, 1970 Gold Star champion in his old car later in the year at Warwick Farm. 22 November. Lotus 39 Repco (Dick Simpson/oldracephotos.com)

The car was tidied up visually, Leo gave it a run at Warwick Farm late in the year in its original color scheme but still running a Repco engine, it was then offered for sale. The Repco engines on loan were returned to Melbourne and those owned by the Geoghegans sold. Australia’s sports-racing car fields were the beneficiaries of a surplus of ‘cheap’ 2.5 litre Repco V8’s; two Elfin 360’s and  two Rennmax’s  specifically.

39 winton

Darryl Pearsall’s Lotus 39 Ford Twin-Cam ‘R12’ in the Winton, Victoria paddock in 1973/4 (oldracephotos.com)

The long racing life of R12 continued on for a year or so as an AF2 car, Darryl Pearsall the new owner. F2 then was a 1.6 litre, 2 valve class effectively mandating the Lotus/Ford Twin Cam. The car was fitted with a Twin-Cam and when sold was purchased by John Dawson-Damer for his superb collection of Lotus’s in 1976.

The car was restored to its original Coventry Climax FPF engined form and fortunately when sold after JDD’s death and realisation of some of his collection remained in Australia, fitting given the cars Australian history. It lives in Tasmania loved to bits by a lifelong Jim Clark fan, Chas Kelly.

39 restored

Lotus 39 Climax ‘R12’ at the Longford Revival Meeting in April 2011. Restored but not over-restored, a balance we tend to get right in this country! (Ellis French)

Etcetera…

Clark Lotus 39.

39 longford 3

Longford front row 1966. #1 Clark’s Lotus 39 Climax and the two BRM P261’s of Hill #2 and Stewart beside the fence (Ellis French)

clark wf 1966

Clark and mechanics looking typically relaxed during the Tasman. Here at Warwick Farm with R12. February 1966 (unattributed)

Click on this link for a lovely story related to the photo above about the ’66 Tasman.

https://open.abc.net.au/explore/45668


Geoghegan 39.

geoghegan portait

Leo G portrait circa 1963. Colors on helmet ‘Team Total’, the French oil company a strong supporter of motor racing in Australia at the time. Lotus 22 or 27 (Ray Berghouse)

lotus 39 sandown

Sandown Park paddock, Tasman ’67. Leo finished 2nd to Clark’s Lotus 33 Climax FWMV 2 litre V8 in ‘The Sandown Cup’. Nice shot shows the car in its Coventry Climax FPF engined/Castrol Racing colors. This is 26 February 1967, the Repco V8 was installed that April (Mike Feisst/The Roaring Season)


This is a nice shot of the 39 of the Repco 740 Series V8 installation, Surfers Tasman round in February 1968. Cooper S is that of top touring car driver John French (Rod MacKenzie)

39 sandown paddockl

These days the crowds are all over the ‘Taxis’, in the days of yore the focus was where it should be, on fast open-wheelers! Sandown paddock, am guessing Tasman Meeting 1969 (Jeff Morrall)

39 wf

Leo’s Lotus dips under brakes for Creek Corner at the end of Hume Straight in 1970 (Lynton Hemer)

39 repco engine

Lotus 39 business end in its Repco ‘740 Series’ 2.5 V8 days. 275bhp@8500rpm, the engine weighed 345lbs/157Kg. Gearbox Hewland HD5. Note Repco logo on LH cam cover, Smiths tacho drive on the RH cam cover. Lucas fuel injection, Bosch distributor between the Vee. 1967/8 (John Stanley)


Bibliography…

Thanks very much to John Sheppard for his time and recollections

Graham Howard and Ors ‘History of The Australian GP’, oldracingcars.com

Photo Credits…

Vintage Racecar, oldracephotos.com, Peter Schell, Dick Simpson, Bruce Wells, Habu, Mike Feisst/The Roaring Season, Lynton Hemer, Rod MacKenzie, Ellis French, John Stanley, Paul Hobson, Wayne McKay, Jeff Scriven Collection, Ray Berghouse, David Mist, John Sheppard, Brian McInerney, Jeff Nield/autopics.com.au, Tony Loxley ‘Tasman Cup’, Peter Windsor, Ian MacNeill

Tailpiece: Leo takes Miss Queensland for a squirt around Lakeside in the family Lotus 23 Ford. Brother ‘Pete’ raced this car, not certain of the date, but 1965’ish…

39 babe




The ‘Stack Pipe’ 1.5 litre P56 BRM V8 nestled in one of Graham Hill’s BRM P57/578 chassis’ during his and BRM’s victorious 1962 season…

This series of engines was immensely successful being competitive throughout the 1961-5 1.5 Litre F1 and was ‘stiff’ not to have won the title on multiple occasions. Later in its life it became, in 2 and 2.1 litre capacities an effective Tasman Series weapon. It was victorious at 2.1 litres against new 3 litre cars winning the ’66 Monaco GP Jackie for Stewart that May. It is one of Grand Prix racing’s great engines.

This is the first in an occasional series of articles focussing on engines, mind you, as usual its longer than intended. As is the case with most of my stuff the article is a function of a great photo (above) inspiring the piece rather than me thinking strategically about the relative merit of one engine to another in a particular era!


Graham Hill’s P56 engined ‘Stackpipe’ BRM P57/578 on its way to victory at Zandvoort, Dutch GP 1962. The P56 engine’s first championship GP win (Cahier)

Background…

BRM commenced the new 1.5 litre F1 in 1961 by using a Coventry Climax FPF Mark 2 engine, it’s ‘Project 56’ 1.5 litre V8 started late and was running behind schedule.

The teams long serving but ‘too dilettante’ technical director Peter Berthon was ‘shunted sideways’, seconded to work at the Harry Weslake Research consultancy in Rye, 280 km away leaving Tony Rudd, his assistant in charge.

By the time this 1960 Dutch GP change was effected Berthon, with the assistance of consultant engineer Charles Amherst Villiers an old school friend of BRM founder Raymond Mays and a long term associate of Berthons too, was already laying down the conceptual design and detailing of P56. The Shell oil companies research boffins also contributed their knowledge via a project they were completing at the time on ‘combustion in high speed transport engines’.


The great Tony Rudd in the glasses overseeing Graham Hill’s P56 engined BRM P57 (DNF) with Cyril Atkins beside him. Dutch GP, Zandvoort 1963. Its Jack Brabham in the helmet about to board his BT7 Climax DNF. I wonder if the chap closest to camera is Keith Duckworth? The back of that BRM is ‘all breathers’, engine and gearbox isn’t it? Clark won the race in his Lotus 25 Climax (GP Library)

A core conceptual design foundation was efficiency at extremely high RPM by the standards of the time, and, for the first time for BRM the engine was to be offered for customer sale rather than just being a ‘works engine’. There was money to be made, as Coventry Climax had proved in recent years by flogging engines to those with the ‘readies’, at Sir Alfred Owen’s insistence BRM were to contest that customer market.

In keeping with the BRM charter of using British suppliers if at all possible, Lucas’ new fuel injection system was chosen. Several design features of the old V16 were used including its timing gear, camshaft drives and similar con-rods, higher inertia loads of heavier pistons (than the V16) involved different big-end bolt arrangements though.

The engine is a 90 degree V8 with a bore and stroke of 68.1 X 50.88mm for a capacity of 1498cc, it’s heads and block cast in LM8 aluminium alloy. The sump was magnesium and the crank machined from nitrided EN40U alloy steel and ran in 5 Vandervell, 2.5 inch wide plain metal bearings.

The cams, water pump and distributor for the transistorised ignition system were driven by gears off the cranks nose.


P56 engine cross section showing gear train, ‘inverted cup tappets, which allowed cooling oil to reach valve springs. Exhaust valve guides in contact with water’. 90 degree V8, 2 valves per cylinder. First series cross-flow head engine (grandprixengines.co.uk)

Two ring die-cast pistons and forged con-rods were used initially but forged pistons with a different profile were experimented with later in the successful search for more power. Results justified Berthon’s original concept of minimising rotating and reciprocating mass with a very ‘over-square’ bore/stroke ratio by the standards of the day to facilitate high RPM.

Up top the four cams ran in 5 roller bearings operating 2 inclined valves per cylinder via inverted tappets. Valve sizes were 1.5625 inch inlet set at 45 degrees from the bore axis, and 1.20 inch exhaust set at 30 degrees. Double valve springs were used and proved effective even at 11000rpm, the valve-gear was designed for a maximum of 13000rpm.

The Lucas new fuel injection system was of the port type, throttle slides were used after early butterfly throttles were tried and rejected. The compression ratio using mandated 100 octane fuel was 11.5:1. The fuel injected works engines claimed 10bhp more than the Weber carbed customer units in the first year. The metering unit was driven by a toothed rubber belt.


P56 V8 again 1962 first series cross-flow, 2 valve heads. 2 plane crank (grandprixengines.co.uk)

Lucas also provided the transistorised ignition system made necessary by 11000 rpm; a conventional coil setup produced around 400 sparks per second, a magneto 500 whereas the BRM needed 733 sparks per second at 11000 rpm, which the Lucas transistors achieved.

Ignition timing was controlled by pole pieces mounted on the back of the flywheel in conjunction with a magnetic pick-up on the engine backplate. Current was provided by an alternator driven from the right-side inlet cam.


P56 in Trevor Taylor’s BRP Mk2 BRM, Belgian GP, Spa 1964. 7th in the race won by Clark’s Lotus 25 Climax (Schlegelmilch)

The prototype P56 engine ‘5601’ was assembled at Bourne in June 1961, without starter motor weighing 251 pounds, on 12 July in the Folkingham Aerodrome test house it first burst into life.

A second engine was built and run at Monza, in practice only in 1961. That engine ‘5602’ produced over 184bhp. During 1962 maximum power was 193bhp@10250rpm, the engines dyno curves showed 110@6000, 150@7500, 173@9000 and 190bhp@9750rpm.

At Monza in 1962, Hills victorious P578’s P56 engine achieved 10.6 MPG.

Graham Hill’s 1962 season is briefly covered in this article, click here for the link; https://primotipo.com/2014/10/12/graham-hill-brm-p57-german-gp-1962/

Initially the engines were fitted with separate individual megaphone exhausts raking back at near to vertical on each side but they fatigued during a race and progressively broke. A low level system made its debut at Spa in 1962 but by then the ‘Stackpipe BRM’ label had stuck!

A cross-over exhaust and ‘flat plane crankshaft’ liberated a bit more power as did new Shell low viscosity oils, by February 1963 the works engines gave 200bhp from 9750-10500rpm.

Four valve heads were tried for 1964 but ‘flopped fearfully’. Reversed port two valve heads and between the Vee exhausts at the Italian GP provided 208bhp @10750rpm.

Eventually by filling combustion chambers with weld and re-machining, trial and error stuff engine ‘5618’ produced 220bhp@11750rpm this engine was used by Hill at the 1965 BRDC Trophy and became his regular engine thereafter ‘maxing’ at 222bhp.

For the sake of completeness the ‘P56 engine family’ also includes the P60 used in various capacities for 2 litre sportscar, endurance, Tasman and hillclimbing competition as follows;
1965/6 1880cc, 1966 1916cc, 1966-7 1998cc and 1966-8 2070cc.


Jackie Stewart heads for the BRM P56 engines last championship GP win in his P261, 22 May 1966 Monaco. He won from Lorenzo Bandini’s Ferrari Dino 246 and teammate Graham Hill’s P261. Majestic Monaco. The BRM P261 was an exquisite, successful, long lived car. It was slippery and quick partially due to power but also the small, beautifully ‘packaged’ engine, its between the Vee exhausts and compact ancillaries allowing the rear cowling which helped it slip thru the air (Schlegelmilch)

Race Record…

The P56 and its big P60 brother was a remarkably long-lived engine at International level, let alone its national level wins.

The engines first International win was in the rear of Graham Hill’s BRM P57 in the 1962 Brussells GP on 1 April, its first Championship GP win the Dutch on 20 May 1962, its last Jackie Stewarts 1966 Monaco GP victory in 1966 amongst the new 3 litre GP cars. Jackie Stewart also scored the engines last International win in taking the Australian GP at Warwick Farm on 19 February 1967 in his BRM P261.


This is the butt of Jackie Stewart’s BRM P261 ‘2614’ pictured in the Warwick Farm paddock on 19 February 1967, the engines last International win. JYS won the AG Prix  from Clark’s Lotus 33 Climax FWMV V8 and Frank Gardner’s Brabham BT16 Climax FPF. P60 engine now at 2070cc, the ‘weak link’ of the car by then the transmission which was struggling with power and torque for which it was not originally designed in 1.5 litre GP spec  (Mike Feisst)

The engines final entry as a ‘works engine’ was in the back of Pedro Rodriguez’ P261 at the Longford Tasman round in March 1968, he was second to Piers Courage McLaren M4A FVA.

During that period the engine won the ’62 Drivers and Constructors titles with Hill. Hill/BRM were second in both the drivers and constructors titles in ’63 to Clark/Lotus in ’64 to Surtees/Ferrari and in ’65 to Clark/Lotus. The BRM P261 won the 1966 Tasman Championship for Jackie Stewart in a dominant display, BRM won 7 of the 8 rounds.

For the sake of completeness the wins for the engine, note that i have not included heat wins in Non-Championship events, only ‘Finals’ are as below, what comes through strongly is just how much Hill.G’s career was intermixed with this engine and how smart it was to sell engines to ‘all-comers’;

1962;

Championship; Dutch, German and Italian GP’s , all Hill in BRM P57 chassis

Non-Championship; GP Brussells, Glover Trophy Goodwood, Intl Trophy Silverstone all Hill BRM P57, Crystal Palace Trophy Innes Ireland Lotus 24 BRM, Kanonloppet Karlskoga Masten Gregory Lotus 24 BRM


Piers Courage, BRM P261, ‘Teretonga International’, the most Southerly race circuit in the world. NZ Tasman 28 January 1967. Piers DNF engine in the race won by Clark’s Lotus 33 Climax, teammate Richard Attwood was 2nd in the other BRM (Ian Peak)

1963;

Championship; South African, Monaco and US GP’s all Hill BRM P57

Non-Championship; Int Trophy and Aintree 200 both Hill BRM P57, Glover Trophy Ireland Lotus 24 BRM, GP Siracuse Siffert Lotus 24 BRM

1964;

Championship; Monaco and US GP’s both Hill in BRM P261

Non-Championship; Daily Mirror Trophy Ireland BRP BRM, GP Mediterraneo Enna Siffert Brabham BT11 BRM, Rand GP Natal Hill Brabham BT11 BRM

1965;

Championship; Monaco and US GP’s Hill, Italian GP Stewart all BRM P261

Non-Championship; Int Trophy Stewart BRM P261, GP Mediterraneo Siffert Brabham BT11 BRM

1966;

Championship; Monaco GP Stewart BRM P261

Tasman; Pukekohe NZGP and Lakeside AGP Hill and Wigram, Teretonga, Sandown and Longford rounds, Stewart all in BRM P261

1967;

Tasman: Pukekohe NZGP and Warwick Farm AGP both Stewart in BRM P261


Relaxed scene at Longford on the 5 March 1967 Tasman weekend. JYS on the wheel of P261 ‘2614’, Clark’s Lotus 33 Climax alongside. #9 is Spencer Martin’s Brabham BT11A Climax with his car owner Bob Jane the stocky little dude in the drivers suit beside JYS. Nose of Chris Irwin’s P261 ‘2616’ also clear. On raceday Jack Brabham’s BT23A Repco won the ‘South Pacific Trophy’ from Clark and Irwin (Ellis French)

Etcetera…


BRM P60 power at the Lakeside, Australian Grand Prix Tasman round on 20 February 1966. JYS and Graham lead in BRM P261’s, Clark in Lotus 39 Climax, Gardner’s yellow nosed Brabham BT11A Climax, Jim Palmer’s Lotus 32B Climax, Spencer Martin’s red Brabham BT11A, Leo Geoghegan’s white Lotus 32 Ford 1.5 and the rest. Hill won from Gardner and Clark (History of The AGP)

hill 33

Graham Hill’s BRM P60 engined Lotus 33 at the 29 April 1967, BRDC Intl Trophy Silverstone. That’s Damon practicing in cockpit! DNF but fastest lap, the race won by Mike Parkes 3 litre Ferrari 312. Graham had just left BRM for Lotus for the ’67 season but not the P56/60 engine which gave him so much success! Lotus’ engine of choice for ’66 was the BRM H16 but Chapman used the V8’s as a stopgap, the H16 running late; Chapmans Lotus 33’s comprised a 2 Litre Climax engined chassis for Clark and 2070cc P60 BRM engined one for Graham (Getty)

Bibliography…

The bibles on all things BRM are Doug Nyes 3 books, hopefully Vol 4 is not too far away! This article is a précis of Nye’s article on the P56 engine in his seminal, sensational ‘History of the GP Car 1945-65’

Photo Credits…

Rainer Schlegelmilch, The GP Library, Cahier Archive, Ellis French, Mike Feisst Collection & Ian Peak Collection/The Roaring Season, G Howard and Ors ‘History of The Australian GP’, grandprixengines.co.uk

Tailpiece: ‘Top Fuel’ Dragster…


Trevor Taylor’s BRP Mk2 BRM and its P56 V8, Spa 1964. He was 7th, race won by Clark’s Lotus 25 Climax. Interesting that the ‘stackpipe’ exhausts were still being used by BRP this late when the low level exhausts were producing more power (Schlegelmilch)

Finito…



Jack Brabham Oulton Park Gold Cup 1966, Brabham BT19 Repco

Jack Brabham wins the Oulton Park ‘Spring Cup’ 1966. Brabham BT19 Repco (Brian Watson)

The second episode covered the design and building of the 1966 ‘RB620’ V8, the engine which would contest and win the World Constructors and Drivers Championships in 1966, this is a summary of that season…

Brabham BT19 cutaway

Cutaway drawing of Brabham BT19 # ‘F1-1-65’, JB’s 1966 Championship Winning mount. Produced in 1965 for the stillborn Coventry Climax Flat 16 cylinder 1.5 litre F1 engine and modified by Ron Tauranac to fit the ‘RB620’ engine, which was designed by Phil Irving with Brabham/Tauranacs direct input in terms of ancilliaries etc to fit this chassis. A conventional light, agile, driver friendly and ‘chuckable’ spaceframe chassis Brabham of the period. Front suspension independent by upper and lower wishbones and coil spring/ damper units. Rear by upper top link, inverted lower wishbone, twin radius rods and coil spring/ damper units. Adjustable sway bars front and rear. Hewland HD500, and later DG300 ‘box. Much raced and winning chassis…still in Australia in Repco’s ownership (Motoring News)

The 1966 South African Grand Prix…whilst not that year a Championship round was the first race of the new 3 litre F1 on 1 January.

In December 1965 the first 3 Litre RB620 ‘E3’ was assembled and with slightly larger inlet valves, ports and throttle bodies than the ‘2.5’ produced 280bhp @ 7500rpm. After six hours testing it was rebuilt, shipped to the UK and fitted to Jacks ‘BT19’, a chassis built during 1965 for the stillborn Coventry Climax 16 cylinder engine, the rear frame modified to suit ‘RB620’.

Brabham started from pole and lead until the Lucas injection metering unit drive coupling failed. He achieved fastest lap but was the only 3 litre present.

Straight after the race the car was flown to Melbourne and fitted  with  Repco 2.5 engine ‘E2’ for the Sandown Tasman round on February 27, Repco’s backyard or home event…

BT19 on the factory floor in Melbourne

Roy Billington prepares BT19 for fitment of the’RB620′ 2.5 Tasman engine in place of the 3 litre used in South Africa on 1 January 1966 (Wolfe/Repco)



Brabham and Frank Hallam, Sandown 1966

Jack Brabham with RB Engines GM Frank Hallam at Sandown 1966. Publicity shot with BT19, long inlet trumpets give the engine away as a ‘Tasman 2.5’. Car sans RH side ‘Lukey Mufflers’ exhaust tailpipe in this shot ‘, sitting across the drivers seat. Rear suspension as described in cutaway drawing above, twin coils, fuel metering unit, HD500 Hewland, battery and ‘expensive’ Tudor oil breather mounted either side of ‘box (Brabhams World Championship Year’ magazine)

During a preliminary race the car set a lap record- the race won by Stewart’s BRM. But in the main race but an oil flow relief valve failed, causing engine damage, Stewart won from Clark Lotus 39 Climax and Graham Hill in the other BRM P261.

Upon dissasembly, it was found a sintered gear in the pressure pump had broken. The engine was then rebuilt for the final Tasman round at Longford Tasmania.

In a close race, with the engine overheating, the car ran short of fuel and was beaten by the two 2 litre BRM P261’s (bored out 1.5 litre F1 cars) of Stewart and Hill, Jackie Stewart easily winning the 1966 Tasman Championship for the Bourne team.

Brabham BT 19 refuelling, Longford 1966

BTT19 being filled with the sponsors product, Longford paddock 1966 (Ellis French)

In early January 1966 the engine operation was transferred from Repco’s experimental labs in Richmond to the Maidstone address and factory covered in episode 2 where the operations were ‘productionised’ to build engines for both BRO (Brabham Racing Organisation) and customers.

So far the engine had not covered itself in glory but invaluable testing was being carried out and problems solved.

Meanwhile back in Europe other teams were developing their cars for 1966…

All teams faced the same challenge of a new formula, remember that Coventry Climax, the ‘Cosworth Engineering’ of the day were not building engines forcing the ‘English Garagistes’ as Enzo Ferrari disparagingly described the teams, to find alternatives, as Jack had done with Repco.

Ferrari were expected to do well, as they had done with the introduction of the 1.5 litre Formula in 1961, they had a new chassis and an engine ‘in stock’, which was essentially a 3 litre variant of their 3.3 litre P2 Sports Car engine, the ‘box derived from that car as well. The gorgeous bolide looked the goods but was heavy and not as powerful as was claimed or perhaps Repco’s horses were stallions and the Italian’s geldings!

Ferrari 312 1966 cutaway

Hubris or too little focus on F1 in 1966…on paper the Ferrari 312 shoulda’ won in ’66…when Surtees left so did their title hopes, Ferraris’ decline in the season was matched by Brabhams’ lift…

Cooper also used a V12, a 3 litre, updated variant of the 2.5 litre engine Maserati developed at the end of the 250F program in 1957 when it was tested but unraced.

Cooper T81 Maserati engine 1966

Coopers’ 1966 T81 was an aluminium monocoque chassis carrying a development of Masers’ 10 year old ‘Tipo 10’ 60 degree V12. DOHC, 2 valves per cylinder, Lucas injected, and a claimed 360bhp @ 9500rpm. The cars were heavy, reasonably reliable. Surtees and Rindt extracted all from them (Bernard Cahier)

Dan Gurney had left Brabham and built a superb car designed by ex-Lotus designer Len Terry. The T1G Eagle was to use Coventry Climax 2.7 litre FPF power until Dans’ own Gurney-Weslake V12 was ready. Again, the car was heavy as it was designed for both Grand Prix and Indianapolis Racing where regulation compliance added weight.

Denny Hulme stepped up to fulltime F1 to support Jack in the other Brabham.

The dominant marque of the 1.5 litre formula , Lotus were caught without an engine and contracted with BRM for their complex ‘H16’ and were relying also on a 2 litre variant of the Coventry Climax FWMV 1.5 V8…simultaneously Keith Duckworth was designing and building the Ford funded Cosworth DFV, but its debut was not until the Dutch Grand Prix in 1967.

BRM, having failed to learn the lessons of complexity with their supercharged V16 1.5 litre engine of the early 50’s, and then reaping the benefits of simplicity with the P25/P48/P57, designed the P83 ‘H16’, essentially two of their 1.5 litre V8’s at 180 degrees, one atop the other with the crankshafts geared together. They, like Lotus were also using 2 litre variants of their very fast, compact, light and simple 1965 F1 cars, the P261 whilst developing their ‘H16′ contender.

Honda won the last race of the 1.5 litre formula in Mexico 1965 and were busy on a 3 litre V12 engined car, the RA273 appeared later in the season in Richie Ginthers’ hands.

Ginther Honda RA273 , Monza 1966

Richie Ginthers’ powerful but corpulent, make that mobidly obese Honda RA 273 at Monza, the heaviest but most powerful car of 1966…it appeared too late in the season to have an impact but was competitive in Richies’ hands, a winner in ’67 at Monza…(unattributed)

Bruce Mclaren produced his first GP cars, the Mclaren M2A and M2B, technically advanced monocoque chassis of Mallite construction, a composite of balsa wood bonded between sheets of  aluminium on each side.

His engine solution was the Ford ‘Indy’ quad cam 4.2 litre V8, reduced to 3 litres, despite a lot of work by Traco, the engine whose dimensions were vast and heavy, developed way too little power, the engine and gearbox weighing not much less than BT19 in total…He also tried an Italian Serenissima engine without success.

Bruce McLaren, McLaren M2A Ford Indy, Riverside 1966

Bruce testing M2A Ford at Riverside, California during a Firestone tyre test in early 1966. M2A entirely Mallite, M2B used Mallite inner, and aluminium outer skins. Note the wing mount…wing first tested at Zandvoort 1965. L>R: Bruce McLaren, Gary Knutson, Howden Ganley and Wally Willmott (Tyler Alexander)

So, at the seasons outset Brabham were in a pretty good position with a thoroughly tested engine, but light on power and on weight in relation to Ferrari who looked handily placed…

Variety is the spice- 1966 MotorSport magazine visual of the different F1 engine solutions pursued by the different makers

Brabham contested two further non-championship races…with the original engine in Syracuse where fuel injection problems caused a DNF and at Silverstone on May 14 where the car and engine achieved their first wins, Brabham also setting the fastest lap of the ‘International Trophy’.

Brabham , Silverstone Trophy 1966, BT19 Repco

First win for BT19 and the Repco ‘RB620’ engine, Silverstone International trophy 1966 (unattributed)

Monaco was the first round of the 1966 F1 Championship on May 22…

Clark qualified his small, light Lotus 33 on pole with John Surtees in the new Ferrari alongside. Jack was feeling unwell, and the cars were late arriving after a British seamens strike, Jack recorded a DNF, his Hewland HD 500 gearbox jammed in gear.

Mike Hewland was working on a stronger gearbox for the new formula, Jack used the new ‘DG300′ transaxle for the first time at Spa. Clarks’ ‘bullet-proof’ Lotus 33 broke an upright, then Surtees’ Ferrari should have won but the ‘slippery diff’ failed leaving victory to Jackie Stewarts’ 2 litre BRM P261.

Richie Ginther Monaco 1966

Richie Ginther going the wrong way at Monaco whilst Jack and Bandini find a way past. Cooper T81 Maser, BT19 and Ferrari 246 respectively. Nice ‘atmo’ shot (unattributed)

Off to Spa, and whilst Brabham was only fourth on the grid…he was quietly confident but a deluge on the first lap caused eight cars to spin, the biggest accident of Jackie Stewarts’ career causing a change in his personal attitude to driver, car and circuit safety which was to positively reverberate around the sport for a decade.


The rooted monocoque of Jackie Stewarts’ BRM P261, Spa 1966. He was trapped within the tub until released by Graham Hill and Bob Bondurant who borrowed tools from spectators to remove the steering wheel…all the while a full tank of fuel being released…(unattributed)

Surtees won the race from Jochen Rindt in a display of enormous bravery in a car not the calibre of the Ferrari or Brabham, Jack finished fourth behind the other Ferrari of Lorenzo Bandini. Denny Hulme still driving a Climax engined Brabham.

At this stage of the season, the ‘bookies pick’, Ferrari, were looking pretty handy.

BRM P83, Stewart, Oulton Park 1966

Another major new car of 1966 was the BRM P83 ‘H16’…love this shot of Jackie Stewart trying to grab hold of the big, unruly beast at the Oulton Park ‘Spring Cup’ 1966. The car got better as 1966 became 1967 but then so too did the opposition, the message of Brabham simplicity well and truly rammed home when the Lotus 49 Ford appeared at Zandvoort in May 1967…free-loading spectators having a wonderful view! (Brian Watson)

Goodyear…

Dunlops’ dominance of Grand Prix racing started with Engleberts’ final victory when Peter Collins won the British Grand Prix for Ferrari in 1958.

Essentially Dunlops’ racing tyres were developed for relatively heavy sports prototypes, as a consequence the light 1.5 litre cars could compete on the same set of tyres for up to four GP’s Jimmy Clark doing so in his Lotus 25 in 1963!

Goodyear provided tyres for Lance Reventlows’ Scarab team in 1959, returned to Indianapolis in 1963, to Europe in Frank Gardners’ Willment entered Lotus 27 F2 at Pau in 1964 and finally Grand Prix racing with Honda in 1964.

In a typically shrewd deal, Brabham signed with Goodyear in 1965, it’s first tyres for the Tasman series in 1965 were completely unsuitable but within days a new compound had been developed for Australian conditions, this was indicative of the American giants commitment to win.

By 1966 Goodyear was ready for its attack on the world championship, we should not forget the contribution Goodyears’ tyre technology made to Brabhams’ wins in both the F1 World Championship and Brabham Honda victory in the F2 Championship that same year.

Equally Goodyear acknowledged Brabhams’ supreme testing ability in developing its product which was readily sought by other competitors at a time when Dunlop and Firestone were also competing…a ‘tyre war’ unlike the one supplier nonsense which prevails in most categories these days.

Dan Gurney Eagle T1G Climax, Spa 1966

Dan Gurney, Eagla T1G Climax, Spa 1966. In my top 3 ‘GP car beauties list’…Len Terry’s masterful bit of work hit its straps 12 months later when the car, by then V12 Eagle-Weslake powered won Spa, but in ’66 the car was too heavy and the 2.7/8 Climax lacked the necessary ‘puff’…Goodyear clad cameraman exceptionally brave!, shot on exit of Eau Rouge (unattributed)

The French Grand Prix was the turning point of the season…

Brabham arrived with three cars- Hulmes’ Climax engined car as a spare and finally an ‘RB620’ engined car for the Kiwi. Perhaps even more critically for Brabham, John Surtees had left Ferrari in one of the ‘Palace Upheavals’ which occurred at Maranello from time to time, fundamentally around Surtees’ view on the lack of F1 emphasis, the team still very much focussed on LeMans and the World Sports Car Championship, where the marques decade long dominance was being challenged by Ford.

Surtees was also, he felt, being ‘back-doored’ as team-leader by team-manager Eugenio Dragoni in choices involving his protege, Lorenzo Bandini. The net effect, whatever the exact circumstances was that Surtees, the only Ferrari driver capable of winning the ’66 title moved to Cooper, Bandini and Mike Parkes whilst good drivers were not an ace of 1964 World Champ, Surtees calibre…

Reims was the ultimate power circuit so it was not a surprise when four V12’s were in front of Brabham on the grid, the Surtees and Rindt Coopers and the two Ferraris. Surtees Cooper failed, and Jack hung on, but was losing ground to Bandini, until his throttle cable broke with Brabham leading and then winning the race.

It was Jacks’ first Championship GP win since 1960, and the first win for a driver in a car of his own manufacture, a feat only, so far matched by Dan Gurney at Spa in 1967.

It was, and is a stunning achievement, but there was still a championship to be won.

Jack Brabham French GP 1966 Brabham BT19 Repco

Brabham wins the French GP 1966, the first man to ever win a GP in a car of his own construction. Brabham BT19 Repco (umattributed)




Brabham’s BT19 leads out of Druids at Brands Hatch, ’66 British GP. Gurney Eagle T1G Climax, Hulme’s Brabham BT20 Repco, Clark’s Lotus 33 Climax and the two Cooper T81 Masers of Surtees inside and Rindt, then Stewart’s BRM P261 and McLaren’s white McLaren M2B Serenissima and the rest (unattributed)

At Brands Hatch Ferrari did not appear…

They were victims of an industrial dispute in Italy. Cooper were still sorting their Maser V12, the H16 BRM’s did not race nor did the Lotus 43, designed for the BRM engine. BRM and Lotus were still relying on 2 litre cars. Brabham and Hulme were on pole and second on the grid, finishing in that order, a lap ahead of Hill and Clark.

At Zandvoort, in the Dutch sand-dunes

Brabham with beard Dutch GP 1966

Jack was tough but had a sense of humor…he had just turned 40 a month or so before, there was a lot in the press about his age so JB donned a beard, and with a jack-handle as walking stick approached BT19…much to the amusement of the Dutch crowd and press (Eric Koch)

Brabham and Hulme again qualified one-two but Jim Clark drove a stunning race in his 2 litre Lotus leading Jack for many laps, the crafty Brabham, just turned forty playing a waiting game and picking up the win after Clarks’ Climax broke its dynamic balancer, the Scot pitting for water and still being in second place when he returned, such was his pace. Clark fell back to third, Hill finishing second, the Ferraris and Coopers off the pace.

Brabham in BT19 Repco, Dutch GP 1966

Bernard Cahiers’ famous shot of Brabham ‘playing with his Goodyears’ in the Dutch sand-dunes is still reproduced by Repco today and used as a ‘promo’ handout whenever this famous car, Jacks’ mount for the whole of his ’66 Championship campaign, still owned by Repco, is displayed in Australia



German GP grid 1966

German GP grid, Nurburgring 1966. I like this shot as it says a lot about the size of 1966 F1 cars and the relative performance of the ‘bored-out 1.5 litre cars vs. the new 3 litres at this stage of the formula. The only 3 litre on the front row, is Ferrari recent departee John Surtees Cooper Maserati #7, Clark is on pole #1 Lotus 33 Climax, #6 Stewart BRM P261, # 11 Scarfiotti Ferrari Dino, all ‘bored 1.5’s. Row 2 is Jack in BT19, and #9 and #10 Bandini and Parkes in Ferrari 312’s, all ‘3 litres’. The physical difference in size between the big, heavy Ferraris, and the little, light BT19 ‘born and built’ as a 1965 1.5 litre car for the stillborn Coventry Climax Flat 16 engine, is marked (unattributed)

The Nurburgring is the ultimate test of man and machine…

Brabham qualified poorly in fifth after setup and gearbox dramas. Clark, Surtees, Stewart and Bandini were all ahead of Jack with only Surtees, of those drivers in a 3 litre car!

The race started in wet conditions, Jack slipped into second place after a great start by the end of lap one and past Surtees by the time the pack passed the pits, Surtees suffered clutch failure widening the gap between he and Brabham, Rindt in the other Cooper finishing third. Hulme was as high as fifth but lack of ignition ended his race.

Hill and Surtees were still slim championship chances as the circus moved on to Monza.

Jack Brabham and Denny Hulme, German GP 1966

Denny and Jack ponder the setup of Hulmes BT20, practice conditions far better than raceday when Jack would triumph (unattributed)

Ferrari traditionally perform well at home…and so it was, Ludovico Scarfiotti winning the race on September 4.

Another power circuit, Brabham was outqualifed by five ‘multis’ the V12’s, the Ferraris of Parkes (pole) Scarfiotti and Bandini, the Cooper of Surtees and the H16 Lotus 43 BRM of Clark in third.

The Ferraris lead from the start from Surtees, but Brabham sensing a slow pace took the lead only losing it when an inspection plate loosened at the front of the engine, burning oil, the lubricant not allowed to be topped up under FIA rules. Hulme moved into second as Jack retired. The lead changed many times but Surtees retirement handed the titles to Brabham, Scarfiotti winning the race from Parkes and Hulme.

The cars were scrutineered and weighed at Monza.

The weights of the cars was published by ‘Road and Track’ magazine. BT19 was ‘Twiggy’ at 1219Lb, the Cooper T81 1353Lb, BRM 1529Lb, similarly powered Lotus 43 1540Lb and Honda RA273 1635Lb. Lets say the Repcos’ horses were real at 310bhp, Ferrari and Cooper (Maserati) optimistic at 360 and BRM and Honda 400’ish also a tad optimistic…as to power to weight you do the calculations!

Jim Clark Lotus 43 BRM Monza 1966

Jim Clark jumps aboard his big, beefy 1540Lb Lotus 43 BRM whilst Jacks light 1219Lb BT19 is pushed past, ’66 Monza grid. Love the whole BRM ‘H16’ engine as a technical challenge…(unattributed)



Scarfiotti and Clark Italian GP 1966

2 of the ‘heavyweights’ of 1966, Ludovico Scarfiottis’ Ferrari 312 leading Jim Clarks’ Lotus 43 BRM at Monza, Scarfiottis’ only championship GP win (unattributed)

Jim Clarks’ Lotus 43 BRM achieved the ‘H16’s only victory at Watkins Glen…the Scot using BRM’s spare engine after his own ‘popped’ at the end of US Grand Prix practice. Jack’s engine broke a cam follower in the race, Denny also retiring with low oil pressure.

jack us

Front row of the Watkins Glen grid. #5 Brabham’s BT20 on pole DNF, Bandini’s Ferrari 312 DNF and Surtees Cooper T81 Maser 3rd (Alvis Upitis)

The final round of the 1966 was in Mexico City on October 23…

The race won by John Surtees from pole, in a year when he had been very competitive, and perhaps unlucky. Having said that, had he stayed at Ferrari perhaps he would have won the title, the Ferrari competitive in the right hands. Brabham was fourth on the grid, best of the non-V12’s with Richie Ginther again practicing well in the new, big, incredibly heavy V12 Honda RA273. Surtees’ development skills would be applied to this car in 1967.

Surtees finished ahead of Brabham and Hulme, despite strong pressure from both, whilst Clark was on the front row with the Lotus 43, the similarly engined BRM’s mid-grid, it was to be a long winter for the teams the postion of many not that much changed from the seasons commencement…

Mexican GP 1966, Surtees, Brabham and Rindt

John Surtees, Jack and Jochen Rindt, Coopers T81 Maserati X2 and BT19. Mexican GP 1966. Ferrari missed Surtees intense competitiveness when he left them, the Cooper perhaps batting above its (very considerable!) weight as a consequence, Rindt no slouch mind you. The Coopers’ competitive despite the tough altitude and heat of Mexico City. (unattributed)

Malcolm Prestons’ book ‘Maybach to Holden’ records that 3 litre engines ‘E5, E6, E7 and E8’…were used by BRO in 1966, in addition to E3, all having at least one replacement block.

Some engines were returned to Melbourne for re-building and at least three were sold in cars by Brabham to South Africa and Switzerland, whether Repco actually consented to the sale of these engines, ‘on loan’ to BRO is a moot point!, but parts sales were certainly generated as a consequence.

Detail development of the ‘RB620’ during the season resulted in the engines producing 310 bhp @ 7500rpm with loads of torque and over 260bhp from 6000-8000rpm.

Brabham team with BT19 1966

Back In Australia…

The Tasman ‘620’ 2.5 litre engine was not made available to Australasian customers in 1966, they were in 1967, a Repco prepared Coventry Climax FPF won the ‘Gold Star’, the Australian Drivers Championship in 1966, Spencer Martin winning the title in Bob Janes’ Brabham BT11A.

4.4 litre ‘RB620′ engines were built for Sports Cars, notably Bob Janes’ Elfin 400, we will cover those in a separate chapter.

Development of the F1 engine continued further in early 1966 in Maidstone, whilst production and re-building of the ‘RB620’ for BRO continued, we will cover the design and testing of what became the 1967 ‘RB740′ Series engine in the next episode…

Meanwhile Brabhams’, Tauranacs’, Irvings’ and Repcos’ achievements were being rightly celebrated in Australia where ingenuity, practicality and brilliant execution and development of a simple chassis and engine had triumphed over the best of the established automotive, racing and engineering giants of Europe…

Repco 'RB620' 3 Litre F1 V8

‘RB620’ 3 litre V8 in Brabham BT19, 1966 F1 World Champions (Bernard Cahier)

Etcetera…

Jack Brabham and Denny Hulme , Mexican GP 1966

Jack Brabham and Denny Hulme, 1st and 4th in the World Drivers Championship 1966. Mexican GP 1966, lovely Bernard Cahier portrait of 2 good friends. Graham Hills’ BRM P83 ‘H16’ at rear.



Brabham 'Championship Year' magazine

BT19 cutaway

BT19 Repco cutaway (unattributed)



london Racing Car Show 1967

Brabham BT19 Repco on ‘centre stage’ at the 1967 London Racing Car Show (unattributed)



RB Nose

Brabham after Rheims victory 1966

A fitting photo to end the article…the joy of victory and achievement after his Rheims, French GP victory. The first man ever to win a GP in a car of his own manufacture, Brabham BT19 Repco (unattributed)

Bibliography…

Rodway Wolfe Collection, ‘Jack Brabhams World Championship Year’ magazine, Motoring News magazine, The Nostalgia Forum, oldracingcars.com, Nigel Tait Collection

‘Maybach to Holden’ Malcolm Preston, ‘History of The Grand Prix Car’ Doug Nye

Photo Credits…

The Cahier Archive, Brian Watson, Tyler Alexander, Ellis French, Eric Koch, Alvis Upitis, Rodway Wolfe Collection

Tailpiece: The Repco hierachy at Sandown upon the RB620’s Australian debut, 27 February 1966. Phil Irving leaning over BT19 and trying to grab another fag from Frank Hallam’s packet. Norman Wilson with head forward leaning on the rear Goodyear, Kevin Davies and Nigel Tait in the white dust coat…and Jack wishing they would bugger ‘orf so he could test the thing. Nigel Tait recalls that the car probably had 2.5 engine #E2, had no starter motor and he the job of push-starting the beastie…

sandown

(Tait/Repco)
