Posts Tagged ‘Ron Tauranac’

(G Bruce)

Ron Tauranac’s two Brabham BT5 Lotus-Ford twin-cams’s were built in 1963…

The Ian Walker Racing ‘SC-1-63′ achieved plenty of success in the hands of both Frank Gardner and Paul Hawkins.

The car used a typical Tauranac multi-tubular spaceframe chassis with upper and lower wishbones at the front and lower links, inverted top wishbone and two radius rods- coil spring/shocks front and rear. Rack and pionion steering, disc brakes all around, a Hewland 4-speed gearbox and a Cosworth tuned Lotus-Ford Twin-Cam of 1596cc giving circa 140 bhp completed the package.

The photograph below is a BT5 test session at Goodwood early in 1963 with the Aussies out in force, oh, and a Kiwi.

From left in the nice, warm ‘jumper’ is Paul Hawkins, lanky Frank Gardner, the Guvnor and Denny Hulme. All rather handy at the wheel of a motorcar- and on the end of a ‘spanner’.

(unattributed)

Credits…

Gordon Bruce, frankgardnermotorsport.com

Tailpiece: Gardner, BT5 Ford, Mallory Park…

(FGM)

Finito…

Tim Schenken, Merlyn Mk11 Formula Ford and his rivals at Brands Hatch, 20 September 1968…

Chris Steele, Tim’s tuner/entrant dispenses advice to the Formula Ford ‘flock’ comprising Ray Allen, Brian Smith, Dave Morgan and Tony Trimmer. No doubt it’s a press shot to promote an upcoming race meeting; two of these fellows made it through to Formula 1- Schenken and Trimmer, the well of talent in Formula Ford has been deep in every season including its first couple.

Schenken cut his racing teeth in Australia, initially with an Austin A30 and later a Lotus 18 Ford FJ. By the time he contested some F3 races in an old Lotus in the UK in 1967 he had plenty of experience- the step ‘back’ into the new Formula Ford class paid off in spades with wins in both the 1968 British Formula Ford and Lombank F3 Championship- as a consequence he carried away the main 1968 Grovewood Award.

Tetsu Ikuzawa Brabham BT21B from Tim Schenken Chevron B9 Ford, Martini International Meeting Silverstone 1968 (M Hayward)

In 1970 he broke into Grand Prix Racing with Frank William’s De Tomaso 505 Ford, that ride arose as a result of Piers Courage’ death during the 1970 Dutch Grand Prix.

His promise was confirmed with drives in the year old Brabham BT33 Ford for Ron Tauranac in 1971, his first career mistake was jumping out of Brabham as BC Ecclestone acquired it at the end of ’71. Surtees was far from the worst place to be at the time but staying put would have been better.

Tim was as quick as Mike Hailwood at Surtees but the slip down the F1 totem pole was quick once he left and the climb back up is even harder.

I don’t think we ever saw his best in Grand Prix racing but point scoring races and an F1 podium, not to forget his F2, European GT Championship  and works Ferrari 312PB sportscar wins form part of a CV any of us would be rather happy to have.

Schenken, Brabham BT33 Ford, Canadian GP 1971 DNF (unattributed)

Tim’s best results in F1 were sixth and third placings for Brabham in 1971 at Hockenheim and the Osterreichring and fifth, seventh and eighth for Surtees in 1972 at Argentina, Mosport and Spain. In non-championship F1 he was third in the BRDC International Trophy at Silverstone and third in the 1972 International Gold Cup at Oulton Park.

Schenken aboard his Merlyn Mk11 FF in 1968

Credits…

Getty Images, Mike Hayward Collection, Victor Blackman, LAT Images

Other Tim Schenken Article…

https://primotipo.com/2016/04/03/frank-williams-and-tim-schenken-austrian-grand-prix-1970/

Schenken testing the Merlyn at Brands during 1968 (LAT)

Tailpiece: Ron Tauranac, Tim and Hill G with Hill’s Brabham BT34 Ford, Silverstone, British GP weekend July 1971- note the rig to attach a camera, the GoPro is still a while away…

Finito…



Train commuters watch an unidentified MG TC, then Les Wheeler, MG TC chasing A Griffiths, MG TC Spl s/c at the June 1952 Parramatta Park meeting  (CRPP)

‘A two mile motor racing circuit with ground accommodation for 100,000 people is being built at Parramatta Park’ Parramatta, Sydney The Sunday Heralds headlines proclaimed on 21 October 1951…

 Parramatta is a large city within greater Sydney, 25 Km from the CBD, the huge park occupies an area of 245 acres and straddles the Parramatta River on the western edge of the town.

The 8,000 pound investment in the park facility was funded by ten local businessmen and used to clear and widen existing roads to a minimum of 28 to 30 feet. The projected average circuit speed of the circuit, designed and to be run by the Australian Sporting Car Club Ltd (ASSC), was 55 mph.

Barrie Garner, Frazer Nash in June 1955. Later an ace hillclimber in a Bowin P3 Holden. Track surface needs a sweep! Carnival atmosphere, big picnic crowd so close to the centre of Sydney (CRPP)

Motor racing in Parramatta Park had been mused about for decades. An article about the 1929 Monaco Grand Prix in the ‘Sydney Morning Herald’ mentioned the possibility of events in either Centennial Park, Sydney or Parramatta Park with the writer just as rapidly despatching the idea as one which would be scuttled by the authorities. Indeed, officialdom caused plenty of grief in relation to racing at Parramatta when it was finally becoming a reality.

The proposed event on 28 January 1952 was not the first planned at the venue, a meeting was scheduled to be held on 5 November 1938- the star Peter Whitehead.

The wealthy wool merchant/racer was to compete in his 1938 Australian Grand Prix winning ERA R10B. Officialdom intervened in the form of the New South Wales Chief Commissioner of Police who decided to ban the race on Friday, the day before the meeting, due to concerns about competitor and spectator safety. Click here for my article on the 1938 AGP including details and pictures of the ’38 abortive, aborted Parramatta Grand Prix. https://primotipo.com/2015/04/16/peter-whitehead-in-australia-era-r10b-1938/

In a reprise of the 1938 dramas the Chief Commissioner of Police again stepped in and refused permission for the January 1952 race. The ASCC appealed his decision before the Parramatta Court of Petty Sessions with the Magistrate upholding the appeal. The event was allowed to take place on the basis that spectators were permitted no closer than 40 feet from the circuits edge.

Over 40,000 paying punters turned up on raceday causing massive traffic jams throughout the area and its surrounds.

John Crouch Cooper MkV JAP from Curley Brydon’s MG TC Spl in a handicap event during the January 1952 meeting. One of the ultimate TC specials in Australia shaded by the new generation of cars. Check out the crowd (CRPP)

Star of the show that weekend was Sydney driver John Crouch driving a new-fangled, mid-engined Cooper JAP MkV to three wins of the seven events.

One of victories was perhaps the ‘main event’ of the day, a six lap invitation scratch race for the quickest guys of the weekend- he won it in his 1097cc Cooper. Stan Jones was second in the 4.3 litre Maybach 1 then came Reg Hunt’s mid-engined Hunt ‘500’ fitted that weekend with a Vincent 998cc engine Then was Jack Saywell’s Cooper 1000, Doug Whiteford’s 4.375 litre Ford V8 Spl ‘Black Bess’  and Alec  Mildren’s 1750cc Dixon Riley. The results are indicative of the rise of the small, efficient, mid-engine Coopers in Australia as was the case everywhere else in the world! Crouch set the lap record with a time of 1 minute 59 seconds.

In a reminder that ‘Motor Racing is Dangerous’, a wheel came off Doug Whiteford’s 1950 Australian Grand Prix winner, ‘Black Bess’ whilst travelling at circa 80 mph and landed in the backyard of a Victorian cottage adjoining the course. Fortunately the lady of the house was not hanging out the washing at the time the errant wheel landed atop her prize petunias.

Peter Lowe, Bugatti Holden from Laurie Oxenford, Alvis Mercury, January 1952 (CRPP)

Many meetings were held at the venue until 1957, regularly attracting over 10,000 spectators when the demands and difficulties of holding the races became too much. The circuits closure left the New South Wales circuits at the time as Mount Panorama at Bathurst, Gnoo Blas, Orange and Mount Druitt in Western Sydney.

I have long wanted to write an article about Parramatta Park but a paucity of photographs was the barrier. Not so now- the convenor and members of the Facebook group ‘Car Racing at Parramatta Park’ have uploaded some pearlers of shots- I’ve chosen some at random to give you a flavour of the place. For you FB folks just find and like the page in the usual way.

Stan Jones with a touch of the opposites in Maybach 1 chasing ‘Gelignite’ Jack Murray’s Allard Cadillac in the opening January 1952 meeting. Jones was so impressed by the speed of the Coopers in relation to his GP car he promptly placed an order for one, a MkIV was soon in his Balwyn, Melbourne driveway (CRPP)

Both the aces of the day and coming-men raced at the ‘Park including drivers such as Doug Whiteford, Frank Kleinig, Stan Jones, David McKay, Bib Stillwell, Dick Cobden, Bill Patterson, Lex Davison, Tom Hawkes, Alec Mildren, Tom Sulman, Ted Gray, Ron Tauranac, Jack Brabham and many others. RT ran the very first of his Australian Ralts in the opening meeting, as against the Pommie built ones, and his later partner Brabham raced his Dirt Midget!

Jones big Maybach ‘monstering’ Ron Tauranac’s Ralt Norton ES2 500, January 1952 (CRPP)

The program described Jack thus- ‘A familiar winner at the speedway, and this years Australian Hillclimb Champion, Jack should find the circuit well suited to his style. His car is very light, has four wheel hydraulic brakes and is powered by a home made engine using J.A.P bits’.

By the June meeting Jack had jumped into a Cooper Mk5 500, the wry description in the program observed; ‘Australian Hillclimb Champion of 1951, Jack, one of our best midget drivers, is a new recruit to road racing, his Cooper…was an 1100, now has an engine designed and built by the new owner, a foremost expert at getting quarts out of pint pots’ ! A sage description of Jack’s ability to conjure something out of not very much throughout his career as both constructor and driver.

Dick Cobden from Bill Patterson in Stan Jones car and Bill Shipway- Coopers galore, all MkV’s I think June 1955 meeting (CRPP)

Bibliography…

Sydney Sunday Herald 21 October 1951, ‘Fast and Furious: The 1938 Parramatta Grand Prix’ article by Peter Arfanis

Photo Credits…

‘Car Racing at Parramatta Park’ Facebook Group (CRPP)

Tailpiece: Parramatta Park opening meeting, January 1952…

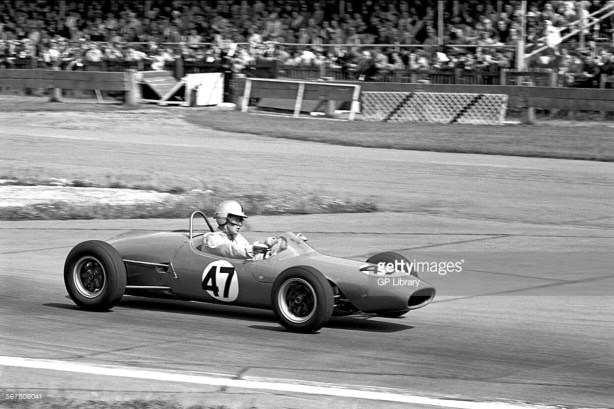

Gavin Youl in the new MRD Ford making a sensational championship debut in Ron Tauranac and Jack Brabham’s Formula Junior at Goodwood on 19 August 1961…

The young Taswegian arrived in England with sportscar and touring car experience in Australia and made a huge impact in finishing 4th in his heat, and 2nd in the final of the BARC FJ Championship in what was only his fourth outing in single-seaters.

Alan Rees won the race in a Lotus 20 Ford. To give perspective on the level of competition, there were 19 non-qualifiers and a field of 24 which included future champions Mike Spence, Richard Attwood, David Piper, John Rhodes, Frank Gardner and Hugh Dibley.

Gavin made a huge splash, and so too did the nascent ‘Brabham’ marque, the MRD was their first car, the established production racing car paradigm was given a shake that day. Arguably Brabham were the most consistent, competitive, cost-effective customer proposition for  most of the sixties and early seventies in FJ, F3, F2 and F1.

The story of Jack Brabham and Ron Tauranac’s partnership in forming Motor Racing Developments Ltd in England, the company which built Brabham cars is well known. So too is the decision by the two partners to change the name of the cars from ‘MRD’ to Brabham upon the advice of prominent Paris based Swiss journalist Jabby Crombac. He told Jack that MRD was pronounced ‘merde’ in French the literal translation of which is ‘shit’! And Brabham’s were very rarely, if ever, shit cars!

The MRD was retrospectively given the model name BT1, there was only one built, thankfully the car is still in Australia where it has raced all of its life other than the seven race meetings in England Youl contested between late July and late September 1961.

It’s intriguing to contemplate the look on Frank Gardner’s face at the speed of the MRD at Goodwood as the multi-talented Aussie- who raced a Jim Russell Race Drivers School Lotus 20 that year, was one of a small team who built Tauranac’s new car being peddled so quickly by novice Youl!

Gavin was sold the car by Ron during a Brabham plane trip. Jack took several friends to see the Tourist Trophy bike races at the Isle of Man. It appears there was no great process of choosing the driver of their first car, the commercial imperative was someone who could pay for it! Mind you, no doubt Gavin was aboard the plane with that commercial end in mind as well as his potential as a driver.


Ron Tauranac’s MRD Ford Holbay was a pretty, effective, competitive car. RT had built numerous Ralts in Australia prior to the design and build of the MRD which was his first ‘water cooled engine’ design! The ‘Brabham’ was competitive from the start, here at Goodwood in Youl’s hands, very much indicative of the amazing run of strong, reliable, fast cars built through until Ron’s sale of the MRD business to Bernie Ecclestone at the end of the 1971 F1 season (Getty)

In the MRD’s initial outings (see listing below) not much notice had been taken of it, their were plenty of specials in FJ at the time. But at Goodwood, a circuit on which he had not raced before Youl caused a sensation by popping the car on pole for his heat, 0.8 second under the lap record. Tauranac recalls things were looking good but then the car caught fire, RT rebuilt it in time for the race on the Bank Holiday Monday. Youl was 4th in his heat, it may have been higher but he overcooked it on a corner, but in the final kept it all together to finish 2nd to Rees, then very much a rising star.

Jack’s connection to the car had been kept very secret. The MRD was built in a room at the back of a garage on the Esher bypass with all of the specialist purchases needed to construct the car being made very discretely. The Goodwood meeting was a national event, the FJ events were supports to the RAC Tourist Trophy sportscar race with plenty of press presence. ‘The paddock buzzed with speculation and some people were adding two and two to make four’ wrote Mike Lawrence in ‘The Ron Tauranac Story’. Soon of course the connection was known as were Jack’s plans to leave Cooper at the years end.

Tauranac arrived in the UK in April 1960, whilst he occupied himself with Climax engined Triumph Heralds and other projects for Jack Brabham Motors in Chessington, his main task was to design the MRD in the bedroom of the flat the Tauranac’s rented above a shop in Surbiton.

Sensibly, the car was a conventional multi-tubular spaceframe chassis design fitted with an attractive, fully enveloping aluminium body. Suspension at the front comprised a single upper link and Y-shaped radius rods and lower wishbone with coil spring/Armstrong dampers. At the rear broad based upper wishbones, lower links and twin radius rods were used again with coil spring/dampers. The car was reputedly the first to be fitted with adjustable roll bars.

Alford and Alder uprights were fitted at the front to which were attached 13 inch Brabham alloy wheels, unique to BT1,  front and rear. Rear uprights were cast magnesium. The car used 9inch drum brakes at the front and inboard mounted 8 inch drums at the rear.

The gearbox was a modified VW Beetle 4 speed with Jack Knight cutting gears to give RT the ratios he wanted. The steering rack was also made by Jack Knight to a pattern and drawings RT brought to England from Australia. A Morris Oxford pinion was used with a specially cut rack. Initially a 1000cc Ford engine was fitted with an 1100cc Holbay Ford used from the Goodwood meeting.

Jack was still racing for Cooper as noted above but he found time to help build the car together with Ron, Frank and Peter Wilkins who had assisted Tauranac build the chassis frames of his ‘first series’ Ralts in Australia and was asked to come over to the UK to help build the MRD.

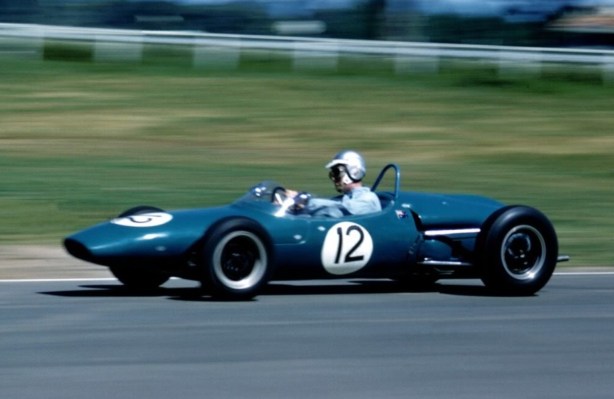

Gavin Youl contesting the FJ race in the MRD at the Warwick Farm international meeting on February 4 1962. He was 3rd behind Leo Geoghegan’s Lotus 22 Ford and Glynn Scott’s Lotus 20 Ford (John Ellacott)

In October 1961 the MRD was shipped to Australia where Gavin raced it to some success. He contested some of the support events for that years international meetings in the summer finishing 2nd at Lakeside, 3rd at Warwick Farm and then winning the FJ race at the 1962 Longford international meeting. There, the little car was timed at 132mph on the ‘Flying Mile’. He took a win at Calder in late February and then made the long trip to New South Wales in March- he won the NSW FJ Championship at Catalina Park beating Leo Geoghegan’s Lotus 20 Ford. Gavin then returned to the UK to race a new BT2 FJ in selected British and European events.

Victorian Wally Mitchell was the lucky purchaser of the MRD which over the years passed through many owners hands. The car is a much admired part of the local historic scene and together with Jack’s 1966 F1 championship winning BT19 Repco would be the most significant Brabham in Oz.

Works Brabham FJ Campaign in 1962…

The factory assisted drivers in 1962 were Gardner and Youl with Frank initially racing BT2 ‘FJ-3-62’, a car he built. When Gavin arrived in the UK he raced this car with Frank racing ‘FJ-8-62’, both of these cars went to Australia after the initial season of racing in the UK/Europe.

Gavin’s campaign was set back from the start after a testing accident at Brands Hatch made a mess of both the car and his collar bone which was broken. He recovered whilst the car was repaired.

The BT2’s differed from MRD ‘FJ-1-61’ in that outboard disc bakes were used front and rear and Specialised Mouldings built fibreglass bodies replaced the one-off ally body of MRD. A Hewland Mk5 gearbox replaced Ron’s modified VW unit whilst noting the Maidenhead built ‘box also used a VW case.

11 BT2’s were built, the first 2 or 3 by Gardner and Wilkins, the balance by Buckler Cars. Buckler are credited in the Tauranac and Brabham biographies as the constructor of the sole MRD frame, to Tauranac’s drawings, a claim denied by Frank Gardner. In conversations with Australian Brabham owner/historian Denis Lupton, Gardner said the MRD frame was built by Gardner, Wilkins, Tauranac and Brabham.

Buckler built at least 5 BT2 chassis. Of course Arch Motors, the unsung engineering concern, were soon thereafter to become the builder of both Brabham and Ralt ‘production chassis’, in addition to their many other clients!

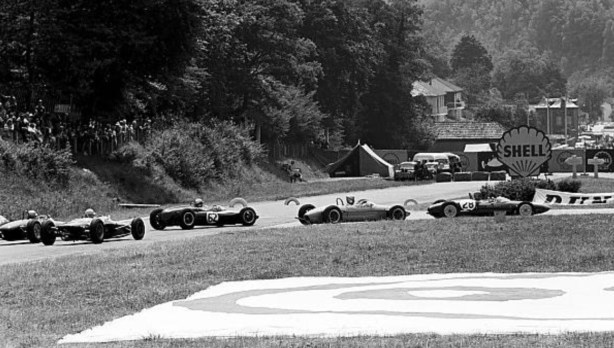

Peter Arundell’s works Lotus 22 Ford leads Youl’s Brabham BT2 Ford and Denny Hulme’s Cooper T59 BMC through the Nouveau Monde hairpin during the 8 July 1962 Rouen GP for FJ. They were 1st, 12th and 10th overall with Youl crashing in the first heat, he was 9th in the second heat (Sutton)

The BT2 proved to be a competitive car but the FJ combination to beat in 1962 was Peter Arundell in his works Lotus 22 Ford Cosworth. BMC engines were not prominent and the Holbays used by Brabhams were not the ‘ducks guts’ either. When Gardner and Youl’s cars finished they were often the best of the Holbays, that is, best of the non-Cosworth engined cars.

Youl’s results are in the table below, his first meeting after recovery from his injuries was at Silverstone in May, his last at Albi in September. His best results were a pair of 5ths at Albi and Goodwood, the latter event was the BARC Express and Star British Championship, where he was the best placed Holbay car.

Gardner’s 7th on the Monaco FJ grid was indicative of his place (that is fast!) in the pantheon of FJ drivers that year, a race he failed to finish with clutch failure. Arundell won still the most prestigious international junior event from Mike Spence and Bob Anderson, all three aboard Lotus 22 Ford Cosworths. It would have been very interesting to have seen how the Gardner/Youl combo would have gone with Cosworths behind their shoulders in ’62. Right up there for sure.

Gavin shipped his car to Oz after the European races he had competed in with Gardner’s ‘FJ-8-62’ accompanying Frank back to Australia at the end of the year. The lanky Sydneysider raced the car in two of the Formula Libre Australian Internationals in early 1963- Lakeside and Longford with the car being sold to Len Deaton later in 1963.

The history of the 11 BT2 chassis built for those interested can be seen, in all of its intricate glory, on oldracingcars.com and Ten Tenths, just Google away.

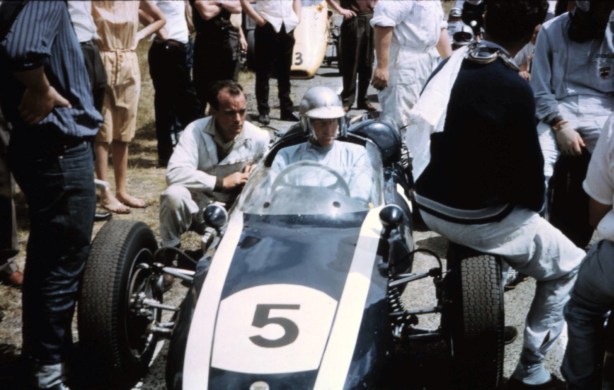

John Youl, with his engineer, Geoff Smedley beside their ex-works/Jack Brabham F1 Cooper T55 Coventry Climax FPF on the Longford grid prior to the ‘South Pacific Trophy’ on 2 March 1964. He was 5th in the race behind Graham Hill, Bruce McLaren, Frank Matich and Bib Stillwell in his 3 year old car (Smedley)

The Youl Family Story…

The story of Gavin and his older brother John, a racer of Cooper T51/55 Coventry Climax engined cars (second in the 1962 AGP to Bruce McLaren at Caversham and twice second in the Gold Star, the Australian Drivers Championship) is an interesting one for another time. So too is the history of the family, the patriarch of which was an early clergyman in Tasmania and with a land grant made on the South Esk River in 1818 commenced a very successful grazing concern which continues to this day.

Unfortunately Gavin’s promise, his raw speed, was never realised. He raced the BT2 at a few meetings at home, including the 1962 Australian FJ Championship, at Catalina Park in late October. He was 2nd to Frank Matich’s works Elfin Ford with Leo Geoghegan’s Lotus 22 Ford 3rd, but decided to retire to focus on the family grazing properties and his other interests which included aviation, both he and John were talented pilots.

The apocryphal Youl/Brabham aviation story involves Gavin being asked by Jack to deliver his single engined Cessna 180 from the UK to a farmer in Tasmania to make way for the Cessna 310 twin to which he was upgrading. Youl needed to get home for Christmas 1961/2, so too did Eoin Young the renowned Kiwi racing journalist and key figure in Bruce McLaren Racing in its early days, as well as Roger Tregaskis, a mate of Youls.

Gavin was the pilot, Roger was in the co-pilots seat and could steer if necessary and Young sat in the back ‘with maps, the five man liferaft and forty pounds of emergency rations. To eliminate customs difficulties we were given the honorary ranks of co-pilot and navigator.’ So off they set with Gavin’s intention to fly over as much land as possible keeping sea crossings to a minimum. ‘The Timor Sea between Indonesia and Australia was our biggest worry. We comforted ourselves in the fact that, as a high winged tail-dragger the Cessna could be landed on the Ocean without tipping over’ Young wrote.

Eoin was later to admit that he was better not to know that the plane was not a new one as he thought, but rather a ’54 model which Jack bought from Lance Reventlow of Scarab fame. All was well on this adventure though, the 7.7 litre, 225bhp, 4 cylinder Continental engined aircraft didn’t miss a beat on the month long trip- 98 flying hours, 30 stops in 18 countries, 13000 miles in total at an average speed of 151 mph chewing through 950 gallons of Shell fuel to do so. What an amazing experience- last word to Eoin Young.

‘It wasn’t until we delivered the plane to its eager new owner that we discovered it had been refused a Certificate of Airworthiness because there was so much corrosion in the fuselage that the wings were about to fall off!’ Boys Own Adventures and exploits indeed.

The Youls were never far from the sport, indeed they were major supporters, Symmons Plains circuit is built on land they owned. Very sadly, Gavin, an important figure in the earliest Motor Racing Developments years died in 1992 at 45, way too young, after a brief battle with a very aggressive cancer.

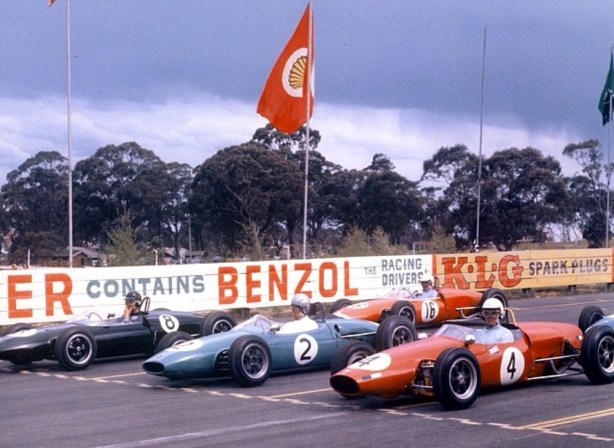

1962 Australian FJ Championship grid before the off at catalina park, Katoomba on 28 October 1962. #8 Leo Geoghegan Lotus 22 Ford, #2 Youl Brabham BT2 Ford and #4 Frank Matich Elfin FJ Ford. #16 is Clive Nolan Lotus 20 Ford. Matich won from Youl and Geoghegan, Nolan was 5th (Ed Holly)

Etcetera: G Youl European Race Results…

1961 British FJ Results: Gavin Youl MRD Holbay/ Brabham BT1. I have also listed the winner of each race

23/7/61 Mallory 2nd. Jack Pearce won in a Lotus 20 Ford

29/7/61 Silverstone 5th , holed fuel tank, pitted to top up with fuel. Mike Spence Emeryson Mk2 Ford

7/8/61 Aintree 17th, forced out of final with blown head gasket. Peter Proctor Lotus 18 Ford

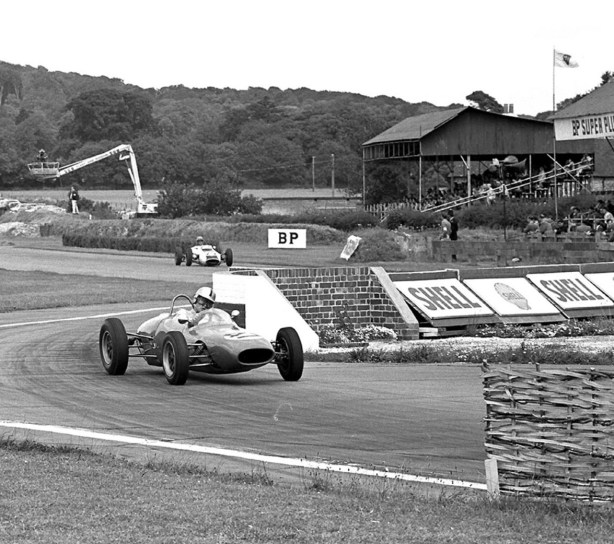

19/8/61 Goodwood 2nd, great effort of 4th in the heat, team had a pit fire during practice. Ian Rees Lotus 20 Ford

2/9/61 Crystal Palace DNQ. Trevor Taylor Lotus 20 Ford

23/9/61 Oulton Park 13th. Tony Maggs Cooper T56 BMC

30/9/61 Snetterton 31st. Mike Parkes Gemini Mk3A Ford

1962 British and European FJ Results: Gavin Youl  Brabham BT2 Holbay

12/5/62 Silverstone  DNF oil pressure. Peter Arundell Lotus 22 Ford

1/7/62 Reims DNF lap 1. Arundell  as above

8/7/62 Rouen 12th. Arundell as above

14/7/62 Silverstone 12th. John Fenning Lotus 20 Ford

6/8/62 Brands 7th. Tony Maggs Cooper T59 BMC

18/8/62 Goodwood 5th. Arundell as above

21/9/62 Zandvoort DNF. Arundell as above

9/9/62 Albi 5th. Arundell as above

Random but sorta sixties related; Aussies Abroad in Europe…

I was flicking through the ‘F2 Index’ database to research the FJ/F3 race results of David Walker (article coming together very slowly) and Gavin Youl and it occurred to me just how many Australian’s ‘had a crack’ in England/Europe in the 1960’s.

It was a long way away then, 12000 miles- it still is the same distance I expect! but the cost and means of making the journey, then mainly by ship, as flying was so expensive, made it seem further and harder than now. What follows is a quickie list of guys, tracking them through the Junior Formulae. I don’t pretend its complete, do let me know if there are fellows I have missed. The period researched is 1960-1970 in the UK- where the racing was outside the UK I have clearly stated so.

1960 FJ

Steve Ouvaroff Lotus 18 Ford, Frank Gardner Cooper Ford

1961 FJ

Frank Gardner JRRDS Lotus 18 Ford- FG famously straightened cars at the Jim Russell School and was allowed to race them on weekends! Gavin Youl works MRD Ford

1962 FJ

Frank Gardner and Gavin Youl works Brabham BT2 Ford, Steve Ouvaroff Alexis Mk4 Ford, John Ampt Ausper T4 Ford- now there is a story to be written- about Geelong racer, Tom Hawkes’ Ausper project

1963 FJ

Paul Hawkins and Frank Gardner Brabham BT6 Ford- both guys careers took off into F1 within 12 months, Gardner raced big ‘Tasman’ 2.5 litre cars in the ’63 Australian summer as well as BT2, a go home and race summer trend he continued until his permanent return to Australia during 1974. John Ampt Alexis Mk5 Ford, Martin Davies Lotus 20 Ford

1964 F3

Martin Davies Lotus 20 Ford (running top 10)

1965 F3

Jim Sullivan Brabham BT15 Ford (he won some kind of Driver to Europe award didn’t he?) (ran top 10)

1966 F3

Jim Sullivan and Wal Donnelly Brabham BT18 Ford, Dave Walker Brabham BT10 Ford- all 3 ran under the ‘Team Promecom’ banner racing in Europe

1967 F3

Tim Schenken Lotus 22 Ford- made an immediate splash in this self prepared ‘ole clunker, having learned many of the Pommie circuits in 1966 aboard a Ford Anglia twin-cam.

David Walker Merlyn Mk10 Ford with his racing the on the road ‘gypsy existence’ in Europe going from race to race living on start and prize money. Kurt Keller, Barry Collerson and Wal Donnelly all raced Merlyn Mk10 Fords (Donnelly occasionally his BT18) throughout Europe that summer no doubt offering each other lots of support. All four were Sydneysiders, mind you they did not all do the same meetings by the look of it

1968 FF&F3

Tim Schenken won both the British FF and F3 championships in the same year, a feat never achieved before or since, and took the Grovewood Award. He raced a Merlyn and Chevron B9 Ford respectively.

Walker also ‘stepped back’ to FF that season to successfully re-launch his career. John Gillmeister Lotus 32 Ford- F3, Wal Donnelly Brabham BT18 & BT21 Ford F3 in Europe

1969 FF&F3

Tim Schenken Brabham BT28 Ford F3, John Gillmeister Lotus 35 Ford.

Dave Walker won the Les Leston FF C’ship in a Lotus 61 and joined the works Lotus F3 Team later in the season- Lotus 59 Ford and was immediately in the leading group (with his dominant Lotus 69 F3 season in 1971, the same year he made his F1 debut)

Jim Hardman raced a Brabham BT21B Ford in F3. He returned to Oz in 1975, after a stint running the Bob Jane/Frank Gardner Racing Drivers School at Calder he prepared cars for others, designed and built 3 ANF2 cars- one of these Hardman JH2 Fords won the ANF2 title in Richard Davison’s hands. He prepared championship winning cars for several drivers/team owners and is still in the business in outer Melbourne.

Buzz Buzaglo Merlyn Mk11 FF, I wrote a feature about Buzz a while back, click on the links at the end of the article to read it.

Vern Schuppan Makon MR7 FF

1970 FF&F3

Tim Schenken broke into F1 in sad circumstances- he joined Frank Williams and raced the De Tomaso after Piers Courage death.

Dave Walker GLT Lotus Lotus 59 Ford- 2nd in BRSCC F3 C’ship, John Gillmeister Brabham BT28 Ford.

Alan Jones, a couple of races in a Lotus 41 Ford and then late in the season in a Brabham BT28 Ford running down the back at this early stage (Jones F3 breakthrough and breakout of F3 season was in 1973)

Buzz Buzaglo Merlyn Mk11 FF (Buzaglo raced in F3 in 1973/4) Vern Schuppan works Palliser FF (Vern’s ascension was in ’71 when he won the first British F Atlantic series in a Palliser and was picked up by BRM in F1)

As to others, Aussie touring car ace Brian Muir carved a great career for himself in the sixties and seventies racing tourers and occasionally sports-racers in the UK and Europe.

Speaking of ‘Taxis’, Shepparton’s Bryan Thomson sold his truck business and took his ex-Beechey Mustang to the UK and raced it for 2 seasons in the mid-sixties before coming back to Oz and being a force in racing as either a driver or entrant for a couple of decades.

John Raeburn raced a Ford GT40 and a Porsche in endurance events in 1966-8 with Tim Schenken an occasional co-driver in the longer events.

As I say, it’s a quickie list- let me know who I have forgotten in that 1960-1970 period, it would be great to assemble a complete list. I’ll attack other decades another time after the going ‘cross-eyed’ exercise in creating the list above abates.

I’m also interested in what became of each of these guys and am keen to hear from any of you who can help flesh out the stories other than for the ‘stars’ of course, the histories of whom are well known.

Bibliography…

Ten Tenths Forum especially Denis Lupton, Ron Tauranac website, F2 Index, ‘Brabham, Ralt, Honda: The Ron Tauranac Story’ Mike Lawrence, ‘The Jack Brabham Story’ Jack Brabham with Doug Nye, Eoin Young article in MotorSport August 2011

Photo Credits…

Getty Images, John Ellacott, Sutton Photographics, Ed Holly Collection

Tailpiece: Beautiful portrait of  25 year old works Brabham FJ pilot, Gavin Youl at Rouen on 8 July 1962…

(Sutton)







Andrew McCarthy Ralt RT4 Ford ahead of Benetton BMW and Cheetah Mk8 Ford at Phillip Island (VHRR)

If Bathurst is ‘The Cradle Of Australian Motor Racing’ (1) then surely  Phillip Island is its ‘Birthplace’, given the early Australian Grands’ Prix held on the road circuit not too far from the permanent track we now all know so well…

I’ve always had a sense of the history of the place, as a competitor you get a twinge of excitement the week before and as you cross the bridge from San Remo to Newhaven on the Island itself your sphincter twitches a tad such are the speeds of the circuit. My top gear at Winton short circuit is third in my Van Diemen Formula Ford at the Island, you are motoring fast there even in a car without a surfeit of power.

The meeting has become ‘Bigger Than Ben Hur’, too many entries actually, yer don’t get a lot of bang for your entry fee buck these days but it’s still one of the great Historic Meetings in Australia. There are always a few ‘furriners’ who double enter their cars at the Island and Albert Park for the F1 Gee Pee historic event so there are plenty of  different cars to see each year.

I’m not racing this year but I have been helping ‘me mate Andrew McCarthy prepare his Ralt RT4 Formula Pacific for the rigors of the weekend.

Ron Tauranac is regarded by many of his peers as the ‘High Priest’ of production racing car designers, ignoring the two World Constructors Championships his bespoke Brabham F1 cars won in 1966/7!

The Ralt RT2/3/4/5 F2/F3/FA-Pacific/FSV cars are one of the great series of customer racers of all time. They were winners for lots of customers in all of these classes across the globe in the 1980’s. The Ralt RT4 pretty much did to Formula Atlantic/Pacific what the Lola T330/332 did to F5000, that is, help weaken the class for a while such was their dominance.

I will get around to writing about these cars in detail eventually, RT4 ‘261’, the 1981 Australian GP winning car driven by Roberto Moreno I owned for a while so I won’t prattle on about the background to these cars now, i’ll save it for the article on Roberto’s racer. For every RT4 driven by a hero ten were sold to normal customers whose bums pointed to the ground in much the same way as yours and mine.

Dan Carmichael, Ralt RT4 Ford ‘354’ at Brainard Intl, ‘Jack Pine Sprints’ National Races, 1984 (Winker)

McCarthy’s car ‘354’ is one of these cars, a 1982 chassis, the first RT4’s were 1980 models; it was sold to Dan Carmichael a ‘doyen’ for decades in American SCCA Club Racing. So in the pantheon of drivers he is somewhere between a hero and a regular customer!

‘Fatlantic’ on TrackForum.com said of Carmichael ‘…without a doubt THE MAN in club racing and perhaps of any sport was Dan Carmichael. He…was still a winner and national champ in the fastest SCCA class of all, Formula Atlantic at the age of 80++!!! But thats not all, Dan was a WW2 fighter ace (Hellcats) and then flew jets in the military until the mid 1960’s when they threw him out because he was too old’.

‘Then he took up racing and for the next 35 years won several championships and races usually in very fast sportsracers and formula cars. But there is more, the very first live televised sports event was a college baseball game in the 1940’s, Dan Carmichael was the winning pitcher for Princeton! In the early 1980’s Dan was the Ohio state amateur golf champion (not just for his age bracket). He had a successful engineering firm and was the president of the Columbus Chamber of Commerce for many years and was a winning tournament racketball player until his 80’s when his knees got too bad’.

‘…Always a true gentleman, when I raced against him if you pointed him by he would politely wave as he blew past you. I used to wait until I knew we were coming up to a busy part of the track, but he never forgot to wave, he must have been driving at 150mph with no hands on the wheel, at 80 years old!!! A TRULY great man and a role model for all of us’. It would be great to hear from any of you who know about Carmichael.

Dan first raced the Ralt in October 1982, crashing it badly enough 12 months later to need a new tub which was built by Mark Bahner in late 1983. The car passed through several hands in the US before being purchased by one of the ‘Doyens’ of Australian Historic Racing, former national Formula Ford Champion Richard Carter circa 2002. Richard ran at the front of the fields in the very well developed car before selling it to Matt Lloyd in WA, Lloyd sold it to Andrew not long before his untimely demise in 2008.

McCarthy is a pretty good mechanic for a stockbroker and prepares the car in his home workshop in a twee inner eastern Melbourne suburb. The setup is small but works fairly well, mind you, the passing parade of lissom young Armadale ladies working out in the park opposite is not particularly conducive to the concentration levels needed for the important car preparation task at hand.

Peter Brennan of ‘Racers Retreat’ fame (click the bar at the top of the site) provides lots of advice, not that he says Andrew listens to much of it, and specialist capability inclusive of engine maintenance. That’s been the major task this week, the Jennings built ‘big valve’ Ford Cosworth BDD 1.6 litre engine ingested a washer which helped retain the air intake ‘snorkel’ to its baseplate at Winton in May last year- whilst huge carnage, ‘nuclear fission’ inside the engine was avoided prudence suggested it was a good idea to pull the engine out and send it off to PB, who is not too far away in Burwood.

The motor needed pistons, rings, bearings and valves. The engine developed 212bhp @ 8500rpm last week with another 700rpm to come. In Melbourne’s heat the thing was getting too hot to give it a ‘big ‘tug’, a full power run on Brennan’s dyno. Click on this link to an article on Formula Atlantic/Pacific, which includes information on the engines used in the class;

https://primotipo.com/2015/10/18/keke-rosberg-attacks-the-pukekohe-chicane-new-zealand-grand-prix-january-1978/

The rear endcase of the Hewland FT200 ‘box is a bespoke Ralt casting which incorporates a mount for the wing support post (Bisset)

McCarthy holding his bell-housing above, RT4 awaits its engine. The engine bay is big, there is plenty of space for a variety of engines and moving them backwards and forwards in the monocoque chassis to alter weight distribution as needed for different classes or as ideas about such things (weight distribution) evolved from year to year. Compare this shot with the one below and note how the whole rear end ‘wheels away’ obviating the need to realign the suspension if time is short- which it is in this case!

Tauranac used aluminium ‘legs’ or extensions either side of the main chassis section to attach the engine rather than a tubular steel subframe. You can see by reference to this shot (below) and the one above where the aluminium cross beam attaches, with the rear end attached, via 4 high tensile bolts each side, to each of the ‘leg extensions’.

See the mechanical tach drive (photo below) off the back of the exhaust cam, 48DCO2 Weber carbs (fuel injection was not allowed by the FA regs) and inlet manifolds which are Jennings own castings. The dry sump tank is to the right of the ‘right leg’ with a red cap. In front of it is the dull yellow coloured plastic oil catch tank, you can just see the slim, red battery mounted flush along the side of the ‘leg’ extension. Clutch is a twin-plate Tilton.

(Bisset)

When the car was rebuilt after its ’83 prang Carmichael fitted ’83 spec RT4 rocker rear suspension (above) rather than the earlier (‘80/1/2) simple conventional coil spring/shock unit which was cleverly done by RT, but the rocker setup cleans up the airflow thru the all important ground effect tunnels even more. Calipers are AP-Lockheed, discs cast iron. Brakes went outboard at the rear in the G/E period again to keep bits and pieces outta the sidepods where they mucked up airflow. See the canisters for the Fox adjustable shocks- this photo shows just how independent from the rest of the car the back bit is.

Gearbox is, of course, a ubiquitous Hewland, the FT200 pretty much de-rigour in F2 since 1967. Andrews is FT200 #1561, I wonder if that means Mike Hewland’s amazing Maidenhead (its worth a visit to the factory folks) outfit had built 1561 of these ‘trannies between 1967 and 1982?! Look closely under the box and you can see the gold coloured frame to which the lower wishbones on either side mount.

McCarthy is a press on kinda driver, feisty as you might expect of a fellow of Irish catholic descent. He is very quick considering how few miles he does. Had a few FF2000 races on a business/pleasure trip to the UK in his youth many decades ago and has competed in historic racing for about 15 years. Nice view of the sidepods and lower rear wishbones, robust tho Tauranac’s chassis are they are not built to withstand Learjet type take-offs and landings. This Winton contretemps creased the chassis quite badly (McCarthy Collection)

This attempt at aerobatics at Winton in 2013, impressive as it is was Andrew, was not conducive to survival of ‘354’s second chassis and so it was off to Mordialloc to have a chat to Mike Borland about repair.

The builder of Spectrum Racing Cars diagnosed a crease from McCarthy’s ungodly rear end assault upon another competitor and other wear over the decades from previous misdemeanours- replacement of the tubs inner and outer aluminium skins was the only option, the quality of the workmanship superb.

As of this Wednesday evening, the car loaded up, so with luck our hero will be on-circuit on Thursday.

Do come and find the red RT4 #112 in the paddock amongst the Group Q and R entries, and say gedday, hopefully it will be a fun weekend…

Credits…

1 ‘Bathurst: The Cradle of Australian Motor Racing’ John Medley, Jerry Winker, VHRR, McCarthy Collection




Jack Brabham ponders wing settings on his Brabham BT26 Repco during the Canadian Grand Prix weekend at Mont Tremblant, 22 September 1968…

I blew my tiny mind when Nigel Tait sent me the photo, neither of us had any idea where it was. A bit of judicious googling identified the location as Mont Tremblant, Quebec, a summer and winter playground for Canadians 130km northwest of Montreal.

Regular readers will recall  Nigel as the ex-Repco Brabham Engines Pty. Ltd. engineer who co-wrote the recent Matich SR4 Repco article (a car he owns) and has been helping with the series of articles on Repco’s racing history I started with Rodway Wolfe, another RBE ‘teamster’ a couple of years ago.

When Nigel left Repco in the ACL Ltd management buyout of which he was a part, he placed much of the RBE archive with his alma mater, RMIT University, Melbourne. Its in safe hands and available to those interested in research on this amazing part of Australian motor racing history. The archive includes Repco’s library of photographs. Like every big corporate Repco had a PR team to maximise exposure from their activities including their investment in F1. The Mont Tremblant shot is from that archive and unpublished it seems.

Its one of those ‘the more you look, the more you see’ shots; from the distant Laurentian Mountains to the pitlane activity and engineering of the back of the car which is in great sharpness. It’s the back of the BT26 where I want to focus.

The last RBE Engines article we did (Rodway, Nigel and I) was about the ’67 championship winning SOHC, 2 valve 330bhp 740 Series V8, this BT26 is powered by the 1968 DOHC, 4 valve 390bhp 860 Series V8. It was a very powerful engine, Jochen plonked it on the front row three times, on pole twice, as he did here in Canada in 1968. But it was also an ‘ornery, unreliable, under-developed beast. Ultimately successful in 4.2 litre Indy and 5 litre Sportscar spec, we will leave the 860 engine till later for an article dedicated to the subject.


Check out the DG300 Hewland 5 speed transaxle and part of the complex oil system beside it to feed the 860. Also the big, beefy driveshafts and equally butch rubber donuts to deal with suspension travel. It’s interesting as Tauranac used cv’s in earlier designs, perhaps he was troubled finding something man enough to take the more powerful Repco’s grunt, the setup chosen here is sub-optimal in an engineering sense.

The rear suspension is period typical; single top link, inverted lower wishbone, radius rods leading forward top and bottom and coil spring/damper units. It appears the shocks are Koni’s, Brabham were Armstrong users for years.

The uprights are magnesium which is where things get interesting. The cars wings that is, and the means by which they attach to the car…

See the beautifully fabricated ‘hat’ which sits on top of and is bolted to the uprights and the way in which the vertical load of the wing applies it’s force directly onto the suspension of the car. This primary strut support locates the wing at its leading edge, at the rear you can see the adjustable links which control the ‘angle on the dangle’ or the wings incidence of attack to the airflow.

I’ve Lotus’ flimsy wing supports in mind as I write this…

Tauranac’s secondary wing support elements comprises steel tube fabrications which pick up on the suspension inner top link mount and on the roll bar support which runs back into the chassis diaphragm atop the gearbox.


The shot above shows the location of the front wing and it’s mounts, this time the vertical force is applied to the chassis at the leading front wishbone mount, and the secondary support to the wishbones trailing mount. This photo is in the Watkins Glen paddock on the 6 October weekend, the same wing package as in use in Canada a fortnight before. The mechanic looking after Jack is Ron Dennis, his formative years spent learning his craft first with Cooper and then BRO. Rondel Racing followed and fame and fortune with McLaren via Project 4 Racing…


Jim Hall and Chaparral 2G Chev wing at Road America, Wisconsin 1968 (Upitis)

The great, innovative Jim Hall and his band of merry men from Midlands, Texas popularised the use of wings with their sensational Chaparral’s of the mid sixties. Traction and stability in these big Group 7 Sportscars was an issue not confronted in F1 until the 3 litre era when designers and drivers encountered a surfeit of power over grip they had not experienced since the 2.5 litre days of 1954-60.

During 1967 and 1968 F1 spoilers/wings progressively grew in size and height, the race by race or quarter of a season at a time analysis of same an interesting one for another time.


Hill’s winged Lotus 49B, Monaco 1968 (Schlegelmilch)

In some ways ‘who gives a rats’ about the first ‘winged Grand Prix win’ as Jim Hall pioneered ‘winning wings’ in 1966, the technology advance is a Group 7 not F1 credit; but Jacky Ickx’ Ferrari 312 win in the horrific, wet, 1968 French Grand Prix (in which Jo Schlesser died a fiery death in the air-cooled Honda RA302) is generally credited as the first, the Fazz fitted with a wing aft of the driver.

But you could equally mount the case, I certainly do, that the first winged GeePee win was Graham Hill’s Lotus 49B Ford victory at Monaco that May.

Chapman fitted the Lotus with front ‘canard’ wings and the rear of the car with a big, rising front to rear, engine cover-cum-spoiler. Forghieri’s Ferrari had a rear wing but no front. The Lotus, front wings and a big spoiler. Which car first won with a wing?; the Lotus at Monaco on 26 May not the Ferrari at Rouen on July 7. All correspondence will be entered into as to your alternative views!


Jacky Ickx’ winning Ferrari 312 being prepared in the Rouen paddock. The neat, spidery but strong wing supports clear in shot. Exhaust in the foreground is Chris Amon’s Fazz (Schlegelmilch)

Lotus ‘ruined the hi-winged party’ with its Lotus 49B Ford wing failures, a lap apart, of Graham Hill and then Jochen Rindt at Montjuic in the 1969 Spanish GP. Both drivers were lucky to walk away from cars which were totally fucked in accidents which could have killed the drivers, let alone a swag of innocent locals.

A fortnight later the CSI acted, banning high wings during the Monaco GP weekend but allowing aero aids on an ongoing basis albeit with stricter dimensional and locational limits.


Mario Andretti has just put his Lotus 49B on pole at Watkins Glen in October 1968, Colin Chapman is perhaps checking his watch to see why regular drivers Hill and Jackie Oliver are being bested by guest driver Andretti who was entered at Monza and Watkins Glen at seasons end! Andretti put down a couple of markers with Chapman then; speed and testing ability which Chapman would return to nearly a decade later. More to the point are the wing mounts; direct onto the rear upright like the Brabham but not braced forward or aft. Colin was putting more weight progressively on the back of the 49 to try and aid traction, note the oil reservoir sitting up high above the ‘box. Stewart won in a Matra MS10, Hill was 2nd with both Andretti and Oliver DNF (Upitis)

Chapman was the ultimate structural engineer but also notoriously ‘optimistic’ in his specification of some aspects of his Lotus componentry over the years, the list of shunt victims of this philosophy rather a long one.

Lotus wing mounts are a case in point.

Jack Oliver’s ginormous 125mph French GP, 49B accident at Rouen in 1968 was a probable wing mount failure, Ollie’s car smote various bits of the French countryside inclusive of a Chateau gate.

Moises Solana guested for Lotus in his home, Mexican GP on 3 November, Hill won the race whilst Solana’s 49B wing collapsed.

Graham Hill’s 49B wing mounts failed during the 2 February 1969 Australian Grand Prix at Lakeside, Queensland. Then of course came the Spanish GP ‘Lotus double-whammy’ 3 months after the Lakeside incident on 4 May 1969.


Faaaarck that was lucky one suspects the Lotus mechanics are thinkin’!? The rear suspension and gearbox are 200 metres or so back up the road to the right not far from the chateau gate Ollie hit. It was the first of several ‘big ones’ in his career (Schlegelmilch)

For the ‘smartest tool in the shed’ Chapman was slow to realise ’twas a good idea to finish races, let alone ensure the survival of his pilots and the punters.

I’m not saying Lotus were the only marque to have aero appendages fall off as designers and engineers grappled with the new forces unleashed, but they seemed to suffer more than most. Ron Tauranac’s robustly engineered Brabhams were race winning conveyances generally devoid of bits and pieces flying off them given maintenance passably close to that recommended by ‘Motor Racing Developments’, manufacturers of Ron and Jack’s cars.

The Brabham mounts shown earlier are rather nice examples of wings designed to stay attached to the car rather than have Jack aviating before he was ready to jump into his Piper Cherokee at a race meetings end…

‘Wings Clipped’: Click on this article for more detail on the events leading up to the CSI banning hi-wings at the ’69 Monaco GP…https://primotipo.com/2015/07/12/wings-clipped-lotus-49-monaco-grand-prix-1969/

Credits…

Nigel Tait, Repco Ltd Archive, Rainer Schlegelmilch, Cahier Archive, Alvis Upitis

Etcetera…

Hill P, ‘Stardust GP’ Las Vegas, Chaparral 2E Chev 1966


Now you see it, now you don’t; being a pioneer and innovator was the essence of the Chaparral brand, but not without its challenges! Phil Hill with 2E wing worries at Las Vegas in 1966, he still finished 7th. Jim Hall was on pole but also had wing problems, John Surtees’ wingless Lola T70 Mk2 Chev won the race and the first CanAm Championship  (The Enthusiast Network)

The 13 November 1966 ‘Stardust GP’ at Las Vegas was won by John Surtees Lola T70 Mk2 Chev, CanAm champion in 1966. Proving the nascent aerodynamic advances were not problem free both Jim Hall, who started from pole and Phil Hill pictured here had wing trouble during the race.

The Chaparral 2E was a development of the ’65 2C Can Am car (the 2D Coupe was the ’66 World Sportscar Championship contender) with mid-mounted radiators and huge rear wing which operated directly onto the rear suspension uprights. A pedal in the cockpit allowed drivers Hall and Hill to actuate the wing before corners and ‘feather it’ on the straights getting the benefits in the bendy bits without too much drag on the straight bits. A General Motors ‘auto’ transaxle which used a torque converter rather than a manual ‘box meant the drivers footbox wasn’t too crowded and added to the innovative cocktail the 2E represented in 1966.

Its fair to say the advantages of wings were far from clear at the outset even in Group 7/CanAm; McLaren won the 1967 and 1968 series with wingless M6A Chev and M8A Chev respectively, winning the ’69 CanAm with the hi-winged M8B Chev in 1969. Chaparral famously embody everything which was great about the CanAm but never won the series despite building some stunning, radical, epochal cars.

phil

Phil Hill relaxed in his 2E at Laguna Seca on 16 October 1966, Chaps wing in the foreground, Laguna’s swoops in the background. Phil won from Jim Hall in the other 2E (TEN)

Hill G, Monaco GP, Lotus 49B Ford 1968


Interesting shot of Hill shows just how pronounced the rear bodywork of the Lotus 49B was. You can just see the front wing, Monaco ’68 (unattributed)

Hill taking a great win at Monaco in 1968. Graham’s was a tour de force of leadership, strength of mind and will. Jim Clark died at Hockenheim on 7 April, Monaco was on 26 May, Colin Chapman was devastated by the loss of Clark, a close friend and confidant apart from the Scots extraordinary capabilities as a driver.

Hill won convincingly popping the winged Lotus on pole and leading all but the races first 3 laps harnessing the additional grip and stability afforded by the cars nascent, rudimentary aerodynamic appendages. Graham also won the Spanish Grand Prix on 12 May, these two wins in the face of great adversity set up the plucky Brits 1968 World Championship win. Remember that McLaren and Matra had DFV’s that season too, Lotus did not have the same margin of superiority in ’68 that they had in ’67, lack of ’67 reliability duly noted.

graham

Hills 49B from the front showing the ‘canard’ wings and beautifully integrated rear engine cover/spoiler (Cahier)

Ickx, Rouen, French GP, Ferrari 312  1968


Mauro Forghieri, Ferrari’s Chief Engineer developed wings which were mounted above the engine amidships of the Ferrari 312. Ickx put them to good use qualifying 3rd and leading the wet race, the Belgian gambled on wets, others plumped for intermediates.

Ickx’ wet weather driving skills, the Firestone tyres, wing and chaos caused by the firefighting efforts to try to save Schlesser did the rest. It was Ickx’ first GP win.

jacky

It looks like Rainer Schlegelmilch is taking the shot of Jacky Ickx at Rouen in 1968, note the lack of front wings or trim tabs on the Ferrari 312 (Schlegelmilch)

Tailpiece: The ‘treacle beak’ noting the weight of Tauranac’s BT26 Repco is none other than ‘Chopper’ Tyrrell. Also tending the car at the Watkins Glen weighbridge is Ron Dennis, I wonder if Ken’s Matra MS10 Ford was lighter than the BT26? If that 860 engine had been reliable Jochen Rindt would have given Jackie Stewart and Graham Hill a serious run for their money in 1968, sadly the beautiful donk was not the paragon of reliability it’s 620 and 740 Series 1966/7 engines generally were…


Finito…



hill 1

(Brian Watson)

Graham Hill having a squirt of  Jack’s Brabham BT26A Ford in British GP practice, Silverstone July 1969…

GH in a Brabham is not such a big deal; he raced F2 Brabhams with success for years as well as Tasman Formula ‘Intercontinental’ Brabhams in the mid-sixties. Later he was the pilot of Ron Tauranac’s intriguing ‘Lobster Claw’ BT34 in 1971 but he was a Lotus F1 driver in 1969, so ’twas a bit unusual  to practice an opponents car.

puke

Hill’s red Brabham BT11 Climax from Clark’s Lotus 32B and Aussie Lex Davison Brabham BT4, all Climax 2.5 FPF powered on the way to an NZGP win for Graham. Pukekohe, 9 January 1965. Hill also raced an earlier BT7A in the ’66 Tasman for David McKay’s Scuderia Veloce, the entrant of the car shown, he was familiar with Brabham ‘GP’ cars long before 1969! (unattributed)

Jack was still recovering from a testing accident at Silverstone in June when a Goodyear popped off a front rim, his car ploughed into an earth bank, his ‘equal worst accident’ with the Portuguese Grand Prix one in 1959. He lay trapped in the car with a badly broken ankle, Cossie V8 screaming at maximum revs until he punched the ignition cutout and extinguishers to minimise the chance of the pool of fuel in which he lay igniting. Eventually a touring car also on the quiet circuit mid week stopped and raised the alarm.

Jacky Ickx driving the other Brabham was late for Silverstone’s first session, all timed for grid positions in those days, so Tauranac had 2 cars idle.

Graham and teammate Jochen Rindt were peeved with Colin Chapman, to say the least, as the Lotus transporter was not in the paddock when the session got underway. Graham was ‘ready to rock’ all suited up but had no car to do so and was more than happy to put in a few laps for Tauranac. Rindt remained in his ‘civvies’ and fumed as the rest of the field practiced.

hill 2

Ron Tauranac giving Hill a few tips on his very quick, twice a GP winner in ’69, BT26. ‘Just don’t over rev the thing for chrissakes Graham, Jack will kill me if you do…’ Is that Ron Dennis at right? (unattributed)

1969 was the year of 4WD experimentation for Matra, McLaren, Lotus and Cosworth. Ultimately, very quickly in fact, 4WD was determined an F1 blind alley; the traction the engineers sought was more cost effectively provided by advances in tyre technology, Goodyear, Firestone and Dunlop were all slugging it out in F1 at the time, none of ‘yer control formula’ bullshit then. The effectiveness of the ‘low wings’ mandated from the ’69 Monaco GP also played its part in getting grip.

Chapman’s issue was pursuading his pilots to treat the Lotus 63 Ford, his 4WD design seriously, to test it with a view to developing it rather than to humor him. 4WD was successful at Indy; Chapmans ’68 Indy Lotus 56 ‘wedge’ was 4WD and came within an ace of winning the race, so was the ’69 Lotus 64, ignoring the misfortune surrounding both of these cars.

It was a challenge to get Rindt into the thing at all but he did finish 2nd in the August 1969 Oulton Park Gold Cup. The result meant nothing though, in front of him was Ickx’ Brabham BT26A but all the cars behind were F5000 and F2 cars not GP machines. Still, it was useful testing for Chapman if not for Rindt, his 4WD view was formed!

Chapman’s solution to his drivers recalcitrance was to sell 2 of his Lotus 49’s, one each to Jo Bonnier and Pete Lovely, leaving only one 49 in Team Lotus’ possession! A car you don’t have is a car you cannot drive. Said drivers were not best pleased.

graham 63

Hill, Lotus 63 Ford 4WD, British GP practice, Silverstone July 1969. ‘Turn in bitch!’, understeer and the inability of these cars to respond to delicate throttle inputs plus excessive weight were the main performance deficiency issues. As well as the absence of the electronic trickery which helped make 4WD work into the 80’s (Brian Watson)

When the showdown with Chapman occurred and the speed, or lack thereof, of the 63 was clear Col borrowed back the car he sold to Bonnier, GH raced that 49 and JoBo the 63. Chapman rescinded the contract with Lovely.

The ever restless Lotus chief didn’t give up on 4WD in Fl, the gas turbine powered Lotus 56 campaigned in some 1971 events had its moments and potentially a great day in the wet at Zandvoort until Dave Walker ‘beached it’.

The 49 raced on into 1970 and in ‘C’ spec famously won the Monaco GP in Rindt’s hands before the Lotus 72, Chapman’s new 2WD sensation, which made its debut at Jarama was competitive.

grham 49

Hill races his Lotus 49B to 7th place. Silverstone 1969 GP (unattributed)

At Silverstone Hill raced the 49B to 7th having qualified 12th and Bonnier retired the slow 63 with a popped engine. John Miles making his F1 debut raced the other Lotus 63 to 9th, the young, talented Lotus engineer stroked the car home from grid 14.

Stewart won a thrilling high speed dice on the former airfield with Rindt, only ruined when Jochen’s wing endplate chafed a rear Firestone, some say it was the greatest British GP ever, on the way to his world title in a Matra MS80 Ford.

It would be interesting to know Graham’s opinion of the Brabham BT26 compared to his 49, the competitiveness of which, especially in Rindt’s hands not at all in doubt despite the 49’s middle age, it was a little over 2 years old in 1969.

I am a huge Graham Hill fan, he was well past his F1 best by the time i became interested in motor racing in 1972 but he was still quick enough to take F2 and Le Mans wins then, he was my kinda bloke, sportsman and champion. A statesman for his sport and country.

joc and jack

Jochen and Jackie scrapping for the ’69 British GP lead, Jochen’s Lotus 49B with bulk, uncharacteristic understeer. Look closely and you can see the closeness of his LR wing endplate to Firestone tyre, the cause of a pitstop to rectify and then back into the fray only to run outta fuel, the 49 notorious for its incapacity to sometimes scavenge the last few gallons from its tanks. Stewart Matra MS80 Ford (unattributed)

1969 was as tough a year for Hill as 1968 was great.

Jim Clark’s April 1968 death impacted Hill deeply on a personal level, they had been friends for years and Lotus teammates since the ’67 Tasman Series. Colin Chapman and Clark were like brothers and whilst Colin struggled with his grief, Hill in a tour de force of character and leadership marshalled Team Lotus by their bootstraps and refocused them on the year ahead. The result, World Titles for Hill and Lotus by the seasons end.

graham and jim

Clark and Hill beside Graham’s Lotus 48 Ford FVA F2 car prior to the start of the Australian Grand Prix, Warwick Farm, 1967. Car behind is Kevin Bartlett’s Brabham BT11 Climax. Clark was 2nd in Lotus 33 Climax FWMV 2 litre, GH DNF with a gearbox failure. JYS won in BRM P261 2.1 litre (History of The AGP)

The Tasman Series in early 1969 showed just how tough a year Graham was going to have within Lotus. Rindt joined them from Brabham and whilst enjoying it, he had committed to Jack verbally to return to Brabham in 1970, landed in the team in the year the Repco 860 quad-cam engine failed consistently.

Jochen had been in GP racing since mid 1964, was a consistent winner in F2 and had taken the 1965 Le Mans classic with Masten Gregory in a Ferrari 250LM, was regarded as one of the fastest guys around, if not the fastest but had still not scored his first GP win. Graham was simply blown-off by a guy with it all to prove, Jochen finally got the breakthrough win at Watkins Glen, the last round of the season in which Graham had what could have been a career ending shunt.

He spun mid race, undid his belts to bump start the car and of course was unable to redo them unaided; he spun again on lap 91, this time the car overturned throwing him out and breaking both his legs badly.

What then followed was a winter of Hill’s familiar grit and determination to be on the South African GP grid in March 1970. He was and  finished 6th in Rob Walkers Lotus 49C Ford.

Quite a guy, G Hill.

graham and col

Team Lotus 1969. Hill, Chapman and Rindt. A tough season all round. With some reliability from his Lotus and mechanical sympathy to it from Rindt, there was a serious opportunity at the title that year, not to be (unattributed)

Etcetera: Lotus 63 Ford…

miles 1

John Miles races the Lotus 63 to 10th on his GP debut at Silverstone 1969. Rounding him up is Piers Courage’ Frank Williams owned Brabham BT26 Ford, he finished 5th at Silverstone in a ripper season in this year old chassis. He emerged as a true GP front runner in ’69 (unattributed)



63 1

Cutaway self explanatory for our Spanish friends! Key elements of 4WD system in blue; see front mounted Ferguson system diff, Ford Cosworth DFV and Hewland DG300 ‘box mounted ‘arse about’ with driveshafts on LHS of cockpit taking the drive fore and aft to respective diffs. Rear suspension top rocker and lower wishbone, coil spring/damper, brakes inboard (unattributed)



miles 2

John Miles, young Lotus engineer and F3 graduate ponders his mount. Lotus 63 Ford. He was later to say the 63 was not so bad, he did more miles in it than anyone else, until he first parked his butt in a conventional Lotus 49! which provided context. Note forward driving position for the time and sheet steel to stiffen the spaceframe chassis. Nice shot of disc, rocker assy and stub axle also (unattributed)



63 2

Fantastic front end detail shot of the Lotus 63. Spaceframe chassis, Lotus first since 1962, beefy front uprights, upper rocker actuating spring/shock, lower wishbone. Ferguson system front diff axle and driveshafts to wheels. Big ventilated inboard discs. Intricate steering linkage from angled rack to provide clearance required (unattributed)



Photo Credits…

Brian Watson…http://www.brianwatsonphoto.co.uk/FormulaOne/races/brit69.html#1, Vittorio Del Basso

Graham Howard ‘History of The Australian GP’

Tailpiece: Tauranac, Hill and the ‘Lobster Claw’ BT34 1971…

ronster

RT seeks feedback from GH during Italian GP practice Monza 1971. Hill Q14 and DNF with gearbox failure on lap 47. GH best results in 1971 5th in Austria and Q4 in France. Teammate Tim Schenken, in his first full F1 year generally quicker than GH in the year old, very good BT33, BT34 not RT’s best Brabham. No doubt RT missed Jack Brabham’s chassis development skills, Jack was on his Wagga Wagga farm from the start of 1971 (unattributed)

Finito…
